Vaira: 2017-12-14 10:00:00 (DOY 348)
Author: Joe Verfaillie
Others: Siyan

Summary: Calibrated North soil CO2 profile, grass growing the FD chamber collars - pulled, powered Phenocam continuously and reset clock.

Vaira
2017-12-14

I arrived with Siyan at about 10am. It was clear, sunny and cool with almost no wind. There was thin fog in the Delta and dew on the grass here. The road is dry but the ground is still somewhat damp maybe from the dew.

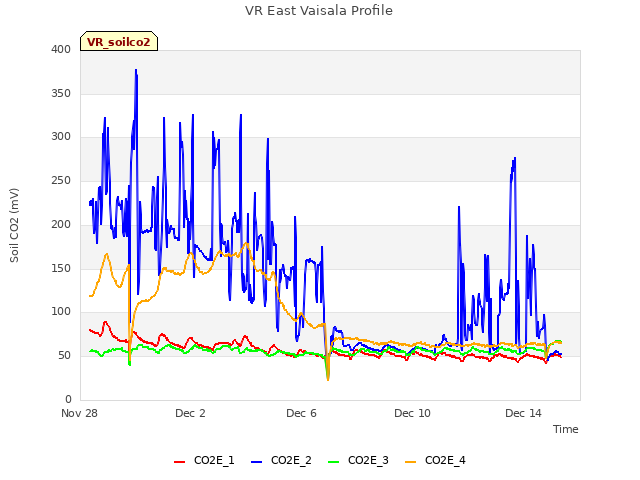

I worked on calibrating the North CO2 profile with zero air. I downloaded the soil co2 data then uploaded a new program that starts recoding 10sec samples when flag 8 is set high. The new program also include four new TCs on the AM 16/32. These were put inside the tubes of the East profile. These TC ends are at about the middle of the CO2 sensor path on roughly the north side of the tube.

We checked inside the FD chambers collars to see if grass had sprouted there. The West location had lots of green grass and herb sprouts. The North location only had a few and the East had a medium amount. We pulled out all the sprouts and reset the chambers.

Siyan did all the data collection and standard fieldwork.

The Phenocam had lost its clock about a week ago. I disconnected its power relay at the tower and wired it directly to the 12V bus so it is now continuously powered. When the Phenocam clock read 2000-01-06 10:02 I reset it to 2017-12-14 11:10

Field Data

No tank data

Well Depth

Date	Location	Depth (feet)
2017-12-14	TZ_floor	28.6
2017-12-14	TZ_road	37.4
2017-12-14	TZ_tower	33.6

mode = both
Moisture Point Probes TZ
Array ( [0] => Tower_1 [1] => Floor_South_1 [2] => Floor_East_1 [3] => Floor_West_1 [4] => Soil_Transect_4_1 [5] => Soil_Transect_3_1 [6] => Soil_Transect_2_1 [7] => Soil_Transect_1_1 [8] => SoilCO2_West_A_1 [9] => SoilCO2_West_B_1 [10] => SoilCO2_West_C_1 [11] => Tower_2 [12] => Floor_South_2 [13] => Floor_East_2 [14] => Floor_West_2 [15] => Soil_Transect_4_2 [16] => Soil_Transect_3_2 [17] => Soil_Transect_2_2 [18] => Soil_Transect_1_2 [19] => SoilCO2_West_A_2 [20] => SoilCO2_West_B_2 [21] => SoilCO2_West_C_2 [22] => Tower_3 [23] => Floor_South_3 [24] => Floor_East_3 [25] => Floor_West_3 [26] => Soil_Transect_4_3 [27] => Soil_Transect_3_3 [28] => Soil_Transect_2_3 [29] => Soil_Transect_1_3 [30] => SoilCO2_West_A_3 [31] => SoilCO2_West_B_3 [32] => SoilCO2_West_C_3 [33] => Tower_4 [34] => Floor_South_4 [35] => Floor_East_4 [36] => Floor_West_4 [37] => Soil_Transect_4_4 [38] => Soil_Transect_3_4 [39] => Soil_Transect_2_4 [40] => Soil_Transect_1_4 [41] => SoilCO2_West_A_4 [42] => SoilCO2_West_B_4 [43] => SoilCO2_West_C_4 )

0000

Date	DOY	Rep	Depth	Tower_1	Floor_South_1	Floor_East_1	Floor_West_1	Soil_Transect_4_1	Soil_Transect_3_1	Soil_Transect_2_1	Soil_Transect_1_1	SoilCO2_West_A_1	SoilCO2_West_B_1	SoilCO2_West_C_1	Tower_2	Floor_South_2	Floor_East_2	Floor_West_2	Soil_Transect_4_2	Soil_Transect_3_2	Soil_Transect_2_2	Soil_Transect_1_2	SoilCO2_West_A_2	SoilCO2_West_B_2	SoilCO2_West_C_2	Tower_3	Floor_South_3	Floor_East_3	Floor_West_3	Soil_Transect_4_3	Soil_Transect_3_3	Soil_Transect_2_3	Soil_Transect_1_3	SoilCO2_West_A_3	SoilCO2_West_B_3	SoilCO2_West_C_3	Tower_4	Floor_South_4	Floor_East_4	Floor_West_4	Soil_Transect_4_4	Soil_Transect_3_4	Soil_Transect_2_4	Soil_Transect_1_4	SoilCO2_West_A_4	SoilCO2_West_B_4	SoilCO2_West_C_4	Spacial Count
2017-12-14	348	0	nan	19.4	188	30.5	25.8	17.9	22.3	18.5	10.3	25.6	26.1	12.7	28	30.4	31.9	20.6	22.2	30.1	30.1	12.1	24	17.6	28.6	27.4	37.4	38.5	31	22.3	29	30.7	25.4	35.2	32.1	36	35.7	35.1	42	41.4	26.2	41.1	38	16.5	39.1	45.7	45.4
2017-12-14	348	1	nan	18.5	18.5	31.4		17.6	23.5	18.5	10.3	26.7	26.1	12.4	27.7	31	31.6	21.6	21.9	30.1	29.2	11.8	24	17.6	26.3	26.2	37.4	38	32.1	21.8	29.6	30.1	25.1	32.7	31.8	36.6	35.7	36.8	40.3	41.7	25.9	40.8	38.5	16.8	39.1	46	45.1
2017-12-14	348	Avg	0-15cm																																													0
2017-12-14	348	Avg	15-30cm																																													0
2017-12-14	348	Avg	30-45cm																																													0
2017-12-14	348	Avg	45-60cm																																													0

mode = both
Moisture Point Probes VR
Array ( [0] => Solar_Panels_1 [1] => Flux_Tower_1 [2] => Gate_1 [3] => Biomass_Cage_1 [4] => Solar_Panels_2 [5] => Flux_Tower_2 [6] => Gate_2 [7] => Biomass_Cage_2 [8] => Solar_Panels_3 [9] => Flux_Tower_3 [10] => Gate_3 [11] => Biomass_Cage_3 [12] => Solar_Panels_4 [13] => Flux_Tower_4 [14] => Gate_4 [15] => Biomass_Cage_4 )

0000

Date	DOY	Rep	Depth	Solar_Panels_1	Flux_Tower_1	Gate_1	Biomass_Cage_1	Solar_Panels_2	Flux_Tower_2	Gate_2	Biomass_Cage_2	Solar_Panels_3	Flux_Tower_3	Gate_3	Biomass_Cage_3	Solar_Panels_4	Flux_Tower_4	Gate_4	Biomass_Cage_4	Spacial Count
2017-12-14	348	0	nan	16.5	15.3	20.3	12.1	25.8	27.4	19.1	19.7	29.3	15.4	21.8	29.9	41.4	27.4	20.5	29.9
2017-12-14	348	1	nan	12.1	15	20.3	13	25.5	28.6	19.4	19.1	29.3	15.1	22.6	29	40.5	27.1	20.8	30.2
2017-12-14	348	Avg	0-15cm																	0
2017-12-14	348	Avg	15-30cm																	0
2017-12-14	348	Avg	30-45cm																	0
2017-12-14	348	Avg	45-60cm																	0
