Vaira: 2017-11-29 10:00:00 (DOY 333)
Author: Joe Verfaillie
Others: Siyan

Summary: Grass has sprouted, collected FD data, keyboard failing on compute stick, stardot clock set to zero again, swapped 7500 head, collected pond data

Vaira
2017-11-29

Siyan and I arrived at about 10am. It was clear sunny and cool with a light breeze from the southeast. The grass has sprouted and is about 4cm high. There was water in the water hole and puddles on the road. Some of the trees still have a few leaves, but looks much more like winter.

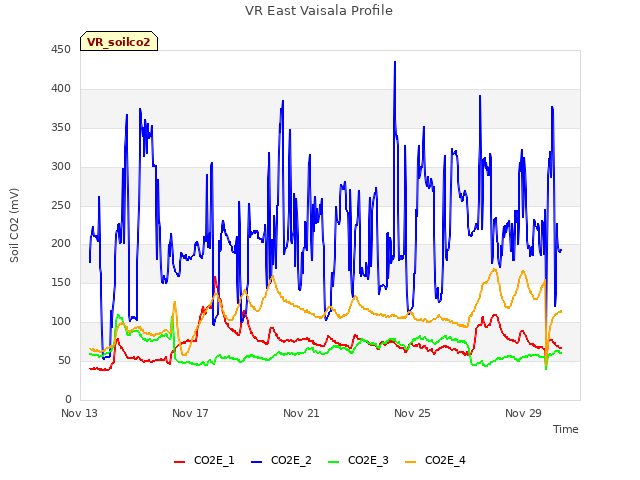

I swapped out the 4cm CO2 probe on the East profile: sn K1310102 was removed and sn L2010067 was installed. The probe that was removed had calibrated okay in the field but started giving erratic values. I started to calibrate the profile with the new probe but discovered that I did not have the calibration program for the CR10x. I will have to do it another time.

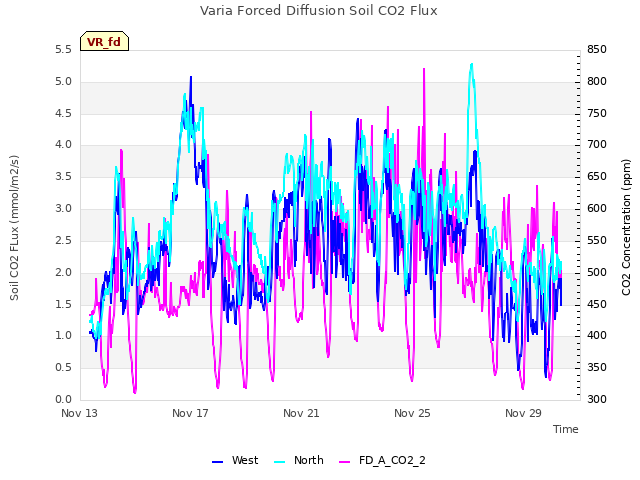

I collected the data from the FD chambers. Next time we should clear the data after collecting.

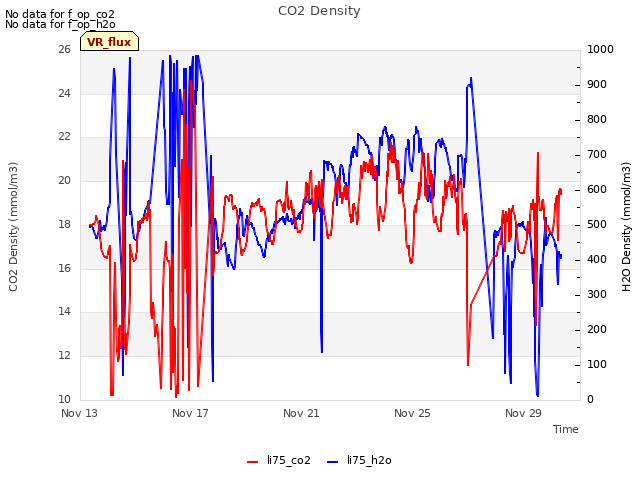

We swapped the 7500 head
Off sn 75H-2514: 424.9ppm CO2, 582.0mmol/m3 H2O, 17.8C, 100.2kPa, 102.0SS
On sn 0065: 435.7ppm CO2, 463.5mmol/m3 H2O, 17.2C, 100.2kPa, 101.4SS

Big change in H2O, but I feel that the new values are better.

The Phenocam clock got reset again. When it read 2000-01-22 9:18:00 I reset it to 2017-11-29 10:44:26. I need to take the Phenocam off the relay and leave it power 24/7.

The keyboard on the computer seems to be disconnecting. Initially I could not get the computer to wake up and did a hard restart. Then while I was changing the Stardot time the mouse and keyboard stopped responding. After another restart they quit again but the computer seemed to be running okay so I left it.

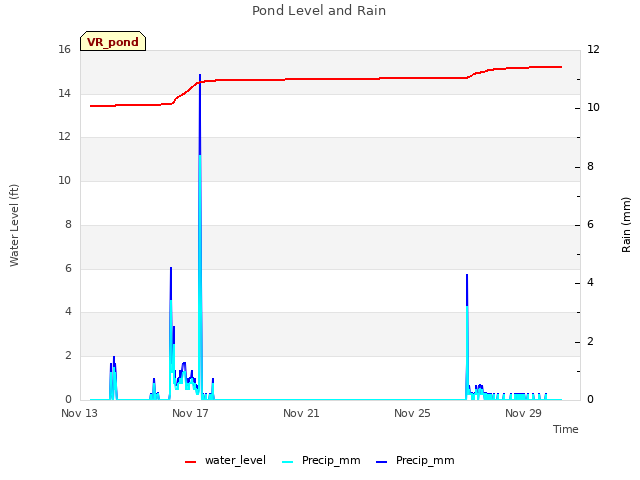

We collected data from the Pond. The water level has come up about two feet to 15.10ft.

Field Data

No tank data

Well Depth

Date	Location	Depth (feet)
2017-11-29	TZ_floor	28.4
2017-11-29	TZ_road	37.2
2017-11-29	TZ_tower	33.3
2017-11-29	VR_pond	15.1

mode = both
Moisture Point Probes TZ
Array ( [0] => Tower_1 [1] => Floor_South_1 [2] => Floor_East_1 [3] => Floor_West_1 [4] => Soil_Transect_3_1 [5] => Soil_Transect_2_1 [6] => Soil_Transect_1_1 [7] => SoilCO2_West_A_1 [8] => SoilCO2_West_B_1 [9] => SoilCO2_West_C_1 [10] => Tower_2 [11] => Floor_South_2 [12] => Floor_East_2 [13] => Floor_West_2 [14] => Soil_Transect_4_2 [15] => Soil_Transect_3_2 [16] => Soil_Transect_2_2 [17] => Soil_Transect_1_2 [18] => SoilCO2_West_A_2 [19] => SoilCO2_West_B_2 [20] => SoilCO2_West_C_2 [21] => Tower_3 [22] => Floor_South_3 [23] => Floor_East_3 [24] => Floor_West_3 [25] => Soil_Transect_4_3 [26] => Soil_Transect_3_3 [27] => Soil_Transect_2_3 [28] => Soil_Transect_1_3 [29] => SoilCO2_West_A_3 [30] => SoilCO2_West_B_3 [31] => SoilCO2_West_C_3 [32] => Tower_4 [33] => Floor_South_4 [34] => Floor_East_4 [35] => Floor_West_4 [36] => Soil_Transect_4_4 [37] => Soil_Transect_3_4 [38] => Soil_Transect_2_4 [39] => Soil_Transect_1_4 [40] => SoilCO2_West_A_4 [41] => SoilCO2_West_B_4 [42] => SoilCO2_West_C_4 [43] => Soil_Transect_4_1 )

0000

Date	DOY	Rep	Depth	Tower_1	Floor_South_1	Floor_East_1	Floor_West_1	Soil_Transect_3_1	Soil_Transect_2_1	Soil_Transect_1_1	SoilCO2_West_A_1	SoilCO2_West_B_1	SoilCO2_West_C_1	Tower_2	Floor_South_2	Floor_East_2	Floor_West_2	Soil_Transect_4_2	Soil_Transect_3_2	Soil_Transect_2_2	Soil_Transect_1_2	SoilCO2_West_A_2	SoilCO2_West_B_2	SoilCO2_West_C_2	Tower_3	Floor_South_3	Floor_East_3	Floor_West_3	Soil_Transect_4_3	Soil_Transect_3_3	Soil_Transect_2_3	Soil_Transect_1_3	SoilCO2_West_A_3	SoilCO2_West_B_3	SoilCO2_West_C_3	Tower_4	Floor_South_4	Floor_East_4	Floor_West_4	Soil_Transect_4_4	Soil_Transect_3_4	Soil_Transect_2_4	Soil_Transect_1_4	SoilCO2_West_A_4	SoilCO2_West_B_4	SoilCO2_West_C_4	Soil_Transect_4_1	Spacial Count
2017-11-29	333	0	nan	35.3	17.6	32.9	23.5	19.7	30.6	16.5	24.4	27.9	15.6	31.8	35.6	35.9	26.1	25.8	31.9	30.7	14.8	24.6	19.4	30.7	28.5	42.1	58.7	34.9	27.4	31	31.5	24.3	33.2	33.8	38.2	36.2	34	29.7	41.4	33.4	46.3	36	13	40	49.1	47.4
2017-11-29	333	1	nan	25.6	23.5	33.2	23.8	25.8	20.5	15.9	23.2	28.2	16.2	31.3	35.9	36.5	24.9	24.9	32.3	30.7	14.5	24.9	20.6	31	27.4	42.1	53.9	34.9	27.6	31.8	31.3	24.6	34.3	34.6	38	36.2	35.4	34	41.7	33.4	45.1	35.4	13	41.4	50	46.8	11.1
2017-11-29	333	Avg	0-15cm																																													0
2017-11-29	333	Avg	15-30cm																																													0
2017-11-29	333	Avg	30-45cm																																													0
2017-11-29	333	Avg	45-60cm																																													0

mode = both
Moisture Point Probes VR
Array ( [0] => Solar_Panels_1 [1] => Flux_Tower_1 [2] => Gate_1 [3] => Biomass_Cage_1 [4] => Solar_Panels_2 [5] => Flux_Tower_2 [6] => Gate_2 [7] => Biomass_Cage_2 [8] => Solar_Panels_3 [9] => Flux_Tower_3 [10] => Gate_3 [11] => Biomass_Cage_3 [12] => Solar_Panels_4 [13] => Flux_Tower_4 [14] => Gate_4 [15] => Biomass_Cage_4 )

0000

Date	DOY	Rep	Depth	Solar_Panels_1	Flux_Tower_1	Gate_1	Biomass_Cage_1	Solar_Panels_2	Flux_Tower_2	Gate_2	Biomass_Cage_2	Solar_Panels_3	Flux_Tower_3	Gate_3	Biomass_Cage_3	Solar_Panels_4	Flux_Tower_4	Gate_4	Biomass_Cage_4	Spacial Count
2017-11-29	333	0	nan	20.9	20.3	25.6	13.8	30.7	30.4	23.1	24.9	32.4	16.5	25.1	32.4	42.3	30.2	25.6	3.4
2017-11-29	333	1	nan	17.1	19.4	25	13.8	30.1	30.1	23.1	25.2	31.3	15.6	34.6	31.3	42.8	30.5	25.1	33.4
2017-11-29	333	Avg	0-15cm																	0
2017-11-29	333	Avg	15-30cm																	0
2017-11-29	333	Avg	30-45cm																	0
2017-11-29	333	Avg	45-60cm																	0
