Tonzi: 2017-11-29 11:00:00 (DOY 333)
Author: Joe Verfaillie
Others: Siyan

Summary: Swapped 7500s, restarted Tower CO2 profile, FD chamber not working, fixed cow fences.

Tonzi
2017-11-29

Siyan and I arrived at about 11am. It was clear, sunny and cool with a little breeze from the southwest. The ground is damp and there are some puddles in the road but the pond level didnâ€™t seem to change much. The grass and herbs have spouted and the grass is about 4cm high.

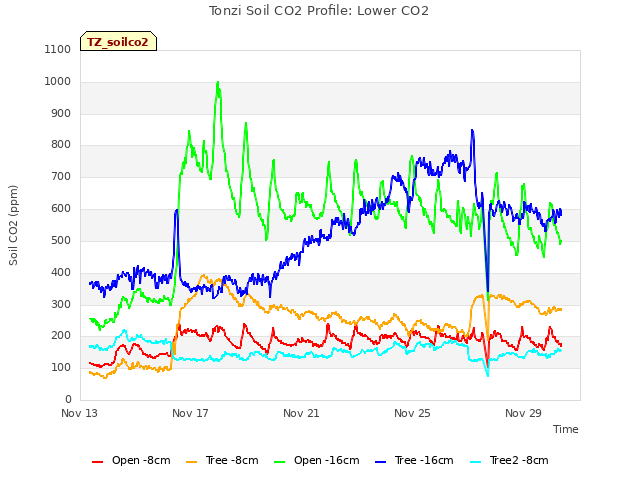

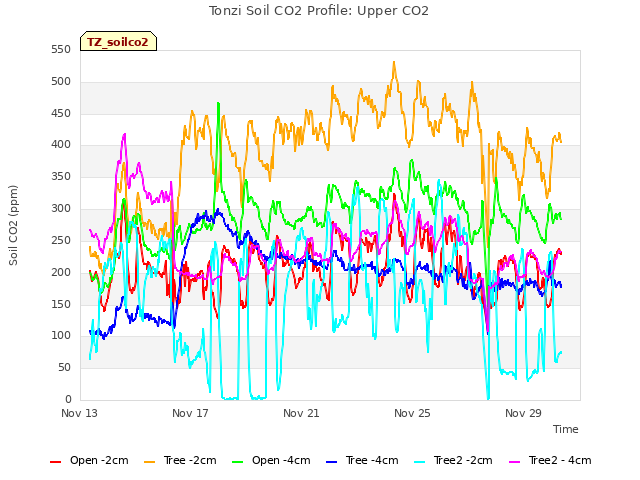

I installed the solenoid switching box for the co2 profile cal gasses and the LI-820 sn CGA-556. The system seemed to be running okay, but when I tried to calibrate, it seemed like there was a leak somewhere. The zero and span were noisy and did not quit reach the expected values. I tried tightening connectors but it still needs some testing. I left it running.

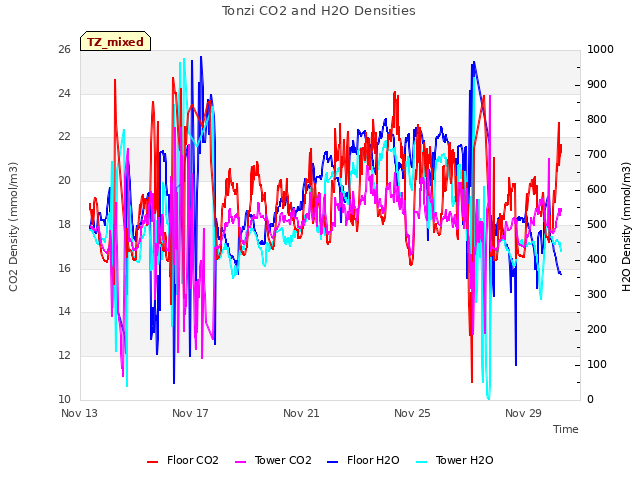

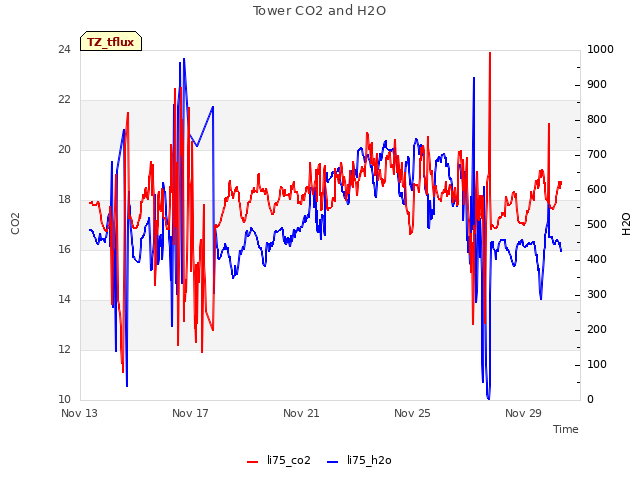

I swapped the Tower 7500
Off sn 75H-2182: 426.0ppm CO2, 514.7mmol/m3 H2O, 13.07C, 99.73kPa, 87.4SS
On sn 75H-2668: 428.9ppm CO2, 453.6mmol/m3 H2O, 13.3C, 99.72kPa, 101.3SS

And swapped the Floor 7500
Off sn 75H-2180: 412.9ppm CO2, 597.2mmol/m3 H2O, 15.29C, 99.76kPa, 95.3SS
On sn 1594: 426.7ppm CO2, 454.4mmol/m3 H2O, 15.21C, 99.75kPa, 101.6SS

Both showed big drops in H2O but I think the new values are better. I saved the configuration before uploading the new one just to be safe.

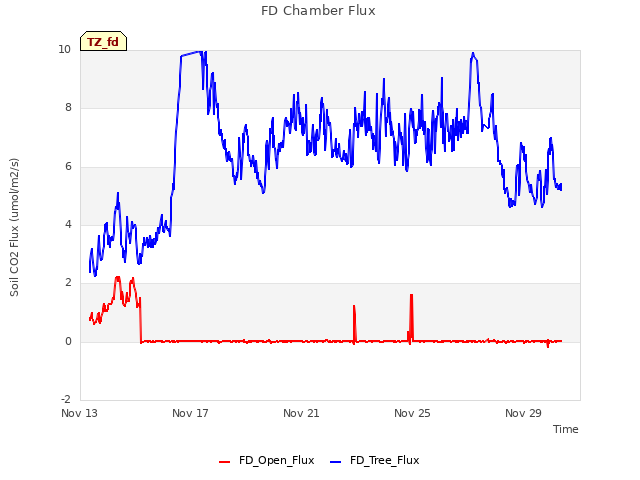

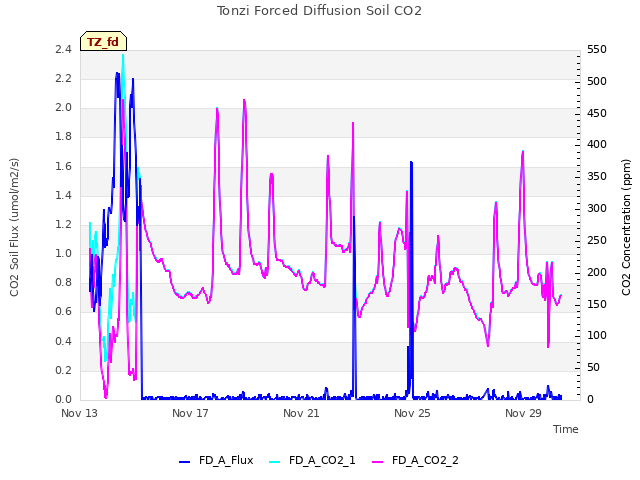

I collected the data from the FD chambers. Next time we should clear the data after collecting. The chamber in the Open location seems to have failed â€“ probably a bad pump as both CO2 concentrations were the same.

All the cow fences had broken wires. We fixed them and turned them on as there are some cows around.

Field Data

No tank data

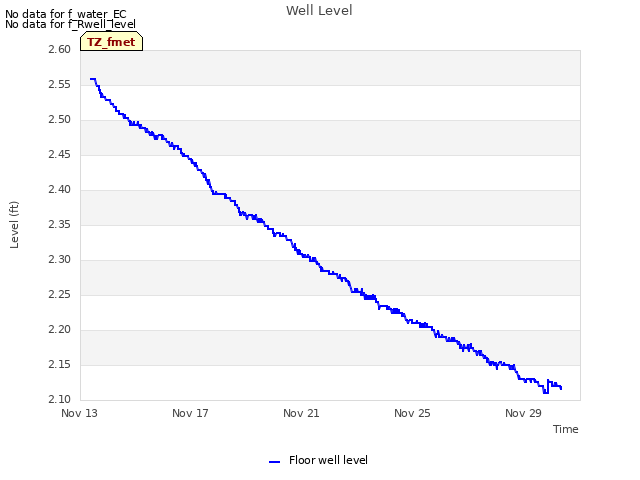

Well Depth

Date	Location	Depth (feet)
2017-11-29	TZ_floor	28.4
2017-11-29	TZ_road	37.2
2017-11-29	TZ_tower	33.3
2017-11-29	VR_pond	15.1

mode = both
Moisture Point Probes TZ
Array ( [0] => Tower_1 [1] => Floor_South_1 [2] => Floor_East_1 [3] => Floor_West_1 [4] => Soil_Transect_3_1 [5] => Soil_Transect_2_1 [6] => Soil_Transect_1_1 [7] => SoilCO2_West_A_1 [8] => SoilCO2_West_B_1 [9] => SoilCO2_West_C_1 [10] => Tower_2 [11] => Floor_South_2 [12] => Floor_East_2 [13] => Floor_West_2 [14] => Soil_Transect_4_2 [15] => Soil_Transect_3_2 [16] => Soil_Transect_2_2 [17] => Soil_Transect_1_2 [18] => SoilCO2_West_A_2 [19] => SoilCO2_West_B_2 [20] => SoilCO2_West_C_2 [21] => Tower_3 [22] => Floor_South_3 [23] => Floor_East_3 [24] => Floor_West_3 [25] => Soil_Transect_4_3 [26] => Soil_Transect_3_3 [27] => Soil_Transect_2_3 [28] => Soil_Transect_1_3 [29] => SoilCO2_West_A_3 [30] => SoilCO2_West_B_3 [31] => SoilCO2_West_C_3 [32] => Tower_4 [33] => Floor_South_4 [34] => Floor_East_4 [35] => Floor_West_4 [36] => Soil_Transect_4_4 [37] => Soil_Transect_3_4 [38] => Soil_Transect_2_4 [39] => Soil_Transect_1_4 [40] => SoilCO2_West_A_4 [41] => SoilCO2_West_B_4 [42] => SoilCO2_West_C_4 [43] => Soil_Transect_4_1 )

0000

Date	DOY	Rep	Depth	Tower_1	Floor_South_1	Floor_East_1	Floor_West_1	Soil_Transect_3_1	Soil_Transect_2_1	Soil_Transect_1_1	SoilCO2_West_A_1	SoilCO2_West_B_1	SoilCO2_West_C_1	Tower_2	Floor_South_2	Floor_East_2	Floor_West_2	Soil_Transect_4_2	Soil_Transect_3_2	Soil_Transect_2_2	Soil_Transect_1_2	SoilCO2_West_A_2	SoilCO2_West_B_2	SoilCO2_West_C_2	Tower_3	Floor_South_3	Floor_East_3	Floor_West_3	Soil_Transect_4_3	Soil_Transect_3_3	Soil_Transect_2_3	Soil_Transect_1_3	SoilCO2_West_A_3	SoilCO2_West_B_3	SoilCO2_West_C_3	Tower_4	Floor_South_4	Floor_East_4	Floor_West_4	Soil_Transect_4_4	Soil_Transect_3_4	Soil_Transect_2_4	Soil_Transect_1_4	SoilCO2_West_A_4	SoilCO2_West_B_4	SoilCO2_West_C_4	Soil_Transect_4_1	Spacial Count
2017-11-29	333	0	nan	35.3	17.6	32.9	23.5	19.7	30.6	16.5	24.4	27.9	15.6	31.8	35.6	35.9	26.1	25.8	31.9	30.7	14.8	24.6	19.4	30.7	28.5	42.1	58.7	34.9	27.4	31	31.5	24.3	33.2	33.8	38.2	36.2	34	29.7	41.4	33.4	46.3	36	13	40	49.1	47.4
2017-11-29	333	1	nan	25.6	23.5	33.2	23.8	25.8	20.5	15.9	23.2	28.2	16.2	31.3	35.9	36.5	24.9	24.9	32.3	30.7	14.5	24.9	20.6	31	27.4	42.1	53.9	34.9	27.6	31.8	31.3	24.6	34.3	34.6	38	36.2	35.4	34	41.7	33.4	45.1	35.4	13	41.4	50	46.8	11.1
2017-11-29	333	Avg	0-15cm																																													0
2017-11-29	333	Avg	15-30cm																																													0
2017-11-29	333	Avg	30-45cm																																													0
2017-11-29	333	Avg	45-60cm																																													0

mode = both
Moisture Point Probes VR
Array ( [0] => Solar_Panels_1 [1] => Flux_Tower_1 [2] => Gate_1 [3] => Biomass_Cage_1 [4] => Solar_Panels_2 [5] => Flux_Tower_2 [6] => Gate_2 [7] => Biomass_Cage_2 [8] => Solar_Panels_3 [9] => Flux_Tower_3 [10] => Gate_3 [11] => Biomass_Cage_3 [12] => Solar_Panels_4 [13] => Flux_Tower_4 [14] => Gate_4 [15] => Biomass_Cage_4 )

0000

Date	DOY	Rep	Depth	Solar_Panels_1	Flux_Tower_1	Gate_1	Biomass_Cage_1	Solar_Panels_2	Flux_Tower_2	Gate_2	Biomass_Cage_2	Solar_Panels_3	Flux_Tower_3	Gate_3	Biomass_Cage_3	Solar_Panels_4	Flux_Tower_4	Gate_4	Biomass_Cage_4	Spacial Count
2017-11-29	333	0	nan	20.9	20.3	25.6	13.8	30.7	30.4	23.1	24.9	32.4	16.5	25.1	32.4	42.3	30.2	25.6	3.4
2017-11-29	333	1	nan	17.1	19.4	25	13.8	30.1	30.1	23.1	25.2	31.3	15.6	34.6	31.3	42.8	30.5	25.1	33.4
2017-11-29	333	Avg	0-15cm																	0
2017-11-29	333	Avg	15-30cm																	0
2017-11-29	333	Avg	30-45cm																	0
2017-11-29	333	Avg	45-60cm																	0

No TZ grass heigth found

No VR grass heigth found

Tree DBH

Date	Tag#	Reading (mm)
2017-11-29	1	14.3
2017-11-29	102	9.2
2017-11-29	2	21.3
2017-11-29	245	8.9
2017-11-29	3	13.2
2017-11-29	4	7.4
2017-11-29	5	5.8
2017-11-29	7	19.8
2017-11-29	72	11.1
2017-11-29	79	10.2
2017-11-29	8	23.0
