Vaira: 2017-10-05 09:30:00 (DOY 278)
Author: Joe Verfaillie
Others: Siyan

Summary: Standard fieldwork, collected pond data - lower than last year, calibrated Vaisala CO2 probes.

Vaira
2017-10-05

I arrived at about 9:30 with Siyan. It was clear, sunny, warm and dry with little to no wind. The water hole is completely dry. The trees donâ€™t look too bad.

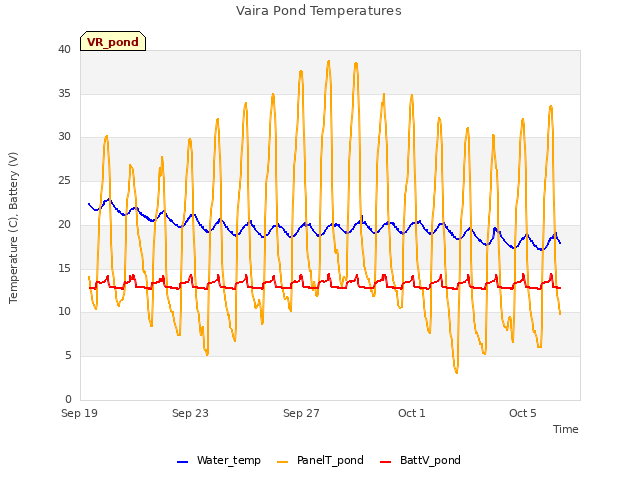

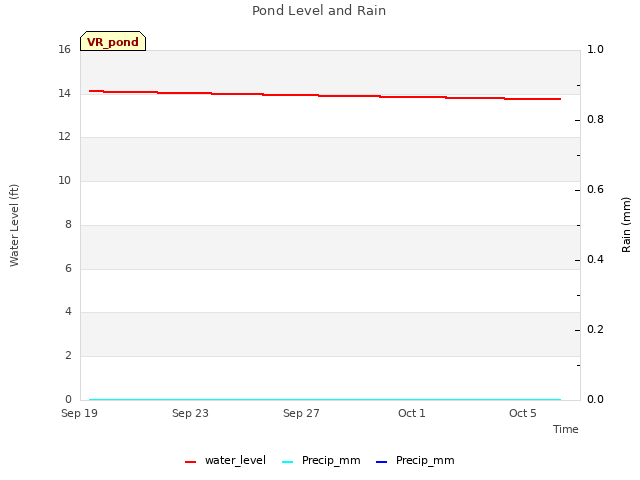

Siyan did the standard fieldwork while I worked on the soil CO2 system. We went to the pond while some of the Vaisala probes calibrated. We collected the pond data. The water level is lower than last summer I think: 13.64ft.

I uploaded a new program to the soil CO2 CR10X and adjusted the wiring to match. The new program cleans up some of the mess of switching from three sets of three Vaisala to two sets of Four. I disconnected TC 7 and moved TC 8 and 9 to TC 7 and 8. I still need to double check the cables and add correct labels. I also added a voltage divider with multiplier of 4.038 between the AM16/32 and the CR10X.

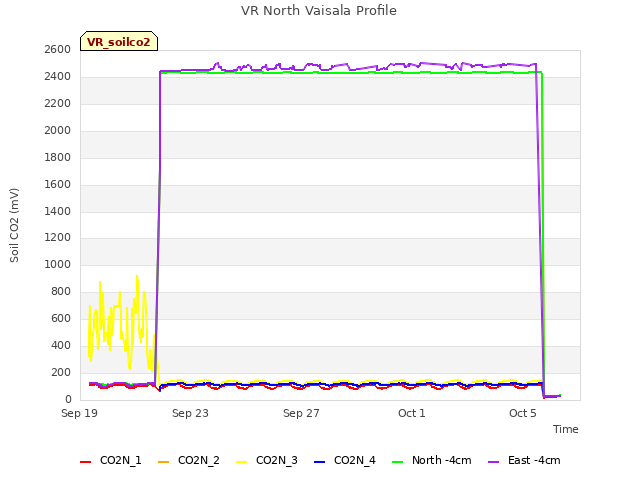

I calibrated the Vaisala CO2 probes with the portable calibration box. It used a CR6 (2113) and one of the new Eosense 1% CO2 probes (GP20160127). I did the east set first and then the north set. I had to upload a version of the program that turns on and reads the probes continuously at 2sec intervals and saves 10sec averages.

After the calibration runs I put the probes back and reloaded the regular program.

Probe locations:
East -2cm K1310103
East -4cm sn K1310102 added
East -8cm Y2009109
East -16cm K1350102

North -2cm Y2030049
North -4cm sn K1350101 added
North -8cm L2010070
North -16cm G0230062

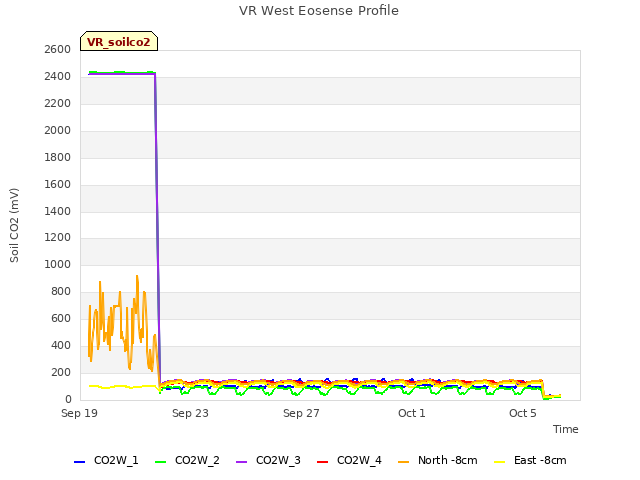

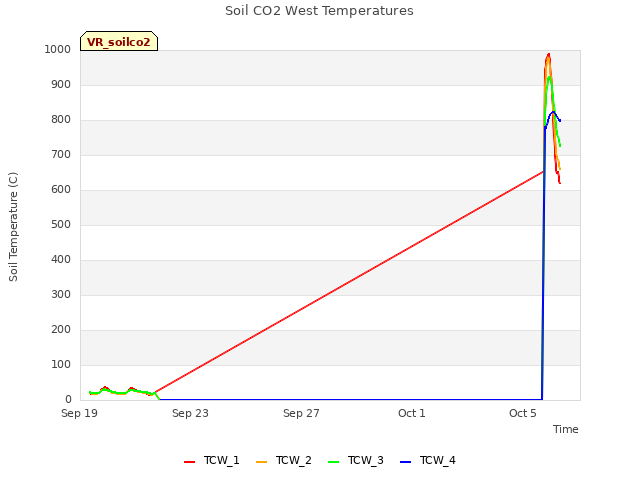

There might have been a bug in the program where the Eosense temperature storage locations were not getting incremented, but they were mostly out of range anyway. This is fixed in the new program. Eosense number 2 looks a little low. I added split loom to the individual Eosense cable near the probes.

Field Data

No tank data

Well Depth

Date	Location	Depth (feet)
2017-10-05	TZ_floor	25.8
2017-10-05	TZ_road	35.2
2017-10-05	TZ_tower	30.7
2017-10-05	VR_pond	13.64

mode = both
Moisture Point Probes TZ
Array ( [0] => Tower_1 [1] => Floor_South_1 [2] => Floor_West_1 [3] => Soil_Transect_4_1 [4] => Soil_Transect_3_1 [5] => Soil_Transect_2_1 [6] => Soil_Transect_1_1 [7] => SoilCO2_West_A_1 [8] => SoilCO2_West_B_1 [9] => SoilCO2_West_C_1 [10] => Tower_2 [11] => Floor_South_2 [12] => Floor_West_2 [13] => Soil_Transect_4_2 [14] => Soil_Transect_3_2 [15] => Soil_Transect_2_2 [16] => Soil_Transect_1_2 [17] => SoilCO2_West_A_2 [18] => SoilCO2_West_B_2 [19] => SoilCO2_West_C_2 [20] => Tower_3 [21] => Floor_South_3 [22] => Floor_East_3 [23] => Floor_West_3 [24] => Soil_Transect_4_3 [25] => Soil_Transect_3_3 [26] => Soil_Transect_2_3 [27] => Soil_Transect_1_3 [28] => SoilCO2_West_A_3 [29] => SoilCO2_West_B_3 [30] => SoilCO2_West_C_3 [31] => Tower_4 [32] => Floor_South_4 [33] => Floor_East_4 [34] => Floor_West_4 [35] => Soil_Transect_4_4 [36] => Soil_Transect_3_4 [37] => Soil_Transect_2_4 [38] => Soil_Transect_1_4 [39] => SoilCO2_West_A_4 [40] => SoilCO2_West_B_4 [41] => SoilCO2_West_C_4 )

0000

Date	DOY	Rep	Depth	Tower_1	Floor_South_1	Floor_West_1	Soil_Transect_4_1	Soil_Transect_3_1	Soil_Transect_2_1	Soil_Transect_1_1	SoilCO2_West_A_1	SoilCO2_West_B_1	SoilCO2_West_C_1	Tower_2	Floor_South_2	Floor_West_2	Soil_Transect_4_2	Soil_Transect_3_2	Soil_Transect_2_2	Soil_Transect_1_2	SoilCO2_West_A_2	SoilCO2_West_B_2	SoilCO2_West_C_2	Tower_3	Floor_South_3	Floor_East_3	Floor_West_3	Soil_Transect_4_3	Soil_Transect_3_3	Soil_Transect_2_3	Soil_Transect_1_3	SoilCO2_West_A_3	SoilCO2_West_B_3	SoilCO2_West_C_3	Tower_4	Floor_South_4	Floor_East_4	Floor_West_4	Soil_Transect_4_4	Soil_Transect_3_4	Soil_Transect_2_4	Soil_Transect_1_4	SoilCO2_West_A_4	SoilCO2_West_B_4	SoilCO2_West_C_4	Spacial Count
2017-10-05	278	0	nan	2.1	7.2	3.3	1.1	7.8	2.7	0.4	3.6	4.7	3.3	13	12.1	1.4	6.9	13.9	11.3	4.5	7.8	0.9	11.2	13.7	7.6	13.7	13.4	9.5	25.1	15.6	13.1	16.2	15.4	13.1	15.3	2.4	16.5	16.8	10.7	17.9	27.6	11	26.5	13.6	23.9
2017-10-05	278	1	nan	2.4	4.8	8.3		6.3	3	0.7	3	2.5	3.6	13	12.4	0.8	8.1	14.2	11.2	4.2	7.2	1.5	11.2	14	7.6	13.4	12.8	9.2	15.1	15.4	13.4	16.8	15.6	13.4	15.3	3.3	16.8	17	12.5	17.6	27.6	11	17	12.8	23.6
2017-10-05	278	Avg	0-15cm																																											0
2017-10-05	278	Avg	15-30cm																																											0
2017-10-05	278	Avg	30-45cm																																											0
2017-10-05	278	Avg	45-60cm																																											0

mode = both
Moisture Point Probes VR
Array ( [0] => Solar_Panels_1 [1] => Flux_Tower_1 [2] => Gate_1 [3] => Biomass_Cage_1 [4] => Solar_Panels_2 [5] => Flux_Tower_2 [6] => Gate_2 [7] => Biomass_Cage_2 [8] => Solar_Panels_3 [9] => Flux_Tower_3 [10] => Gate_3 [11] => Biomass_Cage_3 [12] => Solar_Panels_4 [13] => Flux_Tower_4 [14] => Gate_4 [15] => Biomass_Cage_4 )

0000

Date	DOY	Rep	Depth	Solar_Panels_1	Flux_Tower_1	Gate_1	Biomass_Cage_1	Solar_Panels_2	Flux_Tower_2	Gate_2	Biomass_Cage_2	Solar_Panels_3	Flux_Tower_3	Gate_3	Biomass_Cage_3	Solar_Panels_4	Flux_Tower_4	Gate_4	Biomass_Cage_4	Spacial Count
2017-10-05	278	0	nan	2.1	1.3	0.6	0.4	5.3	6.5	5.7	4.2	15.9	4.9	10.1	14	27.6	15.6	11.6	17.6
2017-10-05	278	1	nan	2.1	1.4	0.3	0.7	9.3	6.6	5.1	3.9	15.9	4.2	8.7	14.8	28.2	15.6	10.5	17.9
2017-10-05	278	Avg	0-15cm																	0
2017-10-05	278	Avg	15-30cm																	0
2017-10-05	278	Avg	30-45cm																	0
2017-10-05	278	Avg	45-60cm																	0
