Field Notes

<--2017-10-05 09:30:00 | 2017-10-25 10:30:00-->
Other sites visited today: Tonzi

Vaira: 2017-10-18 10:30:00 (DOY 291)
Author: Joe Verfaillie
Others: Daphne

Summary: Installed FD chambers, added DC converter to Eos GP sensors, cleaned up met data logger wiring.

Vaira
2017-10-18

Daphne and I arrived at about 10:30. It was mild, sunny and super dry. The trees still have leaves. Rain is coming – probably Thursday night.

I worked on installing three Eosense FD chambers on loan to us for three months. I put one at each soil co2 profile location:

West sn 20160005
North 20160004 (did not power up – brought back to the lab)
East sn 20160006

I added a DC-DC converter to the 24V line in the box from the batteries to supply 12V to the chambers. Chamber 20160004 did not power up. I also tried to run it from a battery and another cable but it still didn’t work. I brought it back to the lab to test. It worked just fine in the lab. It may be a temperature problem – Eosense mentioned a “heat-start-up issue” but thought it had been fixed. The FD chambers were installed on the provided collars and tied down with cable ties.

I added another DC-DC converter to the Eosense GP probes on the relay controlled 24V bus.

Daphne worked on cleaning up the met wiring some more.

Field Data

No tank data

No VR Well data found

No TZ Moisture Point data found

No VR Moisture Point data found

No TZ grass heigth found

No VR grass heigth found

No VR Tree DBH found

No water potential data found

No VR Grass Biomass data found

No VR OakLeaves Biomass data found

No VR PineNeedles Biomass data found

2 photos found

forced diffusion chamber with Vaisala soil CO2 profile
forced diffusion chamber with Vaisala soil CO2 profile

Eosense FD chamber and GP probes at the West soil co2 profile at Vaira
Eosense FD chamber and GP probes at the West soil co2 profile at Vaira

Graphs display:
9 sets found

16 VR_met graphs found

Explore the graph:Temperatures in a new window

Explore the graph:System Power Voltage in a new window

Explore the graph:Soil Temperatures Set 1 in a new window

Explore the graph:Soil Temperatures Set 2 in a new window

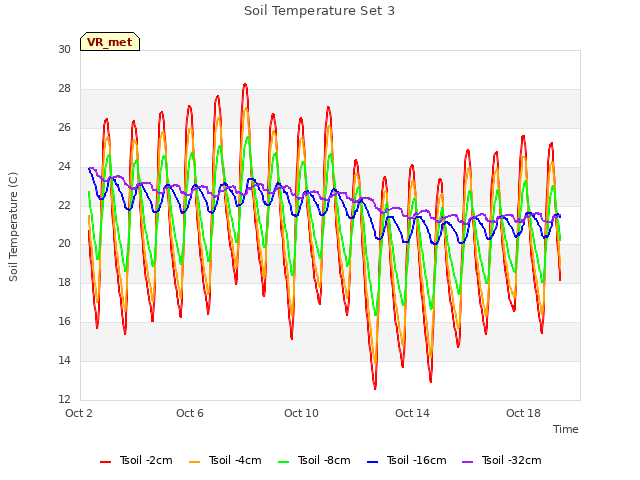

Explore the graph:Soil Temperature Set 3 in a new window

Explore the graph:Soil Temperature at -4cm in a new window

Explore the graph:Soil Heat Flux in a new window

Explore the graph:Soil Moisture in a new window

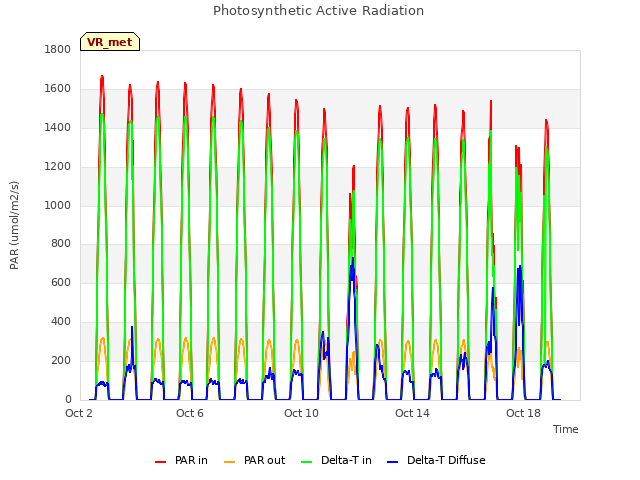

Explore the graph:Photosynthetic Active Radiation in a new window

Explore the graph:Short/Long Wave Radiation in a new window

Explore the graph:LED sensor in a new window

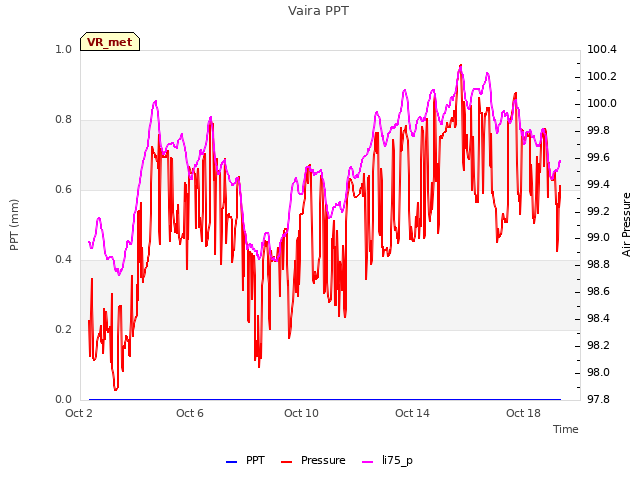

Explore the graph:Vaira PPT in a new window

Explore the graph:Peltier SHF Plates in a new window

Explore the graph:Peltier SHF Temperatures in a new window

Explore the graph:LED NDVI in a new window

Explore the graph:NDVI SRS Raw Data in a new window

2 VR_flux graphs found

Explore the graph:CO2 Density in a new window

Explore the graph:Sonic Wind in a new window

6 VR_soilco2 graphs found

Explore the graph:VR West Eosense Profile in a new window

Explore the graph:VR North Vaisala Profile in a new window

Explore the graph:Soil CO2 West Temperatures in a new window

Explore the graph:Soil CO2 North Temperatures in a new window

Explore the graph:Soil CO2 East Temperatures in a new window

Explore the graph:VR East Vaisala Profile in a new window

2 VR_pond graphs found

Explore the graph:Pond Level and Rain in a new window

Explore the graph:Vaira Pond Temperatures in a new window

Can't check TZVR_mixed
No data found for VR_fd.
No data found for VR_processed.
No data found for VR_arable.
No data found for VR_soilvue.
