Vaira: 2017-09-21 10:30:00 (DOY 264)
Author: Joe Verfaillie
Others: Daphne, Siyan

Summary: Standard fieldwork, upgraded soil CO2 system adding Eosense probes, measured instrument heights.

Vaira
2017-09-21

Daphne, Siyan and I arrived at about 10:30. I was mostly clear and sunny with a light variable breeze. There were thunder clouds over the sierras.

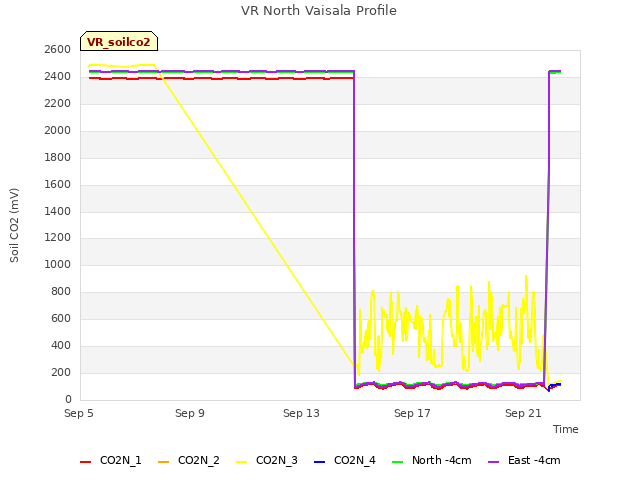

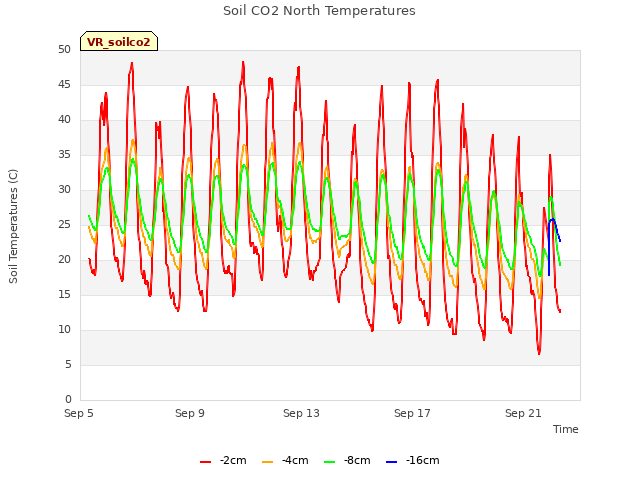

I reinstalled two of the Vaisala CO2 profiles and added a profile of four new Eosense CO2 probes. For the Vaisala profiles I moved the three cables from the West profile to the North profile and moved two of the cables from the North profile to the East profile. I made new frames that are staked to the ground with rebar and hold four PVC tubes at -2, -4, -8, and -16 cm deep. I used a drill to dig the holes. The tubes are pressed tightly to the bottom of the holes but I had to back fill some along the sides of the holes. There are now four probes at each location instead of three. The third TC was chewed at both ends. I cut off the bad parts shortening it and re-soldered the end. We forgot to bring the extra Vaisala probes with us so I left the 4cm locations empty.

sn y2030049 - North 2cm - ch1 labeled I-1 (2cm)
no co2 probe - North 4cm - ch2 labeled I-2 (4cm)
sn l2010070 - North 8cm - ch3 labeled I-3 (8cm)
sn g0230062 - North 16cm - ch4 labeled II-1 (2cm)
sn k1310103 - East 2cm - ch5 labeled II-2 (4cm)
no co2 probe - East 4cm - ch6 labeled II-3 (8cm)
sn y2009109 - East 8cm - ch7 labeled III-1 (2cm)
sn k1350102 - East 16cm - ch8 labeled III-2 (4cm)

The thermocouples for the East profile need to be double checked. All the labels need to be updated and the program needs to be double checked.

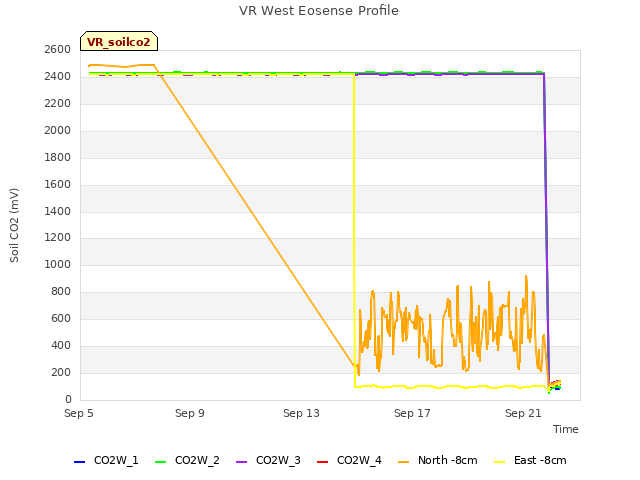

The Eosense probes were added to the end of the multiplexor â€“ four CO2 (purple) followed by four temperatures (blue). The cables have the bulky connectors on the ends. They also have a 0-5V range which is over range for the CR10x â€“ might replace with a CR23x.

sn GP20160042 - West 2cm - ch1
sn GP20170028 - West 4cm - ch2
sn GP20160117 - West 8cm - ch3
sn GP20160012 - West 16cm - ch4

Daphne measured heights of sensors and Siyan did the standard fieldwork.

Field Data

No tank data

Well Depth

Date	Location	Depth (feet)
2017-09-21	TZ_floor	24.8
2017-09-21	TZ_road	34.3
2017-09-21	TZ_tower	29.8

mode = both
Moisture Point Probes TZ
Array ( [0] => Tower_1 [1] => Floor_South_1 [2] => Floor_East_1 [3] => Floor_West_1 [4] => Soil_Transect_4_1 [5] => Soil_Transect_3_1 [6] => Soil_Transect_2_1 [7] => Soil_Transect_1_1 [8] => SoilCO2_West_A_1 [9] => SoilCO2_West_B_1 [10] => SoilCO2_West_C_1 [11] => Tower_2 [12] => Floor_South_2 [13] => Floor_East_2 [14] => Floor_West_2 [15] => Soil_Transect_4_2 [16] => Soil_Transect_3_2 [17] => Soil_Transect_2_2 [18] => Soil_Transect_1_2 [19] => SoilCO2_West_A_2 [20] => SoilCO2_West_B_2 [21] => SoilCO2_West_C_2 [22] => Tower_3 [23] => Floor_South_3 [24] => Floor_East_3 [25] => Floor_West_3 [26] => Soil_Transect_4_3 [27] => Soil_Transect_3_3 [28] => Soil_Transect_2_3 [29] => Soil_Transect_1_3 [30] => SoilCO2_West_A_3 [31] => SoilCO2_West_B_3 [32] => SoilCO2_West_C_3 [33] => Tower_4 [34] => Floor_South_4 [35] => Floor_East_4 [36] => Floor_West_4 [37] => Soil_Transect_4_4 [38] => Soil_Transect_3_4 [39] => Soil_Transect_2_4 [40] => Soil_Transect_1_4 [41] => SoilCO2_West_A_4 [42] => SoilCO2_West_B_4 [43] => SoilCO2_West_C_4 )

0000

Date	DOY	Rep	Depth	Tower_1	Floor_South_1	Floor_East_1	Floor_West_1	Soil_Transect_4_1	Soil_Transect_3_1	Soil_Transect_2_1	Soil_Transect_1_1	SoilCO2_West_A_1	SoilCO2_West_B_1	SoilCO2_West_C_1	Tower_2	Floor_South_2	Floor_East_2	Floor_West_2	Soil_Transect_4_2	Soil_Transect_3_2	Soil_Transect_2_2	Soil_Transect_1_2	SoilCO2_West_A_2	SoilCO2_West_B_2	SoilCO2_West_C_2	Tower_3	Floor_South_3	Floor_East_3	Floor_West_3	Soil_Transect_4_3	Soil_Transect_3_3	Soil_Transect_2_3	Soil_Transect_1_3	SoilCO2_West_A_3	SoilCO2_West_B_3	SoilCO2_West_C_3	Tower_4	Floor_South_4	Floor_East_4	Floor_West_4	Soil_Transect_4_4	Soil_Transect_3_4	Soil_Transect_2_4	Soil_Transect_1_4	SoilCO2_West_A_4	SoilCO2_West_B_4	SoilCO2_West_C_4	Spacial Count
2017-09-21	264	0	nan	3	5.2	3.9	2.1	1.6	0.9	4.2	0.4	3.9	6.8	1.2	13	11.2	11.1	3.5	8.1	13.6	11.8	4.5	6.6	10.6	11.5	15.4	8.1	15.8	14	9.2	15.6	15.9	13.4	17.3	15.9	14.3	15.3	3.6	16.9	17	11	18.8	27.9	11.6	17.6	13.6	35.4
2017-09-21	264	1	nan	2.4	5.1	3.3	4.7	2.8	1.2	3.3	0.7	3.9	7.1	0.9	13	10	10.9	1.1	7.8	13.6	12.1	4.5	6.9	1.1	11.5	15.8	7.8	17	13.1	9.8	15.6	16.2	13.4	16.2	15.9	14.3	15.3	3.6	16.9	17.9	12.5	18.5	28.5	11	16.8	13.3	24.8
2017-09-21	264	Avg	0-15cm																																													0
2017-09-21	264	Avg	15-30cm																																													0
2017-09-21	264	Avg	30-45cm																																													0
2017-09-21	264	Avg	45-60cm																																													0

mode = both
Moisture Point Probes VR
Array ( [0] => Solar_Panels_1 [1] => Flux_Tower_1 [2] => Gate_1 [3] => Biomass_Cage_1 [4] => Solar_Panels_2 [5] => Flux_Tower_2 [6] => Gate_2 [7] => Biomass_Cage_2 [8] => Solar_Panels_3 [9] => Flux_Tower_3 [10] => Gate_3 [11] => Biomass_Cage_3 [12] => Solar_Panels_4 [13] => Flux_Tower_4 [14] => Gate_4 [15] => Biomass_Cage_4 )

0000

Date	DOY	Rep	Depth	Solar_Panels_1	Flux_Tower_1	Gate_1	Biomass_Cage_1	Solar_Panels_2	Flux_Tower_2	Gate_2	Biomass_Cage_2	Solar_Panels_3	Flux_Tower_3	Gate_3	Biomass_Cage_3	Solar_Panels_4	Flux_Tower_4	Gate_4	Biomass_Cage_4	Spacial Count
2017-09-21	264	0	nan	0.1	1.9	0.6	0.3	10.6	6.3	5.1	4.5	15.6	5.3	9	14.8	26.2	15	11	18.2
2017-09-21	264	1	nan	0.9	0.4	0.9	0.4	10.6	5.7	5.7	3.5	15.4	4.5	9.5	14.3	29.1	15	11	18.2
2017-09-21	264	Avg	0-15cm																	0
2017-09-21	264	Avg	15-30cm																	0
2017-09-21	264	Avg	30-45cm																	0
2017-09-21	264	Avg	45-60cm																	0
