East End: 2017-10-04 12:00:00 (DOY 277)
Author: Joe Verfaillie
Others: Elke, Daphne

Summary: Decommissioning of Temporary Tower 3 – Boardwalk, ground sensors still need to be retrieved.

East End
2017-10-04
Decommissioning of Temporary Tower 3 – Boardwalk.

Daphne and Elke dropped Joe off at about noon to start disassembling the tower while they went to Twithcell Alfalfa. Then they returned at about 1pm to pack the equipment in the truck.

Equipment Removed:
Sonic sn 120907
7500 sn 0976
7700 sn TG1-0424
Water Pres sn 20010046
PAR sn 050596
Rnet sn 041556
HMP60 sn G4540021
AM16/32 sn 1238
CR1000 sn 50889 met
NL115 sn 6761
CR1000 sn 23865 eddy

Solar panel sn 11ZV0M0836 and sn 11ZV0M0855
Solar controller sn 3317052234210

We did not have waders with us so we could not get the soil heat flux plates or the soil thermocouples. I pulled one of the soil temperature profiles and got just the wires not the stick. One of the SHF plates wire was chewed. Hopefully we can find the plate.

We left the tripod and the latter at the site. We should probably move these over to West Pond.

0 photos found

Graphs display:
11 sets found

14 EE_met graphs found

Explore the graph:Temperature and Batt V in a new window

Explore the graph:Soil Moisture and Well Pressure in a new window

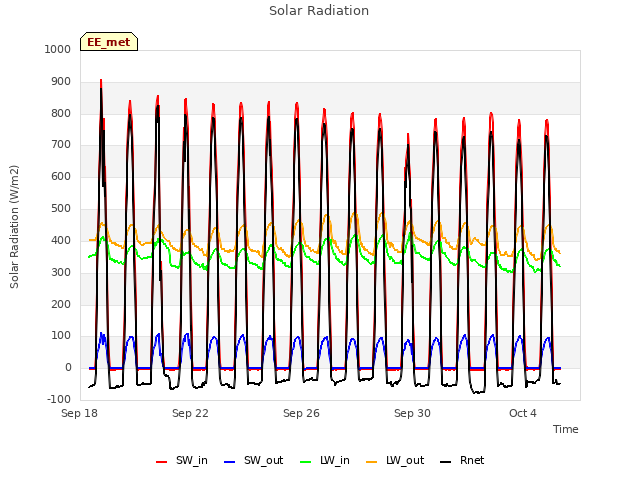

Explore the graph:Solar Radiation in a new window

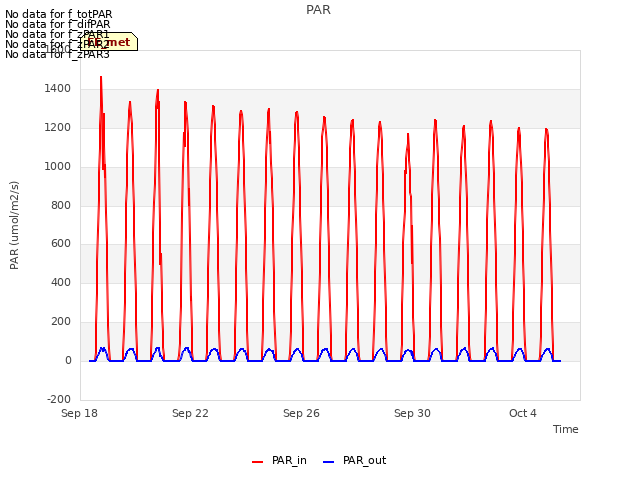

Explore the graph:PAR in a new window

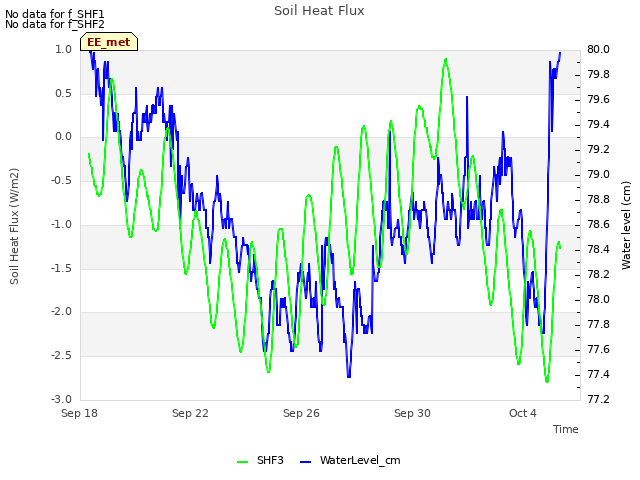

Explore the graph:Soil Heat Flux in a new window

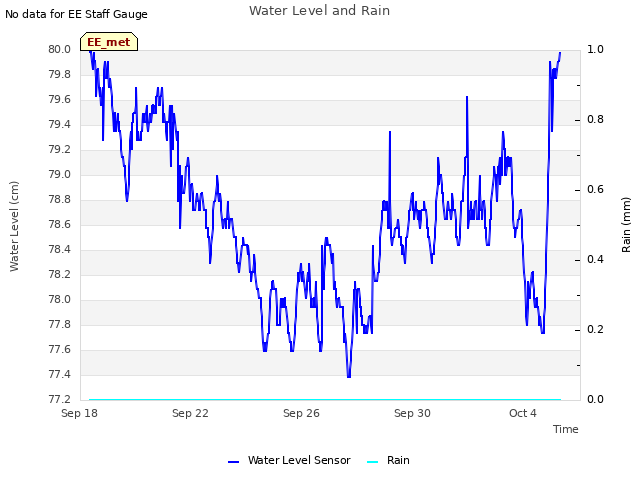

Explore the graph:Water Level and Rain in a new window

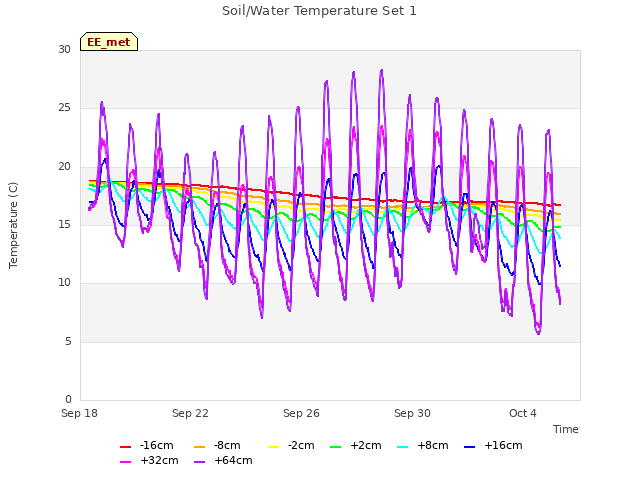

Explore the graph:Soil/Water Temperature Set 1 in a new window

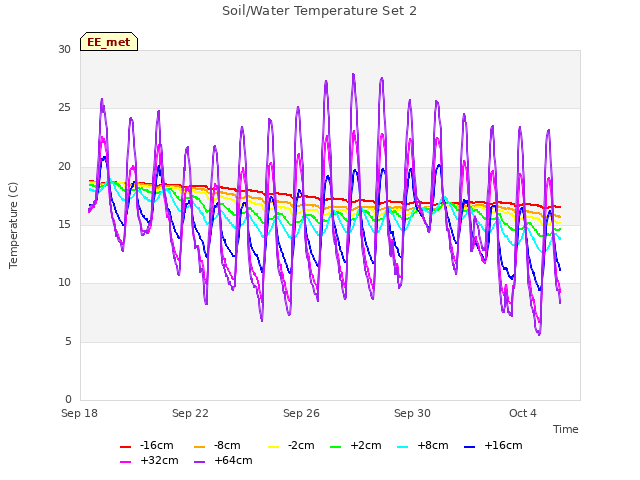

Explore the graph:Soil/Water Temperature Set 2 in a new window

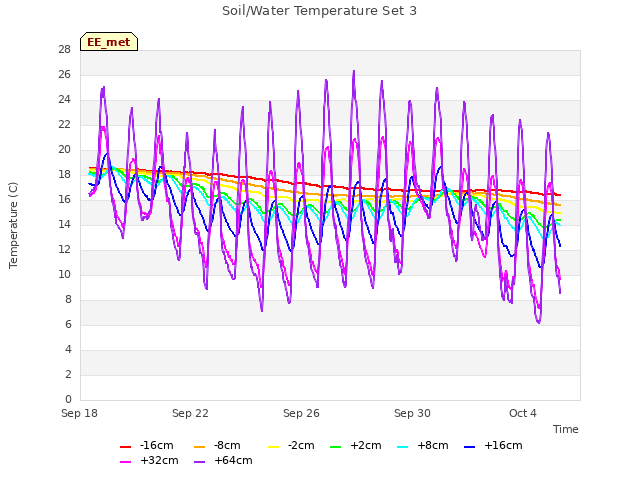

Explore the graph:Soil/Water Temperature Set 3 in a new window

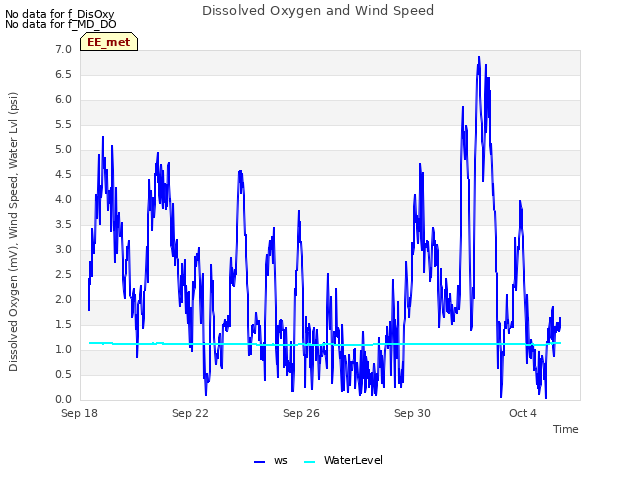

Explore the graph:Dissolved Oxygen and Wind Speed in a new window

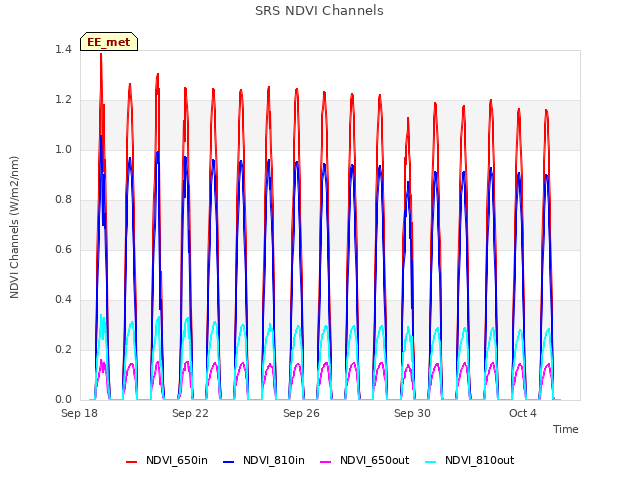

Explore the graph:SRS NDVI Channels in a new window

Explore the graph:Apogee NDVI in a new window

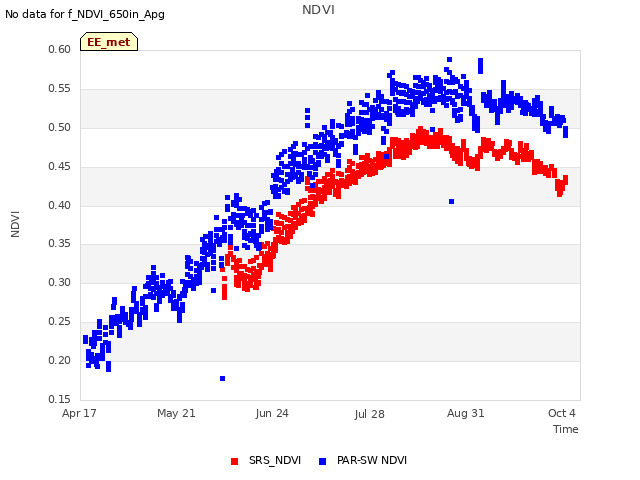

Explore the graph:NDVI in a new window

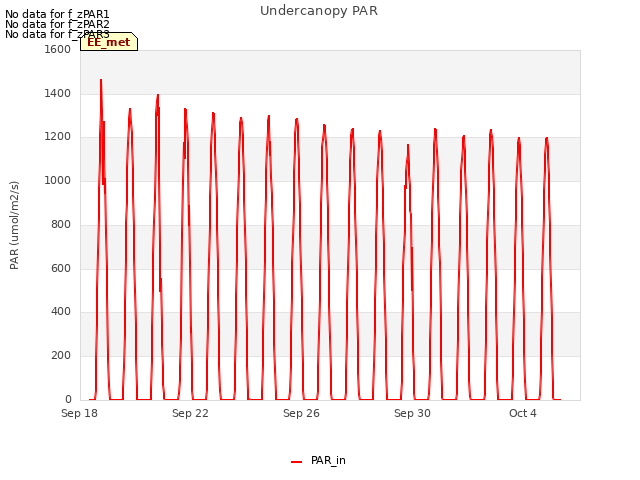

Explore the graph:Undercanopy PAR in a new window

Can't check EE_mixed
1 EE_mixed graphs found

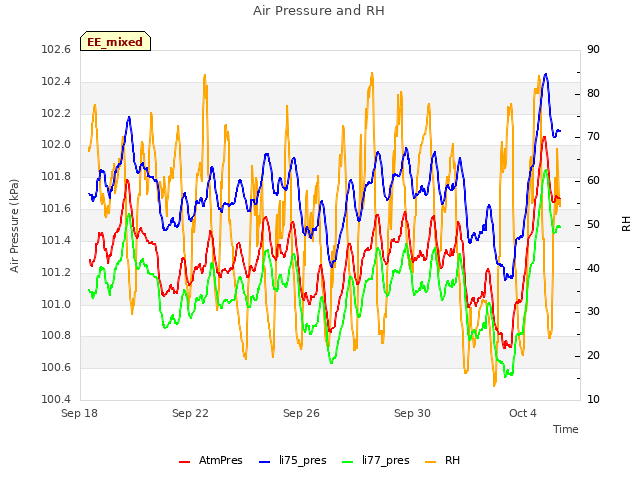

Explore the graph:Air Pressure and RH in a new window

8 EE_flux graphs found

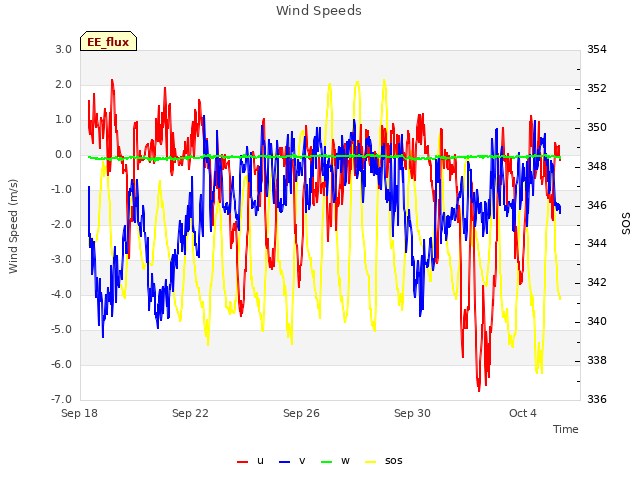

Explore the graph:Wind Speeds in a new window

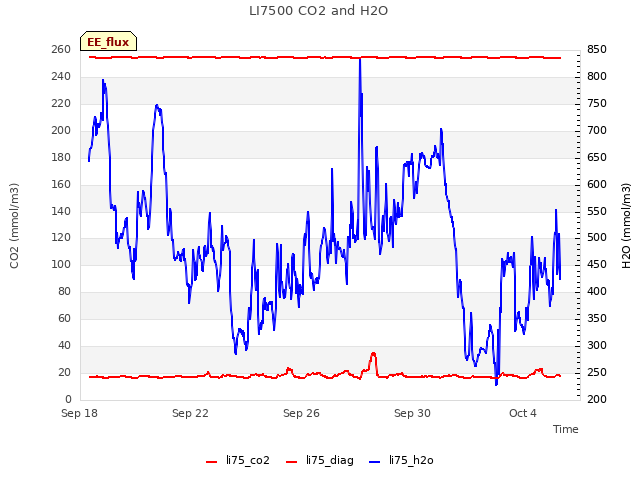

Explore the graph:LI7500 CO2 and H2O in a new window

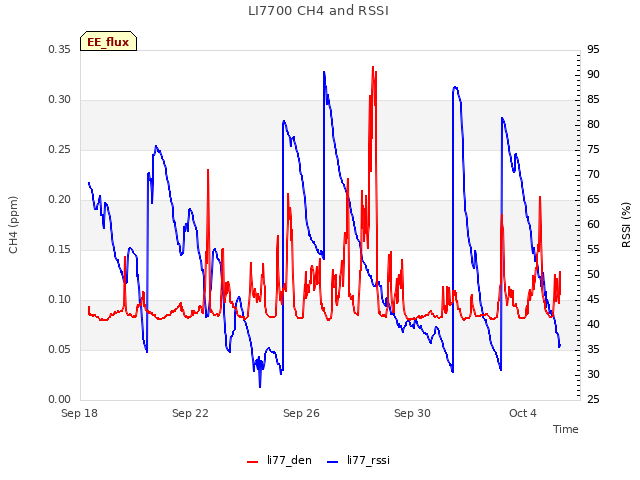

Explore the graph:LI7700 CH4 and RSSI in a new window

Explore the graph:Flux Counts in a new window

Explore the graph:Instument Temperatures in a new window

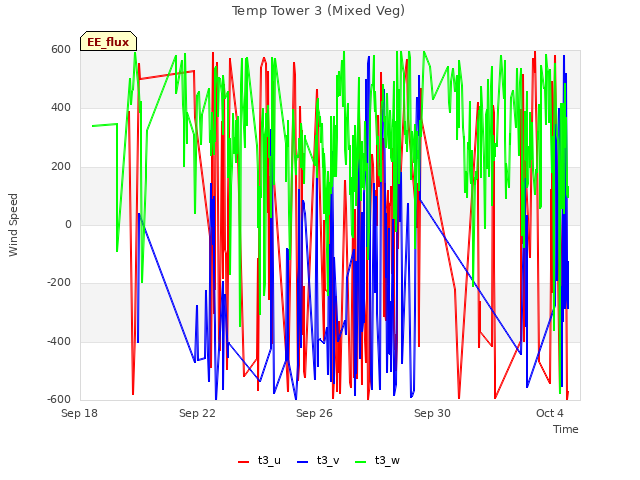

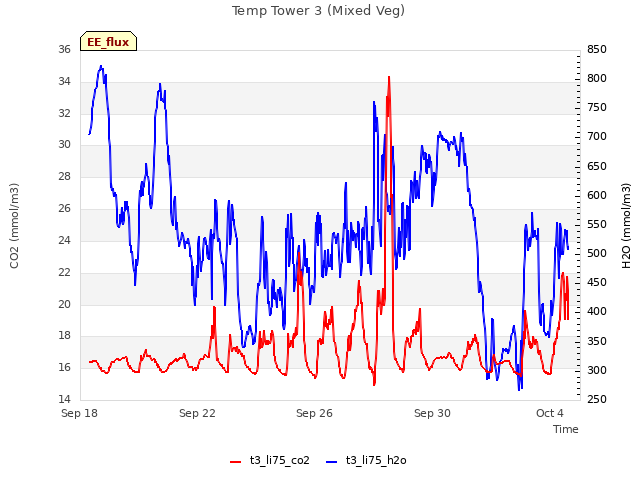

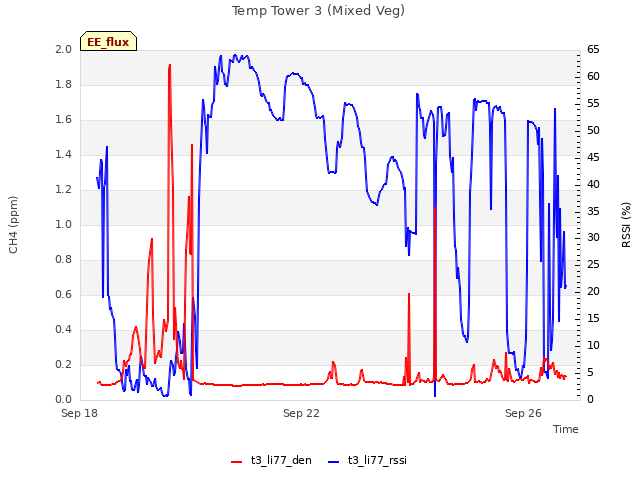

Explore the graph:Temp Tower 3 (Mixed Veg) in a new window

Explore the graph:Temp Tower 3 (Mixed Veg) in a new window

Explore the graph:Temp Tower 3 (Mixed Veg) in a new window

Can't check MBWPEESWGT_mixed
1 EE_cam graphs found

Explore the graph:EE Autocam GCC in a new window

Can't check MBEEWPSWEPGT_cam
Can't check SIMBTWEE_met
Can't check EE_Temp
5 EE_Temp graphs found

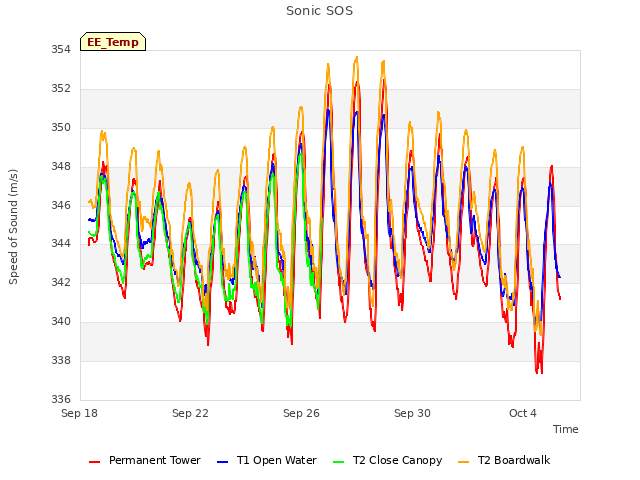

Explore the graph:Sonic SOS in a new window

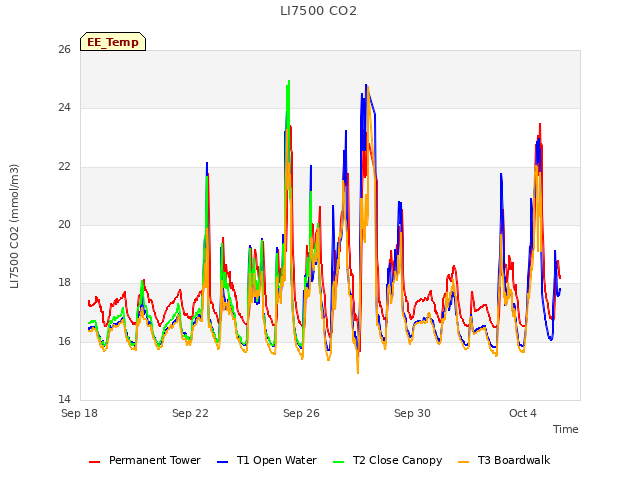

Explore the graph:LI7500 CO2 in a new window

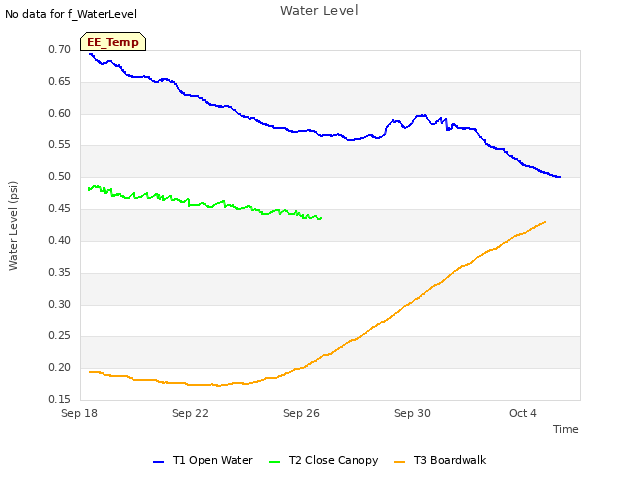

Explore the graph:Water Level in a new window

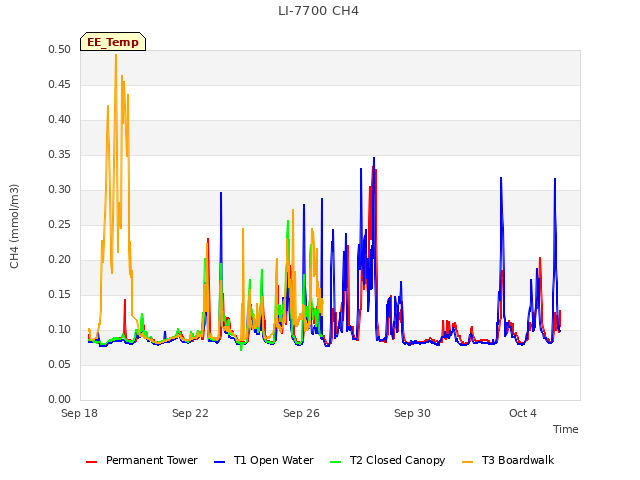

Explore the graph:LI-7700 CH4 in a new window

Explore the graph:Wind Speed in a new window

Can't check EE_minidot
1 EE_minidot graphs found

Explore the graph:EE miniDOT Dissolved Oxygen in a new window

Can't check MBSWEEWPBCBA
1 EE_processed graphs found

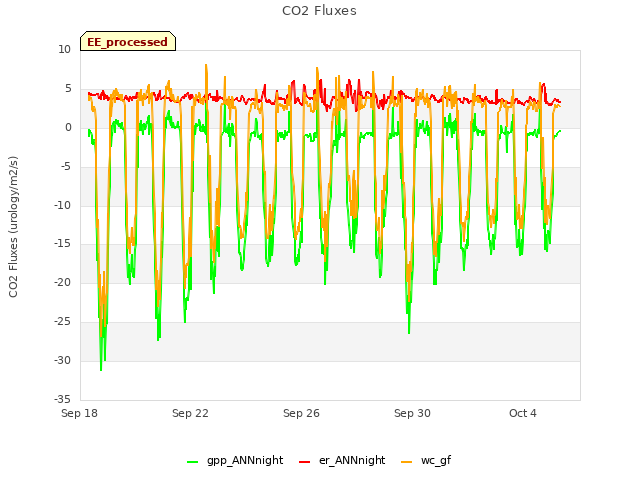

Explore the graph:CO2 Fluxes in a new window
