Field Notes

<--2017-04-24 11:30:00 | 2017-05-11 11:00:00-->
Other sites visited today: Vaira | Tonzi

Tonzi: 2017-05-11 09:10:00 (DOY 131)
Author: Siyan Ma
Others: Joe, Daphne

Summary: Standard fieldwork, new Ameriflux eddy equipment, midday water potential

When: Date: 5/11/2017 , Watch Time: 9:10 am .

Where: Tonzi/Vaira Ranch

Who: Siyan, Joe, Daphne

Weather: clear, sunny

Phenology:



Summary

  1. Joe and Daphne set up new sets of IRGA and Sonic at three towers.
  2. Joe swapped memory cards of CR1000s at three sites. Everything worked well.
  3. Checked and downloaded phenocam images at Vaira
  4. Joe let flux CR1000 collect phenocam images (up to 20 days)
  5. Read dendrometers
  6. Measured soil moisture
  7. Measured grass height
  8. Measure groundwater well and download GlobalWater data
  9. Measure midday water potential of oak leaves
  10. Spectrum of Vaira grassland
  11. Download IRT data

Vaira_Grass Site

  1. Fence worked.
  2. Downloaded Phenocam images.
  3. Swapped the memory cards of CR1000. (Joe)
  4. Joe and Daphne set up new sets of IRGA and Sonic
  5. Checked the fans of air temp and relative humidity sensors at Vaira. YES!
  6. Downloaded met and soil CO2 profile data (have been sent back to Berkele).
  7. Checked levels of Radiation sensors, clear up surfaces. YES!
  8. Checked rain gage, make sure not clogged. YES!
  9. Closed gate and set up fence. YES!

Tonzi_Tower Site

  1. Fence worked.
  2. Joe set up new sets of IRGA and Sonic
  3. swapped the memory cards of CR1000. (Joe)
  4. download Phenocam images. Yes!
  5. checked the fans of air temp. and relative humidity sensors on the tower and the floor. YES!
  6. Checked rain gage, make sure not clogged. YES!
  7. Screens of met dataloggers: (because the PC was crashed, data were downloaded at each data logger; Joe still worked on the problems of the data logger for tower met data.

CR23X3 – floor-Met

CR23X6 – tower-Met

CR10X2 – floor-Met

Soil CO2 profile: CR23X5 – soil CO2 profile

  1. CO2 profile system (under construction)
  2. closed gate and set up fence. YES!

Toniz_Floor Site

  1. Fence worked.
  2. Daphne set up new sets of IRGA and Sonic
  3. Swapped the memory cards of CR1000.
  4. Closed gate and set up fence. YES!

Field Data

No tank data

Well Depth

DateLocationDepth (feet)
2017-05-11TZ_floor8.3
2017-05-11TZ_road17.8
2017-05-11TZ_tower13.1
2017-05-11VR_pond20.68

mode = both
Moisture Point Probes TZ
Array ( [0] => Tower [1] => Floor_South [2] => Floor_East [3] => Floor_West [4] => Soil_Transect_4 [5] => Soil_Transect_3 [6] => Soil_Transect_2 [7] => Soil_Transect_1 [8] => SoilCO2_West_A [9] => SoilCO2_West_B [10] => SoilCO2_West_C )

Date DOY Rep Depth
Tower
Floor_South
Floor_East
Floor_West
Soil_Transect_4
Soil_Transect_3
Soil_Transect_2
Soil_Transect_1
SoilCO2_West_A
SoilCO2_West_B
SoilCO2_West_C
 Avg
Spacial Count
Measurement Count
2017-05-11 131 0 0-15cm 11.2 7.7 15 13.2 1.9 8.3 10.6 11.5 13 15 14.4
2017-05-11 131 0 15-30cm 22.2 13 24 18.2 13.3 21.9 21 7.8 18.2 10 20.6
2017-05-11 131 0 30-45cm 23.5 27.9 36.3 27.4 16.8 22.9 25.7 24.3 28.2 26 30.7
2017-05-11 131 0 45-60cm 34.8 52.6 57.2 43.4 23.1 38 39.7 20.2 40 43.1 46.8
2017-05-11 131 1 0-15cm 10.6 7.4 14.4 13.2 0.9 8.3 11.8 14.1 13.2 14.4
2017-05-11 131 1 15-30cm 21.6 17 24 18.5 13 31.4 7.8 19.7 9 21.3
2017-05-11 131 1 30-45cm 23.5 28.5 36 27.8 15.9 21.8 24 27.6 26 30.1
2017-05-11 131 1 45-60cm 34.8 53.7 58.9 43.1 23.4 37.1 19.9 41.7 42.8 46.8
2017-05-11 131 Avg 0-15cm 10.9 7.55 14.7 13.2 1.4 8.3 10.6 11.65 13.55 14.1 14.4 10.94 11 21
2017-05-11 131 Avg 15-30cm 21.9 15 24 18.35 13.15 26.65 21 7.8 18.95 9.5 20.95 17.93 11 21
2017-05-11 131 Avg 30-45cm 23.5 28.2 36.15 27.6 16.35 22.35 25.7 24.15 27.9 26 30.4 26.21 11 21
2017-05-11 131 Avg 45-60cm 34.8 53.15 58.05 43.25 23.25 37.55 39.7 20.05 40.85 42.95 46.8 40.04 11 21

mode = both
Moisture Point Probes VR
Array ( [0] => Solar_Panels [1] => Flux_Tower [2] => Gate [3] => Biomass_Cage )

Date DOY Rep Depth
Solar_Panels
Flux_Tower
Gate
Biomass_Cage
 Avg
Spacial Count
Measurement Count
2017-05-11 131 0 0-15cm 8 8.6 8.8 2.7
2017-05-11 131 0 15-30cm 21.6 15.6 11.2 9.7
2017-05-11 131 0 30-45cm 23.5 11.1 14.5 19.8
2017-05-11 131 0 45-60cm 24.8 21.6 15 21.6
2017-05-11 131 1 0-15cm 7.4 8.3 8.6 2.4
2017-05-11 131 1 15-30cm 21.6 16.1 11.2 9.3
2017-05-11 131 1 30-45cm 22.6 9 14 19.5
2017-05-11 131 1 45-60cm 25.1 21.6 14.5 31.5
2017-05-11 131 Avg 0-15cm 7.7 8.45 8.7 2.55 6.85 4 8
2017-05-11 131 Avg 15-30cm 21.6 15.85 11.2 9.5 14.54 4 8
2017-05-11 131 Avg 30-45cm 23.05 10.05 14.25 19.65 16.75 4 8
2017-05-11 131 Avg 45-60cm 24.95 21.6 14.75 26.55 21.96 4 8

No TZ grass heigth found

Grass Height VR 15

DateHeight reps (cm)LocationAverageSampSTDEV
2017-05-1142 43 53 46 56 76 118 76 88 92 40 50 52 60 72 GH_ALL64.271521.59

Tree DBH

DateTag#Reading (mm)
2017-05-11125.9
2017-05-11230.5
2017-05-1124523.8
2017-05-11323.6
2017-05-11421.5
2017-05-11521.9
2017-05-11718.5
2017-05-117223.6
2017-05-117923.0
2017-05-11821.9

Water Potential - mode: raw

Time< h>SpeciesTreereadings (bar)
2017-05-11 01:20:00 OAK 102 -7 -8 -22
2017-05-11 01:20:00 OAK 35 -21 -9 -26
2017-05-11 01:20:00 OAK 92 -20 -10 -28
2017-05-11 01:47:00 PINE OLD -20 -11 -5
2017-05-11 01:47:00 PINE YNG -4 -4 -9

No TZ Grass Biomass data found

No TZ OakLeaves Biomass data found

No TZ PineNeedles Biomass data found

0 photos found

Graphs display: 16 sets found

No data found for TZ_Fenergy.
11 TZ_tmet graphs found

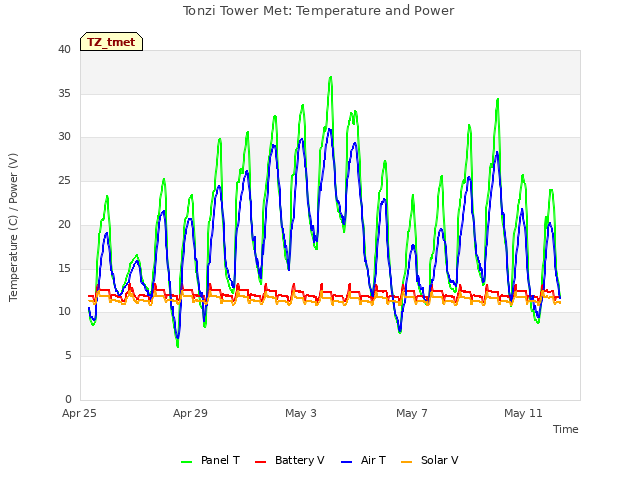

Tonzi Tower Met: Temperature and Power

Tonzi Tower Met: Solar Radiation

Tonzi Tower Met: IRT Sensors

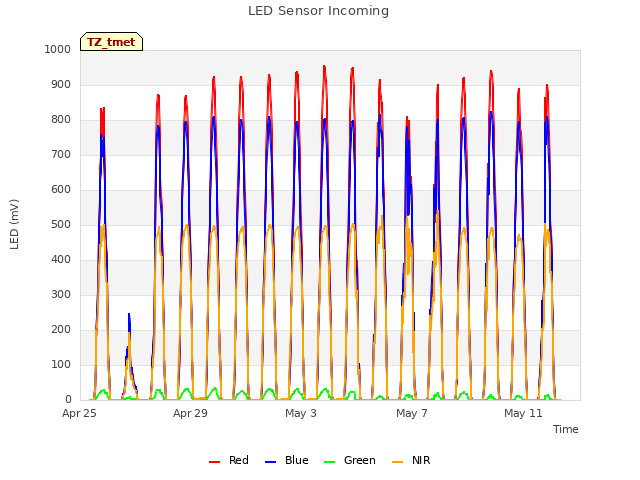

LED Sensor Incoming

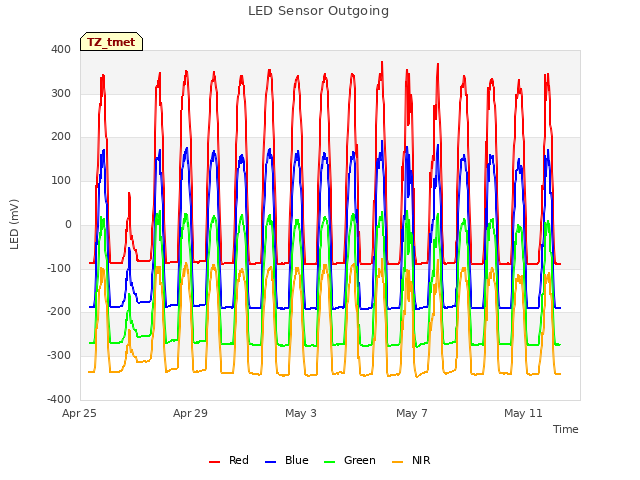

LED Sensor Outgoing

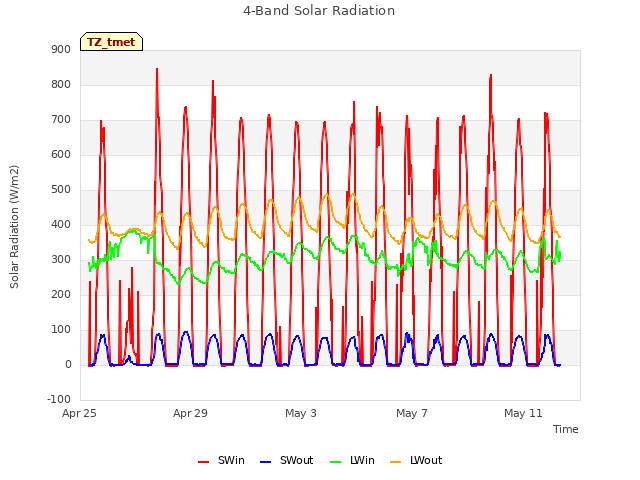

4-Band Solar Radiation

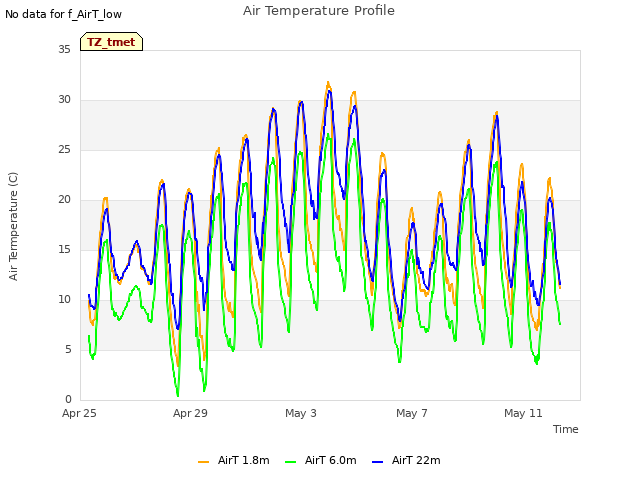

Air Temperature Profile

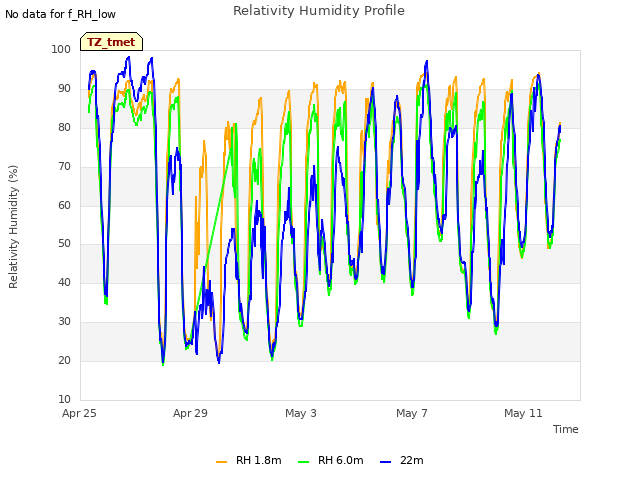

Relativity Humidity Profile

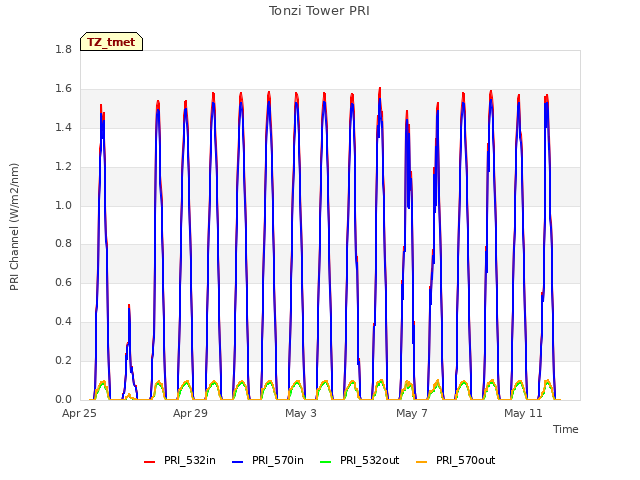

Tonzi Tower PRI

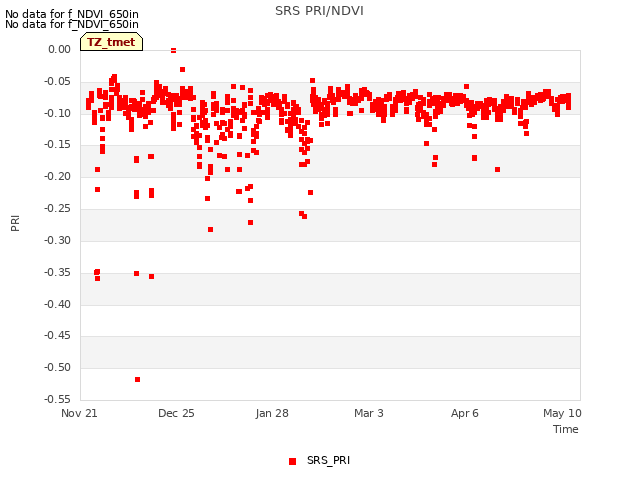

SRS PRI/NDVI

SRS NDVI

11 TZ_soilco2 graphs found

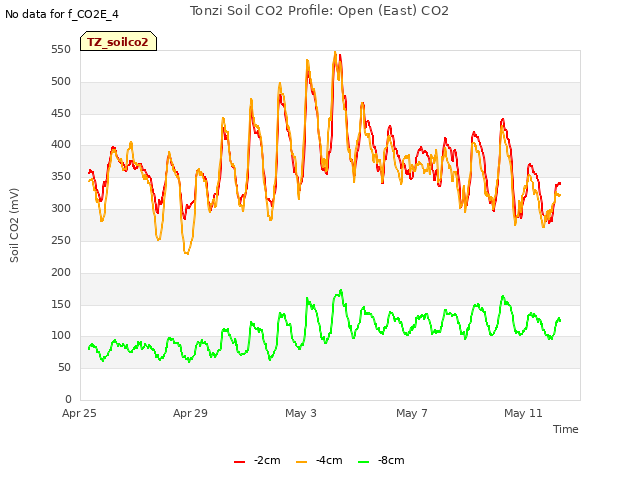

Tonzi Soil CO2 Profile: Open (East) CO2

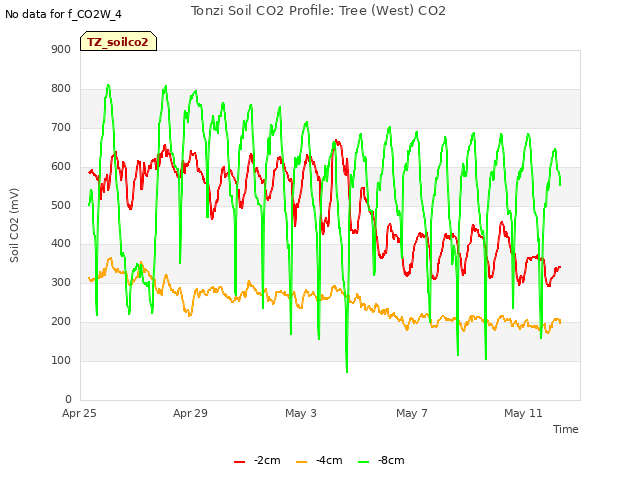

Tonzi Soil CO2 Profile: Tree (West) CO2

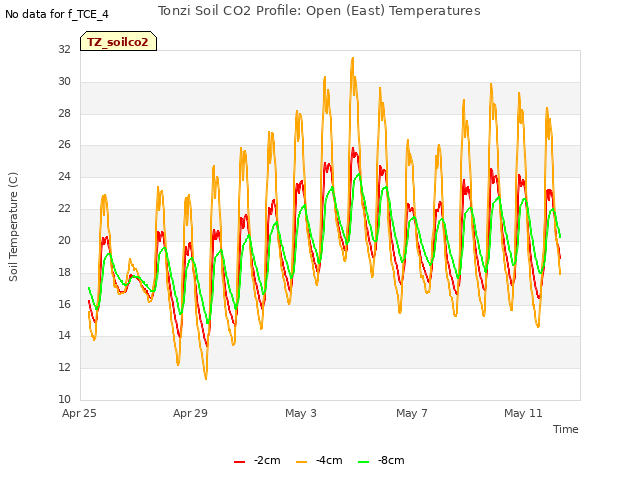

Tonzi Soil CO2 Profile: Open (East) Temperatures

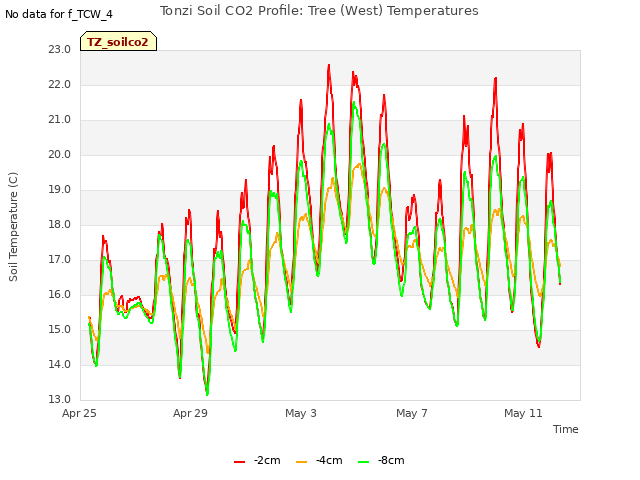

Tonzi Soil CO2 Profile: Tree (West) Temperatures

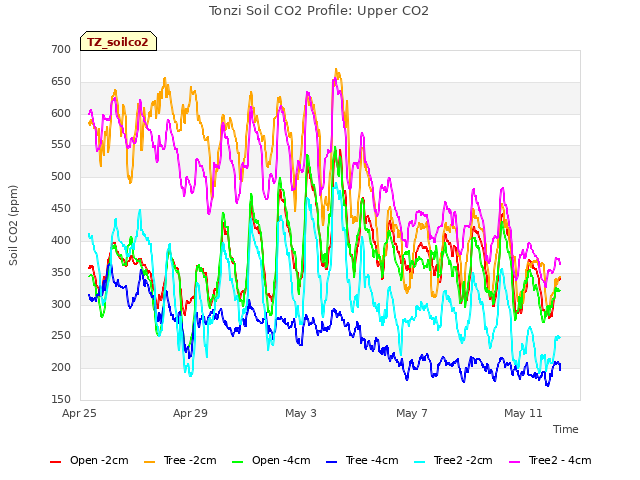

Tonzi Soil CO2 Profile: Upper CO2

Tonzi Soil CO2 Profile: Lower CO2

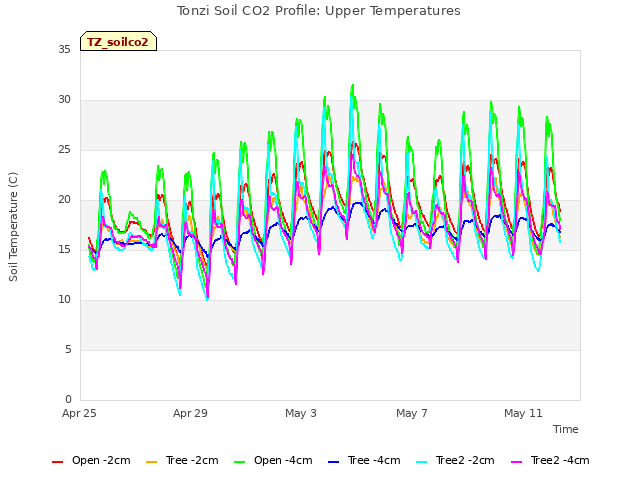

Tonzi Soil CO2 Profile: Upper Temperatures

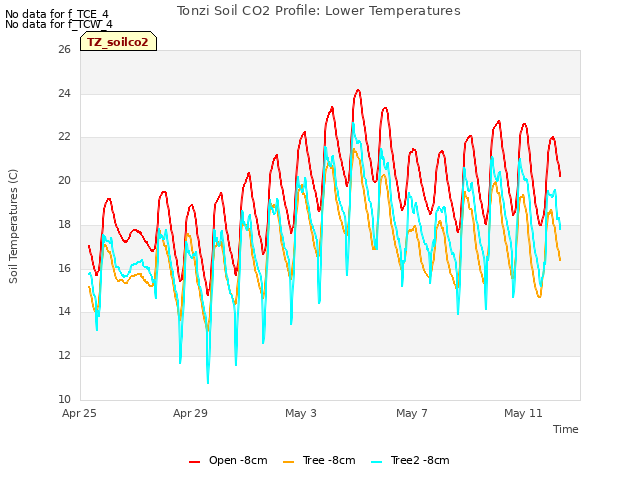

Tonzi Soil CO2 Profile: Lower Temperatures

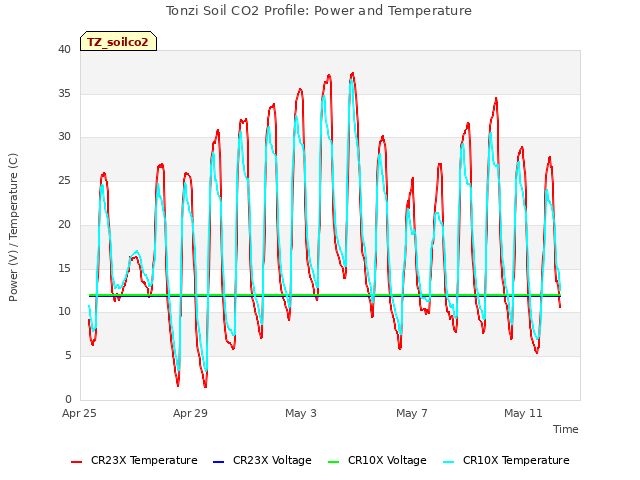

Tonzi Soil CO2 Profile: Power and Temperature

Tree 2 Soil CO2

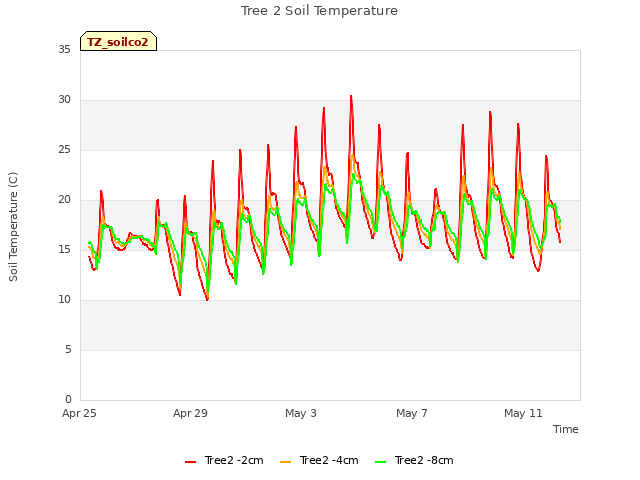

Tree 2 Soil Temperature

Can't check TZ_mixed
3 TZ_mixed graphs found

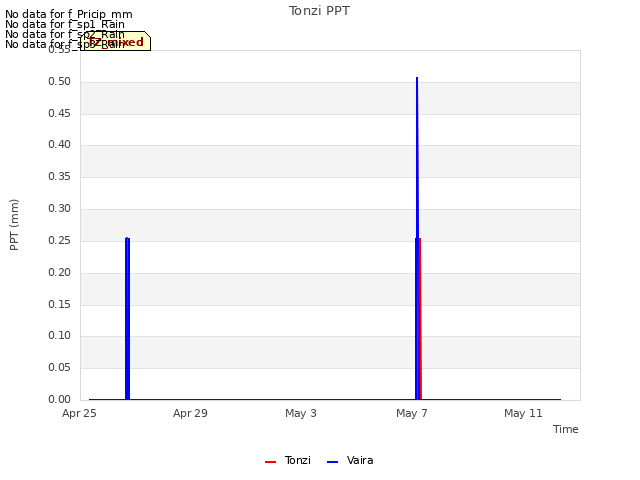

Tonzi PPT

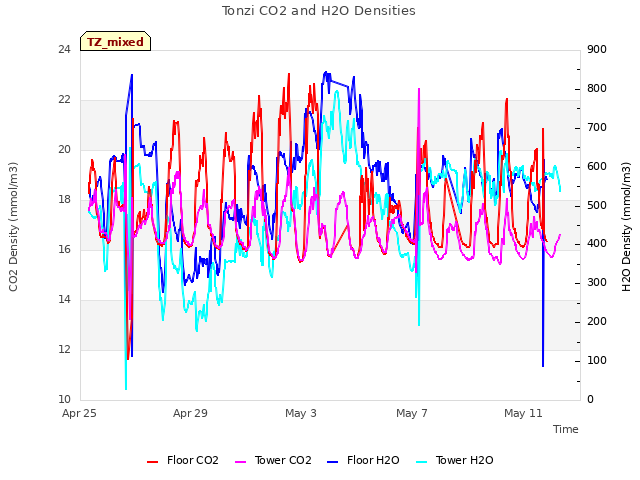

Tonzi CO2 and H2O Densities

Air Pressure

1 TZ_fflux graphs found

Tonzi Wind Speed

8 TZ_fmet graphs found

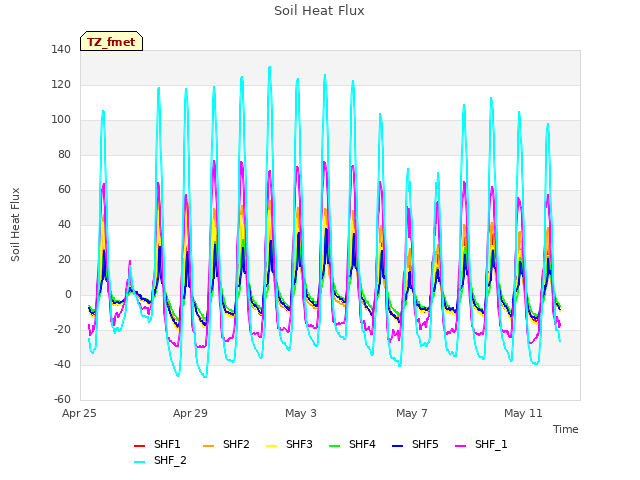

Soil Heat Flux

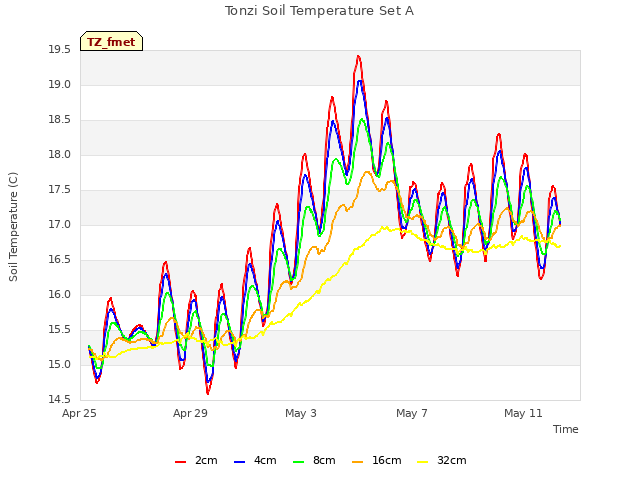

Tonzi Soil Temperature Set A

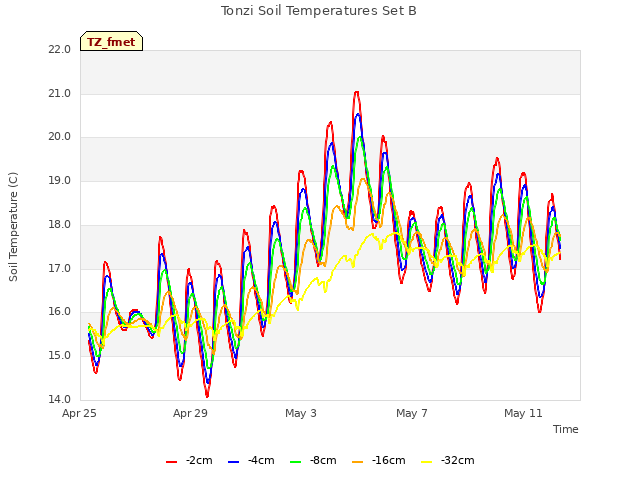

Tonzi Soil Temperatures Set B

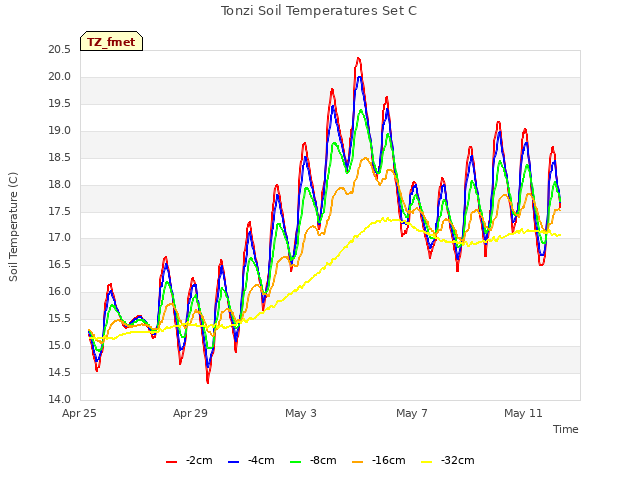

Tonzi Soil Temperatures Set C

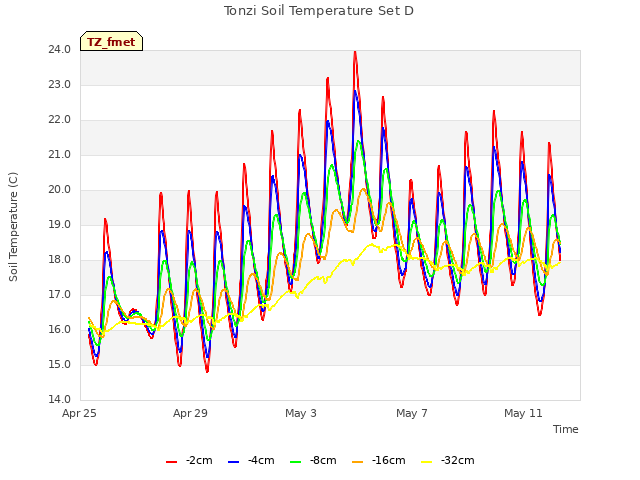

Tonzi Soil Temperature Set D

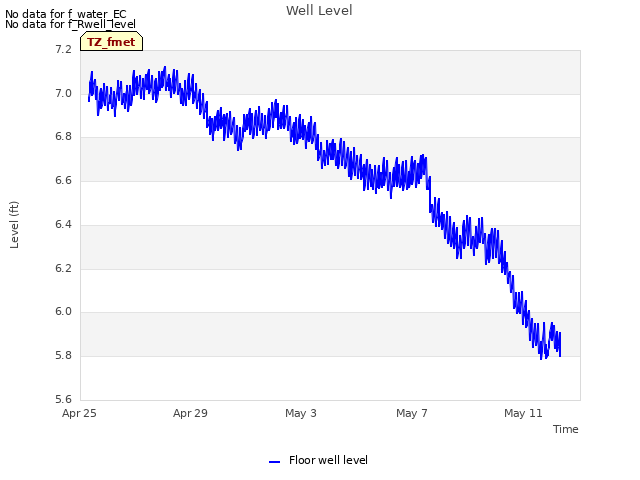

Well Level

Well Water Temperature

Soil Water Potential

No data found for TZ_tram.
No data found for TZ_co2prof.
1 TZ_irt graphs found

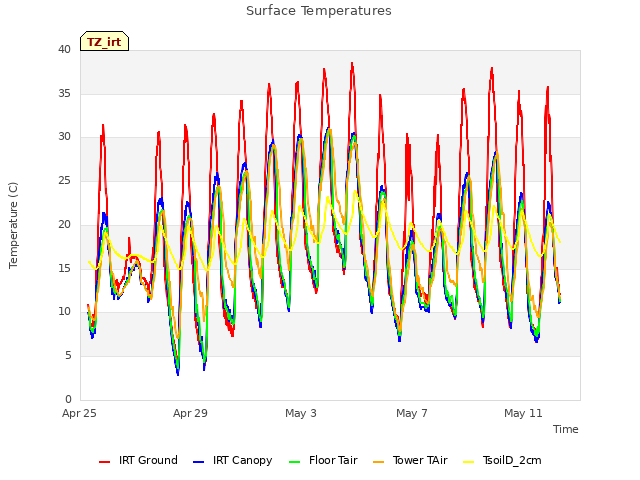

Surface Temperatures

No data found for TZ_windprof.
1 TZ_tflux graphs found

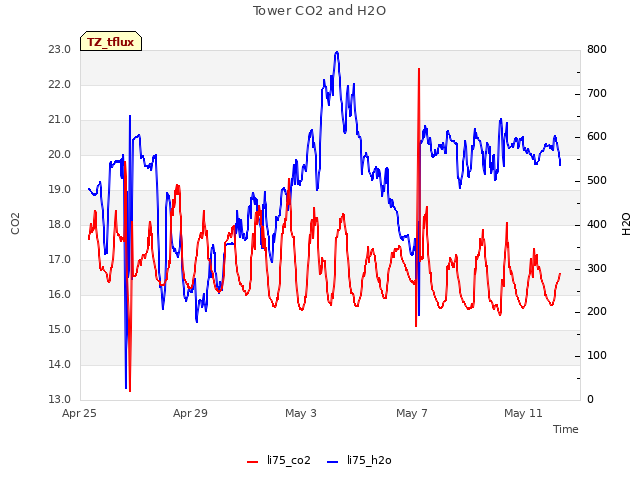

Tower CO2 and H2O

2 TZ_sm graphs found

Floor Solar Radiations

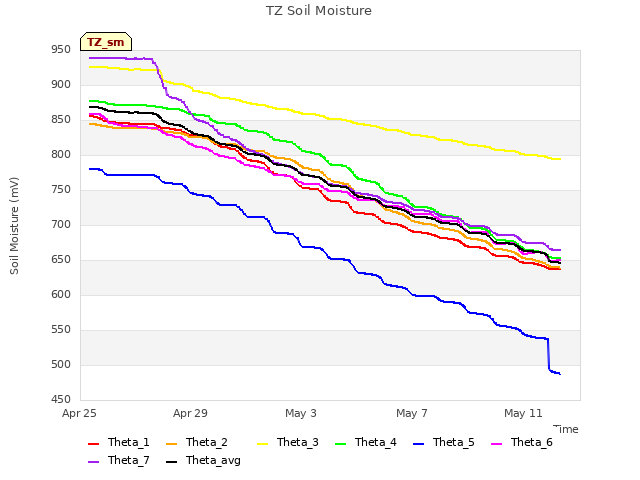

TZ Soil Moisture

Can't check TZ_met
1 TZ_met graphs found

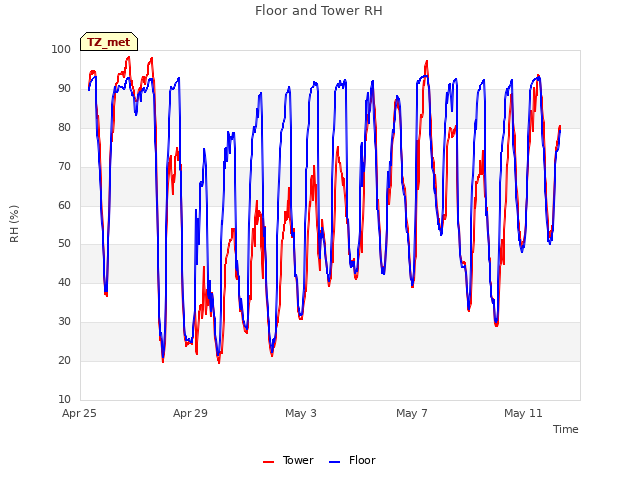

Floor and Tower RH

Can't check TZVR_mixed
No data found for TZ_osu.
No data found for TZ_fd.
Tonzi Z-cam data

plot of Tonzi z-cam LAI

plot of Tonzi z-cam gap fration
