Mayberry: 2017-01-05 13:35:00 (DOY 5)
Author: Daphne Szutu
Others: Sam Chamberlain, Kyle Hemes
Summary: Regular data collection, serviced water sensors, need new desiccant for DO sensors
| Arrived around 13:35. It was mostly clear, cool, low wind speed. We downloaded met data (the RS232 connection worked), USB GHG data, and camera SD cards. We also downloaded data from the 2 miniDOT DO sensors and the HOBO conductivity probe. We cleaned the radiation, CO2, and CH4 sensors. The wash reservoir was __ full. We refilled it? The 7500 read: CO2 405.7ppm H2O 261 mmol/m T 10.2C P 101.6kPa SS 90.2 --> 91.2 after cleaning The 7700 read: CH4 1.9ppm RSSI 42 --> 79.1 Next time we need to bring 2 dessicant packs for the DO sensors. |
0 photos found
11 sets found

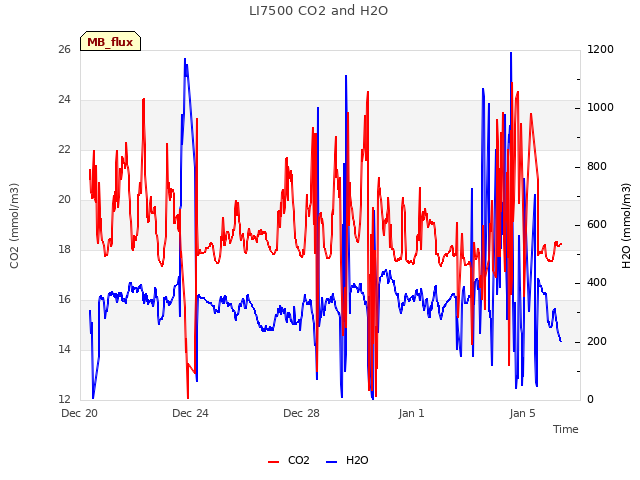

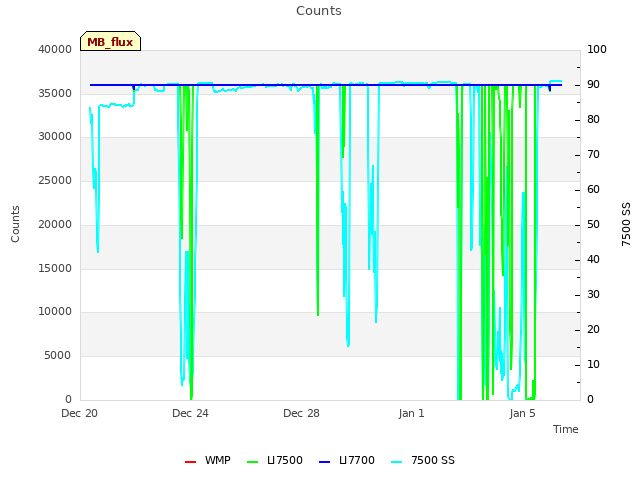

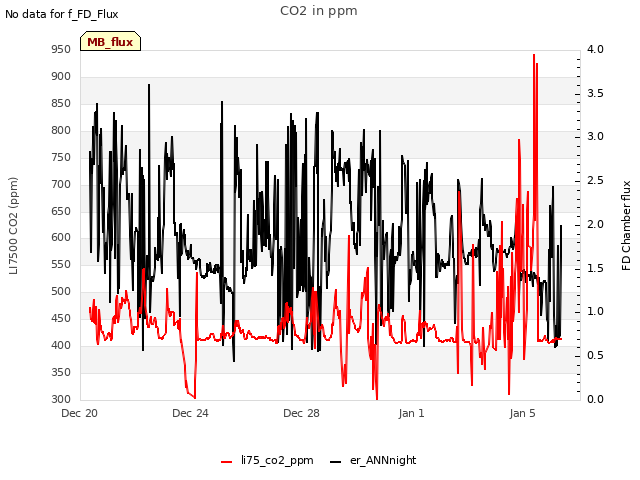

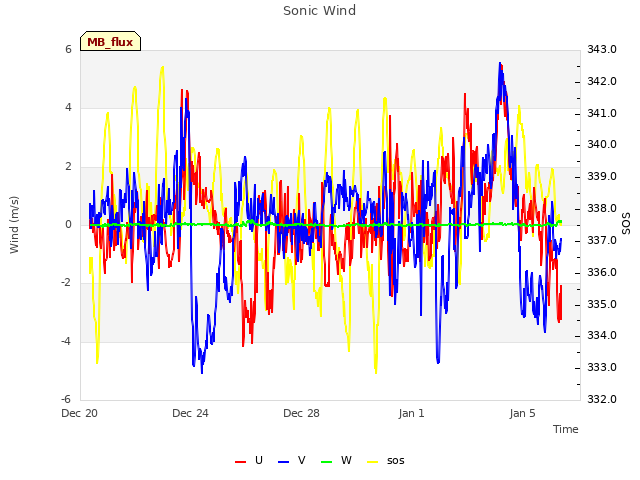

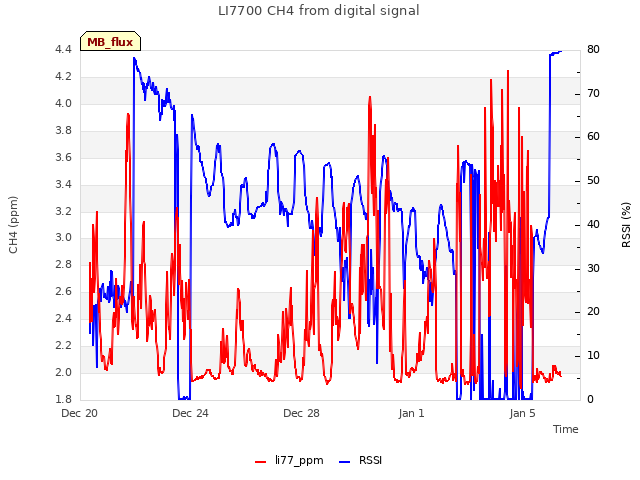

7 MB_flux graphs found
No data found for MB_met.

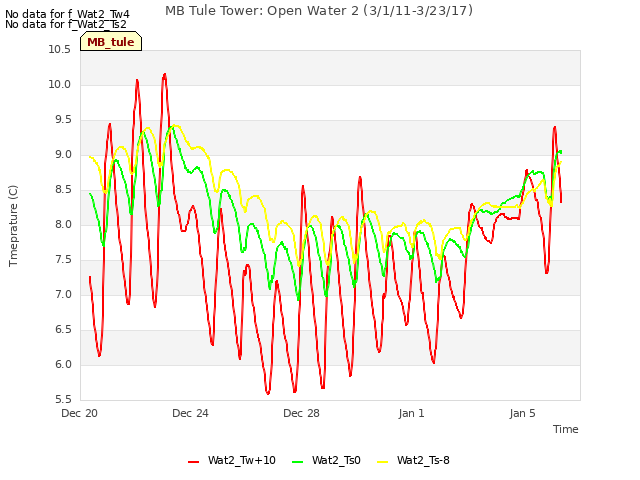

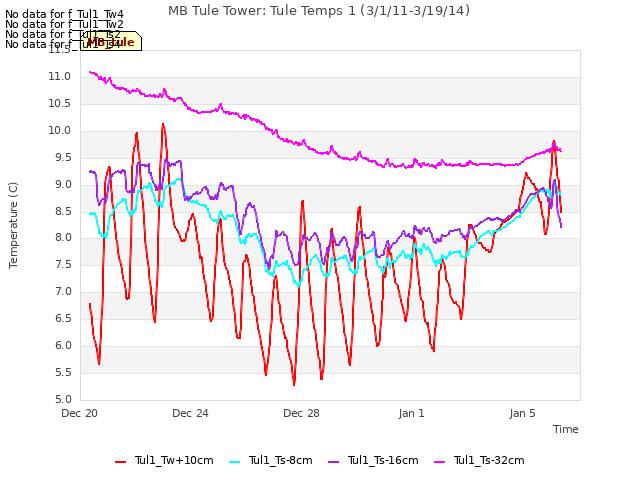

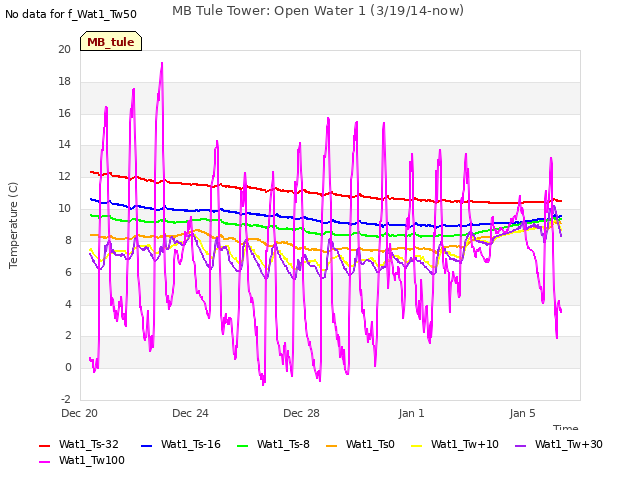

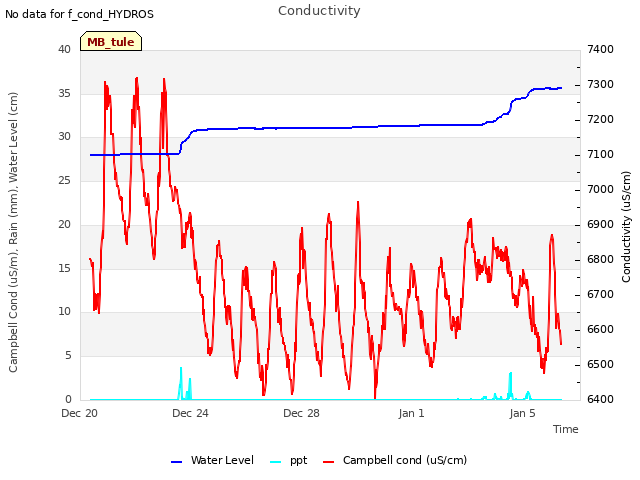

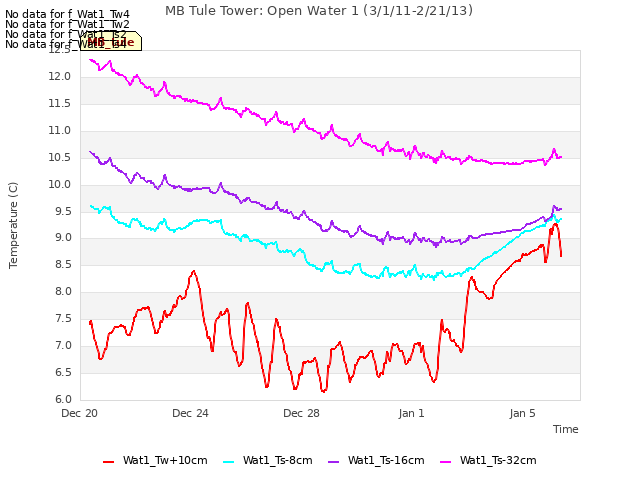

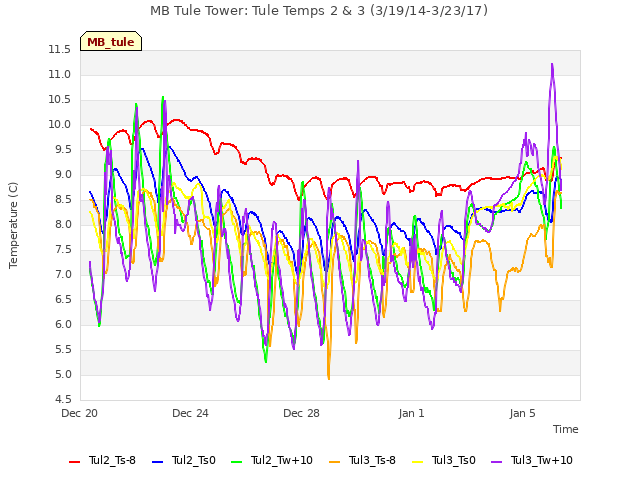

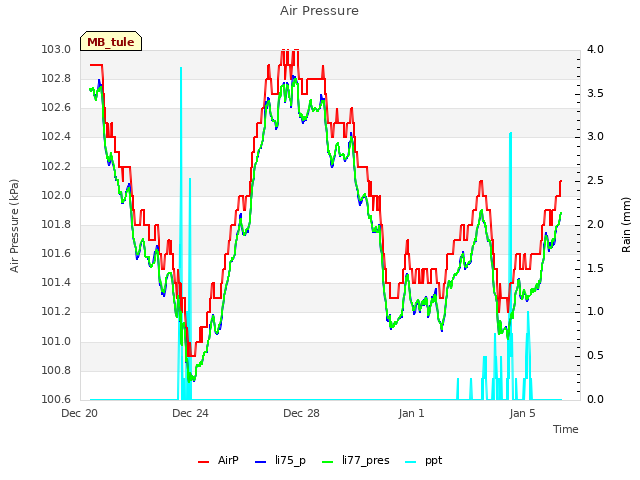

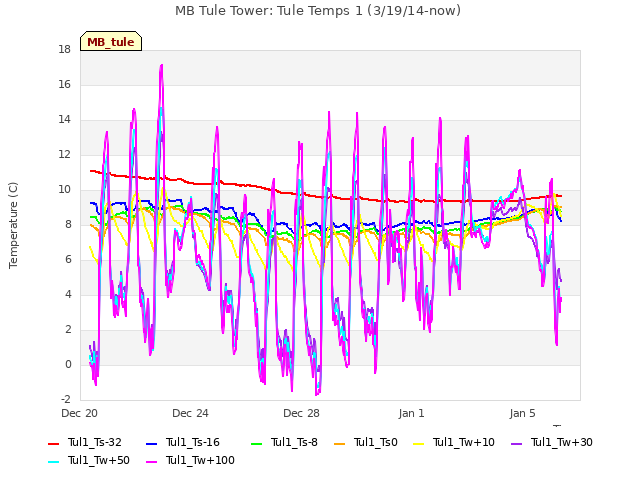

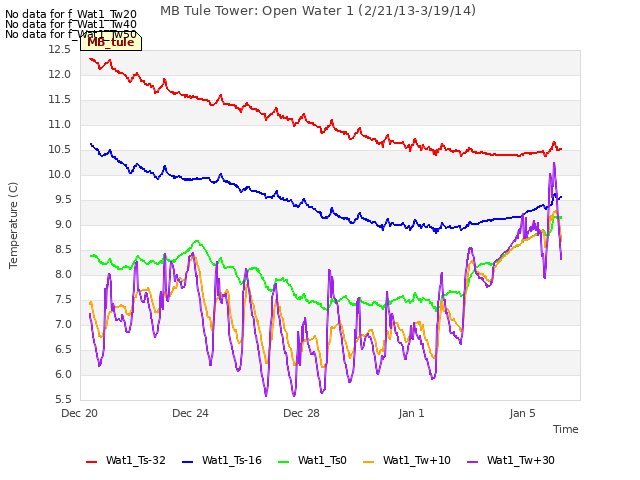

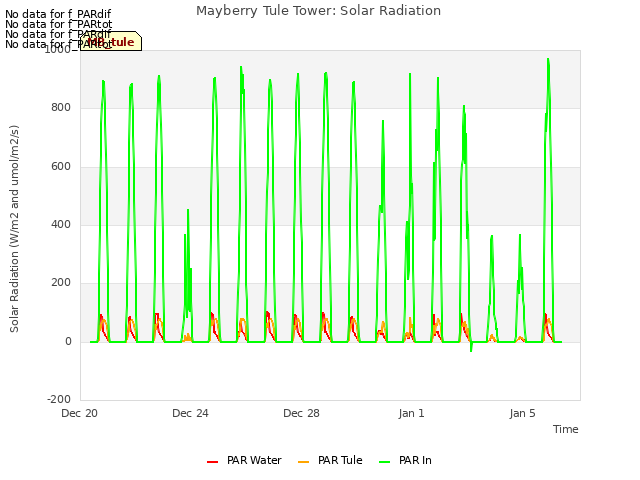

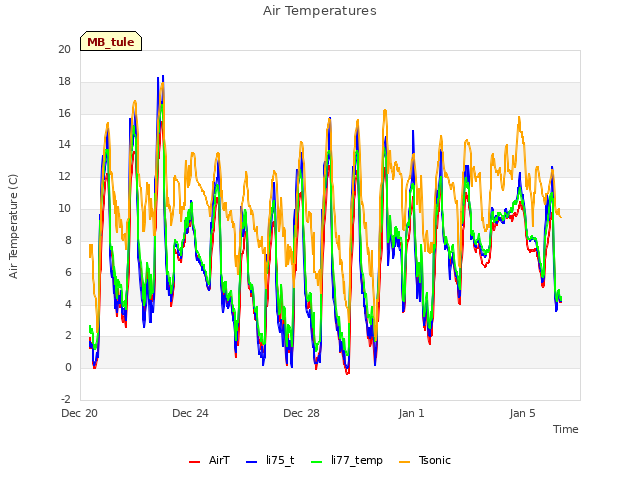

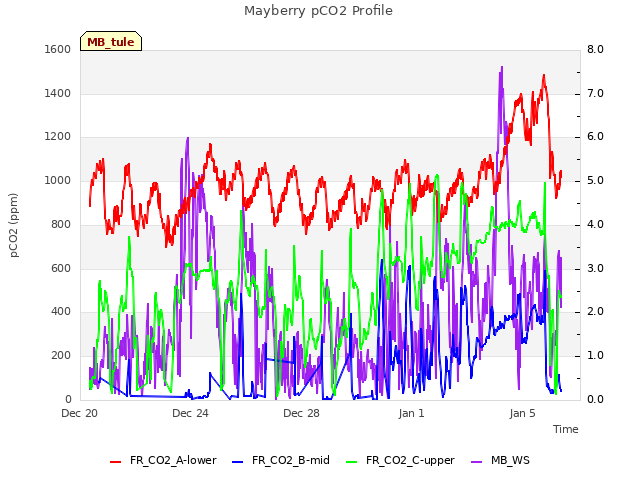

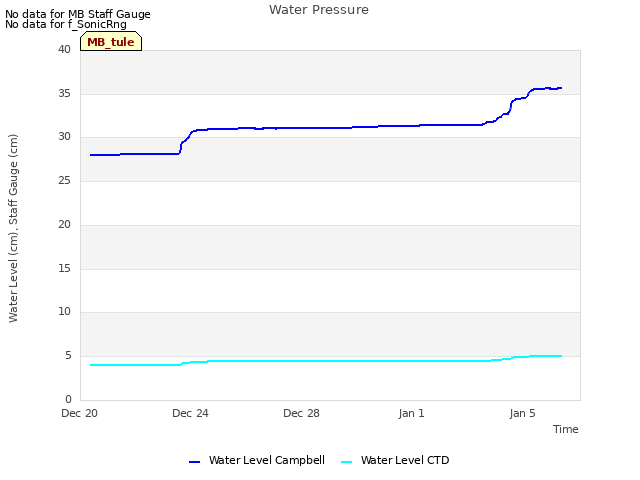

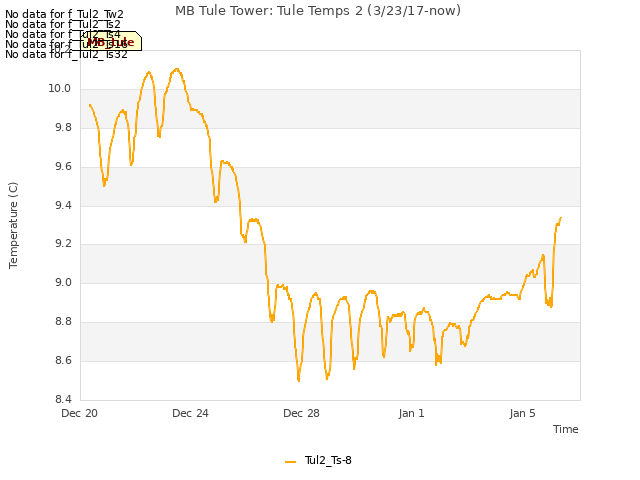

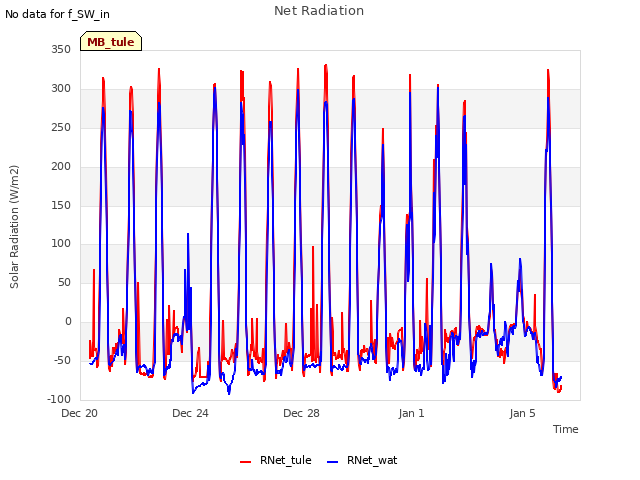

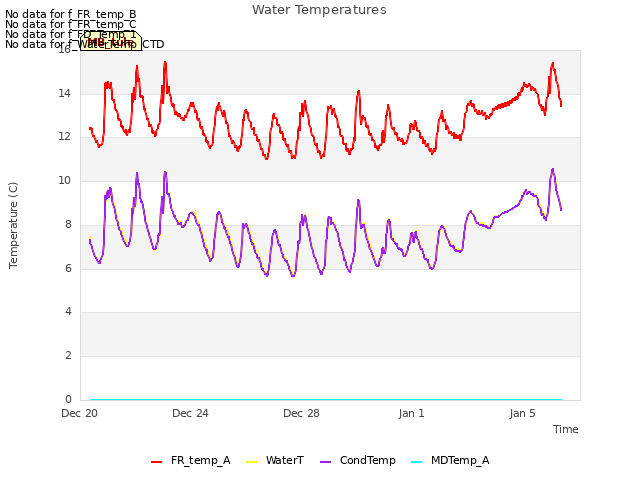

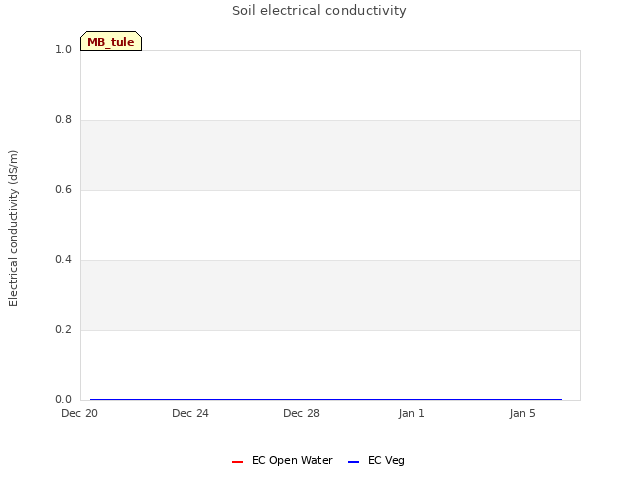

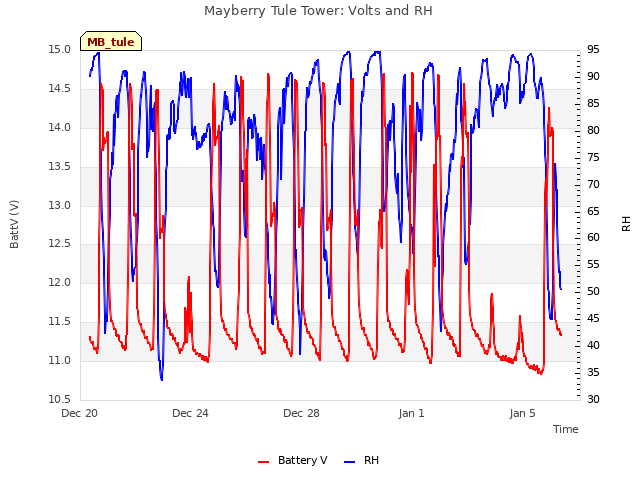

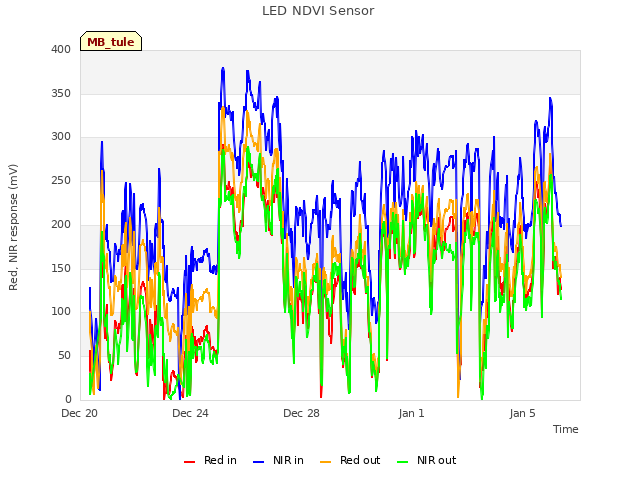

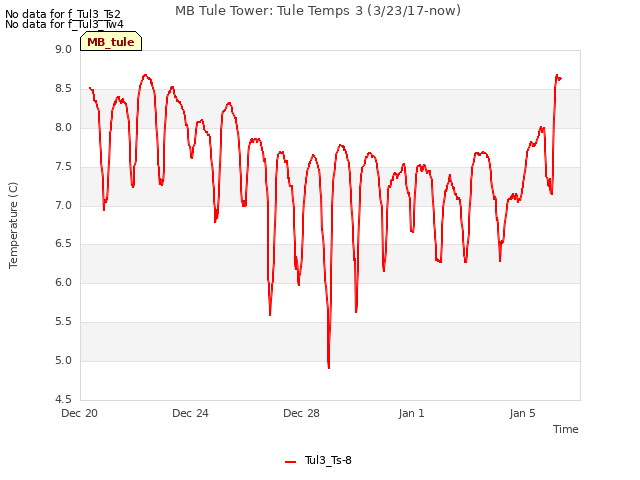

27 MB_tule graphs found
Can't check MBWPEESWGT_mixed

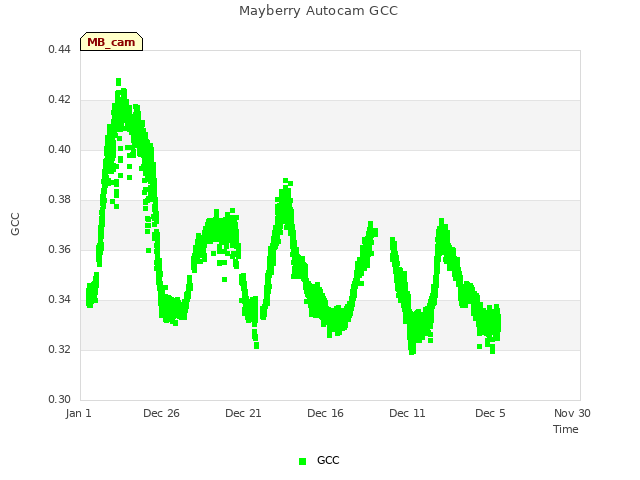

1 MB_cam graphs found
Can't check MBEEWPSWEPGT_cam
Can't check SIMBTWEE_met

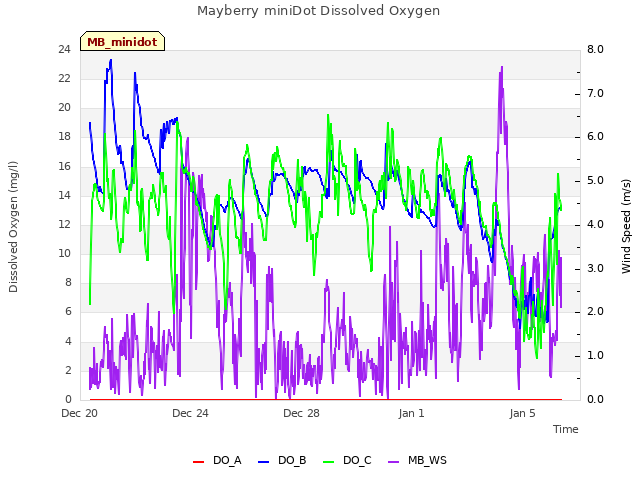

1 MB_minidot graphs found
Can't check MBSWEEWPBCBA

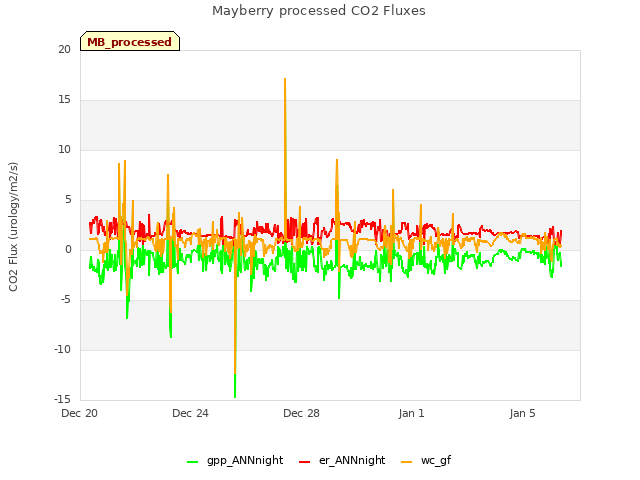

1 MB_processed graphs found
Can't check MB_fd
1 MB_fd graphs found
