Tonzi: 2016-11-02 12:00:00 (DOY 307)
Author: Joe Verfaillie
Others: Siyan

Summary: Beautiful day, green grass, fixed co2 profile system, installed HMP60 at tower top.

Tonzi
2016-11-02

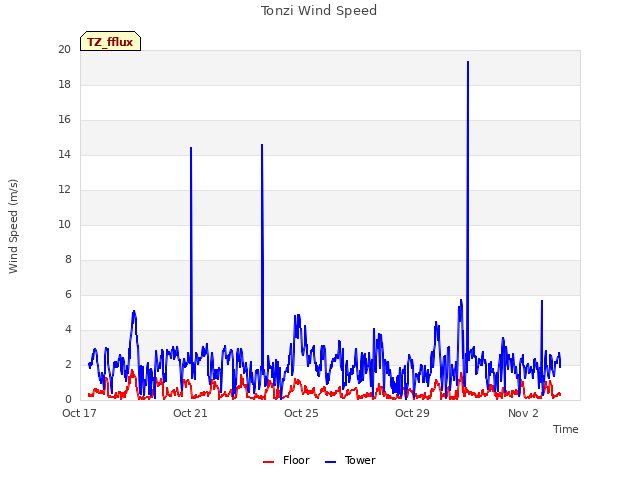

I arrived about 12 noon with Siyan. There was Tule fog in the Delta and the Central Valley, but it is clear sunny and warm here. There is almost no wind on the ground and only a light breeze at the top of the tower. The ground is wet with some small puddles and green with new grass. The trees still have some leaves. There were lots of mushrooms pushing up mainly near the base of the trees.

I collected data and serviced the z-cams while Siyan did soil moisture, wells, DBH and clip plots. The moisture point probe near the main tower has two broken pins and no longer works. I think we have one in the lab we can swap in next time.

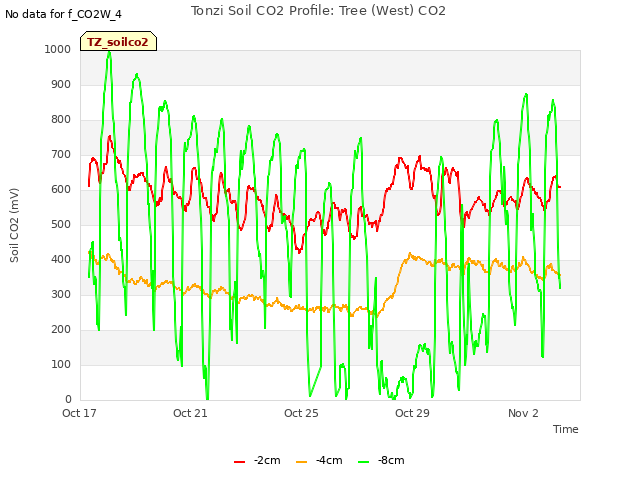

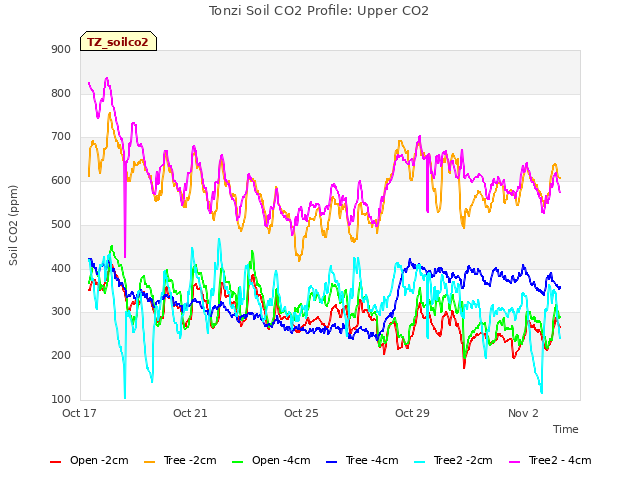

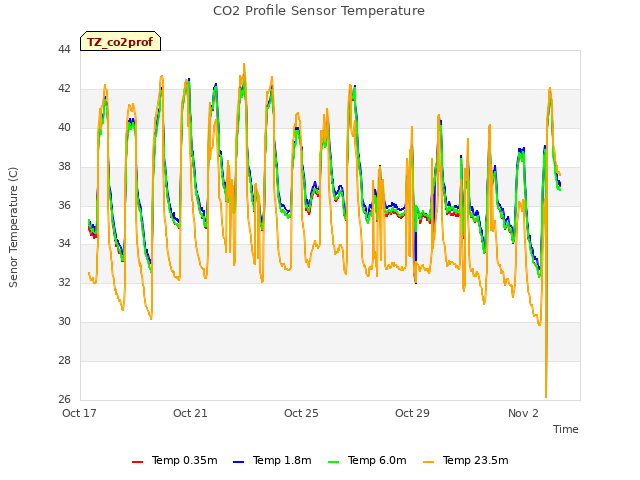

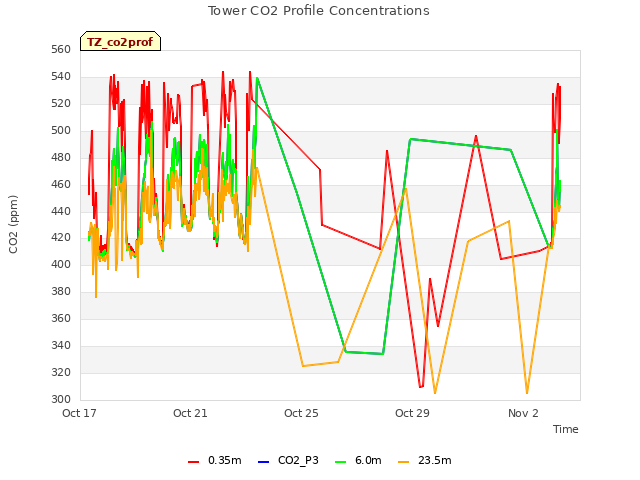

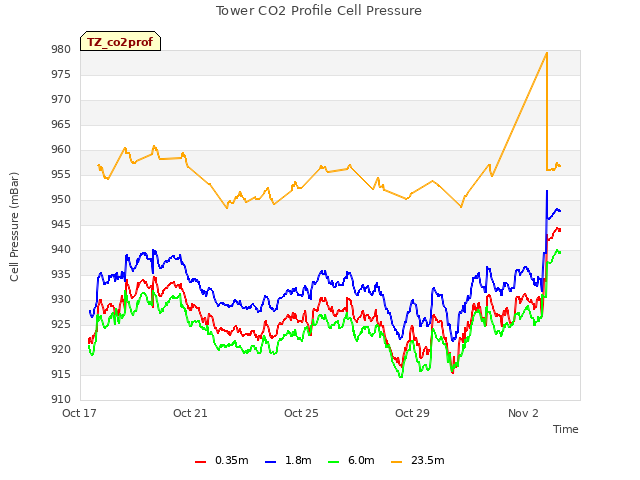

The CO2 profile system has not been working. The LI-820 path was dirty. I cleaned it and calibrated it. The fourth solenoid was stuck. I moved that channel to the unused sixth solenoid. I also swapped all the inlet filters. The lower filters were dirtier. After all of this, the system seemed to be running well.

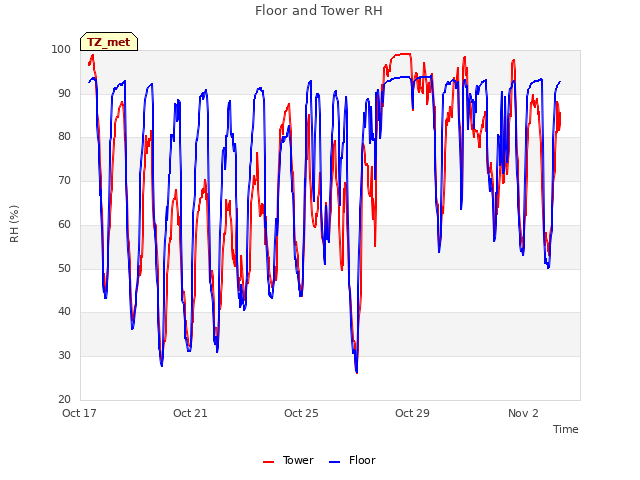

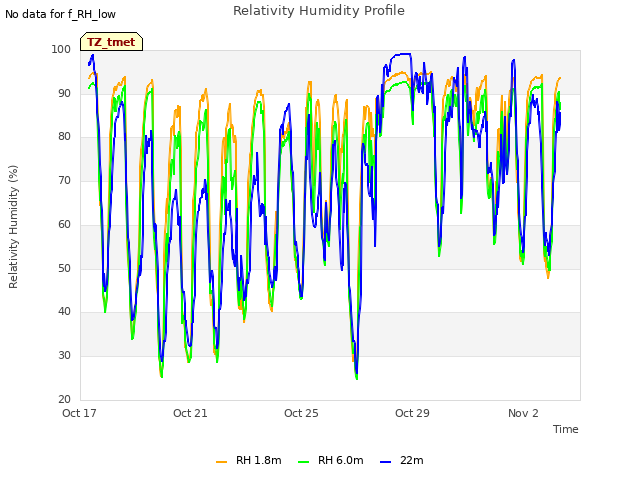

I installed a new HMP60 sn L2310711 next to the HMP45 at the top of the tower for comparison. It was connected to the CR23X on SE channels 13 and 14. The program was updated added the AirT and RH to the end of the data file.

Field Data

No tank data

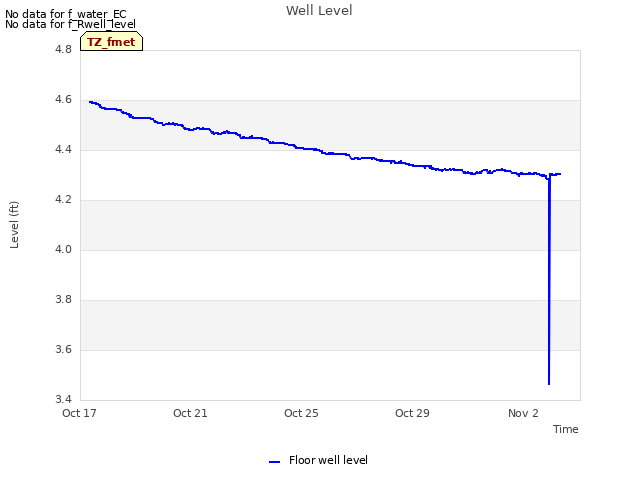

Well Depth

Date	Location	Depth (feet)
2016-11-02	TZ_floor	30.2
2016-11-02	TZ_road	38.1
2016-11-02	TZ_tower	34.7

mode = both

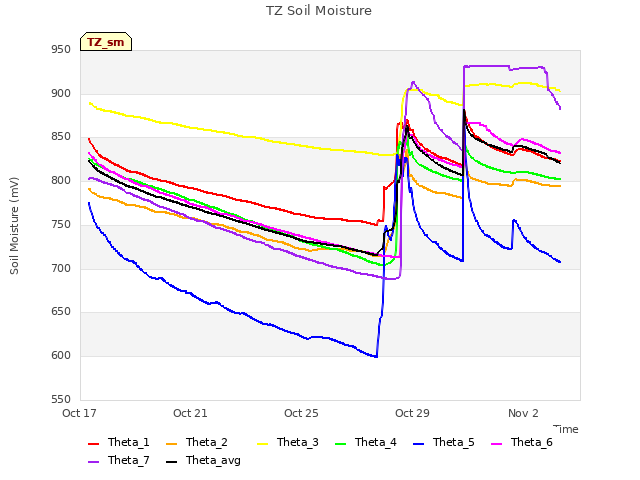

Moisture Point Probes TZ
Array ( [0] => Floor_South_1 [1] => Floor_East_1 [2] => Floor_West_1 [3] => SoilCO2_1 [4] => Soil_Transect_4_1 [5] => Soil_Transect_3_1 [6] => Soil_Transect_2_1 [7] => Soil_Transect_1_1 [8] => SoilCO2_West_A_1 [9] => SoilCO2_West_B_1 [10] => SoilCO2_West_C_1 [11] => Floor_South_2 [12] => Floor_East_2 [13] => Floor_West_2 [14] => SoilCO2_2 [15] => Soil_Transect_4_2 [16] => Soil_Transect_3_2 [17] => Soil_Transect_2_2 [18] => Soil_Transect_1_2 [19] => SoilCO2_West_A_2 [20] => SoilCO2_West_B_2 [21] => SoilCO2_West_C_2 [22] => Floor_South_3 [23] => Floor_East_3 [24] => Floor_West_3 [25] => SoilCO2_3 [26] => Soil_Transect_4_3 [27] => Soil_Transect_3_3 [28] => Soil_Transect_2_3 [29] => Soil_Transect_1_3 [30] => SoilCO2_West_A_3 [31] => SoilCO2_West_B_3 [32] => SoilCO2_West_C_3 [33] => Floor_South_4 [34] => Floor_East_4 [35] => Floor_West_4 [36] => SoilCO2_4 [37] => Soil_Transect_4_4 [38] => Soil_Transect_3_4 [39] => Soil_Transect_2_4 [40] => Soil_Transect_1_4 [41] => SoilCO2_West_A_4 [42] => SoilCO2_West_B_4 [43] => SoilCO2_West_C_4 )

0000

Date	DOY	Rep	Depth	Floor_South_1	Floor_East_1	Floor_West_1	SoilCO2_1	Soil_Transect_4_1	Soil_Transect_3_1	Soil_Transect_2_1	Soil_Transect_1_1	SoilCO2_West_A_1	SoilCO2_West_B_1	SoilCO2_West_C_1	Floor_South_2	Floor_East_2	Floor_West_2	SoilCO2_2	Soil_Transect_4_2	Soil_Transect_3_2	Soil_Transect_2_2	Soil_Transect_1_2	SoilCO2_West_A_2	SoilCO2_West_B_2	SoilCO2_West_C_2	Floor_South_3	Floor_East_3	Floor_West_3	SoilCO2_3	Soil_Transect_4_3	Soil_Transect_3_3	Soil_Transect_2_3	Soil_Transect_1_3	SoilCO2_West_A_3	SoilCO2_West_B_3	SoilCO2_West_C_3	Floor_South_4	Floor_East_4	Floor_West_4	SoilCO2_4	Soil_Transect_4_4	Soil_Transect_3_4	Soil_Transect_2_4	Soil_Transect_1_4	SoilCO2_West_A_4	SoilCO2_West_B_4	SoilCO2_West_C_4	Spacial Count
2016-11-02	307	0	nan	24.4	28.2	26.1	31.4	25.3	22.3	25.8	22.3	27	25.8	25.83	37.1	43.2	31.3	31	25.8	32.6	31.4	17	26.1	21.6	30.1	42.4	54.1	36	36.6	30.4	32.1	33.5	25.1	34.3	36	36.3	54	50.9	41.7	42	35.4	45.1	49.1	11.6	45.4	52.6	51.7
2016-11-02	307	1	nan	23.2	29.4	27	30.8		22.3	25	22	25.8	24.7	6.1	37.8	44.5	31.9	32.3	25.9	31.9	30.4	17	26	21.9	30.4	42.1	56.1	35.4	38.5	31	32.7	32.7	25.1	34.9	34.9	36.3	62.2	49.7	42.3	41.4	35.7	45.4	48	11.6	45.7	50.3	49.1
2016-11-02	307	Avg	0-15cm																																													0
2016-11-02	307	Avg	15-30cm																																													0
2016-11-02	307	Avg	30-45cm																																													0
2016-11-02	307	Avg	45-60cm																																													0

mode = both
Moisture Point Probes VR
Array ( [0] => Solar_Panels_1 [1] => Flux_Tower_1 [2] => Gate_1 [3] => Biomass_Cage_1 [4] => Solar_Panels_2 [5] => Flux_Tower_2 [6] => Gate_2 [7] => Biomass_Cage_2 [8] => Solar_Panels_3 [9] => Flux_Tower_3 [10] => Gate_3 [11] => Biomass_Cage_3 [12] => Solar_Panels_4 [13] => Flux_Tower_4 [14] => Gate_4 [15] => Biomass_Cage_4 )

0000

Date	DOY	Rep	Depth	Solar_Panels_1	Flux_Tower_1	Gate_1	Biomass_Cage_1	Solar_Panels_2	Flux_Tower_2	Gate_2	Biomass_Cage_2	Solar_Panels_3	Flux_Tower_3	Gate_3	Biomass_Cage_3	Solar_Panels_4	Flux_Tower_4	Gate_4	Biomass_Cage_4	Spacial Count
2016-11-02	307	0	nan	29.5	22.6	22.6	11.8	30.8	29.2	21.6	24.6	31.2	15.7	24.8	31.8	44.5	31.1	24.8	33.4
2016-11-02	307	1	nan	25.8	22.6	22.9	11.5	31	29.5	22.2	25.5	31.3	15.4	24.8	31.8	45.1	31.1	25.6	33.1
2016-11-02	307	Avg	0-15cm																	0
2016-11-02	307	Avg	15-30cm																	0
2016-11-02	307	Avg	30-45cm																	0
2016-11-02	307	Avg	45-60cm																	0

No TZ grass heigth found

Grass Height VR 5

Date	Height reps (cm)					Location	Average	Samp	STDEV
2016-11-02	7	14	8	9	10	GH_ALL	9.6	5	2.42

Tree DBH

Date	Tag#	Reading (mm)
2016-11-02	1	25.5
2016-11-02	105	23.0
2016-11-02	2	19.4
2016-11-02	245	23.0
2016-11-02	3	23.8
2016-11-02	4	18.5
2016-11-02	5	20.2
2016-11-02	7	17.0
2016-11-02	72	23.6
2016-11-02	79	23.3
2016-11-02	8	20.1
