West Pond: 2016-11-08 13:15:00 (DOY 313)
Author: Elke Eichelmann
Others: Kyle Hemmes, Dennis Baldocchi

Summary: Regular data collection, wetland senescing

Arrived at 13:15. It was sunny, warm and clear, no wind. Wetland is senescing but there are still a few green tules left.

We collected USB GHG data, collected met data, collected camera. All looks good.

Refilled wash water reservoir, was half full. Cleaned eddy flux sensors and radiation sensors.

LI7500 readings:
CO2 423.44 umol/mol
H2O 737.3 mmol/m3
T 24.78 Celsius
P 101.58 kPa
SS 95.76 -> 96.05 after cleaning

LI7700 readings:
CH4: 2.05 -> 2.07
RSSI: 21.2 -> 82.2 after cleaning

Left at 13:30

0 photos found

Graphs display:
8 sets found

Can't check WP_DO
1 WP_DO graphs found

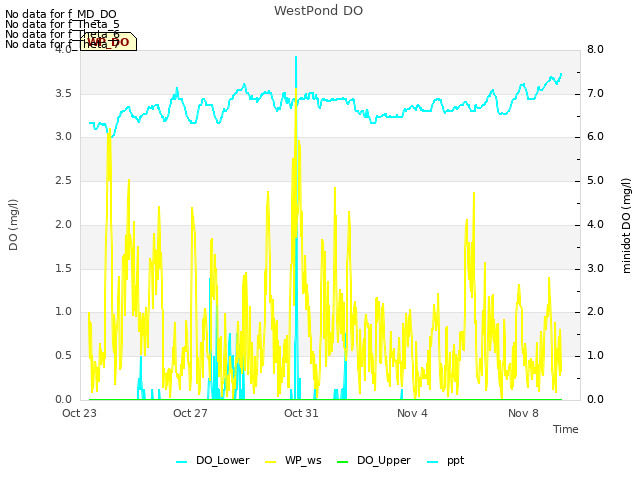

WestPond DO

14 WP_met graphs found

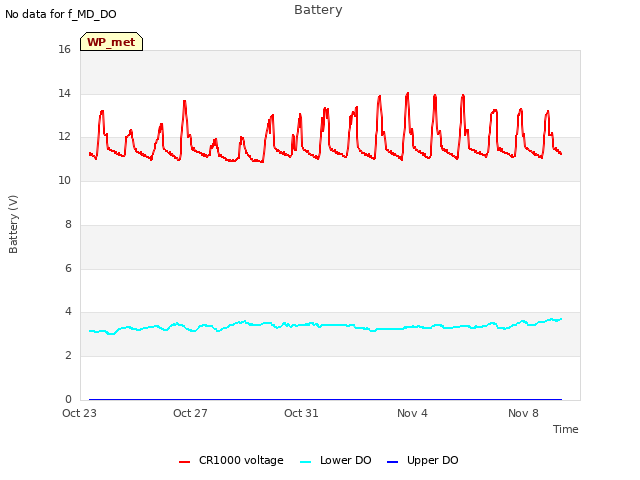

Battery

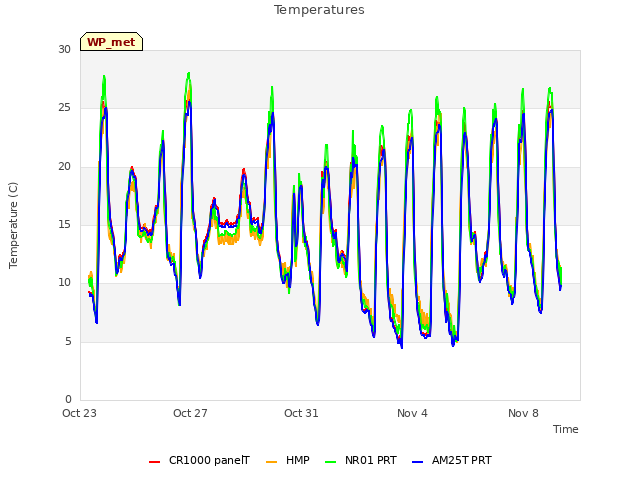

Temperatures

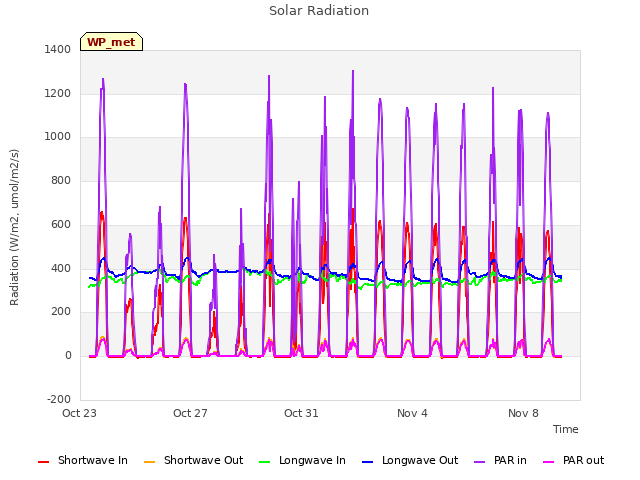

Solar Radiation

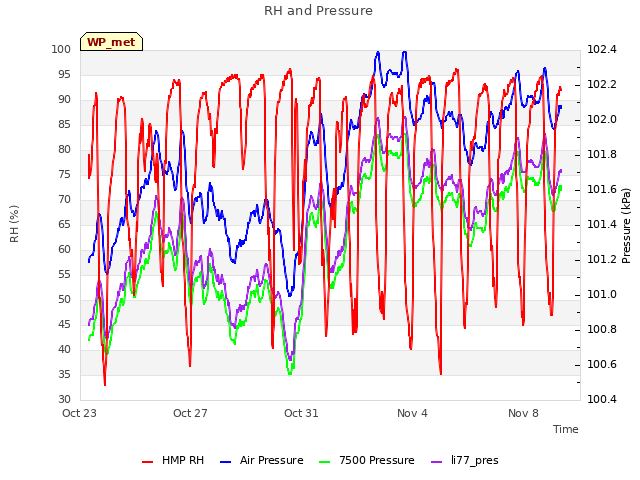

RH and Pressure

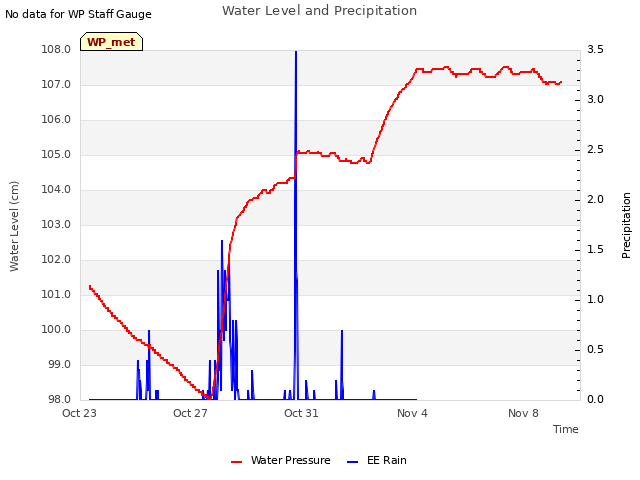

Water Level and Precipitation

Conductivity

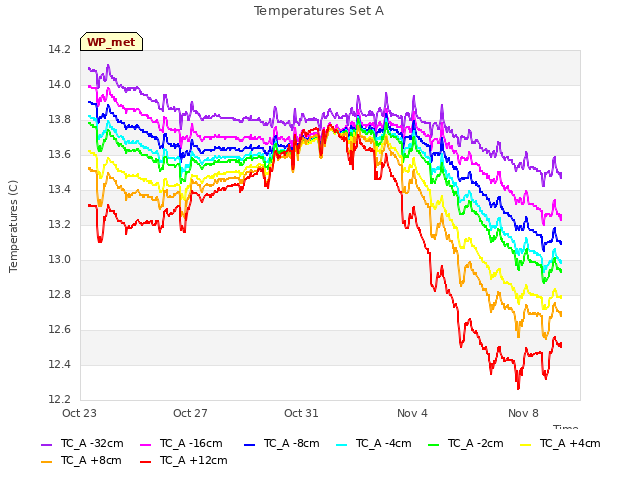

Temperatures Set A

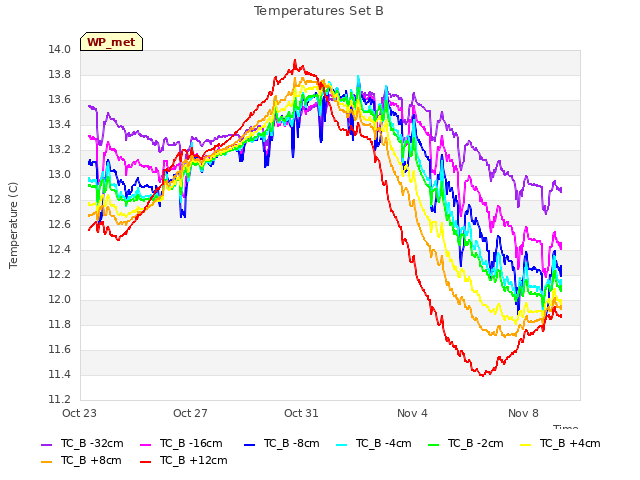

Temperatures Set B

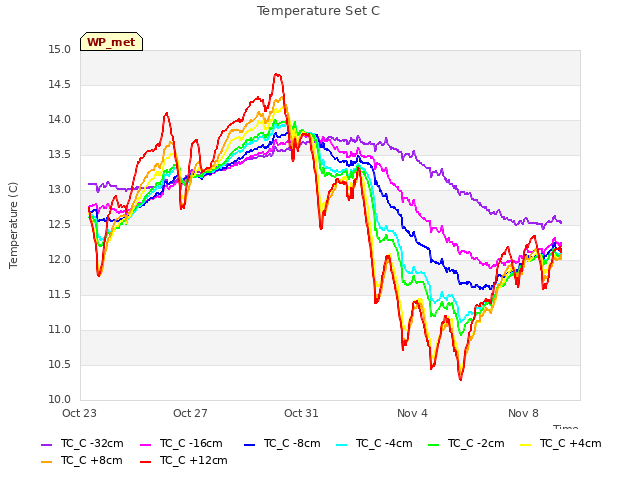

Temperature Set C

Water CO2 and Temp

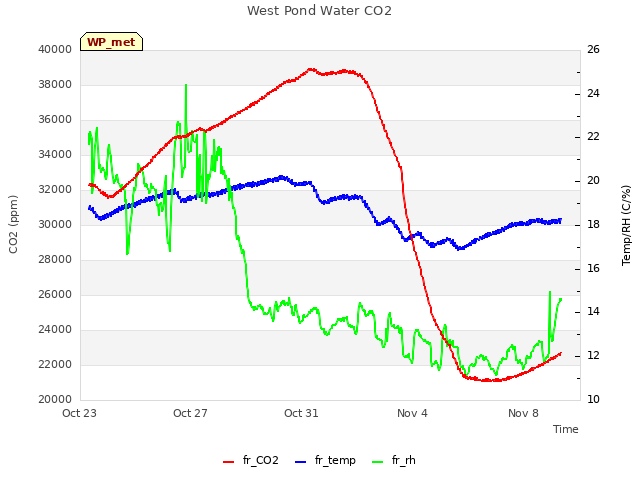

West Pond Water CO2

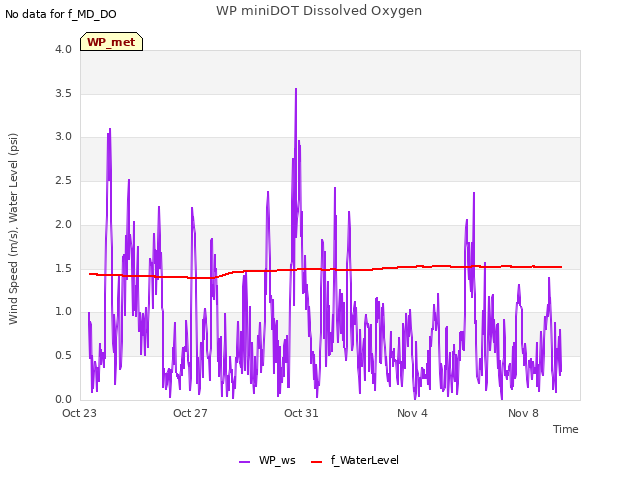

WP miniDOT Dissolved Oxygen

SRS NDVI Channels

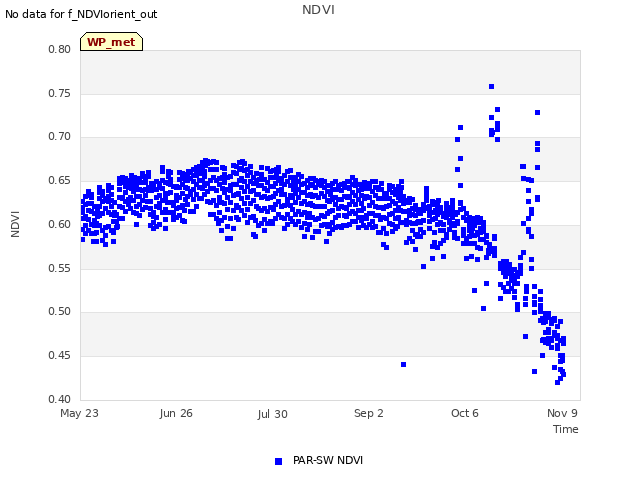

NDVI

5 WP_flux graphs found

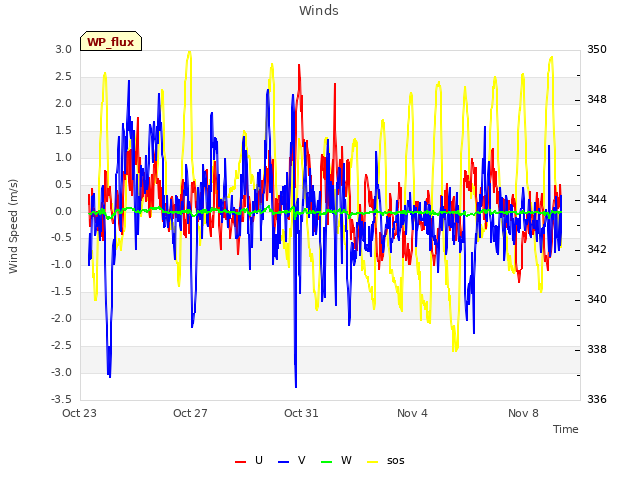

Winds

LI7500 CO2 and H2O

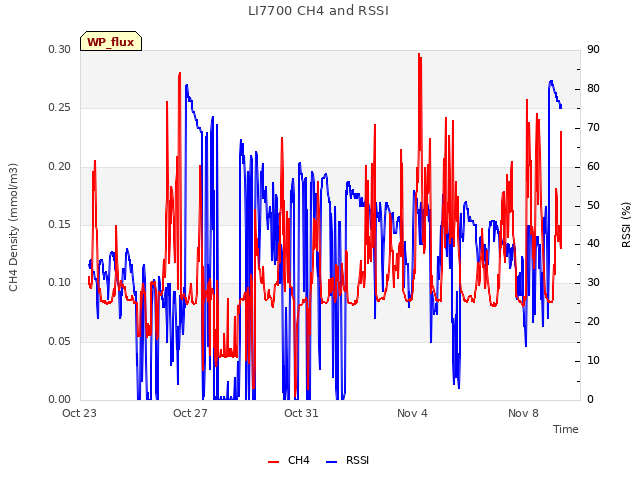

LI7700 CH4 and RSSI

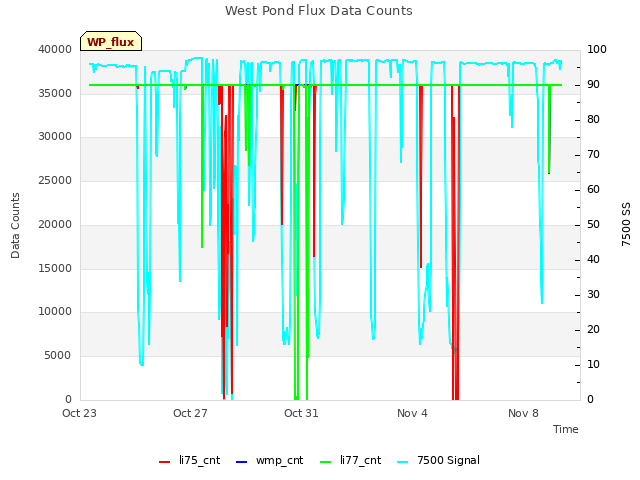

West Pond Flux Data Counts

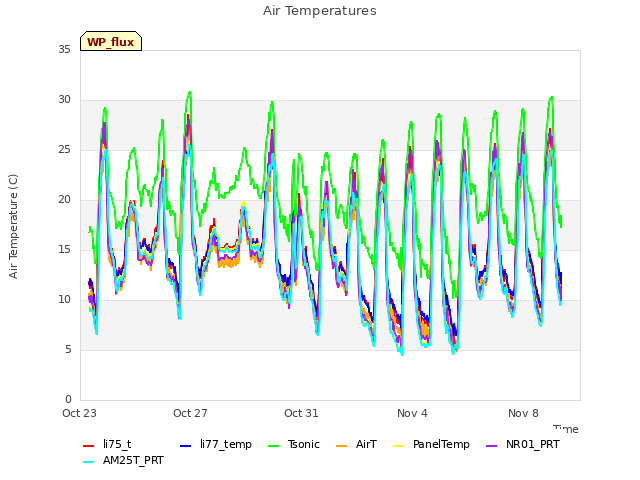

Air Temperatures

Can't check MBWPEESWGT_mixed
Can't check MBEEWPSWEPGT_cam
Can't check MBSWEEWPBCBA
1 WP_processed graphs found

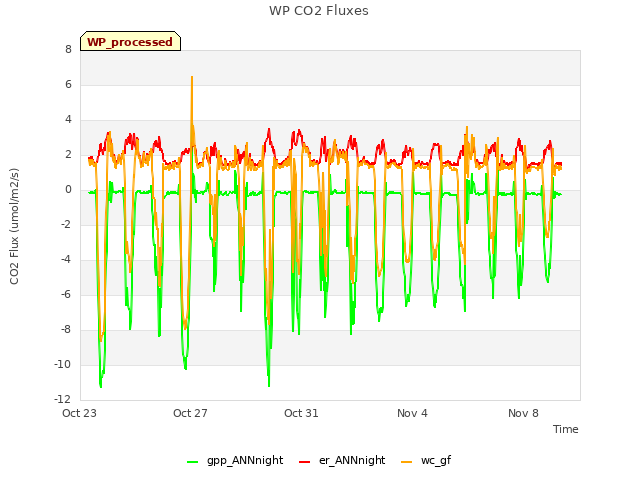

WP CO2 Fluxes

No data found for WP_arable.
