Mayberry: 2016-06-06 11:30:00 (DOY 158)
Author: Alison Haddad
Others: Elke Eichelmann, Kyle Hemes, Joe Verfaillie
Summary: Regular data collection, serviced water sensors, replaced wash reservoir spray head

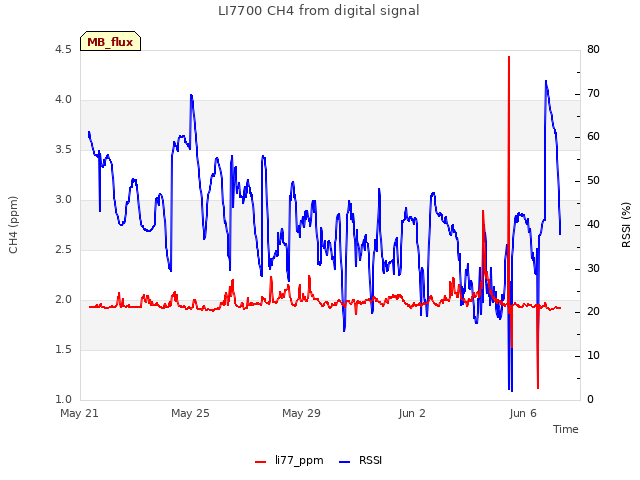

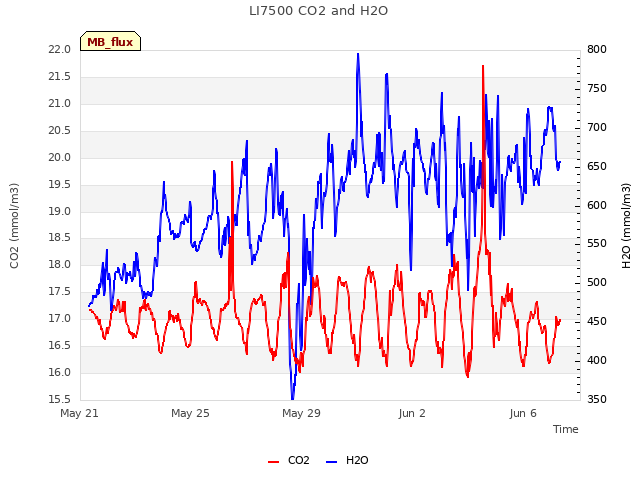

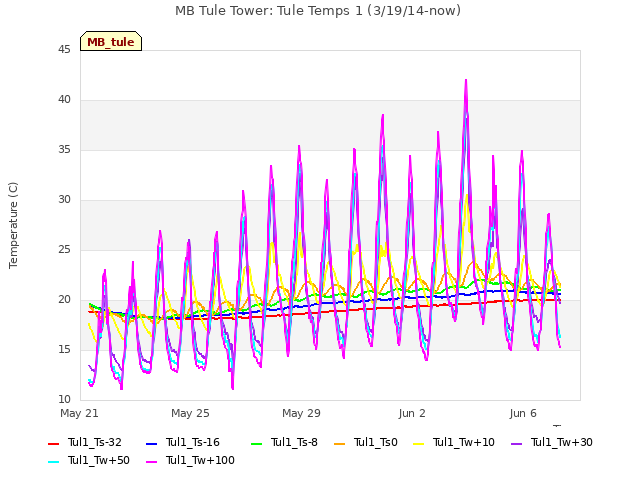

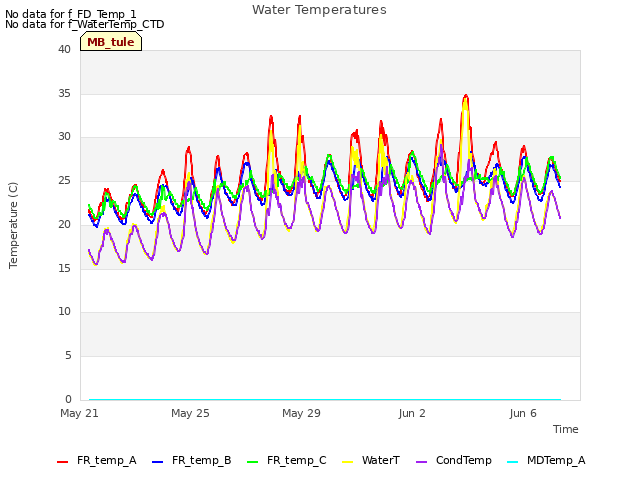

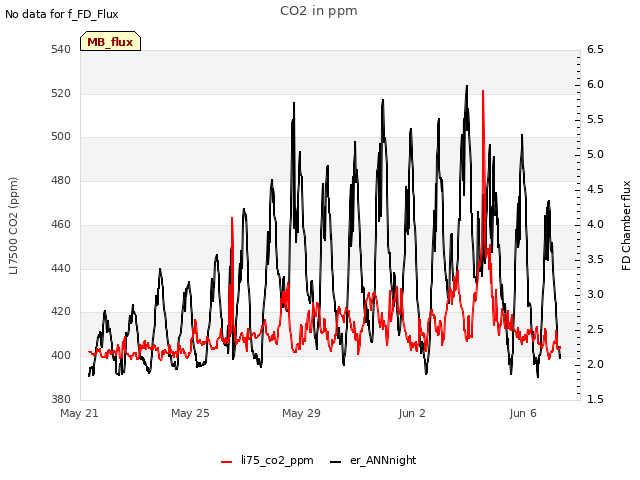

| Arrived 11:30. Clear, sunny, windy with gusts. Methane wash water reservoir filled, was mostly empty. Collected USB GHG data, collected met data from 23X, collected camera card pictures. One thermocouple (in tule, 16cm soil temperature) not working. TUL1_TS16= -INF Changed spray head on LI7700 and tested it, works now. Cleaned solar panels and serviced water sensors (mini dots) Also secured camera arm bolt to the scaffold with weather resistant string LI7500 data CO2 410.71 H2O 700.4 T 22.10 P 100.70 ss 84.88->85.46 after cleaning LI7700 data CH4 1.96 rssi 40->75.05 after cleaning left at 12:00 |
0 photos found
11 sets found

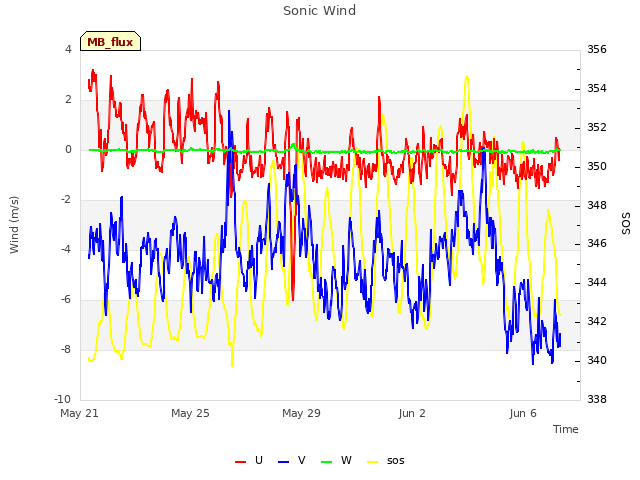

7 MB_flux graphs found
No data found for MB_met.

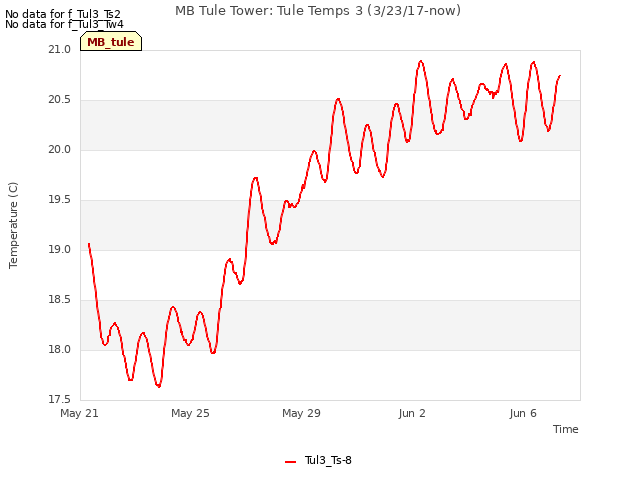

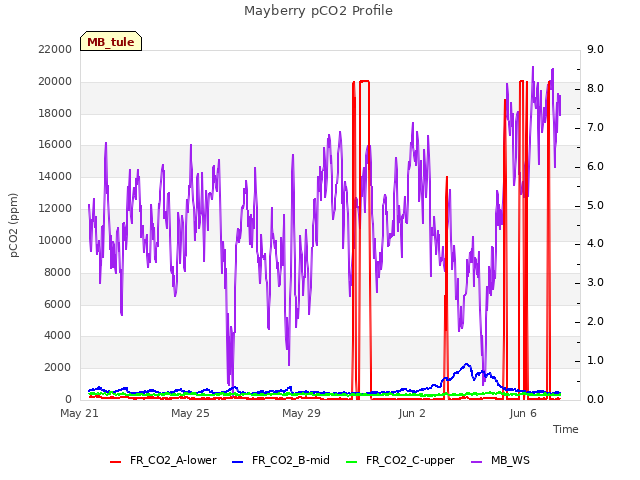

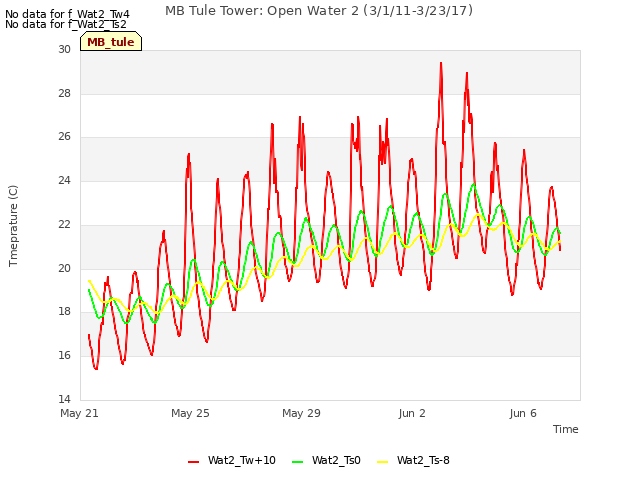

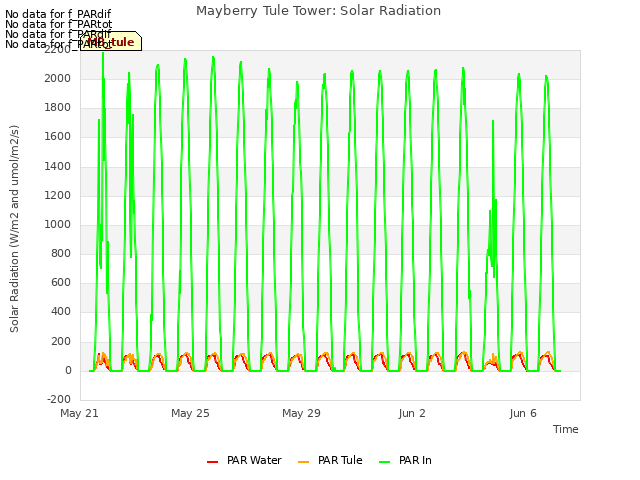

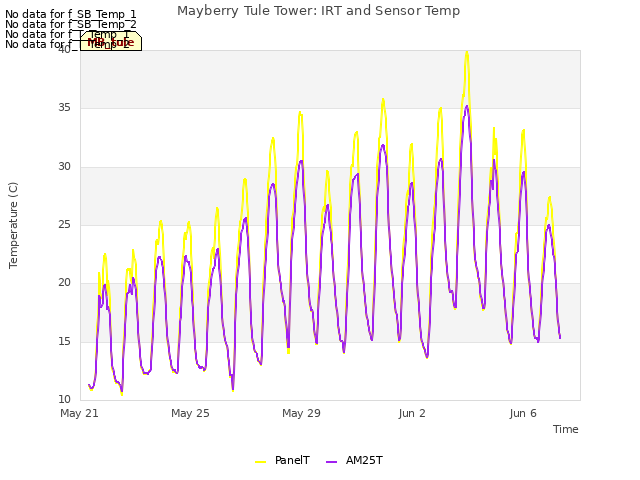

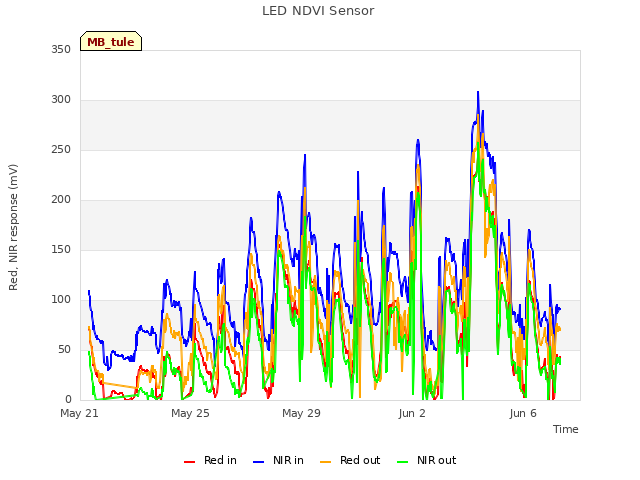

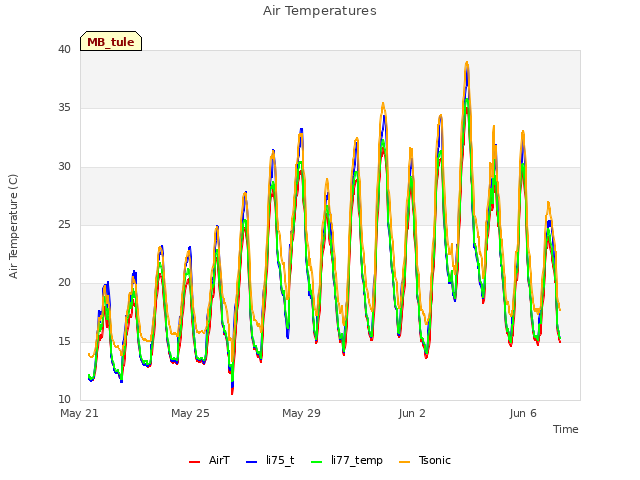

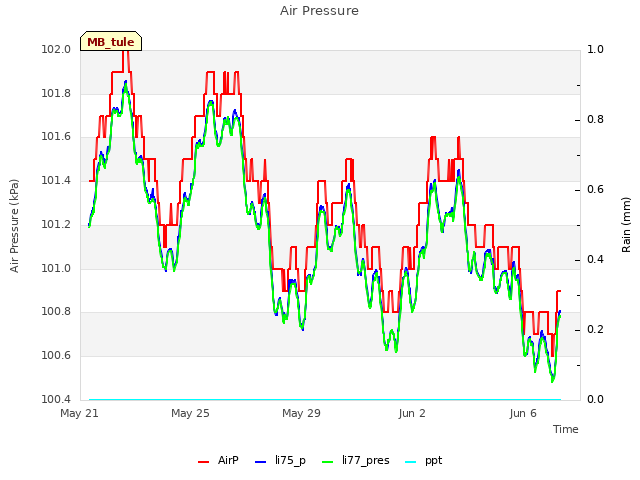

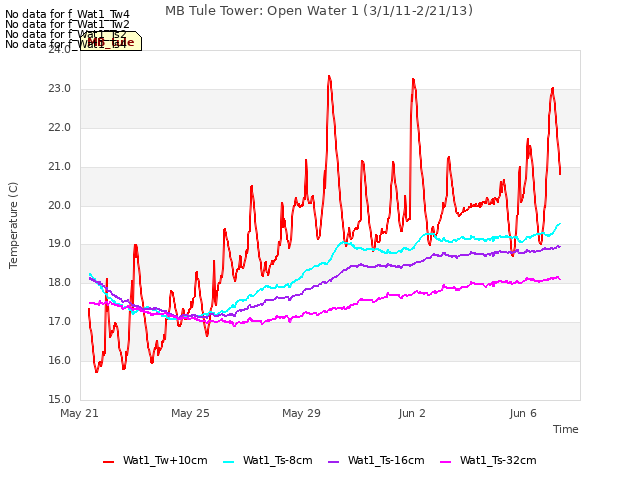

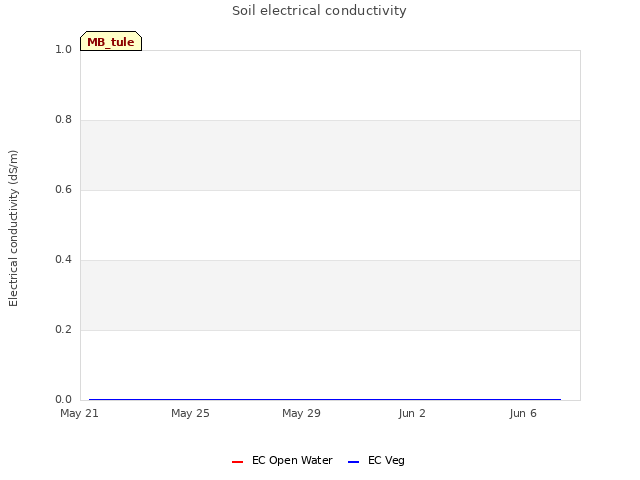

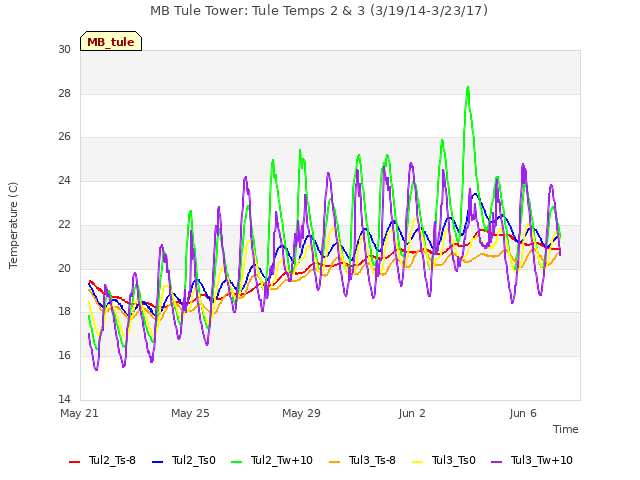

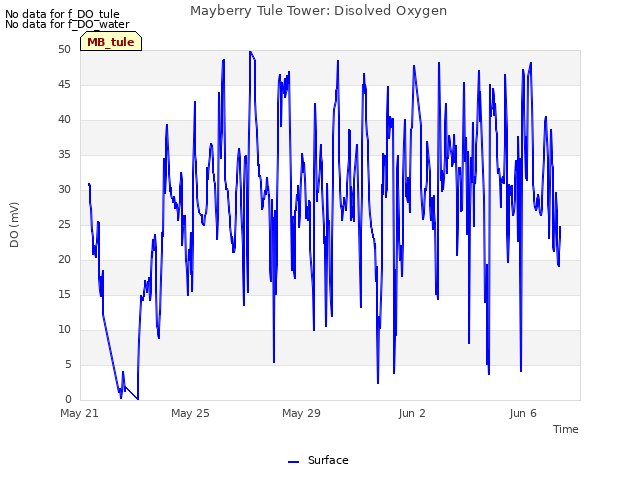

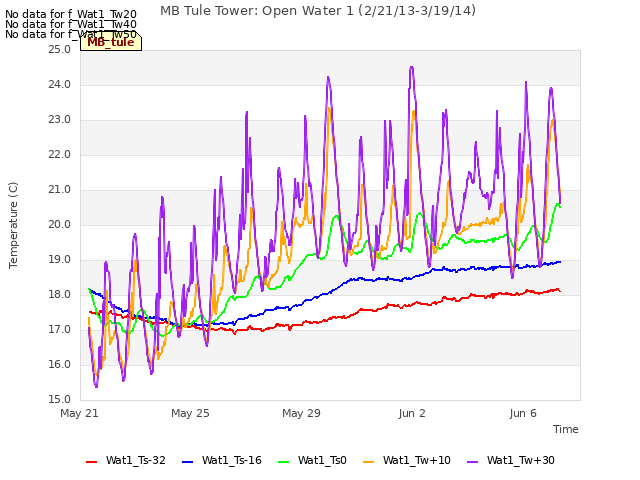

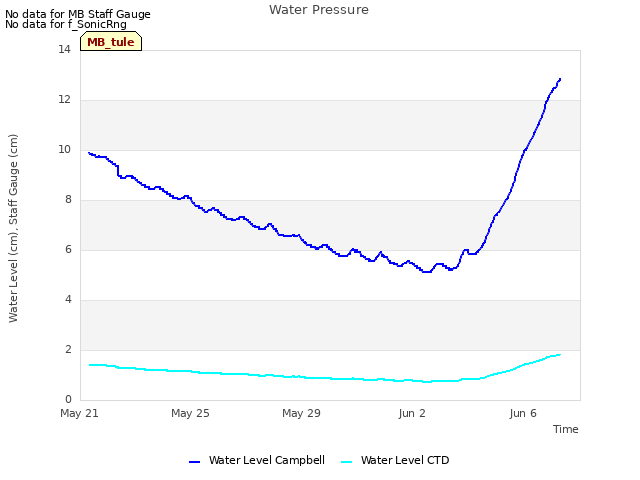

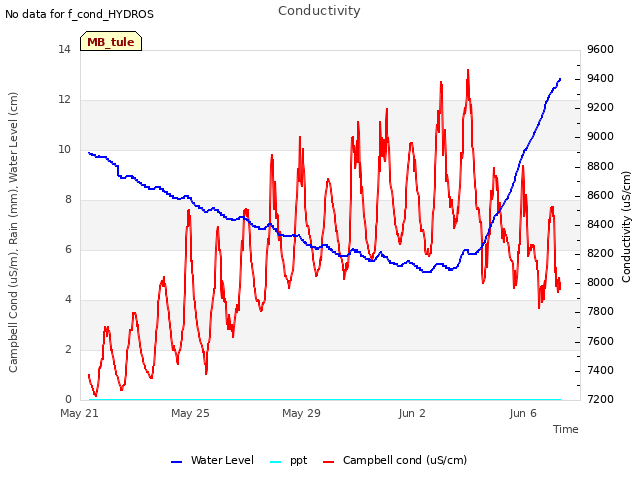

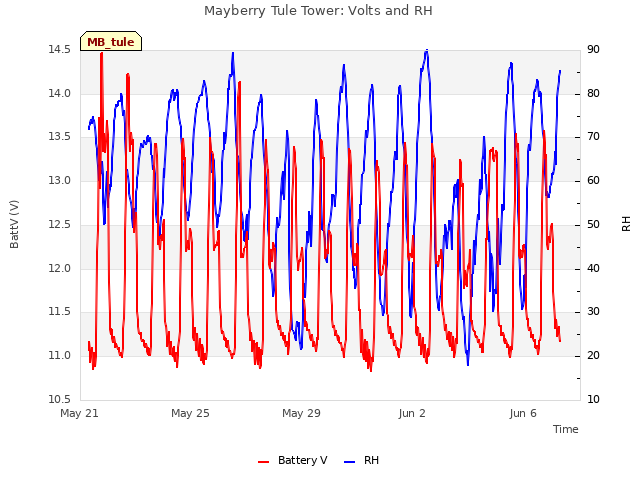

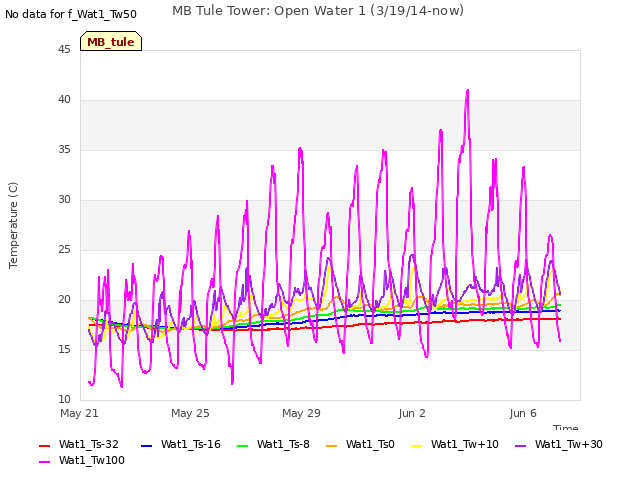

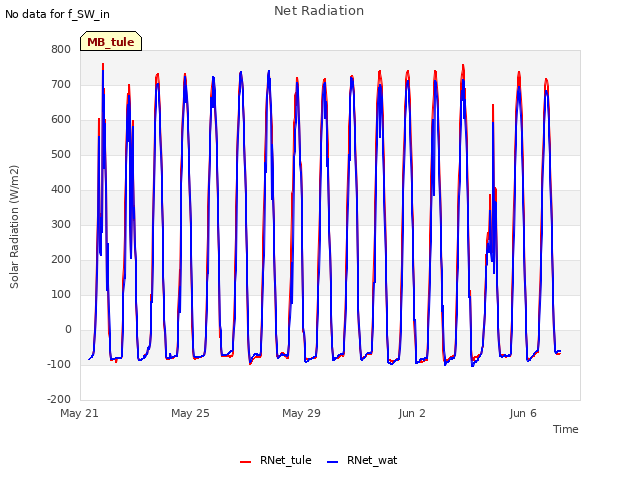

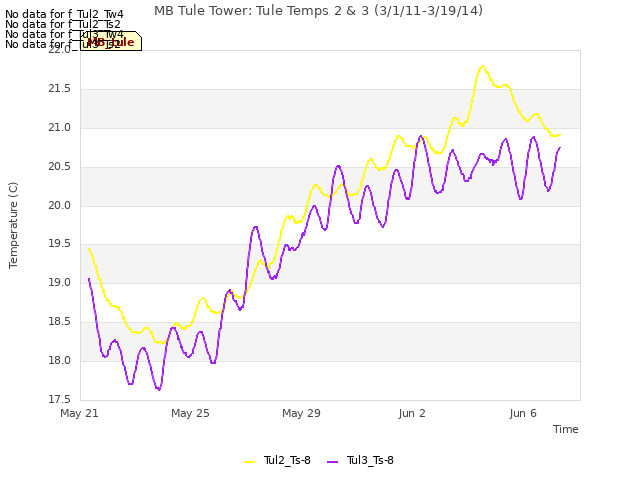

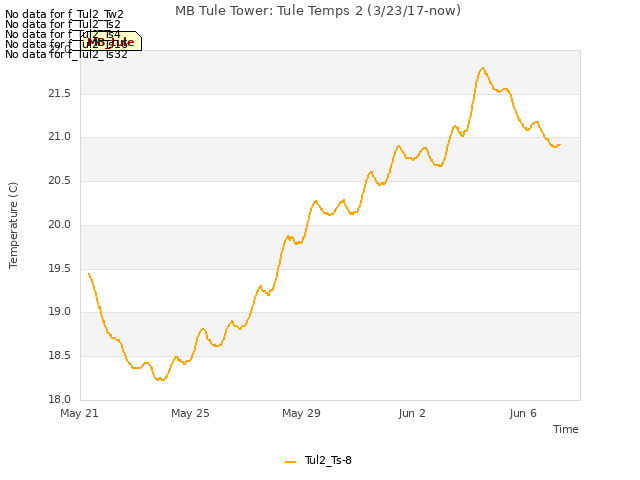

27 MB_tule graphs found
Can't check MBWPEESWGT_mixed

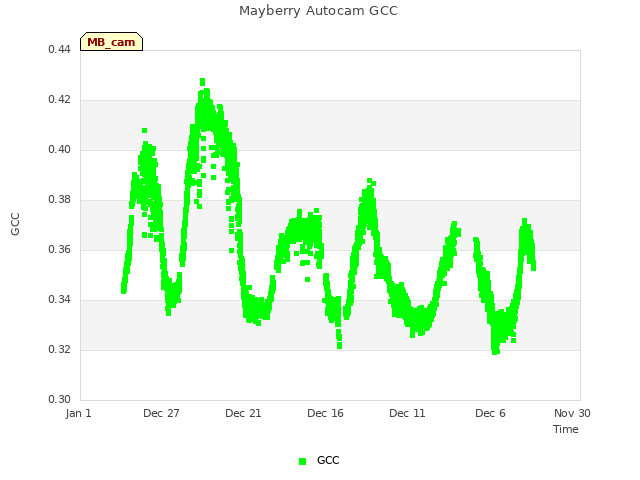

1 MB_cam graphs found
Can't check MBEEWPSWEPGT_cam
Can't check SIMBTWEE_met

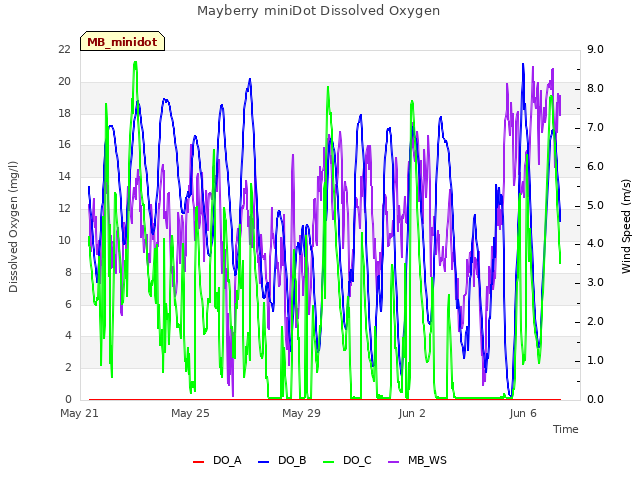

1 MB_minidot graphs found
Can't check MBSWEEWPBCBA

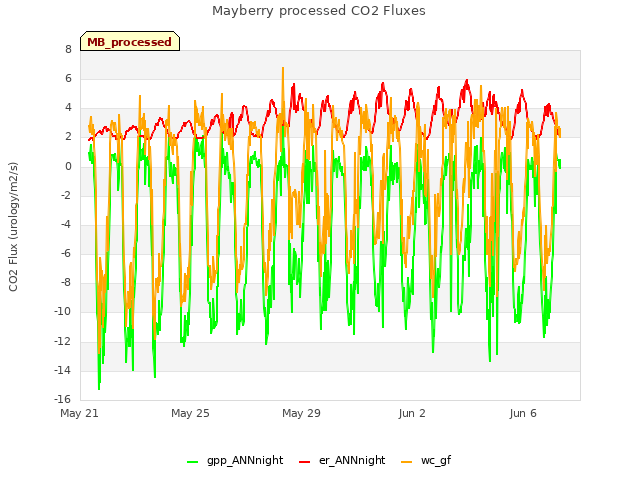

1 MB_processed graphs found
Can't check MB_fd
1 MB_fd graphs found
