Field Notes

<--2016-01-20 10:00:00 | 2016-02-04 12:30:00-->
Other sites visited today: Vaira | Tonzi

Tonzi: 2016-01-20 10:00:00 (DOY 20)
Author: Siyan Ma
Others: Joe

Summary: Standard field work, things wet after several days of rain, tram brought in - dead battery, Floor power improved.

When: Date: 1/20/2016 , Day: 20 , Watch Time: 10:00 am .

Where: Tonzi/Vaira Ranch

Who: Siyan, Joe

Weather: no rain, cloudy



Phenology:

Summary

  1. Swapped memory cards of CR1000s at three sites.
  2. Joe checked and fixed batteries at the floor site.
  3. Checked and downloaded met data from PC at Tower, Floor, and Vaira.
  4. Soil CO2 probes need to be taken back for calibration.
  5. Read dendrometers
  6. Measured soil moisture
  7. Measure groundwater well

Vaira_Grass Site

  1. Downloaded Phenocam images.
  2. Swapped the memory cards of CR1000.
  3. Checked the fans of air temp and relative humidity sensors at Vaira. YES!
  4. Downloaded met and soil CO2 profile data:



  1. Checked levels of Radiation sensors, clear up surfaces.YES!
  2. Checked rain gage, make sure not clogged. YES!
  3. Closed gate and set up fence. YES!

Tonzi_Tower Site

  1. Fence and gate power: 12 v.
  2. downloaded tram data from PC. YES!
  3. swapped the memory cards of CR1000.


  1. download Phenocam images. Yes!
  2. checked the fans of air temp. and relative humidity sensors on the tower and the floor. YES!
  3. Checked rain gage, make sure not clogged. YES!
  4. Tram stopped working
  5. CO2 profile: off

9. closed gate and set up fence. YES!

Toniz_Floor Site

  1. Joe checked and fixed batteries at the floor site.
  2. Swapped the memory cards of CR1000.



  1. downloaded met data from PC. YES!

CR23X3 – floor-Met

CR23X6 – tower-Met

CR10X2 – floor-Met

Soil CO2 profile: CR23X5 – soil CO2 profile





  1. Closed gate and set up fence. YES!

Field Data

No tank data

Well Depth

DateLocationDepth (feet)
2016-01-20TZ_floor32.2
2016-01-20TZ_road39.8
2016-01-20TZ_tower37.4

mode = both
Moisture Point Probes TZ
Array ( [0] => Tower [1] => Floor_South [2] => Floor_East [3] => Floor_West [4] => SoilCO2 [5] => Soil_Transect_4 [6] => Soil_Transect_3 [7] => Soil_Transect_2 [8] => Soil_Transect_1 [9] => SoilCO2_West_A [10] => SoilCO2_West_B [11] => SoilCO2_West_C )

Date DOY Rep Depth
Tower
Floor_South
Floor_East
Floor_West
SoilCO2
Soil_Transect_4
Soil_Transect_3
Soil_Transect_2
Soil_Transect_1
SoilCO2_West_A
SoilCO2_West_B
SoilCO2_West_C
 Avg
Spacial Count
Measurement Count
2016-01-20 20 0 0-15cm 49.3 27 63.4 37.9 44.3 33.8 22.9 28.2 31.1 33.8 30.8 34.6
2016-01-20 20 0 15-30cm 40.5 34.4 25.8 41.4 38.1 49.6 34.7 37.4 42.6 51.1 49.1 34.1
2016-01-20 20 0 30-45cm 40.5 44.1 25.4 44.9 44.6 37.4 34.9 33.5 35.7 45.5 36.8 37.1
2016-01-20 20 0 45-60cm 39.7 47.1 60 37.4 42 34.8 45.4 47.1 36 44.5 50.9 56.6
2016-01-20 20 1 0-15cm 49 26.4 64.2 37.9 42.8 29.7 16.2 27.3 30.5 36.7 32 35.2
2016-01-20 20 1 15-30cm 41.1 40.8 25.8 40.8 37.8 40.2 34.1 36.6 43.3 50.6 49.1 34.1
2016-01-20 20 1 30-45cm 39.6 44.1 25.7 43.5 44.1 37.1 34.6 34.3 36.8 43.2 36.8 37.7
2016-01-20 20 1 45-60cm 42.5 47.1 60.6 37.1 42 35.1 45.4 49.7 35.4 45.1 49.7 49.7
2016-01-20 20 Avg 0-15cm 49.15 26.7 63.8 37.9 43.55 31.75 19.55 27.75 30.8 35.25 31.4 34.9 36.04 12 24
2016-01-20 20 Avg 15-30cm 40.8 37.6 25.8 41.1 37.95 44.9 34.4 37 42.95 50.85 49.1 34.1 39.71 12 24
2016-01-20 20 Avg 30-45cm 40.05 44.1 25.55 44.2 44.35 37.25 34.75 33.9 36.25 44.35 36.8 37.4 38.25 12 24
2016-01-20 20 Avg 45-60cm 41.1 47.1 60.3 37.25 42 34.95 45.4 48.4 35.7 44.8 50.3 53.15 45.04 12 24

mode = both
Moisture Point Probes VR
Array ( [0] => Solar_Panels [1] => Flux_Tower [2] => Gate [3] => Biomass_Cage )

Date DOY Rep Depth
Solar_Panels
Flux_Tower
Gate
Biomass_Cage
 Avg
Spacial Count
Measurement Count
2016-01-20 20 0 0-15cm 32.6 25 24.1 12.7
2016-01-20 20 0 15-30cm 31.9 30.1 25.8 36.8
2016-01-20 20 0 30-45cm 32.7 17 31 31
2016-01-20 20 0 45-60cm 44 31.7 34.5 33.4
2016-01-20 20 1 0-15cm 32.3 25 25 13
2016-01-20 20 1 15-30cm 32.3 29.8 25.8 25.8
2016-01-20 20 1 30-45cm 32.7 17.6 29.6 31.3
2016-01-20 20 1 45-60cm 44.5 31.7 35.9 34.5
2016-01-20 20 Avg 0-15cm 32.45 25 24.55 12.85 23.71 4 8
2016-01-20 20 Avg 15-30cm 32.1 29.95 25.8 31.3 29.79 4 8
2016-01-20 20 Avg 30-45cm 32.7 17.3 30.3 31.15 27.86 4 8
2016-01-20 20 Avg 45-60cm 44.25 31.7 35.2 33.95 36.28 4 8

No TZ grass heigth found

No VR grass heigth found

Tree DBH

DateTag#Reading (mm)
2016-01-20113.2
2016-01-2010214.4
2016-01-20216.0
2016-01-2023522.8
2016-01-20318.5
2016-01-20413.4
2016-01-20516.1
2016-01-20712.7
2016-01-207221.6
2016-01-207921.3
2016-01-20811.6

No water potential data found

No TZ Grass Biomass data found

No TZ OakLeaves Biomass data found

No TZ PineNeedles Biomass data found

1 photos found

view of field site
view of field site

Graphs display:
16 sets found

No data found for TZ_Fenergy.
11 TZ_tmet graphs found

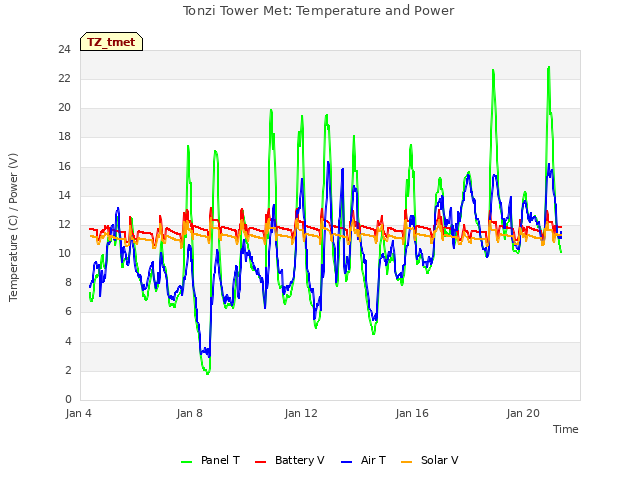

Tonzi Tower Met: Temperature and Power

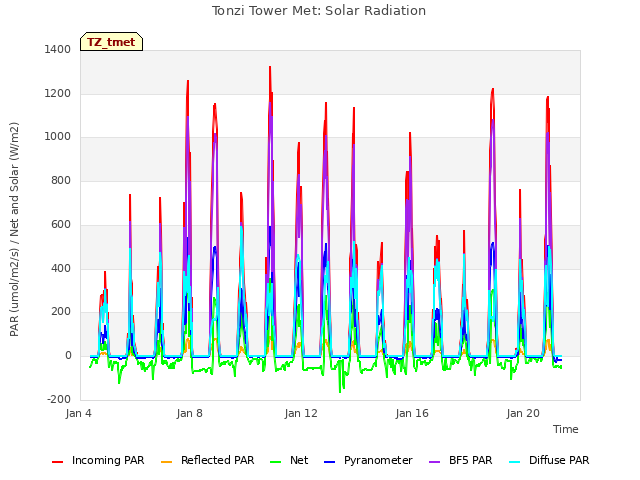

Tonzi Tower Met: Solar Radiation

Tonzi Tower Met: IRT Sensors

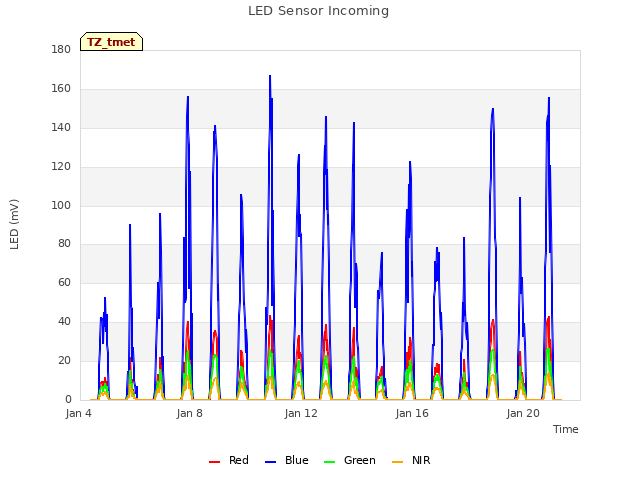

LED Sensor Incoming

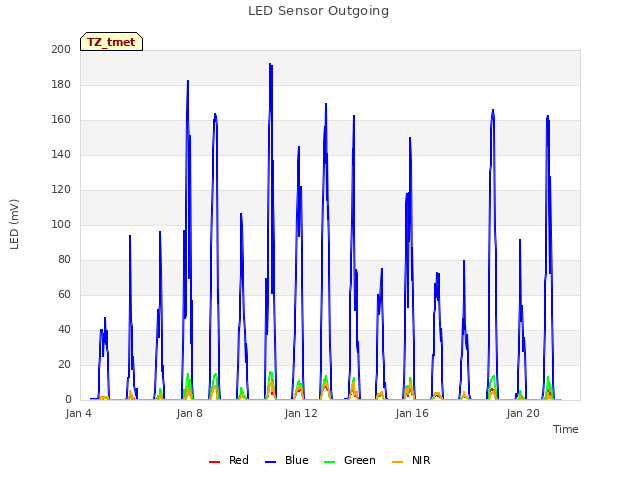

LED Sensor Outgoing

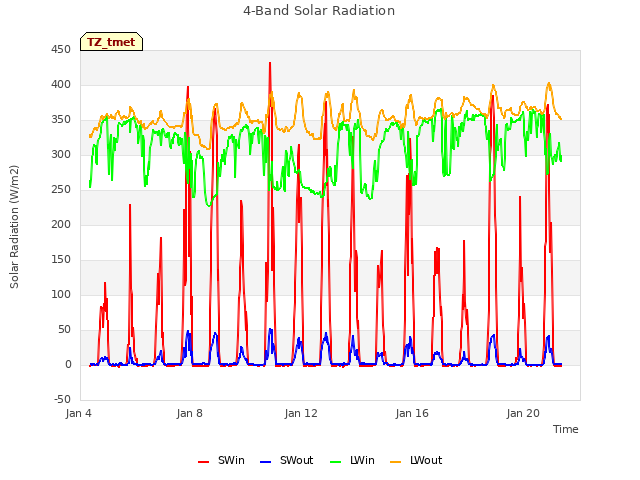

4-Band Solar Radiation

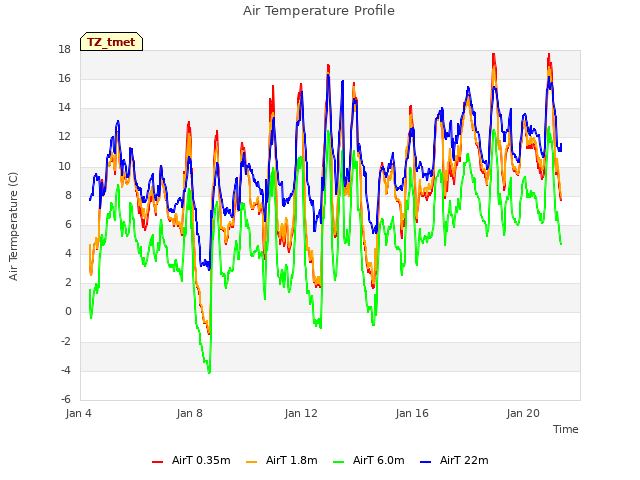

Air Temperature Profile

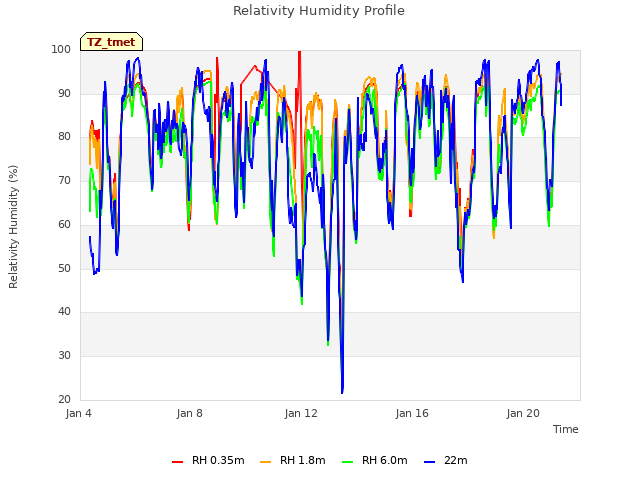

Relativity Humidity Profile

Tonzi Tower PRI

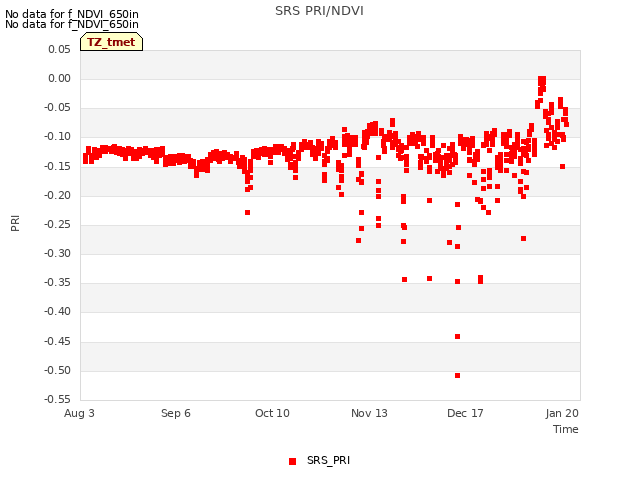

SRS PRI/NDVI

SRS NDVI

11 TZ_soilco2 graphs found

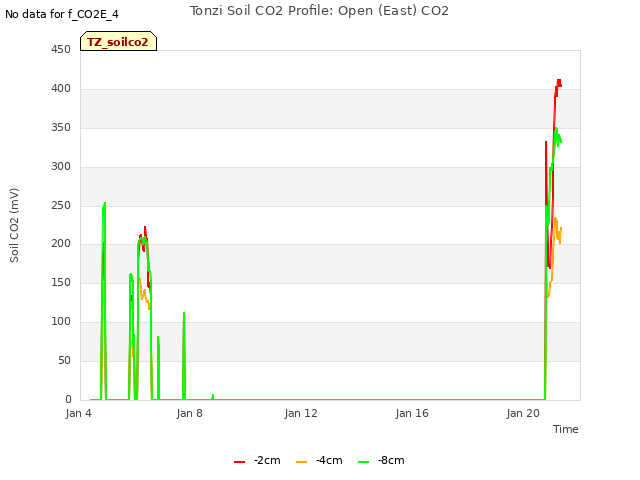

Tonzi Soil CO2 Profile: Open (East) CO2

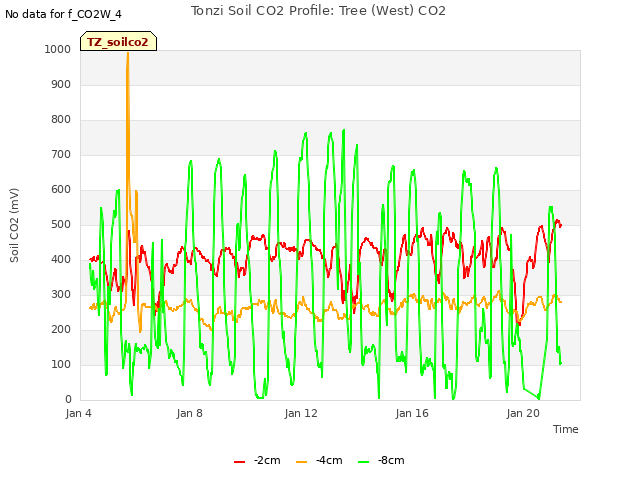

Tonzi Soil CO2 Profile: Tree (West) CO2

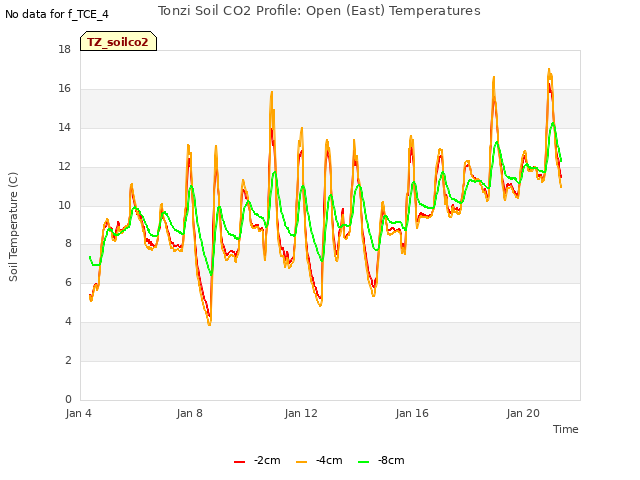

Tonzi Soil CO2 Profile: Open (East) Temperatures

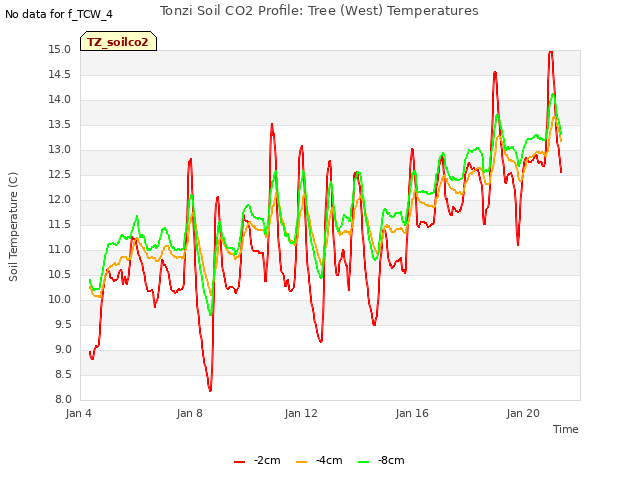

Tonzi Soil CO2 Profile: Tree (West) Temperatures

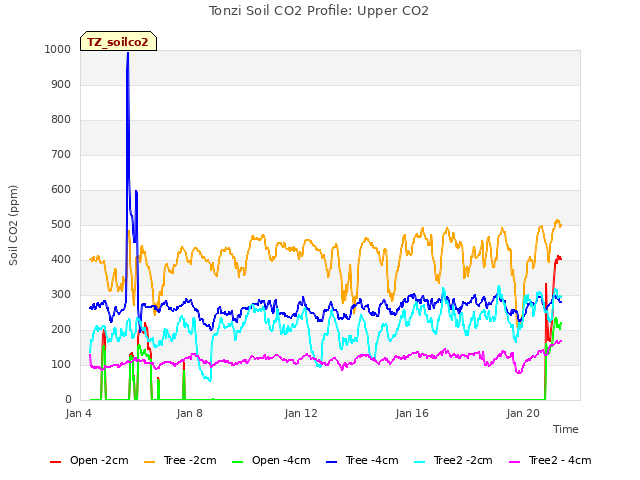

Tonzi Soil CO2 Profile: Upper CO2

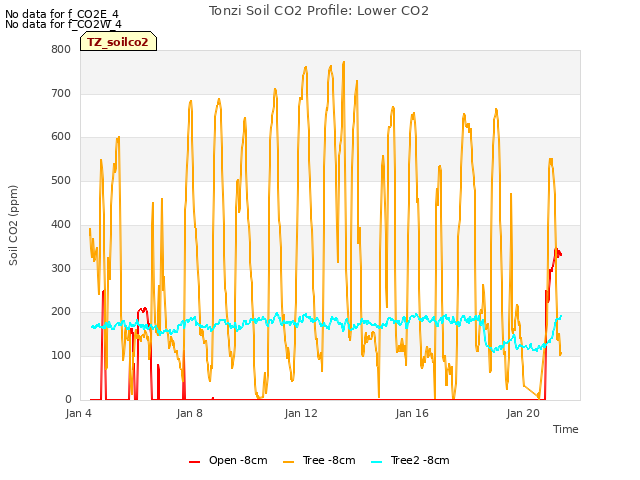

Tonzi Soil CO2 Profile: Lower CO2

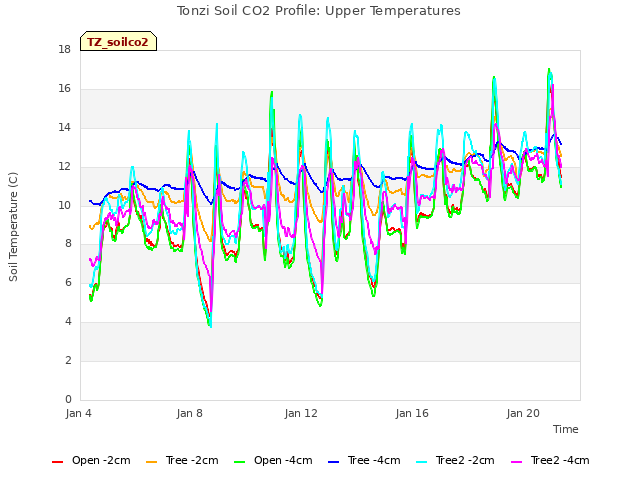

Tonzi Soil CO2 Profile: Upper Temperatures

Tonzi Soil CO2 Profile: Lower Temperatures

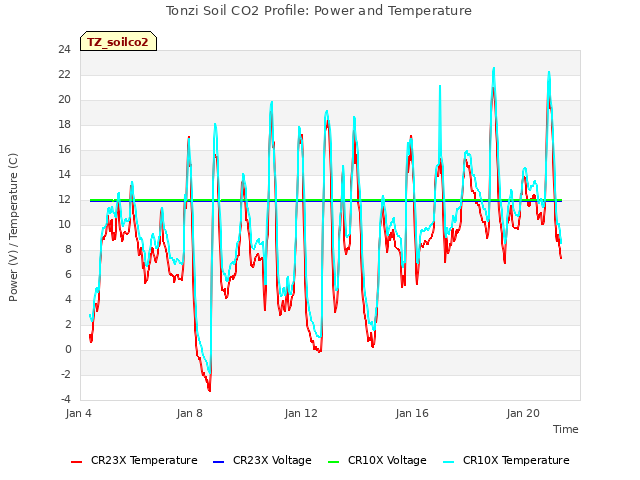

Tonzi Soil CO2 Profile: Power and Temperature

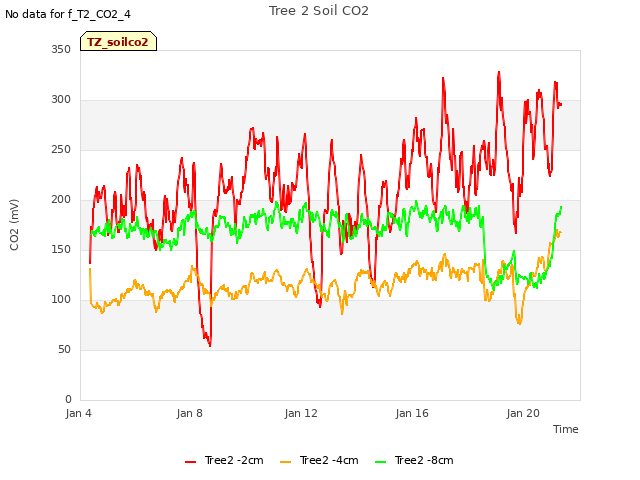

Tree 2 Soil CO2

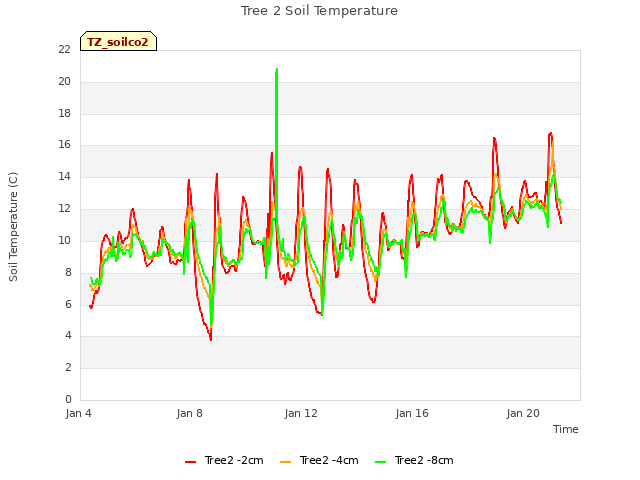

Tree 2 Soil Temperature

Can't check TZ_mixed
3 TZ_mixed graphs found

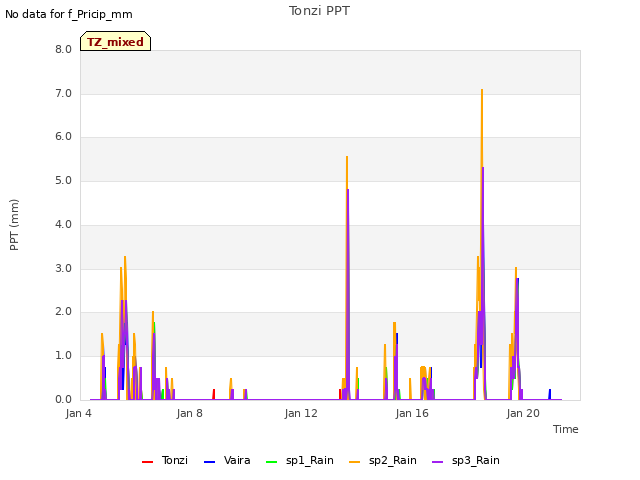

Tonzi PPT

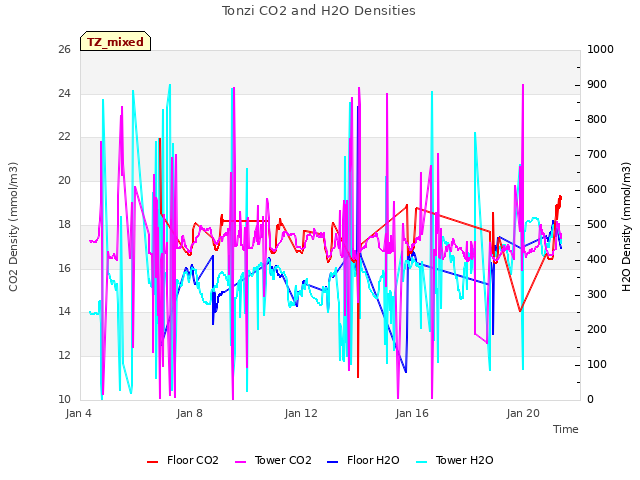

Tonzi CO2 and H2O Densities

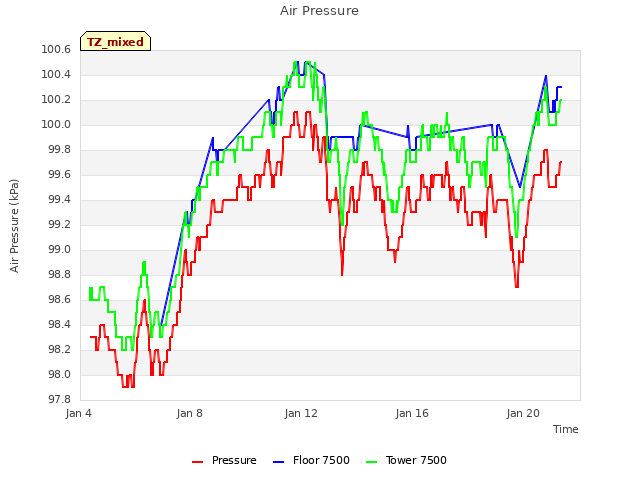

Air Pressure

1 TZ_fflux graphs found

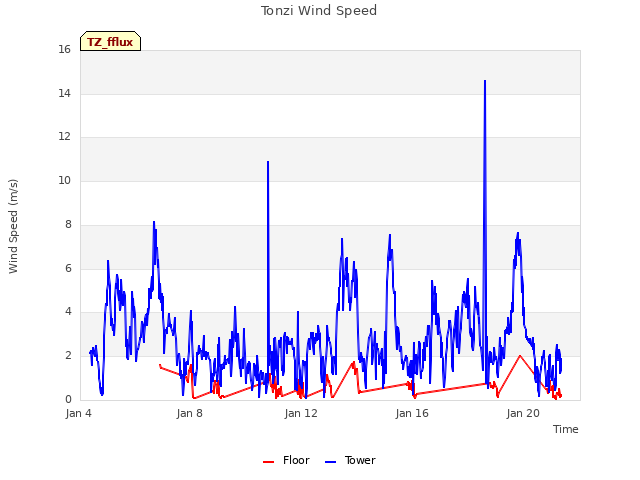

Tonzi Wind Speed

8 TZ_fmet graphs found

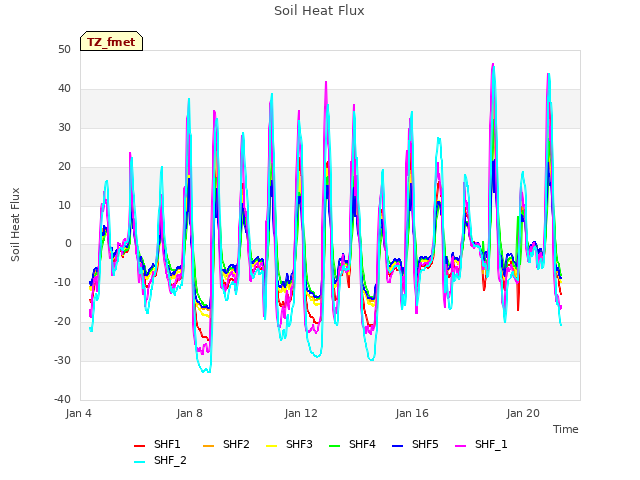

Soil Heat Flux

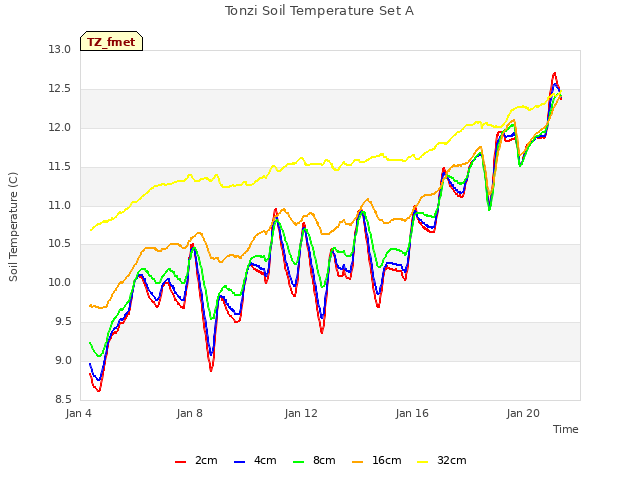

Tonzi Soil Temperature Set A

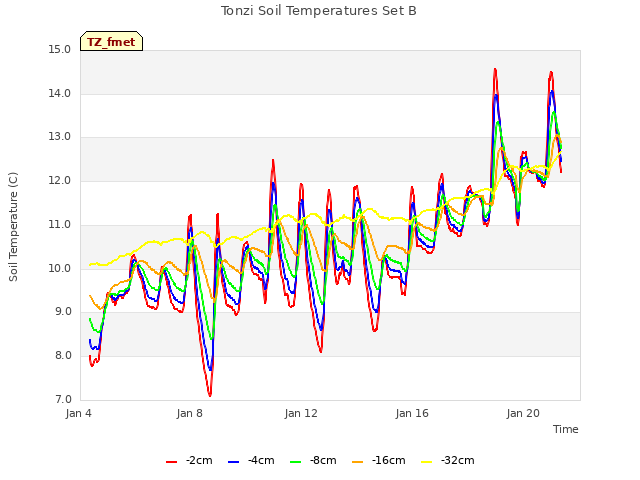

Tonzi Soil Temperatures Set B

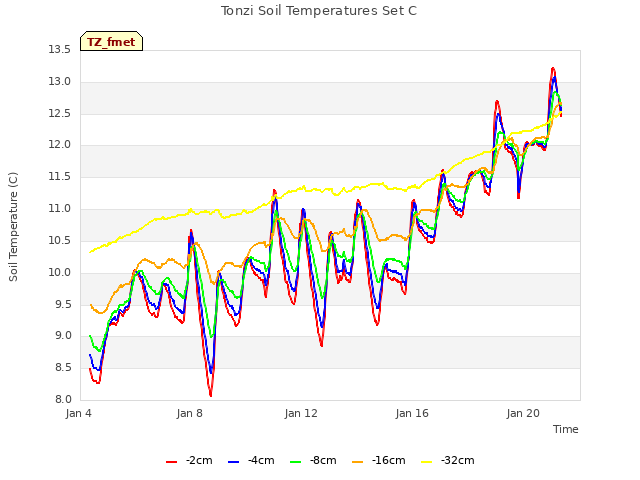

Tonzi Soil Temperatures Set C

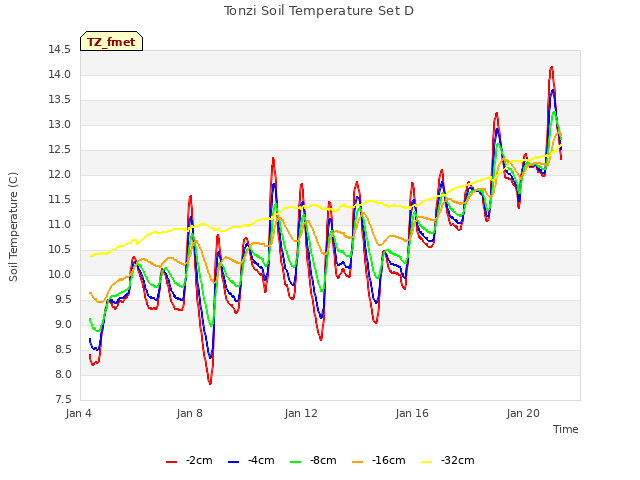

Tonzi Soil Temperature Set D

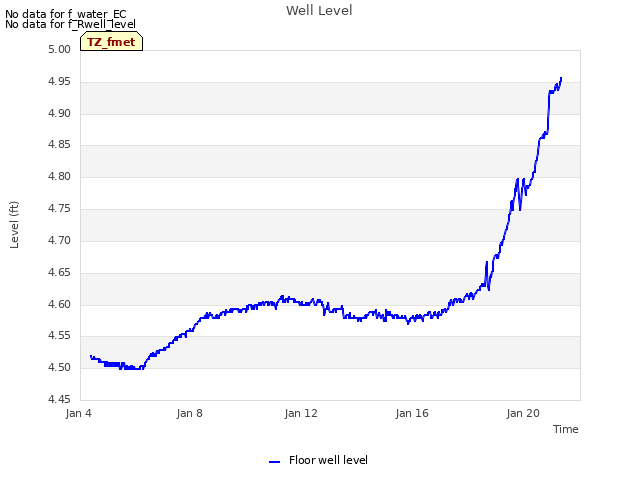

Well Level

Well Water Temperature

Soil Water Potential

No data found for TZ_tram.
No data found for TZ_co2prof.
1 TZ_irt graphs found

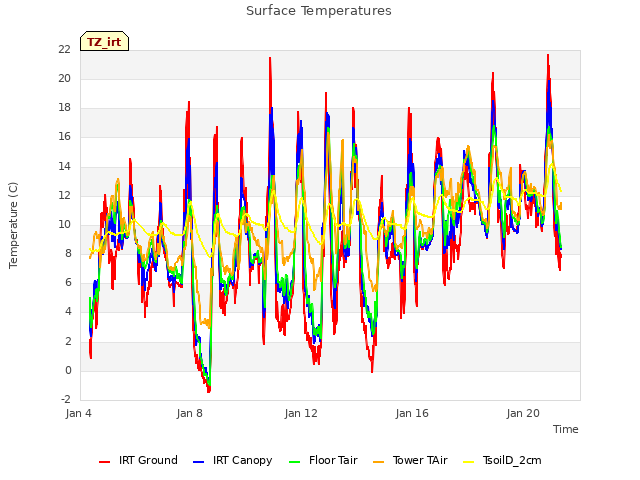

Surface Temperatures

No data found for TZ_windprof.
1 TZ_tflux graphs found

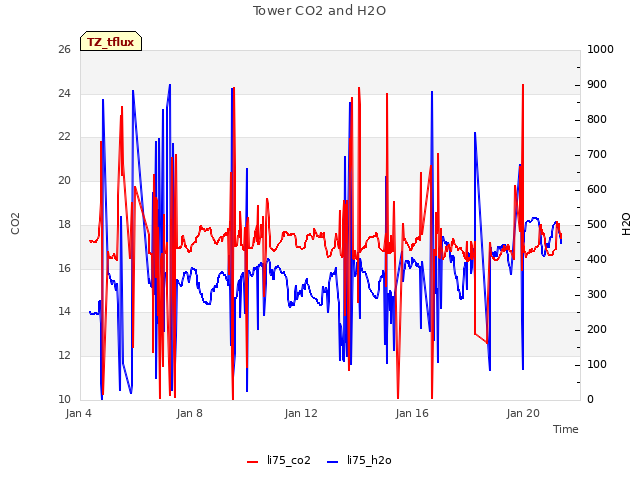

Tower CO2 and H2O

2 TZ_sm graphs found

Floor Solar Radiations

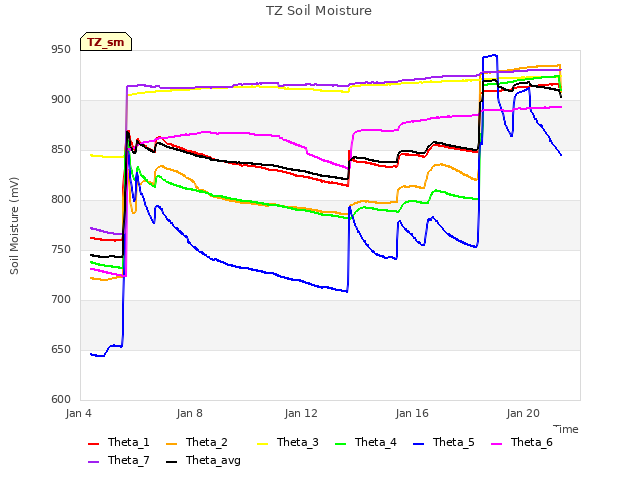

TZ Soil Moisture

Can't check TZ_met
1 TZ_met graphs found

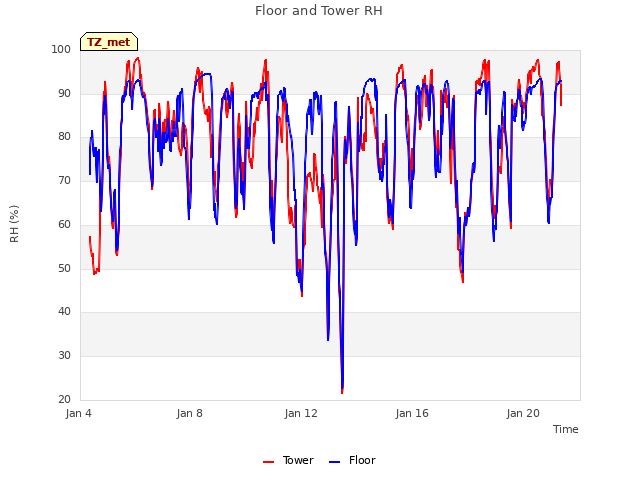

Floor and Tower RH

Can't check TZVR_mixed
8 TZ_osu graphs found

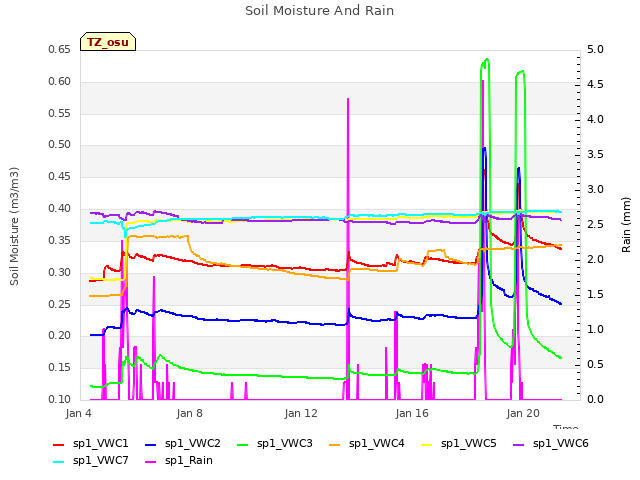

Soil Moisture And Rain

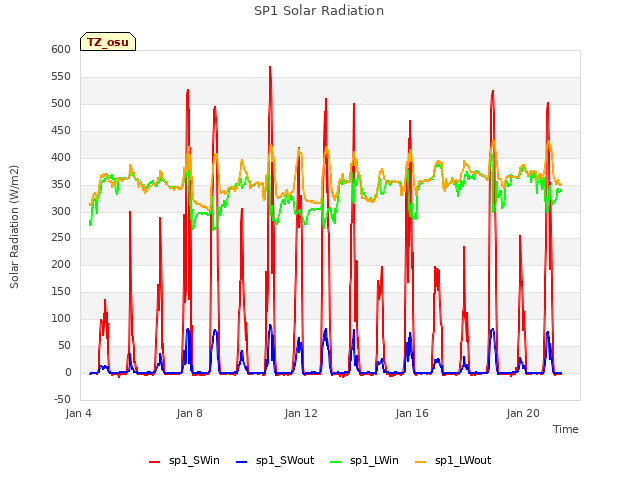

SP1 Solar Radiation

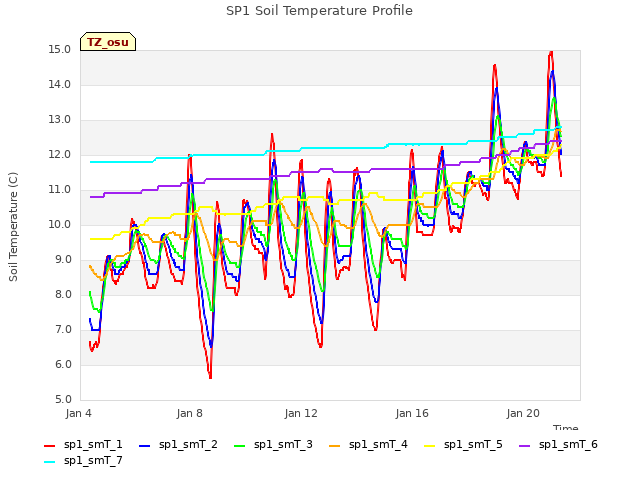

SP1 Soil Temperature Profile

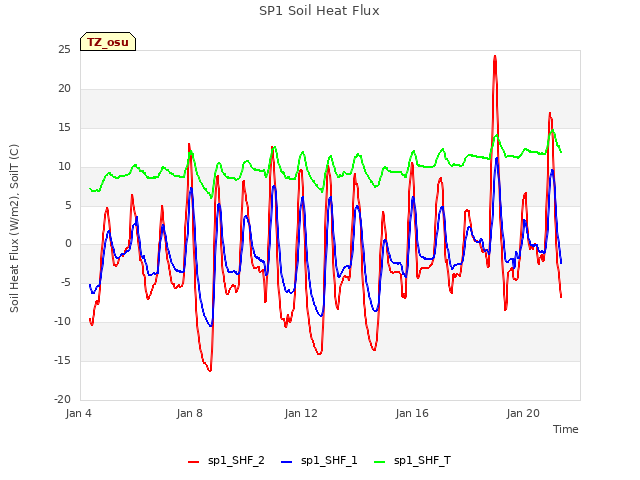

SP1 Soil Heat Flux

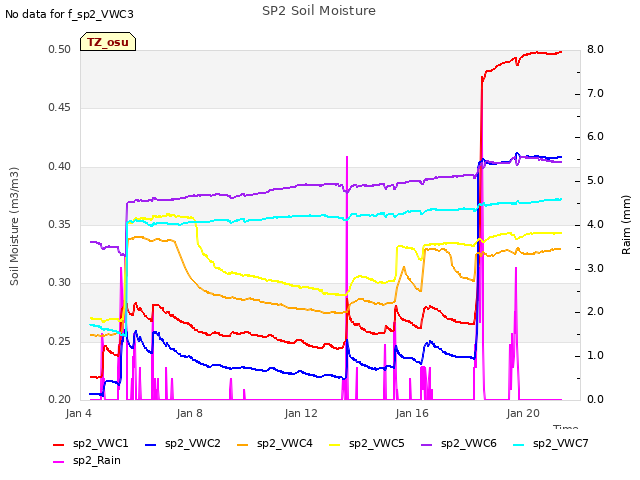

SP2 Soil Moisture

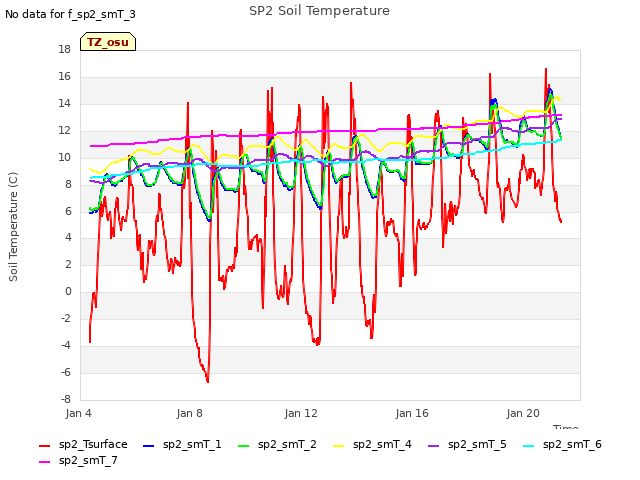

SP2 Soil Temperature

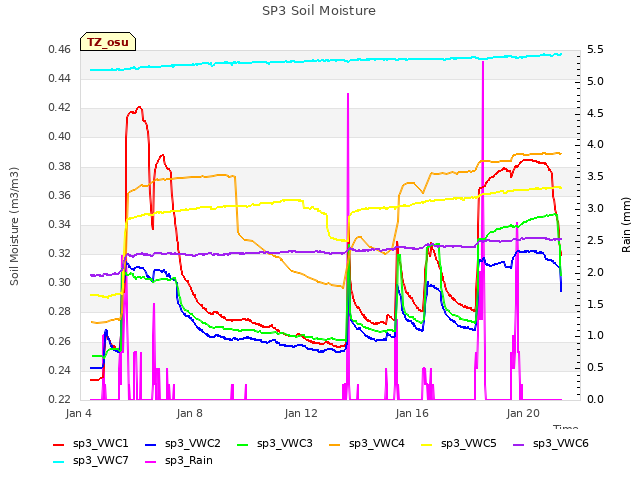

SP3 Soil Moisture

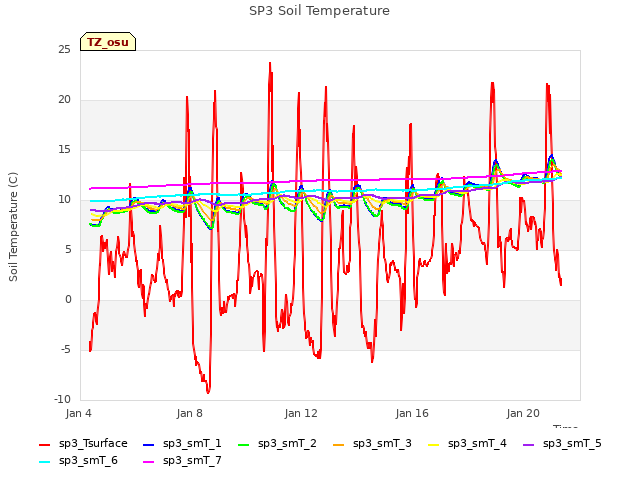

SP3 Soil Temperature

No data found for TZ_fd.
Tonzi Z-cam data

plot of Tonzi z-cam LAI

plot of Tonzi z-cam gap fration
