Tonzi: 2016-02-04 12:30:00 (DOY 35)
Author: Joe Verfaillie
Others: Dennis, Kyle

Summary: Collected data as best we could without Siyan, had problems with well depth meter, removed Vaisala soil CO2 probes for calibration.

Tonzi
2016-02-04

I arrived about 12:30 with Dennis and Kyle. It was clear sunny and mild. Tonziâ€™s pond is still only about half full, but the drainage near the tower seemed wetter than last time. The grass is growing slowly.

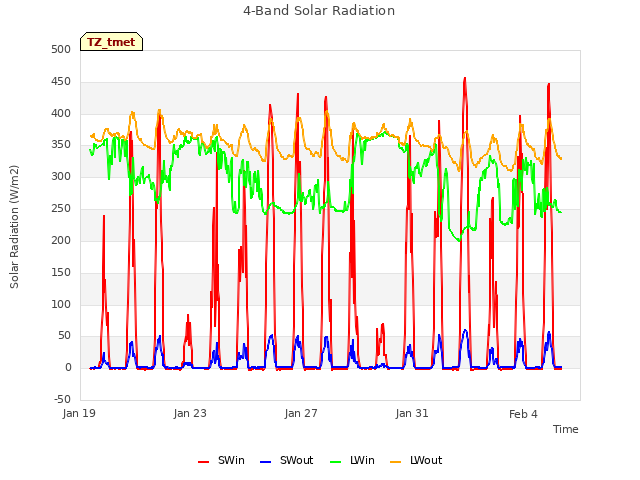

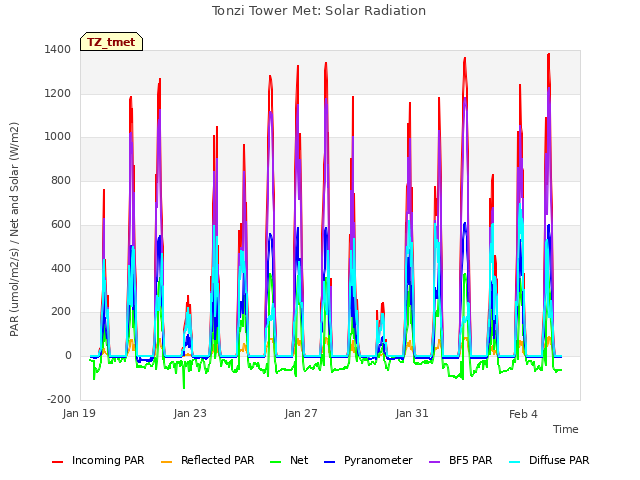

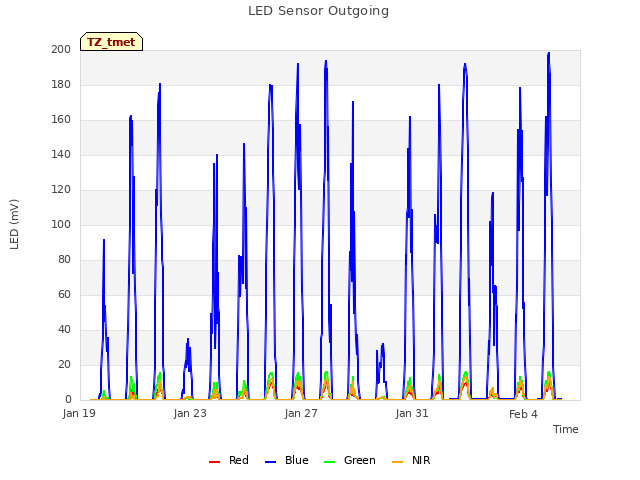

I collected data. The compute stick at the tower was running okay. I cleaned bird poop from the rotating shadow band PAR sensor. The old NR-Lite is a little loose and may not be level. It can probably be removed. The bird spikes on the sonic were sideways again. I straightened them, but they may need replacing.

The Floor was running and the computer booted and collected data just fine.

I serviced the z-cams. They all looked okay, but the lens cover on number one is a little sticky.

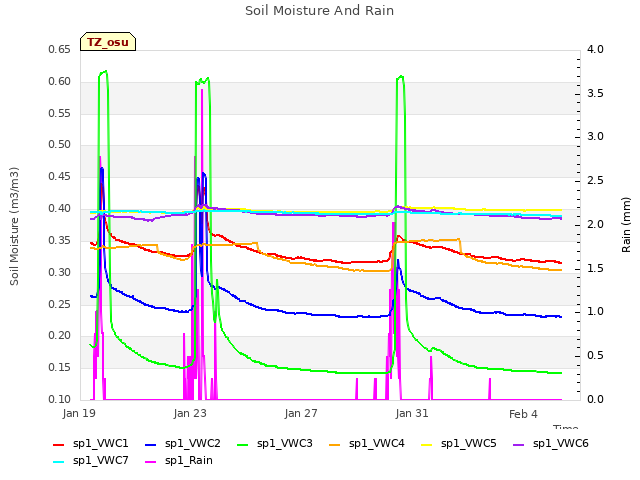

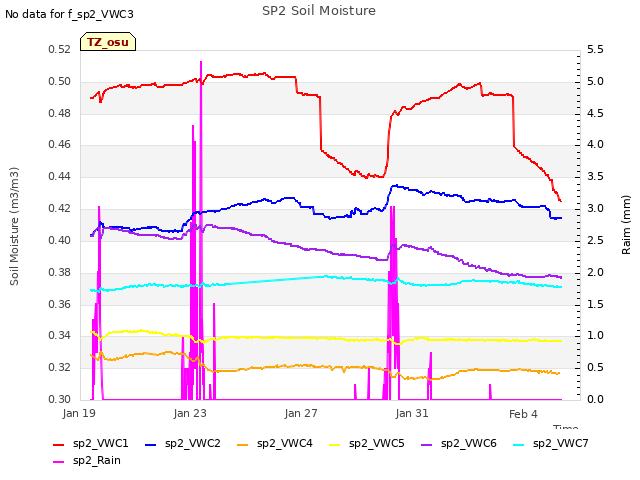

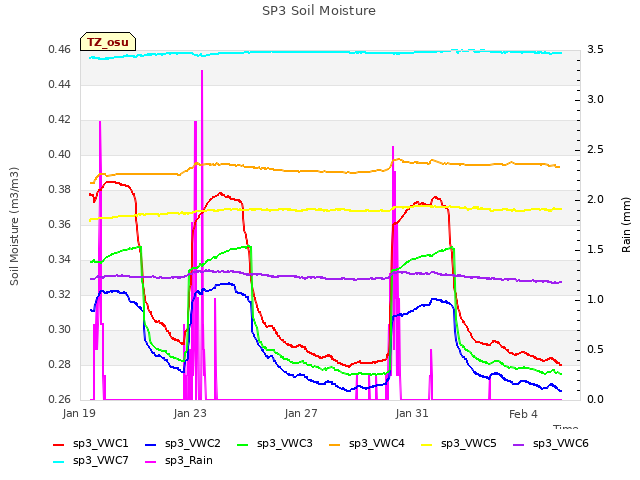

Dennis did soil moisture.

We had problems with the well depth meter. I need to order a new one.

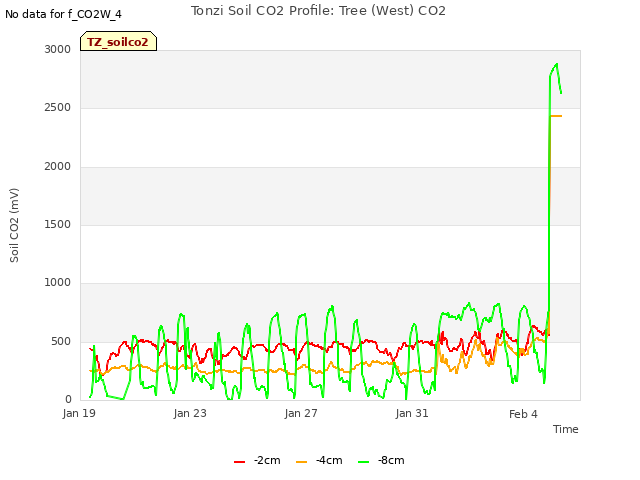

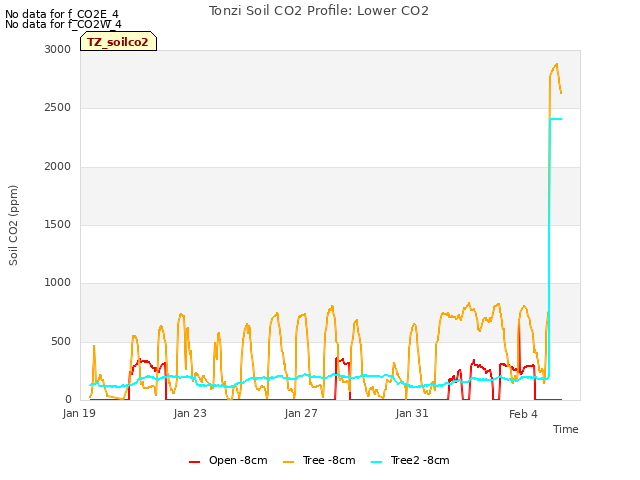

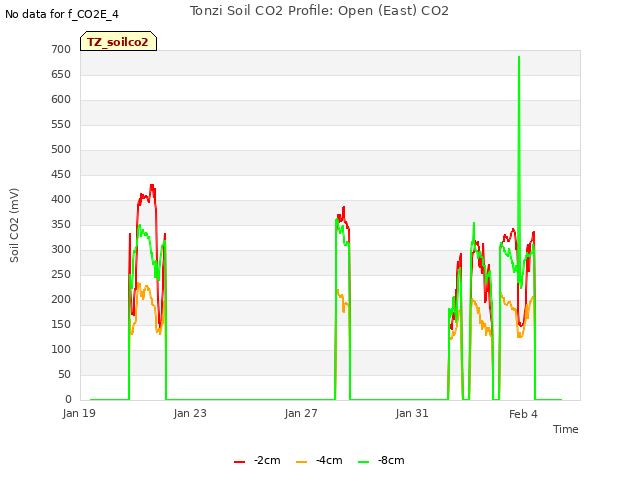

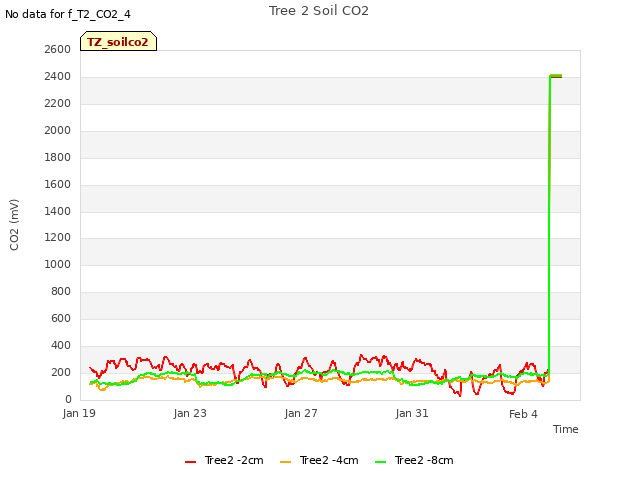

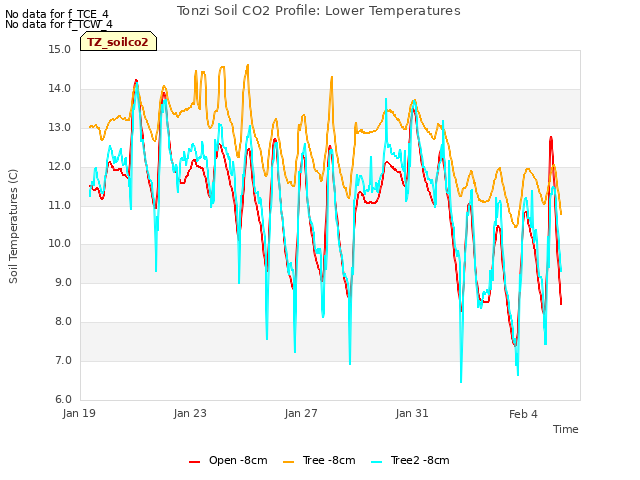

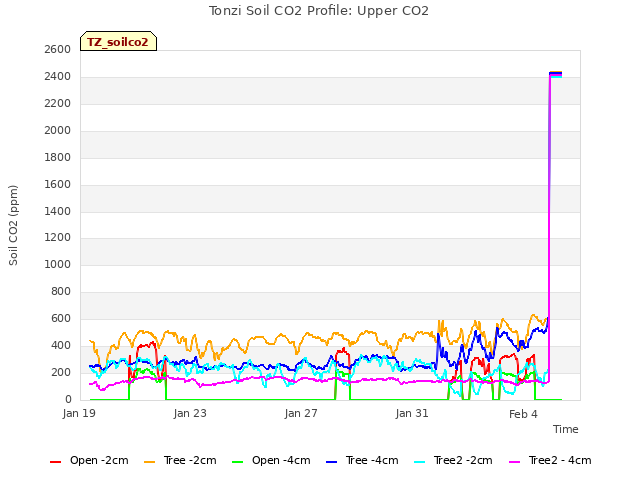

Kyle removed the Vaisala soil CO2 probes for calibration.

Open:
2cm â€“ sn K1310102
4cm â€“ sn K1310103
8cm â€“ sn K1310104

Tree:
2cm â€“ sn L2010069
4cm â€“ sn Z2720013 â€“ label was off
8cm â€“ sn G0150036

Tree2:
2cm â€“ sn Z2720014 â€“ label was off
4cm â€“ sn Z2720012 â€“ label was off
8cm â€“ sn F4960020

Field Data

No tank data

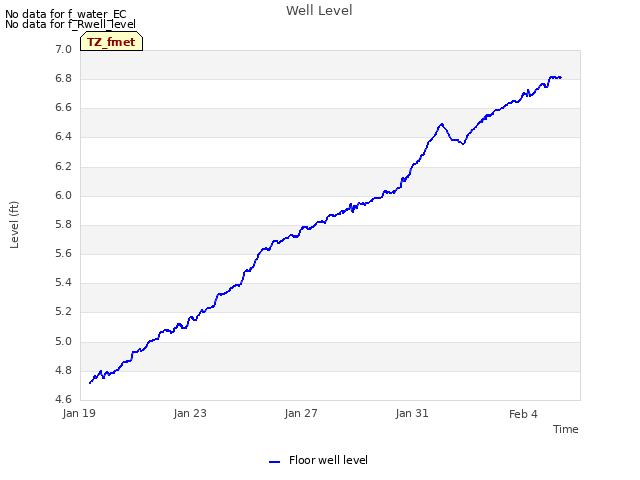

Well Depth

Date	Location	Depth (feet)
2016-02-04	TZ_road	37.45
2016-02-04	TZ_tower	34

mode = both
Moisture Point Probes TZ
Array ( [0] => Tower_1 [1] => Floor_South_1 [2] => Floor_East_1 [3] => Floor_West_1 [4] => SoilCO2_1 [5] => Soil_Transect_4_1 [6] => Soil_Transect_3_1 [7] => Soil_Transect_2_1 [8] => Soil_Transect_1_1 [9] => SoilCO2_West_A_1 [10] => SoilCO2_West_B_1 [11] => SoilCO2_West_C_1 [12] => Tower_2 [13] => Floor_South_2 [14] => Floor_East_2 [15] => Floor_West_2 [16] => SoilCO2_2 [17] => Soil_Transect_4_2 [18] => Soil_Transect_3_2 [19] => Soil_Transect_2_2 [20] => Soil_Transect_1_2 [21] => SoilCO2_West_A_2 [22] => SoilCO2_West_B_2 [23] => SoilCO2_West_C_2 [24] => Tower_3 [25] => Floor_South_3 [26] => Floor_East_3 [27] => Floor_West_3 [28] => SoilCO2_3 [29] => Soil_Transect_4_3 [30] => Soil_Transect_3_3 [31] => Soil_Transect_2_3 [32] => Soil_Transect_1_3 [33] => SoilCO2_West_A_3 [34] => SoilCO2_West_B_3 [35] => SoilCO2_West_C_3 [36] => Tower_4 [37] => Floor_South_4 [38] => Floor_East_4 [39] => Floor_West_4 [40] => SoilCO2_4 [41] => Soil_Transect_4_4 [42] => Soil_Transect_3_4 [43] => Soil_Transect_2_4 [44] => Soil_Transect_1_4 [45] => SoilCO2_West_A_4 [46] => SoilCO2_West_B_4 [47] => SoilCO2_West_C_4 )

0000

Date	DOY	Rep	Depth	Tower_1	Floor_South_1	Floor_East_1	Floor_West_1	SoilCO2_1	Soil_Transect_4_1	Soil_Transect_3_1	Soil_Transect_2_1	Soil_Transect_1_1	SoilCO2_West_A_1	SoilCO2_West_B_1	SoilCO2_West_C_1	Tower_2	Floor_South_2	Floor_East_2	Floor_West_2	SoilCO2_2	Soil_Transect_4_2	Soil_Transect_3_2	Soil_Transect_2_2	Soil_Transect_1_2	SoilCO2_West_A_2	SoilCO2_West_B_2	SoilCO2_West_C_2	Tower_3	Floor_South_3	Floor_East_3	Floor_West_3	SoilCO2_3	Soil_Transect_4_3	Soil_Transect_3_3	Soil_Transect_2_3	Soil_Transect_1_3	SoilCO2_West_A_3	SoilCO2_West_B_3	SoilCO2_West_C_3	Tower_4	Floor_South_4	Floor_East_4	Floor_West_4	SoilCO2_4	Soil_Transect_4_4	Soil_Transect_3_4	Soil_Transect_2_4	Soil_Transect_1_4	SoilCO2_West_A_4	SoilCO2_West_B_4	SoilCO2_West_C_4	Spacial Count
2016-02-04	35	0	nan	39.9	27.3	39.9	33.2	37.3	28.2	17.9	25	26.1	29.4	25.3	27.6	50	41.4	35.9	37.1	38.7	32.3	31.3	31.6	27.1	41.1	26.1	32.6	39.6	43.3	36.6	41	44.9	39.9	35.4	36	37.4	46.3	38	38.2	41.4	52.9	64.3	43.7	42	34.2	45.7	46.8	37.1	45.1	50.6	46.6
2016-02-04	35	1	nan	39.9	26.7	39.9	32.6	32.3	27.9	22.3	24.4	26.1	29.1	25	27.9	50	41.4	37.8	37.4	33.8	32.2	31.6	31.9	27.1		27.1	32.6	39.6	43.8	39.4	41	44.9	39.4	35.2	35.2	37.4		38	38	41.1	52	60.6	44.3	49.1	34.5	44.5	46.8	36.2	45.4	49.1	48
2016-02-04	35	2	nan	39.9	36.4	39.9	32.6	37.6	27.9	22.6	25	26.4	29.1	25	28.2	50	40.5	31.6	36.8	33.1	32.3	31.3	31.3	26.8		26.1	32.9	39.6	44.9	33.8	41.3	45.2	39.8	35.2	35.2	37.1	52.5	37.7	37.7	41.1	52.6	59.2	45.4	41.1	34.2	45.1	47.7	36.2	45.4	50	48
2016-02-04	35	Avg	0-15cm																																																	0
2016-02-04	35	Avg	15-30cm																																																	0
2016-02-04	35	Avg	30-45cm																																																	0
2016-02-04	35	Avg	45-60cm																																																	0

mode = both
Moisture Point Probes VR
Array ( [0] => Solar_Panels_1 [1] => Flux_Tower_1 [2] => Biomass_Cage_1 [3] => Solar_Panels_2 [4] => Flux_Tower_2 [5] => Biomass_Cage_2 [6] => Solar_Panels_3 [7] => Flux_Tower_3 [8] => Biomass_Cage_3 [9] => Solar_Panels_4 [10] => Flux_Tower_4 [11] => Biomass_Cage_4 )

0000

Date	DOY	Rep	Depth	Solar_Panels_1	Flux_Tower_1	Biomass_Cage_1	Solar_Panels_2	Flux_Tower_2	Biomass_Cage_2	Solar_Panels_3	Flux_Tower_3	Biomass_Cage_3	Solar_Panels_4	Flux_Tower_4	Biomass_Cage_4	Spacial Count
2016-02-04	35	0	nan	23.5	29.7	9.7	28.9	29.8	22.5	15.9	30.1	31.8	30.8	42.3	32.8
2016-02-04	35	1	nan	22.9	29.4	9.1	29.5	31	22.8	15.9	31.6	30.4	29.9	43.1	32.8
2016-02-04	35	2	nan	22.9	29.4	9.7	29.8	30.4	22.5	15.9	31.8	30.1	30.8	42.8	31.9
2016-02-04	35	Avg	0-15cm													0
2016-02-04	35	Avg	15-30cm													0
2016-02-04	35	Avg	30-45cm													0
2016-02-04	35	Avg	45-60cm													0
