Twitchell Rice: 2009-05-27 10:30:00 (DOY 147)
Author: Joe Verfaillie
Others: Rob Rhew
Summary: Showing Rob the sites, computer locked up, soil sensors mapped, lost 15 days of met data.
|
Twitchell 05/27/2009 Arrived about 10:30 with Rob Rhew. Rob is looking for some wet, marshy place to make halo-carbon chamber measurements. Rice field still dry, herbicide and fertilizer applied. Clear, sunny, warm, light breeze. Solar good, pulling almost 4A with LCD screen on, batteries at 13.2V, panels providing 14A. Computer locked up again. Hard restart. Copied data and pics. Checked location of soil heat flux plates, soil thermocouples and soil moisture probes. Black heat shrink on soil TCs painted white. Met data from 23x for days 104 to 119 lost due to new data logger program upload and computer lockup. Took soil samples near Theta probes for calibration.

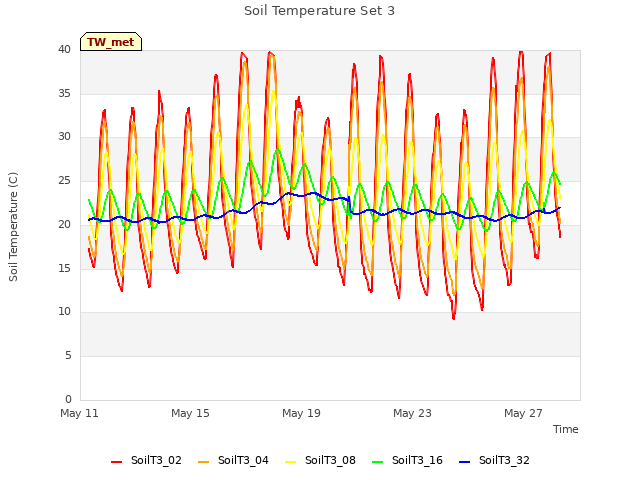

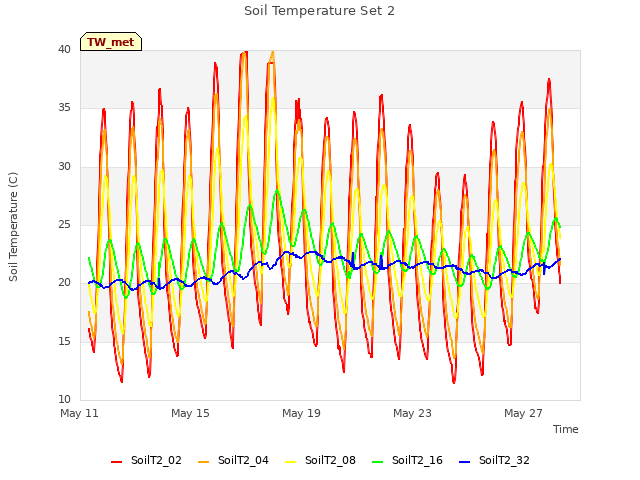

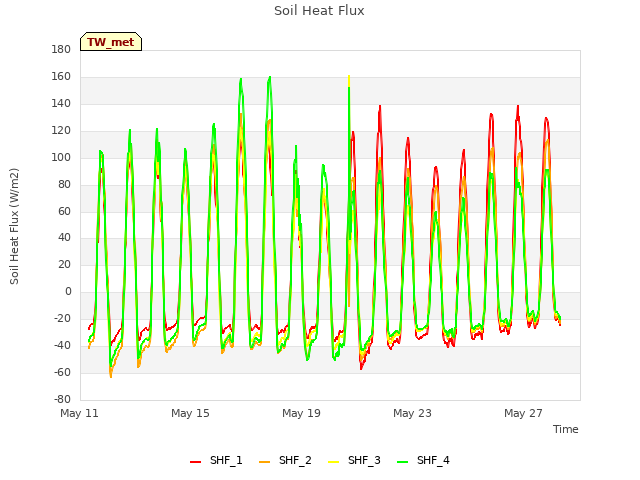

Soil sensor locations: Three arrays of type T thermocouples at 2, 4, 8, 16, and 32cm below the soil surface are placed SW, W and NW of the tower Two Theta probe soil moisture sensors are placed SW and NW of the tower near the thermocouples in those locations. Four Soil Heat Flux plate are placed SW, W, WNW and NW of the tower at 1cm below the surface. The plates calibrations are:
|
0 photos found
6 sets found

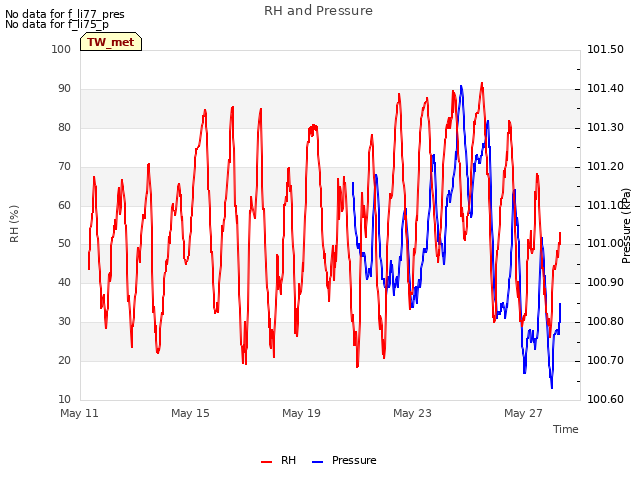

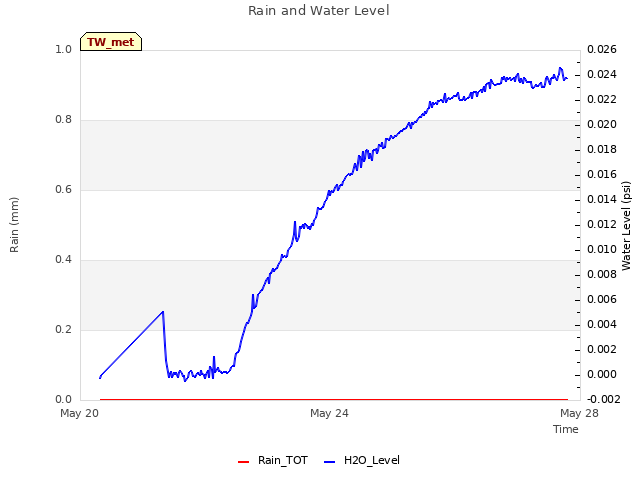

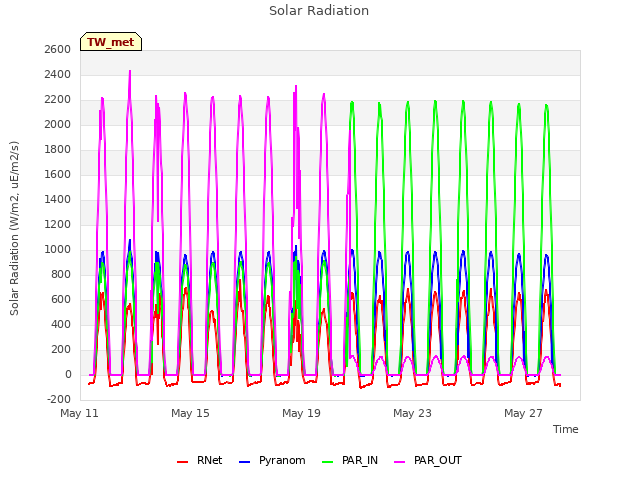

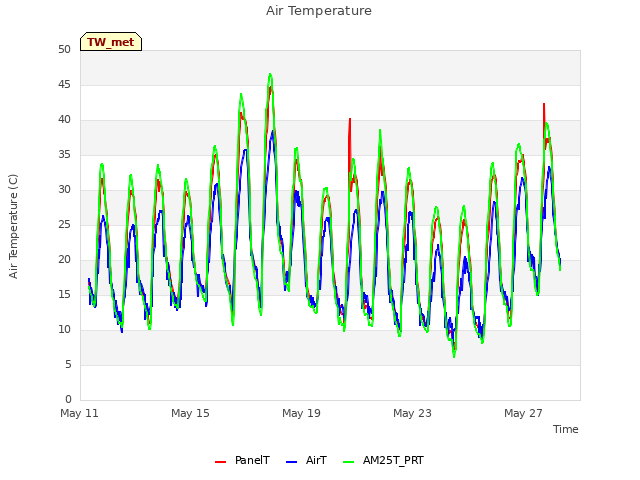

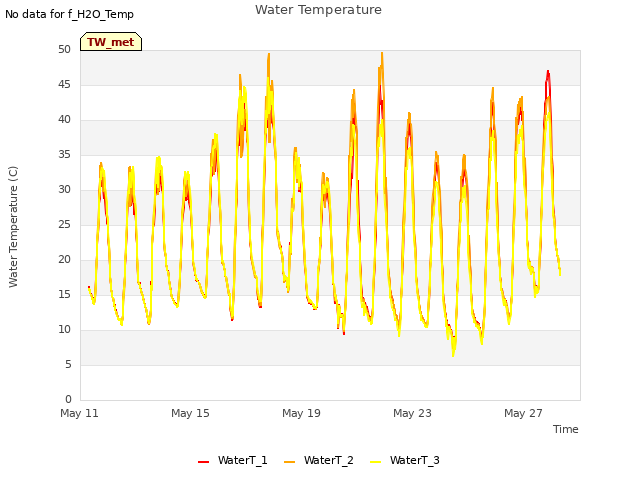

12 TW_met graphs found
No data found for TW_flux.
Can't check TWSI_mixed
Can't check SIMBTWEE_met
1 TW_cam graphs found
Can't check TATWBABCSB_cam
