West Pond: 2015-11-11 12:30:00 (DOY 315)
Author: Joe Verfaillie
Others: Kyle

Summary: Standard data collection, camera clock problems, cleaned HMP60 and swapped fan.

West Pond
2015-11-11

I arrived about 12:30 with Kyle. It was clear, sunny and mild with a light variable breeze. The vegetation is slowly senescing here. Inlets were running and the water level was normal.

The 7700 read: 2.13ppm CH4, 62SS – 81.5 after cleaning
The 7500 read: 429ppm CO2, 445mmol/m3 H2O, 94.1SS, 15.75C, 102.5kPa

I don’t think we checked the wash reservoir here.

We checked the DO sensor in air – it was clean.
DO 24.36mV
Tair 16.56C
P 102.98kPa

The camera had a bad time again and took photos overnight. There are a few in the early morning and late evening that might be usable. I reset the clock and saw that is was not correct in the autocam program. With some fussing I was able to get the clock set and the autocam program running with the correct time. We should swap out this camera next time.

The HMP60 fan was a little slow. I took apart the solar shield and found the inside stuffed with spider silk and dust. I cleaned it out as best I could and decided to put in a new fan. We should check and clean the others.

2 photos found

Fan was running slowly and turns out HMP solar shield was stuffed with spider silk and dust.
Fan was running slowly and turns out HMP solar shield was stuffed with spider silk and dust.

Birds at sunset
Birds at sunset

Graphs display:
8 sets found

Can't check WP_DO
1 WP_DO graphs found

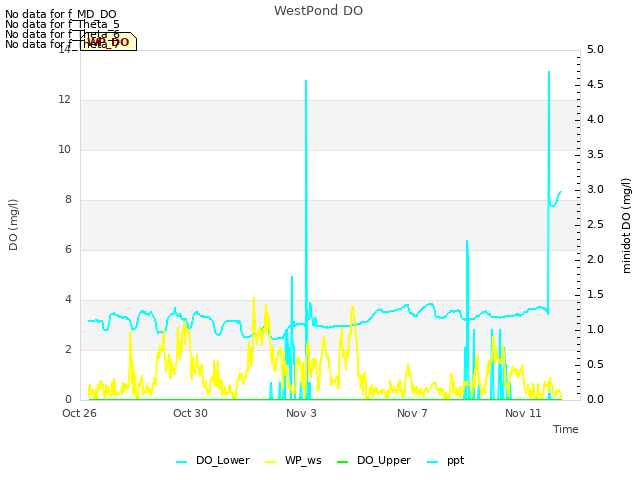

Explore the graph:WestPond DO in a new window

14 WP_met graphs found

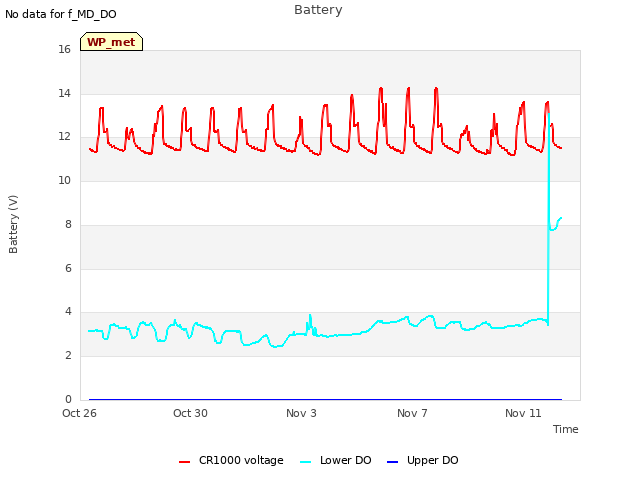

Explore the graph:Battery in a new window

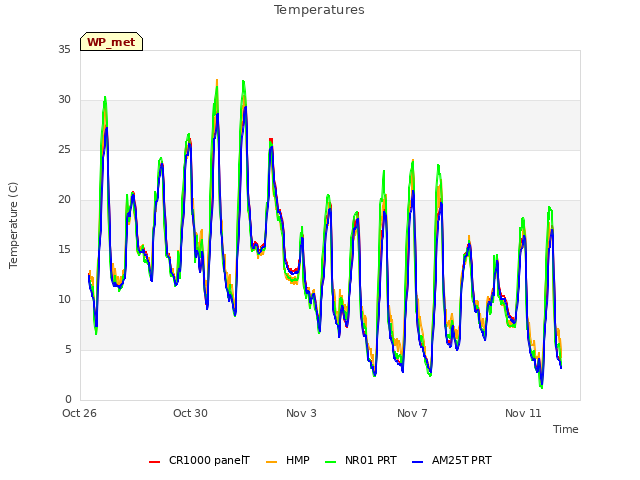

Explore the graph:Temperatures in a new window

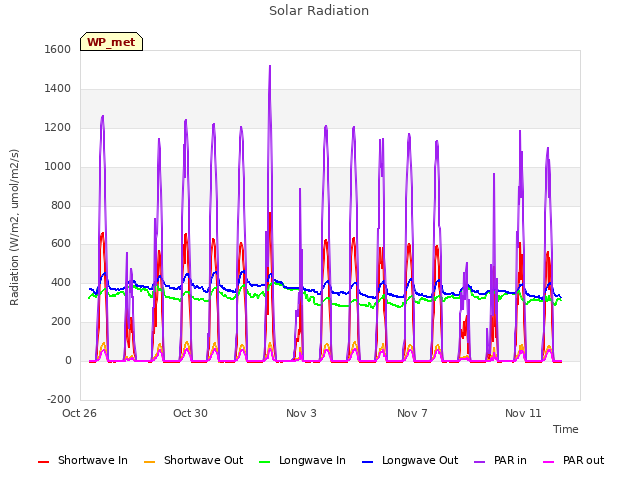

Explore the graph:Solar Radiation in a new window

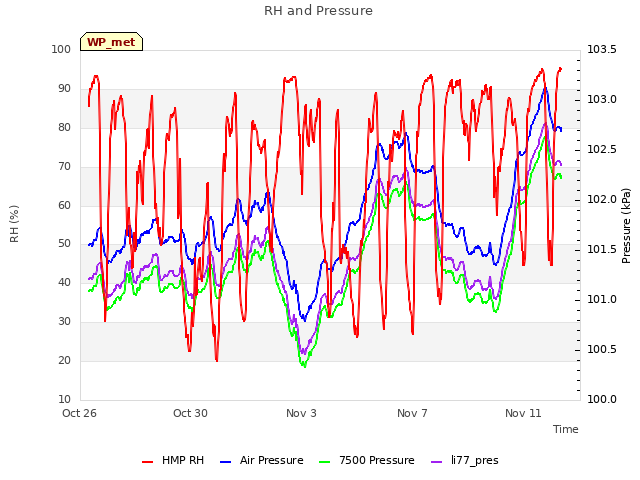

Explore the graph:RH and Pressure in a new window

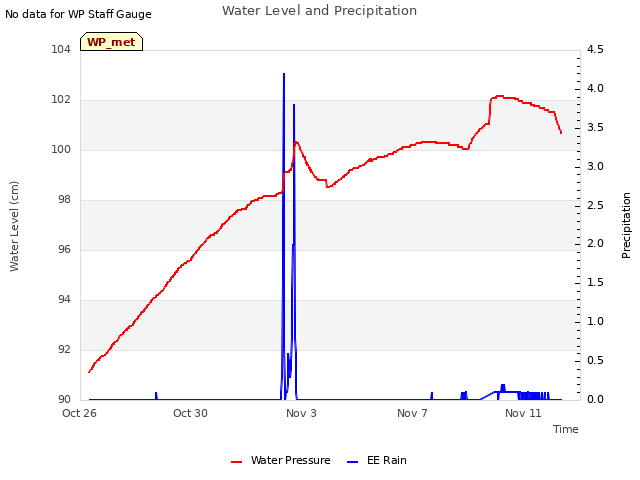

Explore the graph:Water Level and Precipitation in a new window

Explore the graph:Conductivity in a new window

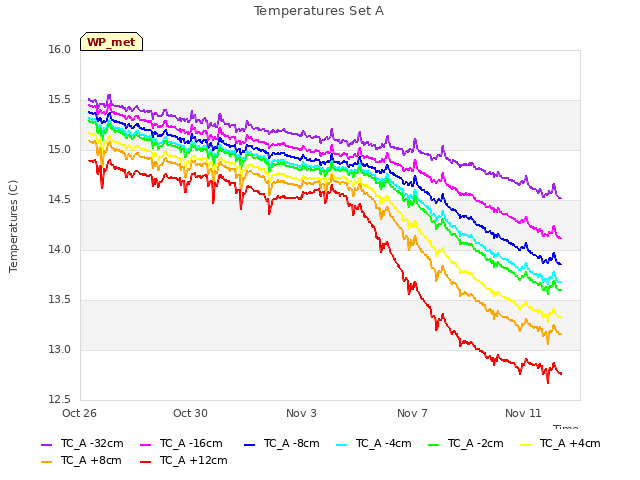

Explore the graph:Temperatures Set A in a new window

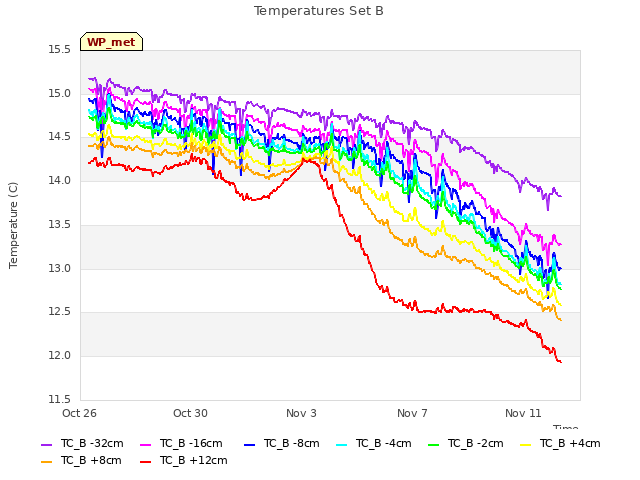

Explore the graph:Temperatures Set B in a new window

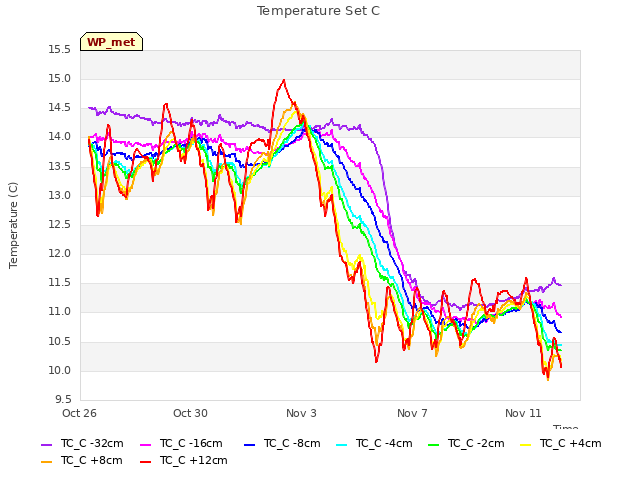

Explore the graph:Temperature Set C in a new window

Explore the graph:Water CO2 and Temp in a new window

Explore the graph:West Pond Water CO2 in a new window

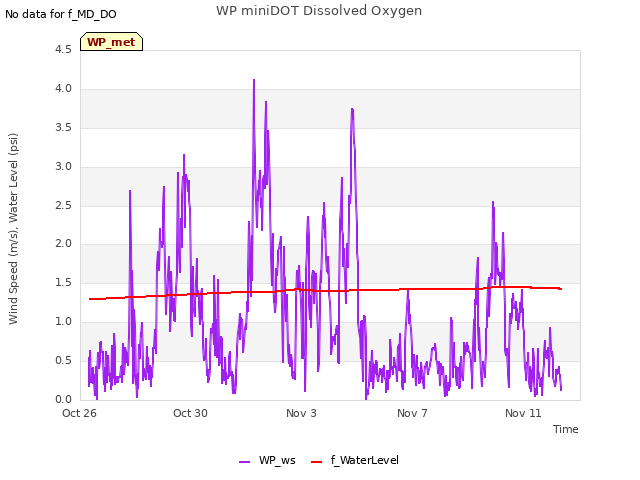

Explore the graph:WP miniDOT Dissolved Oxygen in a new window

Explore the graph:SRS NDVI Channels in a new window

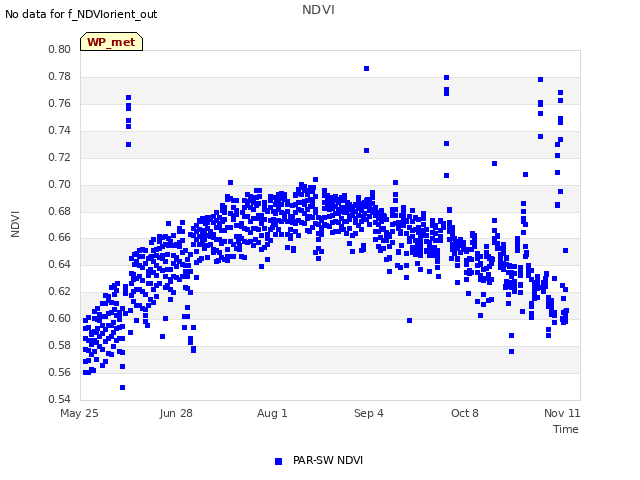

Explore the graph:NDVI in a new window

5 WP_flux graphs found

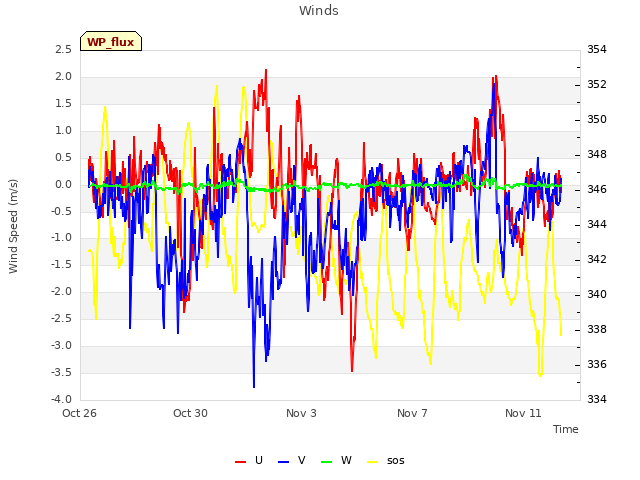

Explore the graph:Winds in a new window

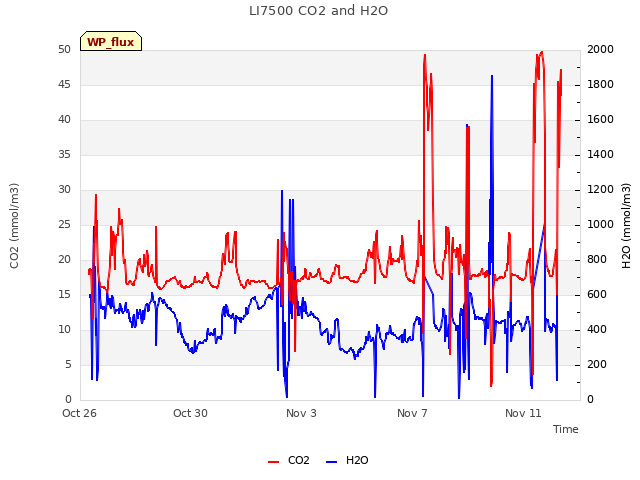

Explore the graph:LI7500 CO2 and H2O in a new window

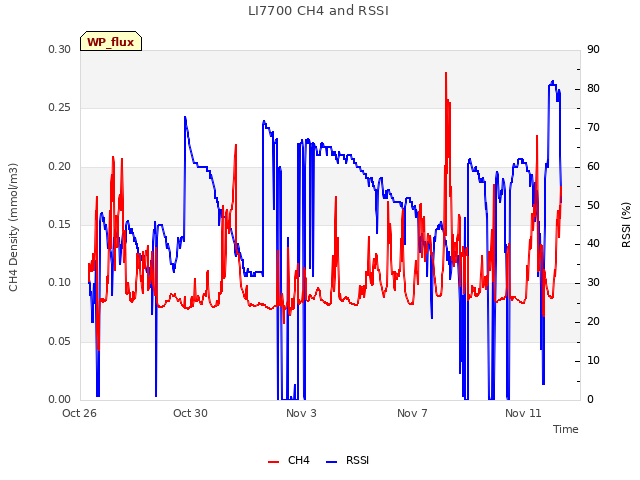

Explore the graph:LI7700 CH4 and RSSI in a new window

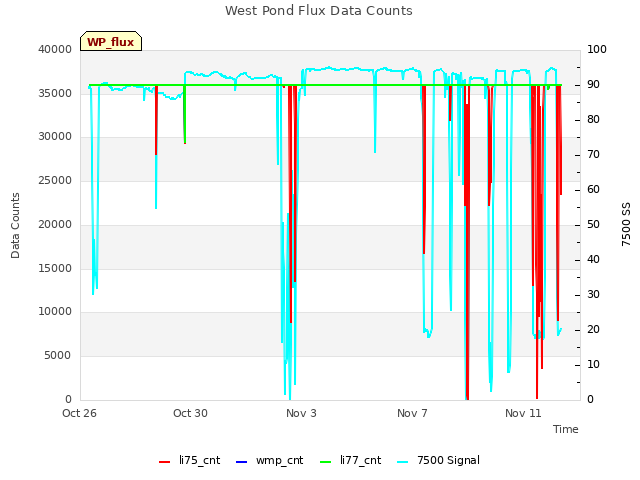

Explore the graph:West Pond Flux Data Counts in a new window

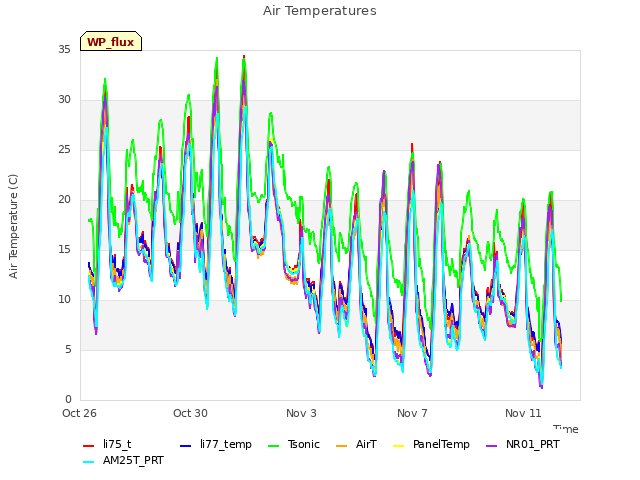

Explore the graph:Air Temperatures in a new window

Can't check MBWPEESWGT_mixed
Can't check MBEEWPSWEPGT_cam
Can't check MBSWEEWPBCBA
1 WP_processed graphs found

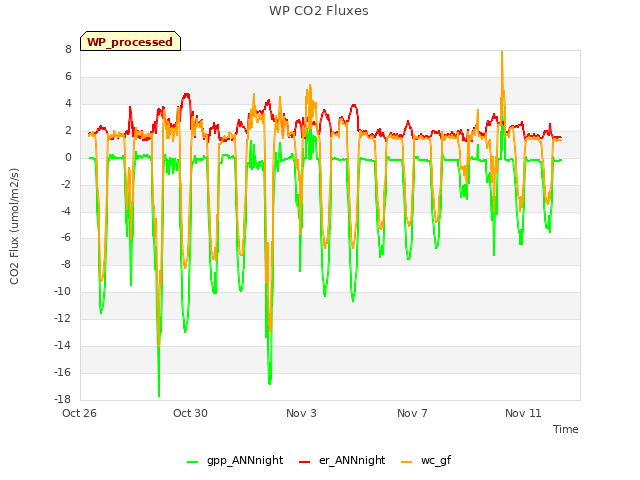

Explore the graph:WP CO2 Fluxes in a new window

No data found for WP_arable.
