Sherman Island: 2007-09-29 16:30:00 (DOY 272)
Author: Dennis Baldocchi
Others: Matteo Detto

Summary: Installed web cam; swapped Li-7500; downloaded data from laser and for Sherman Island.

Sherman Island - Methane Study

Date: 29 september 2007

Day: 272

Standard Time in: 10:30 Out: 16:30

Who: MD & DB

Weather: clear sky, light wind

Phenology: weed still active

Tasks

  1. check and download data at Sherman Island
  2. download data from laser and calibrate
  3. swap Li-7500
  4. install web cam

Check list

  1. Fence and gate power:
  2. Datalogger Solar Panel and Batteries:
  3. Reading from Gillsonic (H2O and CO2 should be in the range of 0 – 5 v.)

Time

Path/File

D:\Data\SI07 .raw

mean

std

mean

std

w

Ts

u

H2O

v

CO2

CH4

  1. Methane Sensor (type Scroll Scroll 2)

Methane Hi-flow ppm

1.896

Cell Pressure – near 159

153.5

Cell Temperature

27.45

Mirror time

14.9

Sample rate

Methane low flow put back in high flow !

Pump status

Filter Status

Water traps

  1. If Swapping Li-7500 Analyzer. (Remove SN# 0065 ; install SN# 0042 )
  2. Check the fans of air temp. and relative humidity sensors
  3. Check MD-9 system connections
  4. Check CR23X with two multiplexers and sensor values
  5. Check levels of Radiation sensors, clear up surfaces.

Closed gate and set up fence.

Other Notes:

Water table depth 3.95 feet = 120 cm -40 cm = 80 cm

Black widow invasion

0 photos found

Graphs display:
7 sets found

No data found for SI_mp.
10 SI_met graphs found

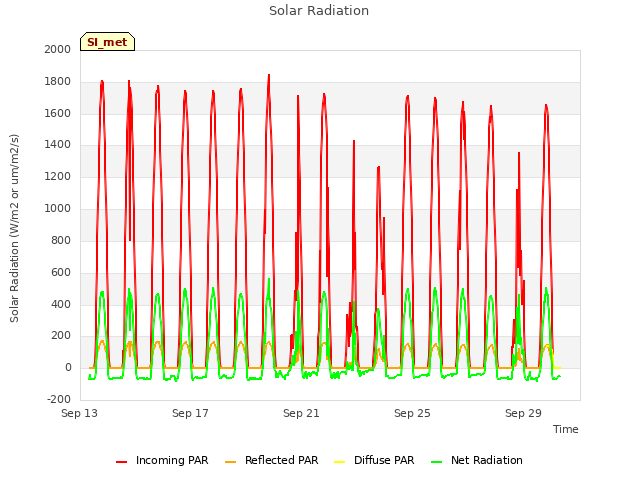

Explore the graph:Solar Radiation in a new window

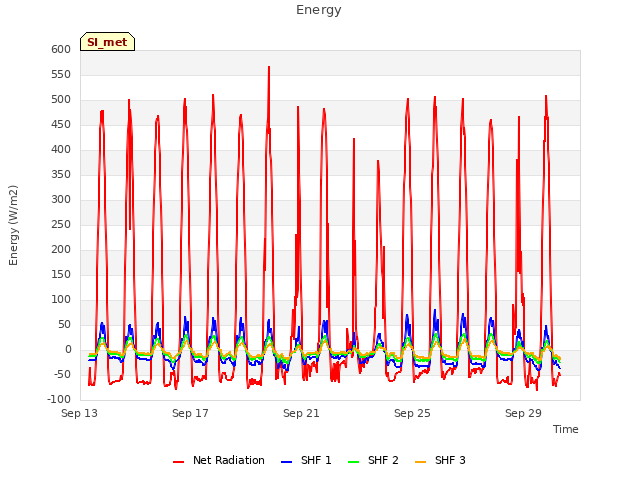

Explore the graph:Energy in a new window

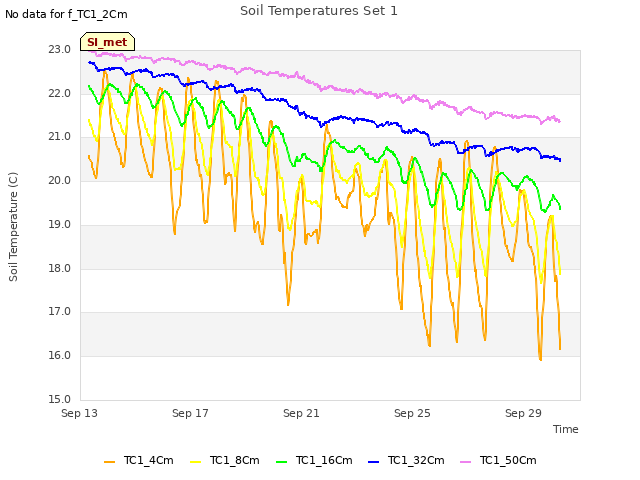

Explore the graph:Soil Temperatures Set 1 in a new window

Explore the graph:Soil Temperatures Set 2 in a new window

Explore the graph:Soil Temperatures Set 3 in a new window

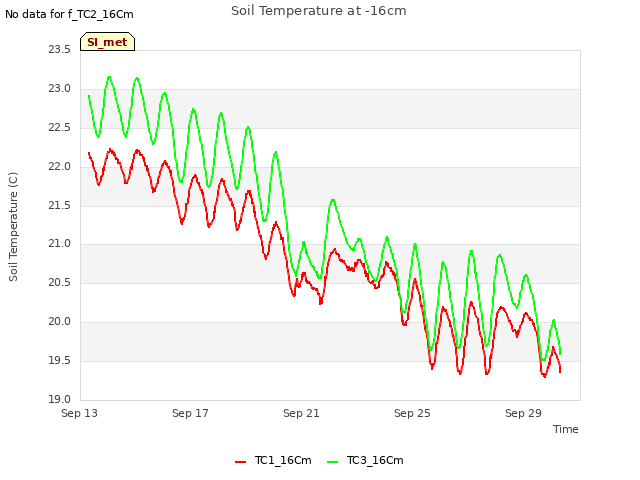

Explore the graph:Soil Temperature at -16cm in a new window

Explore the graph:Solar Radiation from CNR1 in a new window

Explore the graph:Sherman Island Rain in a new window

Explore the graph:Sherman Well Level in a new window

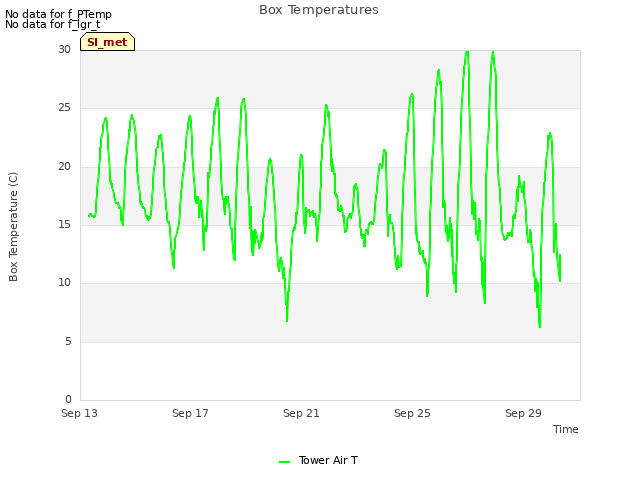

Explore the graph:Box Temperatures in a new window

Can't check SI_mixed
2 SI_mixed graphs found

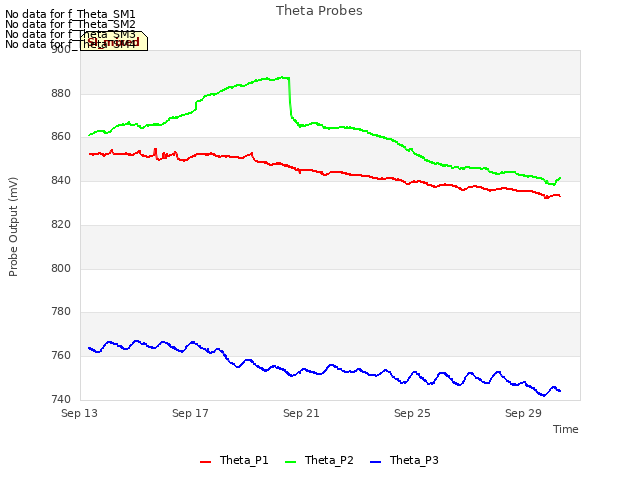

Explore the graph:Theta Probes in a new window

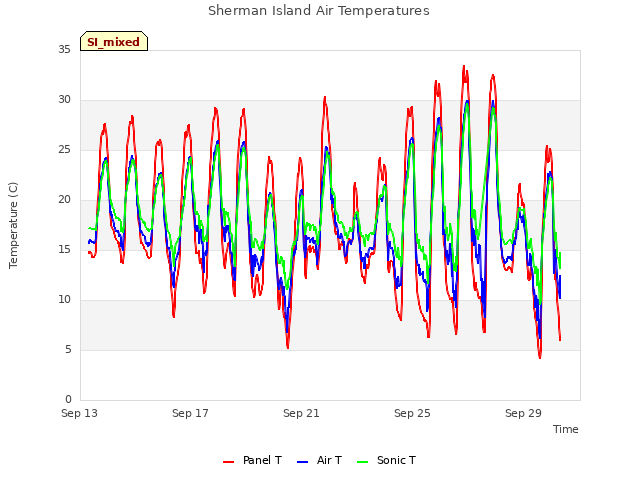

Explore the graph:Sherman Island Air Temperatures in a new window

4 SI_flx graphs found

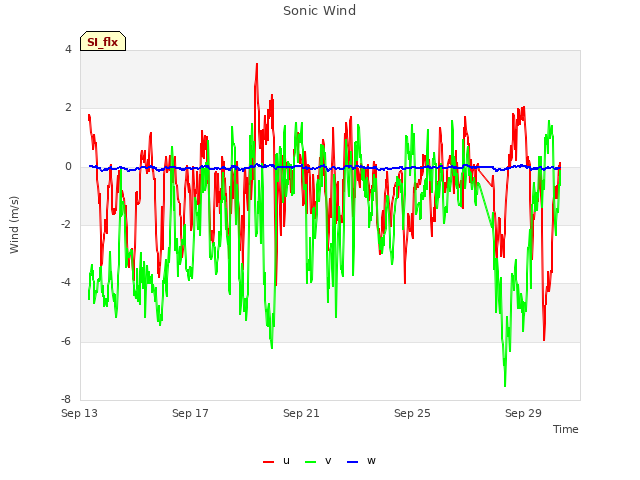

Explore the graph:Sonic Wind in a new window

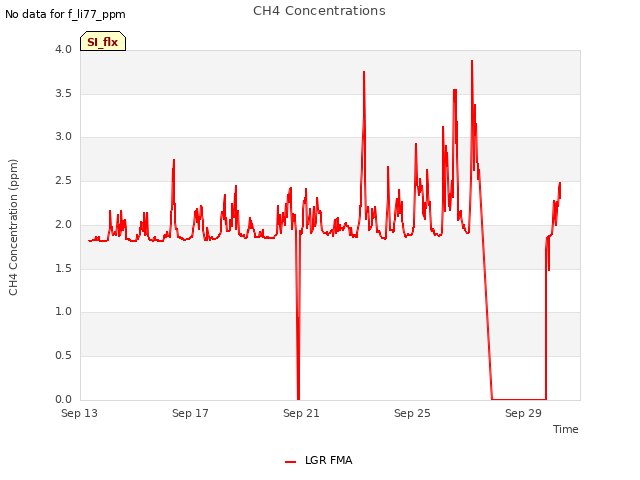

Explore the graph:CH4 Concentrations in a new window

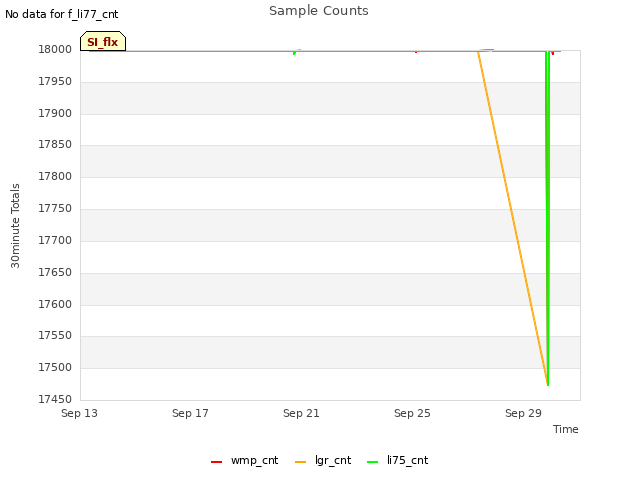

Explore the graph:Sample Counts in a new window

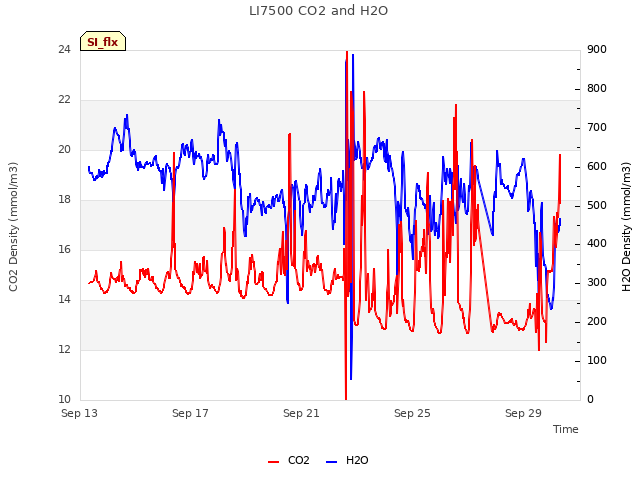

Explore the graph:LI7500 CO2 and H2O in a new window

No data found for SI_soilco2.
Can't check TWSI_mixed
Can't check SIMBTWEE_met
