Mayberry: 2015-10-29 09:00:00 (DOY 302)
Author: Joe Verfaillie
Others: Sara

Summary: Wasps in the box, services water sensors, low signal strength on 7500

Mayberry
2015-10-29

I arrived about 9:00 with Sara. It was cool and breezy with a clear blue sky. There was a chance of rain yesterday, but it doesn’t look like there was any. The roads were dry and dusty. The wetland is definitely yellowing and cattail fluff is in the air and fouling the open paths.

The box was still full of wasps. Most of them looked dead or dormant, so maybe these were left over from last time. I didn’t see any way for new ones to get in. The 7700 wash box also had wasps in it. I put a couple of moth balls in each box to see if that discourages future occupation.

We serviced the water sensors putting new desiccant into the miniDots and greasing their o-rings.

The 7700 read: 2.00ppm CH4, 35.1RSSI – 72 after cleaning.
The 7500 read: 470.6ppm CO2, -192.8mmol/m3 H2O, 48.2SS, 20.78C, 101.62kPa
After cleaning: 410.0ppm CO2, 528mmol/m3 H2O, 102.2SS

The water level is still low, but maybe a bit higher than last time.

1 photos found

view of field site
view of field site

Graphs display:
11 sets found

7 MB_flux graphs found

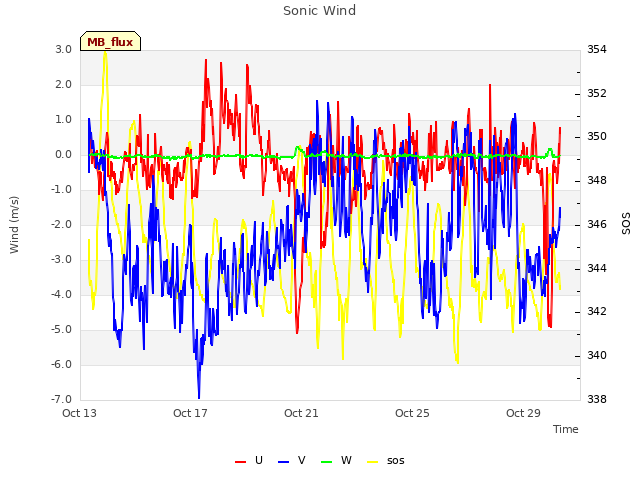

Sonic Wind

LI7700 mV signals

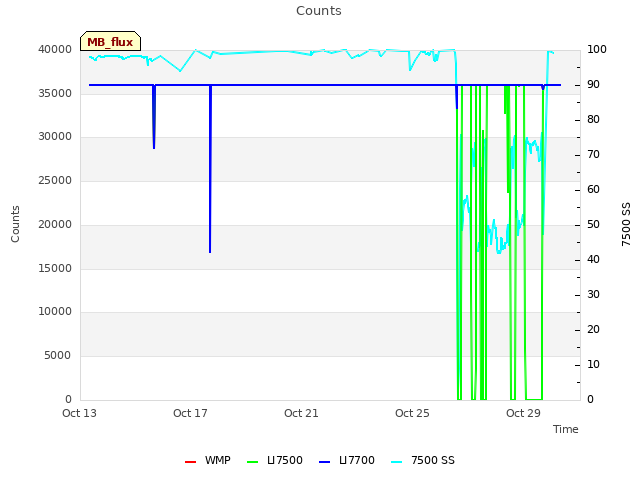

Counts

LI7700 CH4 from analog signal

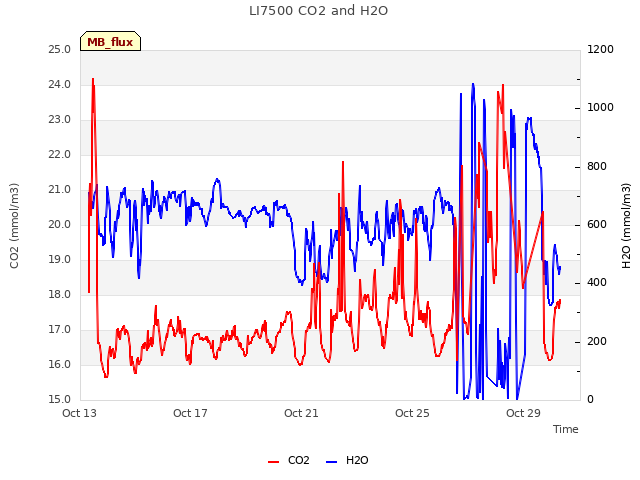

LI7500 CO2 and H2O

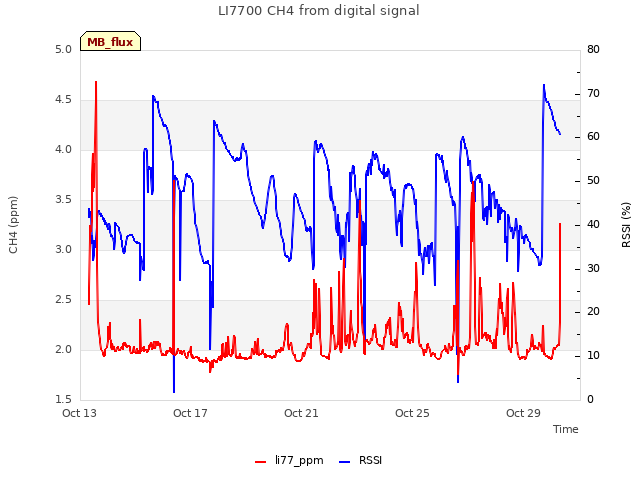

LI7700 CH4 from digital signal

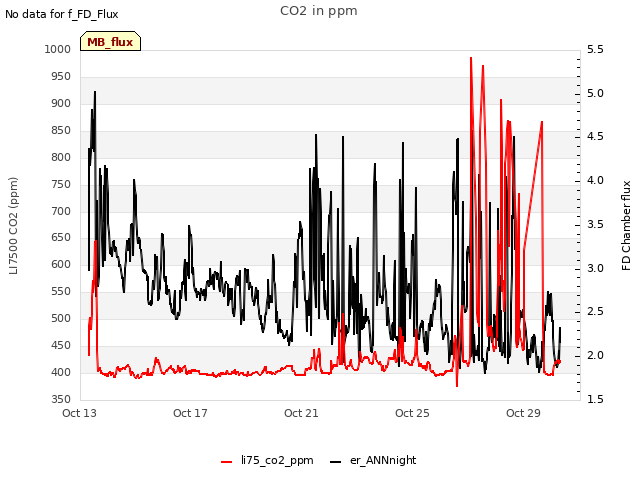

CO2 in ppm

No data found for MB_met.
27 MB_tule graphs found

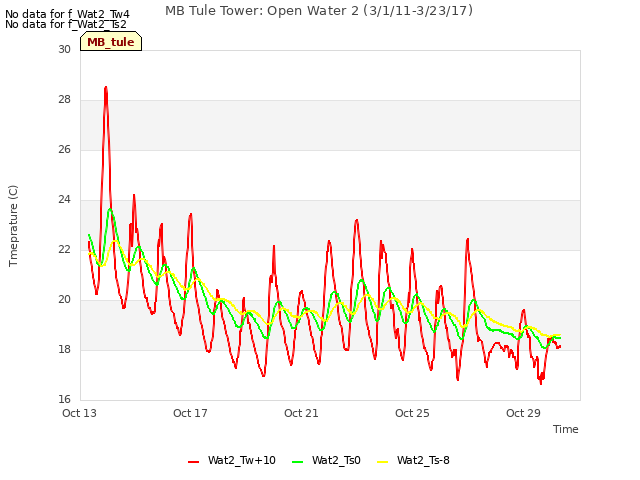

MB Tule Tower: Open Water 2 (3/1/11-3/23/17)

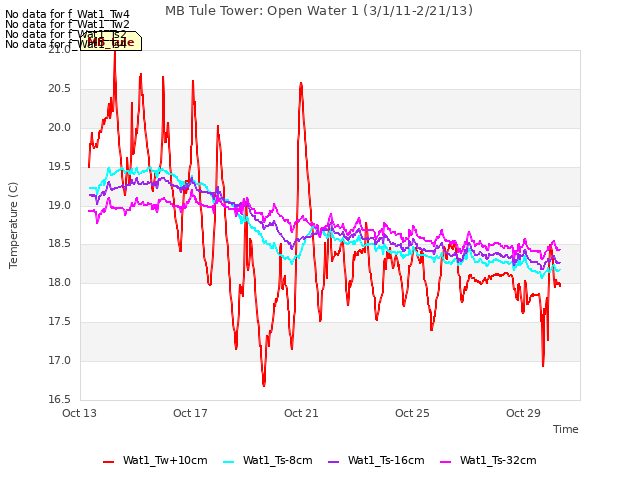

MB Tule Tower: Open Water 1 (3/1/11-2/21/13)

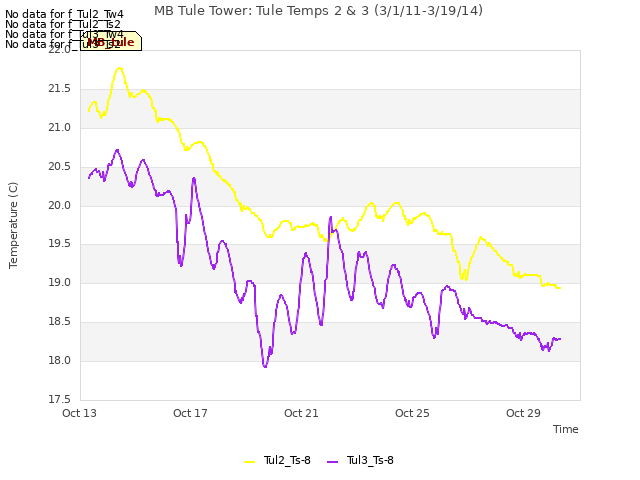

MB Tule Tower: Tule Temps 2 & 3 (3/1/11-3/19/14)

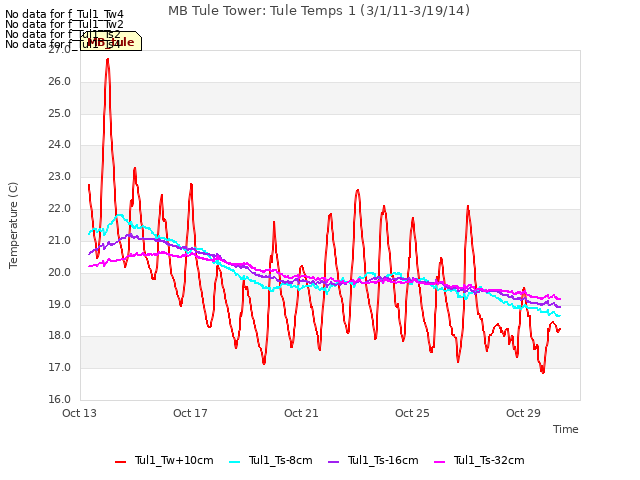

MB Tule Tower: Tule Temps 1 (3/1/11-3/19/14)

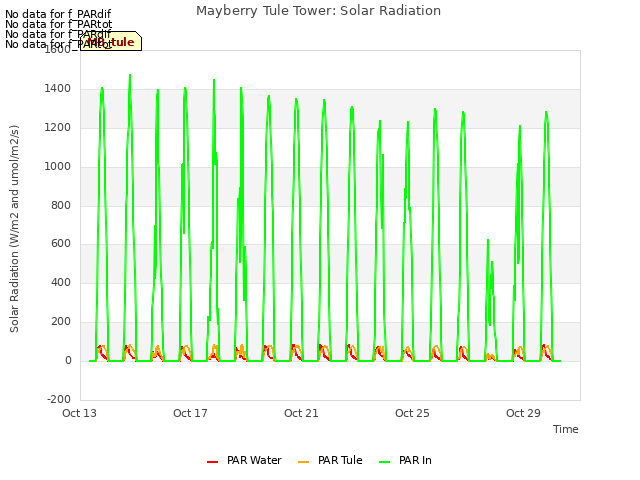

Mayberry Tule Tower: Solar Radiation

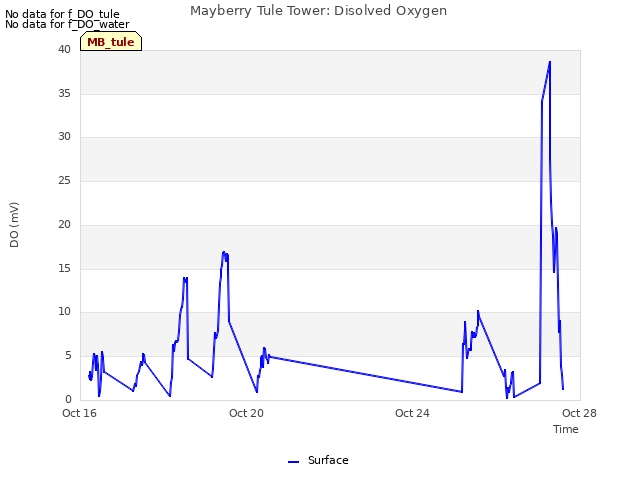

Mayberry Tule Tower: Disolved Oxygen

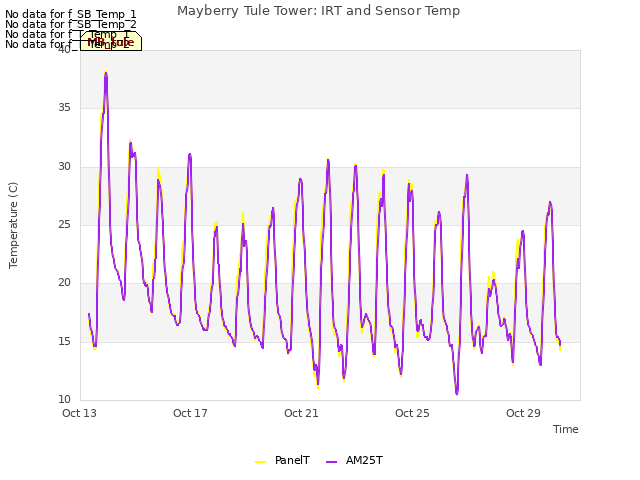

Mayberry Tule Tower: IRT and Sensor Temp

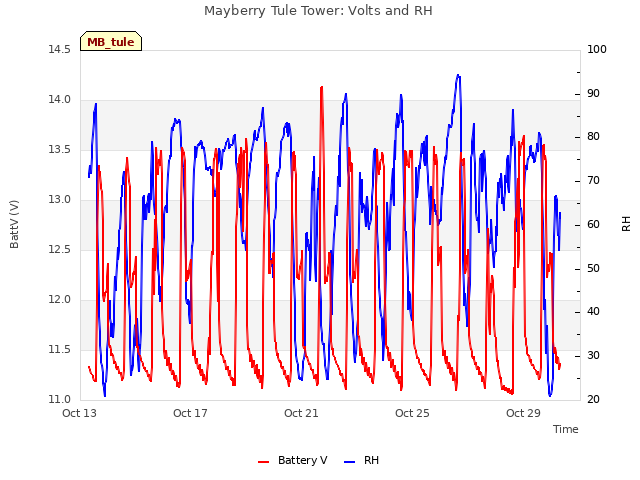

Mayberry Tule Tower: Volts and RH

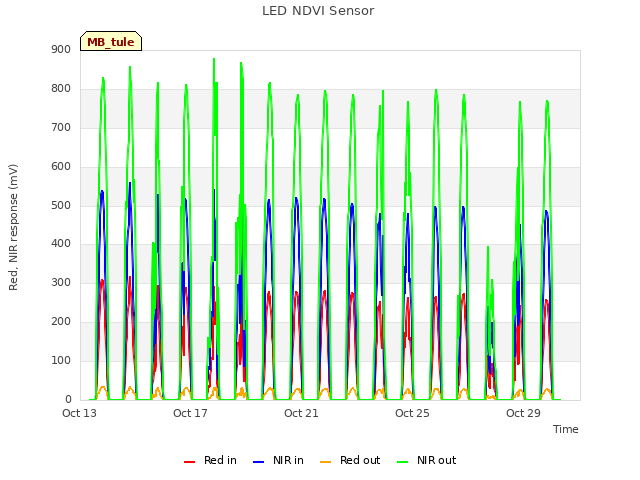

LED NDVI Sensor

Water CO2

Water Pressure

Fluorometer Data

Mayberry pCO2 Profile

Water Temperatures

Air Temperatures

Air Pressure

4-Way Radiometer

MB Tule Tower: Open Water 1 (2/21/13-3/19/14)

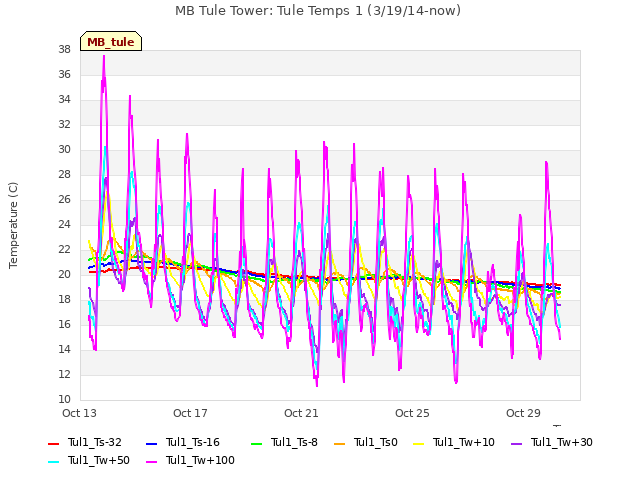

MB Tule Tower: Tule Temps 1 (3/19/14-now)

MB Tule Tower: Open Water 1 (3/19/14-now)

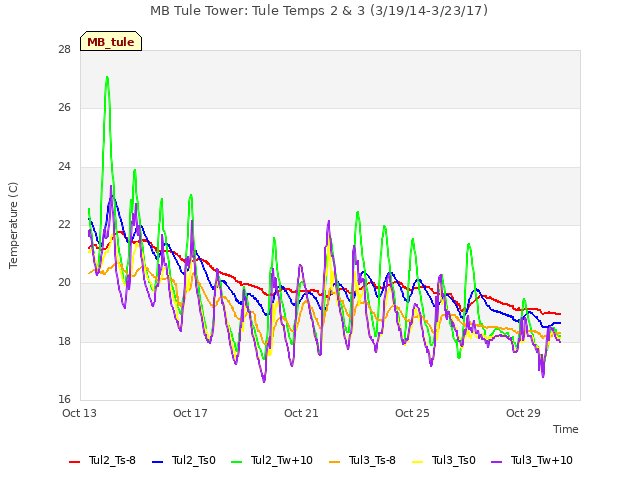

MB Tule Tower: Tule Temps 2 & 3 (3/19/14-3/23/17)

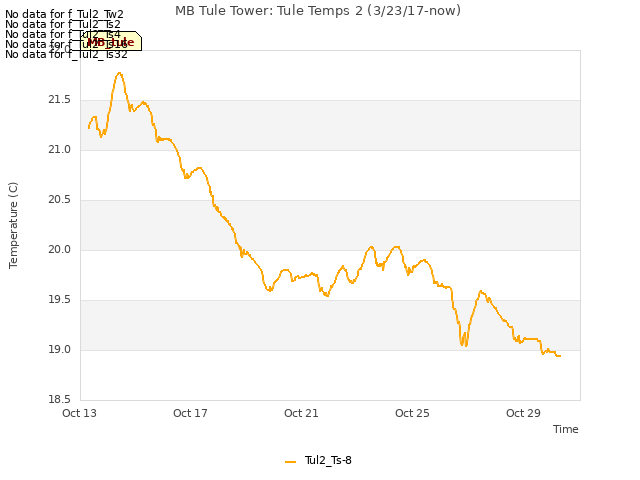

MB Tule Tower: Tule Temps 2 (3/23/17-now)

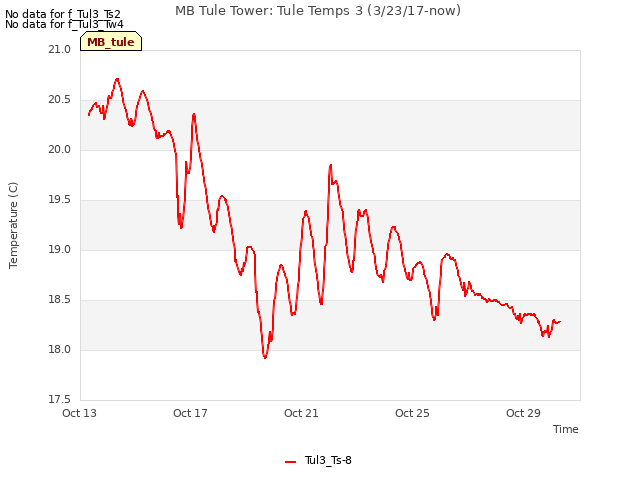

MB Tule Tower: Tule Temps 3 (3/23/17-now)

SRS NDVI Channels

SRS NDVI

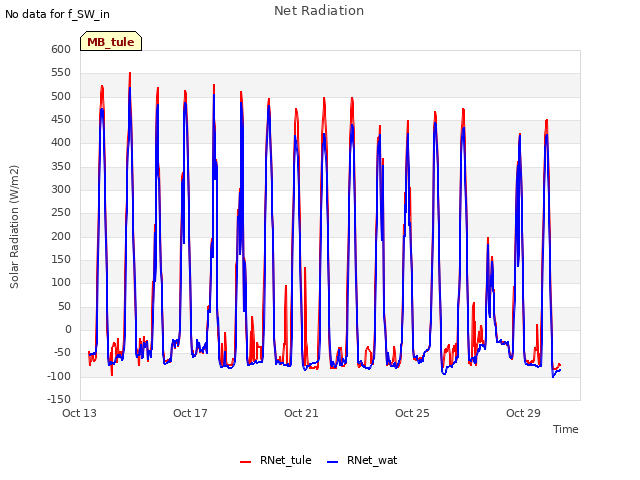

Net Radiation

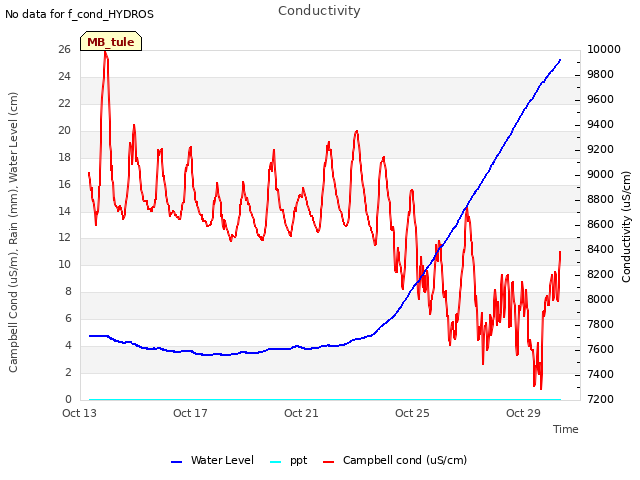

Conductivity

Can't check MBWPEESWGT_mixed
1 MB_cam graphs found

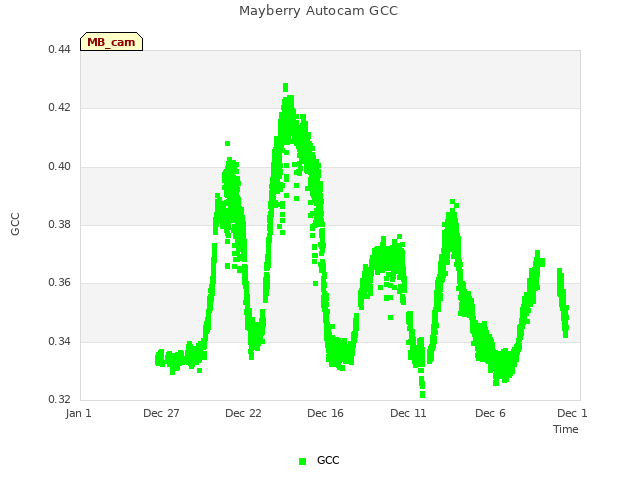

Mayberry Autocam GCC

Can't check MBEEWPSWEPGT_cam
Can't check SIMBTWEE_met
1 MB_minidot graphs found

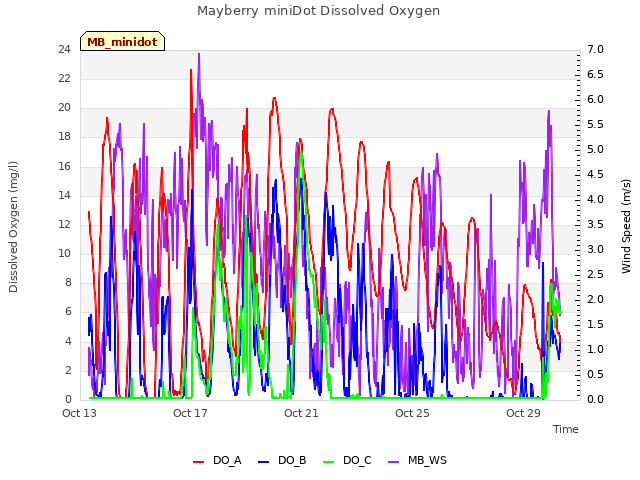

Mayberry miniDot Dissolved Oxygen

Can't check MBSWEEWPBCBA

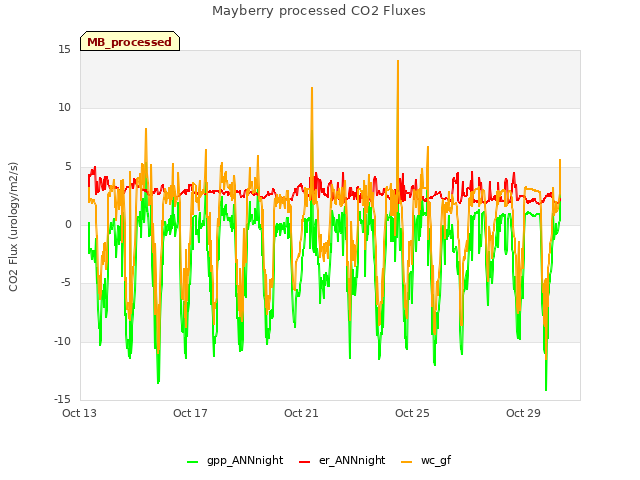

1 MB_processed graphs found

Can't check MB_fd
1 MB_fd graphs found

Water Forced Diffusion CO2 Flux
