East End: 2015-10-15 11:30:00 (DOY 288)
Author: Joe Verfaillie
Others: Patty, Ian

Summary: Lots of otter poop, standard data collection, changed bandwidth on 7550

EastEnd
2015-10-15

I arrived about 11:30 with Patty and Ian. It was sunny and warm with little to no wind. There was lots of otter poop all over the boardwalk where we usually sit to collect data. We knocked it off as best we could and did not sit down. Patty also found a blob of bloody leftovers on the camera that she almost dropped on my head.

The 7700 read: 2.35ppm CH4, 40.0RSSI – after cleaning 2.14ppm CH4, 86.9RSSI
The 7500 read: 382ppm CO2, 790.2mmol/m3, 78.72SS, 24.16C, 101.31kPa
After cleaning: 400.0ppm CO2, 84.5SS

The 7550 clock was okay.
The 7550 bandwidth was 5Hz, I changed it to 10Hz since we are running at 20Hz

Ian collected more water samples. He seemed to think the water had more life in it here than at Mayberry.

0 photos found

Graphs display:
11 sets found

14 EE_met graphs found

Explore the graph:Temperature and Batt V in a new window

Explore the graph:Soil Moisture and Well Pressure in a new window

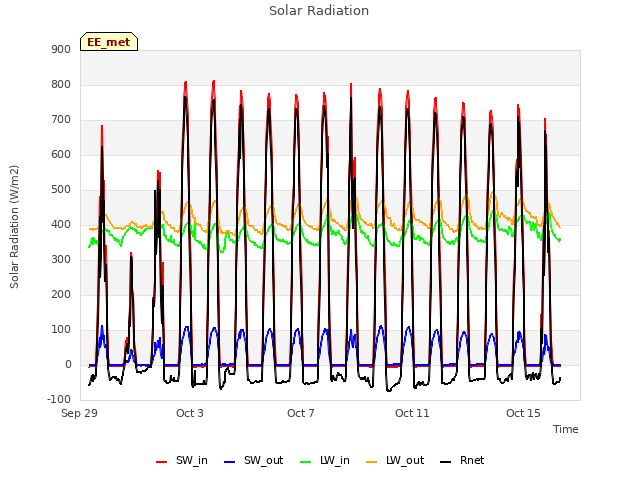

Explore the graph:Solar Radiation in a new window

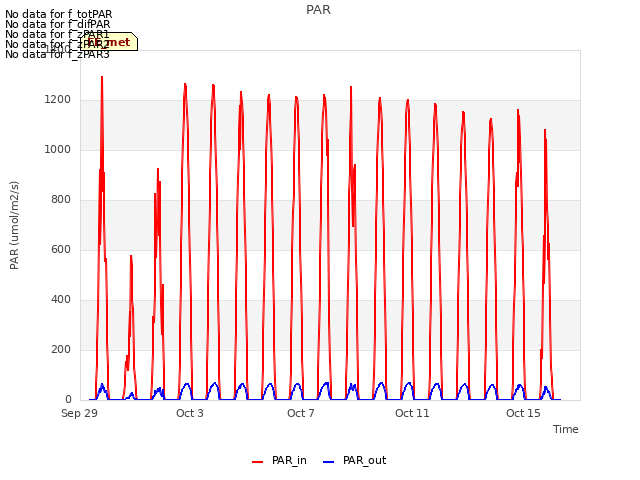

Explore the graph:PAR in a new window

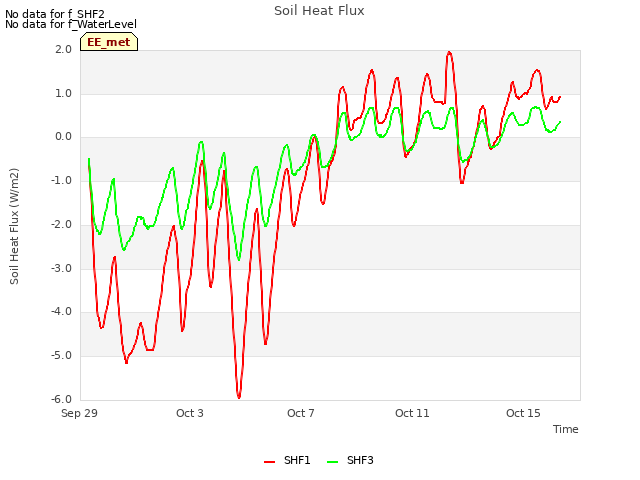

Explore the graph:Soil Heat Flux in a new window

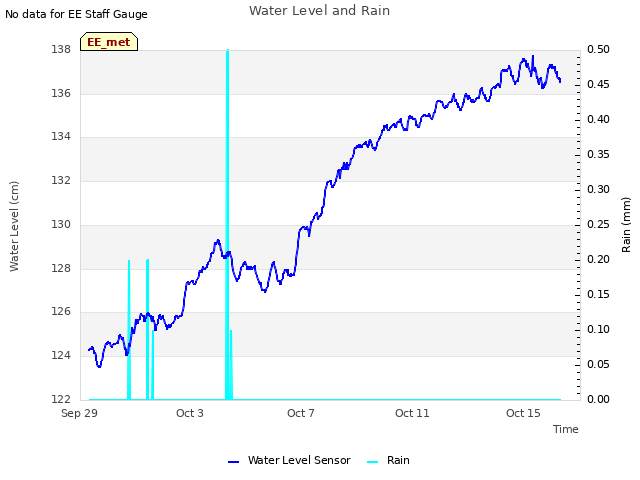

Explore the graph:Water Level and Rain in a new window

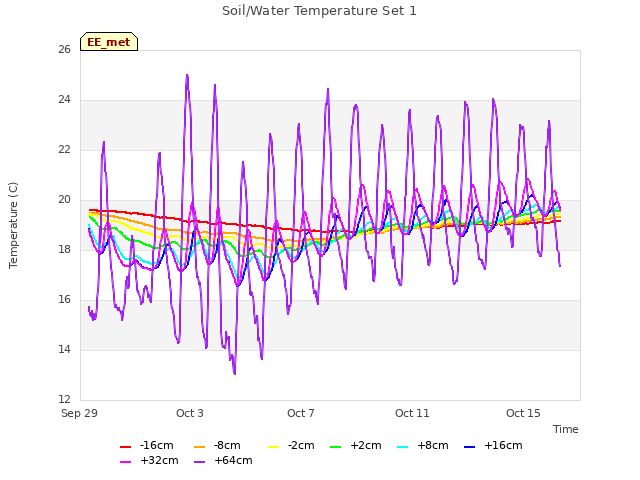

Explore the graph:Soil/Water Temperature Set 1 in a new window

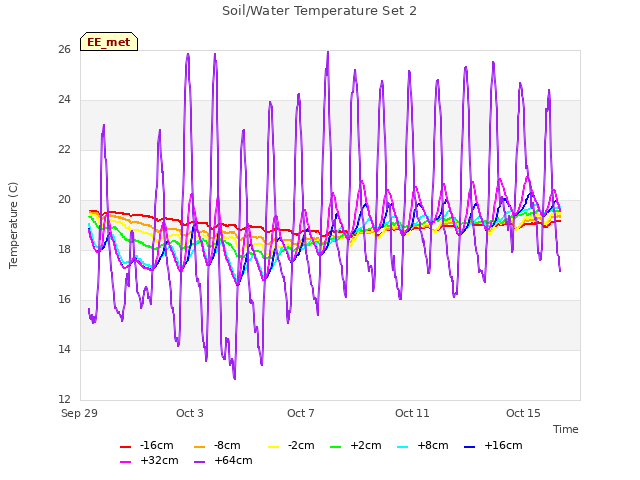

Explore the graph:Soil/Water Temperature Set 2 in a new window

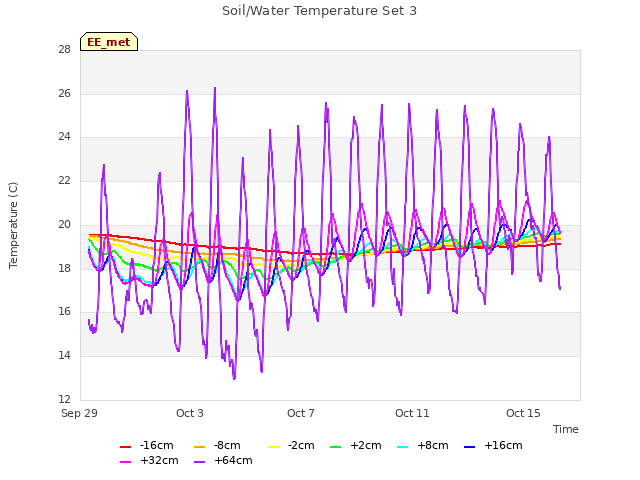

Explore the graph:Soil/Water Temperature Set 3 in a new window

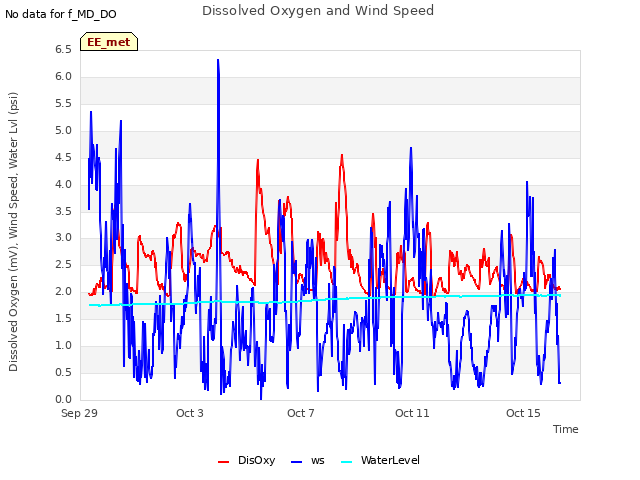

Explore the graph:Dissolved Oxygen and Wind Speed in a new window

Explore the graph:SRS NDVI Channels in a new window

Explore the graph:Apogee NDVI in a new window

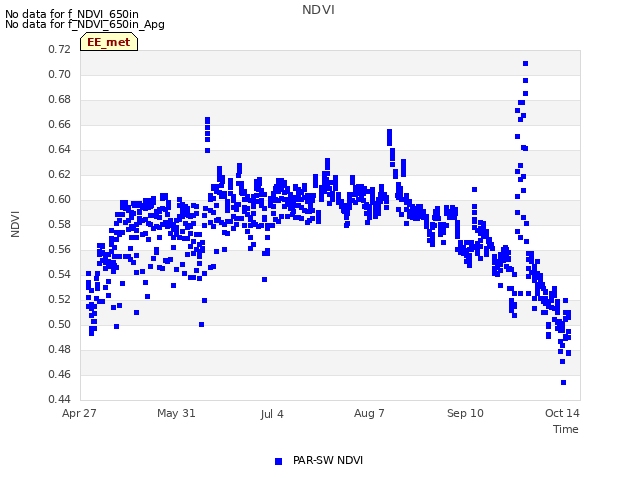

Explore the graph:NDVI in a new window

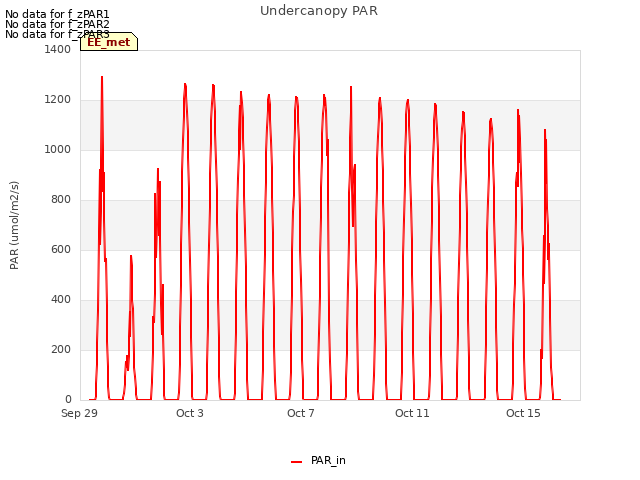

Explore the graph:Undercanopy PAR in a new window

Can't check EE_mixed
1 EE_mixed graphs found

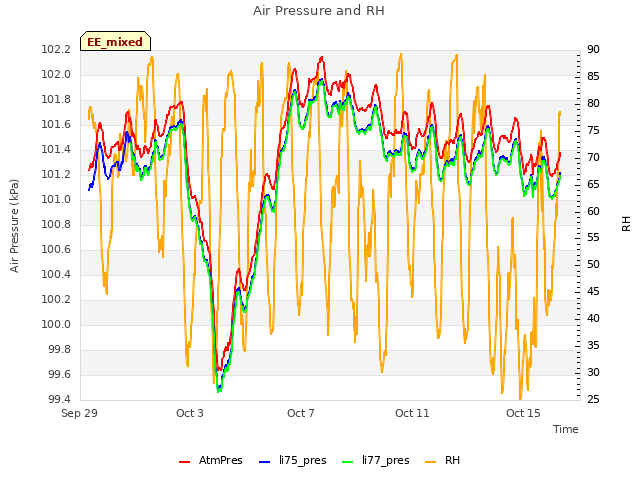

Explore the graph:Air Pressure and RH in a new window

8 EE_flux graphs found

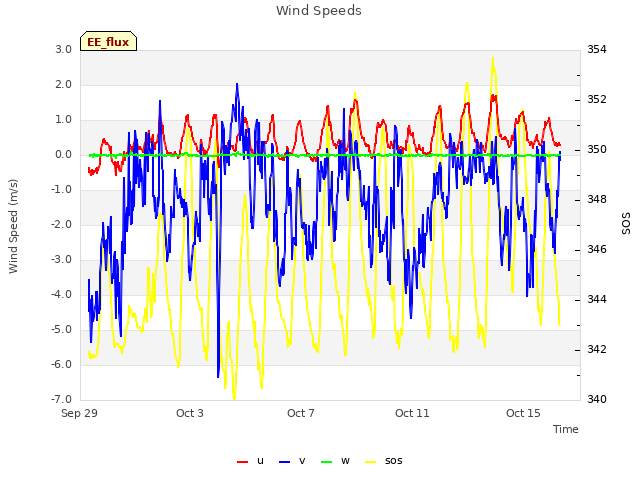

Explore the graph:Wind Speeds in a new window

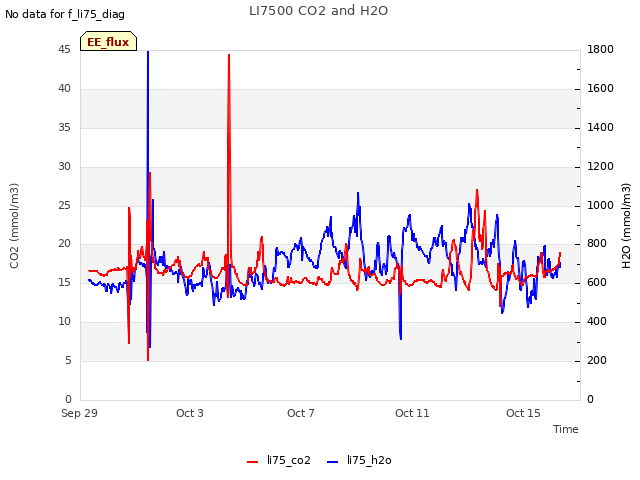

Explore the graph:LI7500 CO2 and H2O in a new window

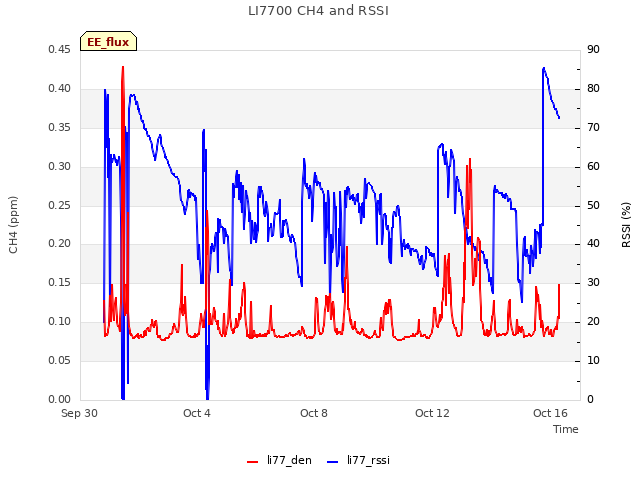

Explore the graph:LI7700 CH4 and RSSI in a new window

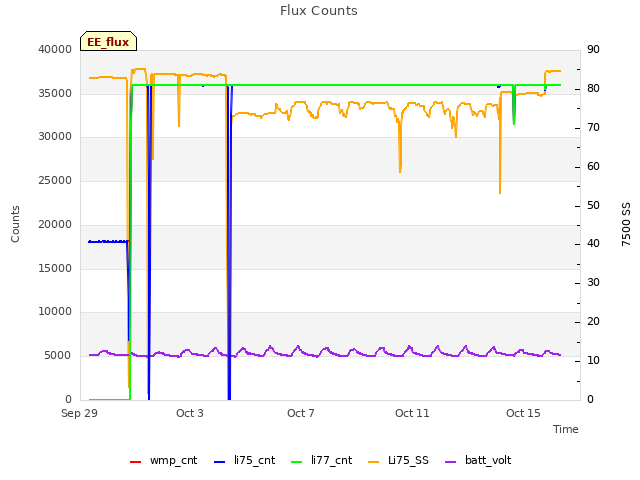

Explore the graph:Flux Counts in a new window

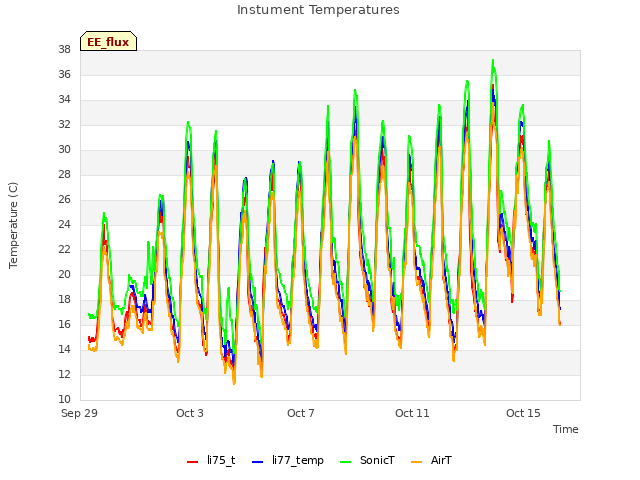

Explore the graph:Instument Temperatures in a new window

Explore the graph:Temp Tower 3 (Mixed Veg) in a new window

Explore the graph:Temp Tower 3 (Mixed Veg) in a new window

Explore the graph:Temp Tower 3 (Mixed Veg) in a new window

Can't check MBWPEESWGT_mixed
1 EE_cam graphs found

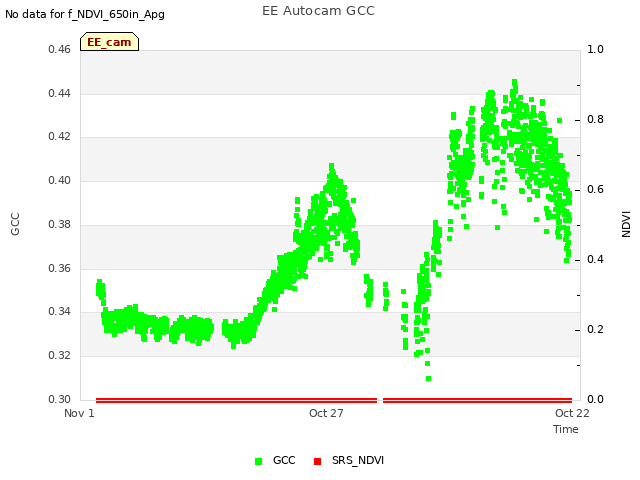

Explore the graph:EE Autocam GCC in a new window

Can't check MBEEWPSWEPGT_cam
Can't check SIMBTWEE_met
Can't check EE_Temp
5 EE_Temp graphs found

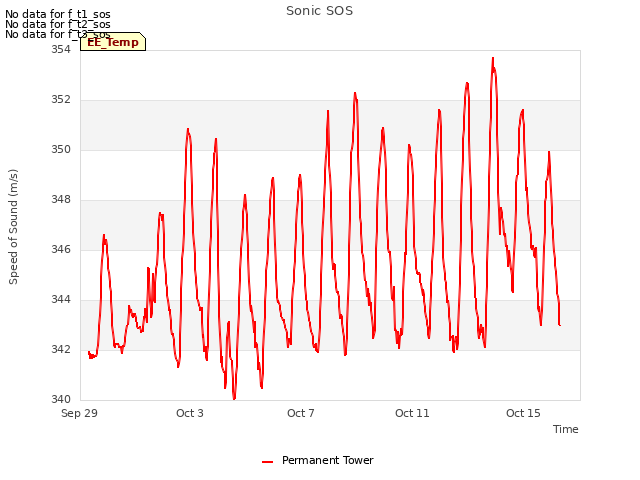

Explore the graph:Sonic SOS in a new window

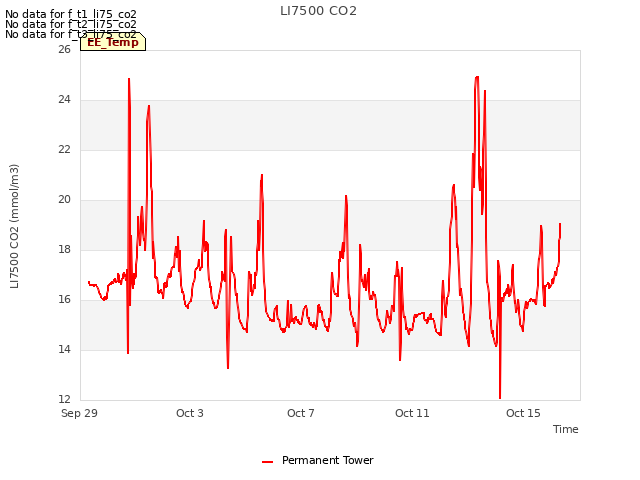

Explore the graph:LI7500 CO2 in a new window

Explore the graph:Water Level in a new window

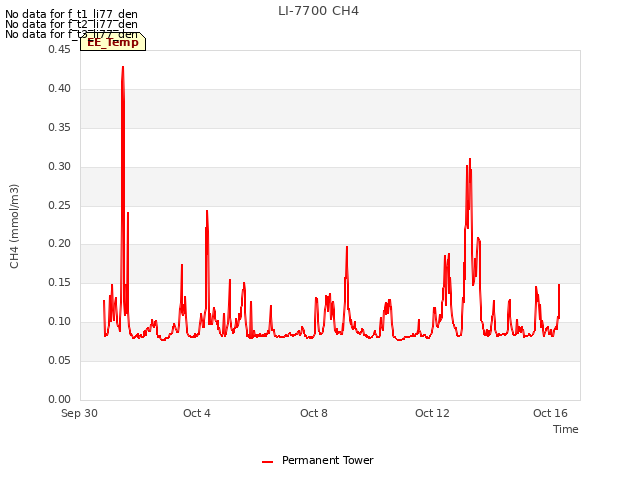

Explore the graph:LI-7700 CH4 in a new window

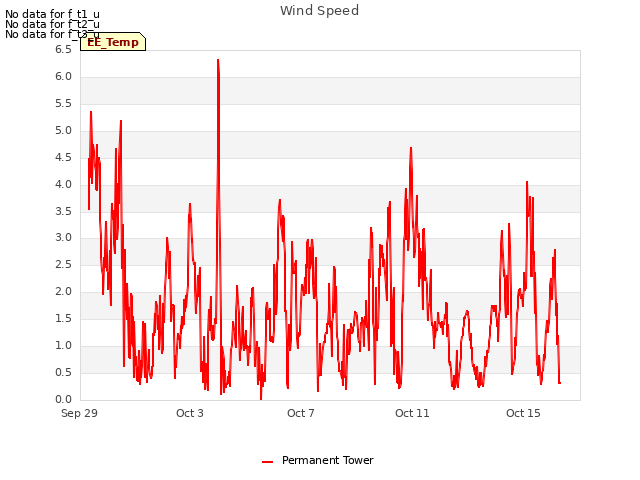

Explore the graph:Wind Speed in a new window

Can't check EE_minidot
1 EE_minidot graphs found

Explore the graph:EE miniDOT Dissolved Oxygen in a new window

Can't check MBSWEEWPBCBA
1 EE_processed graphs found

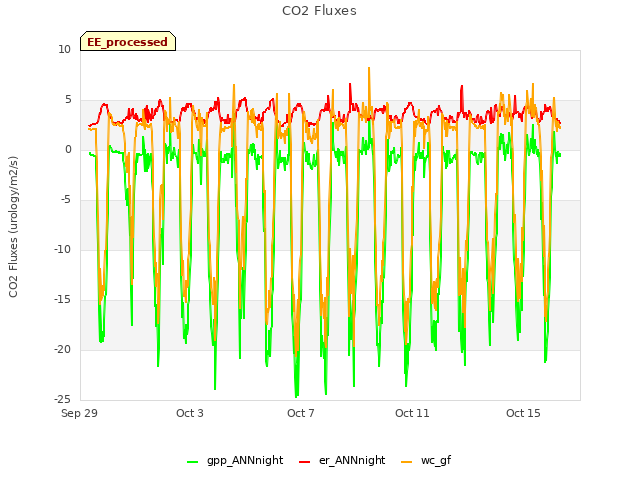

Explore the graph:CO2 Fluxes in a new window
