Mayberry: 2015-06-09 15:30:00 (DOY 160)
Author: Joe Verfaillie
Others: Patty, Dennis, Miguel
Summary: Serviced miniDot and FR probes, water level high, 7700 wash box power cable not working.

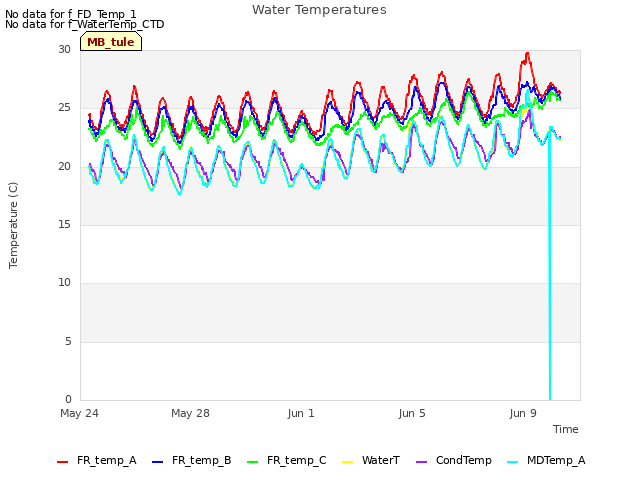

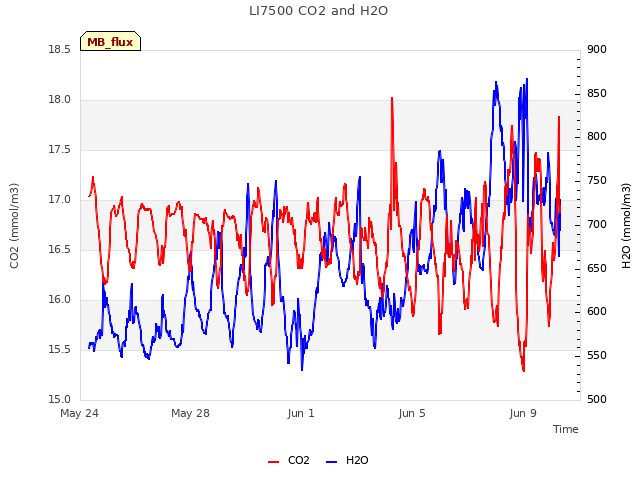

| Mayberry 2015-06-09 I arrived about 3:30pm. It was warm and overcast and windy. The water level was high – a couple inches above the top of the fence post in the channel. The 7700 read: 2.75ppm CH4, 1.72 RSSI – after cleaning 1.9ppm CH4, 64RSSI We used the manual controls to test the pump and mirror spin. The pump power cable has a problem where it connected to the wash box. Pushing and bending the connector makes the connection and the pump runs. We need to swap the cable next time out. The 7500 read: 389.5ppm CO2, 751.1mmol/m3 H2O, 94.9SS, 25.9C, 100.8kPa We serviced the miniDot and Forerunner sensors. The copper mesh on the Forerunners looked relatively clean. On the bottom miniDot, we forgot to turn it off before pulling the card. I think this corrupted the last file and lost a couple hours of data. |
0 photos found
11 sets found

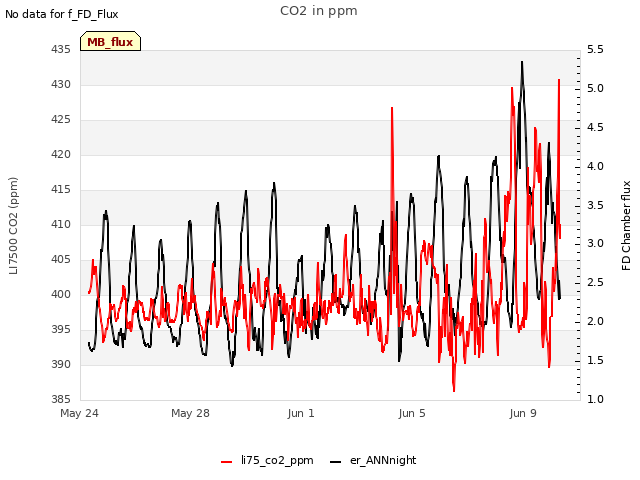

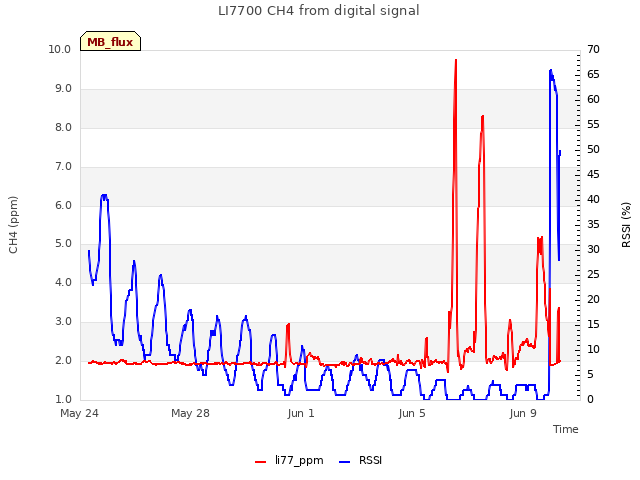

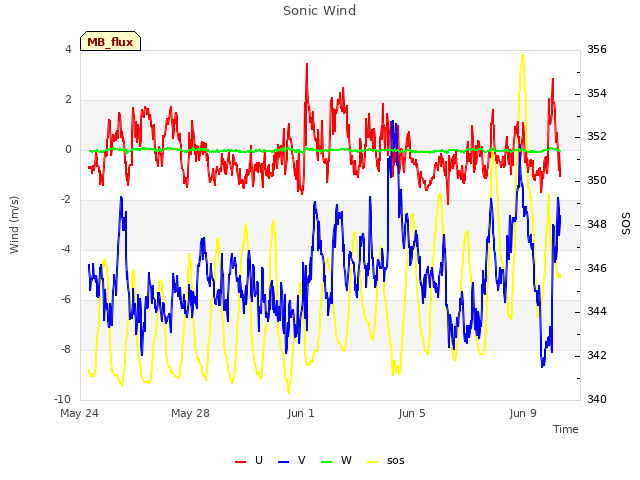

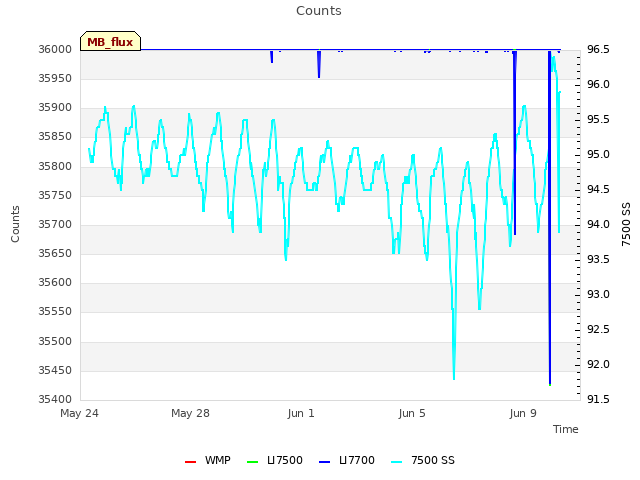

7 MB_flux graphs found
No data found for MB_met.

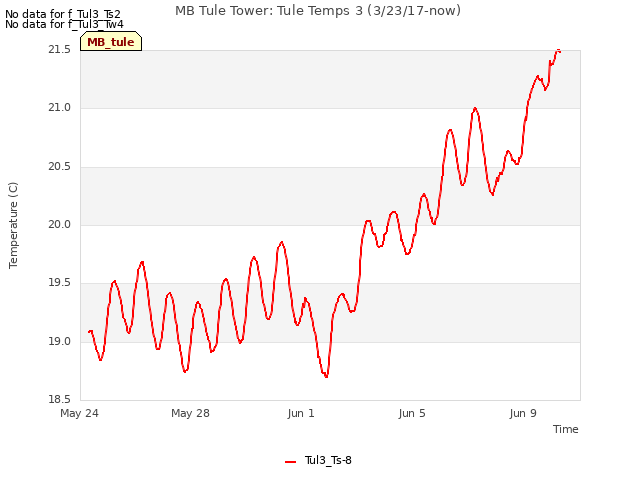

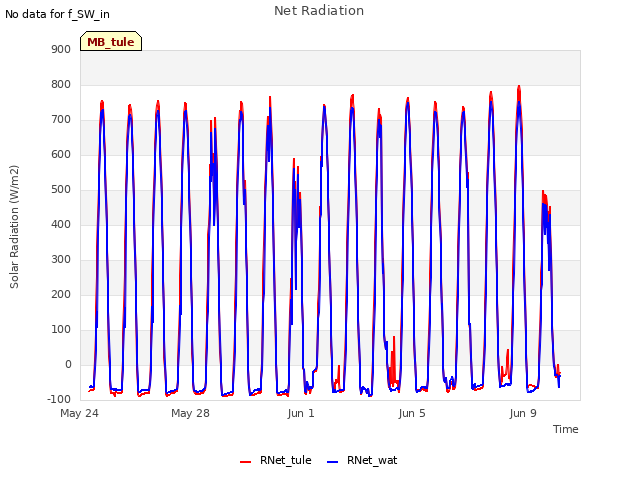

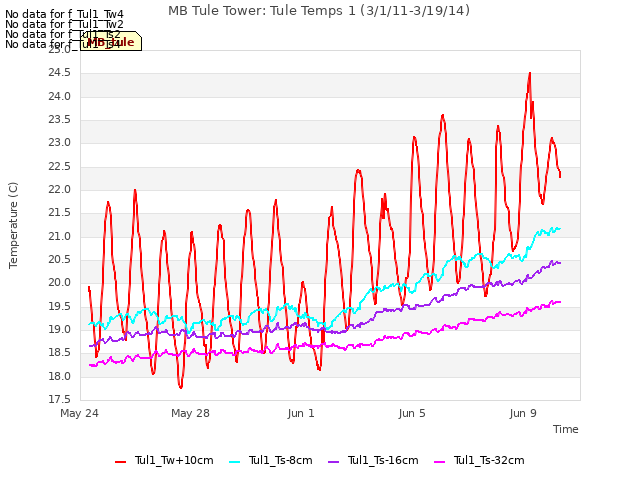

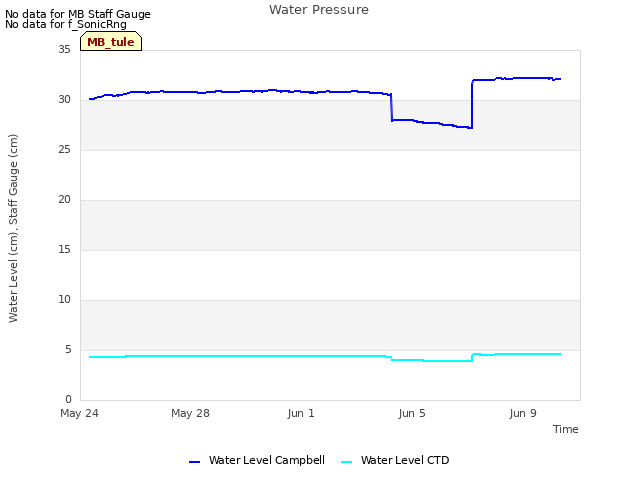

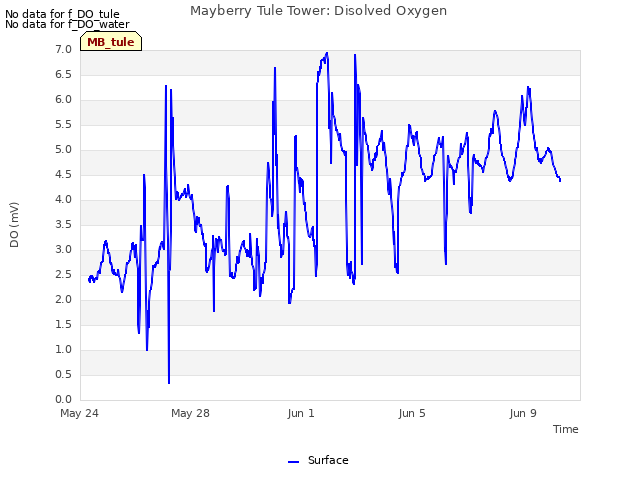

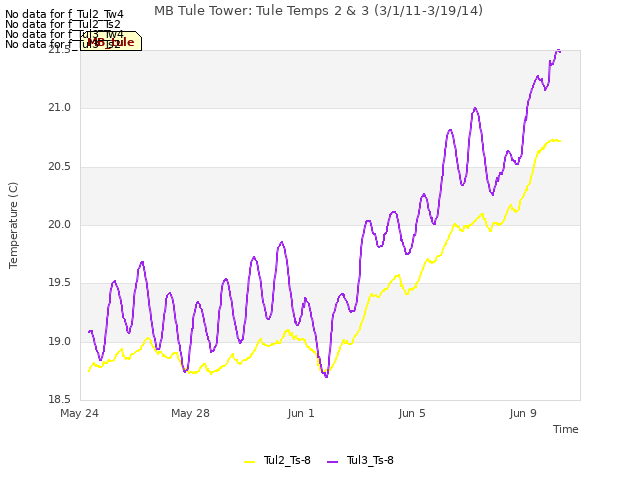

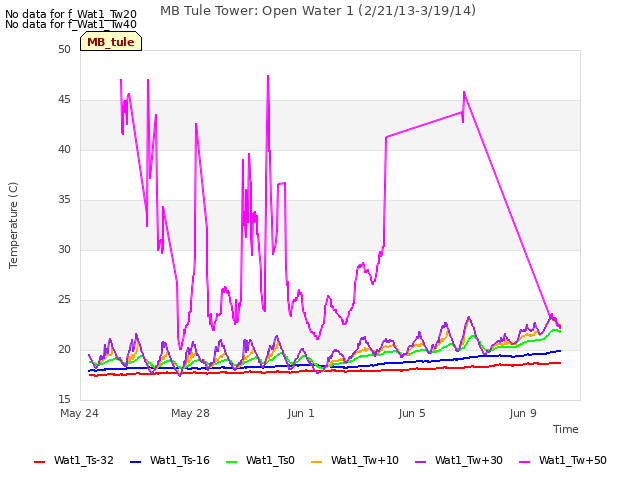

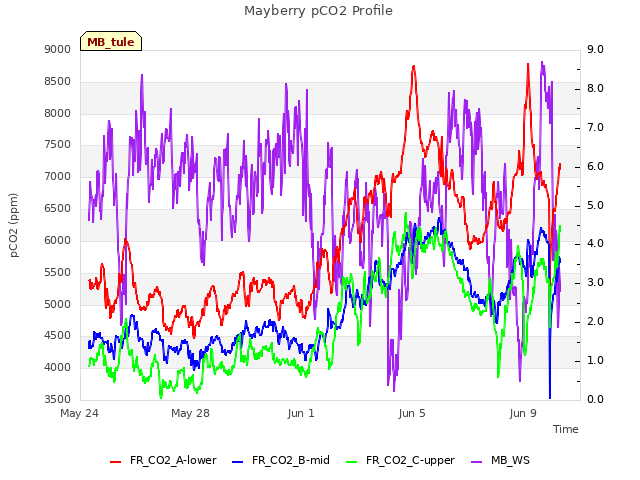

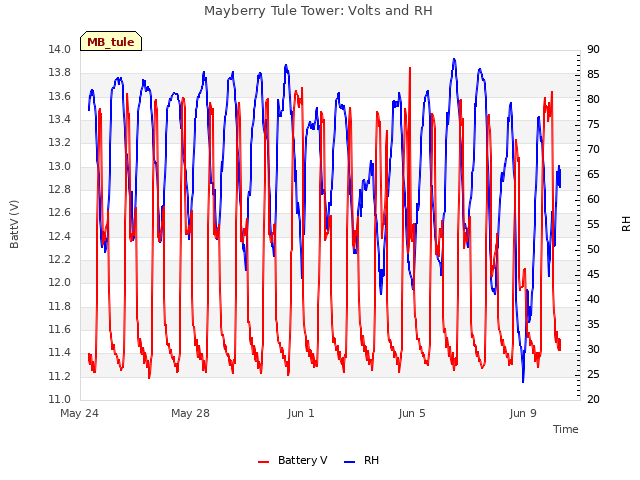

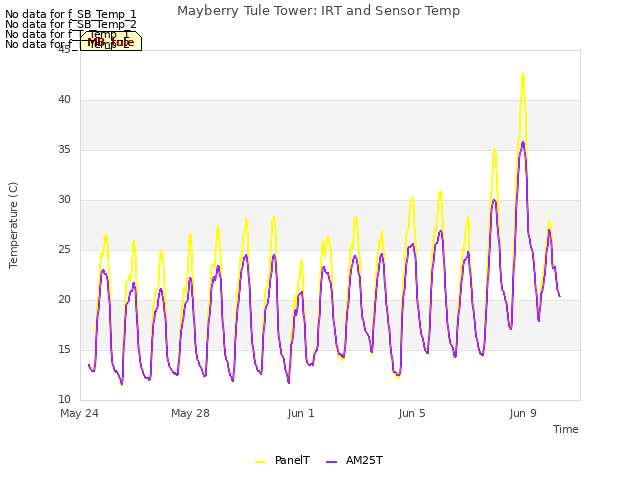

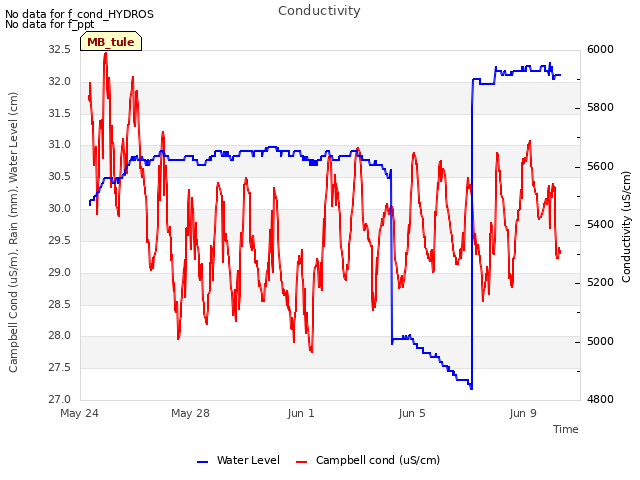

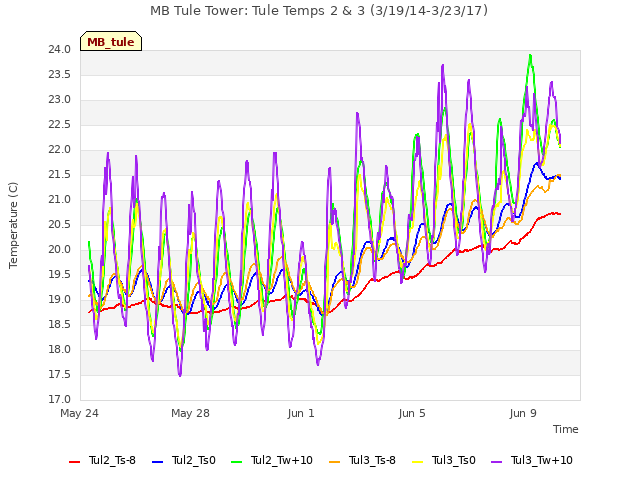

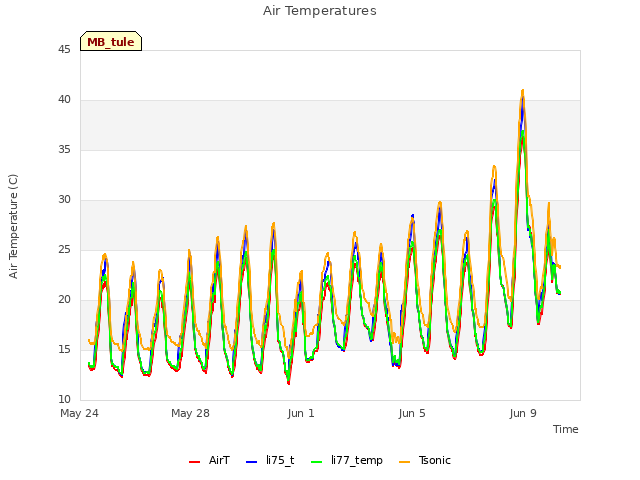

27 MB_tule graphs found
Can't check MBWPEESWGT_mixed

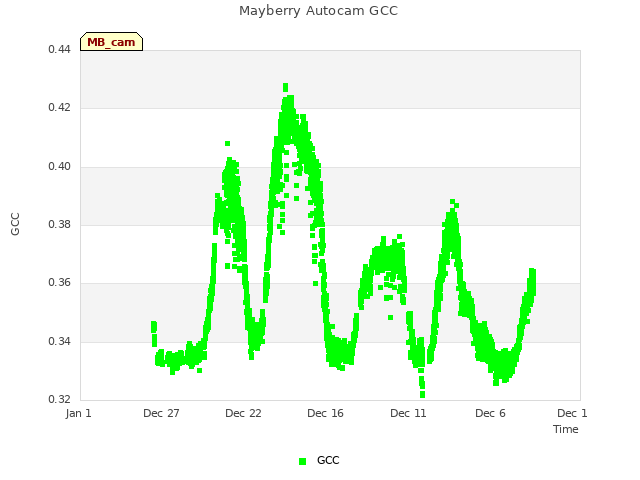

1 MB_cam graphs found
Can't check MBEEWPSWEPGT_cam
Can't check SIMBTWEE_met

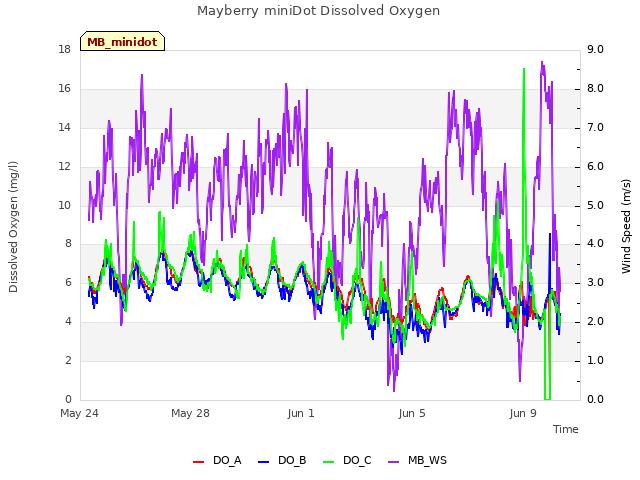

1 MB_minidot graphs found
