East End: 2015-06-09 11:50:00 (DOY 160)
Author: Joe Verfaillie
Others: Patty, Dennis, Miguel
Summary: 7500 and camera had looked up in the evening of last visit, Ameriflux taking down inter-comparison equipment.

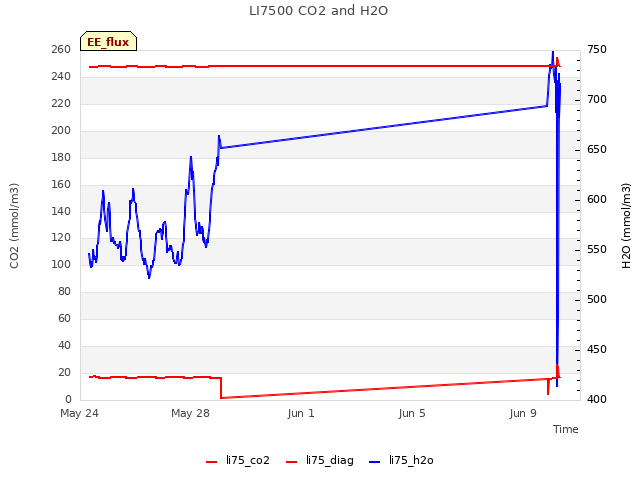

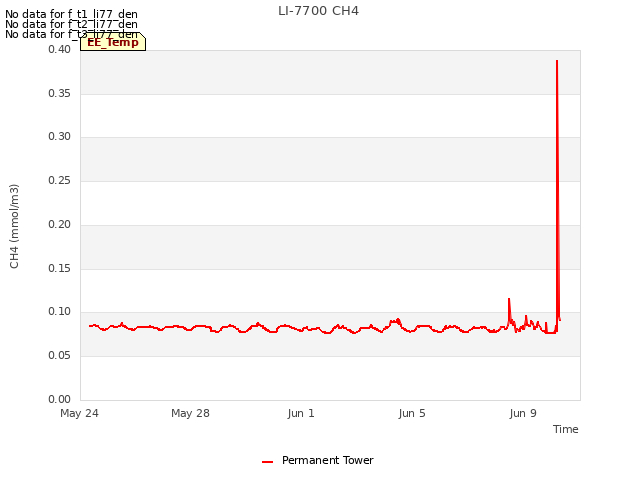

| East End 2015-06-09 Patty, Dennis and Miguel arrived about 11:50am. It was mild and over cast with a strong wind out of the west. Ameriflux was there taking down the inter-comparison equipment. They also gave us back the sonic they borrowed (sn 124215) for the Licor 7550 testing. The 7500 was not reporting data when they arrived but the rest of the eddy system seemed okay. Dennis cycled the power on the 7500 and it was working again. The 7500 read: 15.81mmol/m3 CO2, 638mmol/m3 H2O, 100.57kPa, 28.89C The 7700 read: 1.92ppm CH4, 51.27RSSI – 72 after cleaning The camera only had images up to the time that the 7500 quit (about 6:30pm on 5/28). Maybe some kind of power drop, but I didn’t see any problem in the other channels at this time. |
0 photos found
11 sets found

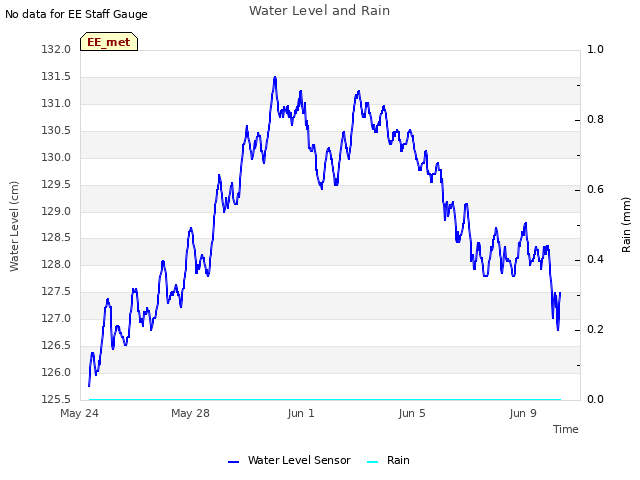

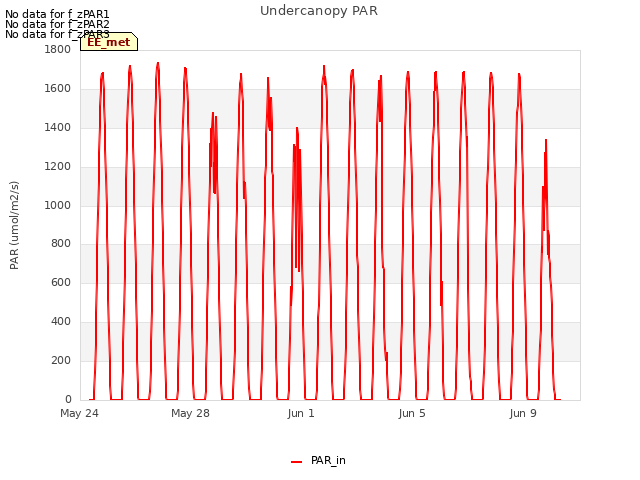

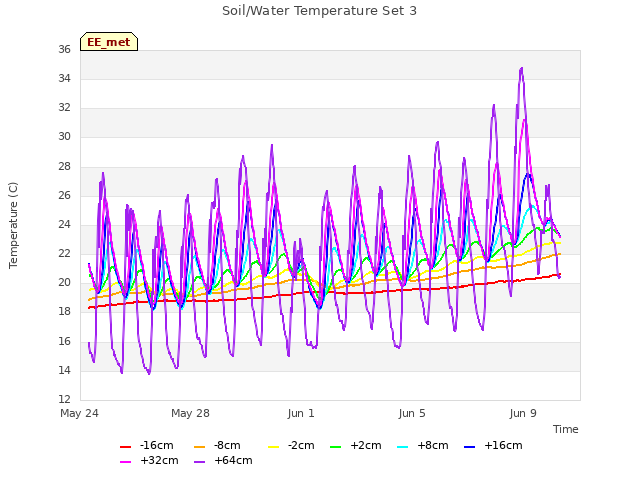

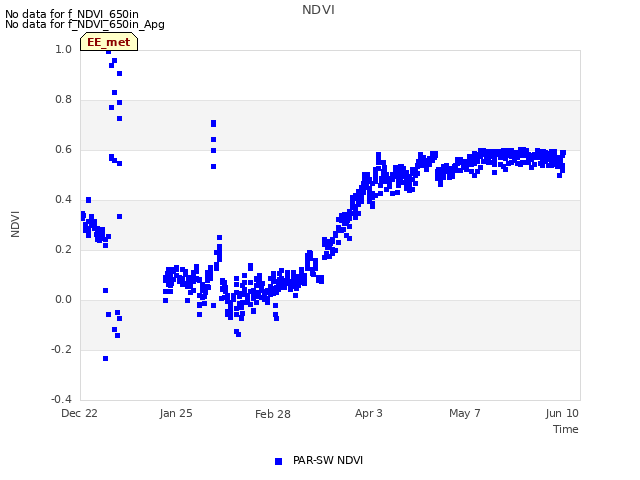

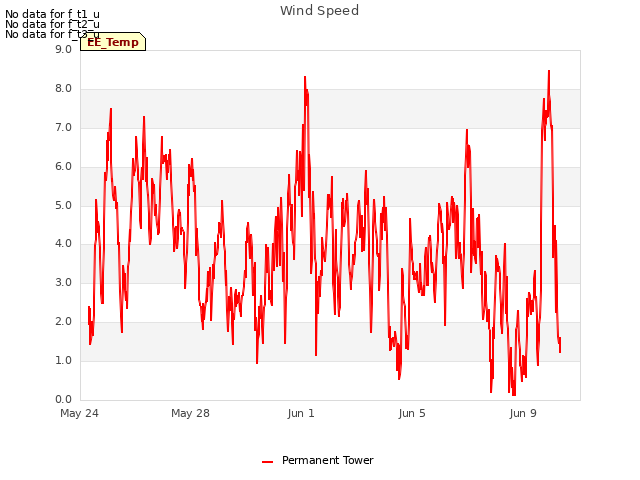

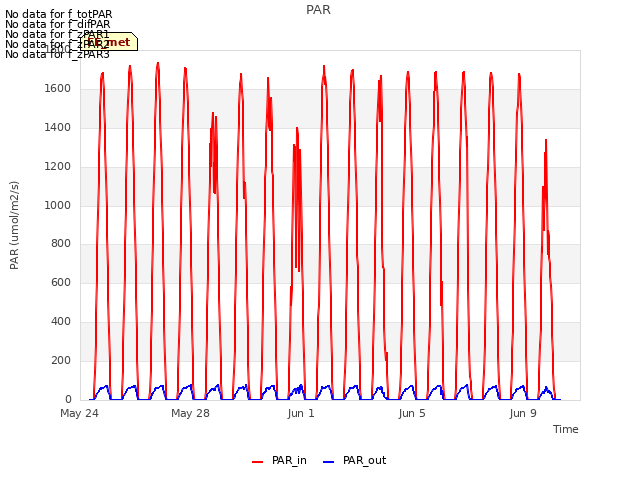

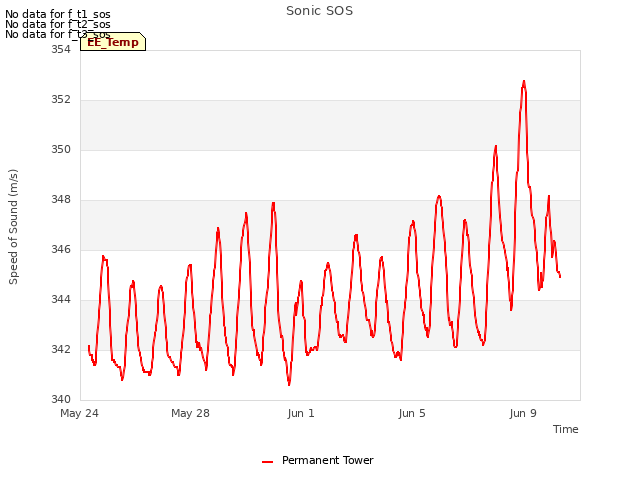

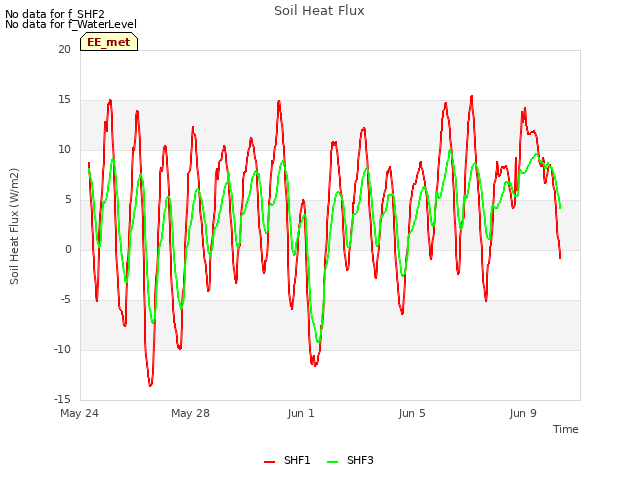

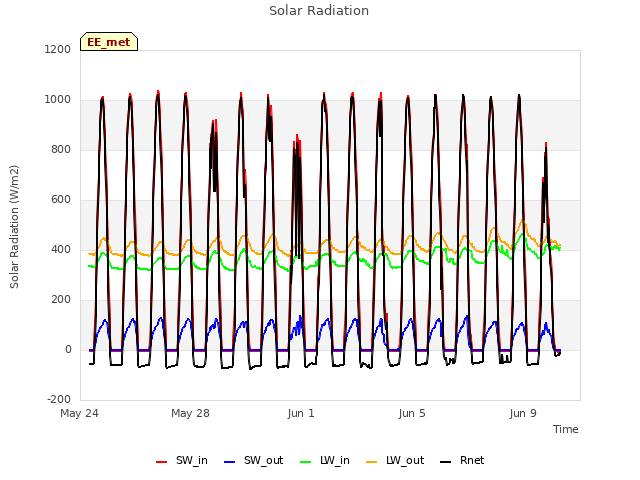

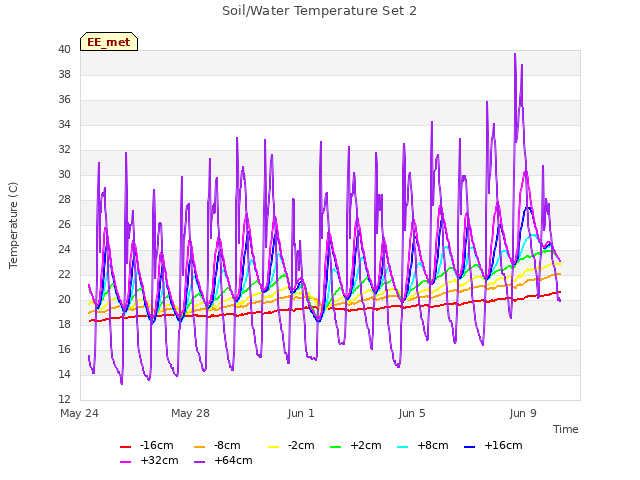

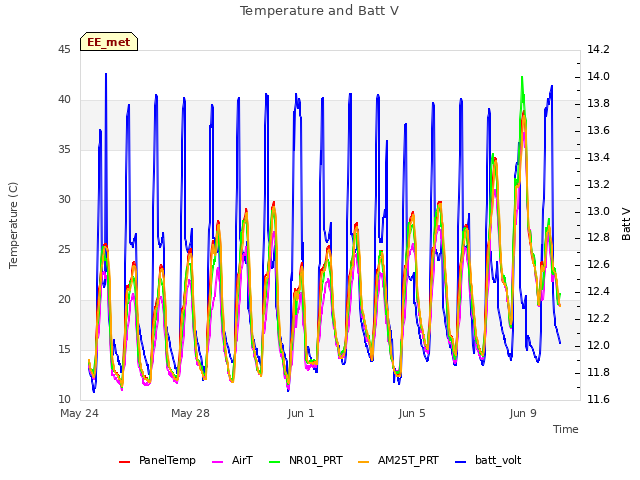

14 EE_met graphs found
Can't check EE_mixed

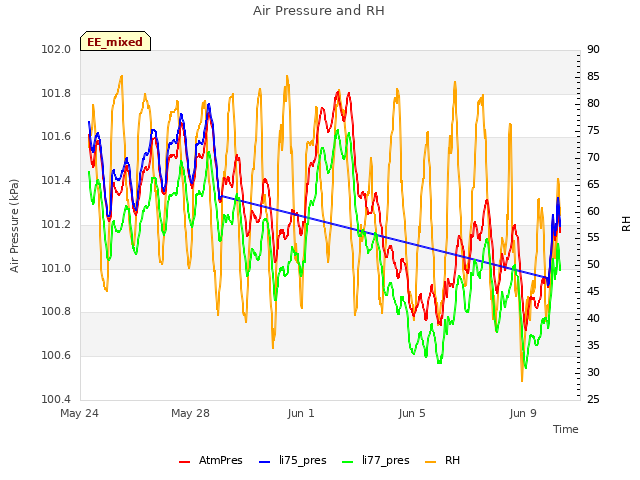

1 EE_mixed graphs found

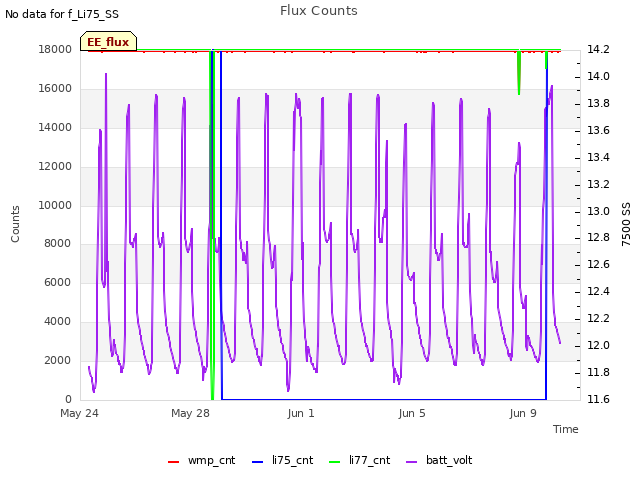

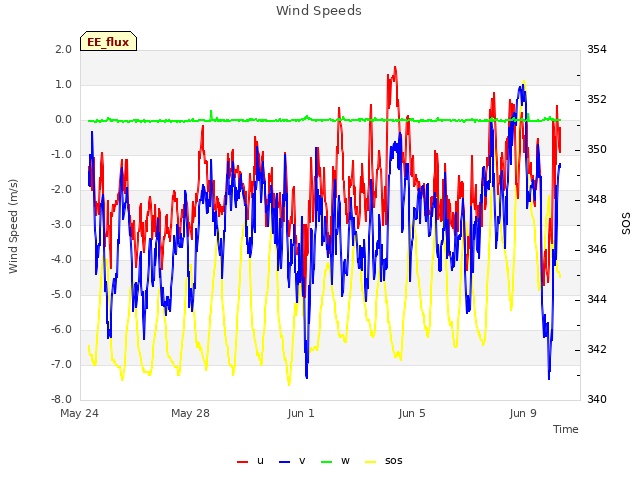

8 EE_flux graphs found
Can't check MBWPEESWGT_mixed
1 EE_cam graphs found
Can't check MBEEWPSWEPGT_cam
Can't check SIMBTWEE_met
Can't check EE_Temp

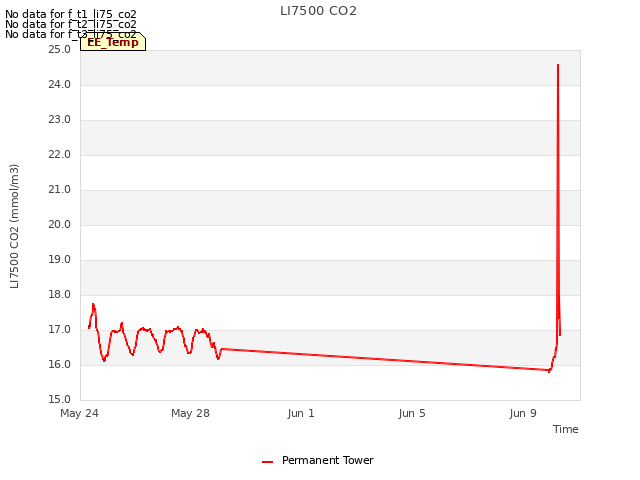

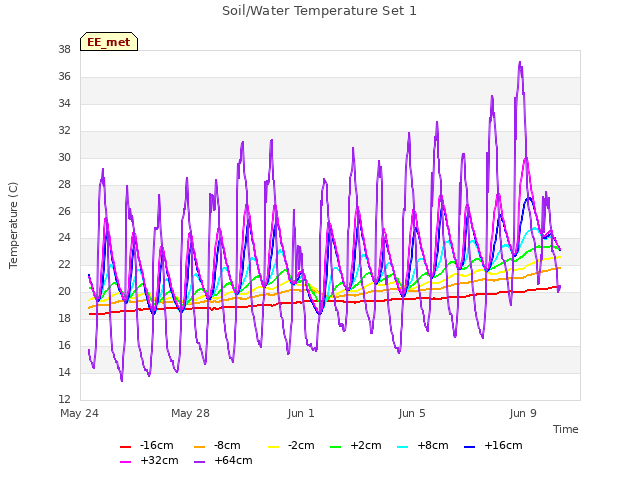

5 EE_Temp graphs found
Can't check EE_minidot

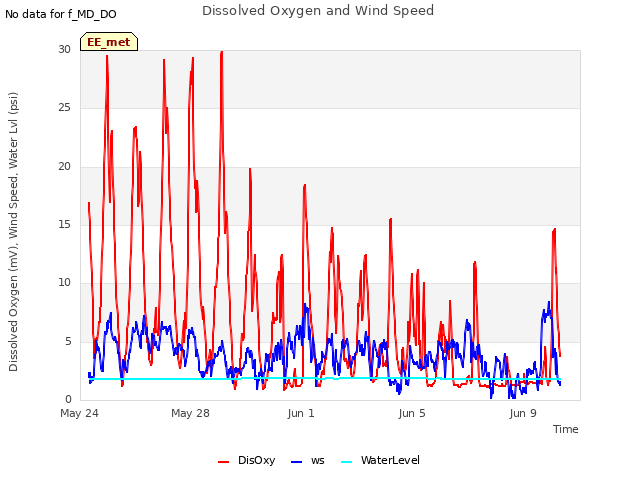

1 EE_minidot graphs found
Can't check MBSWEEWPBCBA

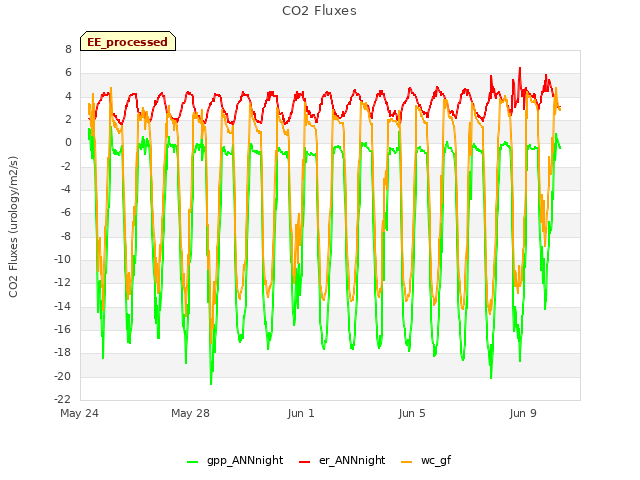

1 EE_processed graphs found
