Twitchell Rice: 2015-02-19 11:06:00 (DOY 50)
Author: Patty Oikawa
Others: Ana Mendez + Housen Chu

Summary: Field drained but still wet. Camera acting funny. Data collection.

We arrived at 11:06am. It was still overcast and the field was drained but still very wet—too wet to walk in. The reservoir was half empty so we refilled it. The camera had only taken 3 days of photos. There were no clear indications of loss of power when we got there—not sure what is going on with that camera. There were water droplets on the 7500 and numbers looked better after cleaning. Housen and Ana cleaned sensors and I downloaded data.

7500
CO2: crazy # umol/mol (480.5 after cleaning)
H2O: crazy # mmol/m3 (561.2 after cleaning)
SS: 2.4% (96.6 after cleaning)
Pressure: 102.54 kPa
Temperature: 12.97ËšC
SOS: 341.71 m s-1
7700
CH4: 2.01ppm (2.06 after cleaning)
RSSI: 39.12% (59 after cleaning)
Reservoir: OK
Met: OK

0 photos found

Graphs display:
6 sets found

12 TW_met graphs found

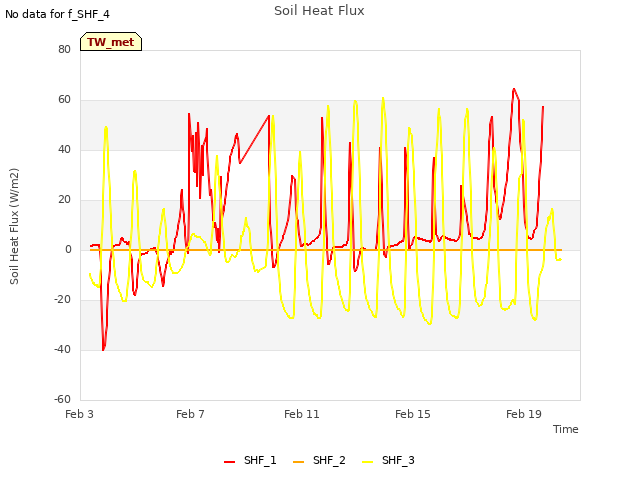

Soil Heat Flux

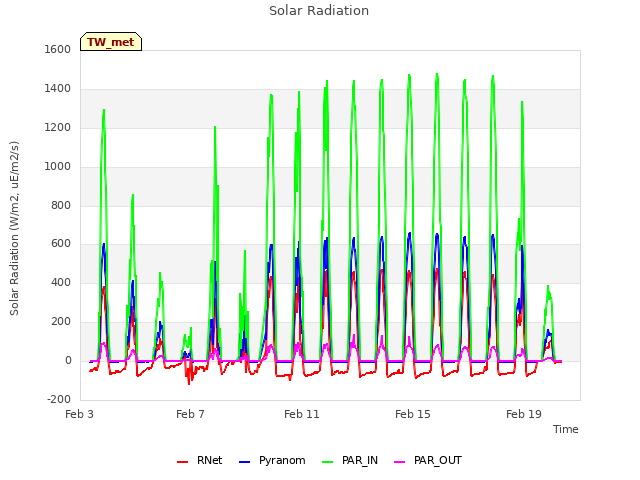

Solar Radiation

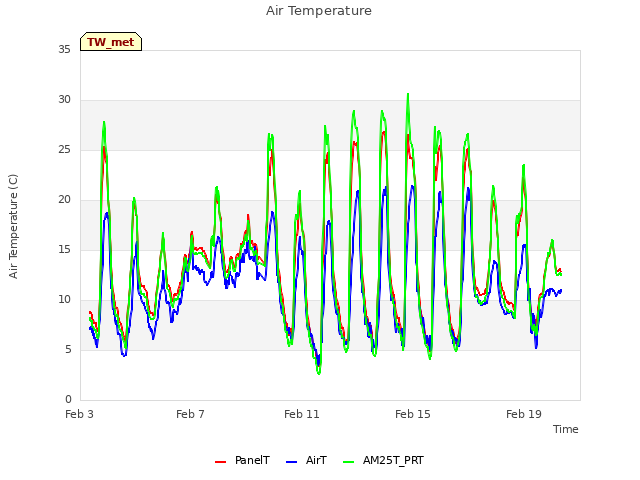

Air Temperature

Soil Temperature Set 1

Soil Temperature Set 2

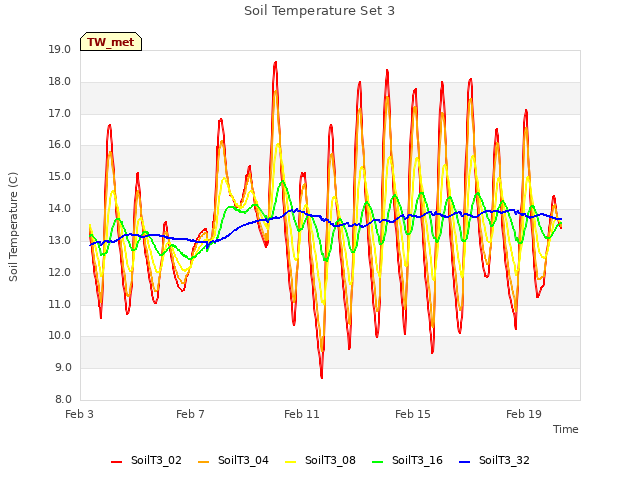

Soil Temperature Set 3

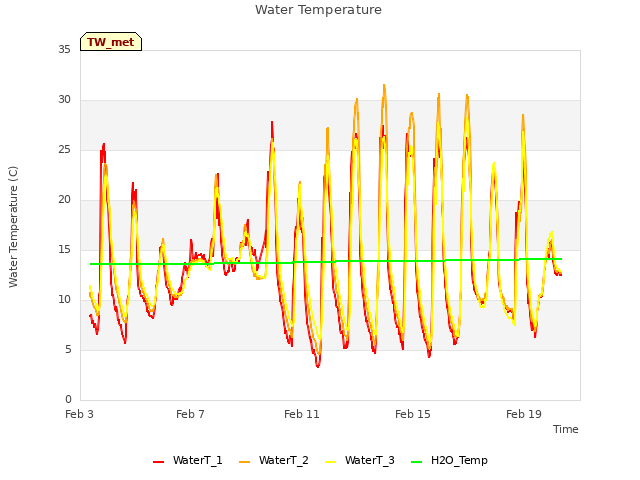

Water Temperature

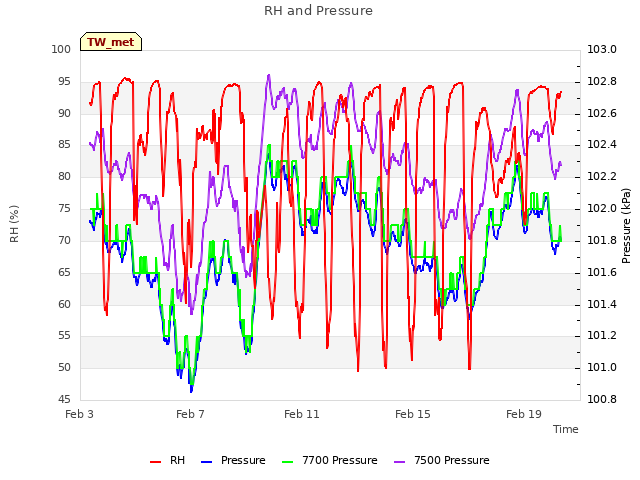

RH and Pressure

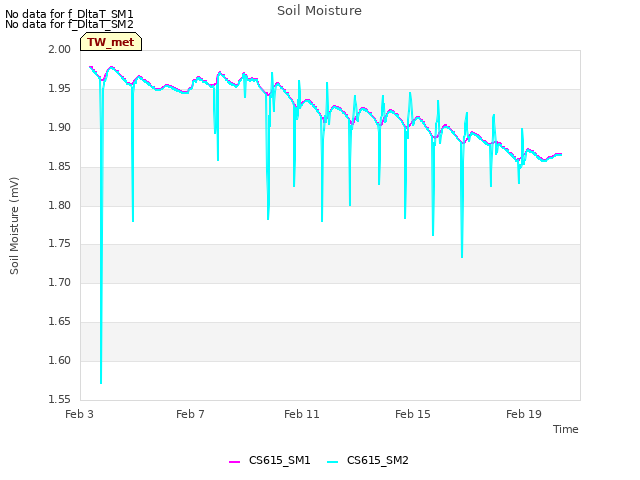

Soil Moisture

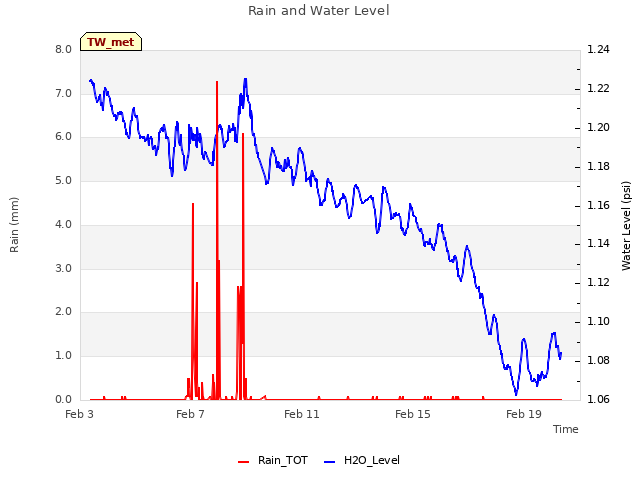

Rain and Water Level

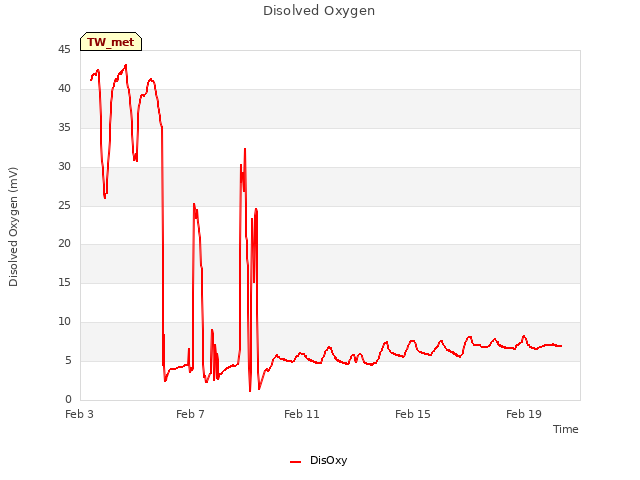

Disolved Oxygen

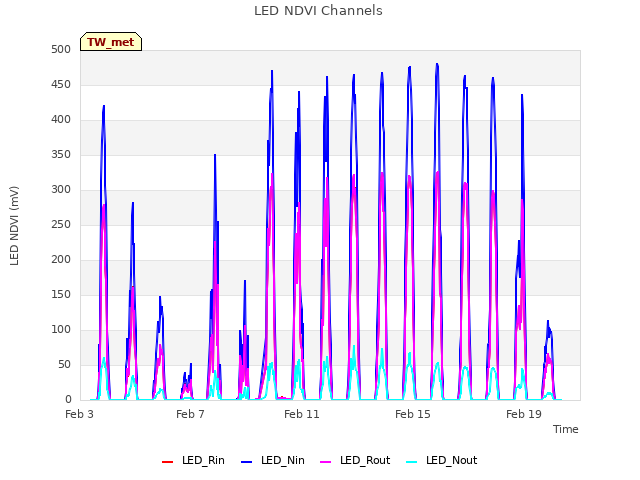

LED NDVI Channels

5 TW_flux graphs found

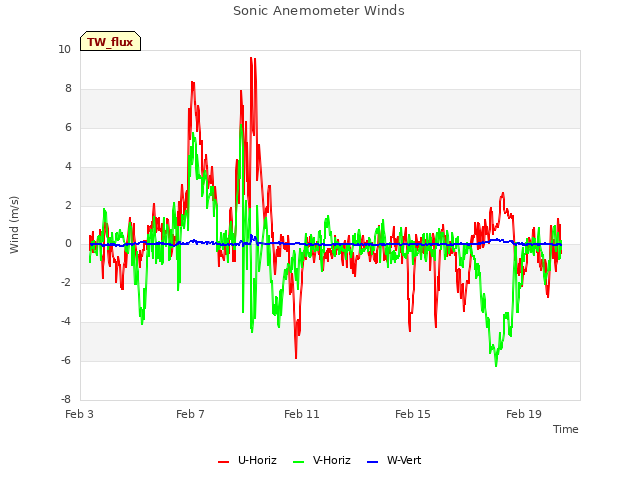

Sonic Anemometer Winds

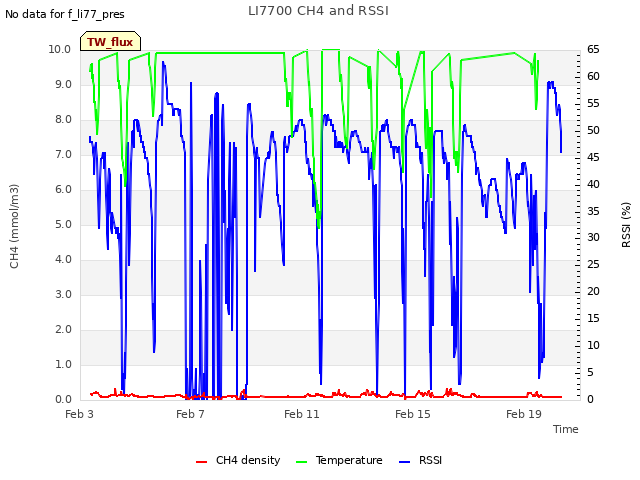

LI7700 CH4 and RSSI

Twitchell CH4

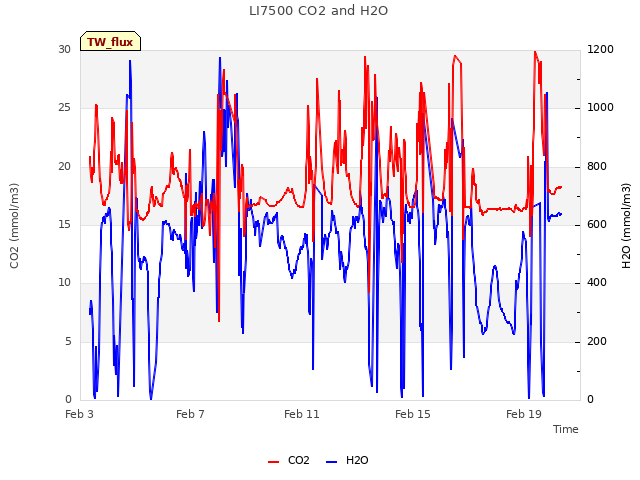

LI7500 CO2 and H2O

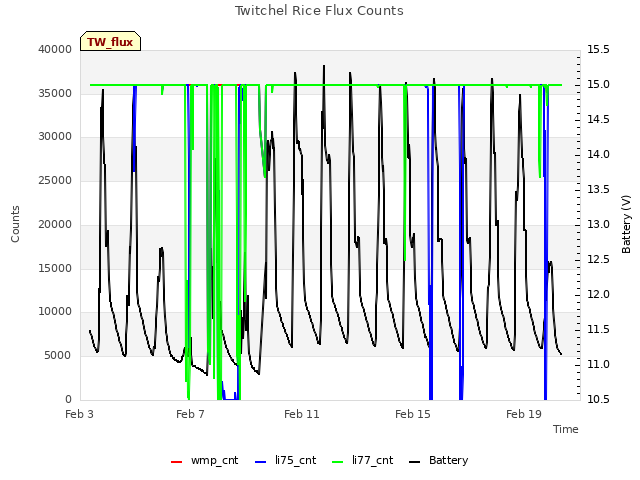

Twitchel Rice Flux Counts

Can't check TWSI_mixed
Can't check SIMBTWEE_met
1 TW_cam graphs found

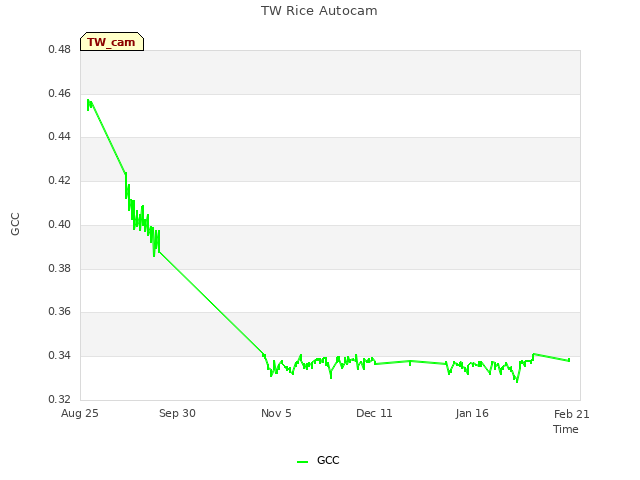

TW Rice Autocam

Can't check TATWBABCSB_cam
