Twitchell Rice: 2010-05-05 09:20:00 (DOY 125)
Author: Joe Verfaillie
Others: Dennis, Jaclyn, Luikang, Chris, Frank
| Twitchell
5/5/2010 Arrived with Dennis and Jaclyn about 9:20am. Cool with good west wind, clear sunny and warming. Rice is beginning to sprout in Field 1. Met Luikang and Chris from Licor as well as Frank and Bryan from USGS. Licor brought a loaner LI7700 for testing. LI7700 head added just south of center at top of tower. Lens washer box and LI7550 interface box added to east tripod leg. Two 12VDC power cords (LI7700 and LI7550) ran to power strips inside main box. Analog out from LI7550 run to CR1000. LI7550 setup to log all LI7700 data to USB flash drive at 10Hz. Five channels sent to CR1000 using Single Ended analog 0-5V signal: Channel 0V 5V CH4 (mmol/m3) 0.05 0.15 CH4 (ppm) 1 5 Pressure (kPa) 90 110 Temperature © 0 50 RSSI (%) 0 100 These channels were added to the end of the fast CR1000 table. The CR1000 program was changed to make these modifications. Data was copied and card swapped. Dennis and Jaclyn calibrated the LGR Twitchell: cal gas 3.276 ppm CH4, 433ppm CO2, mirror 13.9 us, 145 Torr, 37C CH4 pre-cal: 3.342 CO2 pre-cal: 441 CH4 post-cal: 3.273 CO2 post-cal: 433 Left a little before noon time. |
7 photos found
Setting up Li-7700 with Licor folks at Twitchell Rice
Jaclyn, Joe, Liukang and Dennis at Twitchell Rice
Inside the Li-7550 box at Twitchell Rice
Wash reservoir and 7500 data logger box
Top of eddy tower with 7700 and LGR inlet
LI-7700 auto-washer reservoir box
Luikang at the rice tower
6 sets found

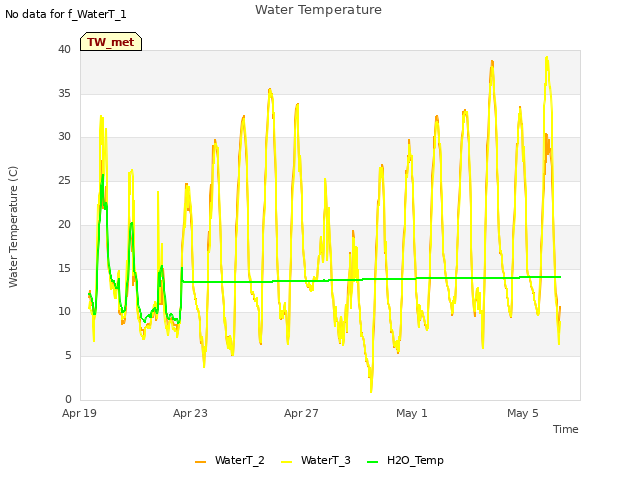

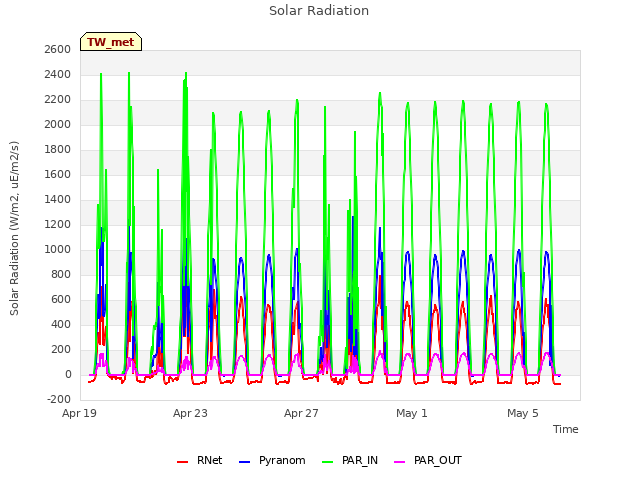

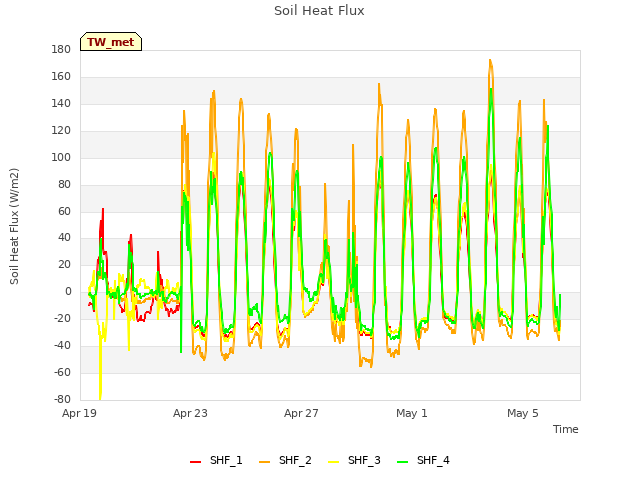

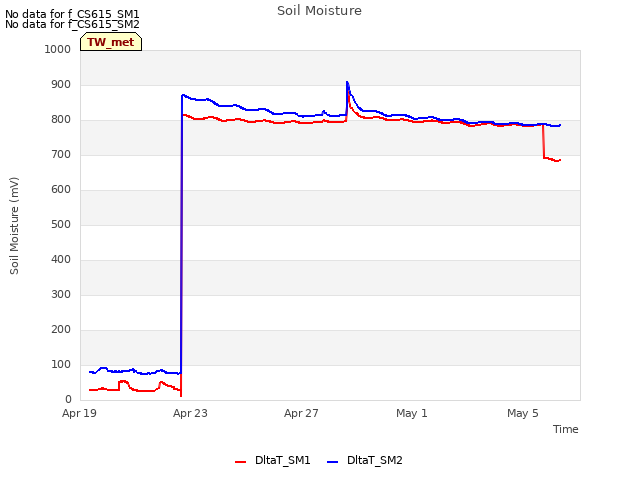

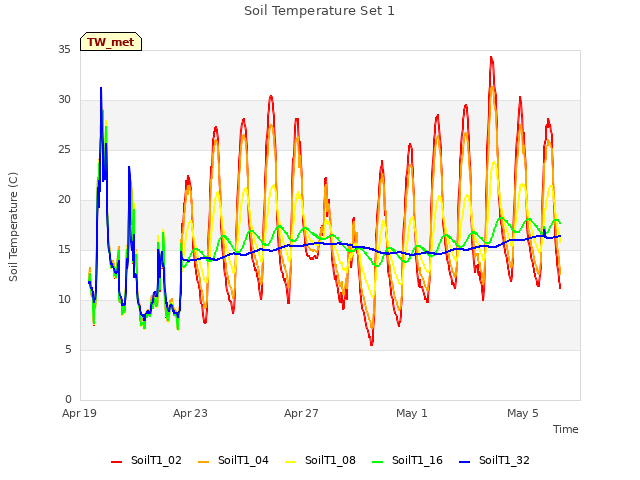

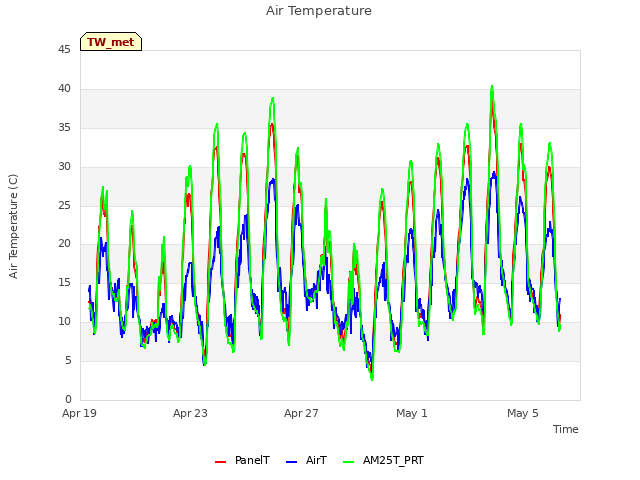

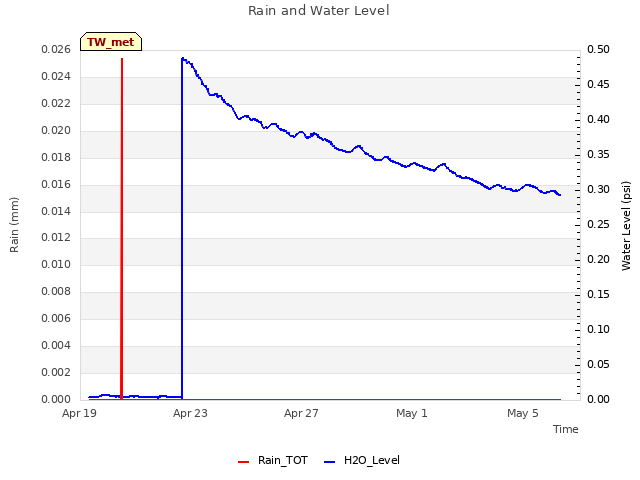

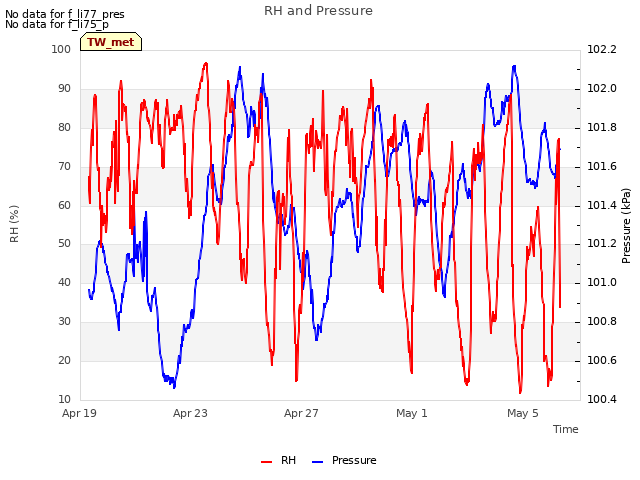

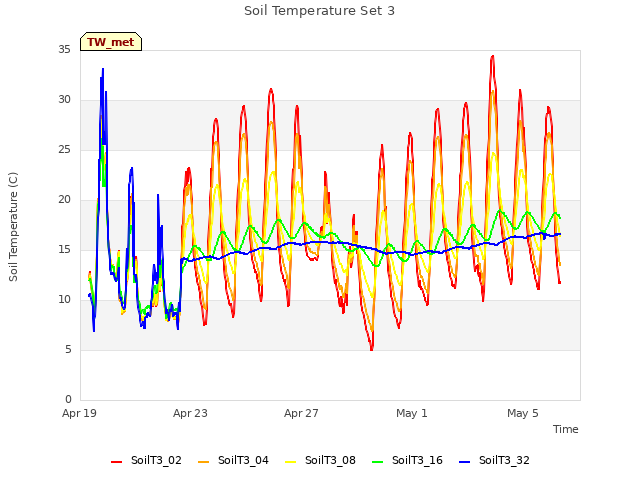

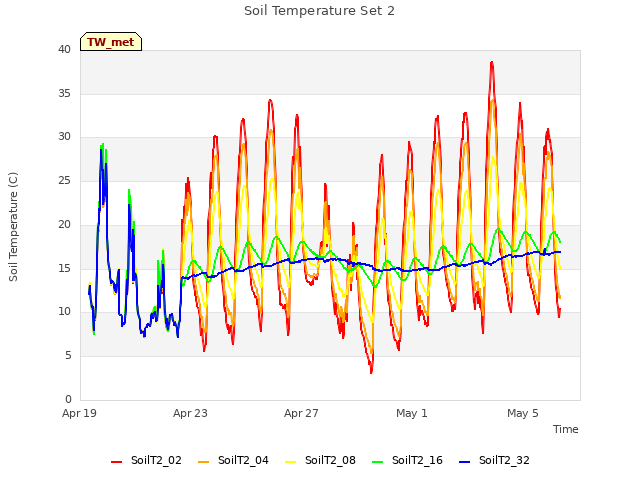

12 TW_met graphs found
No data found for TW_flux.
Can't check TWSI_mixed
Can't check SIMBTWEE_met

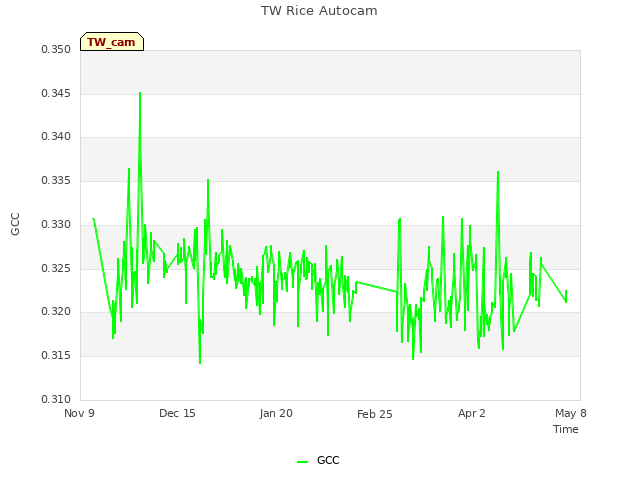

1 TW_cam graphs found
