Twitchell Alfalfa: 2014-12-10 11:15:00 (DOY 344)
Author: Cove Sturtevant
Others: Sara
Summary: Sheep in field with flimsy barrier laid over soil CO2 setup. Rad boom rotated 180 degrees and not level. Data download.
| Twitchell Alfalfa 2014-12-10 We arrived at about 11:15 PST. It was overcast and cold. There were sheep in the field. There was a poor barrier constructed out of some mesh material covering the soil CO2 setup. The radiation boom was also rotated inside this barrier and not level. See photo. Nothing seemed broken but some of the probes were out of place. We left the setup as is since the sheep were still in the field. Downloaded data. 7500 readings: CO2 = 635 ppm (460 after cleaning) H2O = 53 mmol m-3 (330 after cleaning) signal strength = 60% (81% after cleaning) p = 101.3 kPa t = 12 C sos = 343.2 m s-1 |
1 photos found
view of field site
7 sets found
Can't check TA_met

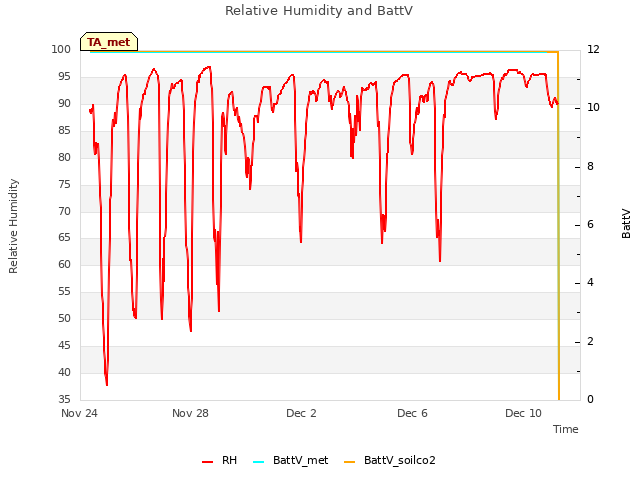

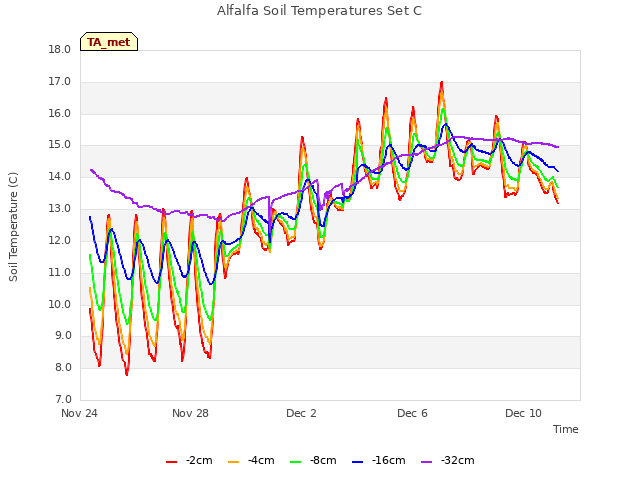

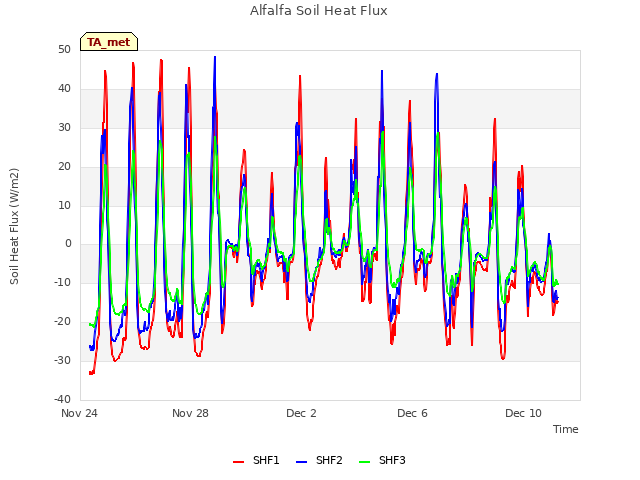

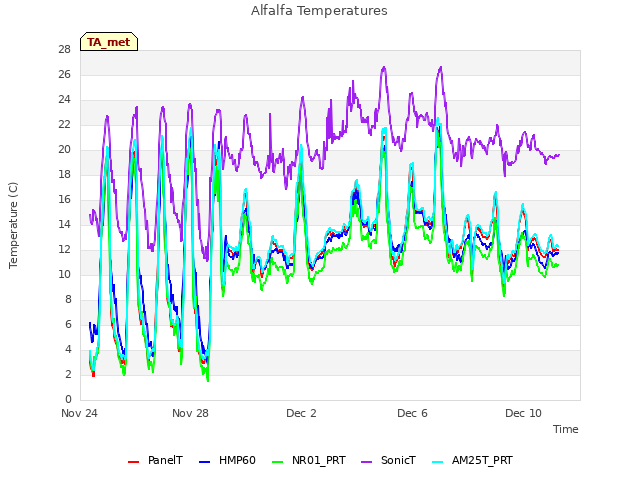

11 TA_met graphs found
Can't check TA_rad

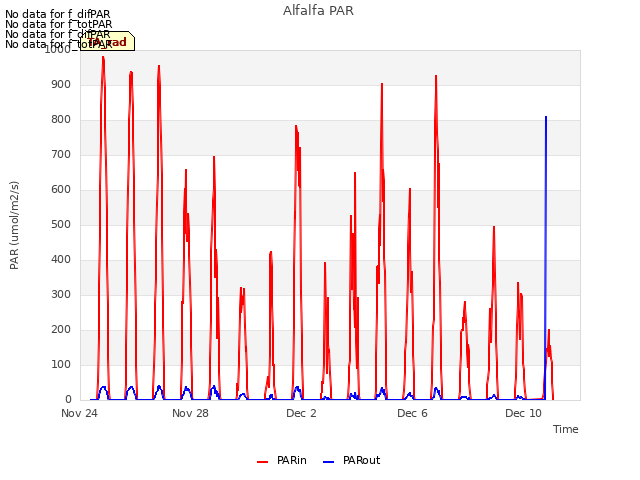

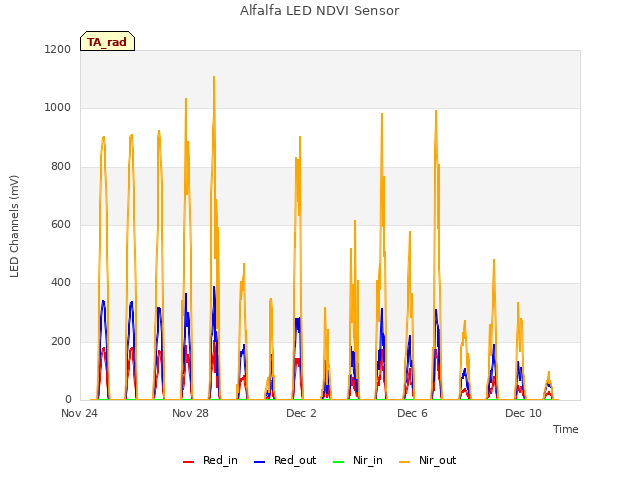

3 TA_rad graphs found
Can't check TA_flux

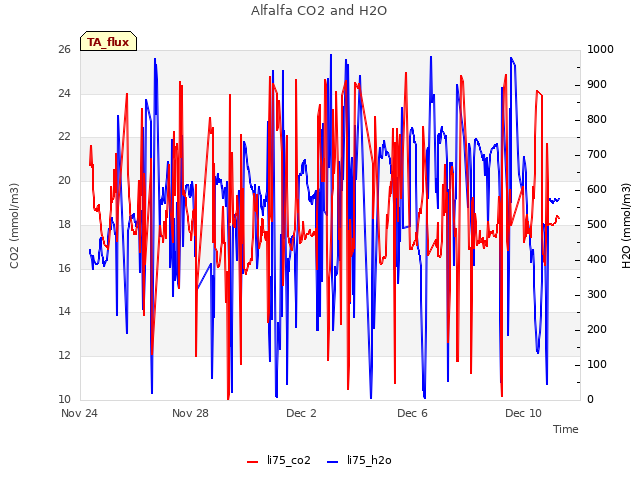

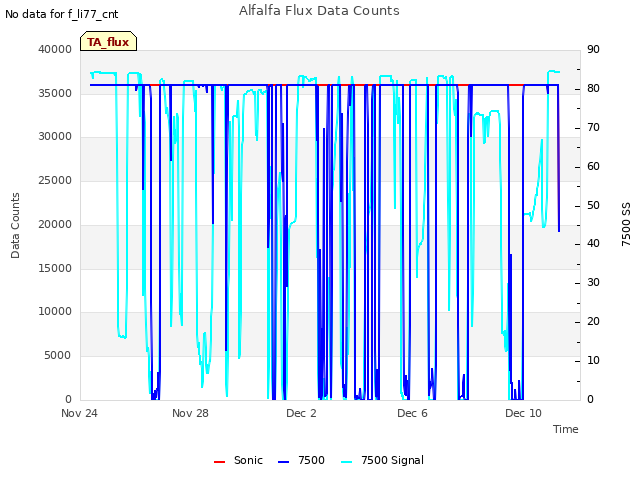

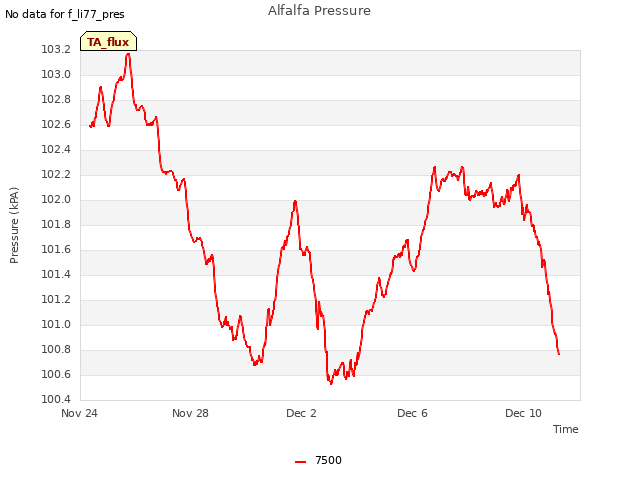

5 TA_flux graphs found
Can't check TA_soilco2

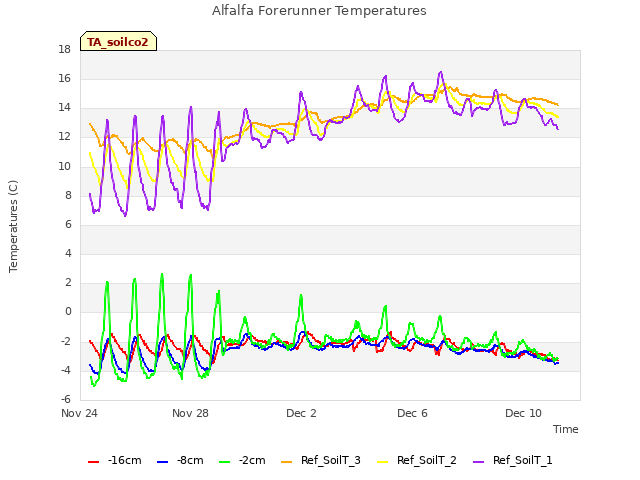

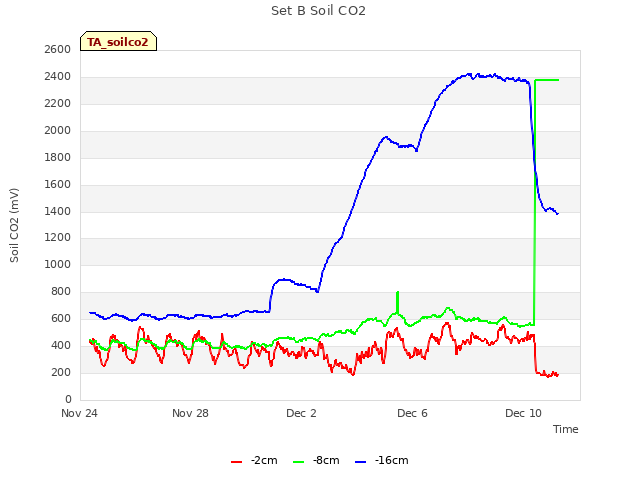

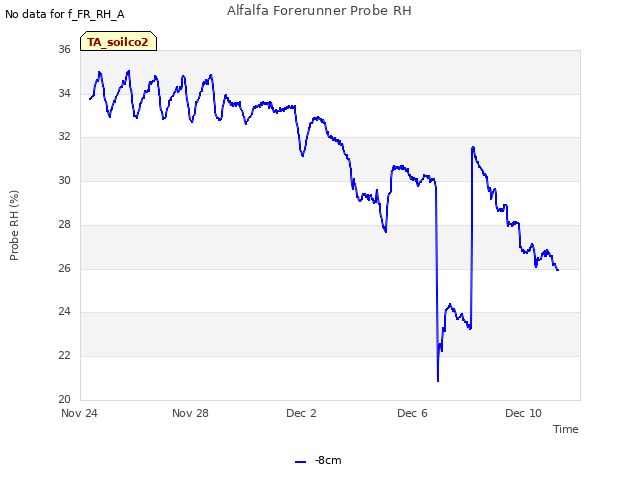

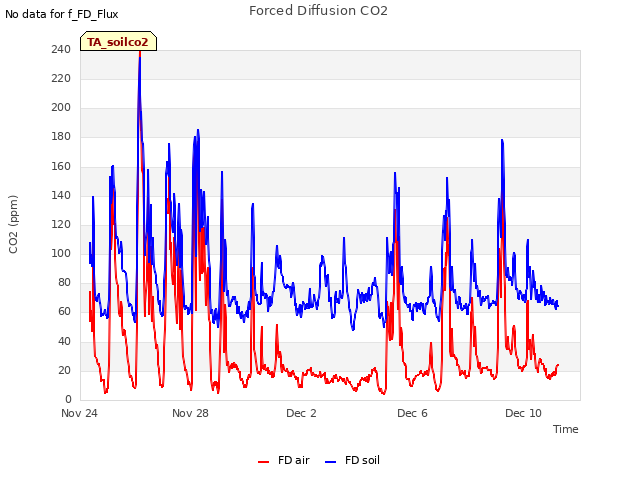

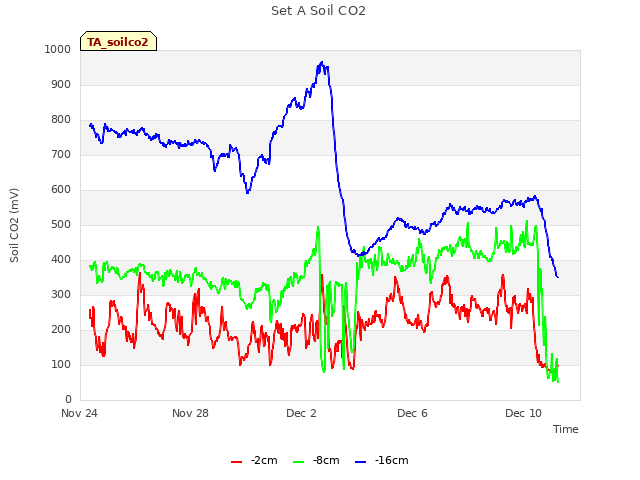

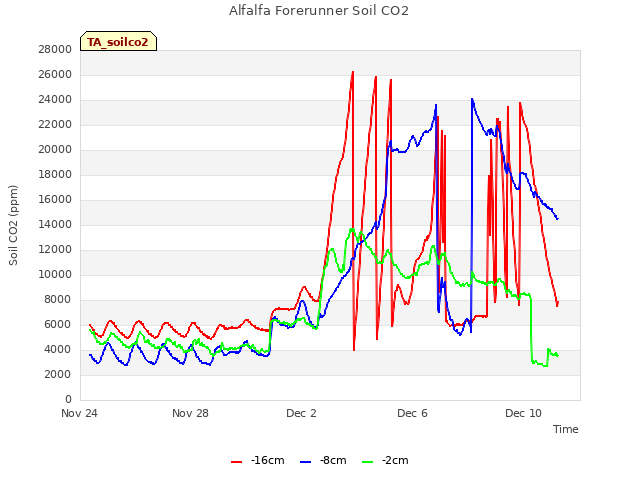

7 TA_soilco2 graphs found
No data found for TA_arable.
1 TA_cam graphs found
