Sherman Island: 2014-11-25 10:00:00 (DOY 329)
Author: Patty Oikawa
Others: Paul Oikawa

Summary: Site looks brown and trampled. Standard data collection, spectral, moisture point, veg ht. Ants in the box.

Paul (my brother) and I arrived at about 10:00am. There were no clouds but a bit hazy on the horizon. The site looks brown and trampled. I collected data while Paul took photos. I saved the met files to the field laptop under Sherman folder. I did veg height and spectral and moisture point. There are lots of ants in the box—bring ant bait next time!

Readings:
LGR
CH4: 2.3ppm
Torr: 135.8

7500
CO2: 19.24 mmol m-3
H20: 561 mmol m-3
P: 103.55 kPa
SOS: 340.87 m s-1
T: 17.21C

Veg Height (cm): Tape measure from ground to top of plant
60, 40, 50, 50, 15, 60, 70, 80, 100, 80, 83, 42, 70, 40, 77, 70, 42, 46, 80, 79, avg = 61.7, stdev = 20.63

0 photos found

Graphs display:
7 sets found

No data found for SI_mp.
11 SI_met graphs found

Explore the graph:Solar Radiation in a new window

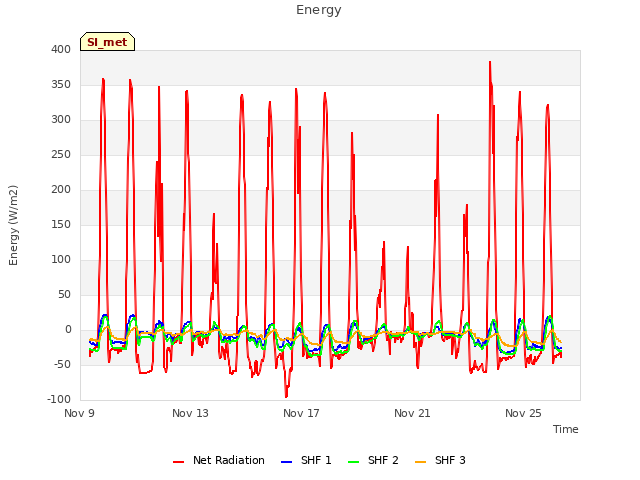

Explore the graph:Energy in a new window

Explore the graph:Soil Temperatures Set 1 in a new window

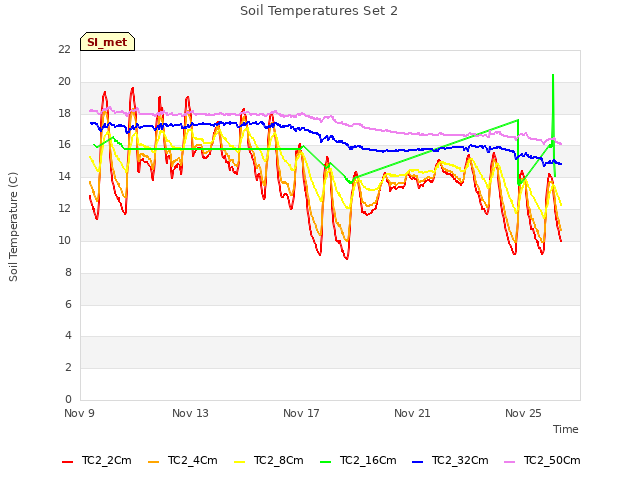

Explore the graph:Soil Temperatures Set 2 in a new window

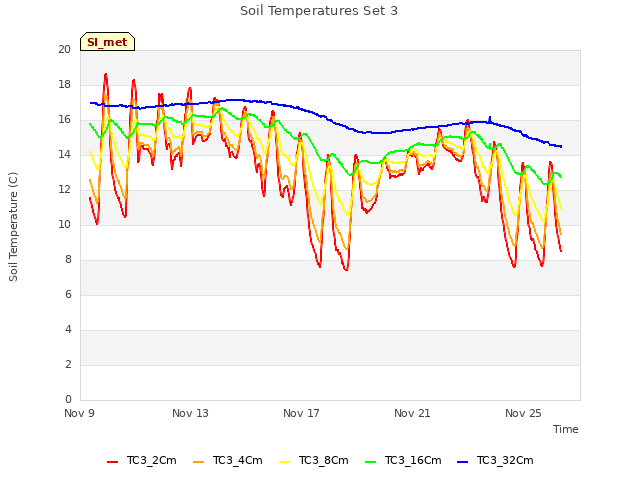

Explore the graph:Soil Temperatures Set 3 in a new window

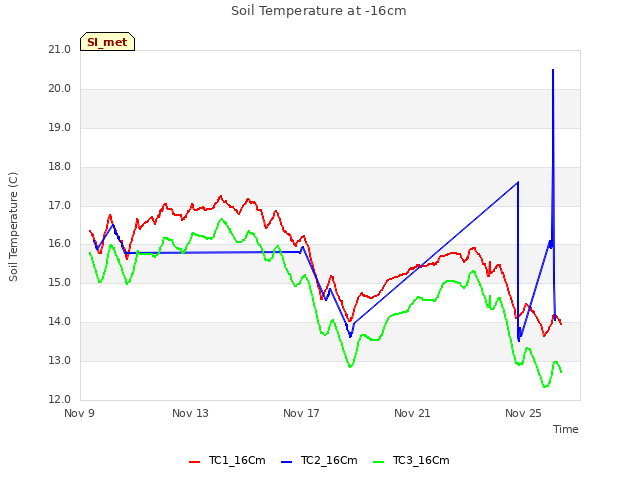

Explore the graph:Soil Temperature at -16cm in a new window

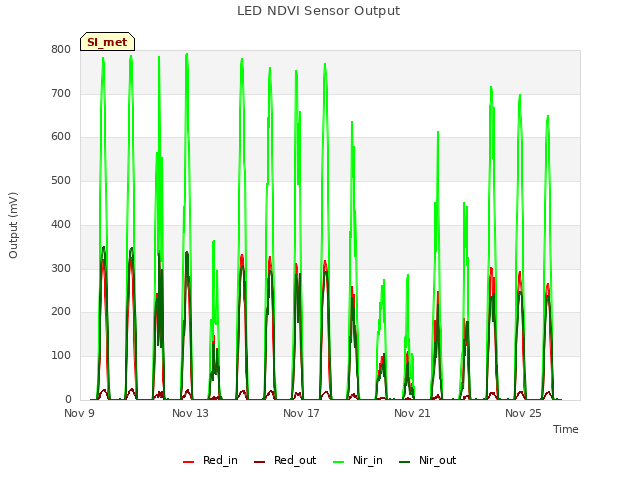

Explore the graph:LED NDVI Sensor Output in a new window

Explore the graph:Solar Radiation from CNR1 in a new window

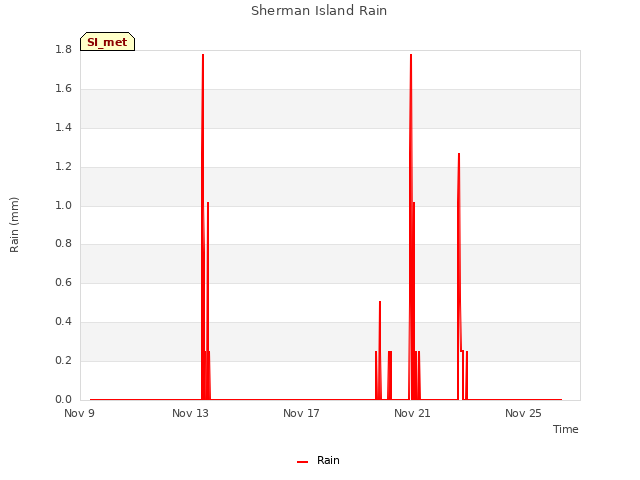

Explore the graph:Sherman Island Rain in a new window

Explore the graph:Sherman Well Level in a new window

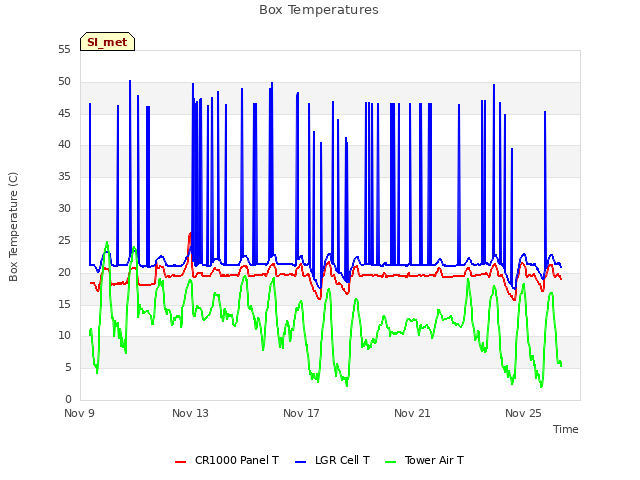

Explore the graph:Box Temperatures in a new window

Can't check SI_mixed
2 SI_mixed graphs found

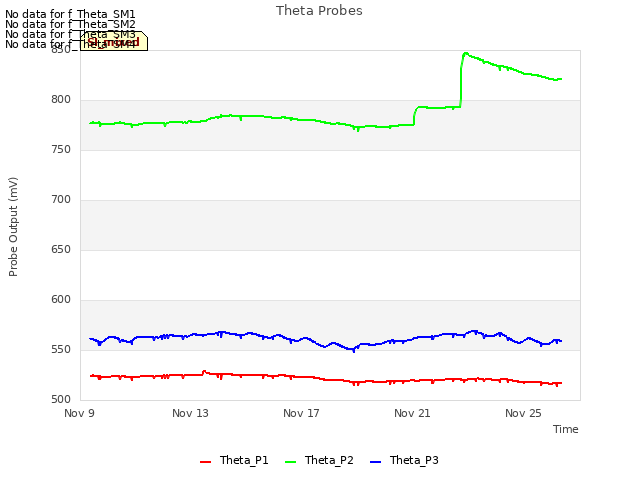

Explore the graph:Theta Probes in a new window

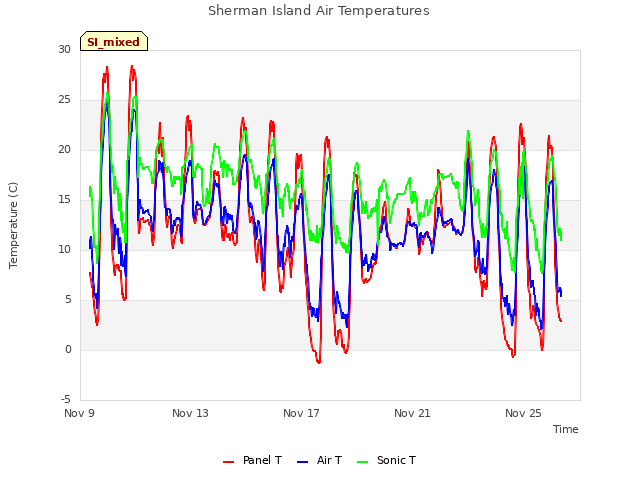

Explore the graph:Sherman Island Air Temperatures in a new window

4 SI_flx graphs found

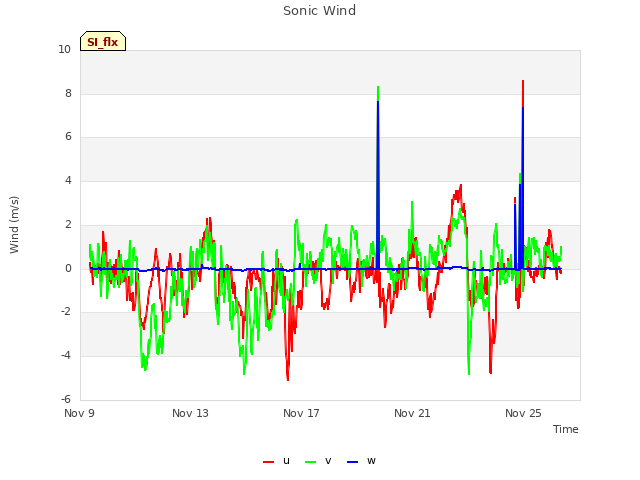

Explore the graph:Sonic Wind in a new window

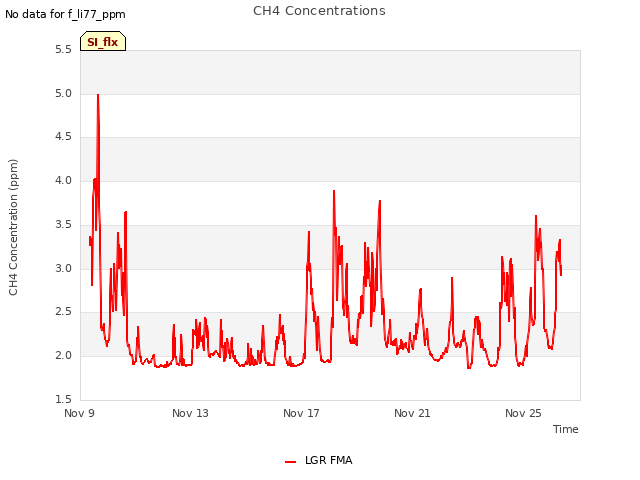

Explore the graph:CH4 Concentrations in a new window

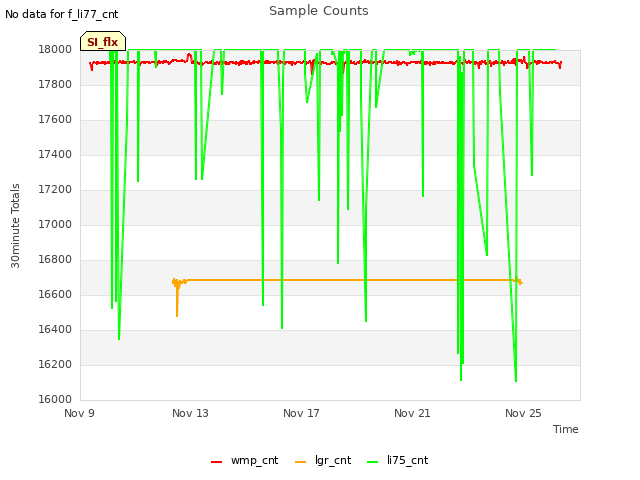

Explore the graph:Sample Counts in a new window

Explore the graph:LI7500 CO2 and H2O in a new window
