Sherman Island: 2014-09-18 09:00:00 (DOY 261)
Author: Joe Verfaillie
Others: Patty

Summary: Standard fieldwork and data collection, computer had crashed again.

Sherman
2014-09-18

I arrived about 9:00am with Patty. It was warm, humid and still with scattered clouds. The Bay Area was getting some light rain overnight and this morning. Here it looked like there might have been some light rain, but the ground and road surface was largely dry with only the low spots a little damp. The fields may have been irrigated though. There were puddles in the field to the east and water in the low spot under the bridge. There is the heaviest growth of lambs quarters that I have seen in the field.

I took care of the tower and downloaded data.
The 7500 read: 16.8mmol/m3 CO2, 832mmol/m3 H2O, 101.2kPa, 27.5C, 248diag
The LGR read: 9:25, 23.26C, 138.6Torr, 14.7C, 10Hz, 2.039ppm – pressure adjusted to 144.4Torr

The computer had crashed again. It may be time to deal with this.

Patty did veg height, well depth and moisture point.

Veg Height (cm): Tape measure from ground to top of plant
54, 50, 30, 64, 30, 57, 70, 80, 60, 70, 70, 80, 60, 60, 60, 25, 50, 40, 50, 60, avg = 56, stdev = 15.5

0 photos found

Graphs display:
7 sets found

No data found for SI_mp.
11 SI_met graphs found

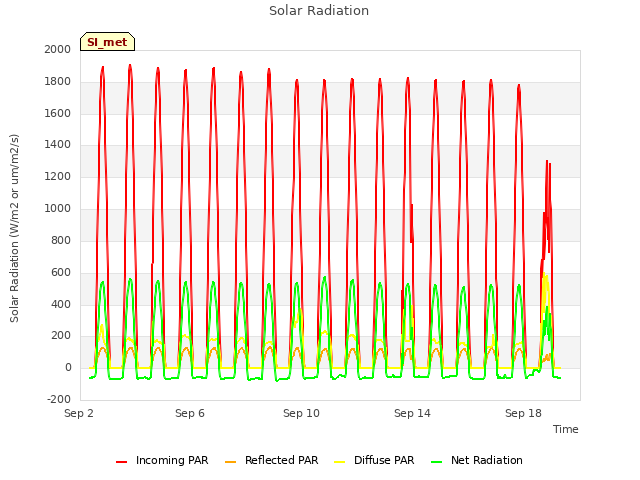

Explore the graph:Solar Radiation in a new window

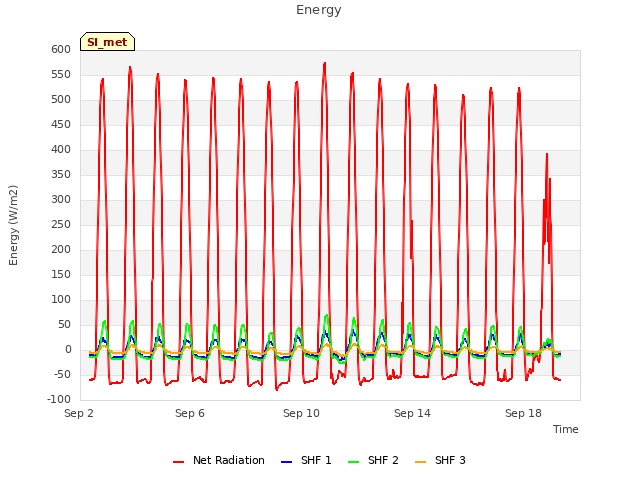

Explore the graph:Energy in a new window

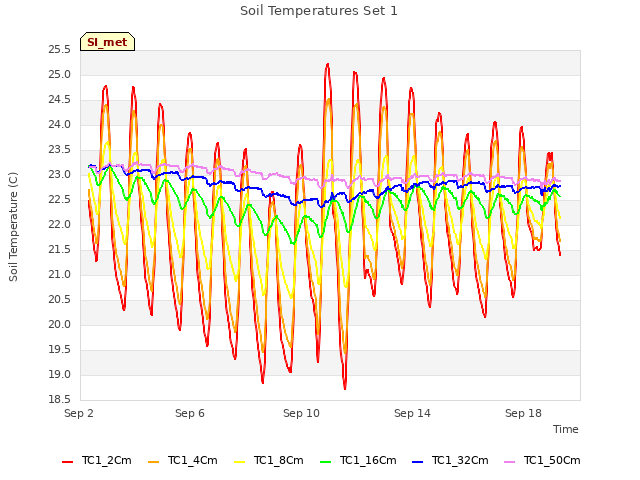

Explore the graph:Soil Temperatures Set 1 in a new window

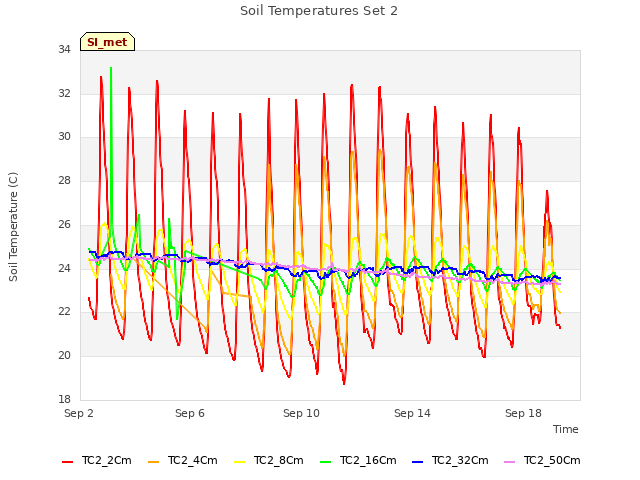

Explore the graph:Soil Temperatures Set 2 in a new window

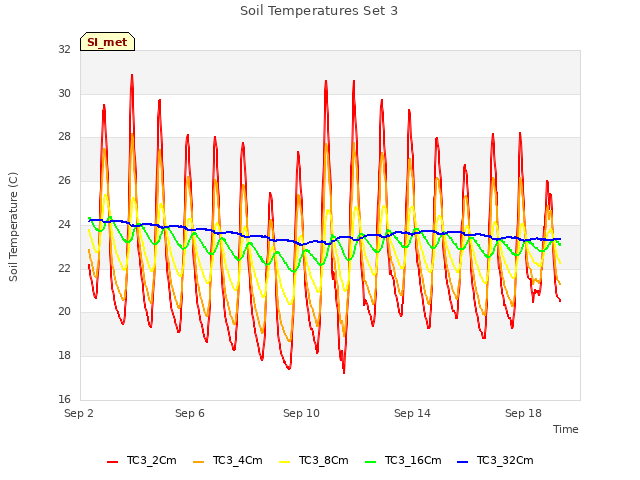

Explore the graph:Soil Temperatures Set 3 in a new window

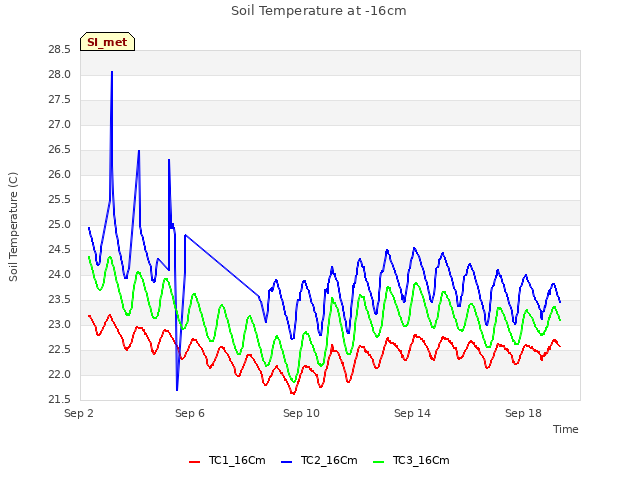

Explore the graph:Soil Temperature at -16cm in a new window

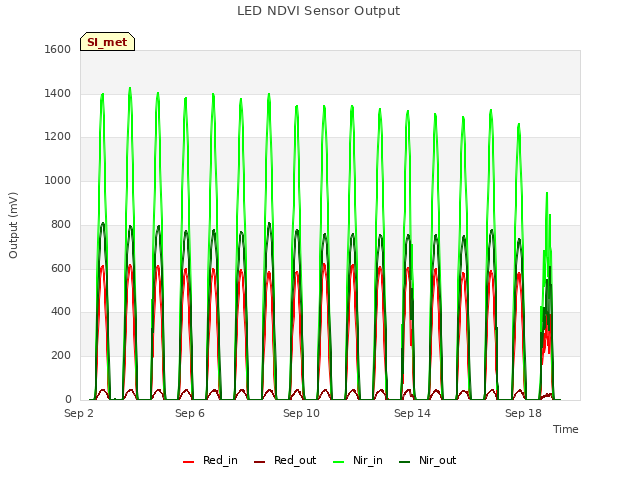

Explore the graph:LED NDVI Sensor Output in a new window

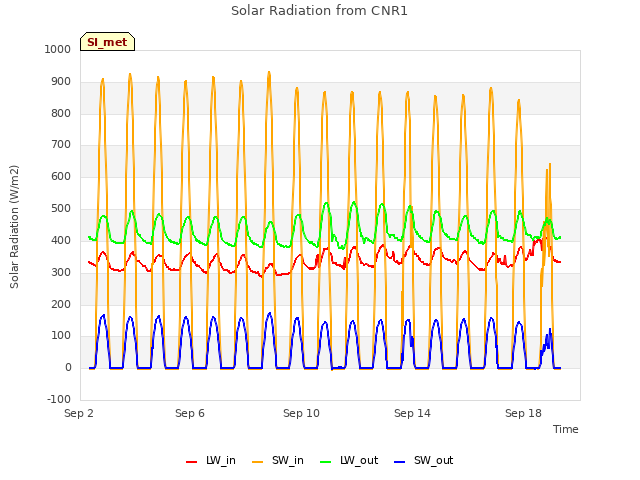

Explore the graph:Solar Radiation from CNR1 in a new window

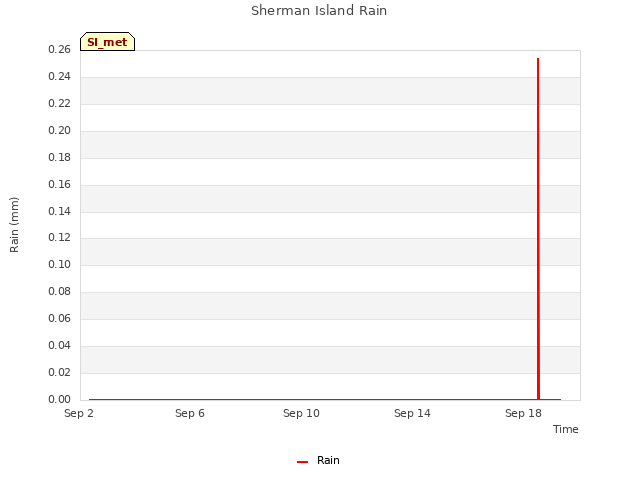

Explore the graph:Sherman Island Rain in a new window

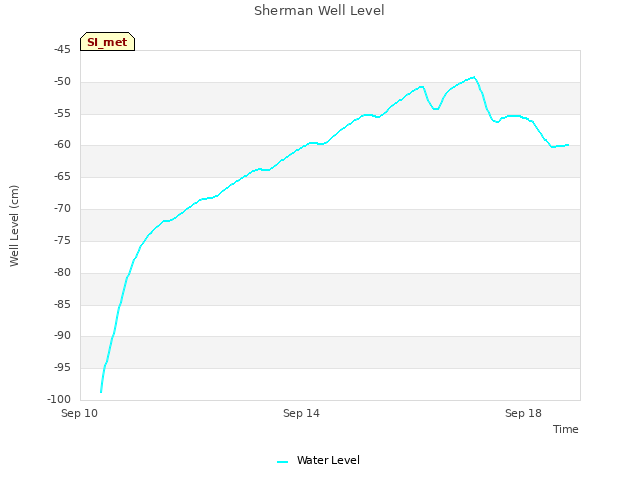

Explore the graph:Sherman Well Level in a new window

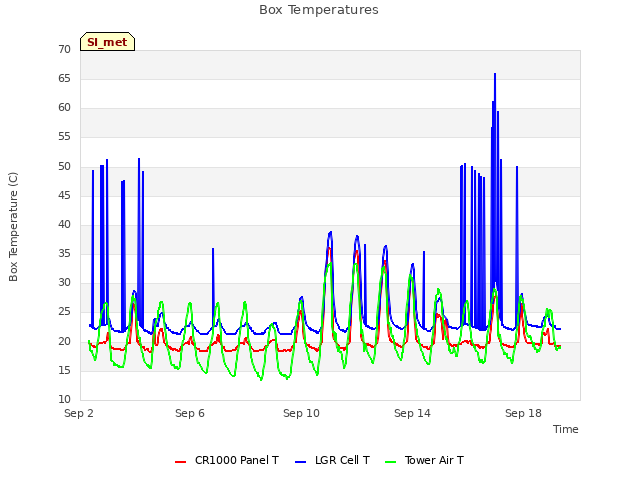

Explore the graph:Box Temperatures in a new window

Can't check SI_mixed
2 SI_mixed graphs found

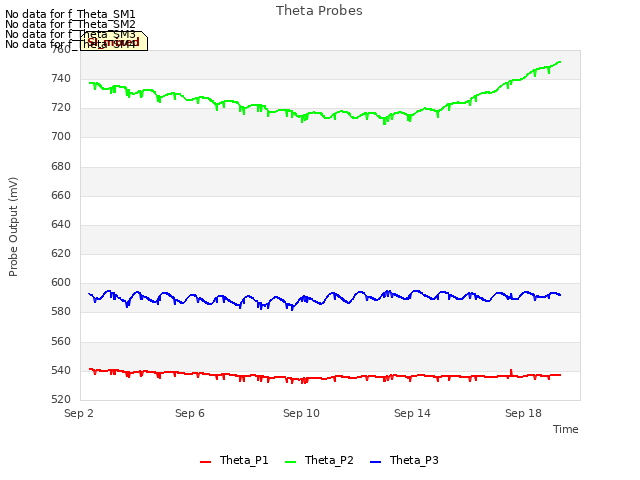

Explore the graph:Theta Probes in a new window

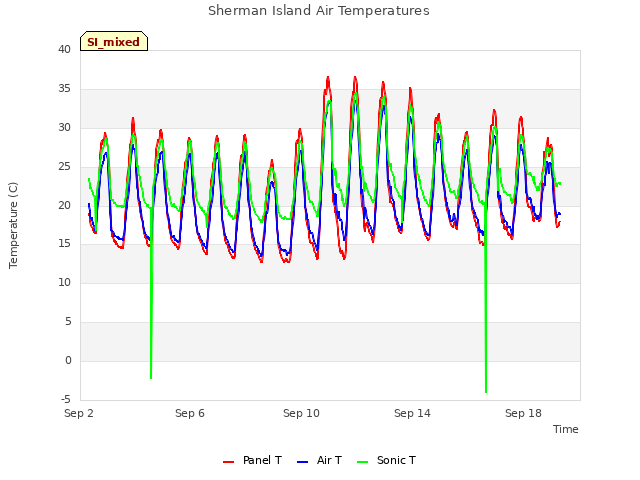

Explore the graph:Sherman Island Air Temperatures in a new window

4 SI_flx graphs found

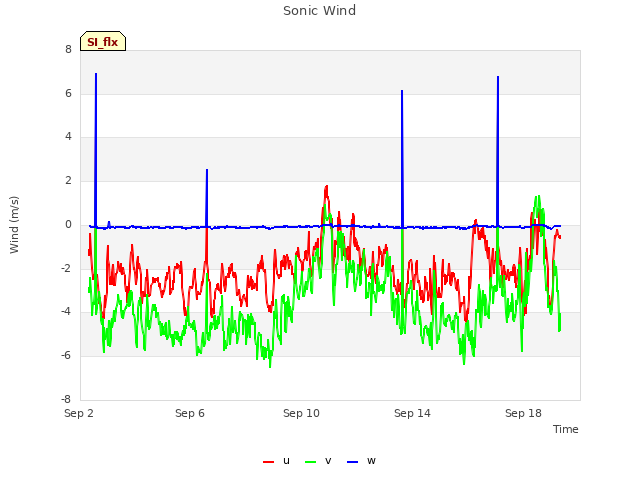

Explore the graph:Sonic Wind in a new window

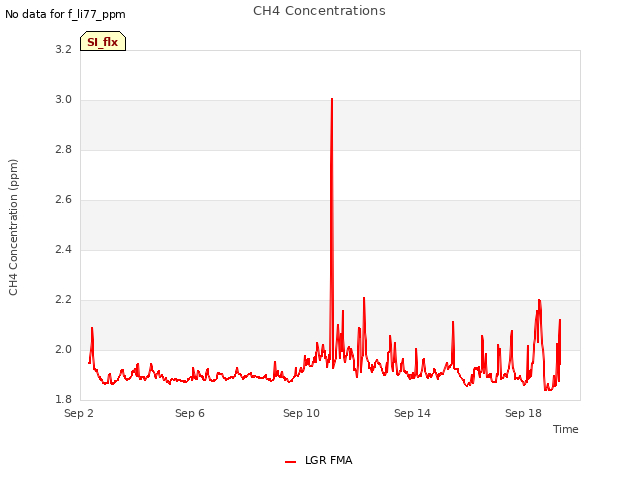

Explore the graph:CH4 Concentrations in a new window

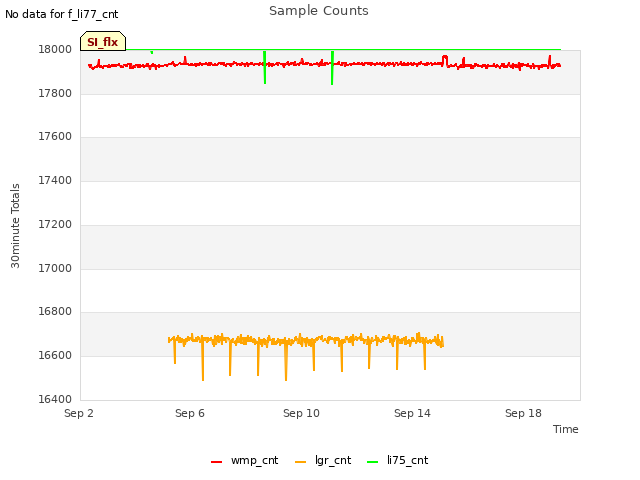

Explore the graph:Sample Counts in a new window

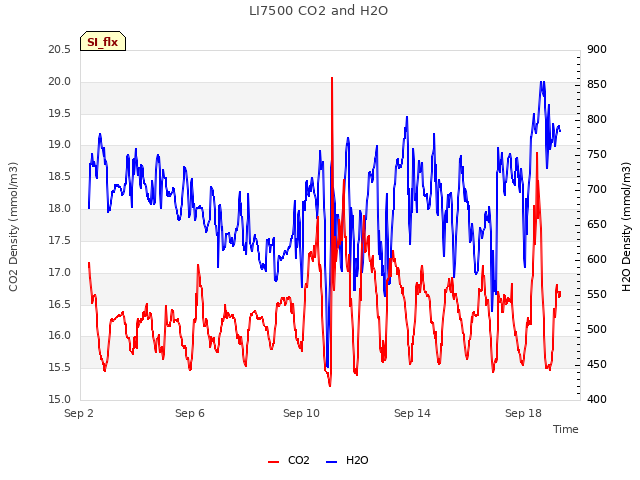

Explore the graph:LI7500 CO2 and H2O in a new window

No data found for SI_soilco2.
Can't check TWSI_mixed
Can't check SIMBTWEE_met
