Twitchell Rice: 2010-08-11 11:45:00 (DOY 223)
Author: Joe Verfaillie
Others: Jaclyn
| Twitchell
8/11/2010 Arrived about 11:45am PDT with Jaclyn. Met Jim. Bruce and Jim are working a new contract building a duck club on Sherman north west of our field. So extra help, Mike, is mostly looking after Twitchell. They have be trouble shooting water levels in Field 1. Water tis a little lower than last week, but still high. Cool, windy with clear skies and sun. The LGR was in slow flow mode and the CH4/H2O laser was not locked 10:44PST, 28.32C, 12.70Torr, 13.858usec, 1Hz, -1, -1, 521ppm After a switch to high flow and adjusting the line lock value V0 from 0.195 to 0.205 I finally got the LGR to lock: 10:58PST, 28.45C, 127.52Torr, 13.872usec, 10Hz, 1.8224ppm, 15057ppm, 373.4ppm I adjusted the pressure with the bypass valve to 145.6Torr. The CH4 ppm seemed more variable than usual. Next week I think I will swap the three-channel LGR with our single-channel LGR. I put a new program on the CR1000 after swapping cards. The new program should improve the slow 30 minute average file. I tried to read the serial stream from the LI7700 but think I need a null modem to connect the LI7550 directly to the CR1000. I checked and copied data. |
2 photos found
Equipment box and eddy tower at Twitchell rice
Twitchell rice eddy tower and rice field
6 sets found

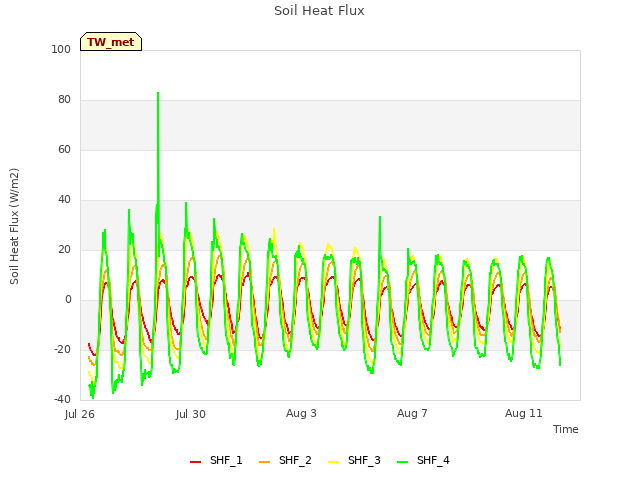

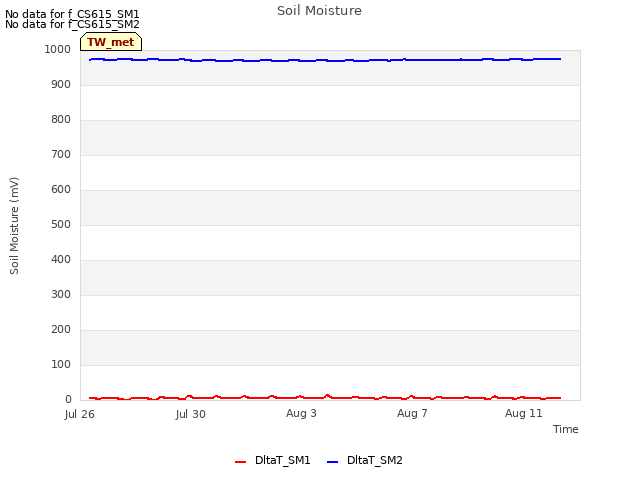

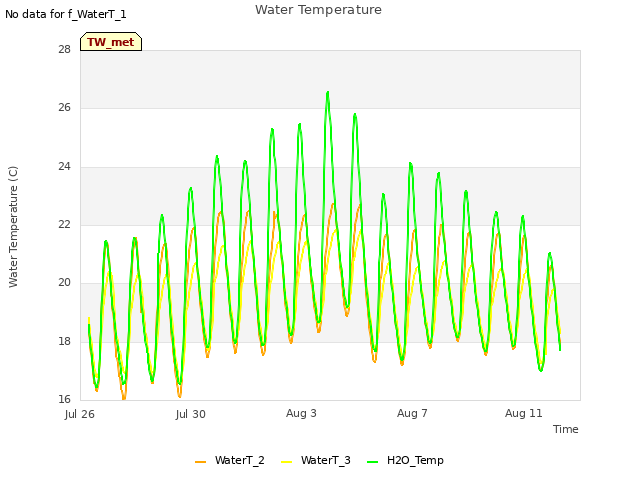

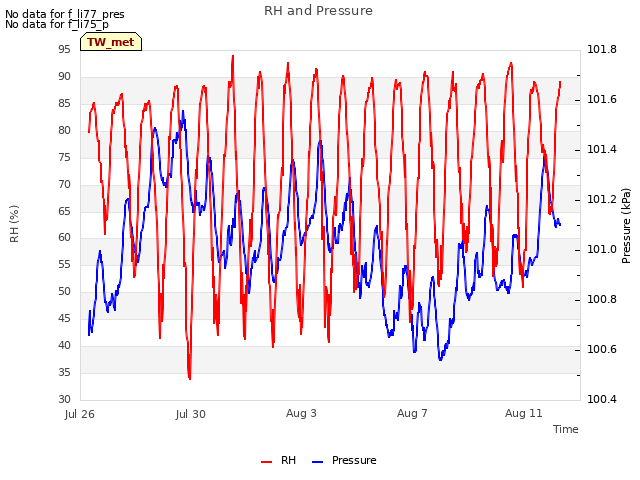

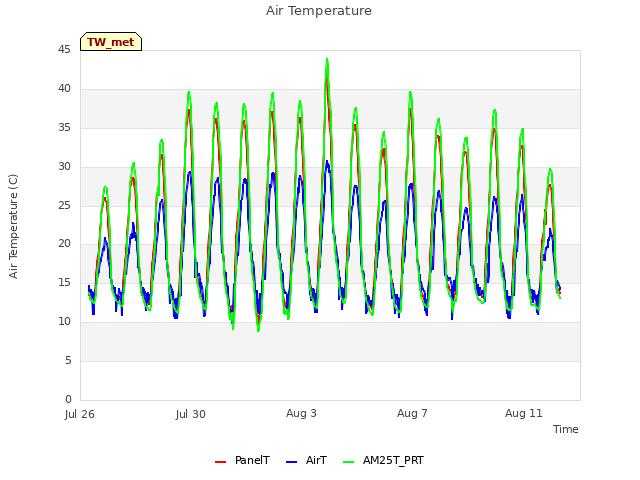

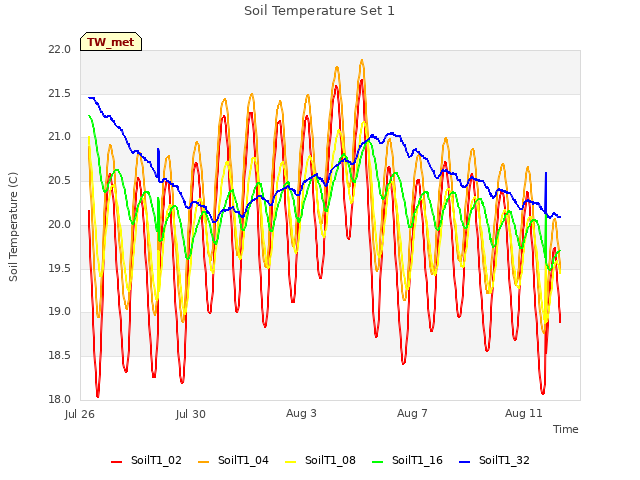

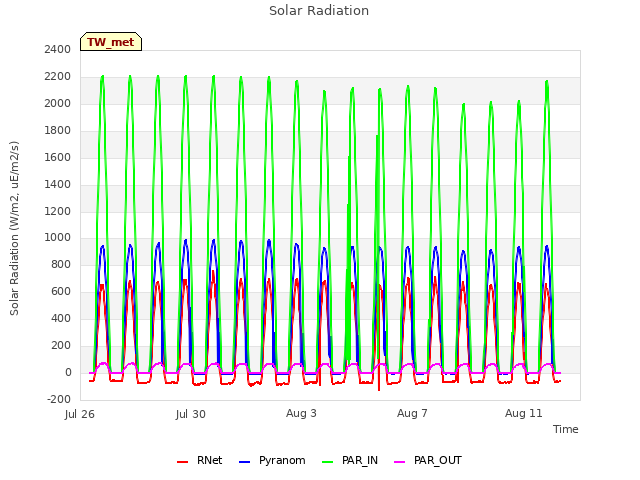

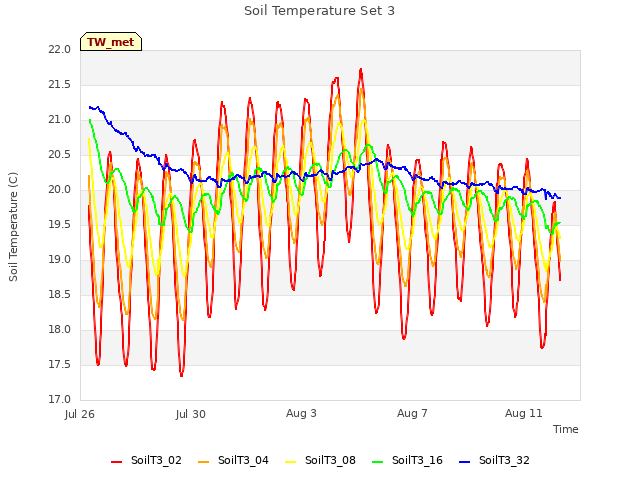

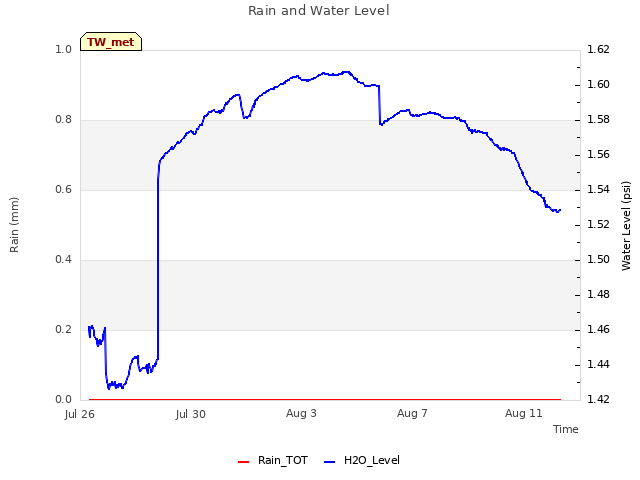

12 TW_met graphs found
No data found for TW_flux.
Can't check TWSI_mixed
Can't check SIMBTWEE_met
No data found for TW_cam.
Can't check TATWBABCSB_cam
