East End: 2014-05-07 13:05:00 (DOY 127)
Author: Cove Sturtevant
Others: Joe

Summary: Berm eroding to north of tower. Adjusted 7700 settings with new interface. All-good.

East End Wetland
2014-05-07

We arrived about 13:05 PDT. It was sunny, warm, and breezy. There is quite a bit of erosion of the berm, especially north of the tower.

Adjusted 7700 settings with new interface. The 7700 clock was 1:10 behind, but we couldn’t change it. Shouldn’t matter tho.

7500 readings:
CO2 = 15.5 mmol m-3
H2O = 520 mmol m-3
Diag: 248 (247 after cleaning)
t = 21.4 C
p = 101.4 kPa

7700 readings:
CH4: 1.88 ppm
RSSI: 34% (86% after cleaning)
Reservoir was pretty full. Refilled.

MET looked good.
Cleaned Rad.

0 photos found

Graphs display:
11 sets found

14 EE_met graphs found

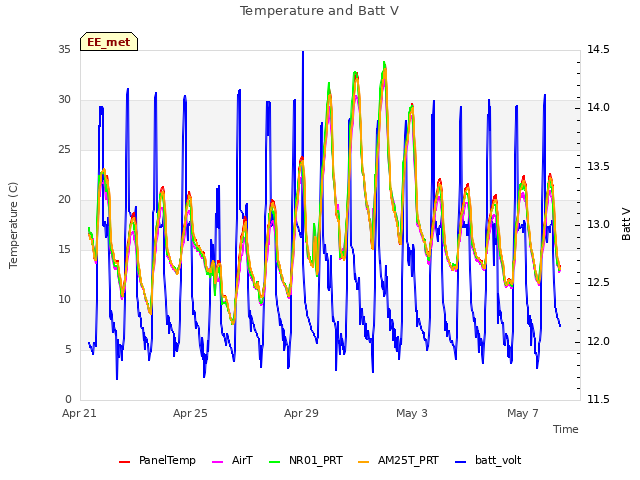

Temperature and Batt V

Soil Moisture and Well Pressure

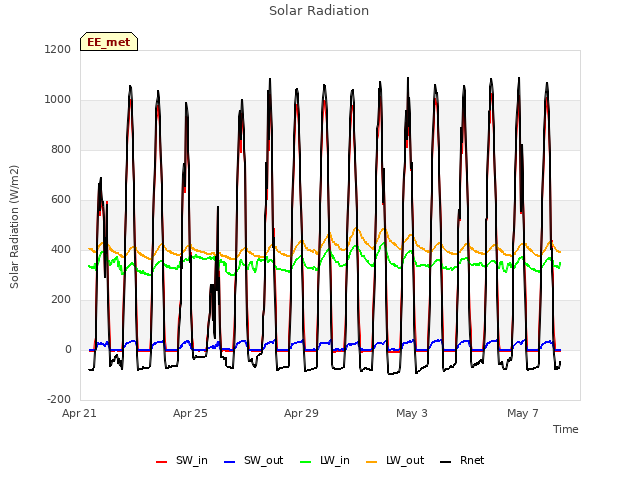

Solar Radiation

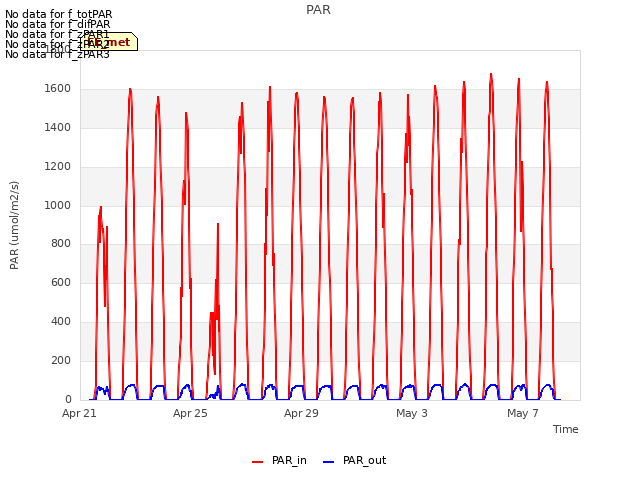

PAR

Soil Heat Flux

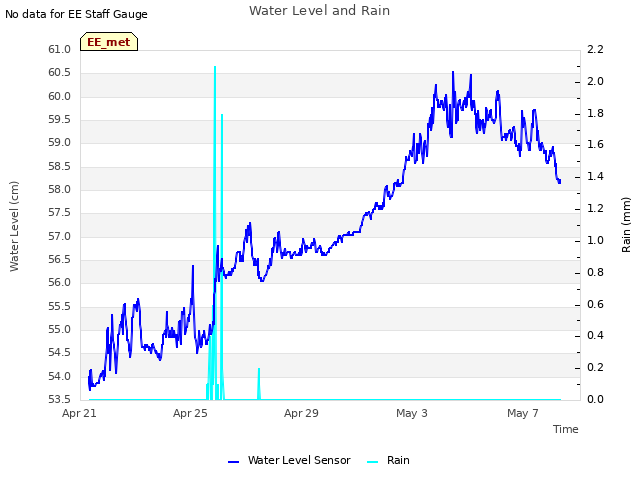

Water Level and Rain

Soil/Water Temperature Set 1

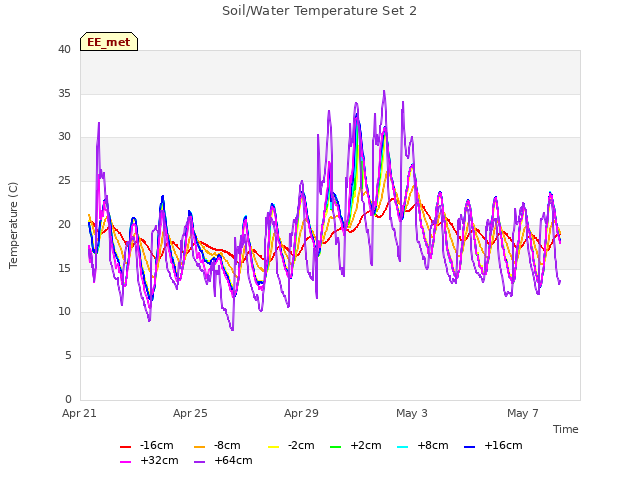

Soil/Water Temperature Set 2

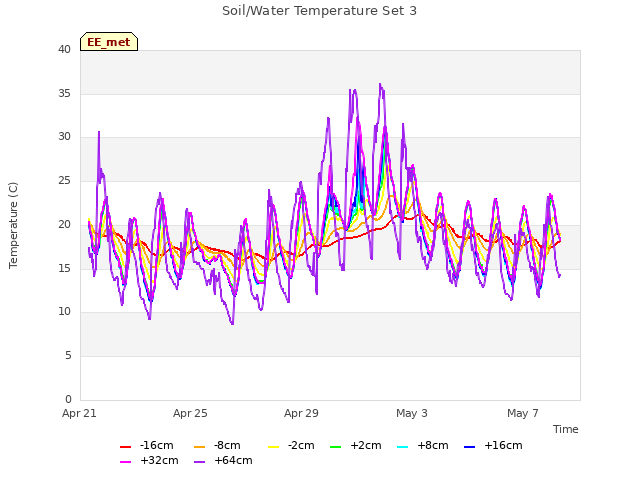

Soil/Water Temperature Set 3

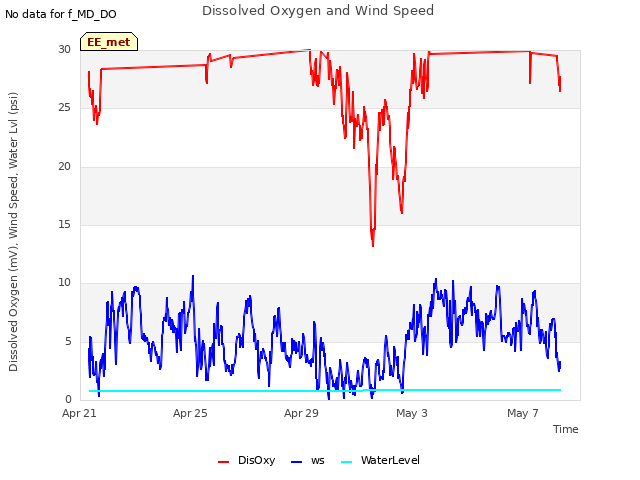

Dissolved Oxygen and Wind Speed

SRS NDVI Channels

Apogee NDVI

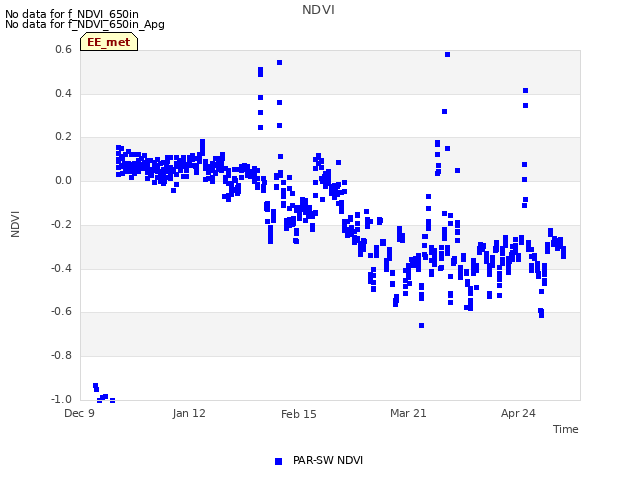

NDVI

Undercanopy PAR

Can't check EE_mixed
1 EE_mixed graphs found

Air Pressure and RH

8 EE_flux graphs found

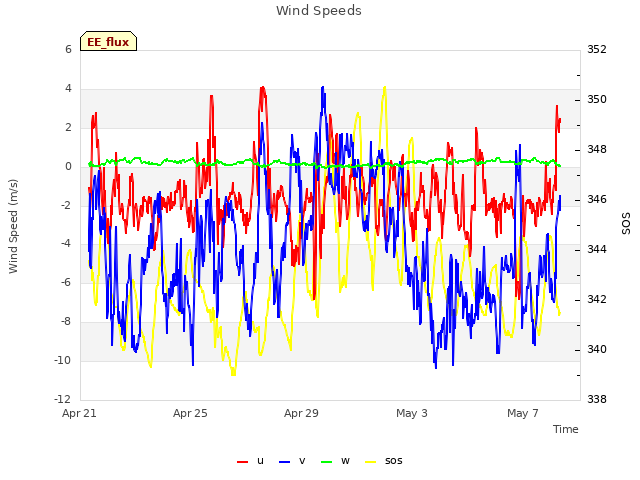

Wind Speeds

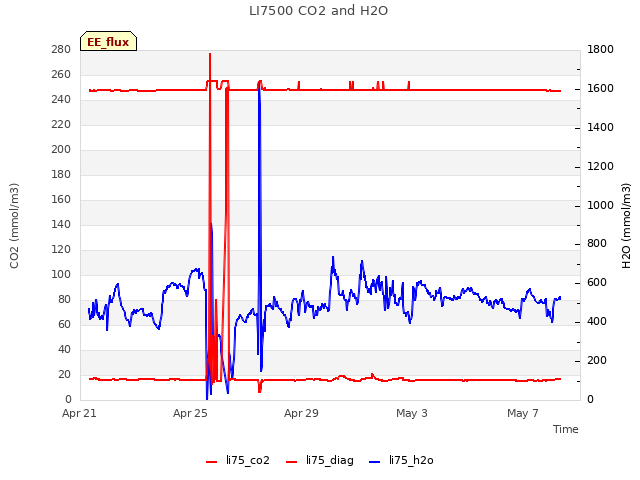

LI7500 CO2 and H2O

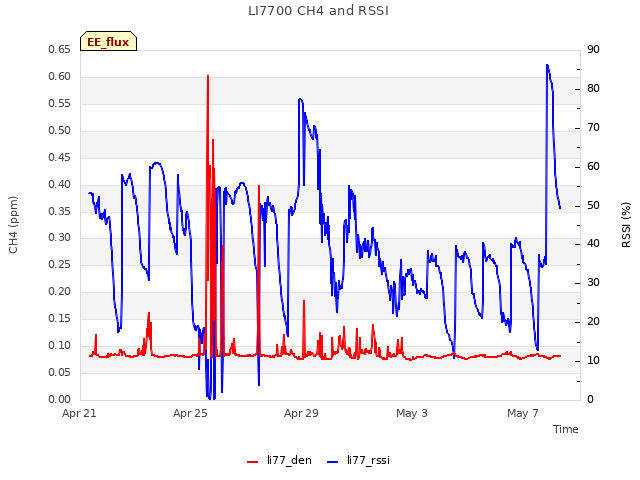

LI7700 CH4 and RSSI

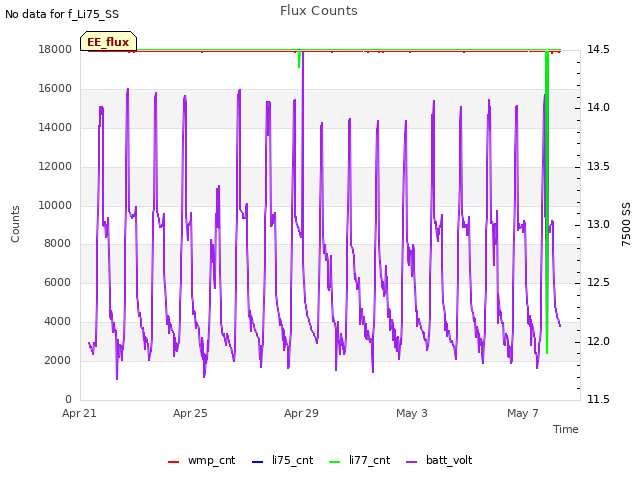

Flux Counts

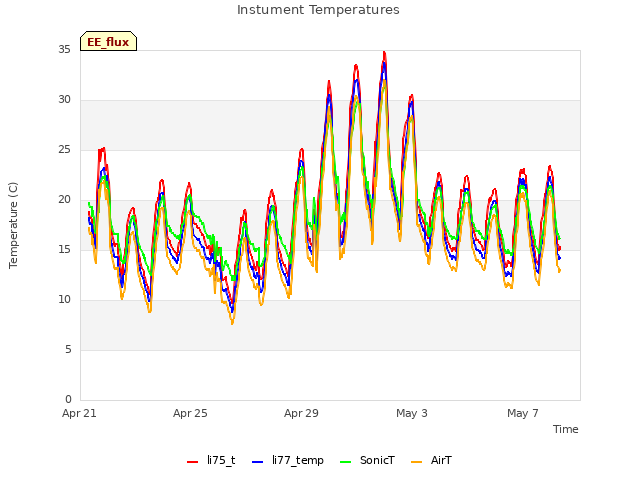

Instument Temperatures

Temp Tower 3 (Mixed Veg)

Temp Tower 3 (Mixed Veg)

Temp Tower 3 (Mixed Veg)

Can't check MBWPEESWGT_mixed
1 EE_cam graphs found

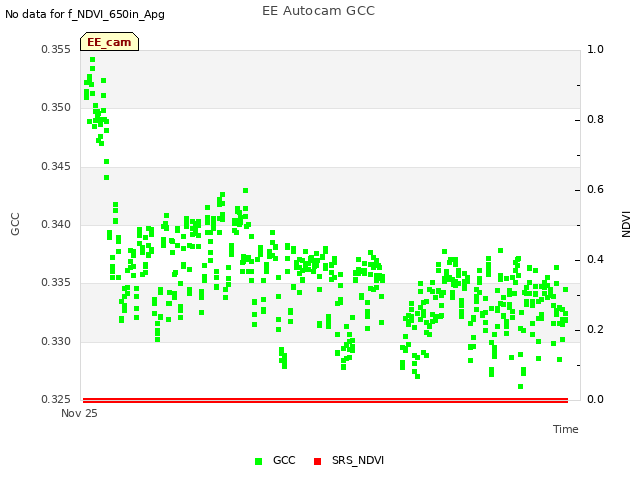

EE Autocam GCC

Can't check MBEEWPSWEPGT_cam
Can't check SIMBTWEE_met
Can't check EE_Temp
5 EE_Temp graphs found

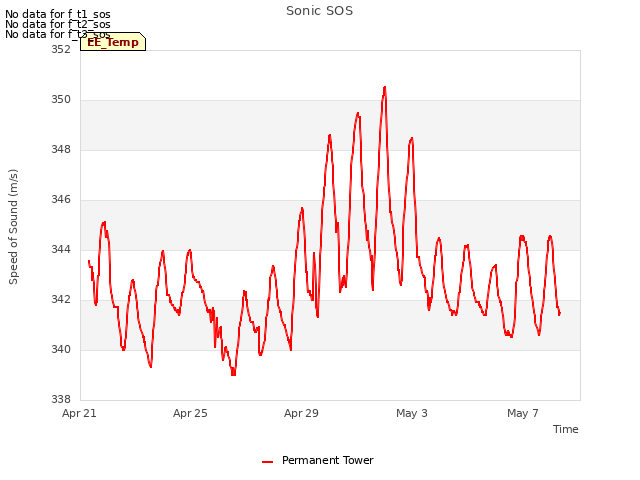

Sonic SOS

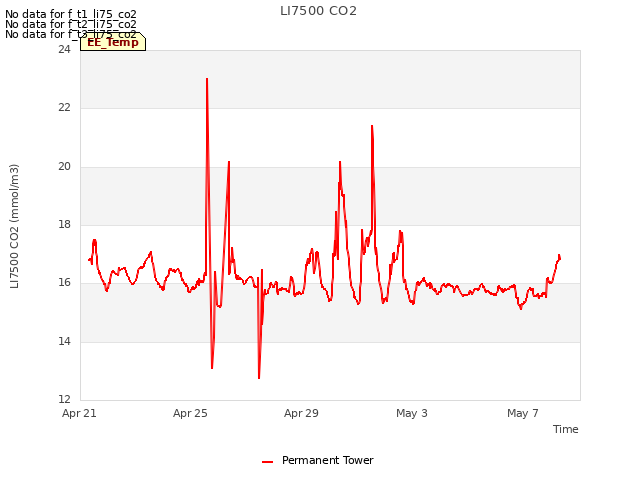

LI7500 CO2

Water Level

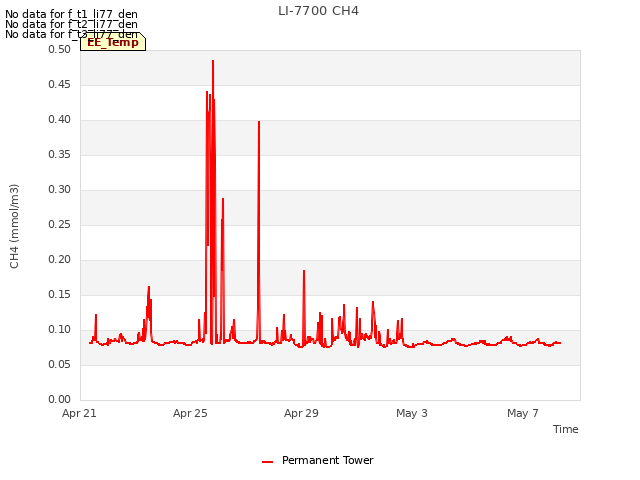

LI-7700 CH4

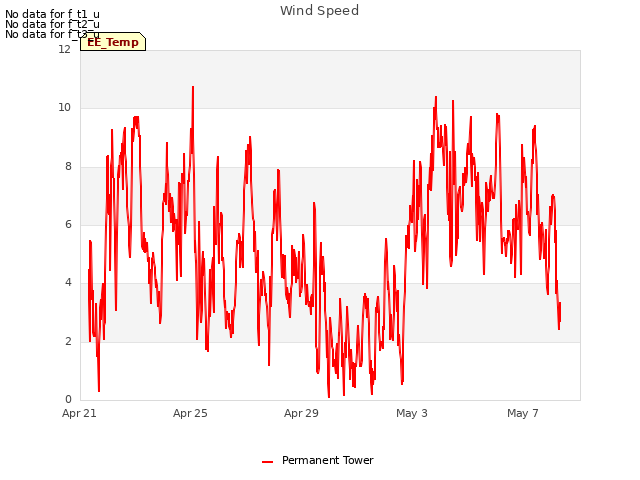

Wind Speed

Can't check EE_minidot
1 EE_minidot graphs found

EE miniDOT Dissolved Oxygen

Can't check MBSWEEWPBCBA
1 EE_processed graphs found

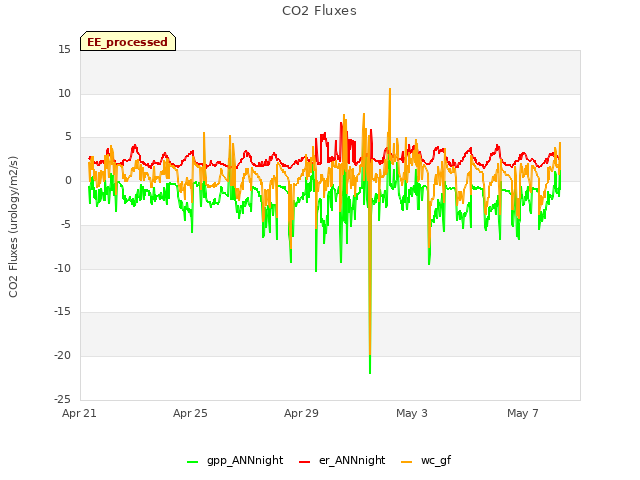

CO2 Fluxes
