Tonzi: 2014-04-22 05:45:00 (DOY 112)
Author: Siyan Ma
Others: Joe

Summary: Predawn water potential, standard field work, tower co2 profile broken - fixed, tram broken - not fixed, moved co2 probes at Vaira


When: Date: 4/22/2014 , Day: 11 , Watch Time: 5:45 am .
Where: Tonzi/Vaira Ranch
Who: Siyan, Joe
Weather: partially cloudy, a perfect spring day
Phenology: Partially cloudy, windy in the morning; No dew on grasses; Grass stem growth at Tonzi, grain-filling at Vaira; Good moisture at deep layer.

Green grass at oak SavannaGreen grass, well and well gauge at TonziTall grasses turning brown at VairaGreen pastrue and pretty clouds

Summary
  1. Joe swapped memory cards of CR1000s at three sites and downloaded data at Vaira.
  2. Checked and downloaded winflux and met data from PC at Tower and Floor.
  3. Joe fixed the CO2 profile system and calibrated it.
  4. Checked the soil CO2 probes at Tonzi and Vaira; relocated probes at Vaira-west and north profiles
  5. Measured pre-dawn water potential.
  6. Read dendrometers
  7. Measured soil moisture
  8. Measured grass height
  9. Measure groundwater well

Vaira_Grass Site
  1. Fence and gate power: 12 v.
  2. Downloaded Phenocam images. (Joe)
  3. Swapped the memory cards of CR1000. (Joe)
  4. Downloaded met and soil CO2 profile data: (Joe)

Screen shot of Vaira flux data logger table

Screen shot of Vaira met data logger table

Screen shot of Vaira soil co2 data logger table
  1. Checked the fans of air temp and relative humidity sensors at Vaira. YES! (Joe)
  2. Checked levels of Radiation sensors, clear up surfaces.YES! (Joe)
  3. Checked rain gage, make sure not clogged. YES! (Joe)
  4. Closed gate and set up fence. YES!

Tonzi_Tower Site

  1. Fence and gate power: 12 v.
  2. downloaded Winflux data from PC. YES!

Tower Gill sonic plots screen before downloading data
  1. swapped the memory cards of CR1000. (Joe)

Screen shot of tower flux data logger table

Screen shot of tower flux data logger status window
  1. download Phenocam images. Yes! (Joe)
  2. checked the fans of air temp. and relative humidity sensors on the tower and the floor. YES! Floor one was broken.
  3. Checked rain gage, make sure not clogged. YES! (Joe)
  4. Downloaded met data from PC

Screen shot of rad tram data logger table
  1. Checked CO2 profile: Joe fixed the CO2 profile system and calibrated it.

Is the pump running‌ YES!
Screen shot of Li-800 calibration pre-cal
8. closed gate and set up fence. YES!
Toniz_Floor Site
  1. Fence and gate power: 12 v.
  2. downloaded Winflux data from PC. YES!

3. Swapped the memory cards of CR1000. (Joe)
Floor Gill sonic plots screen before downloading data
  1. downloaded met data from PC. YES!

CR23X3 – floor-Met
CR23X6 – tower-Met
CR10X2 – floor-Met
Soil CO2 profile: CR23X5 – soil CO2 profile
Screen shot of soil co2 data logger table

Screen shot of floor met data logger table

Screen shot of soil moisture data logger table

Screen shot of tower met data logger table
  1. Closed gate and set up fence. YES!

Other notes:
VR Vaisala probes moved
West, -2cm, 2%, sn y0850004, Removed – replaced by sn K1310103
West, -4cm, 2%, sn y1720006, Removed – replaced by sn K1310102
West, -8cm, 1%, sn g0230062, moved to north -2cm – replaced by sn K1350101
North, -2cm, 1%, sn g0230061, moved to north -4cm
North, -4cm, 1%, sn y1950005, moved to north -8cm
North, -8cm, 3%, sn y0710013, Removed

Veg Height (cm): Tape measure from ground to top of plant
32, 15, 24, 20, 28, 19, 33, 19, 13, 10, 15, 12, 18, 29, 25, 20, avg = 20.8, stdev = 7.11

Field Data

CO2 Profile Tanks

DateTankPressure (psi)ppm
2014-04-22CO21900502.68
2014-04-22N25000

Well Depth

DateLocationDepth (feet)
2014-04-22TZ_floor30
2014-04-22TZ_road38.2
2014-04-22TZ_tower38

mode = both
Moisture Point Probes TZ
Array ( [0] => Tower_1 [1] => Floor_South_1 [2] => Floor_East_1 [3] => SoilCO2_1 [4] => Soil_Transect_4_1 [5] => Soil_Transect_3_1 [6] => Soil_Transect_2_1 [7] => Soil_Transect_1_1 [8] => SoilCO2_West_A_1 [9] => SoilCO2_West_B_1 [10] => SoilCO2_West_C_1 [11] => Tower_2 [12] => Floor_South_2 [13] => Floor_East_2 [14] => Floor_West_2 [15] => SoilCO2_2 [16] => Soil_Transect_4_2 [17] => Soil_Transect_3_2 [18] => Soil_Transect_2_2 [19] => Soil_Transect_1_2 [20] => SoilCO2_West_A_2 [21] => SoilCO2_West_B_2 [22] => SoilCO2_West_C_2 [23] => Tower_3 [24] => Floor_South_3 [25] => Floor_East_3 [26] => Floor_West_3 [27] => SoilCO2_3 [28] => Soil_Transect_4_3 [29] => Soil_Transect_3_3 [30] => Soil_Transect_2_3 [31] => Soil_Transect_1_3 [32] => SoilCO2_West_A_3 [33] => SoilCO2_West_B_3 [34] => SoilCO2_West_C_3 [35] => Tower_4 [36] => Floor_South_4 [37] => Floor_East_4 [38] => SoilCO2_4 [39] => Soil_Transect_4_4 [40] => Soil_Transect_3_4 [41] => Soil_Transect_2_4 [42] => Soil_Transect_1_4 [43] => SoilCO2_West_A_4 [44] => SoilCO2_West_B_4 [45] => SoilCO2_West_C_4 )

0000
Date DOY Rep Depth
Tower_1
Floor_South_1
Floor_East_1
SoilCO2_1
Soil_Transect_4_1
Soil_Transect_3_1
Soil_Transect_2_1
Soil_Transect_1_1
SoilCO2_West_A_1
SoilCO2_West_B_1
SoilCO2_West_C_1
Tower_2
Floor_South_2
Floor_East_2
Floor_West_2
SoilCO2_2
Soil_Transect_4_2
Soil_Transect_3_2
Soil_Transect_2_2
Soil_Transect_1_2
SoilCO2_West_A_2
SoilCO2_West_B_2
SoilCO2_West_C_2
Tower_3
Floor_South_3
Floor_East_3
Floor_West_3
SoilCO2_3
Soil_Transect_4_3
Soil_Transect_3_3
Soil_Transect_2_3
Soil_Transect_1_3
SoilCO2_West_A_3
SoilCO2_West_B_3
SoilCO2_West_C_3
Tower_4
Floor_South_4
Floor_East_4
SoilCO2_4
Soil_Transect_4_4
Soil_Transect_3_4
Soil_Transect_2_4
Soil_Transect_1_4
SoilCO2_West_A_4
SoilCO2_West_B_4
SoilCO2_West_C_4
 Avg
Spacial Count
Measurement Count
2014-04-22 112 0 nan 18.511.239.929.412.139.913.210.617.313.89.422.85021.324.626.117.334.724.310.318.24.223.132.73636.850.256.917.646.628.826.229.926.529.930.242.865.511.123.620.544.820.541.747.447.1
2014-04-22 112 1 nan 19.710.439.927.112.439.913.810.317.113.89.722.52020.624.523.717.626.325.29.717.64.522.532.732.936.83144.117.929.728.526.229.327.62931.943.741.411.123.618.84621.94246.648.6
2014-04-22 112 2 nan 39.93019.1
2014-04-22 112 Avg 0-15cm 0
2014-04-22 112 Avg 15-30cm 0
2014-04-22 112 Avg 30-45cm 0
2014-04-22 112 Avg 45-60cm 0

mode = both
Moisture Point Probes VR
Array ( [0] => Solar_Panels_1 [1] => Flux_Tower_1 [2] => Gate_1 [3] => Biomass_Cage_1 [4] => Solar_Panels_2 [5] => Flux_Tower_2 [6] => Gate_2 [7] => Biomass_Cage_2 [8] => Solar_Panels_3 [9] => Flux_Tower_3 [10] => Gate_3 [11] => Biomass_Cage_3 [12] => Solar_Panels_4 [13] => Flux_Tower_4 [14] => Gate_4 [15] => Biomass_Cage_4 )

0000
Date DOY Rep Depth
Solar_Panels_1
Flux_Tower_1
Gate_1
Biomass_Cage_1
Solar_Panels_2
Flux_Tower_2
Gate_2
Biomass_Cage_2
Solar_Panels_3
Flux_Tower_3
Gate_3
Biomass_Cage_3
Solar_Panels_4
Flux_Tower_4
Gate_4
Biomass_Cage_4
 Avg
Spacial Count
Measurement Count
2014-04-22 112 0 nan 5.91027.42.415.21311.89.720.16.43018.433.118.831.721.1
2014-04-22 112 1 nan 6.21026.52.115.513.611.89.319.85.930.318.233.118.831.420.8
2014-04-22 112 Avg 0-15cm 0
2014-04-22 112 Avg 15-30cm 0
2014-04-22 112 Avg 30-45cm 0
2014-04-22 112 Avg 45-60cm 0

Grass Height TZ 16

DateHeight reps (cm)LocationAverageSampSTDEV
2014-04-2232 15 24 20 28 19 33 19 13 10 15 12 18 29 25 20 GH_ALL20.75166.89

Grass Height VR 9

DateHeight reps (cm)LocationAverageSampSTDEV
2014-04-2225 18 8 11 GH_CLOVER15.546.58
2014-04-2246 36 30 64 47 70 52 50 37 GH_FENCED48912.27
2014-04-2252 60 40 60 46 30 58 GH_OUT49.43710.57

Tree DBH

DateTag#Reading (mm)
2014-04-22125.2
2014-04-2210222.9
2014-04-22220.7
2014-04-2224517.0
2014-04-22323.3
2014-04-22525.9
2014-04-22720.7
2014-04-227218.0
2014-04-227923.0
2014-04-22811.9

Water Potential - mode: raw

TimeSpeciesTreereadings (bar)
2014-04-22 05:56:00 OAK 102 -3.5 -2 -2.5
2014-04-22 05:56:00 OAK 35 -2.5 -5.5 -5
2014-04-22 05:56:00 OAK 92 -2.5 -3.5 -3.5
2014-04-22 06:19:00 PINE OLD -7 -9.5 -9
2014-04-22 06:19:00 PINE YNG -7 -8 -3.5
2014-04-22 11:10:00 OAK 102 -8 -10 -10
2014-04-22 11:10:00 OAK 35 -12 -22 -15
2014-04-22 11:10:00 OAK 92 -13 -20 -11
2014-04-22 11:32:00 PINE OLD -15 -22 -21
2014-04-22 11:32:00 PINE YNG -8 -18 -22

Biomass TZ Grass

DaterepAREA
(cm2)		LEAFNO
(count)		LEAFAREA
(cm2)		Green
WETWT
(g)		Green
DRYWT
(g)		Brown
WETWT
(g)		Brown
DRYWT
(g)		LAI
(m2/m2)		 Green
WETWT/AREA
(g/m2)		 Green
DRYWT/AREA
(g/m2)		 Brown
WETWT/AREA
(g/m2)		 Brown
DRYWT/AREA
(g/m2)
2014-04-220400 561 14.19 4.28 1.4252.9476.2900
2014-04-221400 548 20.31 5.07 1.37370.6292.5200
2014-04-222400 692 31.68 7.59 1.73457.8109.6800
2014-04-22SUM
2014-04-22CNT3 3 3 3 333
2014-04-22AVG 1.5360.4592.83

Biomass TZ OakLeaves

DaterepAREA
(cm2)		LEAFNO
(count)		LEAFAREA
(cm2)		Green
WETWT
(g)		Green
DRYWT
(g)		Brown
WETWT
(g)		Brown
DRYWT
(g)		Area/Leaf
(cm2/leaf)		 Green
WETWT/AREA
(g/m2)		 Green
DRYWT/AREA
(g/m2)		 Brown
WETWT/AREA
(g/m2)		 Brown
DRYWT/AREA
(g/m2)
2014-04-220 30 70.4 1.5 1.25 2.35213.07177.5600
2014-04-221 40 120 2.48 1.17 3206.6797.500
2014-04-222 54 111 2.32 1.22 2.06209.01109.9100
2014-04-22SUM
2014-04-22CNT 3 3 3 3 333
2014-04-22AVG 2.47209.58128.32

Biomass TZ PineNeedles

DaterepAREA
(cm2)		LEAFNO
(count)		LEAFAREA
(cm2)		Green
WETWT
(g)		Green
DRYWT
(g)		Brown
WETWT
(g)		Brown
DRYWT
(g)		Area/Leaf
(cm2/leaf)		 Green
WETWT/AREA
(g/m2)		 Green
DRYWT/AREA
(g/m2)		 Brown
WETWT/AREA
(g/m2)		 Brown
DRYWT/AREA
(g/m2)
2014-04-220 4 15.1 0.98 0.47 3.78649.01311.2600
2014-04-221 4 21.8 1.74 0.92 5.45798.17422.0200
2014-04-222 4 17.1 1.35 0.71 4.28789.47415.200
2014-04-22SUM
2014-04-22CNT 3 3 3 3 333
2014-04-22AVG 4.5745.55382.83

3 photos found

Rancho Seco and Mt Diablo from the Tonzi Tower Top
Rancho Seco and Mt Diablo from the Tonzi Tower Top

Gray oaks and green grass from tower top
Gray oaks and green grass from tower top

View from the tower with Joe and car on site
View from the tower with Joe and car on site

Graphs display:
16 sets found

No data found for TZ_Fenergy.
11 TZ_tmet graphs found

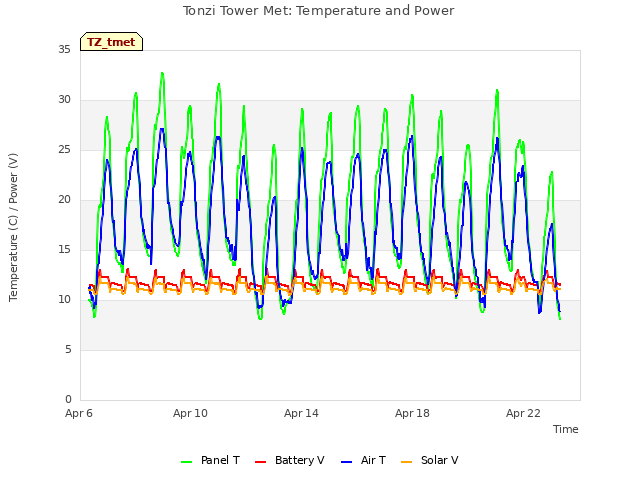

Explore the graph:Tonzi Tower Met: Temperature and Power in a new window

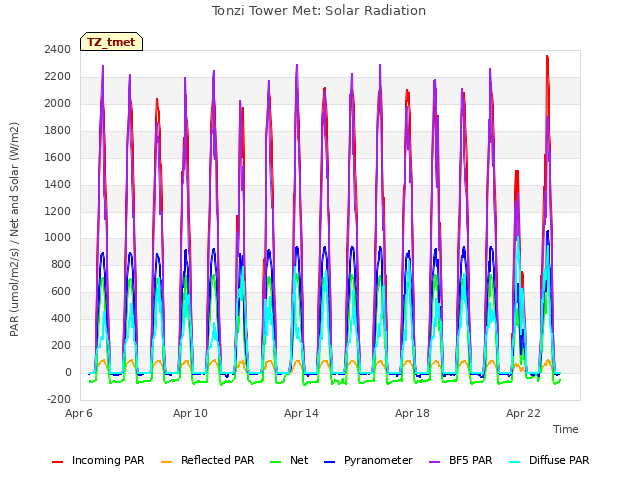

Explore the graph:Tonzi Tower Met: Solar Radiation in a new window

Explore the graph:Tonzi Tower Met: IRT Sensors in a new window

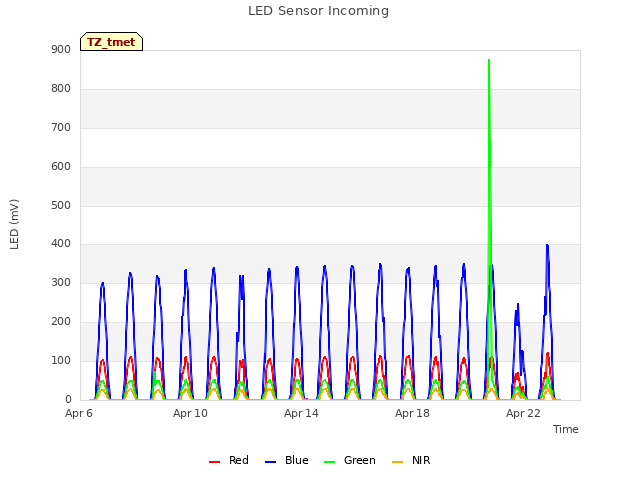

Explore the graph:LED Sensor Incoming in a new window

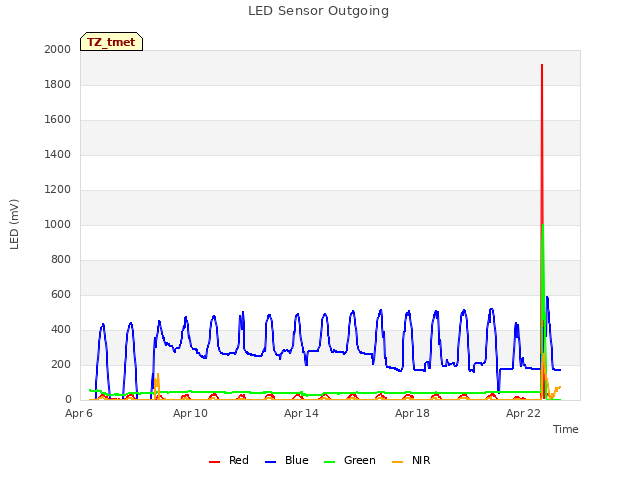

Explore the graph:LED Sensor Outgoing in a new window

Explore the graph:4-Band Solar Radiation in a new window

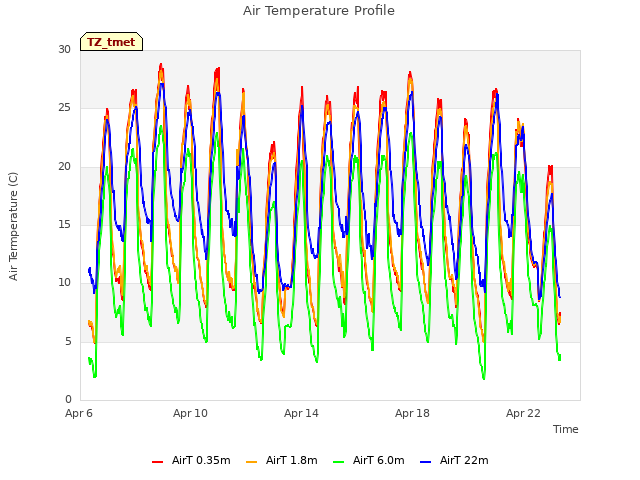

Explore the graph:Air Temperature Profile in a new window

Explore the graph:Relativity Humidity Profile in a new window

Explore the graph:Tonzi Tower PRI in a new window

Explore the graph:SRS PRI/NDVI in a new window

Explore the graph:SRS NDVI in a new window

11 TZ_soilco2 graphs found

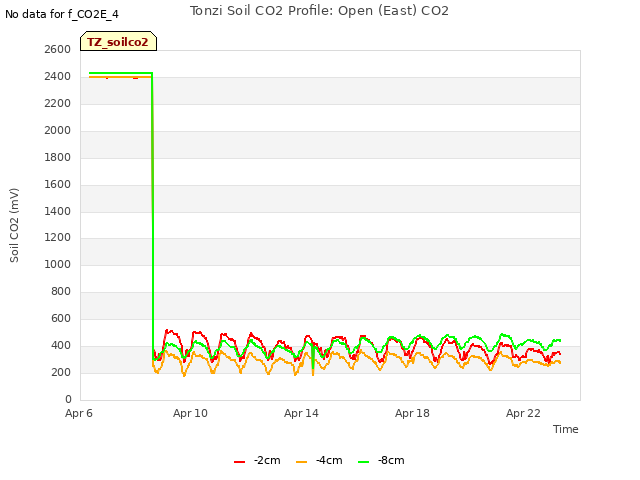

Explore the graph:Tonzi Soil CO2 Profile: Open (East) CO2 in a new window

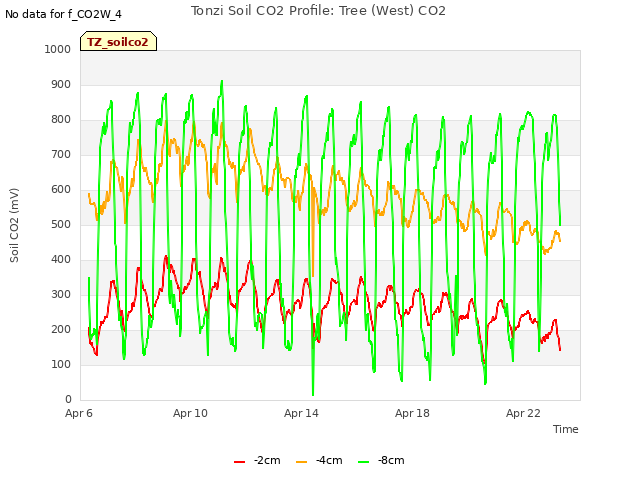

Explore the graph:Tonzi Soil CO2 Profile: Tree (West) CO2 in a new window

Explore the graph:Tonzi Soil CO2 Profile: Open (East) Temperatures in a new window

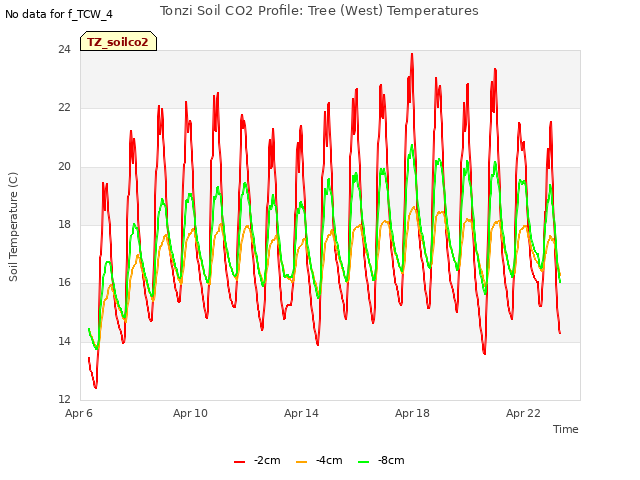

Explore the graph:Tonzi Soil CO2 Profile: Tree (West) Temperatures in a new window

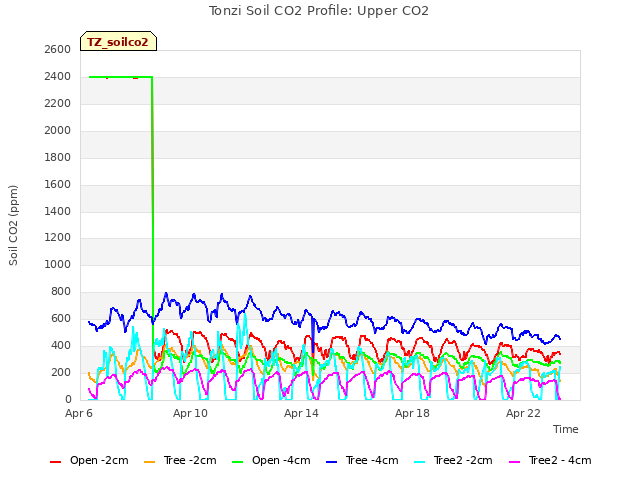

Explore the graph:Tonzi Soil CO2 Profile: Upper CO2 in a new window

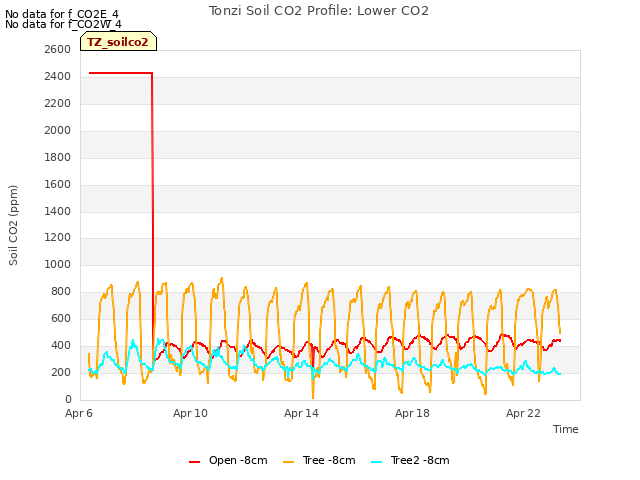

Explore the graph:Tonzi Soil CO2 Profile: Lower CO2 in a new window

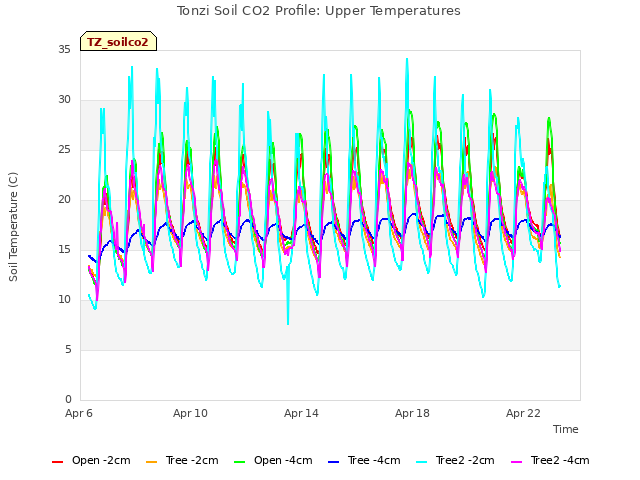

Explore the graph:Tonzi Soil CO2 Profile: Upper Temperatures in a new window

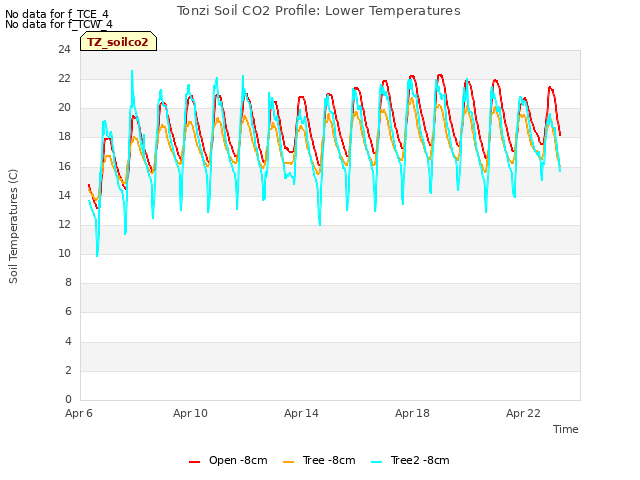

Explore the graph:Tonzi Soil CO2 Profile: Lower Temperatures in a new window

Explore the graph:Tonzi Soil CO2 Profile: Power and Temperature in a new window

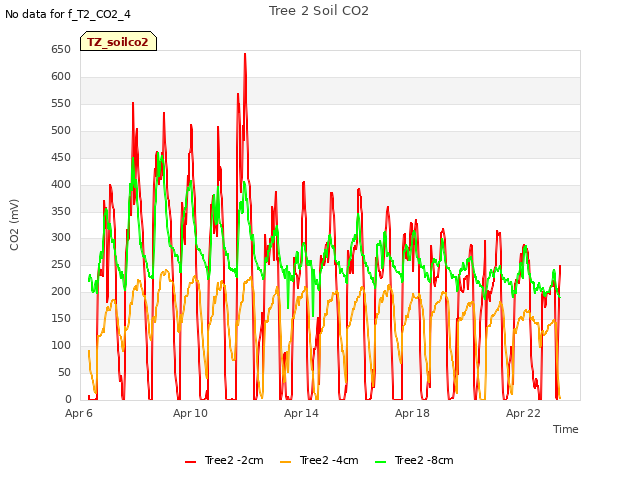

Explore the graph:Tree 2 Soil CO2 in a new window

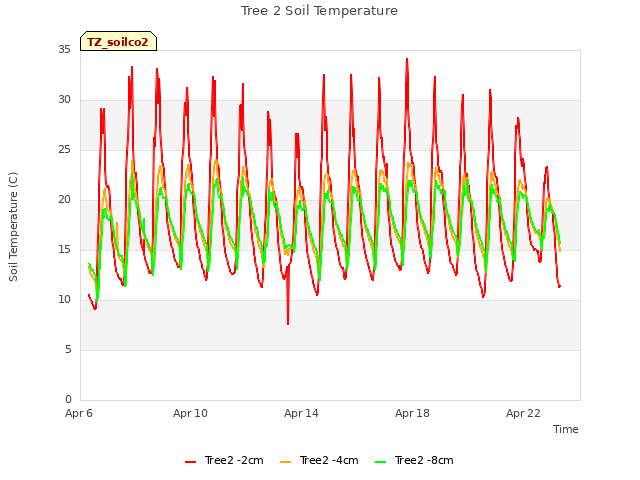

Explore the graph:Tree 2 Soil Temperature in a new window

Can't check TZ_mixed
3 TZ_mixed graphs found

Explore the graph:Tonzi PPT in a new window

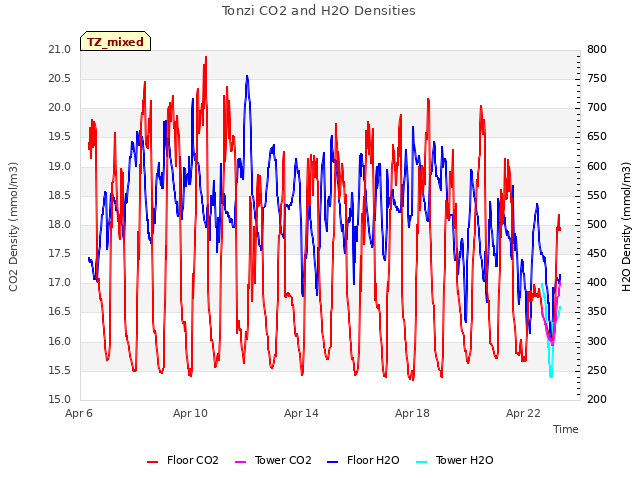

Explore the graph:Tonzi CO2 and H2O Densities in a new window

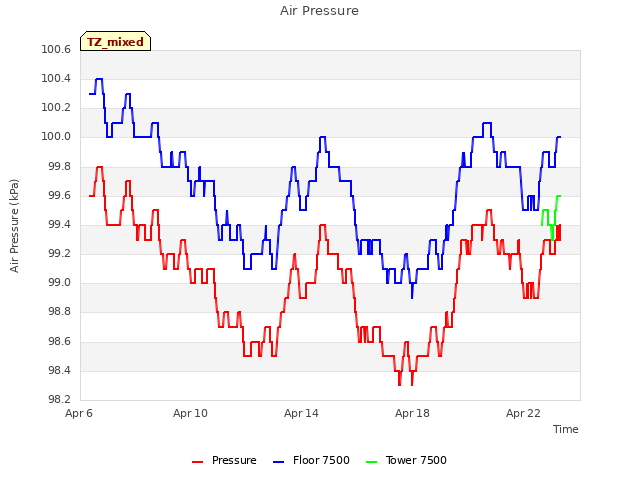

Explore the graph:Air Pressure in a new window

1 TZ_fflux graphs found

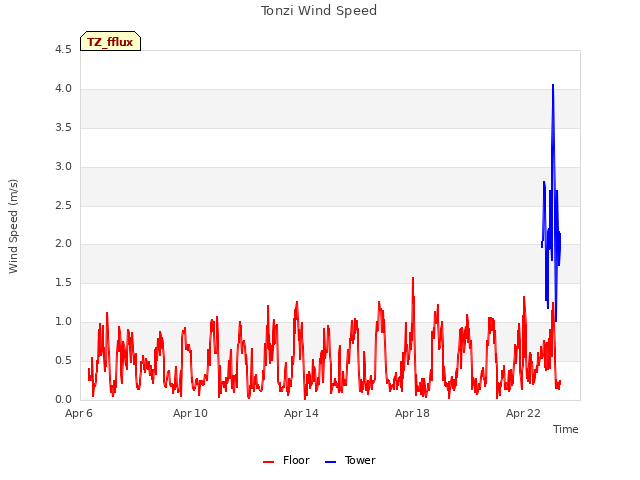

Explore the graph:Tonzi Wind Speed in a new window

8 TZ_fmet graphs found

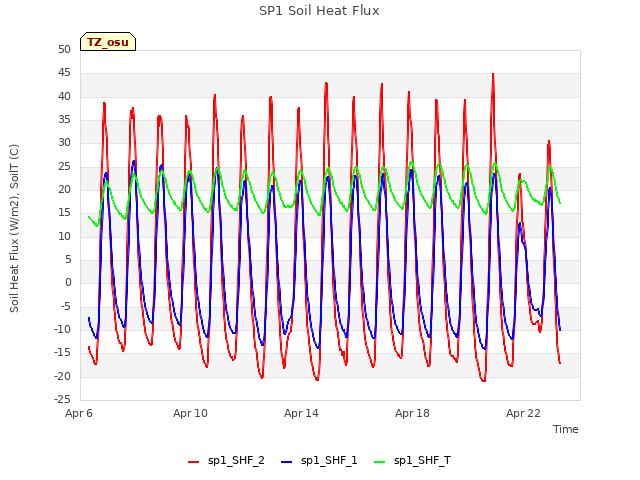

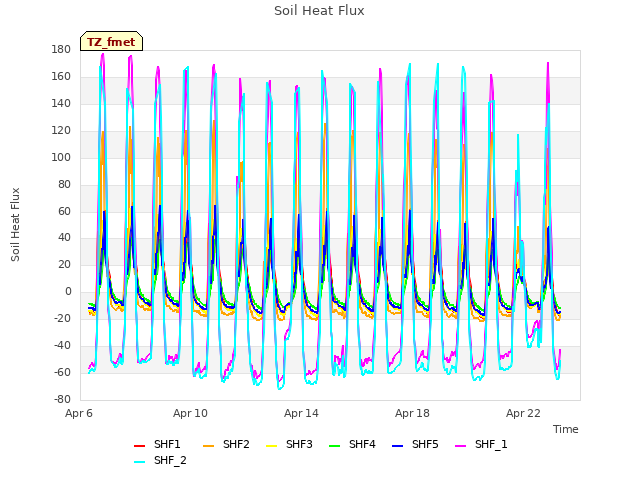

Explore the graph:Soil Heat Flux in a new window

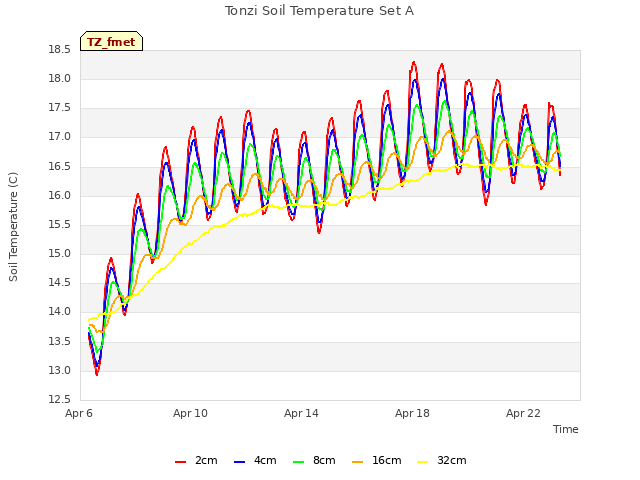

Explore the graph:Tonzi Soil Temperature Set A in a new window

Explore the graph:Tonzi Soil Temperatures Set B in a new window

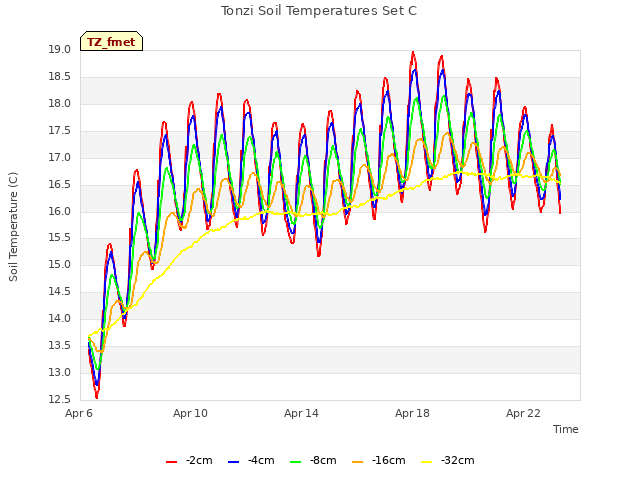

Explore the graph:Tonzi Soil Temperatures Set C in a new window

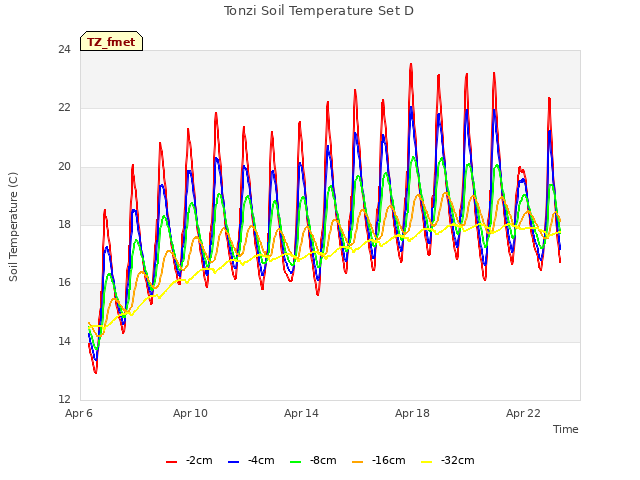

Explore the graph:Tonzi Soil Temperature Set D in a new window

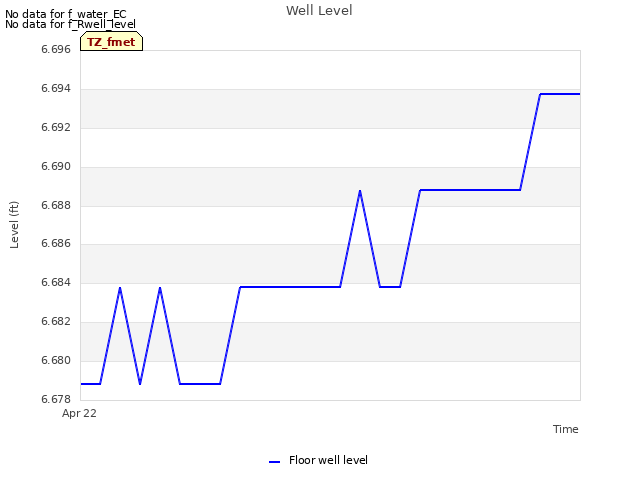

Explore the graph:Well Level in a new window

Explore the graph:Well Water Temperature in a new window

Explore the graph:Soil Water Potential in a new window

1 TZ_tram graphs found

Explore the graph:Tonzi Tram Incoming PAR in a new window

3 TZ_co2prof graphs found

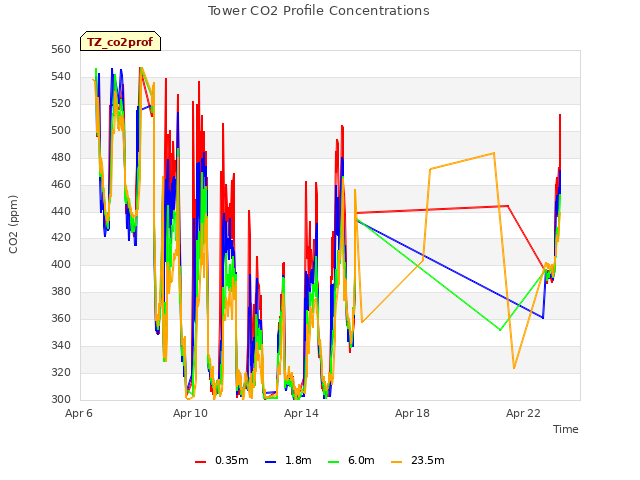

Explore the graph:Tower CO2 Profile Concentrations in a new window

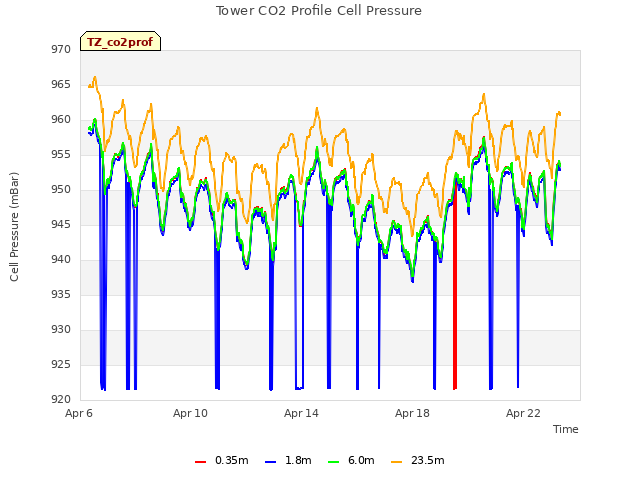

Explore the graph:Tower CO2 Profile Cell Pressure in a new window

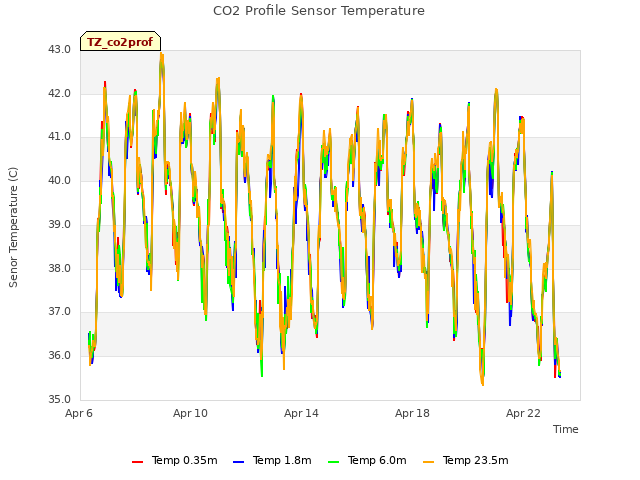

Explore the graph:CO2 Profile Sensor Temperature in a new window

No data found for TZ_irt.
No data found for TZ_windprof.
1 TZ_tflux graphs found

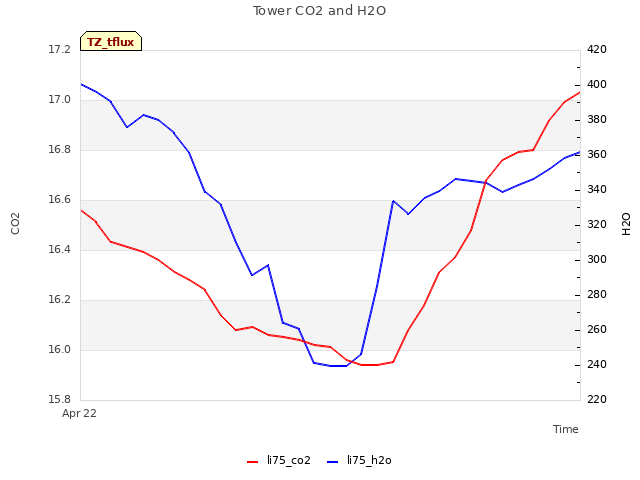

Explore the graph:Tower CO2 and H2O in a new window

2 TZ_sm graphs found

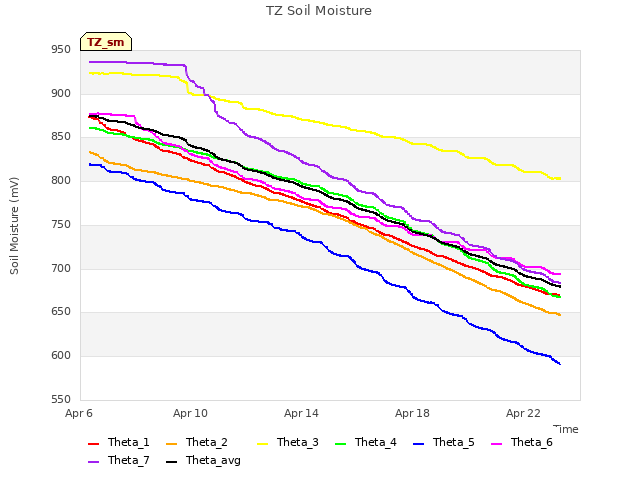

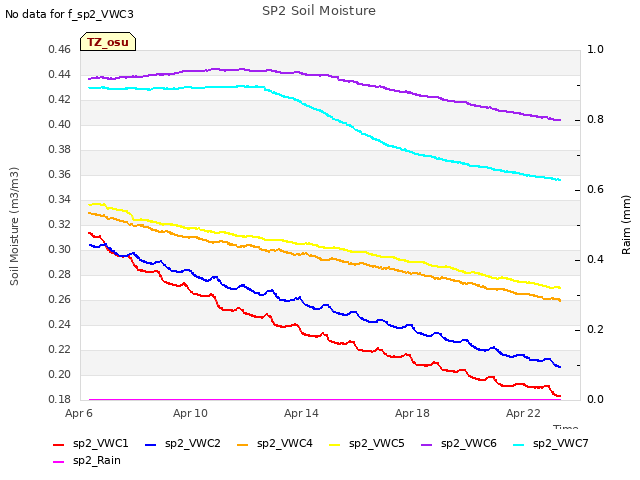

Explore the graph:Floor Solar Radiations in a new window

Explore the graph:TZ Soil Moisture in a new window

Can't check TZ_met
1 TZ_met graphs found

Explore the graph:Floor and Tower RH in a new window

Can't check TZVR_mixed
8 TZ_osu graphs found

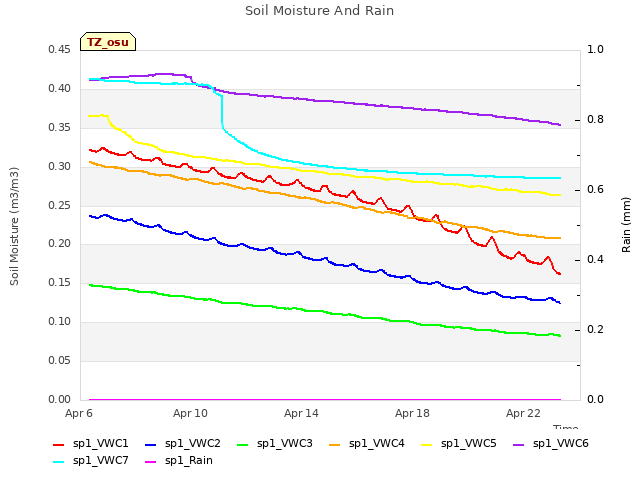

Explore the graph:Soil Moisture And Rain in a new window

Explore the graph:SP1 Solar Radiation in a new window

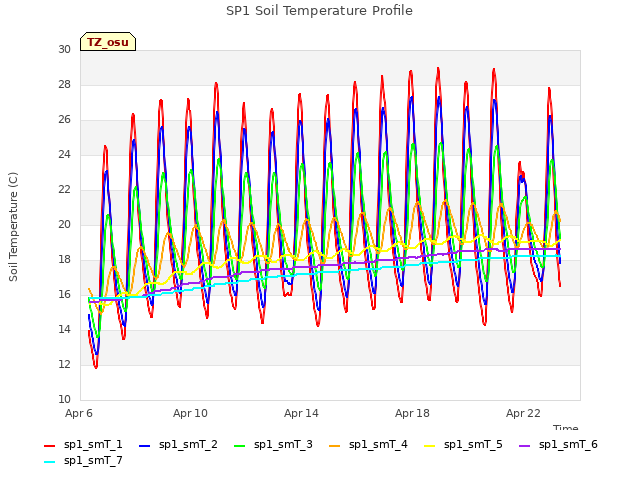

Explore the graph:SP1 Soil Temperature Profile in a new window

Explore the graph:SP1 Soil Heat Flux in a new window

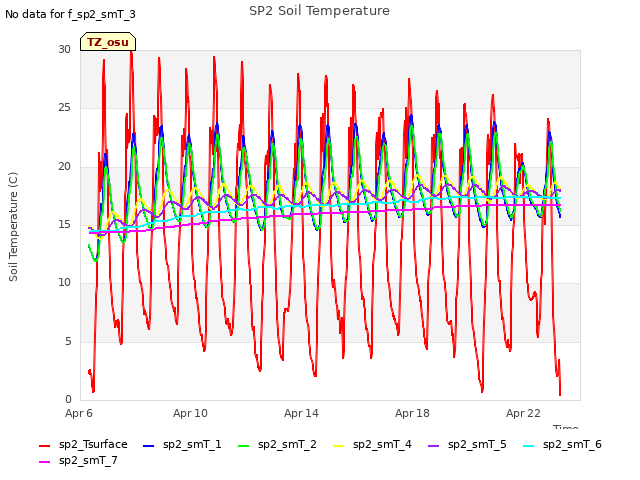

Explore the graph:SP2 Soil Moisture in a new window

Explore the graph:SP2 Soil Temperature in a new window

Explore the graph:SP3 Soil Moisture in a new window

Explore the graph:SP3 Soil Temperature in a new window

No data found for TZ_fd.
Tonzi Z-cam data

plot of Tonzi z-cam LAI

plot of Tonzi z-cam gap fration
