Tonzi: 2014-02-10 10:00:00 (DOY 41)
Author: Joe Verfaillie
Others: Siyan

Summary: Standard field work, ground is very wet, swapped CO2 profile inlet filters.

Tonzi
2013-02-10

I arrived about 10:00am with Siyan. It was cool and overcast. The overcast started to break up and a little breeze stated before we left. The ground was very wet with puddles and rivulets. There was some water in Tonziâ€™s pond. The grasses looked a little better here probably due to the protection of the trees and their litter. We saw a couple of cows late in the day but not the hungry herd from the last two times.

Standard fieldwork.

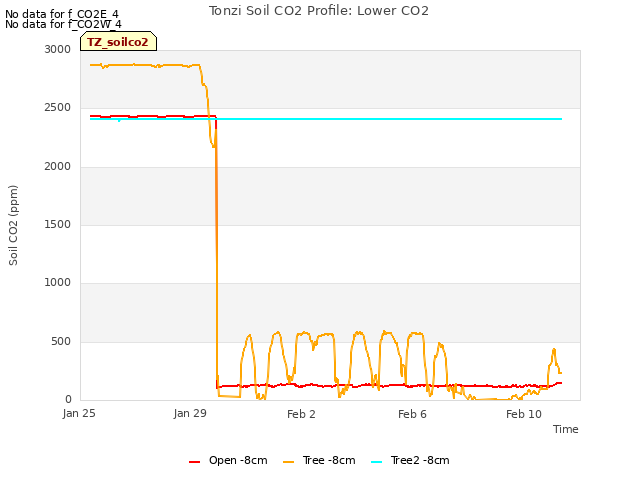

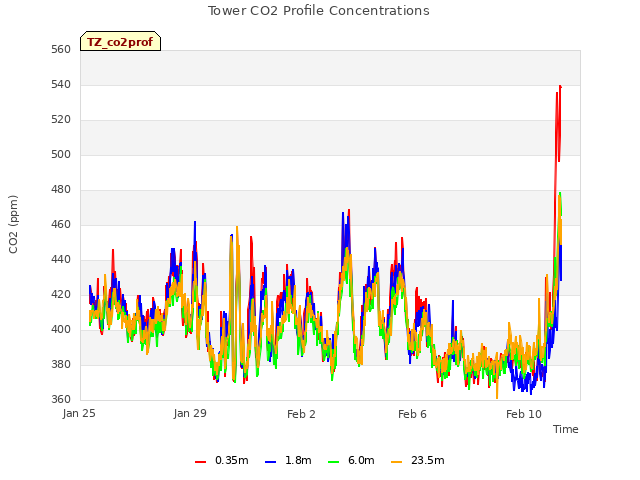

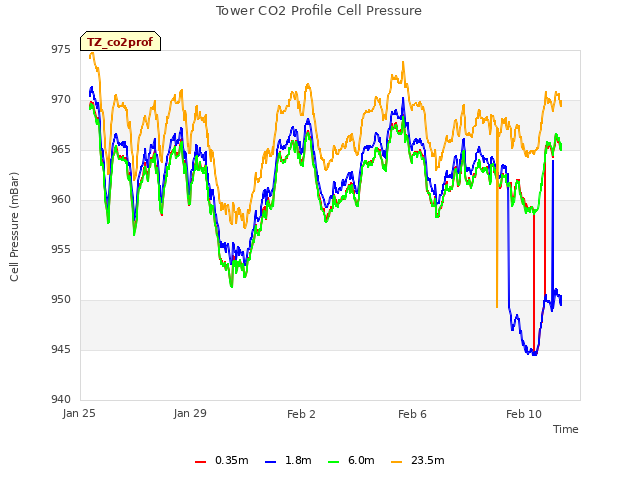

I rearranged the railing at the top of the tower so the radiation boom folds better. I replaced the filters in all of the CO2 profile inlets. The top on was not as dirty as the lower ones. The second inlet filter from the bottom was loose and had some water in it. I need to order a new CO2 tank for the profile system. And I need to order some more filters.

I serviced the z-cams.

I fixed some of the wires on the main tower fence removing the major patches and leaving some spare wire in the plastic tool box.

Cows got inside the floor fence. Siyan fixed the fence and I found no damage.

I found the CF card that Siyan dropped from the tower top weeks ago.

The IRGAs had water drops on their windows. I cleaned them off.

Tower computer is running out of disk space. I remove 2009 data, started zipping 2010 data and removed old Phenocam images.

Field Data

No tank data

Well Depth

Date	Location	Depth (feet)
2014-02-10	TZ_floor	32.4
2014-02-10	TZ_road	42.1
2014-02-10	TZ_tower	38.2

mode = both

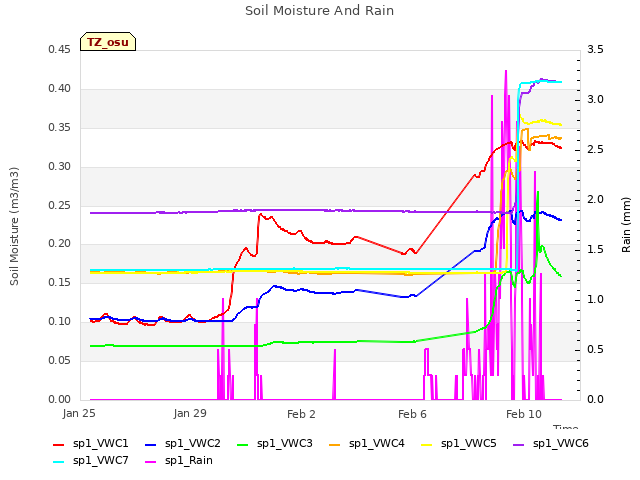

Moisture Point Probes TZ
Array ( [0] => Tower_1 [1] => Floor_South_1 [2] => Floor_East_1 [3] => Floor_West_1 [4] => SoilCO2_1 [5] => Soil_Transect_4_1 [6] => Soil_Transect_3_1 [7] => Soil_Transect_2_1 [8] => Soil_Transect_1_1 [9] => SoilCO2_West_A_1 [10] => SoilCO2_West_B_1 [11] => SoilCO2_West_C_1 [12] => Tower_2 [13] => Floor_South_2 [14] => Floor_East_2 [15] => Floor_West_2 [16] => SoilCO2_2 [17] => Soil_Transect_4_2 [18] => Soil_Transect_3_2 [19] => Soil_Transect_2_2 [20] => Soil_Transect_1_2 [21] => SoilCO2_West_A_2 [22] => SoilCO2_West_B_2 [23] => SoilCO2_West_C_2 [24] => Tower_3 [25] => Floor_South_3 [26] => Floor_East_3 [27] => Floor_West_3 [28] => SoilCO2_3 [29] => Soil_Transect_4_3 [30] => Soil_Transect_3_3 [31] => Soil_Transect_2_3 [32] => Soil_Transect_1_3 [33] => SoilCO2_West_A_3 [34] => SoilCO2_West_B_3 [35] => SoilCO2_West_C_3 [36] => Tower_4 [37] => Floor_South_4 [38] => Floor_East_4 [39] => Floor_West_4 [40] => SoilCO2_4 [41] => Soil_Transect_4_4 [42] => Soil_Transect_3_4 [43] => Soil_Transect_2_4 [44] => Soil_Transect_1_4 [45] => SoilCO2_West_A_4 [46] => SoilCO2_West_B_4 [47] => SoilCO2_West_C_4 )

0000

Date	DOY	Rep	Depth	Tower_1	Floor_South_1	Floor_East_1	Floor_West_1	SoilCO2_1	Soil_Transect_4_1	Soil_Transect_3_1	Soil_Transect_2_1	Soil_Transect_1_1	SoilCO2_West_A_1	SoilCO2_West_B_1	SoilCO2_West_C_1	Tower_2	Floor_South_2	Floor_East_2	Floor_West_2	SoilCO2_2	Soil_Transect_4_2	Soil_Transect_3_2	Soil_Transect_2_2	Soil_Transect_1_2	SoilCO2_West_A_2	SoilCO2_West_B_2	SoilCO2_West_C_2	Tower_3	Floor_South_3	Floor_East_3	Floor_West_3	SoilCO2_3	Soil_Transect_4_3	Soil_Transect_3_3	Soil_Transect_2_3	Soil_Transect_1_3	SoilCO2_West_A_3	SoilCO2_West_B_3	SoilCO2_West_C_3	Tower_4	Floor_South_4	Floor_East_4	Floor_West_4	SoilCO2_4	Soil_Transect_4_4	Soil_Transect_3_4	Soil_Transect_2_4	Soil_Transect_1_4	SoilCO2_West_A_4	SoilCO2_West_B_4	SoilCO2_West_C_4	Spacial Count
2014-02-10	41	0	nan	36.4	30.5	44.9	11.1	44.9	27.3	26.4	23.8	26.7	33.5	29.7	28.8	35.9	40.2	36.2	26.5	33.5	42.8	31.9	34.1	16.7	27.4	34.7	36.5	38.5	43.8	41.9	34.9	39.4	35.7	35.4	32.4	34.1	37.1	34.1	36	41.4	43.4	52	11.1	30.5	34	40.5	45.7	14.2	44	50.3	48.8
2014-02-10	41	1	nan	36.7	30.2	50.2	32.4	43.1	29.7	27.6	25.6	27.6	33.2	28.8	28.5	36.5	39.9	46.2	42.6	34.4	40.8	33.5	33.5	16.1	27.1	35.3	36.8	37.7	43	44.9	46.5	39.4	35.4	32.9	32.7	34.1	36.8	35.4	35.7	41.4	44.3	52.9	11.1	31.4	34.2	45.1	44.8	13.3	41.7	48.8	48.6
2014-02-10	41	2	nan				31.8												33.8												40.2												11.1
2014-02-10	41	Avg	0-15cm																																																	0
2014-02-10	41	Avg	15-30cm																																																	0
2014-02-10	41	Avg	30-45cm																																																	0
2014-02-10	41	Avg	45-60cm																																																	0

mode = both
Moisture Point Probes VR
Array ( [0] => Solar_Panels_1 [1] => Flux_Tower_1 [2] => Gate_1 [3] => Biomass_Cage_1 [4] => Solar_Panels_2 [5] => Flux_Tower_2 [6] => Gate_2 [7] => Biomass_Cage_2 [8] => Solar_Panels_3 [9] => Flux_Tower_3 [10] => Gate_3 [11] => Biomass_Cage_3 [12] => Solar_Panels_4 [13] => Flux_Tower_4 [14] => Gate_4 [15] => Biomass_Cage_4 )

0000

Date	DOY	Rep	Depth	Solar_Panels_1	Flux_Tower_1	Gate_1	Biomass_Cage_1	Solar_Panels_2	Flux_Tower_2	Gate_2	Biomass_Cage_2	Solar_Panels_3	Flux_Tower_3	Gate_3	Biomass_Cage_3	Solar_Panels_4	Flux_Tower_4	Gate_4	Biomass_Cage_4	Spacial Count
2014-02-10	41	0	nan	33.2	29.4	20.6	11.2	33.2	30.7	42.5	28.6	34.2	12.9	42.1	33.5	43.2	31.4	30.5	32.5
2014-02-10	41	1	nan	33.2	29.1	23.5	10.6	32.6	30.7	35.3	28.9	32.7	12.8	39.4	32.7	42.8	30.5	37.7	32.8
2014-02-10	41	Avg	0-15cm																	0
2014-02-10	41	Avg	15-30cm																	0
2014-02-10	41	Avg	30-45cm																	0
2014-02-10	41	Avg	45-60cm																	0

No TZ grass heigth found

No VR grass heigth found

Tree DBH

Date	Tag#	Reading (mm)
2014-02-10	2	19.4
2014-02-10	3	21.5
2014-02-10	4	3
2014-02-10	5	25.5
2014-02-10	7	19.4
2014-02-10	72	16.5
2014-02-10	79	22.2
2014-02-10	8	9.7

No water potential data found

Biomass TZ Grass

Date	rep	AREA (cm2)	LEAFAREA (cm2)	Green WETWT (g)	Green DRYWT (g)	LAI (m2/m2)	Green WETWT/AREA (g/m2)	Green DRYWT/AREA (g/m2)	Brown WETWT/AREA (g/m2)	Brown DRYWT/AREA (g/m2)
2014-02-10	0	400	59	1.11	0.32	0.15	188.14	54.24	0	0
2014-02-10	1	400	120	1.57	0.48	0.3	130.83	40	0	0
2014-02-10	2	400	54	0.68	0.2	0.14	125.93	37.04	0	0
2014-02-10	SUM
2014-02-10	CNT	3	3	3	3	3	3	3
2014-02-10	AVG					0.2	148.3	43.76
