Tonzi: 2013-07-11 10:30:00 (DOY 192)
Author: Joe Verfaillie
Others: Siyan
Summary: Standard fieldwork, collected data including z-cams - previous Floor CR1000 card failed to format, tram okay, CO2 profile pump broken

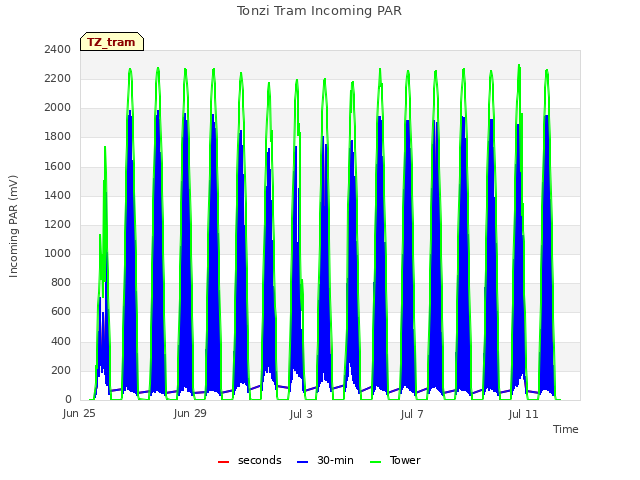

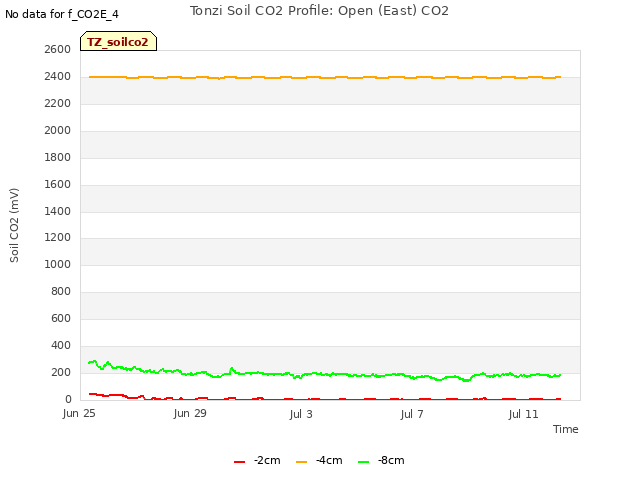

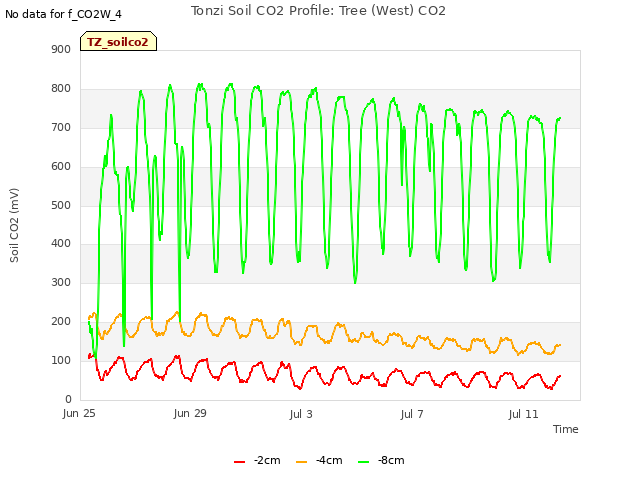

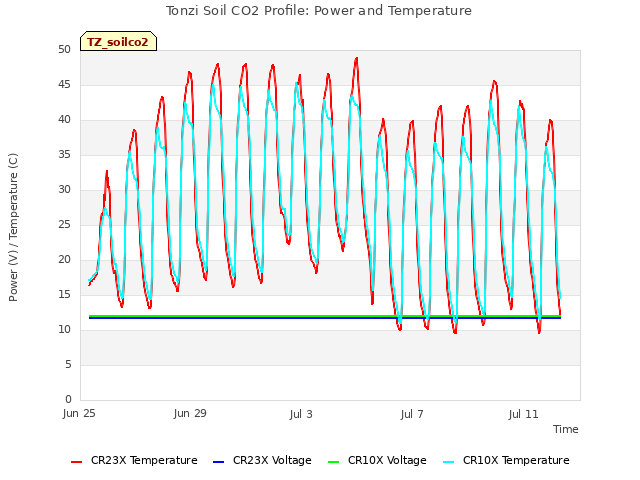

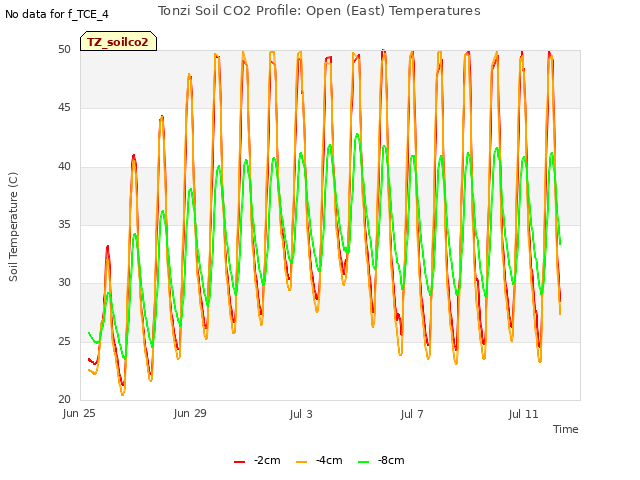

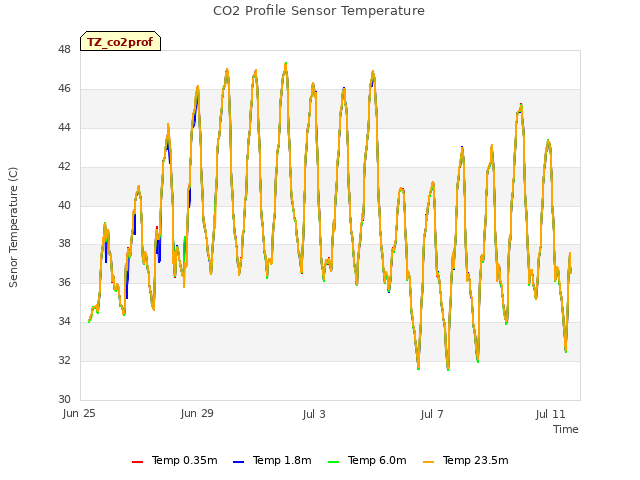

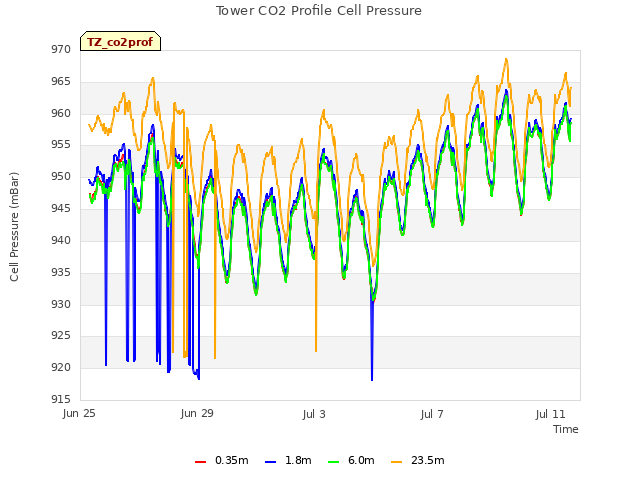

| Tonzi 2013-07-11 I arrived about 10:30 with Siyan. It was clear and hot with a breeze from the south southwest. Things look very dry with some trees turning brown and looking dead. The pond is as low as I have ever seen it. The tram was running just fine. The pump for the CO2 profile system had blown its diaphragm. I have a spare, but I should order a couple more and up one in the field for a quick swap. I pulled the old pump, unplugged the LI820 and unplugged the CR10x. I meant to bring two IRGAs to swap for calibration, but I forgot them in the lab. I serviced the z-cams and check their clocks before swapping cards. Camera 1 and 2 seem to be off 4 to 8 minutes, z-cam three seems to be within a minute. Ill unmounts them and reset the clocks next time. I also checked the times on the data loggers that control the cameras. The CR200 on z-cam 3 was 10 minutes fast. At 10:46 I reset it to 10:35. The CR10x on z-cams 1 and 2 was 18 minutes slow. At 10:56 I reset it to 11:14. I also unpowered the CR10X briefly while I removed the Licor PAR sensor that was idle in that box. I collected all data. The Floor CR1000 card failed to format, but data was still collected by winflux. I checked the card, found no problems and when I reinserted it in the CR1000 it formatted in 2 minutes working just fine. |
Field Data
No tank data

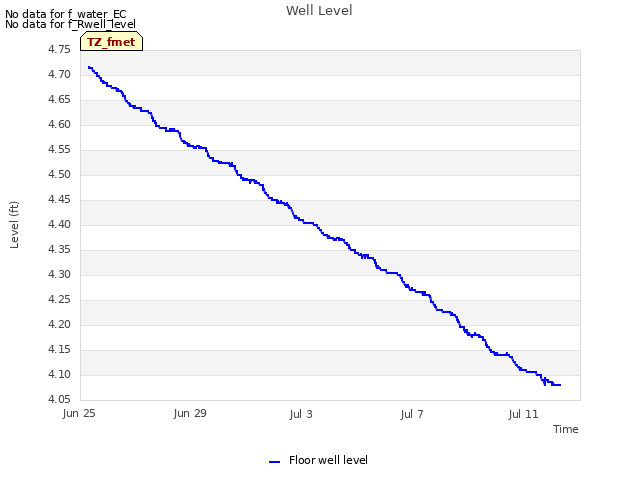

Well Depth
| Date | Location | Depth (feet) |
|---|---|---|
| 2013-07-11 | TZ_floor | 29 |
| 2013-07-11 | TZ_road | 38.5 |
| 2013-07-11 | TZ_tower | 33.7 |
No TZ Moisture Point data found
No VR Moisture Point data found
No TZ grass heigth found
No VR grass heigth found
Tree DBH
| Date | Tag# | Reading (mm) |
|---|---|---|
| 2013-07-11 | 1 | 25.1 |
| 2013-07-11 | 102 | 20 |
| 2013-07-11 | 2 | 18.1 |
| 2013-07-11 | 245 | 13.4 |
| 2013-07-11 | 3 | 20 |
| 2013-07-11 | 5 | 24.6 |
| 2013-07-11 | 72 | 15.2 |
| 2013-07-11 | 79 | 17 |
Water Potential - mode: raw
| Time< h> | Species | Tree | readings (bar) | |||||
|---|---|---|---|---|---|---|---|---|
| 2013-07-11 12:00:00 | OAK | 102 | -46 | -37.5 | -29 | |||
| 2013-07-11 12:00:00 | OAK | 35 | -37.5 | -30 | -37 | |||
| 2013-07-11 12:00:00 | OAK | 92 | -30 | -32 | -34 | |||
| 2013-07-11 12:00:00 | PINE | OLD | -6 | -21 | -4.5 | -20 | -14 | |
| 2013-07-11 12:00:00 | PINE | YNG | -3 | -1 | -5 | -8.5 | -3 | -5 |
