Tonzi: 2013-07-28 10:30:00 (DOY 209)
Author: Siyan Ma
Others:

Summary: Standard field work, swapped IRGAs at Tower and Floor, did not collect data at VR other than CR1000, replaced co2 profile pump, replaced HMP45 fan at VR


When: Date: 7/28/2013 , Day: 209 , Watch Time: 10:30 am .
Where: Tonzi/Vaira Ranch
Who: Siyan
Weather: clear, sunny
Phenology: golden grassland; dark green oak leaves; no cows around.

Dead grass and green trees near soil co2 siteGreen plant in dead grass
The water hole is drydead grass and green trees at Vaira

Summary
  1. Swap IRGAs at Tonzi Tower and Floor.
  2. Checked and downloaded data from PC at Tower, Floor.
  3. I did not download met data at Vaira because I was not sure what to do. So, I decided it’d better not to touch.
  4. Swapped memory cards of CR1000s at three sites. For each one, I made sure that the red LED light on the CR1000 was blinking once a second when I left.
  5. Replaced the dead fan of HMP45. Took one layer off from the enclosure in order to screw in the top one.
  6. Put on new pump for the CO2 profile system, and it ran well. I couldn’t do calibration because the software refused to connect to Li820. (see screen shots)
  7. Read dendrometers
  8. Measured soil moisture
  9. Measure groundwater well:

Date
DOY
Location
Depth without the black thing (feet)

7/28/2013
209
Floor
29.7



Tower
34.25



Road
38.05

Vaira_Grass Site
  1. Fence and gate power: 12 v.
  2. Panel and Batteries: - v; - amps; - amps.
  3. I did not download met data at Vaira because I was not sure what to do. So, I decided it’d better not to touch.
  4. Swapped memory card of CR1000s at three sites. The red LED light on the CR1000 was blinking once a second when I left.
  5. Replaced the dead fan of HMP45. I dropped the screw that holds HMP45 on the pole. I had to unscrew one in the PC enclosure for the temporal use. I also dropped the caps for electronic connection, and use tapes for connecting wires. I took one layer off from the sensor enclosure in order to screw in the tope one. The layer was left on the top of the datalogger enclosure.
  6. Check levels of Radiation sensors, clear up surfaces.YES!
  7. Check rain gage, make sure not clogged. YES!
  8. Closed gate and set up fence. YES!

Tonzi_Tower Site

  1. Fence and gate power: 12 v.
  2. Panel and Batteries: - v; - amps; - amps.
  3. Reading from Gillsonic screen before downloading data. (The value of H2O and CO2 should be in the range of 0 – 5 v.)

Tower Gill sonic plots screen before downloading data
Screen shot of tower flux data logger table
  1. downloading data from PC.
  2. Swapped the memory cards of CR1000. The red LED light on the CR1000 was blinking once a second when I left.

Screen shot of tower flux data logger status window
  1. Swapped IRGA: on 73, off 418.
  2. check the fans of air temp. and relative humidity sensors on the tower and the floor. YES!
  3. Check rain gage, make sure not clogged. YES!
  4. Check calibration cylinders;

CO2 1400 psig; flow 10 psi; 404.02 ppm.
N2 1900 psig; flow 10 psi.
  1. Put on new pump for the CO2 profile system, and it ran well. I couldn’t do calibration because the software refused to connect to Li820. (see screen shots)

Screen shot of Li-800 communications failure
Screen shot of Li-800 calibration pre-cal
Giving N2: 3ppm offset from zero
Screen shot of Li-800 before new pump
Giving standard CO2 404.02ppm: ~8ppm offset.
Screen shot of Li-800 after new pump
  1. close gate and set up fence. YES!

Toniz_Floor Site
  1. Fence and gate power: 12 v.
  2. Panel and Batteries: - v; - amps; - amps.
  3. Reading from Gillsonic screen before downloading data. (The value of H2O and CO2 should be in the range of 0 – 5 v.)

Floor Gill sonic plots screen before downloading data
Screen shot of floor flux data logger table
  1. downloading data from PC. YES!
  2. Swapped the memory cards of CR1000.

Screen shot of floor flux data logger status window
  1. Swapped IRGA: on 41, off 1594.
  2. Check MD-9 system connections YES!

Screen shot of floor met data logger table
Screen shot of soil co2 data logger table
Screen shot of tower met data logger table
Screen shot of sap flow data logger table
  1. Close gate and set up fence. YES!

Tonzi



Dendrometer






Date
Day
Tag #
Reading (mm)

2/27/2013
58
1
25.1



2
17.8



3
20.4



4
4



5
24.6



7
17.2



8
8.5



72
15.1



79
17.1



102
19.9



245
13.2

Field Data

No tank data

Well Depth

DateLocationDepth (feet)
2013-07-28TZ_floor29.7
2013-07-28TZ_road38.5
2013-07-28TZ_tower34.25

No TZ Moisture Point data found

No VR Moisture Point data found

No TZ grass heigth found

No VR grass heigth found

Tree DBH

DateTag#Reading (mm)
2013-07-28125.1
2013-07-2810219.9
2013-07-28217.8
2013-07-2824513.2
2013-07-28320.4
2013-07-2844
2013-07-28524.6
2013-07-28717.2
2013-07-287215.1
2013-07-287917.1
2013-07-2888.5

No water potential data found

No TZ Grass Biomass data found

No TZ OakLeaves Biomass data found

No TZ PineNeedles Biomass data found

0 photos found

Graphs display:
16 sets found

No data found for TZ_Fenergy.
11 TZ_tmet graphs found

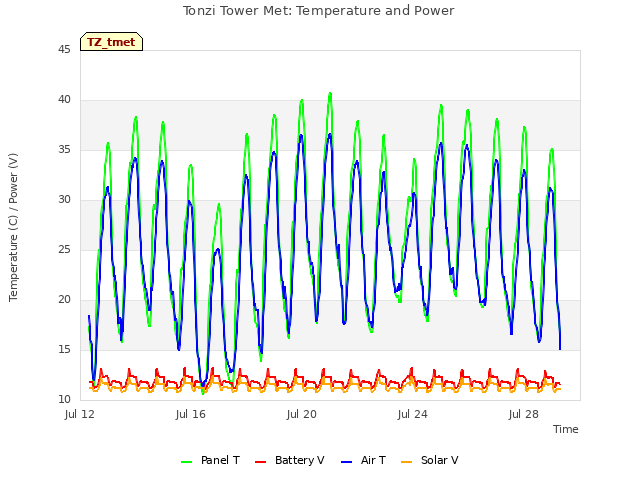

Explore the graph:Tonzi Tower Met: Temperature and Power in a new window

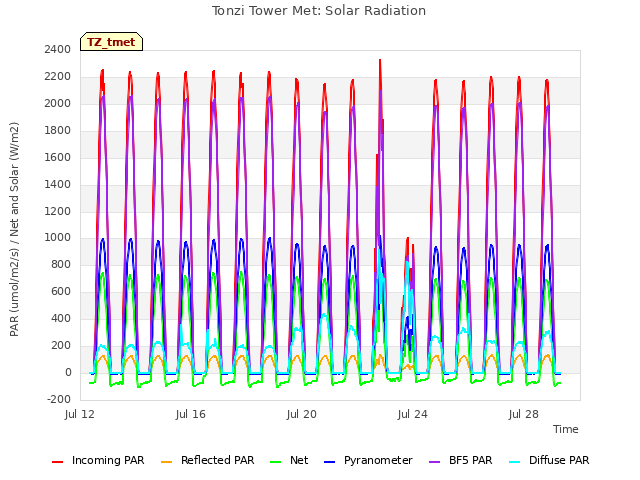

Explore the graph:Tonzi Tower Met: Solar Radiation in a new window

Explore the graph:Tonzi Tower Met: IRT Sensors in a new window

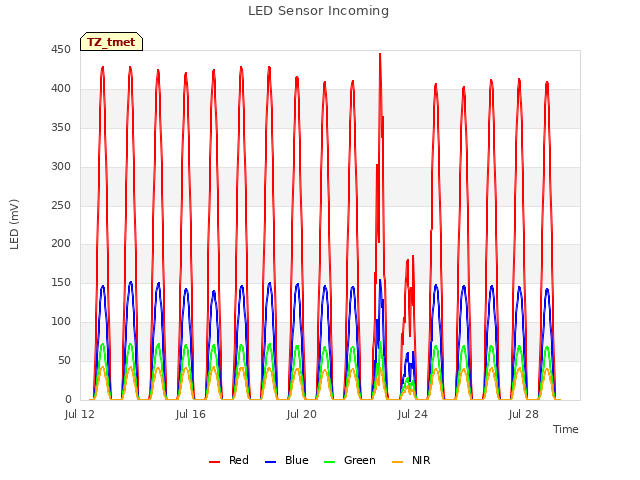

Explore the graph:LED Sensor Incoming in a new window

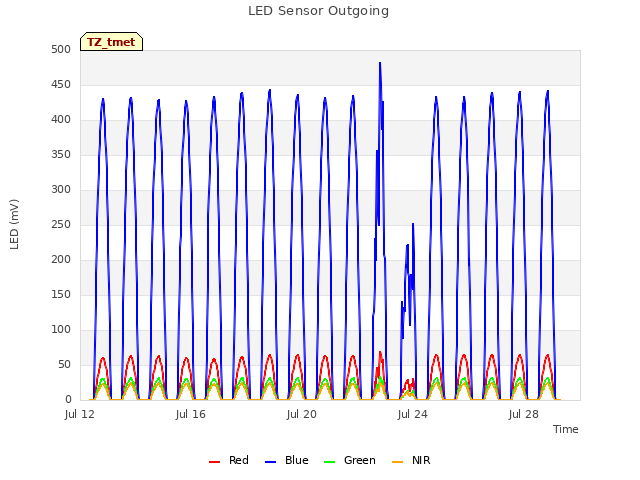

Explore the graph:LED Sensor Outgoing in a new window

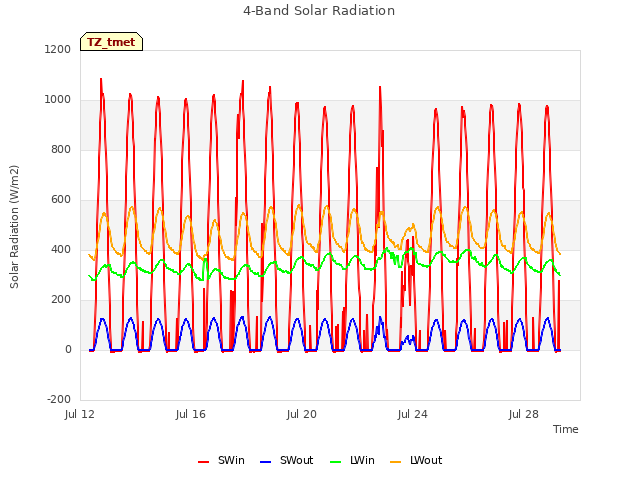

Explore the graph:4-Band Solar Radiation in a new window

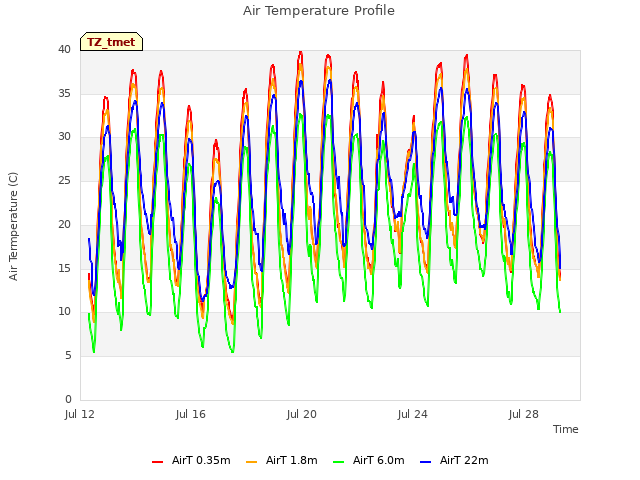

Explore the graph:Air Temperature Profile in a new window

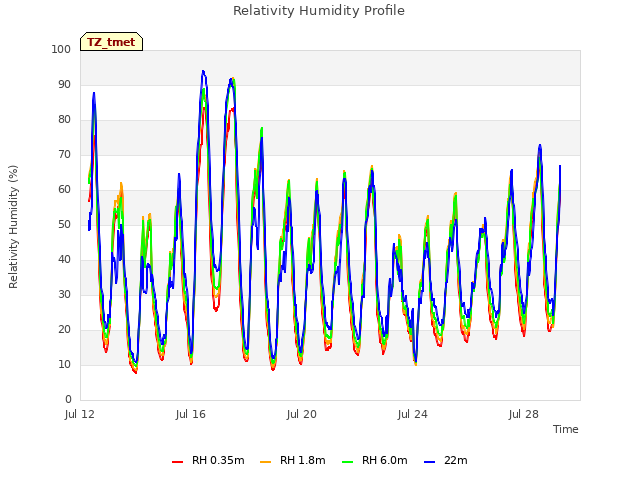

Explore the graph:Relativity Humidity Profile in a new window

Explore the graph:Tonzi Tower PRI in a new window

Explore the graph:SRS PRI/NDVI in a new window

Explore the graph:SRS NDVI in a new window

11 TZ_soilco2 graphs found

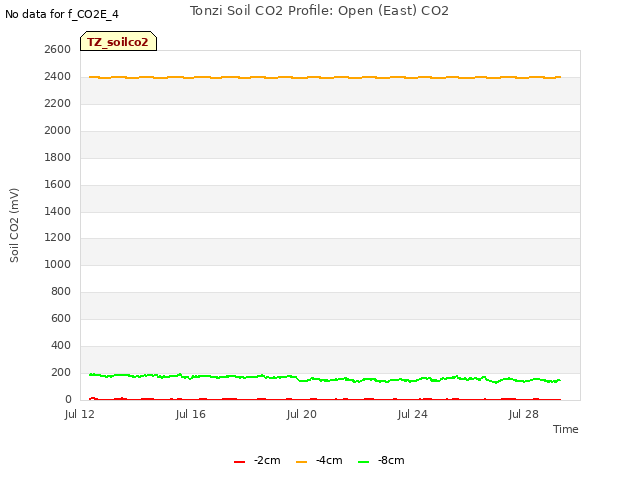

Explore the graph:Tonzi Soil CO2 Profile: Open (East) CO2 in a new window

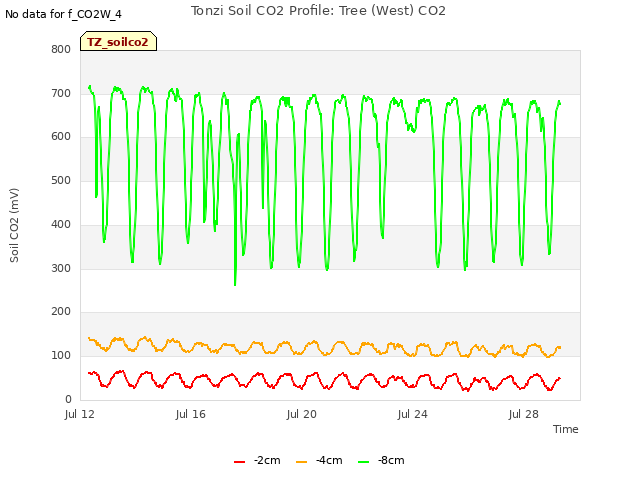

Explore the graph:Tonzi Soil CO2 Profile: Tree (West) CO2 in a new window

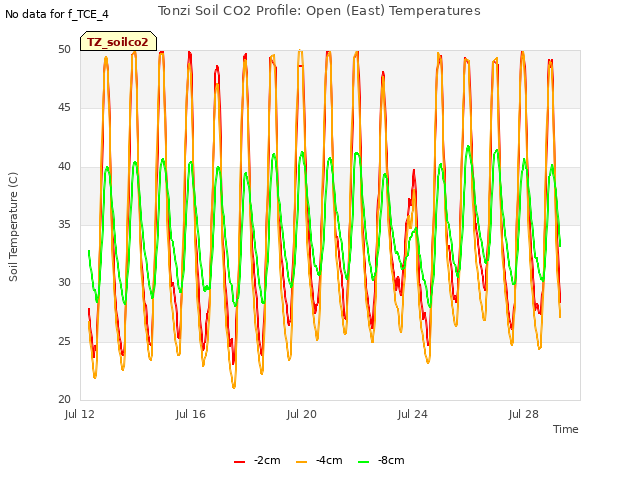

Explore the graph:Tonzi Soil CO2 Profile: Open (East) Temperatures in a new window

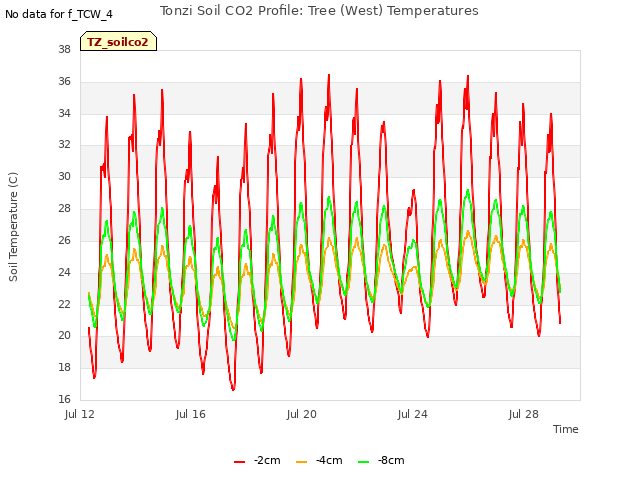

Explore the graph:Tonzi Soil CO2 Profile: Tree (West) Temperatures in a new window

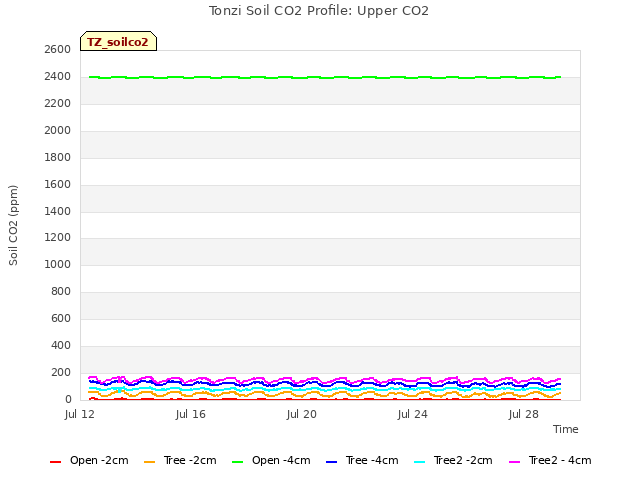

Explore the graph:Tonzi Soil CO2 Profile: Upper CO2 in a new window

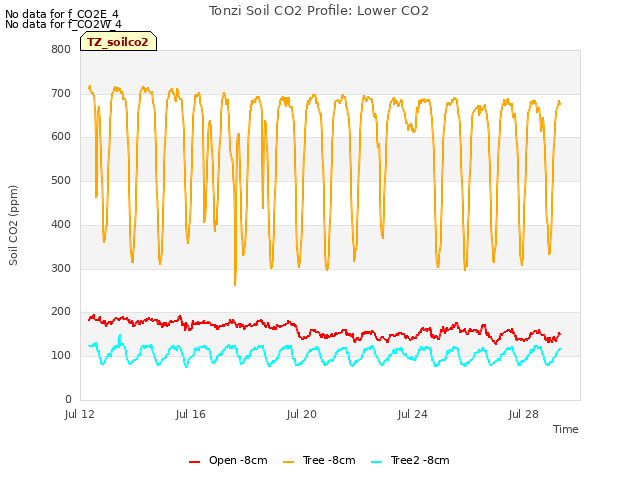

Explore the graph:Tonzi Soil CO2 Profile: Lower CO2 in a new window

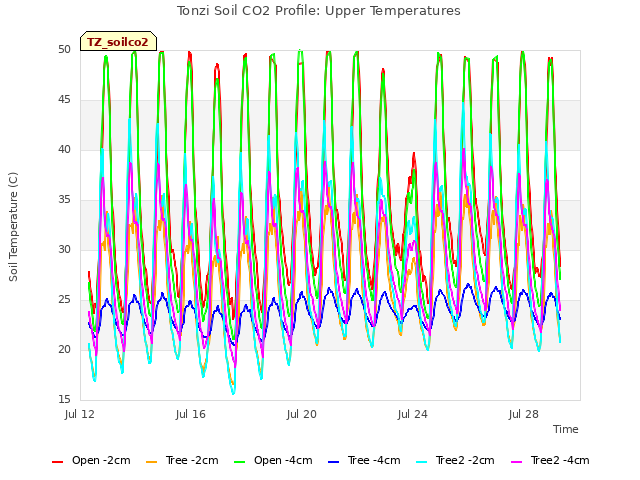

Explore the graph:Tonzi Soil CO2 Profile: Upper Temperatures in a new window

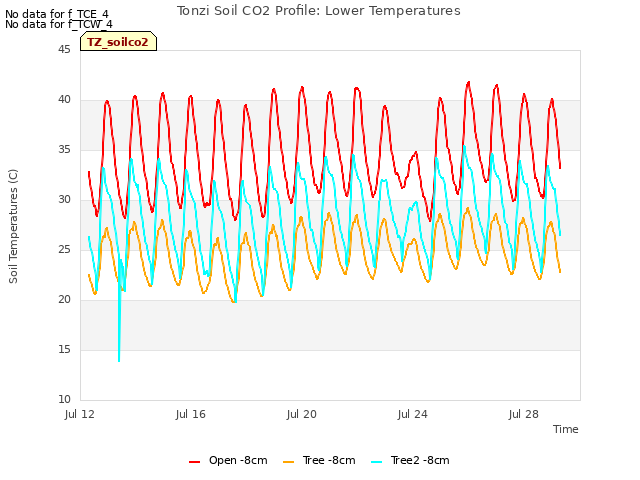

Explore the graph:Tonzi Soil CO2 Profile: Lower Temperatures in a new window

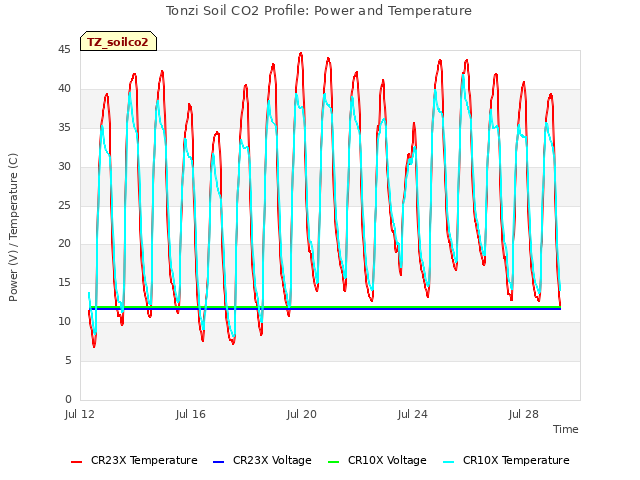

Explore the graph:Tonzi Soil CO2 Profile: Power and Temperature in a new window

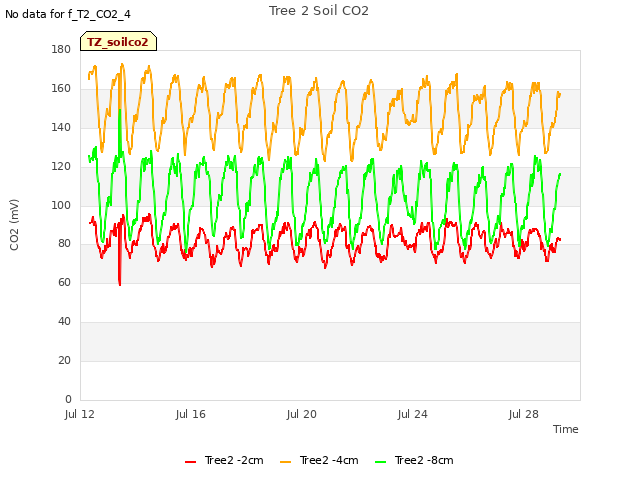

Explore the graph:Tree 2 Soil CO2 in a new window

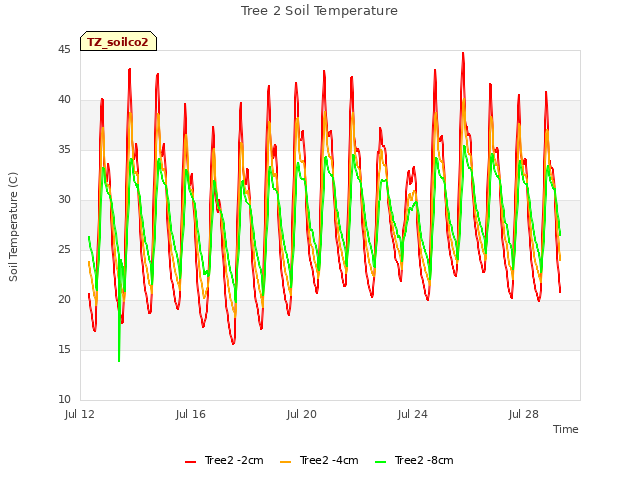

Explore the graph:Tree 2 Soil Temperature in a new window

Can't check TZ_mixed
3 TZ_mixed graphs found

Explore the graph:Tonzi PPT in a new window

Explore the graph:Tonzi CO2 and H2O Densities in a new window

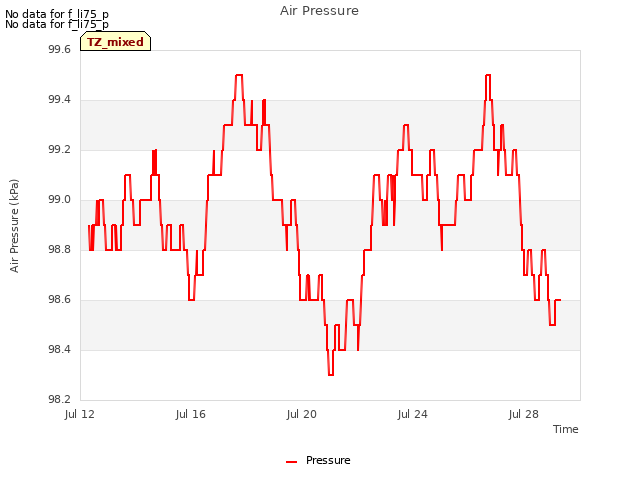

Explore the graph:Air Pressure in a new window

1 TZ_fflux graphs found

Explore the graph:Tonzi Wind Speed in a new window

8 TZ_fmet graphs found

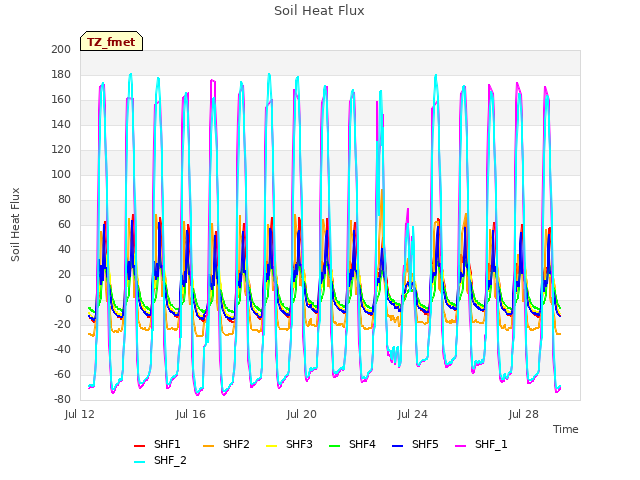

Explore the graph:Soil Heat Flux in a new window

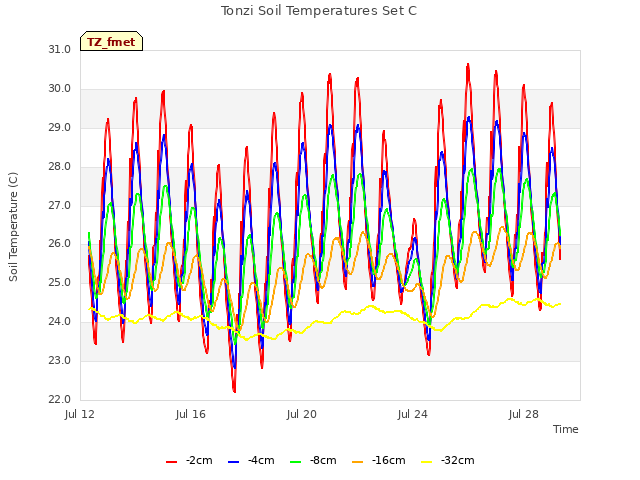

Explore the graph:Tonzi Soil Temperature Set A in a new window

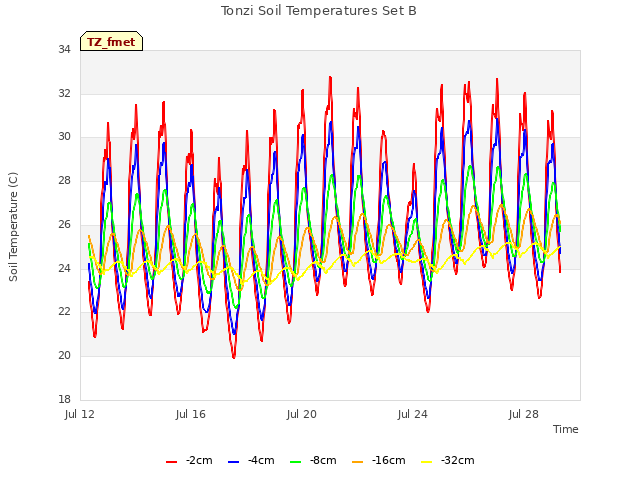

Explore the graph:Tonzi Soil Temperatures Set B in a new window

Explore the graph:Tonzi Soil Temperatures Set C in a new window

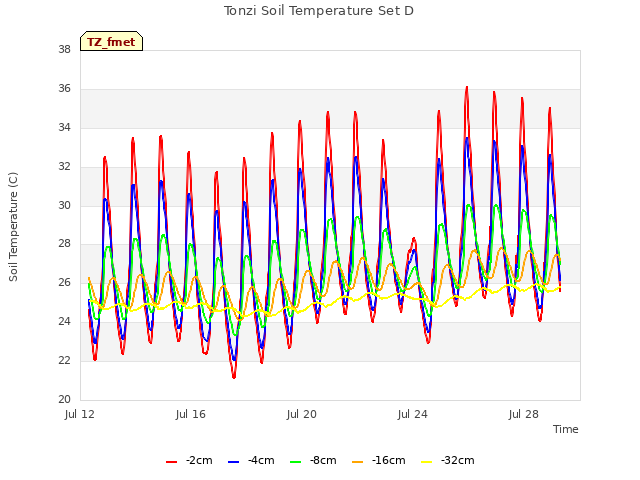

Explore the graph:Tonzi Soil Temperature Set D in a new window

Explore the graph:Well Level in a new window

Explore the graph:Well Water Temperature in a new window

Explore the graph:Soil Water Potential in a new window

1 TZ_tram graphs found

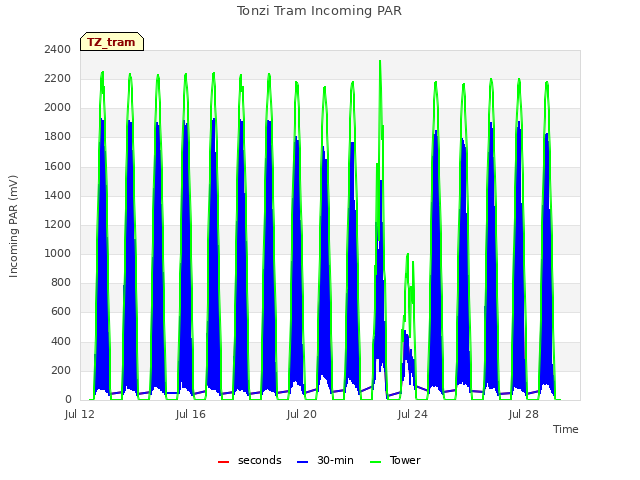

Explore the graph:Tonzi Tram Incoming PAR in a new window

3 TZ_co2prof graphs found

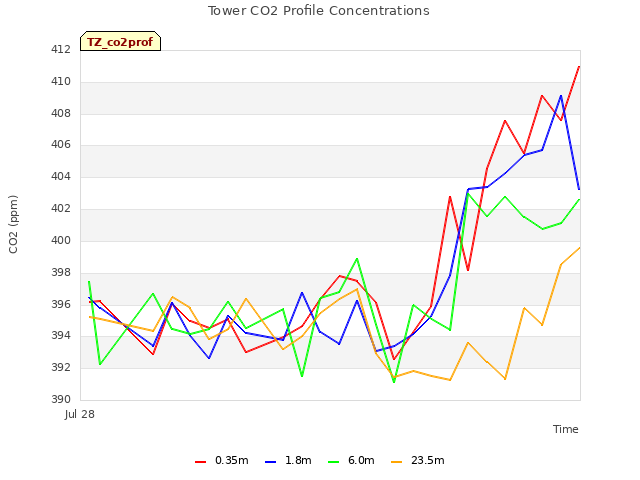

Explore the graph:Tower CO2 Profile Concentrations in a new window

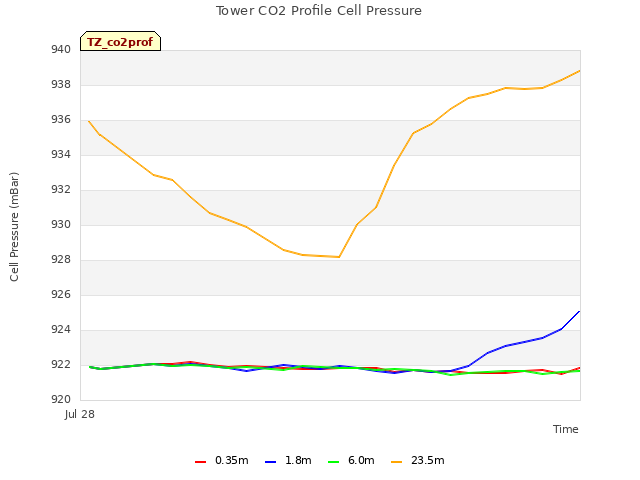

Explore the graph:Tower CO2 Profile Cell Pressure in a new window

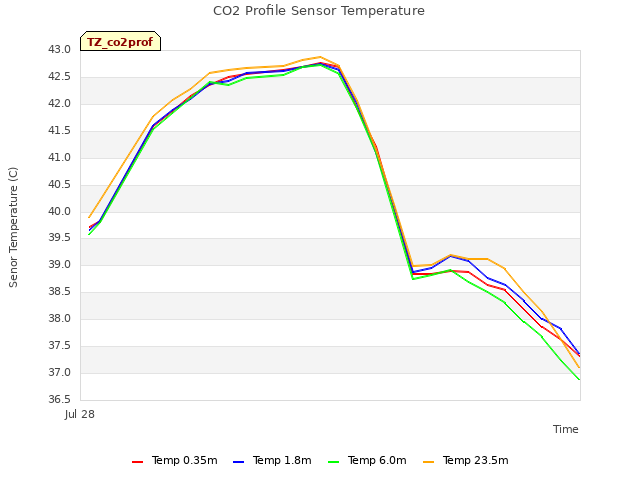

Explore the graph:CO2 Profile Sensor Temperature in a new window

No data found for TZ_irt.
No data found for TZ_windprof.
1 TZ_tflux graphs found

Explore the graph:Tower CO2 and H2O in a new window

2 TZ_sm graphs found

Explore the graph:Floor Solar Radiations in a new window

Explore the graph:TZ Soil Moisture in a new window

Can't check TZ_met
1 TZ_met graphs found

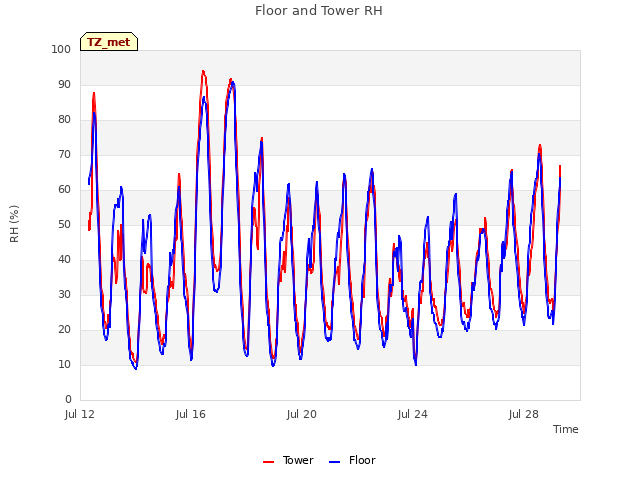

Explore the graph:Floor and Tower RH in a new window

Can't check TZVR_mixed
8 TZ_osu graphs found

Explore the graph:Soil Moisture And Rain in a new window

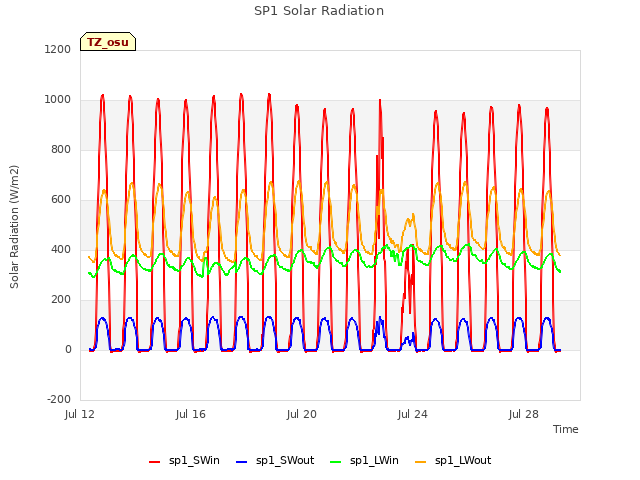

Explore the graph:SP1 Solar Radiation in a new window

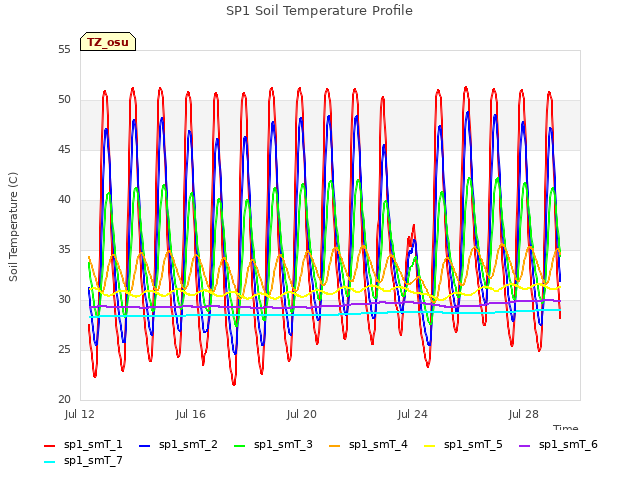

Explore the graph:SP1 Soil Temperature Profile in a new window

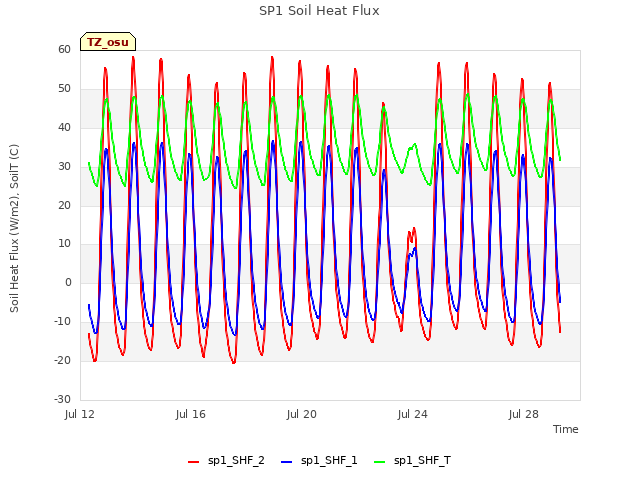

Explore the graph:SP1 Soil Heat Flux in a new window

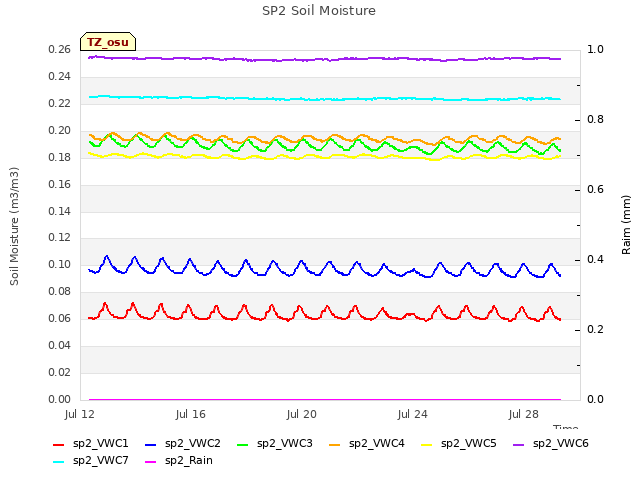

Explore the graph:SP2 Soil Moisture in a new window

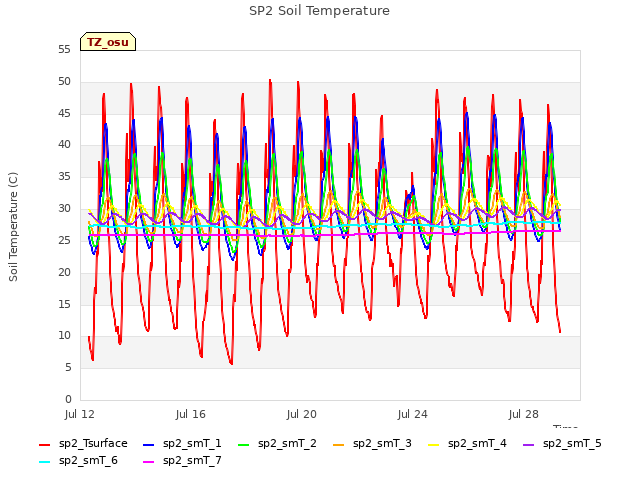

Explore the graph:SP2 Soil Temperature in a new window

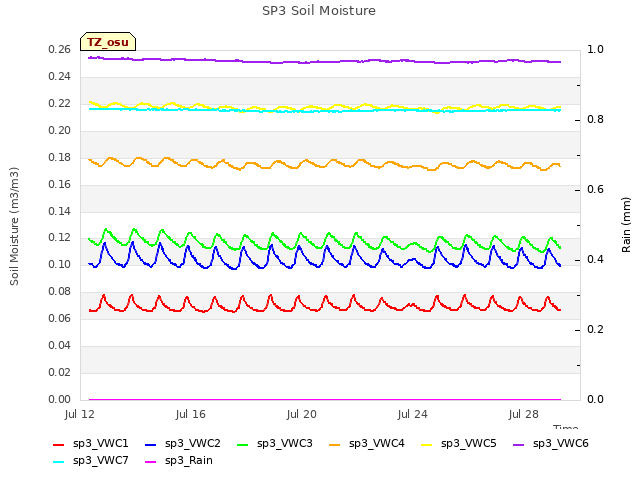

Explore the graph:SP3 Soil Moisture in a new window

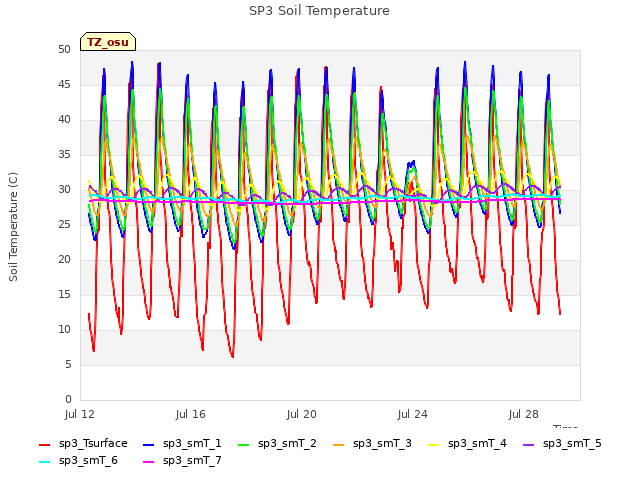

Explore the graph:SP3 Soil Temperature in a new window
