Vaira: 2013-05-15 10:00:00 (DOY 135)
Author: Joe Verfaillie
Others:
Summary: Swapped CR1000 with Raspberry Pi to collect phenocam photos.
| Vaira 2013-05-15 I arrived about 10:00PDT. It was mostly clear and sunny with a nice breeze and a few high, thin clouds. The grass is mostly yellow with a sprinkling of green here and there. The water hole is about half full. Over all it looks dry and dusty except for the trees. I removed the CR1000 (sn 47108 with NL115 6761) that was being used to collect images from the phenocam. I was able to recover about half the images lost last week when the USB stick they were on was broken before they could be transferred off. I also downloaded data from both data loggers for the same reason. I replaced the CR1000 with a Raspberry Pi. I changed the ftp settings on the Phenocam and it seemed to work just fine I saw one pair of images transferred. I still need to work on the Pi. I could not find an easy way to manually set the time, and having telnet available to talk to the Phenocam would be a good idea. And to disable daylight savings time. The Raspberry Pi is currently mounted where the old compute was mounted, but I think the regular folding and unfolding of the keyboard tray will wear out the cable connections. It might be better to mount it on the side of the box. |
Field Data
No tank data
No VR Well data found
No TZ Moisture Point data found
No VR Moisture Point data found
No TZ grass heigth found
No VR grass heigth found
No VR Tree DBH found
No water potential data found
No VR Grass Biomass data found
No VR OakLeaves Biomass data found
No VR PineNeedles Biomass data found
1 photos found
Joe on site
9 sets found

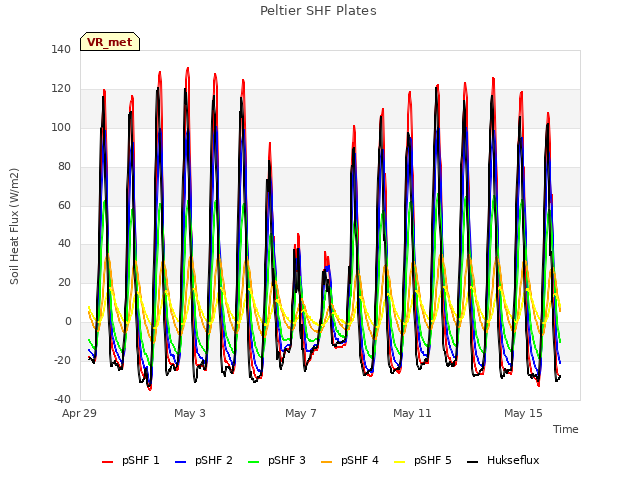

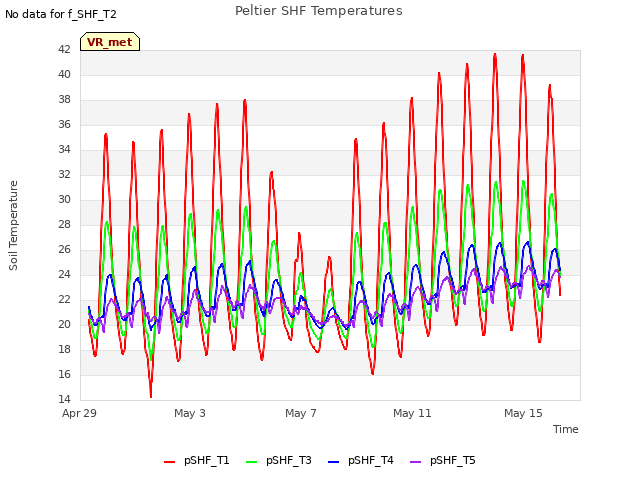

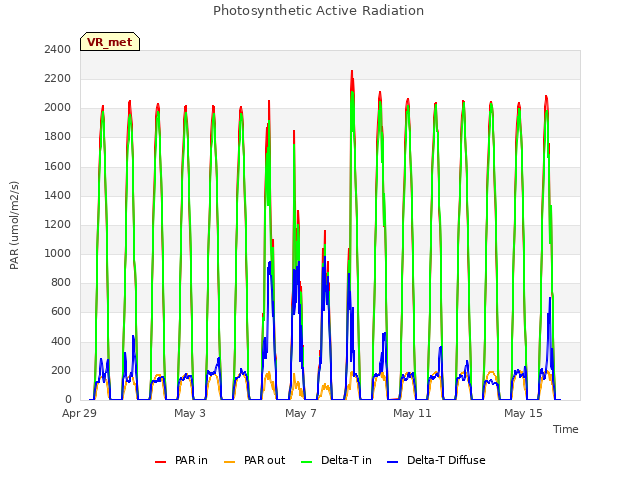

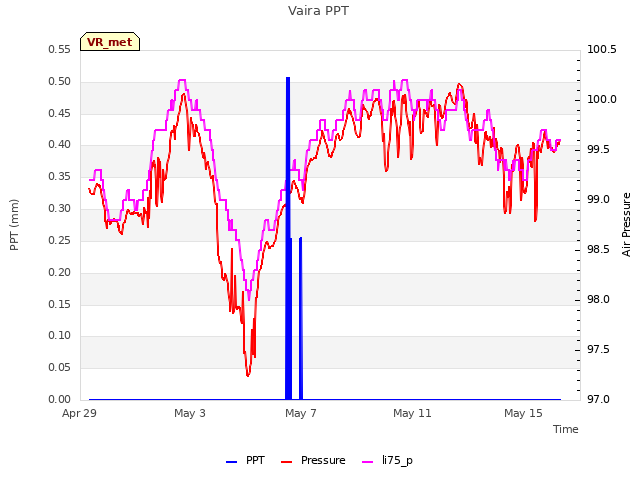

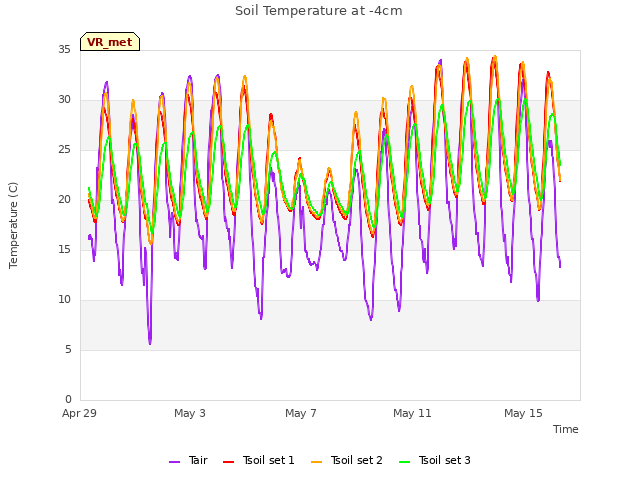

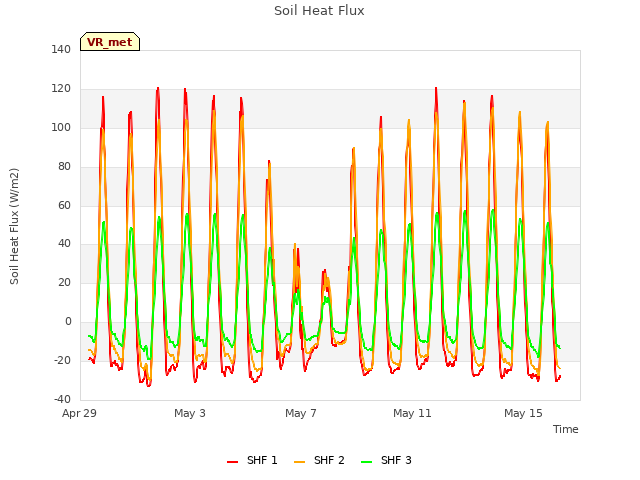

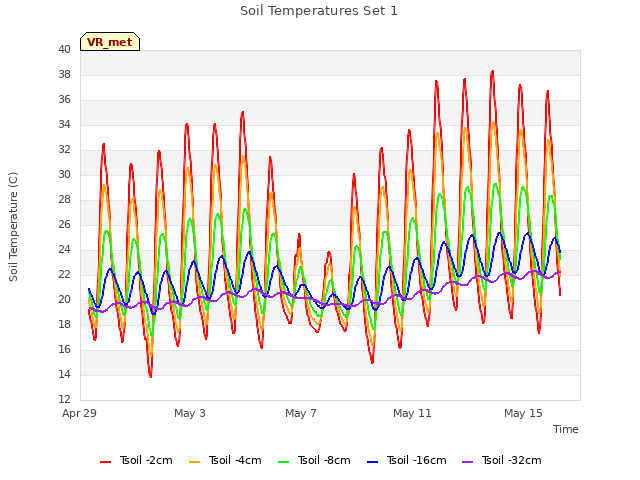

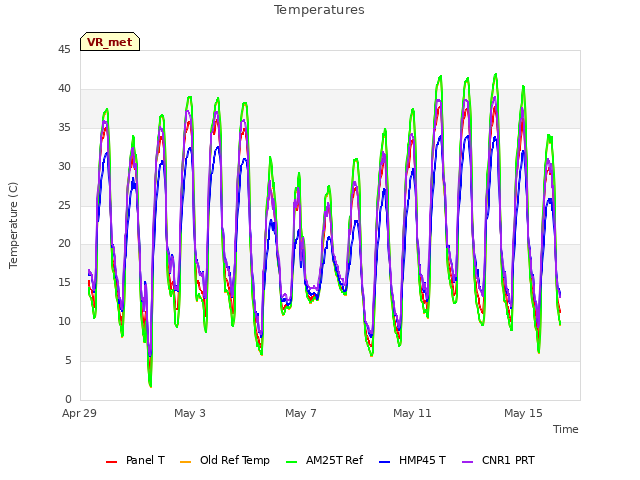

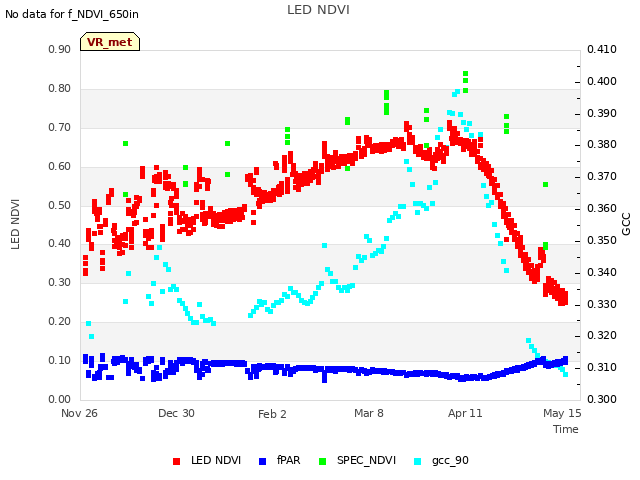

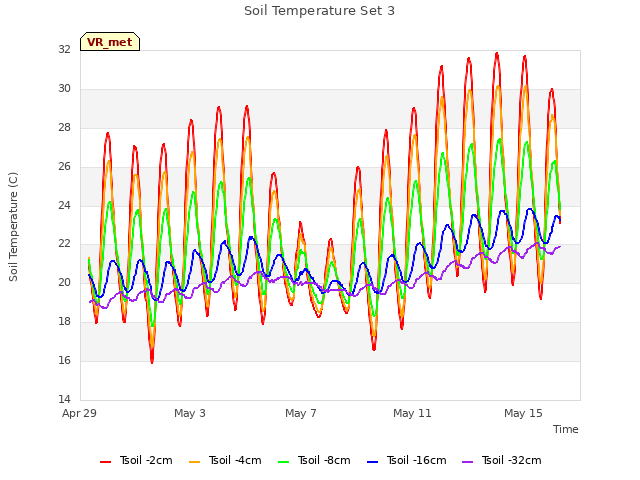

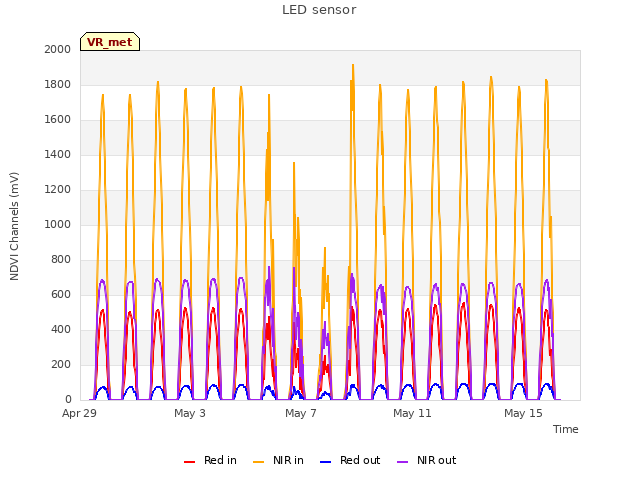

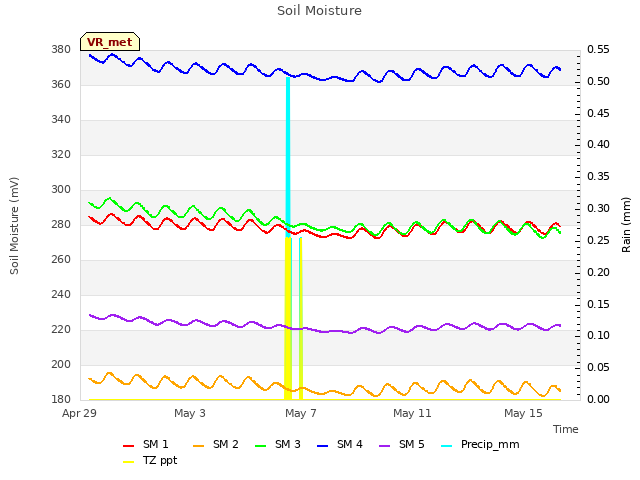

16 VR_met graphs found

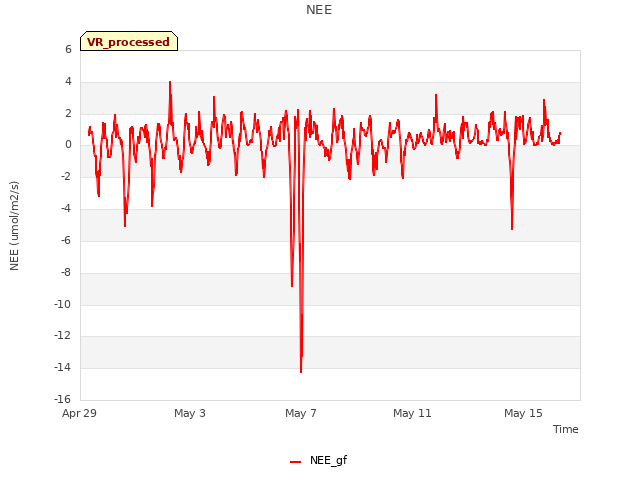

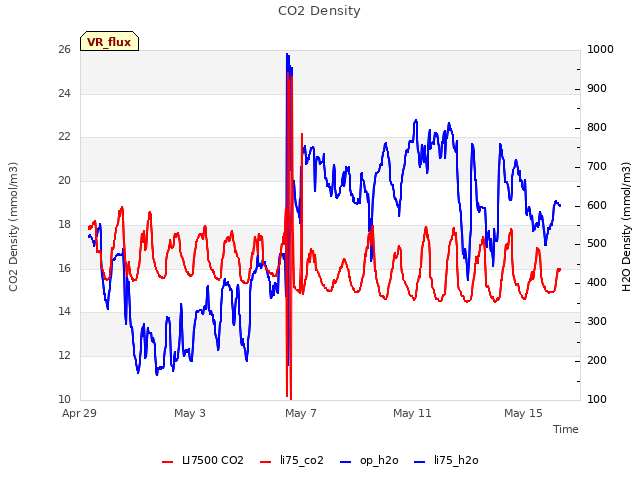

2 VR_flux graphs found

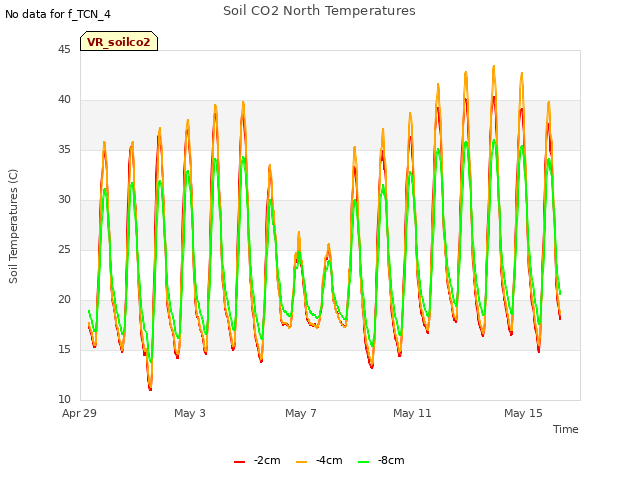

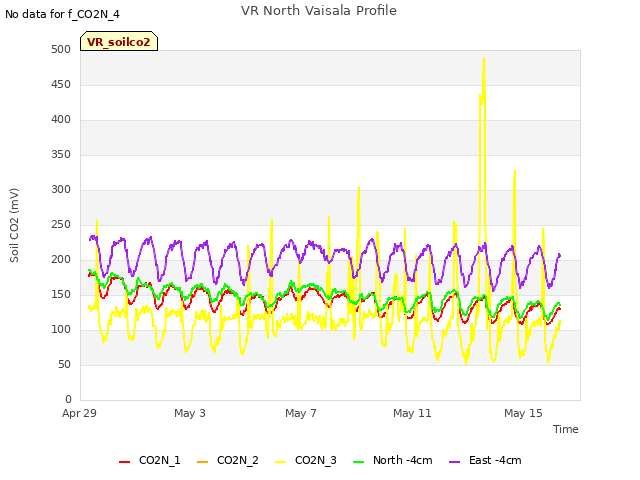

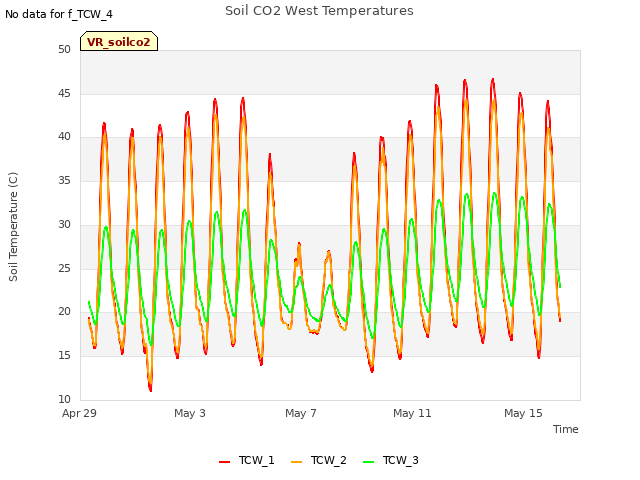

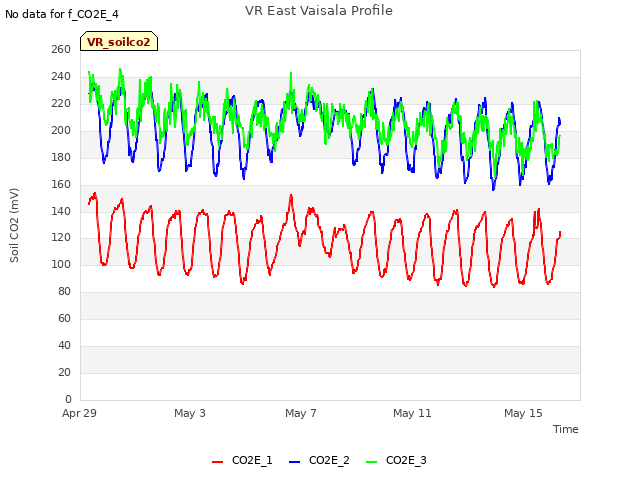

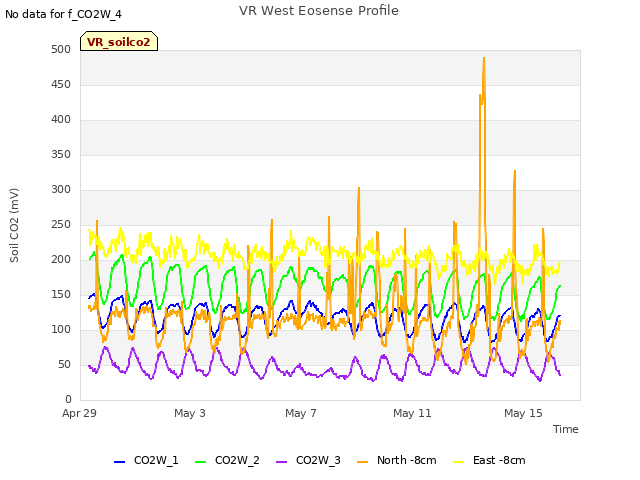

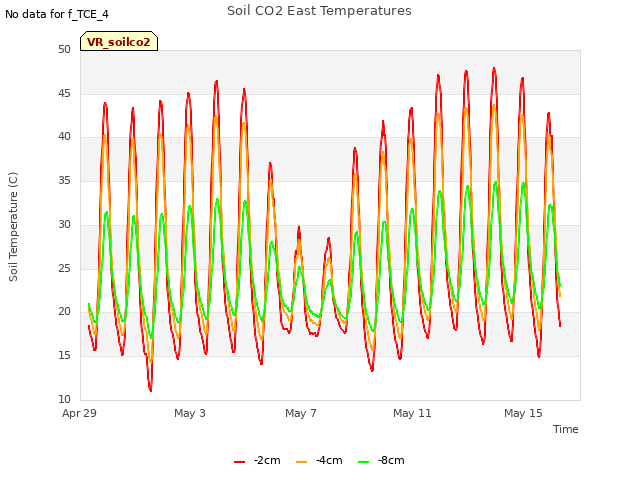

6 VR_soilco2 graphs found
No data found for VR_pond.
Can't check TZVR_mixed
No data found for VR_fd.
No data found for VR_processed.
No data found for VR_arable.
No data found for VR_soilvue.
