Tonzi: 2013-03-27 10:30:00 (DOY 86)
Author: Siyan Ma
Others: Joe, Dennis, Martin

Summary: Tram moved, standard fieldwork, LI800 far off scale, collected soil diffusion samples.


When: Date: 3/27/2013 , Day: 086 , Watch Time: 10:30 am .
Where: Tonzi/Vaira Ranch
Who: Siyan, Joe, Dennis, Martin
Weather: sunny, clouds
Phenology: green grasses; oak trees leaf-out; not see cows at both sites; met Mr. Toniz

Big tree beginning to put on leaves at TonziRadiometer tram and green grass

Summary
  1. Tram was moved to the cluster area of root sampling.
  2. Checked systems, downloaded data, and swap memory cards at Tower and Floor.
  3. Joe downloaded data at Vaira, and I swapped memory card from CR1000.
  4. Calibrated CO2 profile system; Zero and span seemed not stable. Zero offset was -148pm‌‌‌
  5. Collected soil samples for soil gas diffusion experiments.
  6. Collected grass and litter samples for grass LAI and litter dry weight.
  7. Read dendrometers
  8. Measured soil moisture
  9. Measure groundwater well:

Date
DOY
Location
Depth without the black thing (feet)

3/27/2013
86
Floor
26.47



Road
35.75



Tower
30.7




Vaira_Grass Site
  1. Fence and gate power: 12 v.
  2. Panel and Batteries: - v; - amps; - amps.
  3. Joe downloaded data at Vaira, and I swapped memory card from CR1000.

Screen shot of Vaira flux data logger table

Screen shot of Vaira met data logger table

Screen shot of Vaira soil co2 data logger table
  1. Check the fans of air temp and relative humidity sensors at Vaira. YES!
  2. Check levels of Radiation sensors, clear up surfaces.YES!
  3. Check rain gage, make sure not clogged. YES!
  4. Closed gate and set up fence. YES!
  5. Collected grass and litter samples for grass LAI and litter dry weight.

Tonzi_Tower Site

  1. Fence and gate power: 12 v.
  2. Panel and Batteries: - v; - amps; - amps.
  3. Reading from Gillsonic screen before downloading data. (The value of H2O and CO2 should be in the range of 0 – 5 v.)

Tower Gill sonic plots screen before downloading data

Screen shot of tower flux data logger table
  1. downloading data from PC.
  2. Swapped the memory cards of CR1000.
  3. The fan of air temp. and relative humidity sensors on the tower did not work because a wire was disconnected. Fixed.
  4. Check rain gage, make sure not clogged. YES!
  5. Check calibration cylinders;

CO2 400 psig; flow 20 psi; 421.63 ppm.
N2 600 psig; flow 20 psi.
Is the pump running‌ YES!
Screen shot of Li-800 calibration pre-cal
zero
Screen shot of Li-800 calibration zero pre-calScreen shot of Li-800 calibration zero post-cal

span
Screen shot of Li-800 calibration span pre-calScreen shot of Li-800 calibration span post-cal
  1. close gate and set up fence. YES!

Toniz_Floor Site
  1. Fence and gate power: 12 v.
  2. Panel and Batteries: - v; - amps; - amps. (about 7:00 am local time)
  3. Reading from Gillsonic screen before downloading data. (The value of H2O and CO2 should be in the range of 0 – 5 v.)

Floor Gill sonic plots screen before downloading data
Figure 1. Screen shot right when I turned on the PC. Date (087) was wrong.
Floor Gill sonic plots screen with bad date time
Figure 2. Screen shot after re-starting the PC. The problem of date was fixed (Day 086).
  1. downloading data from PC. YES!
  2. Swapped the memory cards of CR1000.

Screen shot of floor flux data logger table
  1. Check MD-9 system connections YES!

CR23X3 – floor-Met
CR23X6 – tower-Met
CR10X2 – floor-Met
Soil CO2 profile: CR23X5 – soil CO2 profile
Screen shot of soil moisture data logger table

Floor Gill sonic plots screen before downloading data

Screen shot of soil co2 data logger table

Screen shot of tower met data logger table

Screen shot of sap flow data logger table
  1. Close gate and set up fence. YES!


Tonzi




Dendrometer








Date
Day
Tag #
Reading (mm)

3/27/2013
86
1
24.1



2
18.2



3
20.5



4
3.5



5
24.2



7
18



8
9.1



72
14.5



79
14.6



102
16.2



245
12.5



tonzi
7931AFE
402165
574B4B
402FF3
574632
7A432E
7A3C6E
7A3B40
7A4AAA

3/27/2013
86

sm

0-15
25.3
2.3
39.9
16.5
12.3
12.1
18.4
14.3
11.8

15-30
30.3
18.8
50.0
27.0
27.7
16.7
24.9
25.8
13.0

30-45
40.6
32.8
46.2
35.4
51.0
17.9
24.2
29.1
28.8

45-60
35.7
49.7
56.7
43.8
40.0
23.9
35.0
46.5
23.4

A6D882B
A3D04E8
A6D72F5

0-15
18.5
15.6
11.1

15-30
21.3
6.0
22.2

30-45
30.4
27.9
28.8

45-60
39.1
44.3
46.5

vaira
7933dee
00000128B97F3
00000128B8072
00000128BDDE8

0-15
6.1
9.1
4.4
1.65

15-30
14.7
11.05
7.4
7.95

30-45
18.1
7.55
11.5
16.2

45-60
29.3
17.3
10.1
18.9

Field Data

No tank data

Well Depth

DateLocationDepth (feet)
2013-03-27TZ_floor26.47
2013-03-27TZ_road35.75
2013-03-27TZ_tower30.7

No TZ Moisture Point data found

No VR Moisture Point data found

No TZ grass heigth found

No VR grass heigth found

Tree DBH

DateTag#Reading (mm)
2013-03-27124.1
2013-03-2710216.2
2013-03-27218.2
2013-03-2724512.5
2013-03-27320.5
2013-03-2743.5
2013-03-27524.2
2013-03-27718
2013-03-277214.5
2013-03-277914.6
2013-03-2789.1

No water potential data found

No TZ Grass Biomass data found

No TZ OakLeaves Biomass data found

No TZ PineNeedles Biomass data found

7 photos found

Portrait of Joe at Tonzi Floor
Portrait of Joe at Tonzi Floor

Carrying the radiometer tram track to a new location
Carrying the radiometer tram track to a new location

Martin helping to set up radiometer tram track
Martin helping to set up radiometer tram track

New location for radiometer tram track in the oak woodland
New location for radiometer tram track in the oak woodland

Siyan next to the Floor tower with new grass and leaves
Siyan next to the Floor tower with new grass and leaves

Turkeys on the grass alas
Turkeys on the grass alas

Biomet lab on site for tram move
Biomet lab on site for tram move

Graphs display:
16 sets found

No data found for TZ_Fenergy.
11 TZ_tmet graphs found

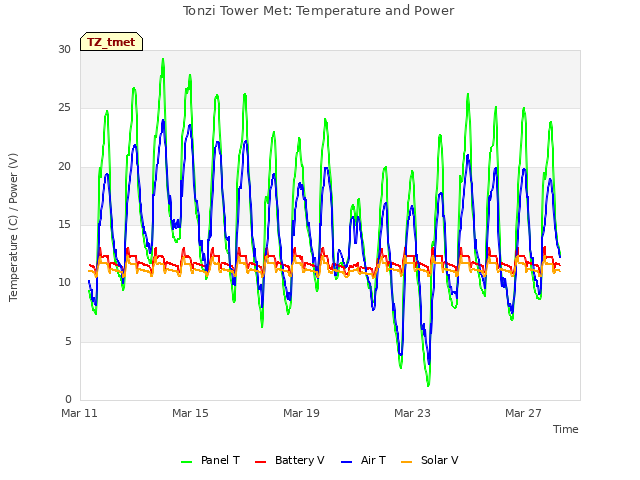

Explore the graph:Tonzi Tower Met: Temperature and Power in a new window

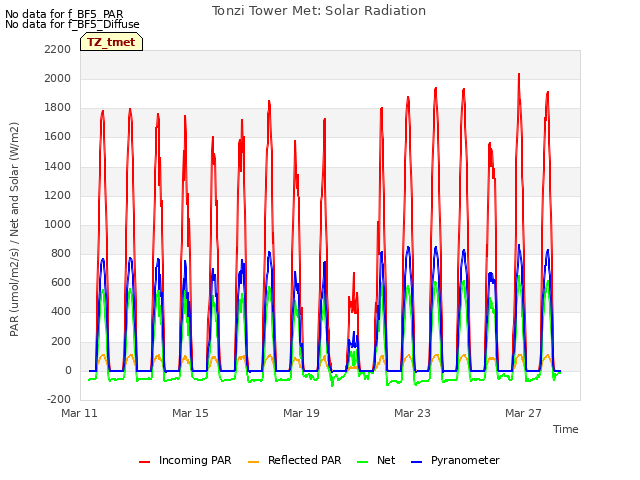

Explore the graph:Tonzi Tower Met: Solar Radiation in a new window

Explore the graph:Tonzi Tower Met: IRT Sensors in a new window

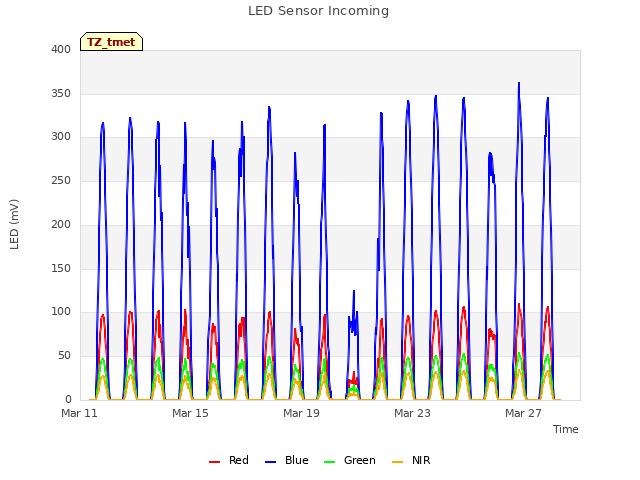

Explore the graph:LED Sensor Incoming in a new window

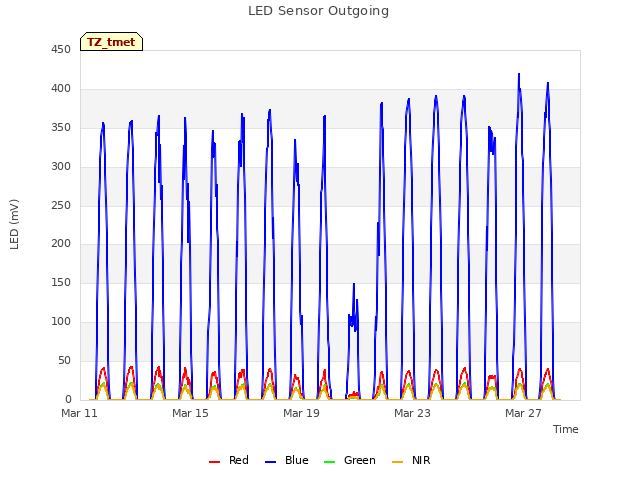

Explore the graph:LED Sensor Outgoing in a new window

Explore the graph:4-Band Solar Radiation in a new window

Explore the graph:Air Temperature Profile in a new window

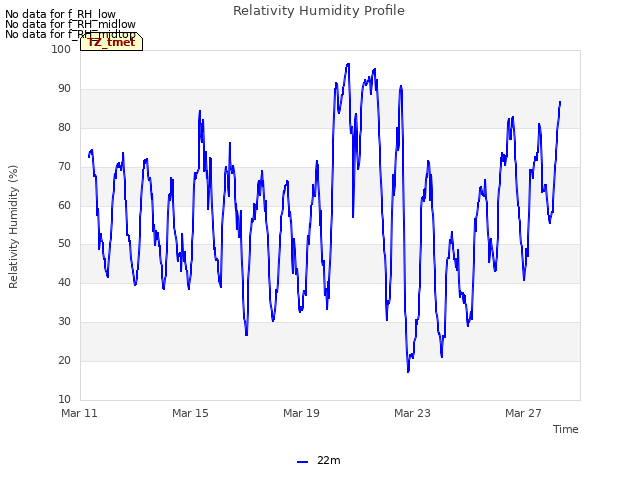

Explore the graph:Relativity Humidity Profile in a new window

Explore the graph:Tonzi Tower PRI in a new window

Explore the graph:SRS PRI/NDVI in a new window

Explore the graph:SRS NDVI in a new window

11 TZ_soilco2 graphs found

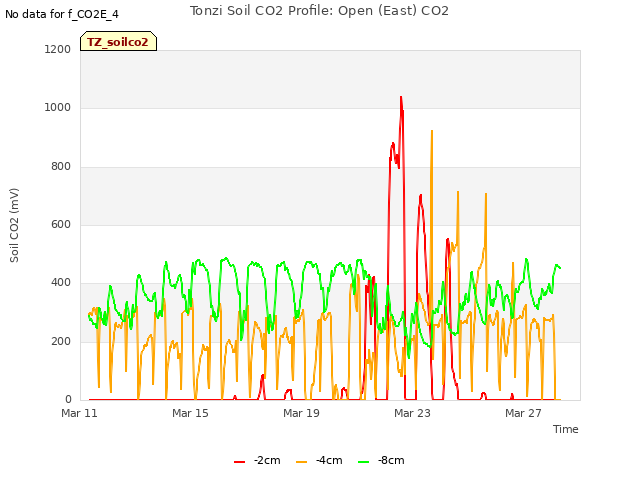

Explore the graph:Tonzi Soil CO2 Profile: Open (East) CO2 in a new window

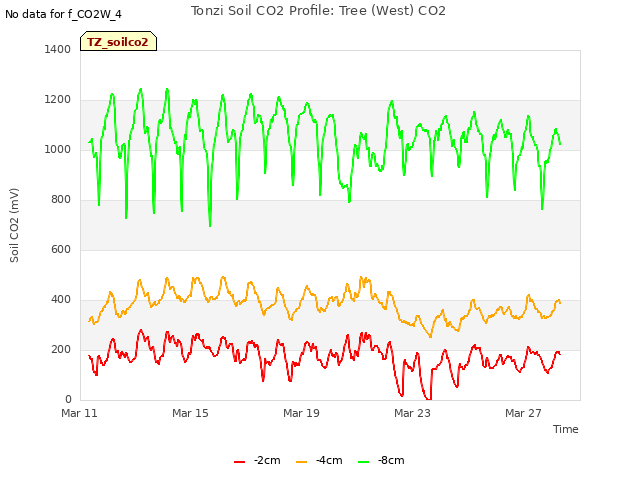

Explore the graph:Tonzi Soil CO2 Profile: Tree (West) CO2 in a new window

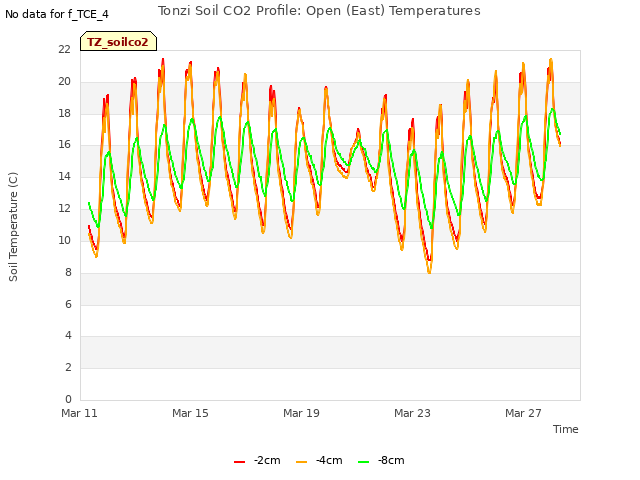

Explore the graph:Tonzi Soil CO2 Profile: Open (East) Temperatures in a new window

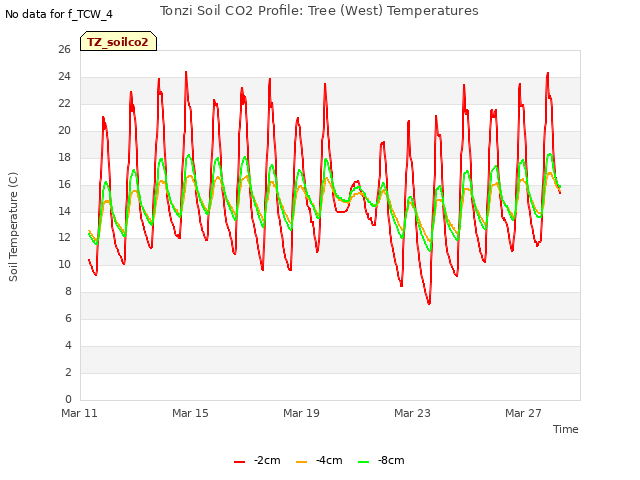

Explore the graph:Tonzi Soil CO2 Profile: Tree (West) Temperatures in a new window

Explore the graph:Tonzi Soil CO2 Profile: Upper CO2 in a new window

Explore the graph:Tonzi Soil CO2 Profile: Lower CO2 in a new window

Explore the graph:Tonzi Soil CO2 Profile: Upper Temperatures in a new window

Explore the graph:Tonzi Soil CO2 Profile: Lower Temperatures in a new window

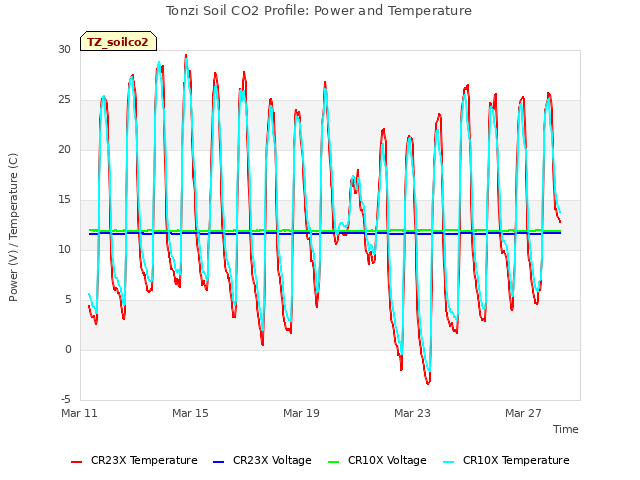

Explore the graph:Tonzi Soil CO2 Profile: Power and Temperature in a new window

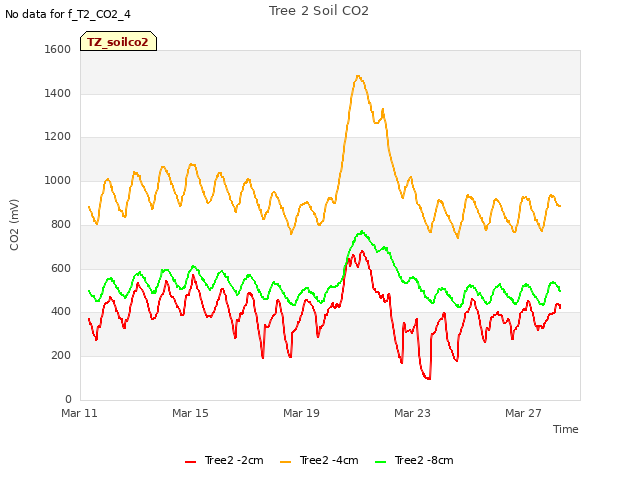

Explore the graph:Tree 2 Soil CO2 in a new window

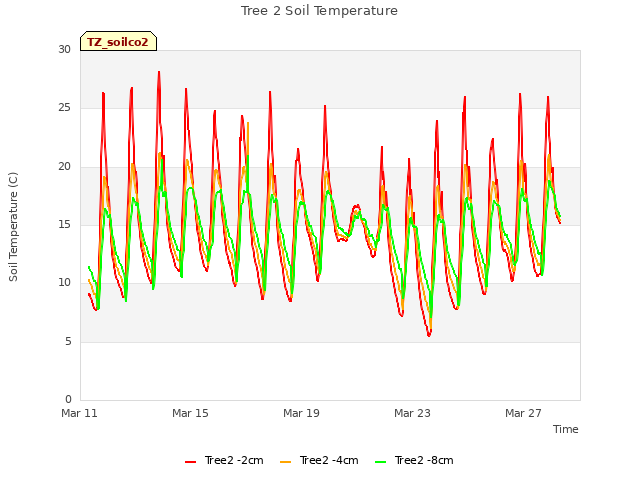

Explore the graph:Tree 2 Soil Temperature in a new window

Can't check TZ_mixed
3 TZ_mixed graphs found

Explore the graph:Tonzi PPT in a new window

Explore the graph:Tonzi CO2 and H2O Densities in a new window

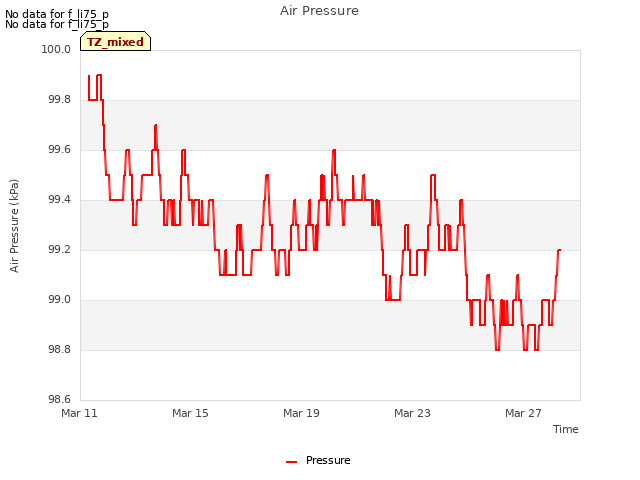

Explore the graph:Air Pressure in a new window

1 TZ_fflux graphs found

Explore the graph:Tonzi Wind Speed in a new window

8 TZ_fmet graphs found

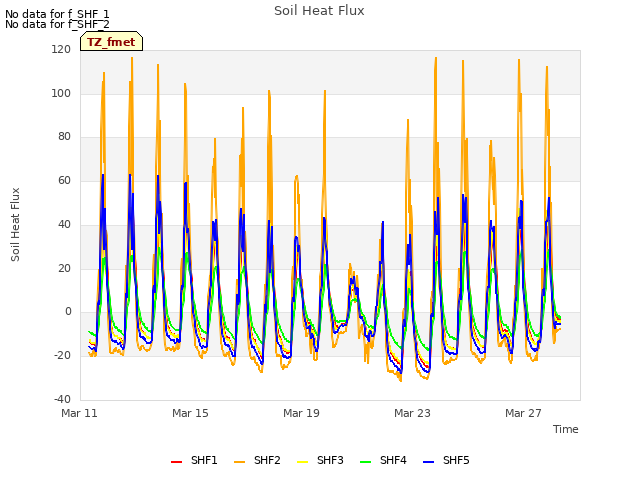

Explore the graph:Soil Heat Flux in a new window

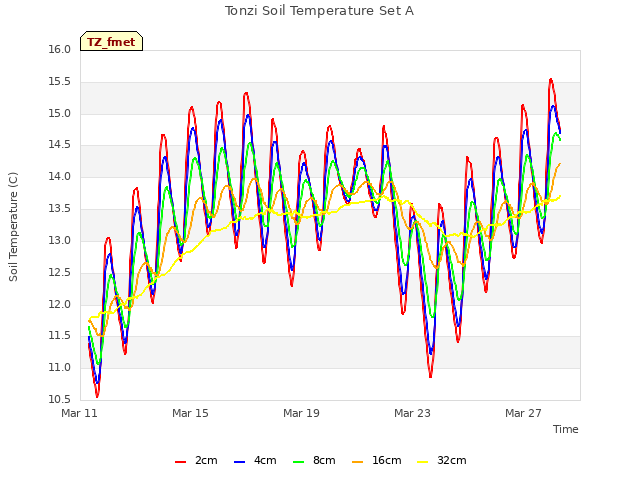

Explore the graph:Tonzi Soil Temperature Set A in a new window

Explore the graph:Tonzi Soil Temperatures Set B in a new window

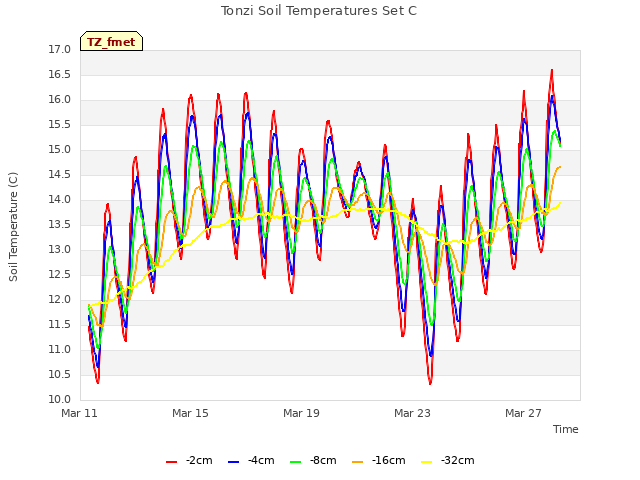

Explore the graph:Tonzi Soil Temperatures Set C in a new window

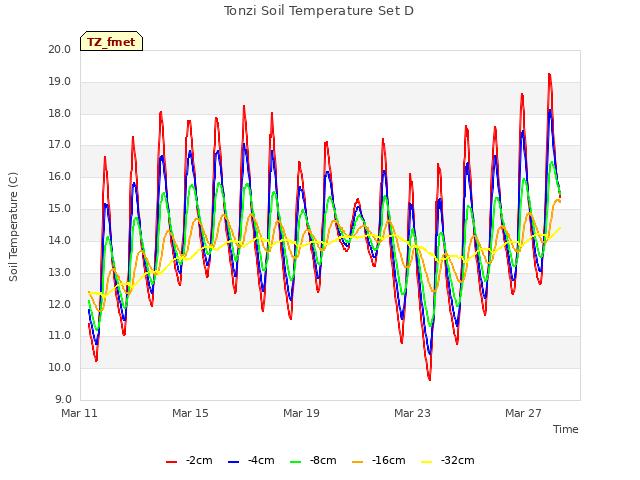

Explore the graph:Tonzi Soil Temperature Set D in a new window

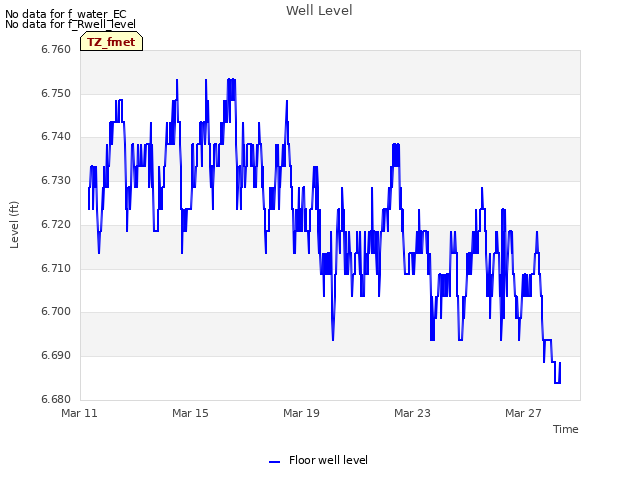

Explore the graph:Well Level in a new window

Explore the graph:Well Water Temperature in a new window

Explore the graph:Soil Water Potential in a new window

1 TZ_tram graphs found

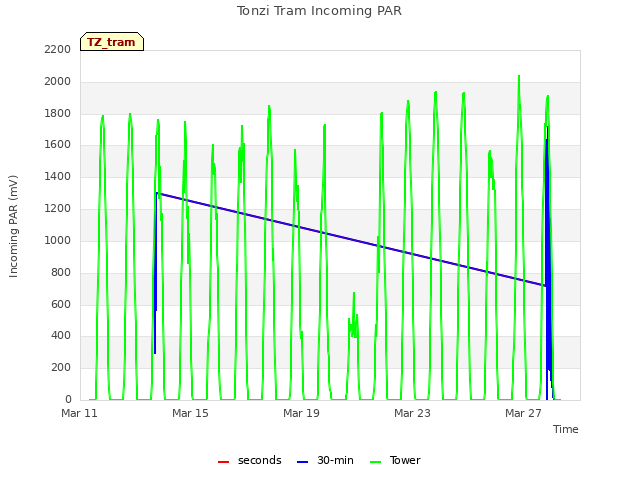

Explore the graph:Tonzi Tram Incoming PAR in a new window

3 TZ_co2prof graphs found

Explore the graph:Tower CO2 Profile Concentrations in a new window

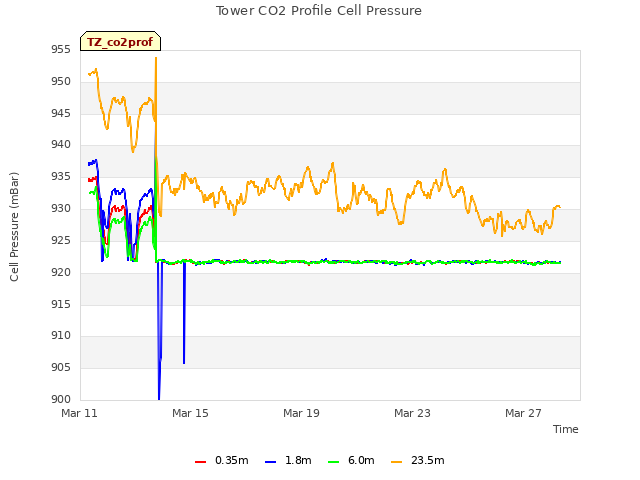

Explore the graph:Tower CO2 Profile Cell Pressure in a new window

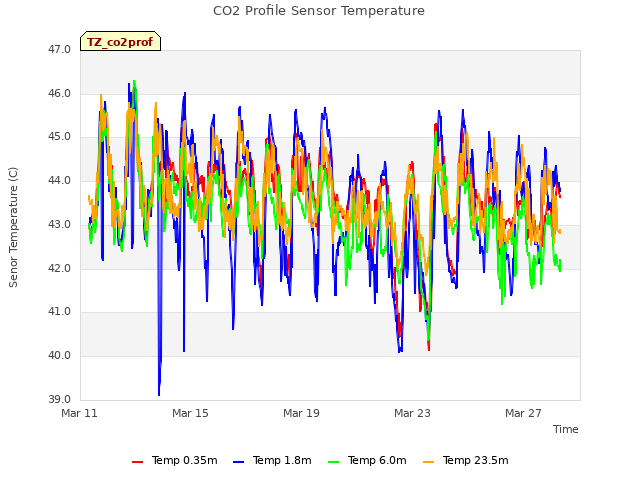

Explore the graph:CO2 Profile Sensor Temperature in a new window

No data found for TZ_irt.
No data found for TZ_windprof.
1 TZ_tflux graphs found

Explore the graph:Tower CO2 and H2O in a new window

2 TZ_sm graphs found

Explore the graph:Floor Solar Radiations in a new window

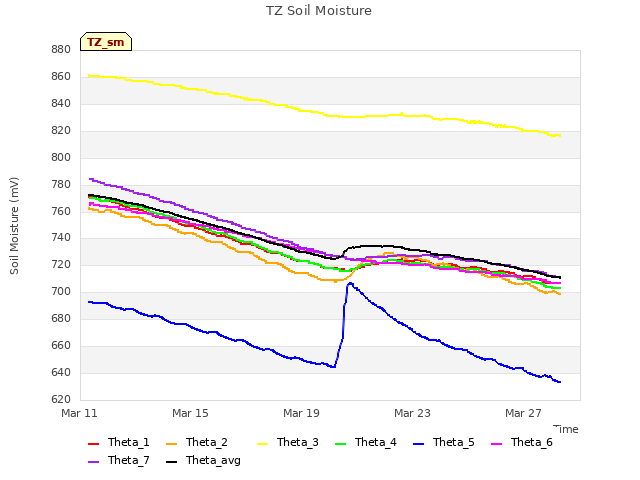

Explore the graph:TZ Soil Moisture in a new window

Can't check TZ_met
1 TZ_met graphs found

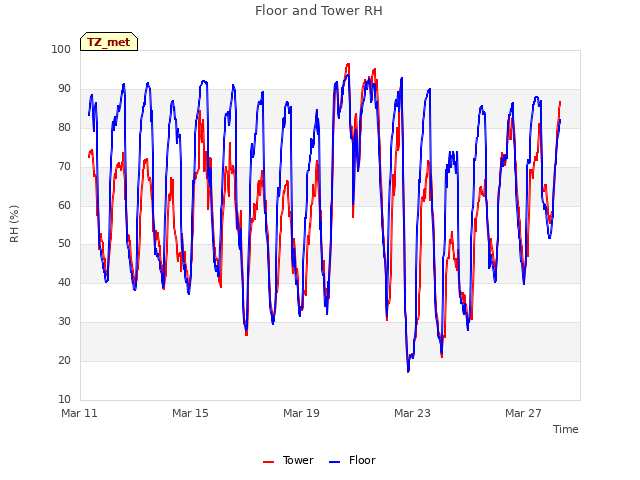

Explore the graph:Floor and Tower RH in a new window

Can't check TZVR_mixed
8 TZ_osu graphs found

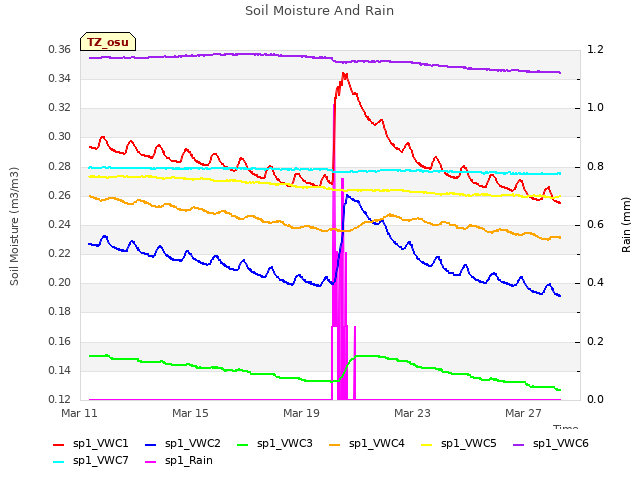

Explore the graph:Soil Moisture And Rain in a new window

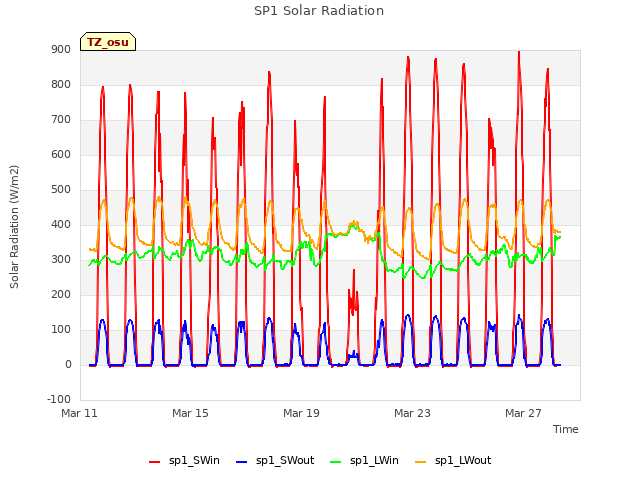

Explore the graph:SP1 Solar Radiation in a new window

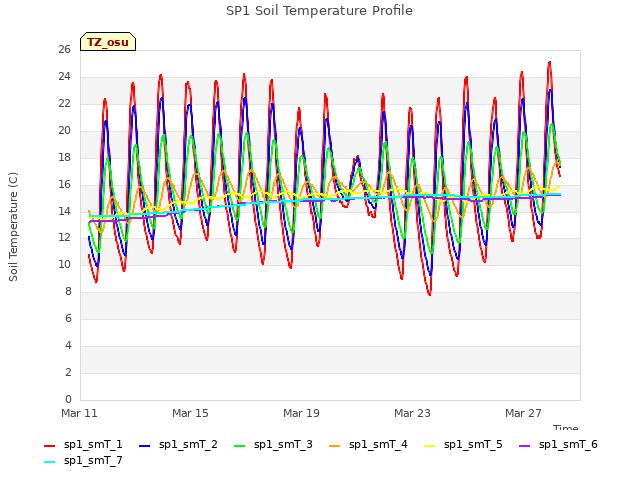

Explore the graph:SP1 Soil Temperature Profile in a new window

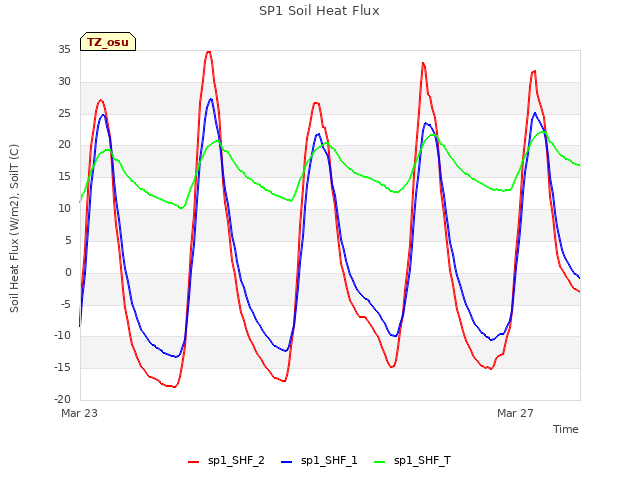

Explore the graph:SP1 Soil Heat Flux in a new window

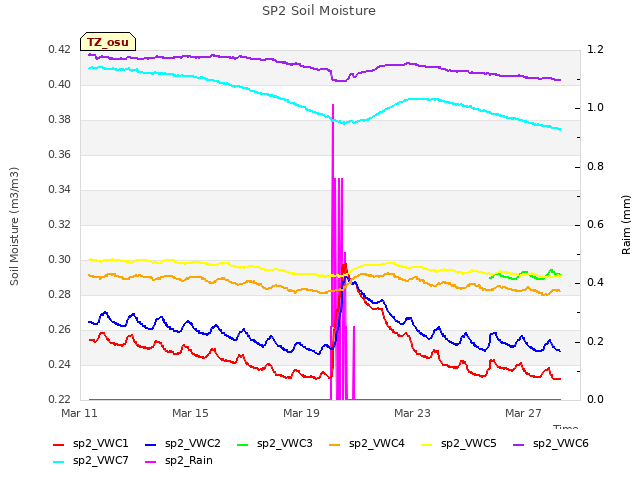

Explore the graph:SP2 Soil Moisture in a new window

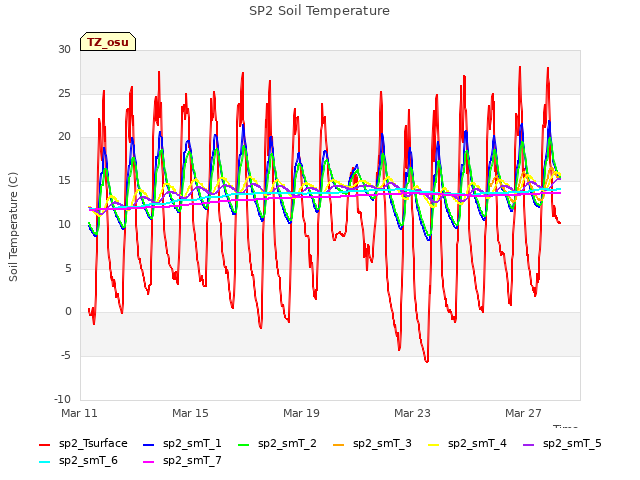

Explore the graph:SP2 Soil Temperature in a new window

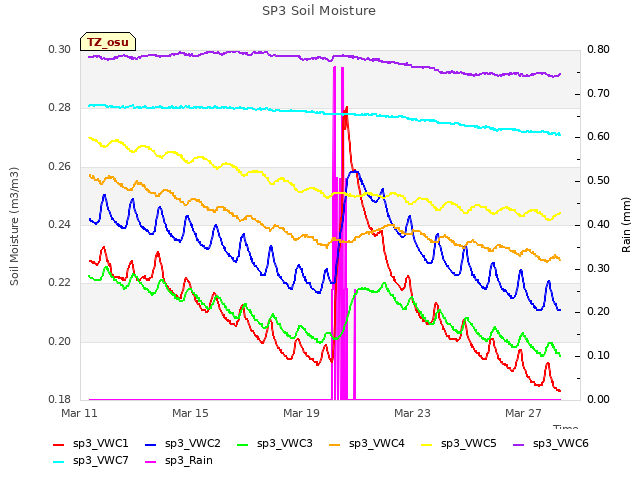

Explore the graph:SP3 Soil Moisture in a new window

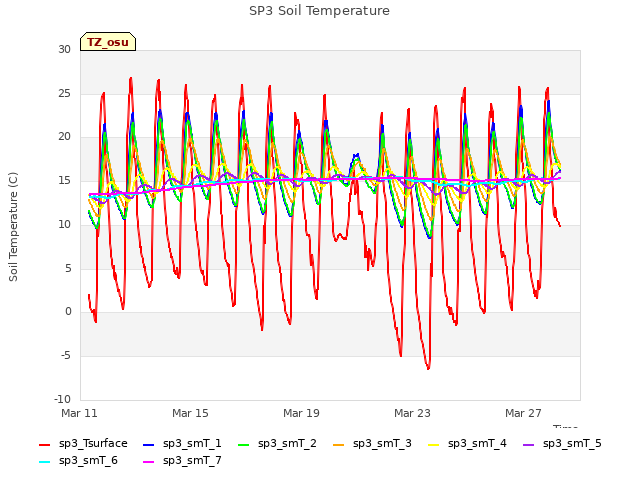

Explore the graph:SP3 Soil Temperature in a new window

No data found for TZ_fd.
Tonzi Z-cam data

plot of Tonzi z-cam LAI

plot of Tonzi z-cam gap fration
