Mayberry: 2012-12-06 13:45:00 (DOY 341)
Author: Joe Verfaillie
Others:
Summary: Made boardwalk to auto cam, filled 7700 wash reservoir, all okay.
| Mayberry

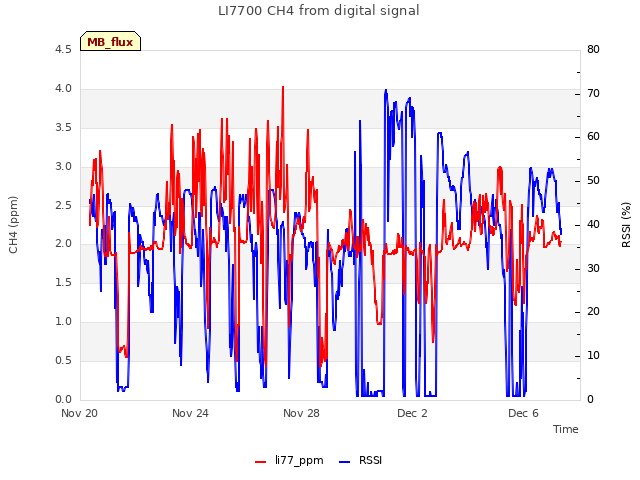

2012-12-06 I arrived about 13:45. The clouds were beginning to break but it was still cool with a breeze from the west. The Wetland looks brown in comparison to the surrounding fields. I worked on improving access to the auto camera. I built a small boardwalk. It could use some more work but should suffice for the short term. I filled the 7700 wash reservoir and replaced the backup DI water at the site. The 7700 read 2.00ppm and 52% RSSI – I did not clean the mirrors. The heater settings were 4% power, 2C above ambient, 30% RSSI, 2000 to 0600. At 2:39 and 7500 read 401ppm CO2, 570 mmol/m3 H2O, 43.8 AGU. I did not fix the data line out to the tule tower. I might try a radio solution. |
2 photos found
view of field site
view of field site
11 sets found

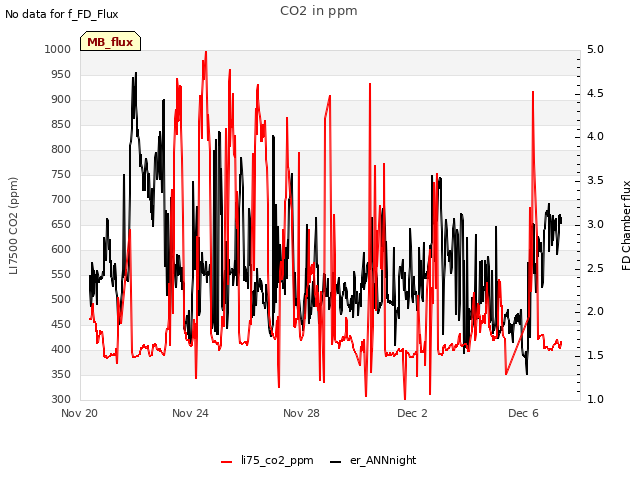

7 MB_flux graphs found
No data found for MB_met.

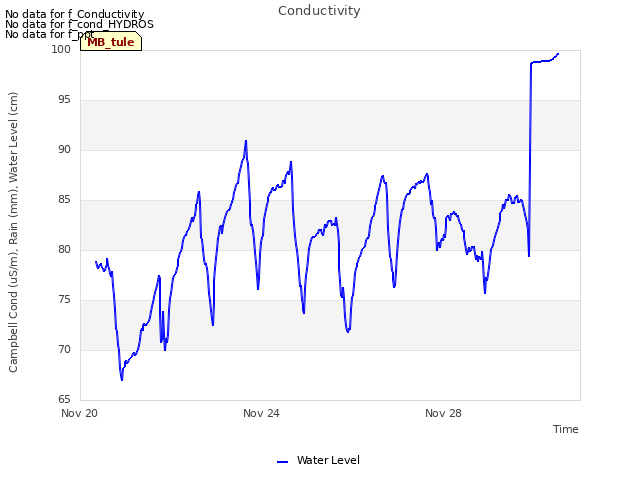

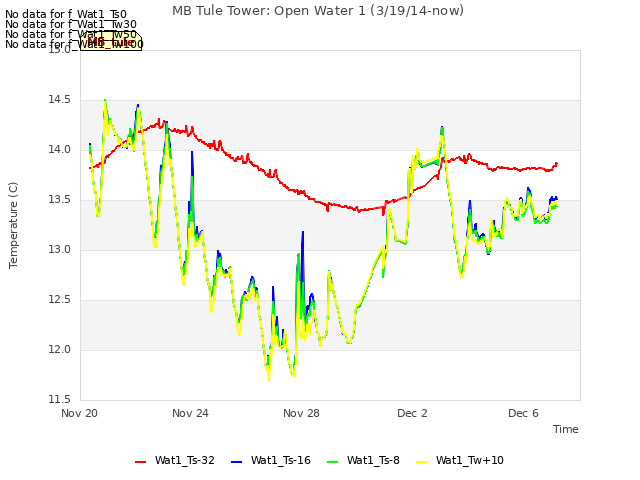

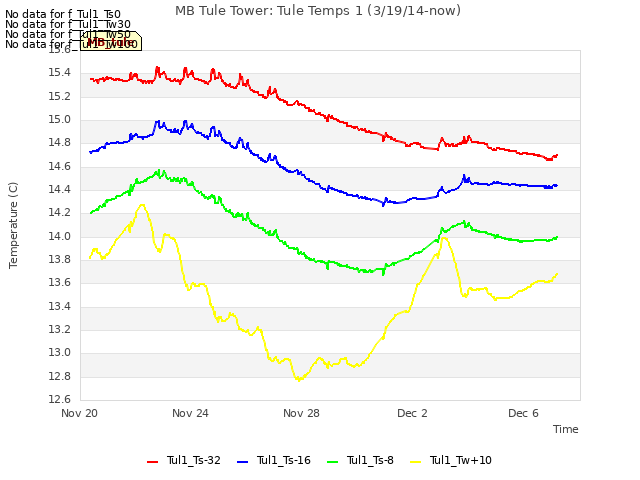

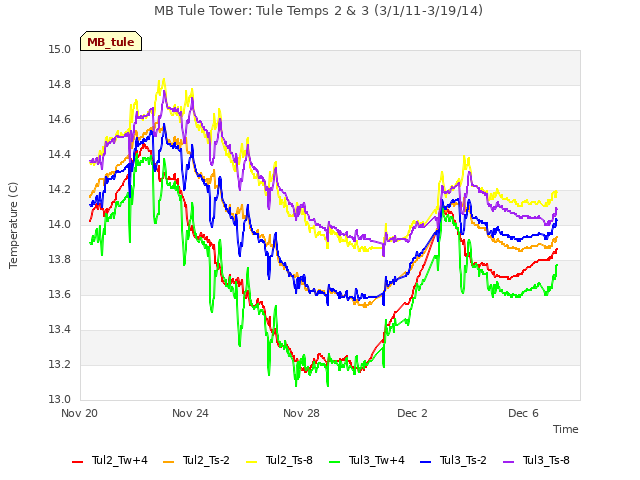

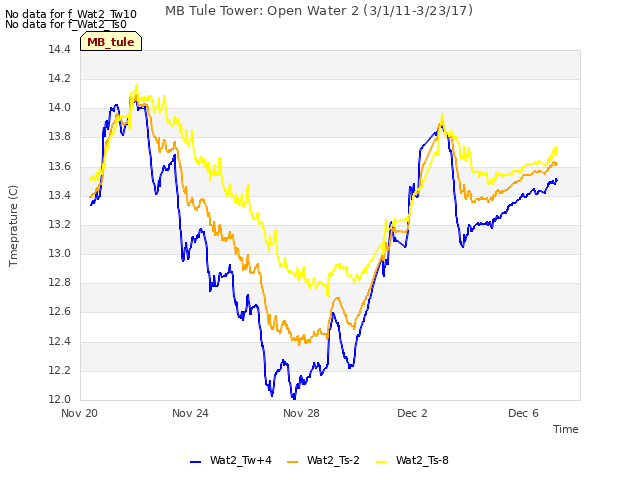

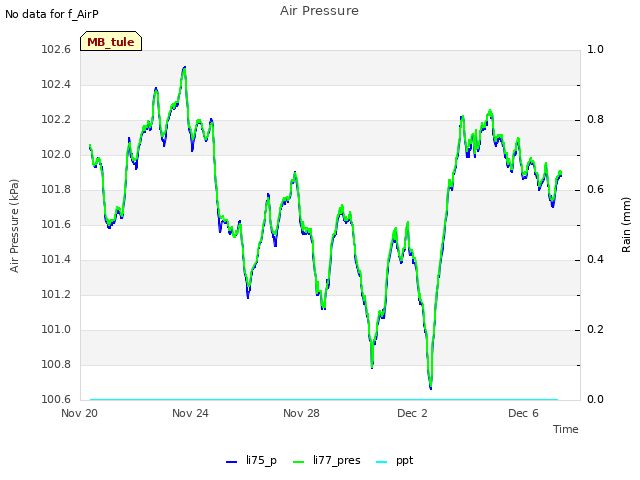

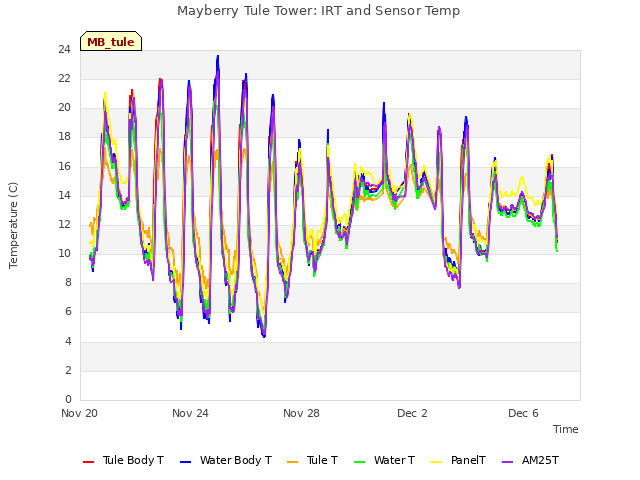

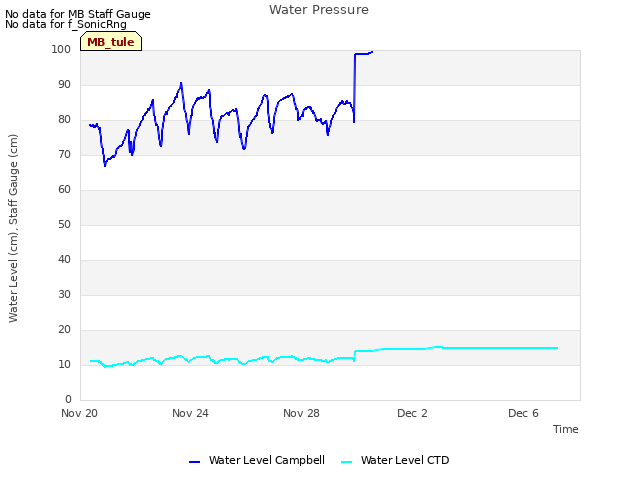

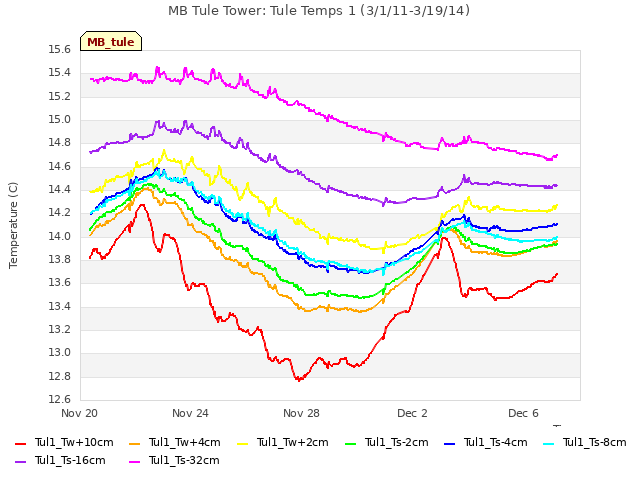

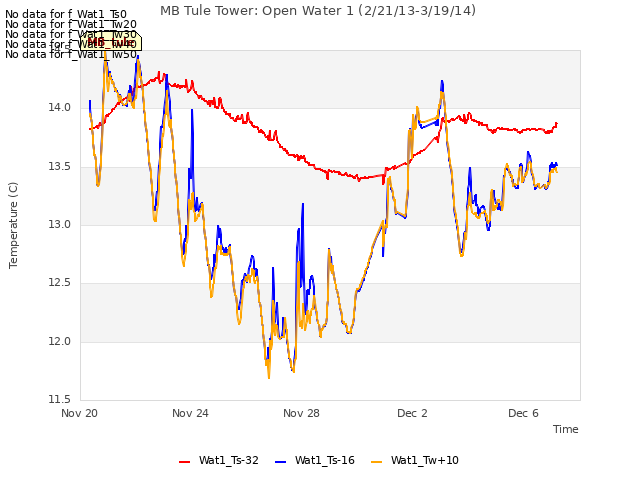

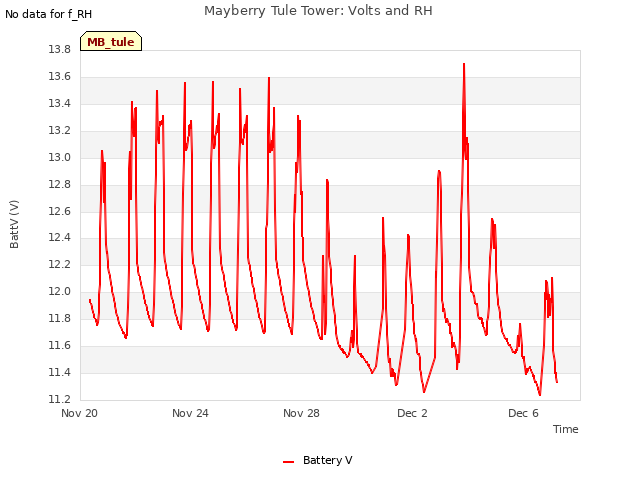

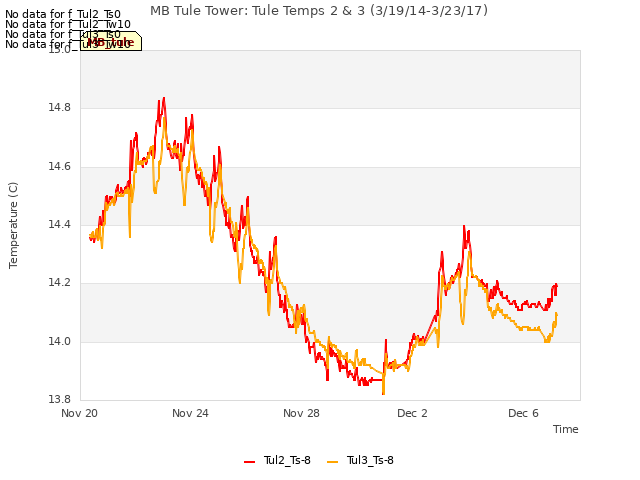

27 MB_tule graphs found
Can't check MBWPEESWGT_mixed

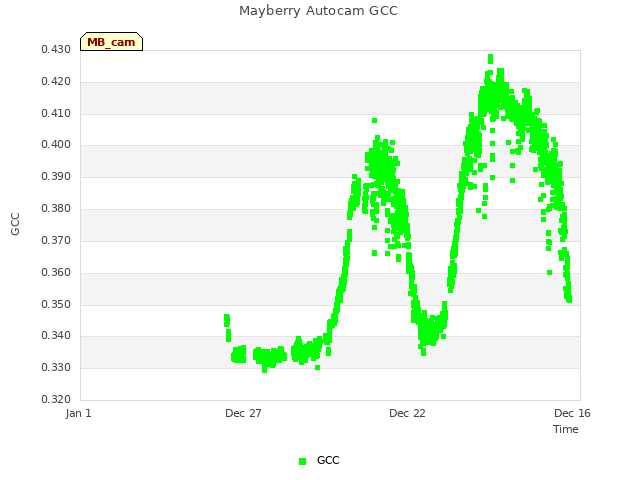

1 MB_cam graphs found
Can't check MBEEWPSWEPGT_cam
Can't check SIMBTWEE_met
No data found for MB_minidot.
Can't check MBSWEEWPBCBA
1 MB_processed graphs found
Can't check MB_fd
1 MB_fd graphs found
