Sherman Island: 2012-10-11 08:15:00 (DOY 285)
Author: Cove Sturtevant
Others: Sara, Laurie, Christina

Summary: Pepperweed looks a bit duller. Downloaded data, took soil co2 flux, moisture point, well depth. Cut wire on #4 soil co2 moisture probe.

Sherman
2012-10-11

We arrived about 08:15 PDT. Weather was mildly cloudy, windy, and a wee chilly, about 14°C. The site looked a bit less vibrant today (if pepperweed can look vibrant). Perhaps the cows have just trampled a bit more lately, but the green sprinklings looked duller to me.

I checked the tower and downloaded the data and camera pics while Sara, Laurie, and Christina did moisture point, well depth, and soil CO2 flux. No LAI or spectral today.

LGR readings: 07:15:38, 23.17 °C, 132.0 Torr (adjusted to 145.4 Torr), 13.86 us, 10 Hz, 1.88 ppm

7500 readings:
CO2: 16.17 mmol m-3
H2O: 575 mmol m-3
P: 101.2 kPa
diag: 248

I wiped down the 7500 windows.

MET and Soil CO2 looked good, except for the following:

Sara found that the #4 soil co2 moisture probe wire had been roughly snipped or chewed, and the wire pulled out of the fence. Perhaps a rat got a little carried away… She pulled the probe for repair. I also checked the wiring for the rest of the soil co2 moisture probes since Joe thinks the numbers look funny. The wiring looks good, and I also checked the wiring colors against the manual when I got home so I don’t think there is a problem here. I took photos of the connections into the multiplexor, and as soon as I figure out how to post photos I will put them up for other curious eyes. Sara mentioned she was going to play with the moisture sensors in the lab to see if she is missing anything.

5 photos found

Wiring on the multiplexor
Wiring on the multiplexor

Terminal strip and multiplexer wiring
Terminal strip and multiplexer wiring

Data logger SDM wiring
Data logger SDM wiring

Birds and cows
Birds and cows

Cows and clouds
Cows and clouds

Graphs display:
7 sets found

No data found for SI_mp.
11 SI_met graphs found

Explore the graph:Solar Radiation in a new window

Explore the graph:Energy in a new window

Explore the graph:Soil Temperatures Set 1 in a new window

Explore the graph:Soil Temperatures Set 2 in a new window

Explore the graph:Soil Temperatures Set 3 in a new window

Explore the graph:Soil Temperature at -16cm in a new window

Explore the graph:LED NDVI Sensor Output in a new window

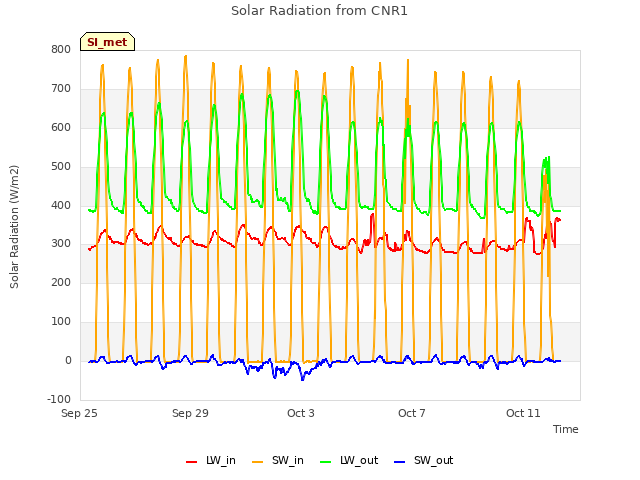

Explore the graph:Solar Radiation from CNR1 in a new window

Explore the graph:Sherman Island Rain in a new window

Explore the graph:Sherman Well Level in a new window

Explore the graph:Box Temperatures in a new window

Can't check SI_mixed
2 SI_mixed graphs found

Explore the graph:Theta Probes in a new window

Explore the graph:Sherman Island Air Temperatures in a new window

4 SI_flx graphs found

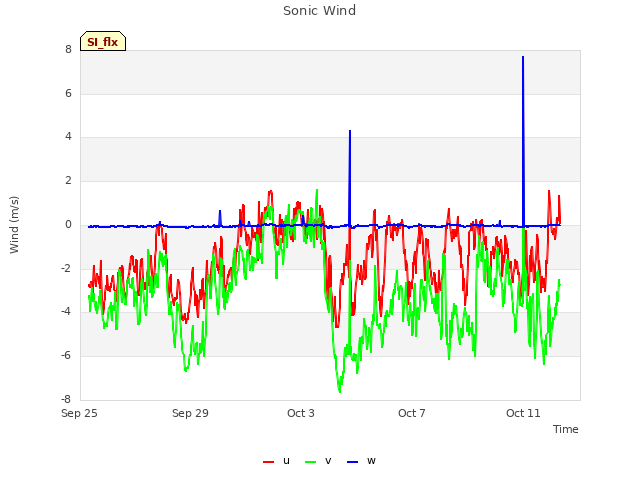

Explore the graph:Sonic Wind in a new window

Explore the graph:CH4 Concentrations in a new window

Explore the graph:Sample Counts in a new window

Explore the graph:LI7500 CO2 and H2O in a new window

3 SI_soilco2 graphs found

Explore the graph:Sherman Island Vaisala Soil CO2 in a new window

Explore the graph:Soil CO2 Temperatures in a new window

Explore the graph:Soil CO2 Reference Soil Temperatures in a new window

Can't check TWSI_mixed
Can't check SIMBTWEE_met
