Tonzi: 2012-03-21 09:00:00 (DOY 81)
Author: Siyan Ma
Others: Joe, Laurie, Martine, Stephen, 2 Students

Summary: Installed CO2 probes in ground at Vaira, Martin doing tree scans at Tonzi, Laurie taking soil cores.

When: Date: 3/21/2012 , Day: 81 , Watch Time: 9:00 am .
Where: Tonzi/Vaira Ranch
Who: Siyan, Joe
Weather: clear, sunny
Phenology: just after almost a-week-long rain event; green grasses; oak leaves come out <10%. Ameriflux Steven ran calibration station at Vaira. Martin and the student took LiDar scan at Tonzi. Laurie and the student took soil cores for soil C/N.

Summary

Cables of Vaisala probes are finally connected to the probes at Vaira. The probes and thermal couples are installed at the three locations. Joe fixed the power problem.
checked and downloaded data at Tower, Floor, and Vaira
Calibrated Li-800 in the field.
Read dendrometers

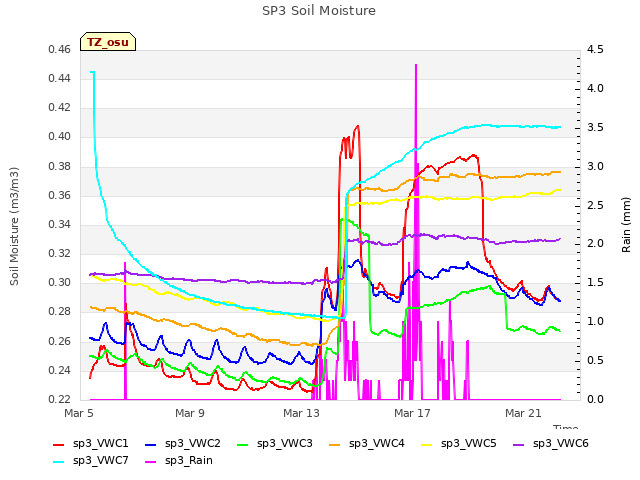

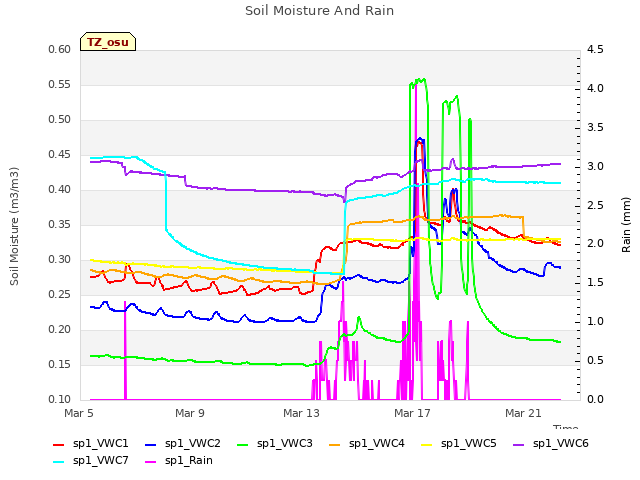

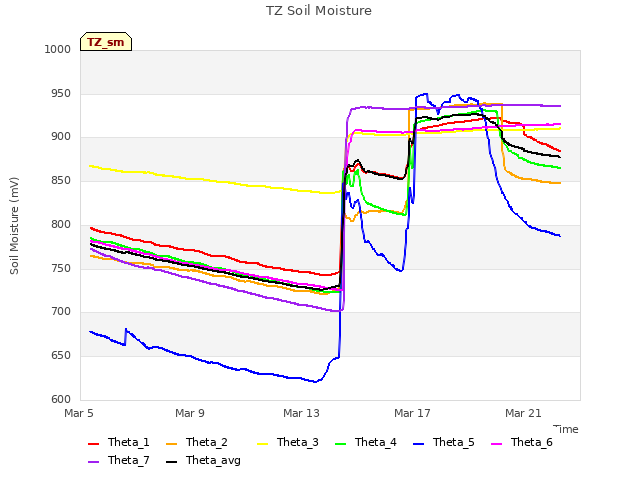

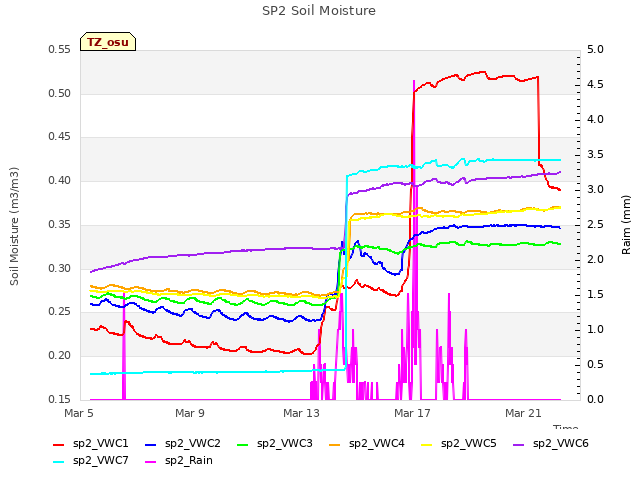

Measured soil moisture

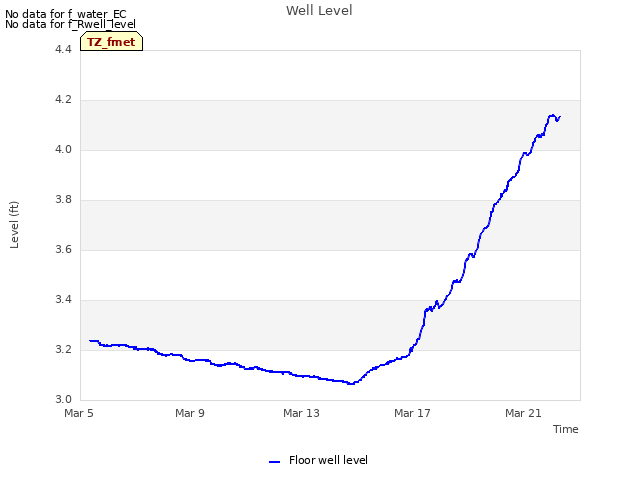

Measure groundwater well:

Date	DOY	Location	Depth without the black thing (feet)
3/21/2012	81	Floor	28.9
		Tower	34.0
		roadside	37.3

Vaira_Grass Site

Fence and gate power: 12 v.
Panel and Batteries: - v; - amps; - amps.
Reading from Gillsonic screen before downloading data. (The value of H₂O and CO₂ should be in the range of 0 – 5 v.)

Vaira Gill sonic plots screen before downloading data

downloading data
Check the fans of air temp. and relative humidity sensors at Vaira. YES!
Check MD-9 system connections YES! CG_out=-INF. The problem fixed after Joe disconnected and reconnected the I/O cable.

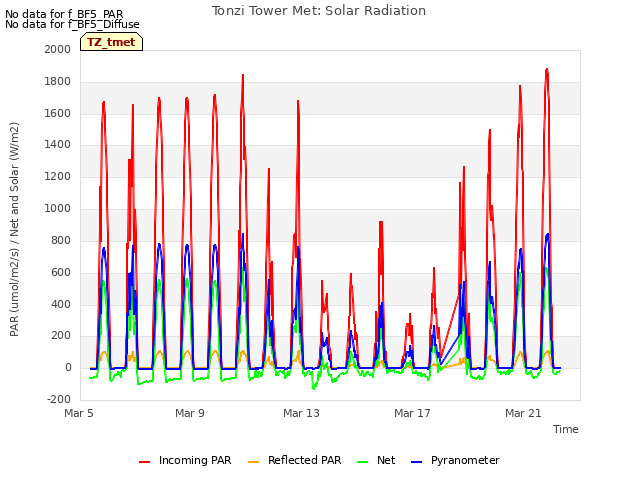

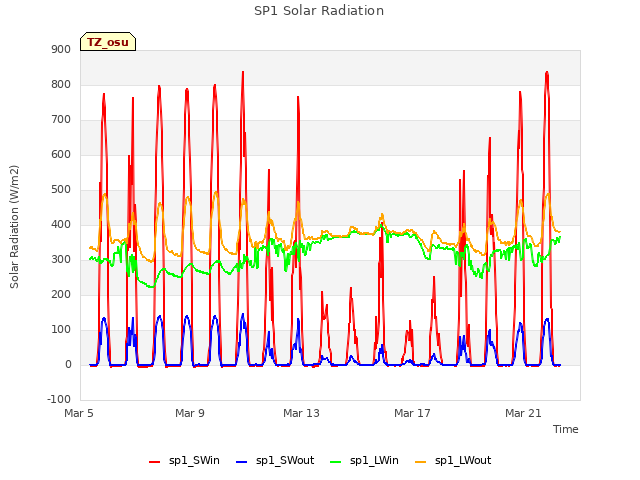

Check levels of Radiation sensors, clear up surfaces.YES!

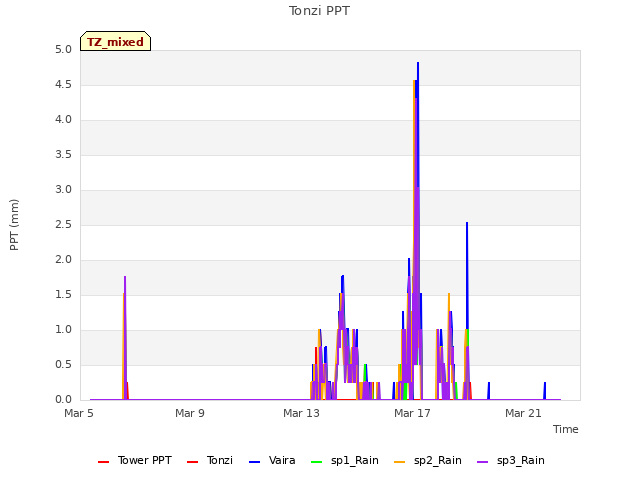

Check rain gage, make sure not clogged. YES!
Closed gate and set up fence. YES!

Tonzi_Tower Site

Fence and gate power: not on, OK v.
Panel and Batteries: v; amps; amps.
Reading from Gillsonic screen before downloading data. (The value of H₂O and CO₂ should be in the range of 0 – 5 v.)

Tower Gill sonic plots screen before downloading data

downloading data YES!
check the fans of air temp. and relative humidity sensors on the tower and the floor. YES!
Check rain gage, make sure not clogged. YES!
Check calibration cylinders;

CO₂ 1500 psig; flow 10 psi; 421.63 ppm.
N₂ 2000 psig; flow 12 psi.
Manually calibrate Li-800. Following Ted’s instruction: H:IoneSavanna_2004Tower_2004CO2ProfileLI800_Calibration_Procedure_2Nov04.txt
Is the pump running‌ Joe changed the setting. Now the sound is quieter.
Screen shot of Li-800 calibration pre-cal

Screen shot of Li-800 calibration pre-cal

Screen shot of Li-800 calibration zero pre-cal

Screen shot of Li-800 calibration zero post-cal

Screen shot of Li-800 calibration span pre-cal

Screen shot of Li-800 calibration span post-cal

close gate and set up fence. YES!

Toniz_Floor Site

Fence and gate power: 12 v.
Panel and Batteries: v; amps; amps. (about 7:00 am local time)
Reading from Gillsonic screen before downloading data. (The value of H₂O and CO₂ should be in the range of 0 – 5 v.)

Floor Gill sonic plots screen with read file error

downloading data YES!
Check MD-9 system connections YES!

CR23X3 – floor-Met

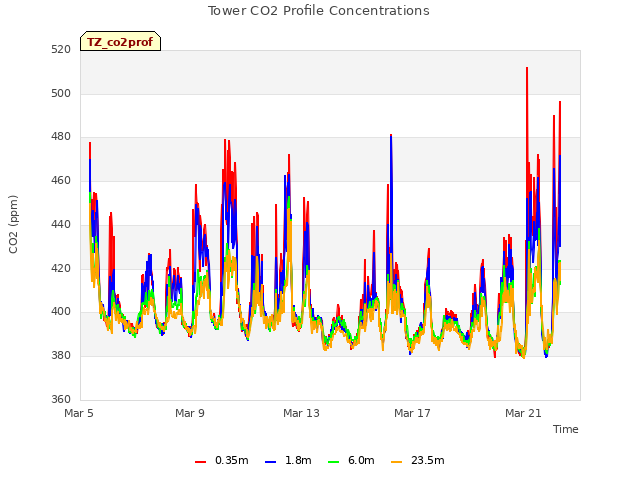

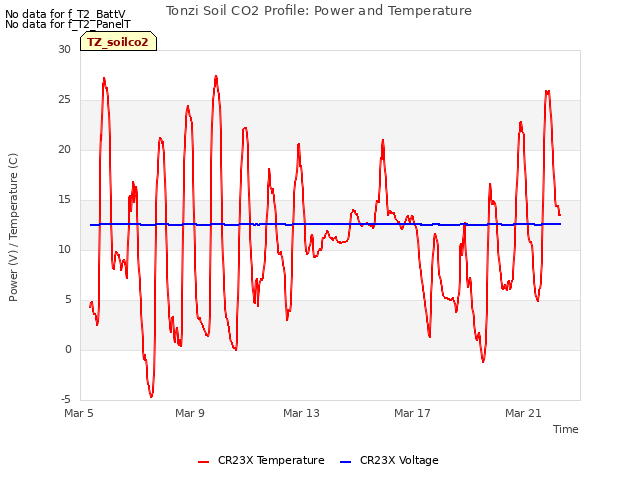

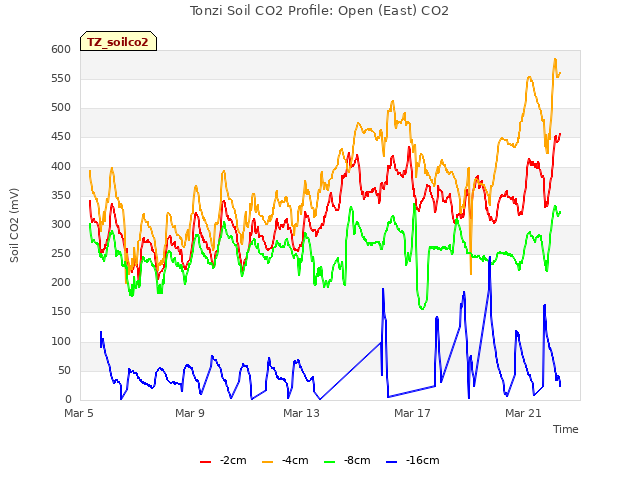

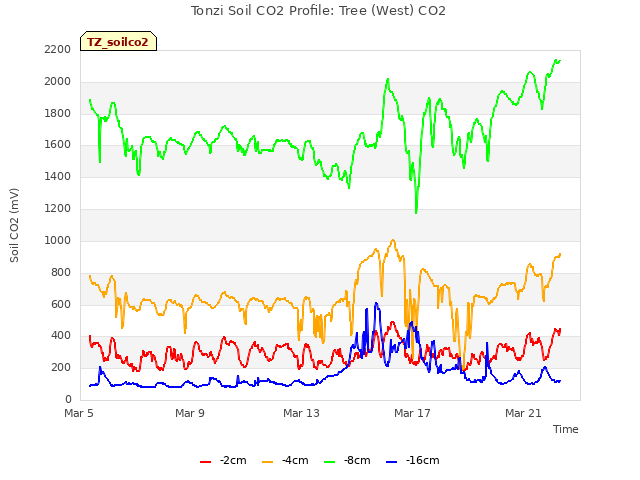

CR23X5 – soil CO₂ profile
CR23X6 – tower-Met
CR10X2 – floor-Met
Screen shot of sap flow data logger table

Screen shot of soil moisture data logger table

Screen shot of floor met data logger table

Screen shot of soil co2 data logger table

Screen shot of tower met data logger table

Close gate and set up fence. YES!

Tonzi
Dendrometer

Date	Day	Tag #	Reading (mm)
3/21/2012	81	72
		79
		102	10.6
		245	21.4	Reset to 8.1 on March 21, 012
		250		(reset to 10.5 on May 7, 2009)
		1	18.1
		2	15.8
		3	15.9
		4	21
		5	23.7
		7	16.1	133
		8	7.3	11828
		71	X
		77	X	‌
		78	X	‌
		248	X	broken
		255	X	‌
		‌252‌	X	‌
		6	X

Notes: “X” means not working any more. Dendrometers installed by Gretchen group.

tonzi	7931AFE	402165	574B4B	402FF3	574632	7A432E	7A3C6E	7A3B40	7A4AAA
3/21/2012	81
	sm
0-15	43.4	26.7	43.4	35.2	25.8	22.9	27.6	21.5	20.0
15-30	39.3	38.9	37.1	45.1	41.6	32.1	31.8	32.6	19.4
30-45	41.4	47.7	43.0	44.1	56.9	38.0	33.7	33.8	35.5
45-60	41.4	60.3	62.9	49.7	34.5	33.7	43.9	46.0	34.8

	A6D882B	A3D04E8	A6D72F5

0-15	30.5	26.7	24.7
15-30	29.9	23.7	36.2
30-45	36.8	41.0	38.5
45-60	44.3	49.4	49.1

vaira	57318a	7933dee	00000128B97F3	00000128B8072	00000128BDDE8
0-15	broken	34.2	26.4	6.7	6.5
15-30	broken	31.5	30.1	16.6	21.9
30-45	broken	32.1	12.05	27.3	30.7
45-60	broken	43.3	30.95	21.6	32.8
