Tonzi: 2009-05-13 09:00:00 (DOY 133)
Author: Joe Verfaillie
Others: Hideki, Josep
Summary: Show Josep the site, installed two zenith cams, fixed tram maybe, no display on Floor computer.
| Tonzi 05-13-2009 Arrived just after 9am with Hideki and Josep. Clear warm sunny. Installed two zenith cameras with CR10x sn 13214 in box fastened to back side of tower. Spare 4GB SD cards left in box with CR10x. Test of cameras seemed to work but did not collect images. The Tonzi web cam has not been taking photos since the CR23x6 data logger at the tower was swapped. Wire to control power to web cam was not connect. Reconnected and confirmed that camera was now online. Tram was not running. Swapped batteries and it lined up for the next run but I couldn't wait until the end of the hour to see if it started a data pass. Computer at floor site would not display even after several hours of sunlight. I think this is a computer problem and not a power problem. Computer seem to be running and I have not seen data loss due to this condition, so left it as is for now. Soil co2 running and looks reasonable. Hideki made spectral measurements and took photos. |
Field Data
No tank data
No TZ Well data found
No TZ Moisture Point data found
No VR Moisture Point data found
No TZ grass heigth found
No VR grass heigth found
Tree DBH
| Date | Tag# | Reading (mm) |
|---|
No water potential data found
No TZ Grass Biomass data found
No TZ OakLeaves Biomass data found
No TZ PineNeedles Biomass data found
0 photos found
16 sets found
No data found for TZ_Fenergy.

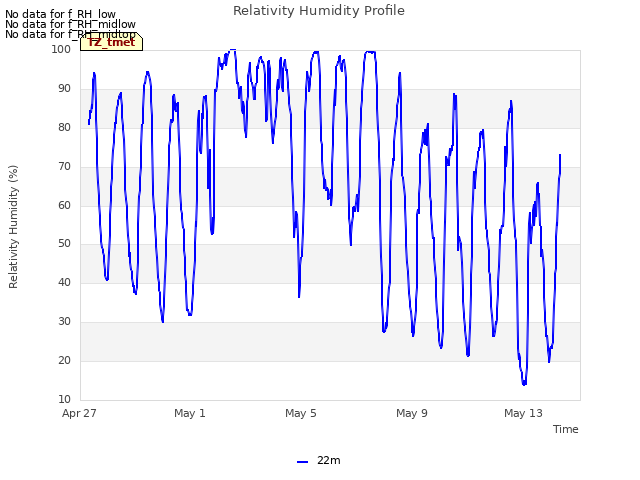

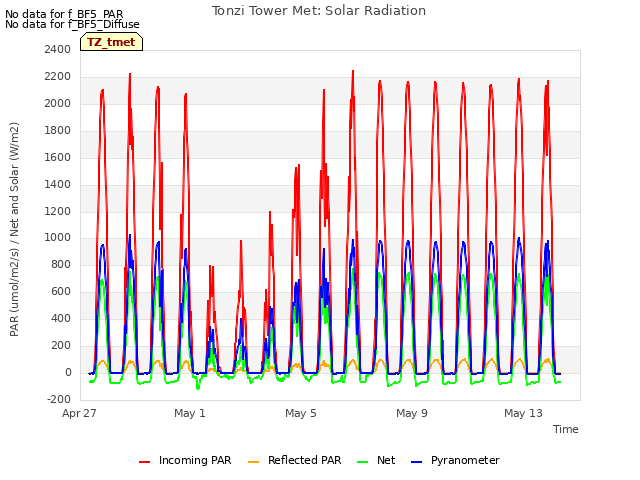

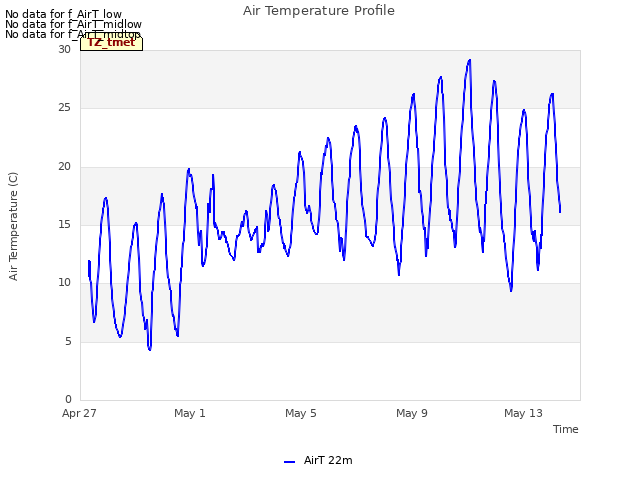

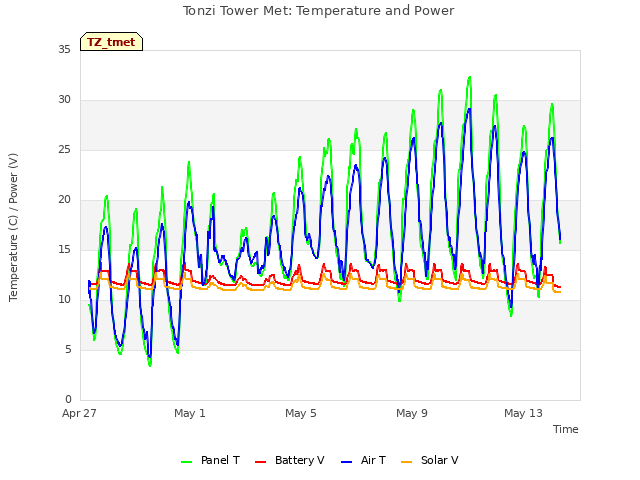

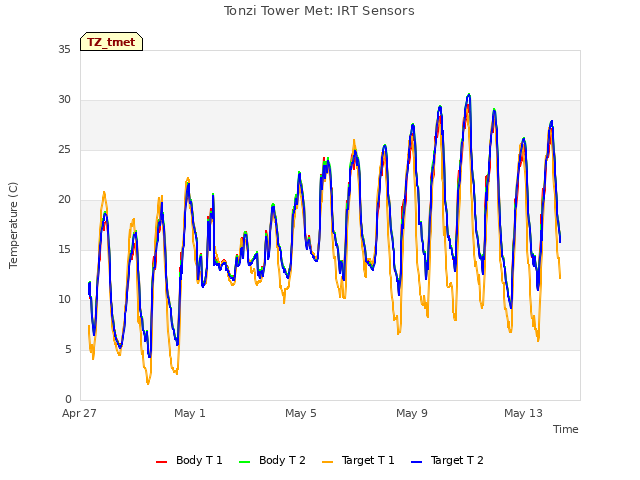

11 TZ_tmet graphs found

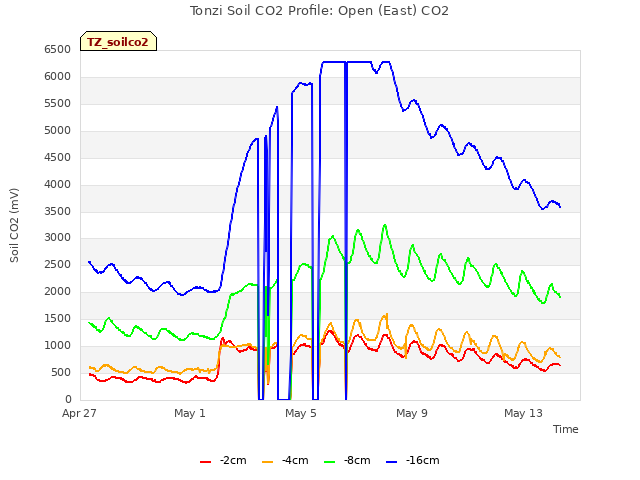

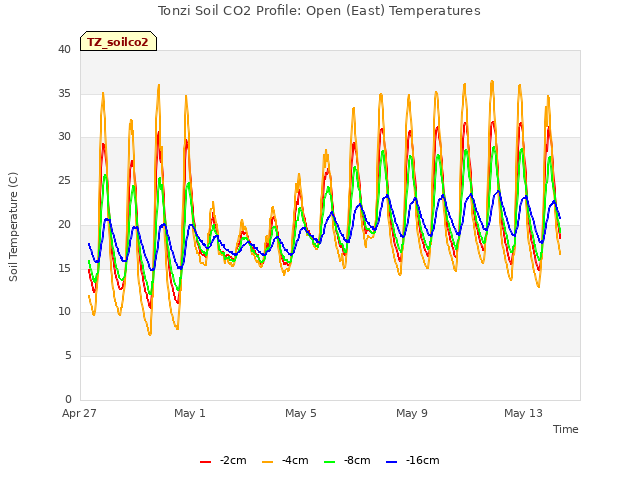

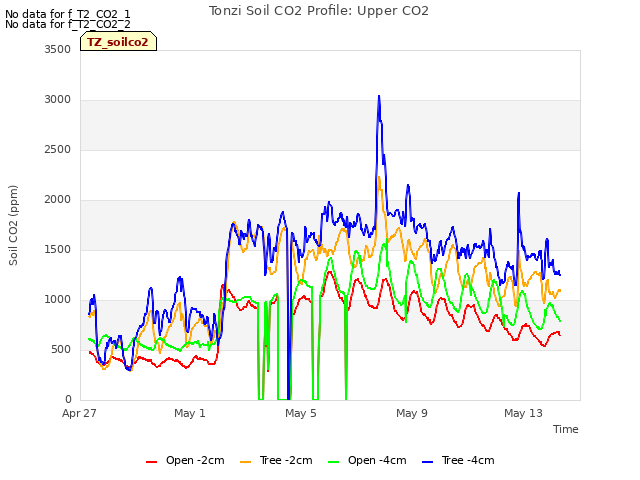

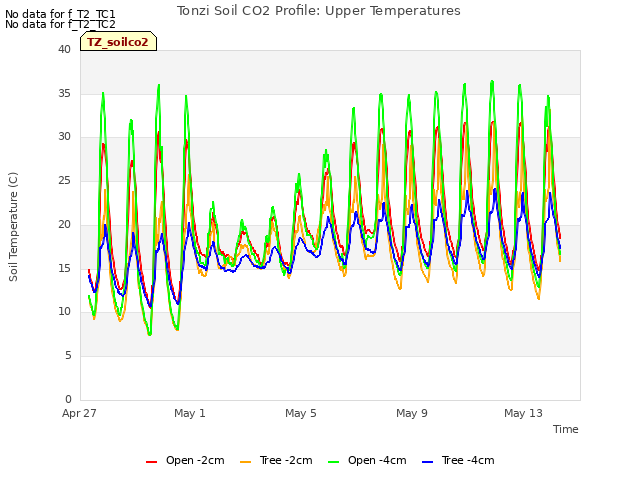

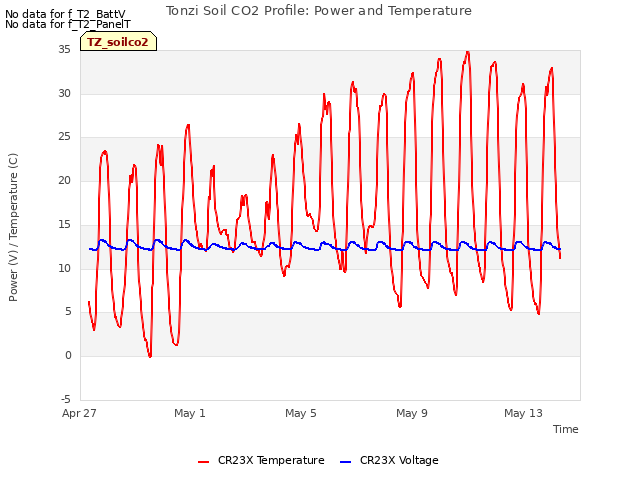

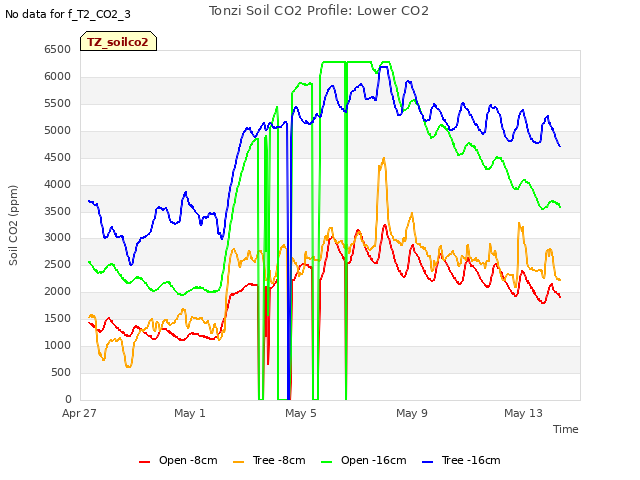

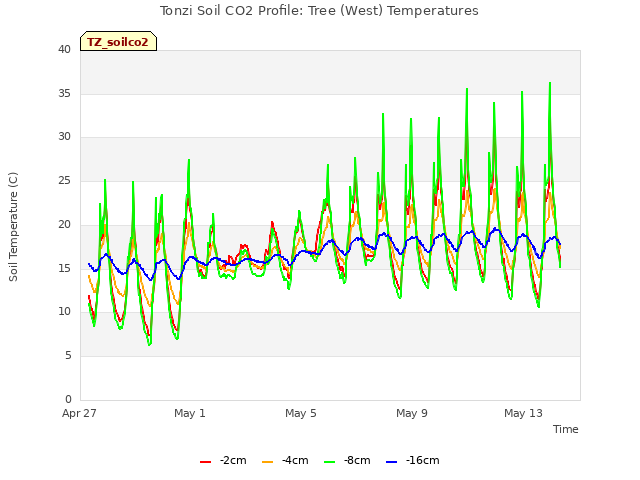

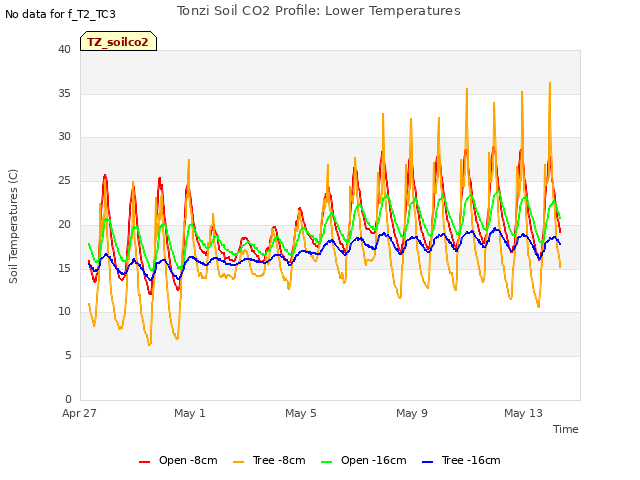

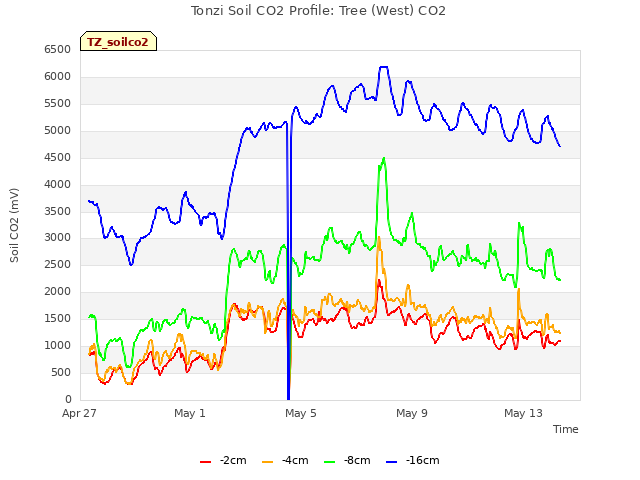

11 TZ_soilco2 graphs found
Can't check TZ_mixed

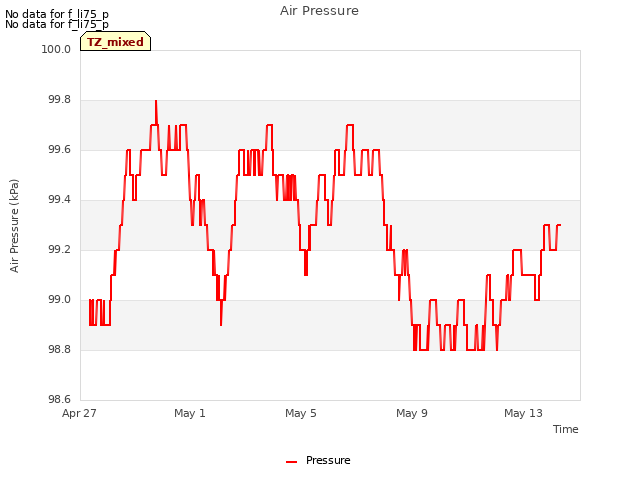

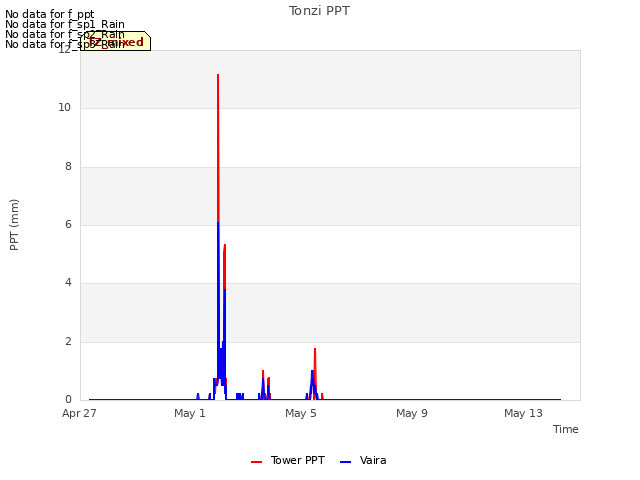

3 TZ_mixed graphs found
No data found for TZ_fflux.

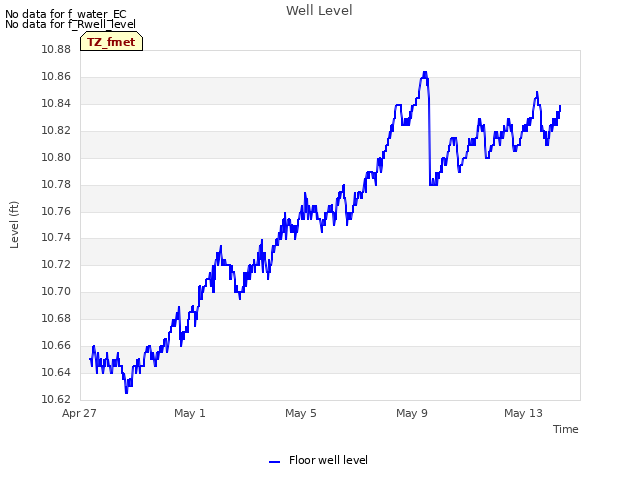

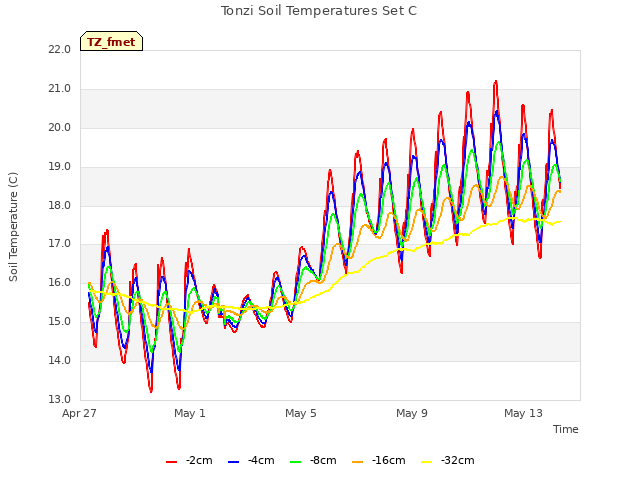

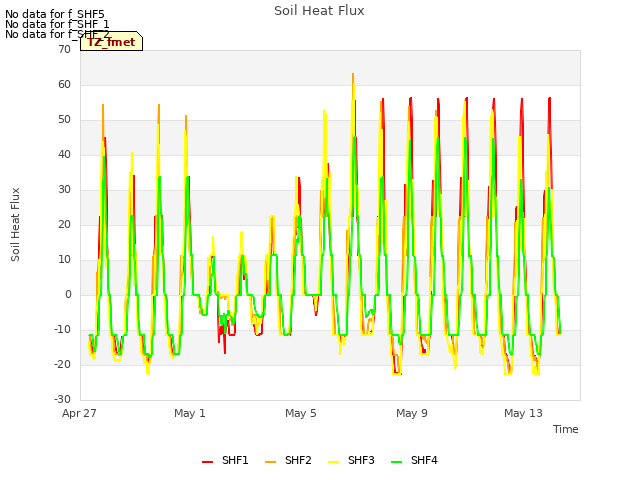

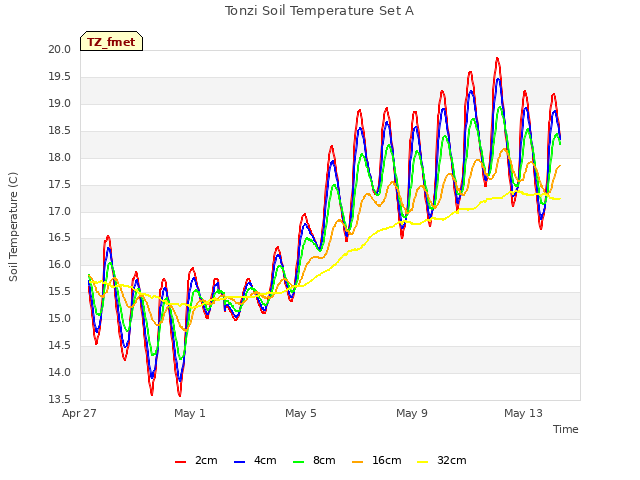

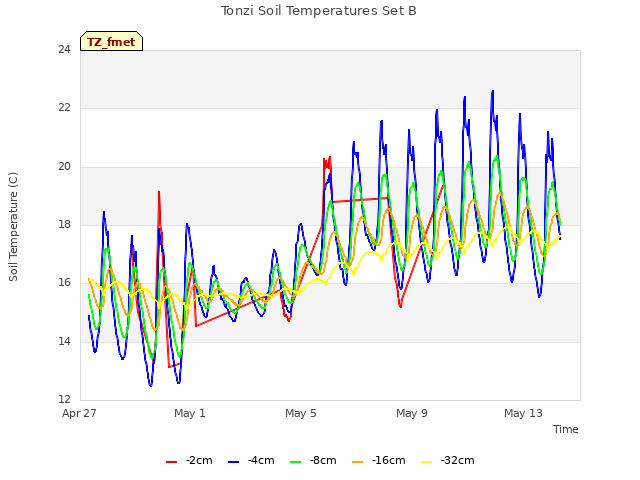

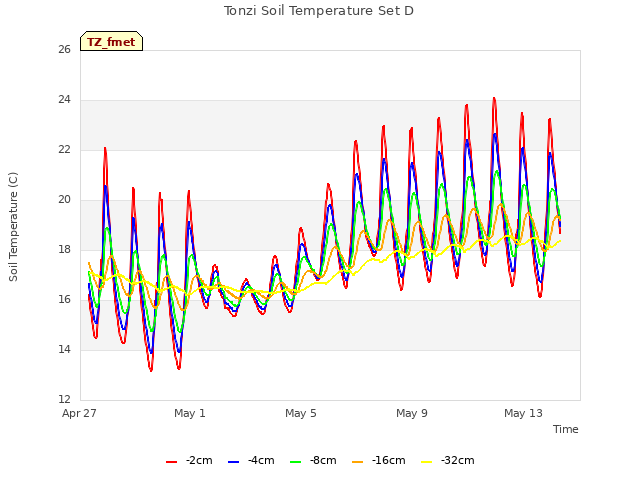

8 TZ_fmet graphs found

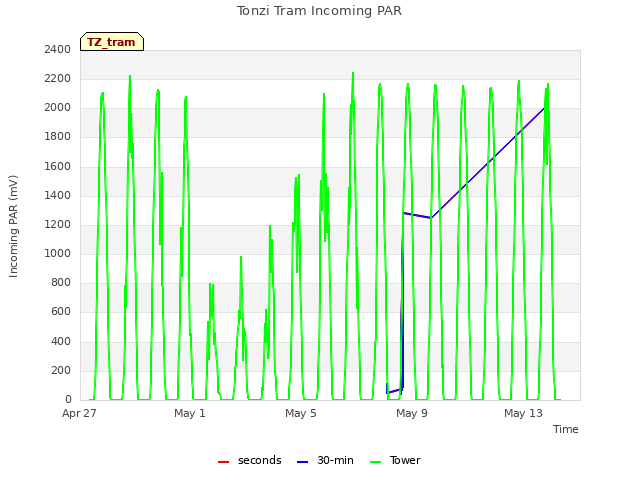

1 TZ_tram graphs found

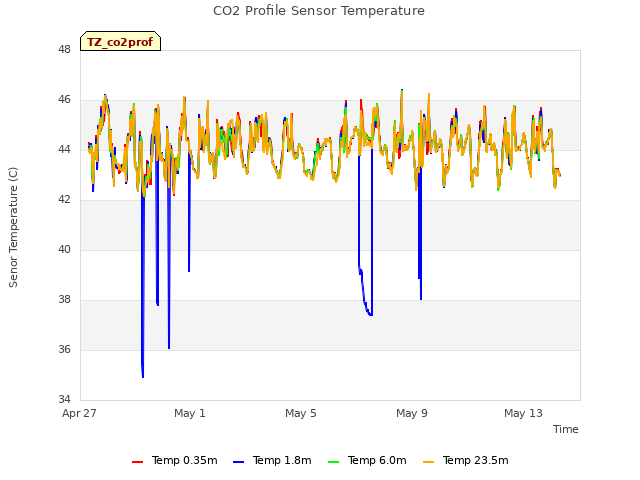

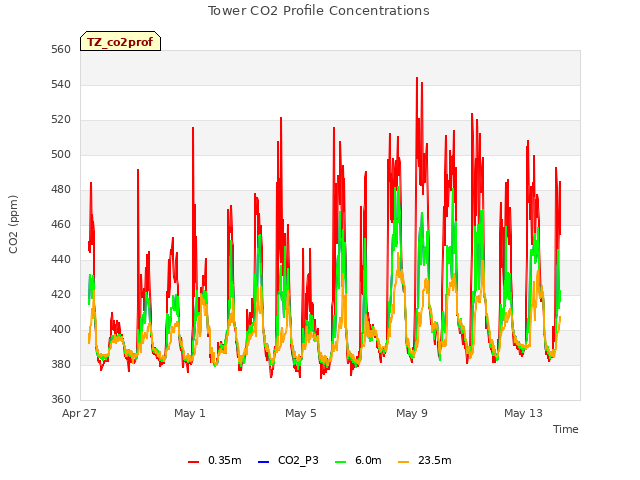

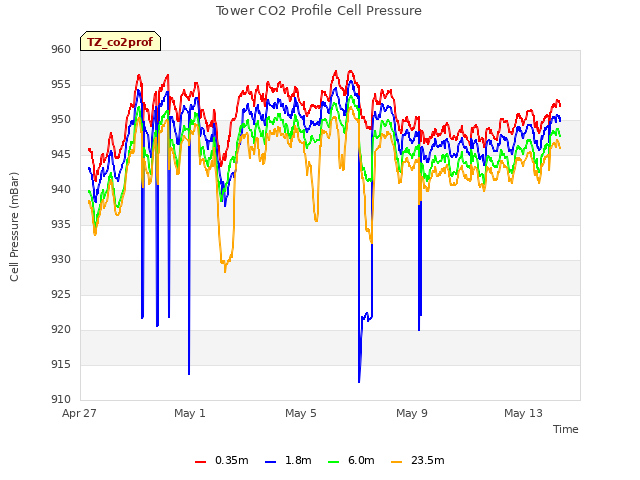

3 TZ_co2prof graphs found
No data found for TZ_irt.
No data found for TZ_windprof.
No data found for TZ_tflux.

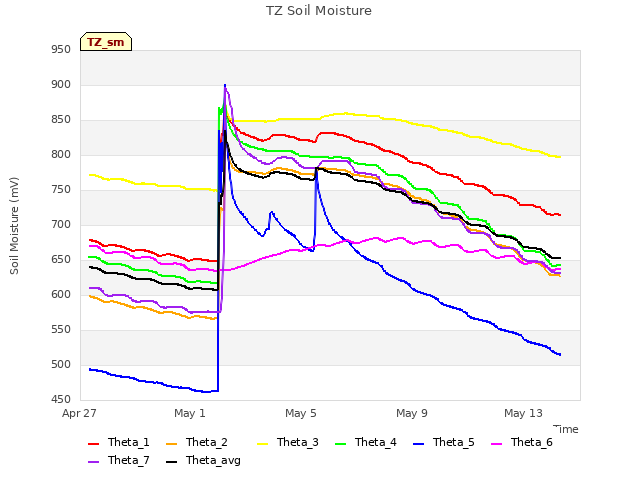

2 TZ_sm graphs found
Can't check TZ_met

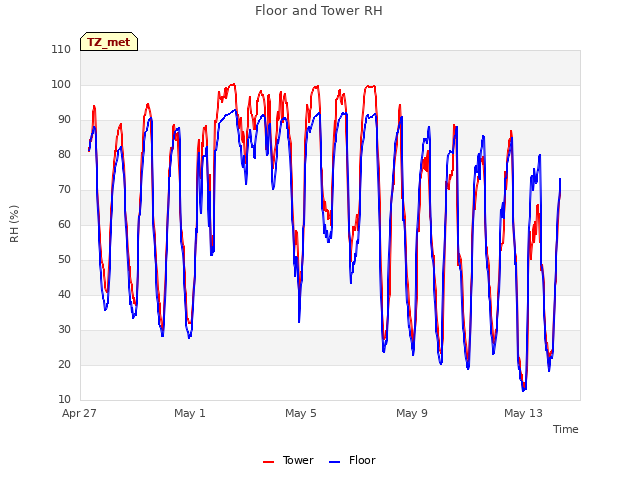

1 TZ_met graphs found
Can't check TZVR_mixed
No data found for TZ_osu.
No data found for TZ_fd.
Tonzi Z-cam data
