Sherman Island: 2011-08-25 11:30:00 (DOY 237)
Author: Joe Verfaillie
Others: Jaclyn

Summary: Swapped LI7500, standard fieldwork.

Sherman
2011-08-25

I arrived about 12:30 with Jaclyn. It was clear, sunny and warm. There was still a wind from the west but seemed to be lessening. The pepper weed is very yellow brown. Bermuda grass and hell weeds are green. The field is very wet with standing water in the middle and to the west.

At Twitchell, Jim mentioned that Bryan Brock was working with some people from UCLA that are doing some kind of seismic testing on Sherman. We saw a bigger generator go in to Sherman on our way out and could see some trucks to the west and south of our field.

I swapped the LI7500. SN 0976 went on and SN 0042 came off.

I collected data and swapped the CR1000 card.

The radiometers and rain bucket were clear.

I cleaned the solar panel for the fence charger.

0 photos found

Graphs display:
7 sets found

No data found for SI_mp.
11 SI_met graphs found

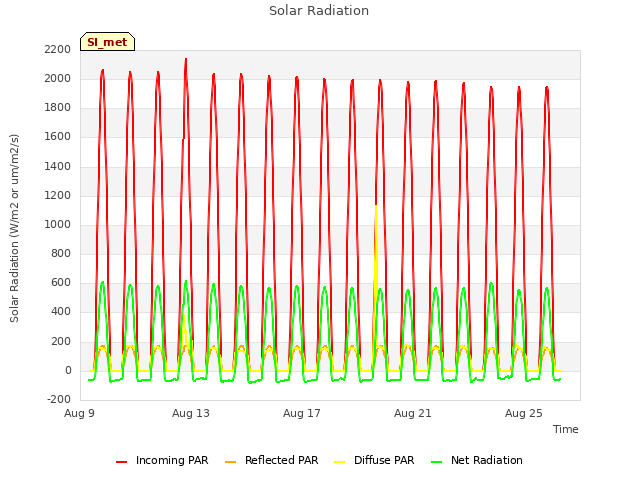

Explore the graph:Solar Radiation in a new window

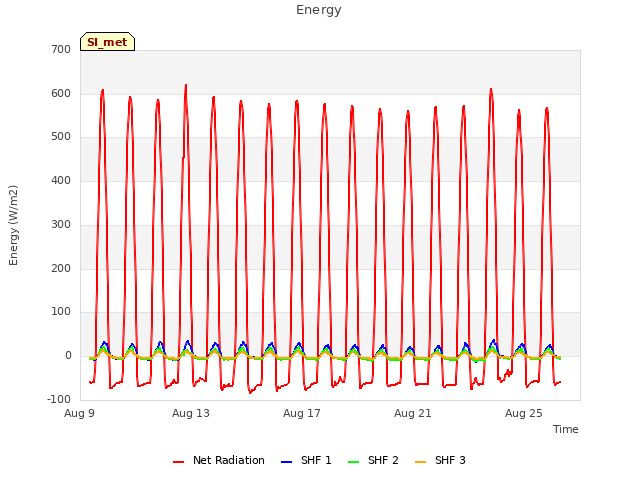

Explore the graph:Energy in a new window

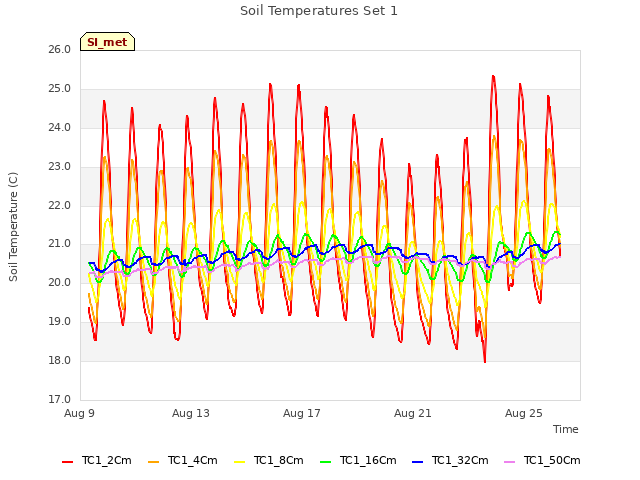

Explore the graph:Soil Temperatures Set 1 in a new window

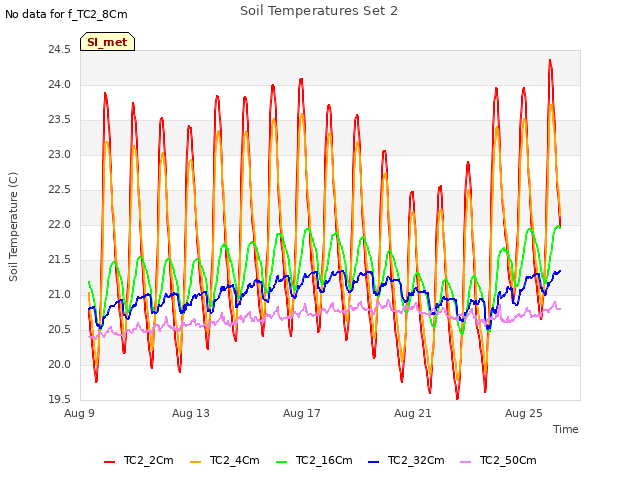

Explore the graph:Soil Temperatures Set 2 in a new window

Explore the graph:Soil Temperatures Set 3 in a new window

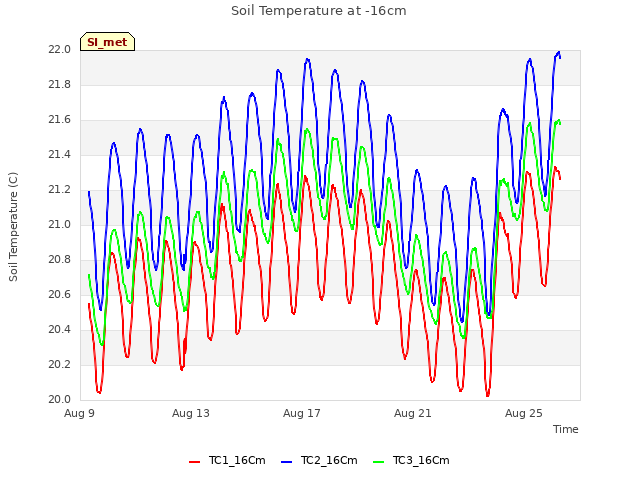

Explore the graph:Soil Temperature at -16cm in a new window

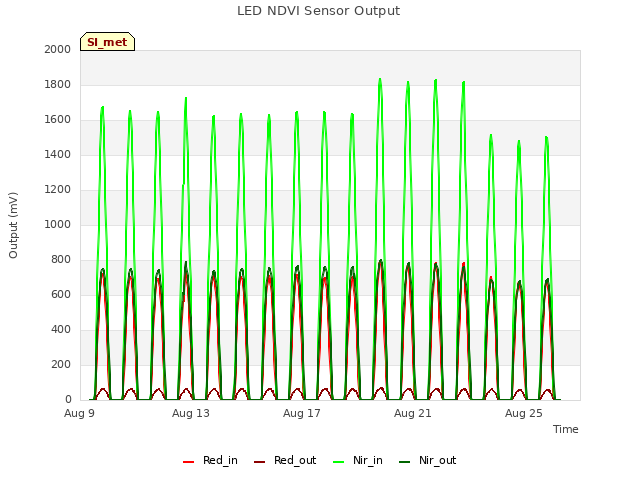

Explore the graph:LED NDVI Sensor Output in a new window

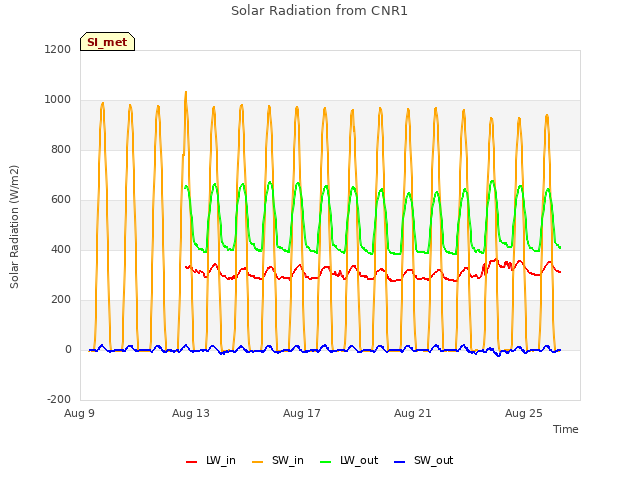

Explore the graph:Solar Radiation from CNR1 in a new window

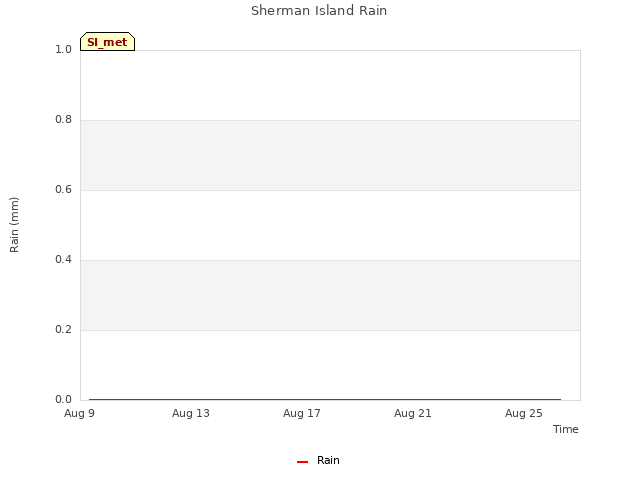

Explore the graph:Sherman Island Rain in a new window

Explore the graph:Sherman Well Level in a new window

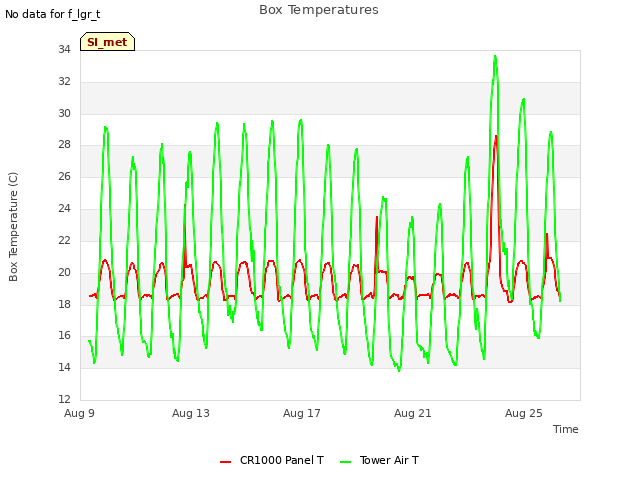

Explore the graph:Box Temperatures in a new window

Can't check SI_mixed
2 SI_mixed graphs found

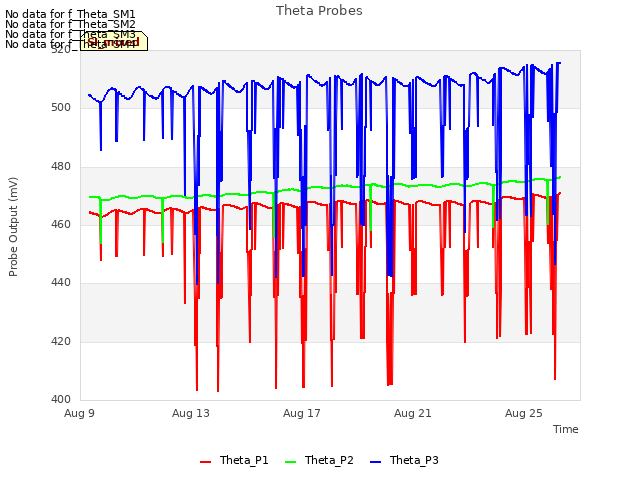

Explore the graph:Theta Probes in a new window

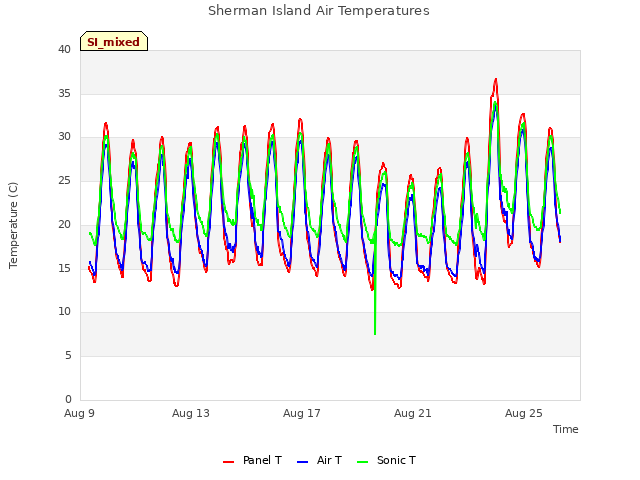

Explore the graph:Sherman Island Air Temperatures in a new window

5 SI_flx graphs found

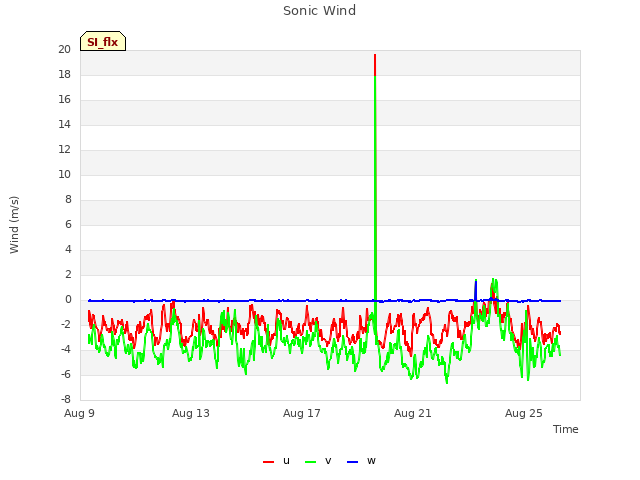

Explore the graph:Sonic Wind in a new window

Explore the graph:CH4 Concentrations in a new window

Explore the graph:LI7700 Channels in a new window

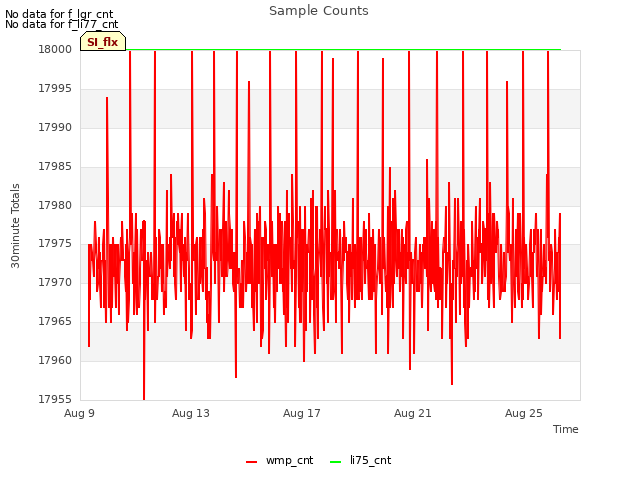

Explore the graph:Sample Counts in a new window

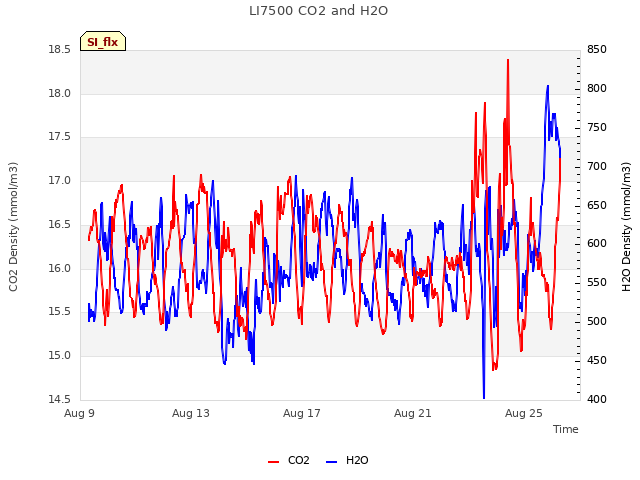

Explore the graph:LI7500 CO2 and H2O in a new window

No data found for SI_soilco2.
Can't check TWSI_mixed
Can't check SIMBTWEE_met
