Sherman Island: 2011-07-28 11:00:00 (DOY 209)
Author: Joe Verfaillie
Others: Jaclyn, Dennis, Jose, Maribel

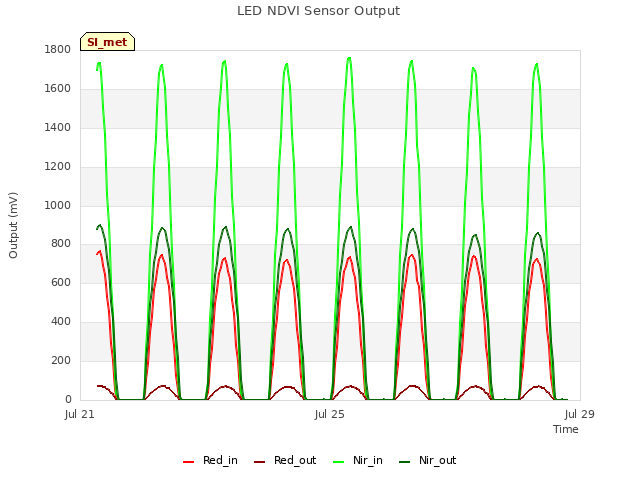

Summary: Checked CR10X met program and made changes, three new LED sensors tested.
| Sherman

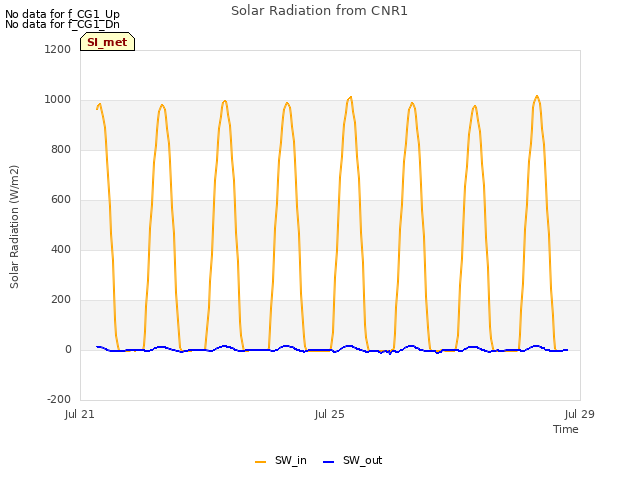

2011-07-28 I arrived about 11PDT with Jaclyn, Dennis, Jose and Maribel. It was warm, clear and sunny. A very mild day for the end of July. Most of the pepper weed is done with flowering and looks brownish. I worked on the CR10x met program. It seemed to be working but air pressure might have been stored in the ShelterT column. I also added a counter to record the number of times the 10 second program runs. The *B status from the data logger was Program signature: 50092 OS signature: 56928 Bytes Memory: 0256 No. E08 errors: 00 No. of table overruns: 00 OS Version: 9801.0 Revision Number: 0023 Lithium Battery: 3.0753 Low 12V counter: 00 Extended memory error: 00 Extended memory erase: +0000 The PRT of the CNR1 seems to be bad again. Maybe it is the resistor bridge. |
3 photos found
view of field site
Bird and cows
Cow
7 sets found

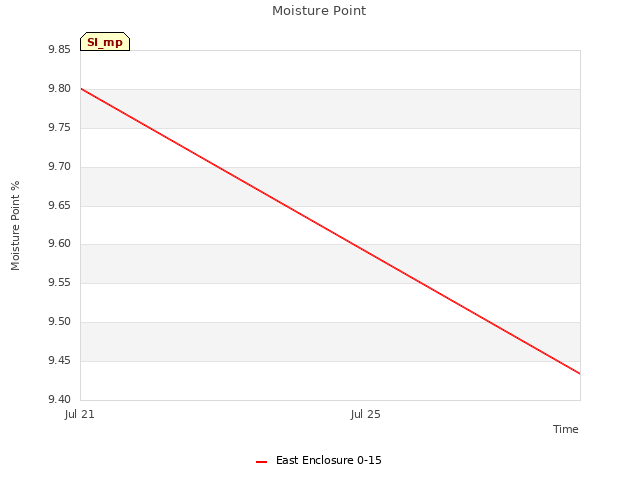

1 SI_mp graphs found

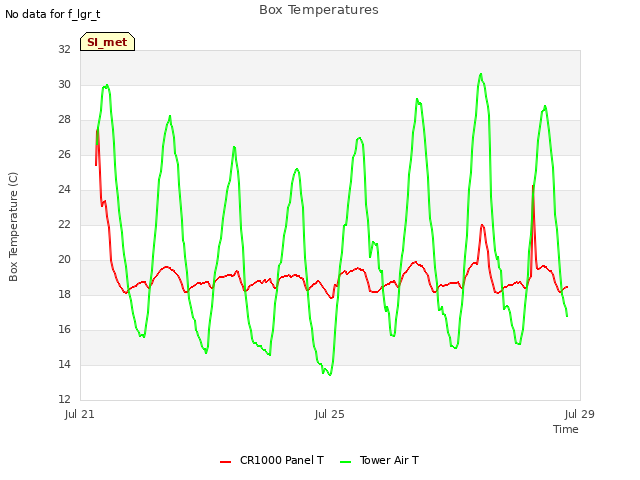

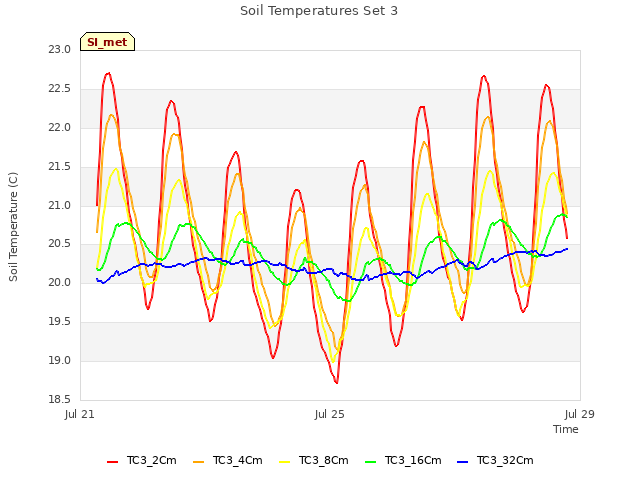

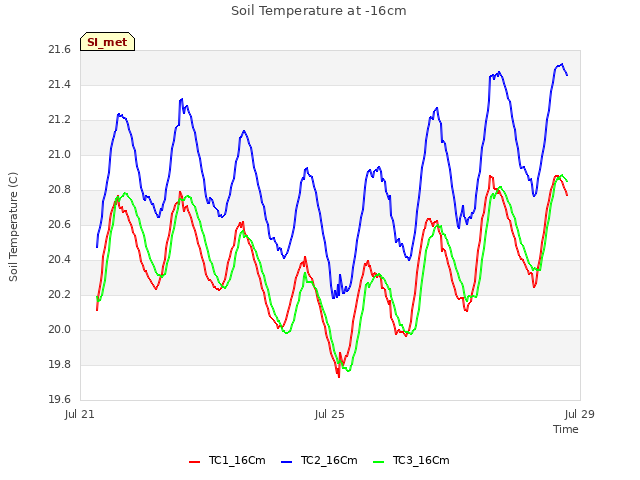

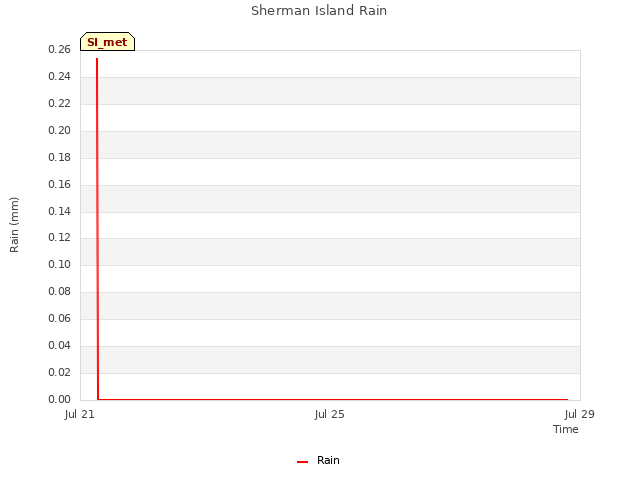

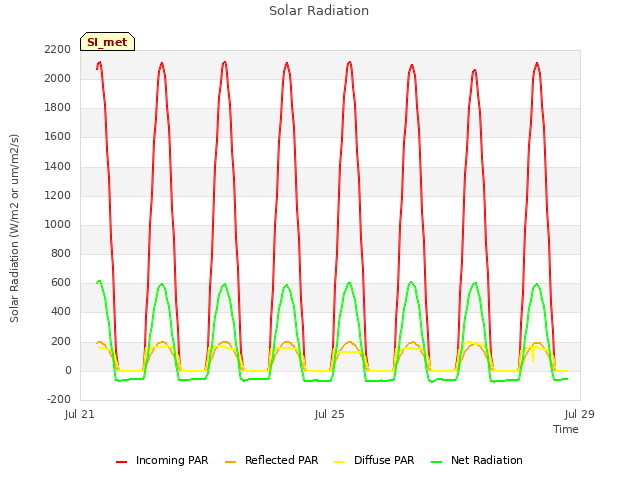

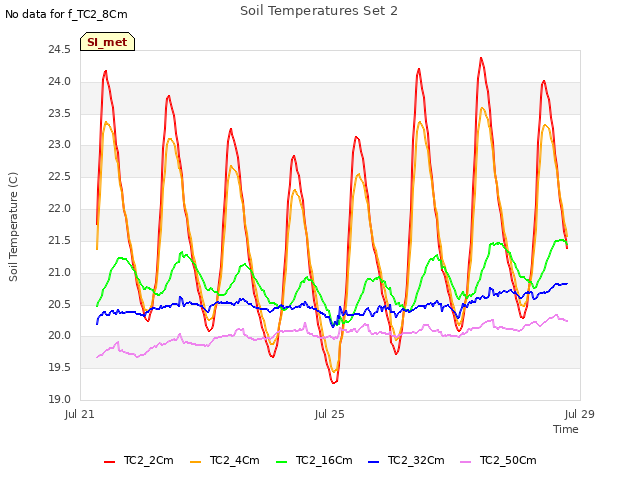

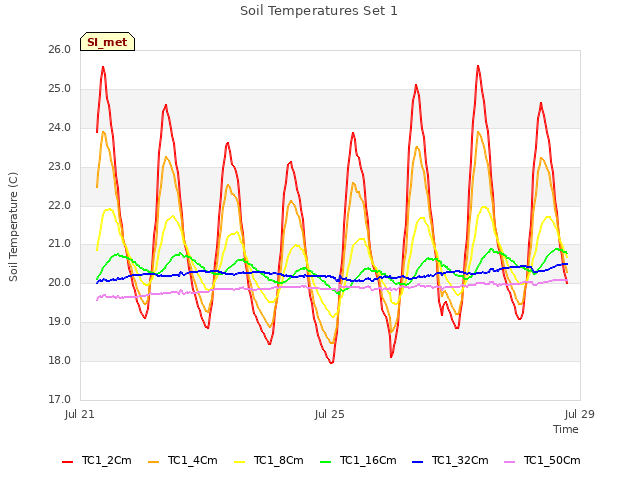

11 SI_met graphs found
Can't check SI_mixed

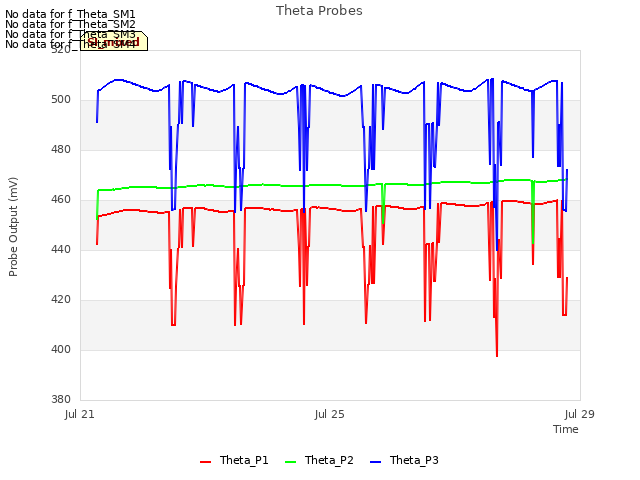

2 SI_mixed graphs found

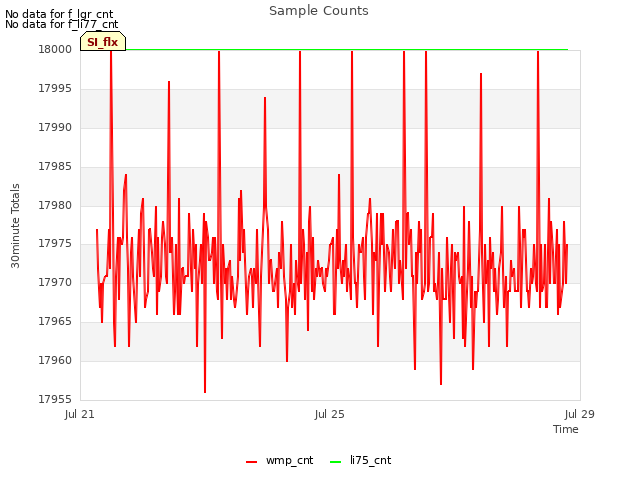

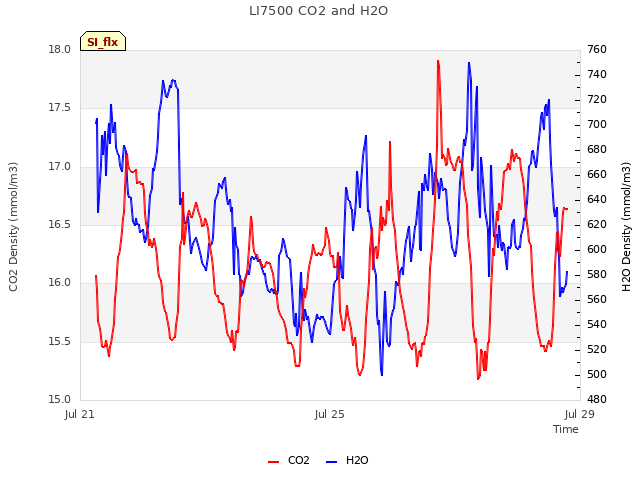

5 SI_flx graphs found
No data found for SI_soilco2.
Can't check TWSI_mixed
Can't check SIMBTWEE_met
