When: Date: 2/10/2009 , Day: 41 , Watch Time: 9:30am .
Where: Tonzi/Vaira Ranch
Who: Siyan, Joe, Hideke
Weather: clear, sunshine, rain recently, soil moist
Phenology
Summary

1. check and download data at Tower, Floor, and Vaira
2. Pump of Li-800 wasn’t running. Joe took it off.
3. correct PC time with Cell Phone at tower and floor sites.
4. collected grass sample for LAI
5. dendrometer: Gretchen’s
6. soil moisture
7. spectrometer
8. camera

Vaira_Grass Site

1. Fence and gate power: 12 v.
2. Panel and Batteries: 14 v; 16 amps; 3.5 amps.
3. Reading from Gillsonic screen before downloading data. (The value of H₂O and CO₂ should be in the range of 0 – 5 v.)

Time
Path/File name	D:\Data\V09_ 41 .flx D:\Data\VR .raw
	mean	std		mean	std
w	0.231	0.421	Ts	11.27	0.650
u	-4.33	0.709	H2O	1.83	0.097
v	1.27	0.494	CO2	2.25	0.033
			Tc

1. downloading data YES!
2. Check the fans of air temp. and relative humidity sensors at Vaira. YES!
3. Check MD-9 system connections YES!
4. Check CR23X with two multiplexers

Sys_vot = 11.26
PC_start =

1. Check levels of Radiation sensors, clear up surfaces. YES!

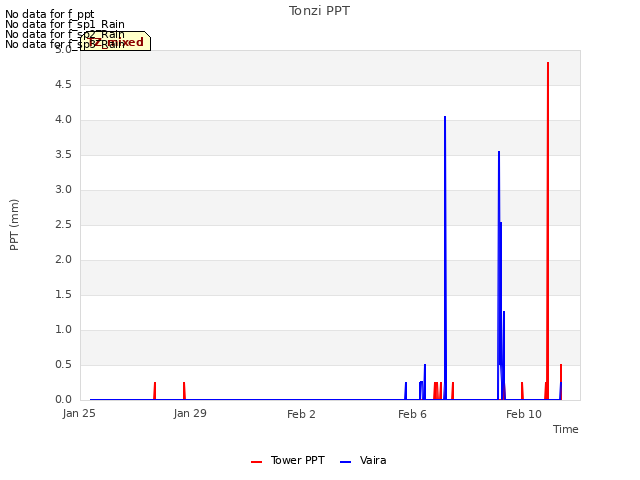

2. Check rain gage, make sure not clogged. YES!
3. Closed gate and set up fence. YES!

Tonzi_Tower Site

1. Fence and gate power: OK v.
2. Panel and Batteries: OK v; amps; amps.
3. Reading from Gillsonic screen before downloading data. (The value of H₂O and CO₂ should be in the range of 0 – 5 v.)

Time
Path/File name	D:\Data\T09_ 41 .flx D:\Data\TW09 .raw
	mean	std		mean	std
w	-0.38	1.755	Ts	11.79	0.162
u	1.05	0.314	H2O	0.778	0.012
v	2.8	0.684	CO2	1.957	0.007

1. downloading data YES!

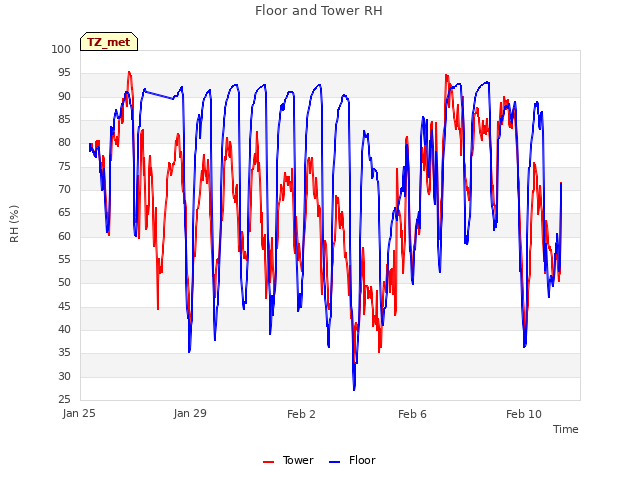

2. check the fans of air temp. and relative humidity sensors on the tower and the floor. YES!
3. Check rain gage, make sure not clogged. YES!
4. Check calibration cylinders;

CO₂ psig; flow psi.
N₂ psig; flow psi.
Manually calibrate Li-800. Following Ted’s instruction: H:\IoneSavanna_2004\Tower_2004\CO2Profile\LI800_Calibration_Procedure_2Nov04.txt
Is the pump running‌ No running

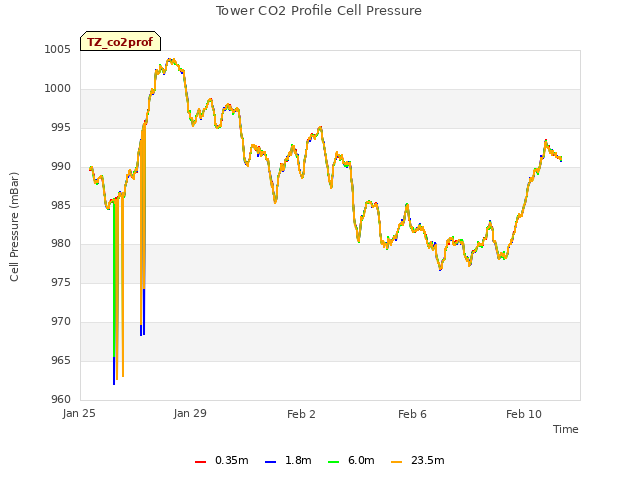

How to check the CO2 values‌ Click “Ports/Flags” button to see which ports or flags is setting high. Pressure should be less than ambient value. When Flag 8 is high, it may indicate that RRR’s battery is low.

1. close gate and set up fence. YES!

Toniz_Floor Site

1. Fence and gate power: OK v.
2. Panel and Batteries: OK v; amps; amps.
3. Reading from Gillsonic screen before downloading data. (The value of H₂O and CO₂ should be in the range of 0 – 5 v.)

Time
Path/File name	D:\Data\F09_ 41 .flx D:\Data\FL09 .raw
	mean	std		mean	std
w	0.03	0.325	Ts	11.92	0.537
u	-0.36	0.897	H2O	1.98	0.06
v	0.07	0.468	CO2	2.23	0.015

1. downloading data YES!
2. Check MD-9 system connections

CR23X3 – floor-Met YES!
CR23X5 – soil CO₂ profile YES!
CR23X6 – tower-Met YES!
CR10X2 – floor-Met YES!
CR10X4 – sap-flow
CR10X7 – CO₂ profile
CR10X8 – wind profile

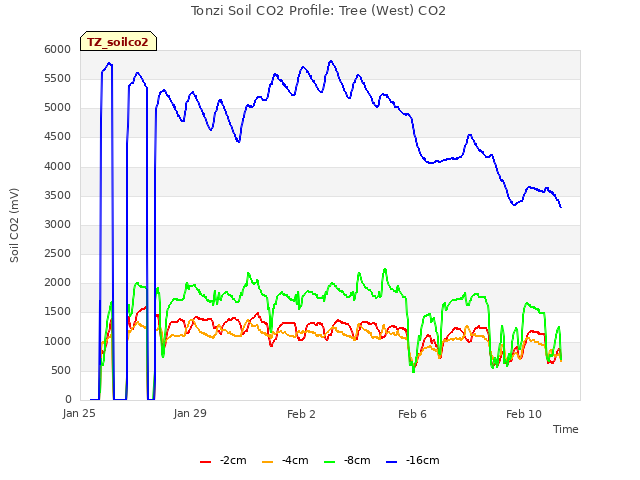

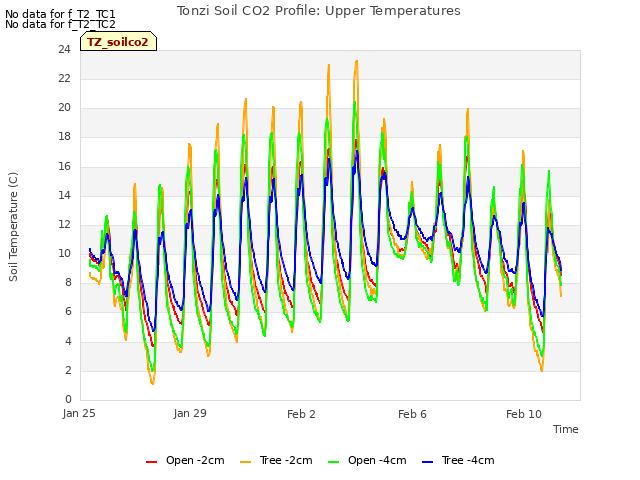

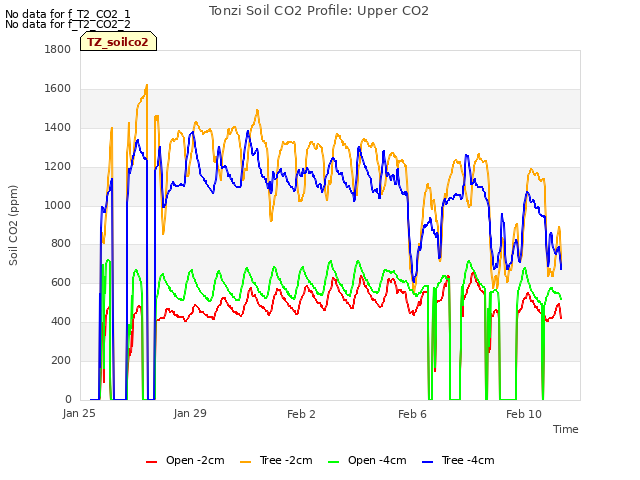

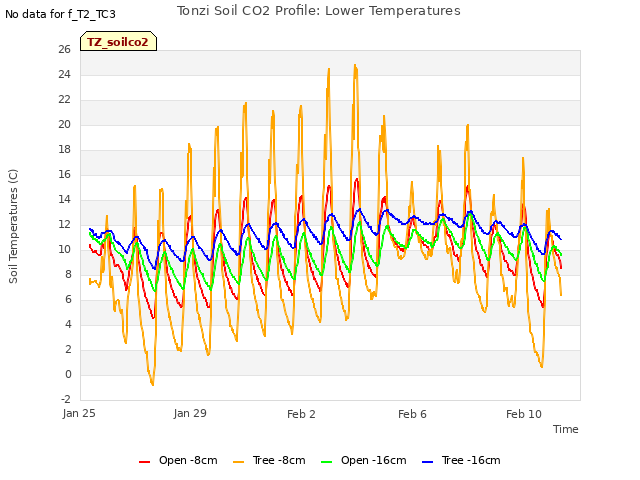

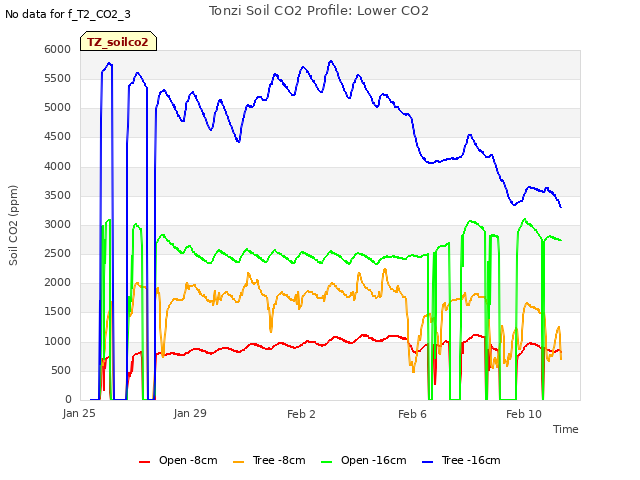

1. Soil CO₂ profile

Reading from datalogger

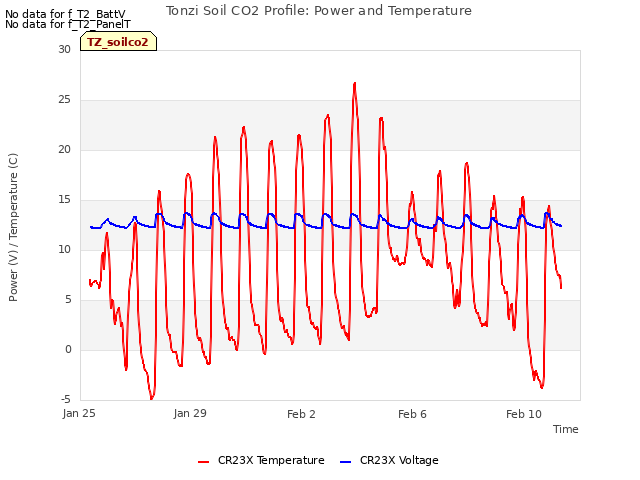

Panel temp		13.8
Battery voltage		13.6

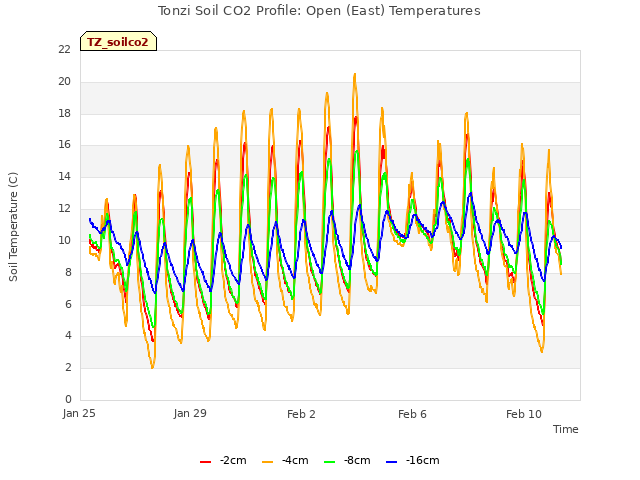

CO2E_1	403	TCE_1	12.4	CO2W_1	669	TCW_1	10.1
CO2E_2	542	TCE_2	15.1	CO2W_2	709	TCW_2	11.9
CO2E_3	852	TCE_3	10.1	CO2W_3	688	TCW_3	12.5
CO2E_4	1399	TCE_4	8.4	CO2W_4	1811	TCW_4	10.9

Reading from panels of analyzers

depth	Open	order	depth	Tree	order
2cm (1%)	840	1	2cm (1%)	1310	1
4cm	1120	2	4cm	1330	4
8cm	1720	3	8cm	1300	2
16cm	5670	4	16cm	1310	3

1. Close gate and set up fence. YES!

Tonzi
Dendrometer
Date	Day	Tag #	Reading (mm)
2/10/2009	41	71	X
		72	12.1
		77	X
		78	X
		79	16.9
		245	6.5
		248	X
		250	13.9
		255	X
		‌252‌	X
		102	7.8

Notes: “X” means not working any more.
Dendrometers installed by Gretchen group

Date	Day	Tag #	Reading (mm)	Original reading (mm)	Location
		1	9.7		133
		2	11.3		11828
		3	12.4		11829
		4	3.4		No tag
		5	8.0		No
		6	12.2		No
		7	10.4		No
		8	broken		No

10-Feb-09	41

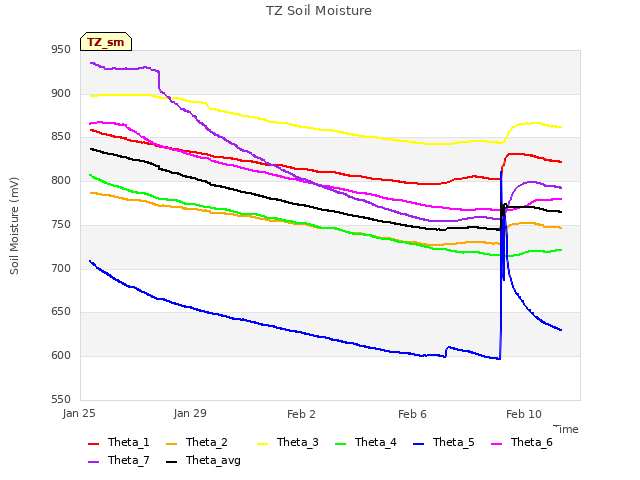

	SM
0-15	39.9	19.6	34.4	20.3	46.6	28.5	25.7	23.7	13.0
15-30	10.3	26.2	39.1	35.8	38.7	21.5	30.0	29.7	10.9
30-45	28.5	34.4	25.1	42.0	45.9	25.3	29.5	30.4	24.3
45-60	21.9	8.5	50.2	53.6	39.6	28.1	42.3	44.6	11.9
	A6D882B	A3D04E8	A6D72F5
0-15	29.3	28.1	18.7
15-30	23.7	27.0	30.9
30-45	30.6	34.2	35.2
45-60	35.9	48.7	43.6
vaira	57318a	7933dee
0-15	22.9	39.9
15-30	27.5	25.7
30-45	28.0	33.7
45-60	34.8	41.4
