Field Notes

<--2011-05-25 12:00:00 | 2011-06-10 10:30:00-->
Other sites visited today: Sherman Island | Mayberry
Phenocam link: Searching...

Twitchell Rice: 2011-06-02 12:45:00 (DOY 153)
Author: Jaclyn Hatala
Others: Dennis, Jose

Summary: Replaced DO sensor fluid and cleaned membrane, took LAI-2000, clip plots, and spectral reflectance measurements.

Arrived at Twitchell rice paddy around 9:30am. Winds light from the east/southeast. Field is dry, and rice plants are about 6cm above the soil surface.

Jaclyn replaced the DO sensor electrolyte fluid and cleaned the membrane. There was lots of salty semi-solid crud inside of the sensor, although the readings did not seem compromised (sensor read atmospheric). Tried to calibrate the LGR, but the keyboard and mouse weren't working.

Jose and Dennis collected field spectral reflectance measurements. Jose collected data along the LAI-2000 transect and clip plots for LAI/biomass measurement back in the lab.

2 photos found

Jaclyn, Dennis and Jose in the field
Jaclyn, Dennis and Jose in the field

UC Davis in the field
UC Davis in the field

Graphs display:
6 sets found

12 TW_met graphs found

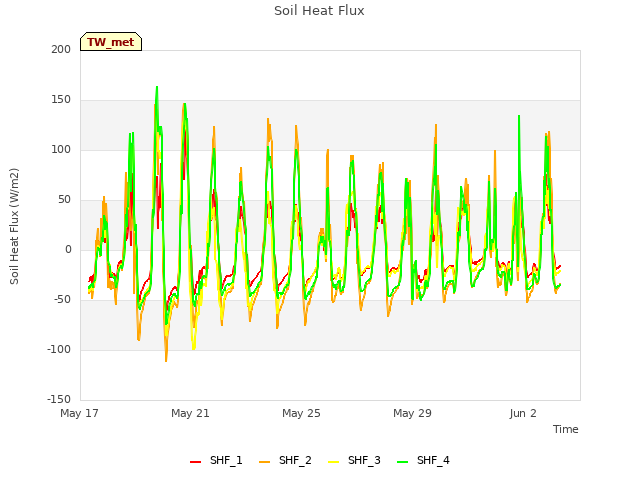

Explore the graph:Soil Heat Flux in a new window

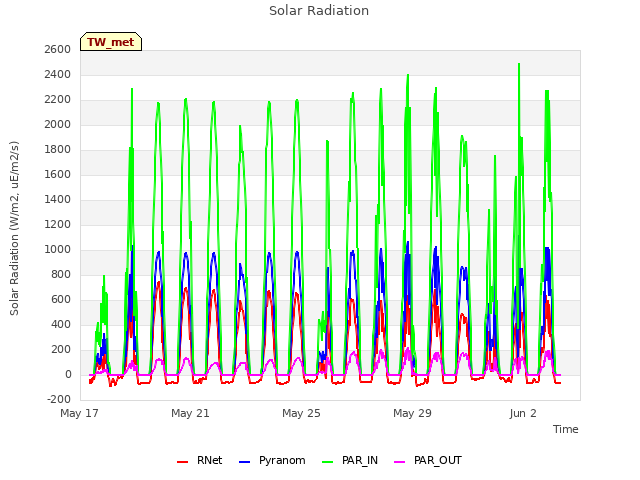

Explore the graph:Solar Radiation in a new window

Explore the graph:Air Temperature in a new window

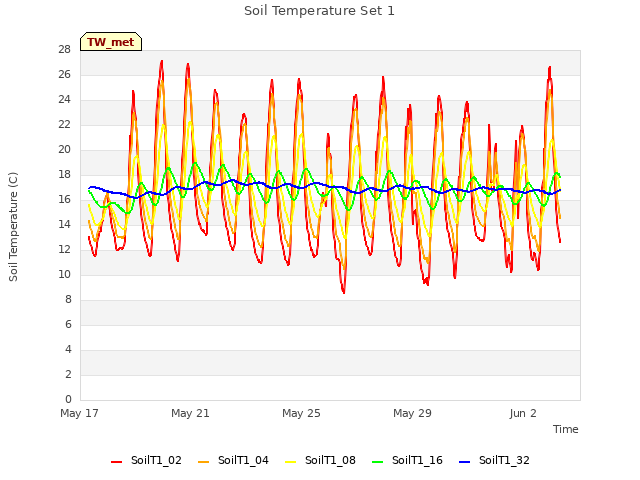

Explore the graph:Soil Temperature Set 1 in a new window

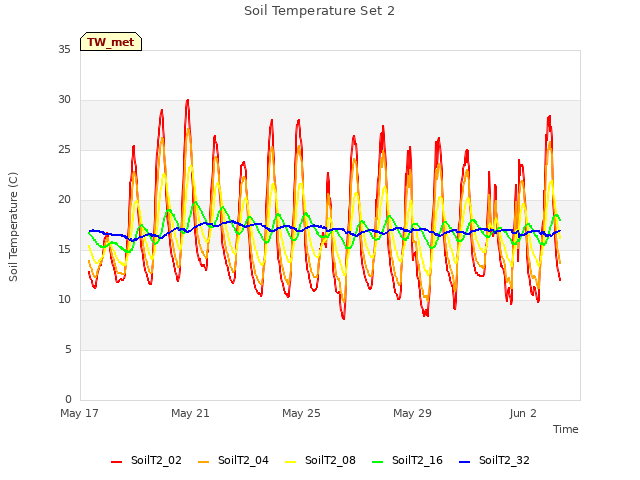

Explore the graph:Soil Temperature Set 2 in a new window

Explore the graph:Soil Temperature Set 3 in a new window

Explore the graph:Water Temperature in a new window

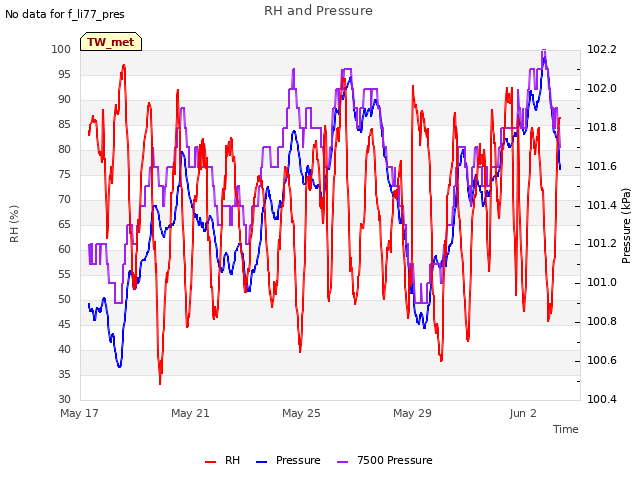

Explore the graph:RH and Pressure in a new window

Explore the graph:Soil Moisture in a new window

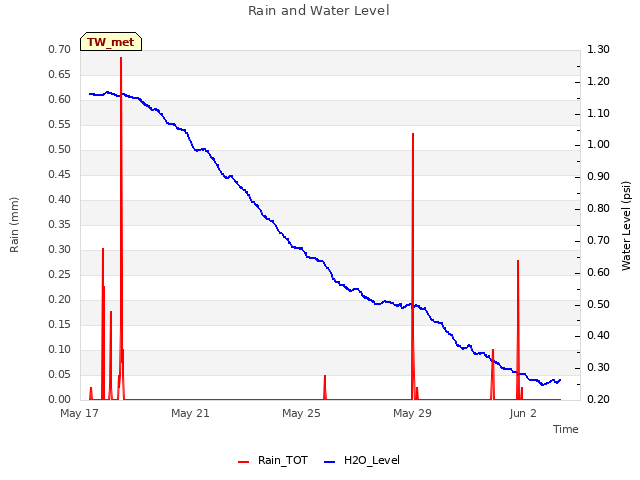

Explore the graph:Rain and Water Level in a new window

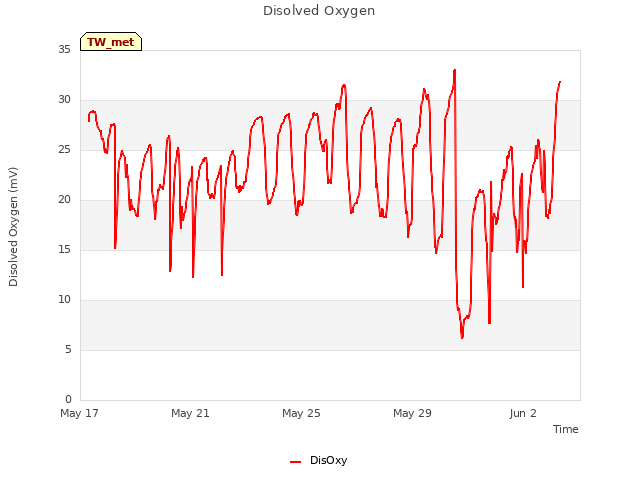

Explore the graph:Disolved Oxygen in a new window

Explore the graph:LED NDVI Channels in a new window

5 TW_flux graphs found

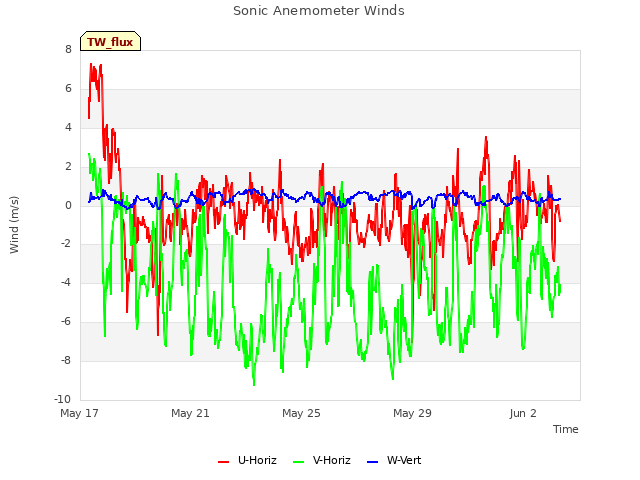

Explore the graph:Sonic Anemometer Winds in a new window

Explore the graph:LI7700 CH4 and RSSI in a new window

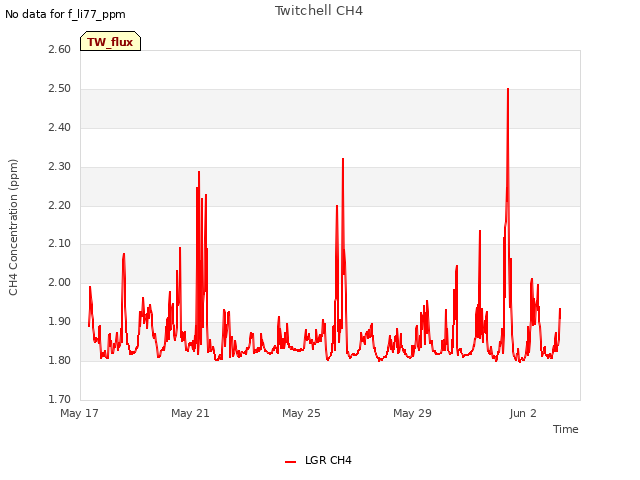

Explore the graph:Twitchell CH4 in a new window

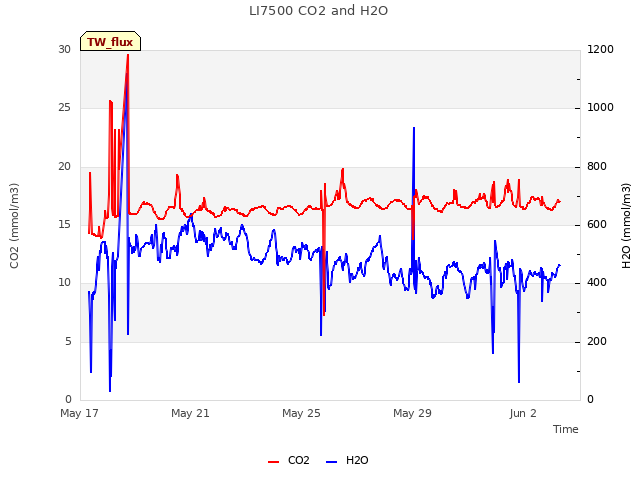

Explore the graph:LI7500 CO2 and H2O in a new window

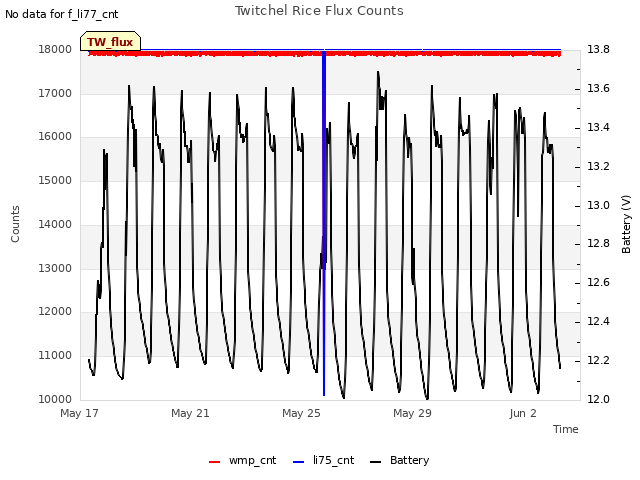

Explore the graph:Twitchel Rice Flux Counts in a new window

Can't check TWSI_mixed
Can't check SIMBTWEE_met
1 TW_cam graphs found

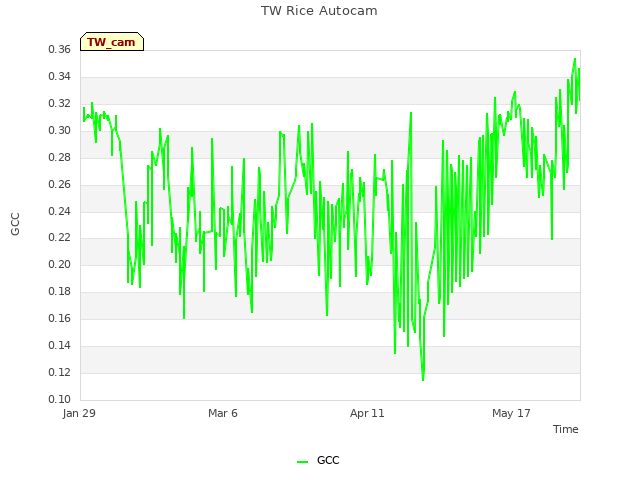

Explore the graph:TW Rice Autocam in a new window

Can't check TATWBABCSB_cam
