When: Date: 1/14/2009 , Day: 14 , Watch Time: 10:00am .
Where: Tonzi/Vaira Ranch
Who: Siyan, Joe, Gretchen
Weather: clear, sunshine
Phenology: green grass
Summary

1. checked and download data at Tower, Floor, and Vaira.
2. helped Gretchen test rock property in the wells
3. grass sample for LAI and phenology in Tower and Vaira, oak branches for N

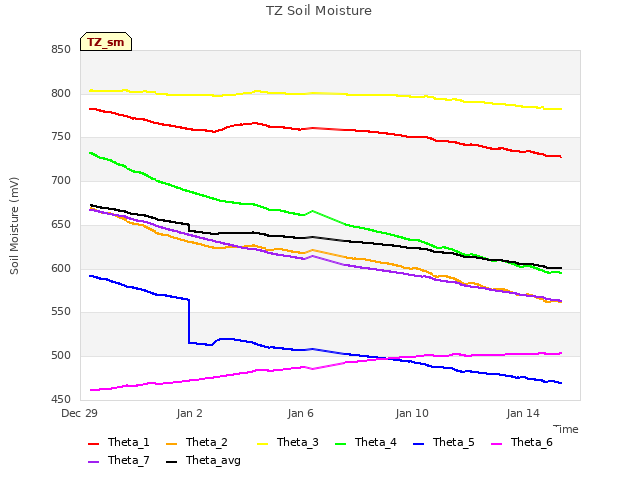

4. measured soil moisture probes

Vaira_Grass Site

1. Fence and gate power: 12 v.
2. Panel and Batteries: 14.0 v; 14.8 amps; 3.4 amps.
3. Reading from Gillsonic screen before downloading data. (The value of H₂O and CO₂ should be in the range of 0 – 5 v.)

Time
Path/File name	D:\Data\V09_ 014 .flx D:\Data\VR09 .raw
	mean	std		mean	std
w	-0.02	0.18	Ts	14.8	1.03
u	-0.14	0.36	H2O	20.7	0.147
v	-1.5	0.43	CO2	2.32	0.054

1. downloading data YES!

Clean up D: disk: delete folders “Vaira_2004” and “Vaira_2005”, copy folder “Vaira_2006” to mobile hard drive.

1. check the fans of air temp. and relative humidity sensors at Vaira. YES!
2. Check MD-9 system connections YES!
3. Check CR23X with two multiplexers

Sys_vot = 14.1

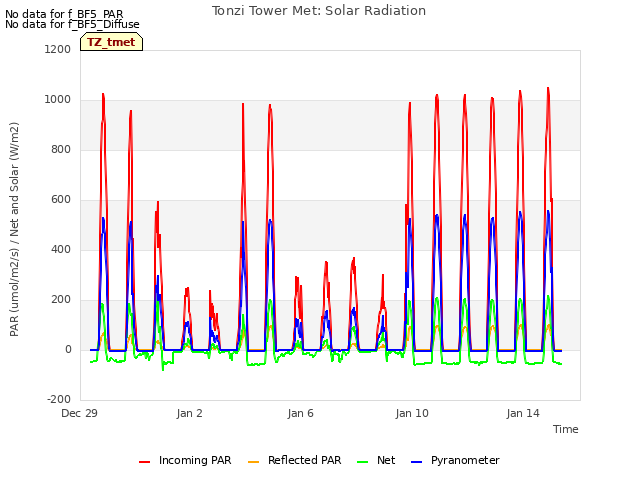

1. Check levels of Radiation sensors, clear up surfaces. YES!

9. Closed gate and set up fence. YES!

Tonzi_Tower Site

1. Fence and gate power: 12 v.
2. Panel and Batteries: 13.9 v; 0.0 amps; 5.6 amps.
3. Reading from Gillsonic screen before downloading data. (The value of H₂O and CO₂ should be in the range of 0 – 5 v.)

Time
Path/File name	D:\Data\T09_ 014 .flx D:\Data\TW0 9 .raw
	mean	std		mean	std
w	-0.09	0.413	Ts	16.998	0.339
u	1.4	0.196	H2O	2.63	0.013
v	0.5	0.217	CO2	1.91	0.008

H2O and CO2 channel looked spiky, need to be swapped next time.

1. downloading data YES!

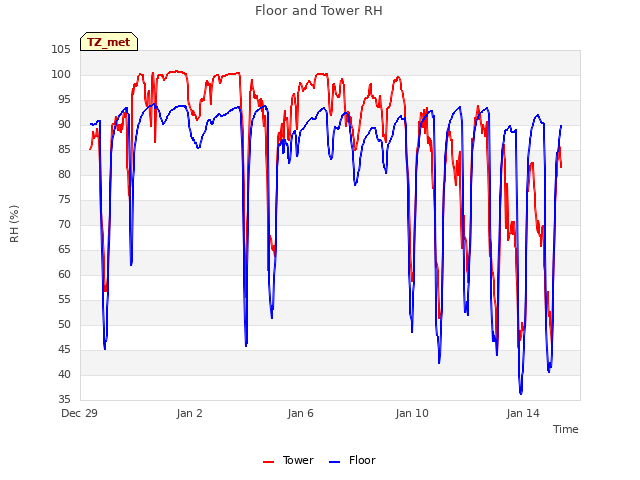

2. check the fans of air temp. and relative humidity sensors on the tower and the floor. YES!
3. Check calibration cylinders;

CO₂ 500 psig; flow 20 psi.
N₂ 1650 psig; flow 20 psi.
Manually calibrate Li-800. Following Ted’s instruction: YES!
H:\IoneSavanna_2004\Tower_2004\CO2Profile\LI800_Calibration_Procedure_2Nov04.txt
Is the pump running‌ No. Joe put the pump back.

1. close gate and set up fence.

Toniz_Floor Site

1. Fence and gate power: OK v.
2. Panel and Batteries: OK v; OK amps; OK amps.
3. Reading from Gillsonic screen before downloading data. (The value of H₂O and CO₂ should be in the range of 0 – 5 v.)
4. downloading data. YES!
5. Check MD-9 system connections

CR23X3 – floor-Met
CR23X5 – soil CO₂ profile
CR23X6 – tower-Met – no data, no camera image
CR10X2 – floor-Met
CR10X4 – sap-flow
CR10X7 – CO₂ profile
CR10X8 – wind profile

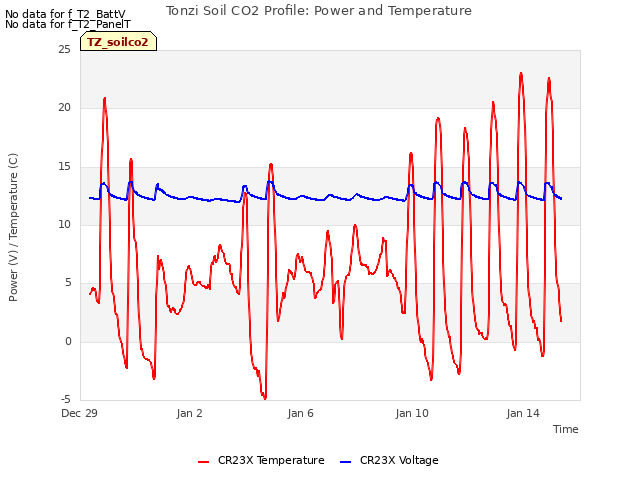

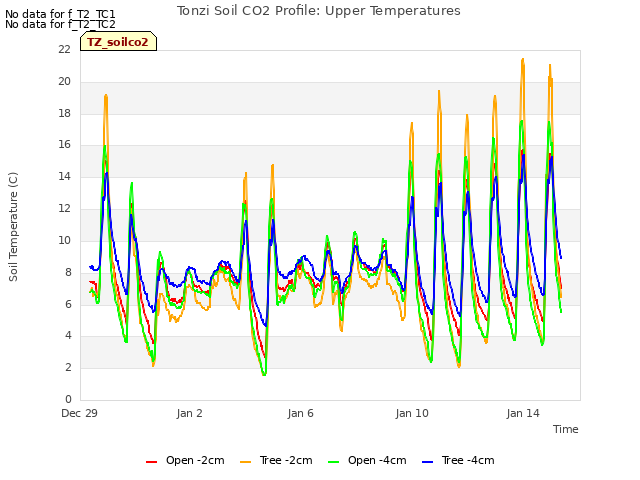

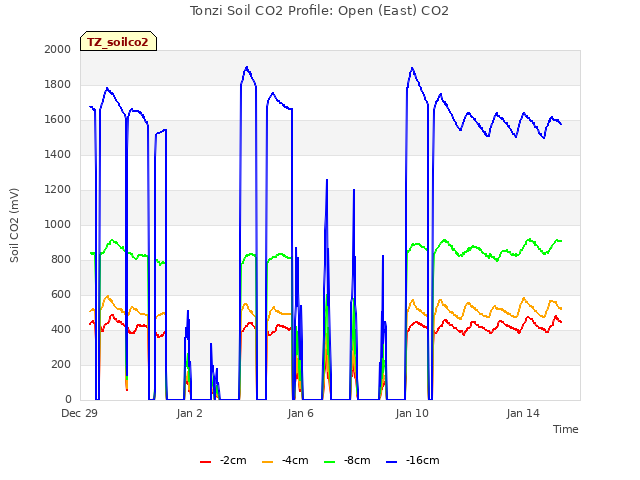

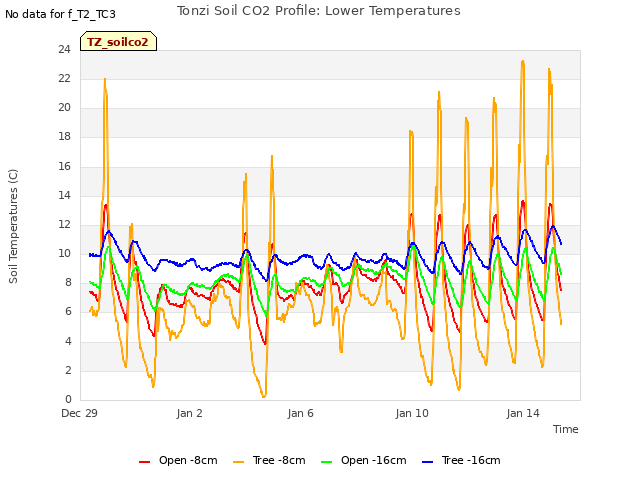

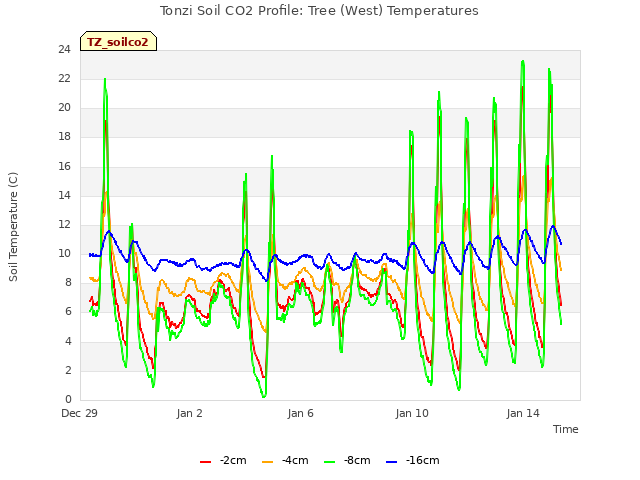

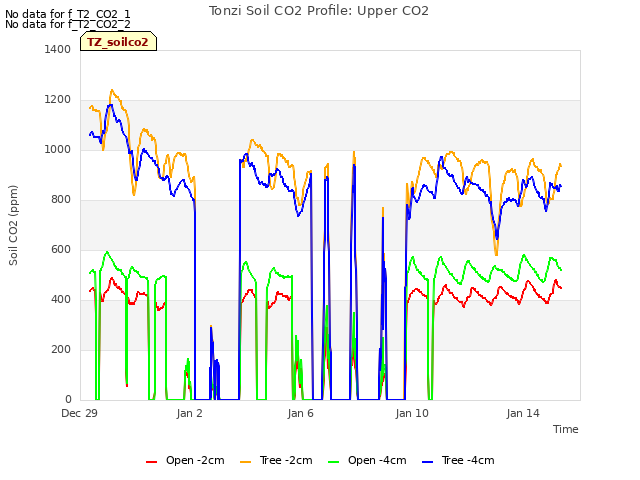

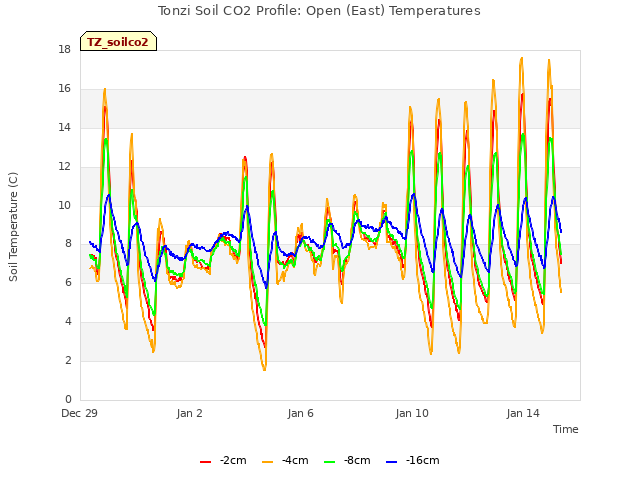

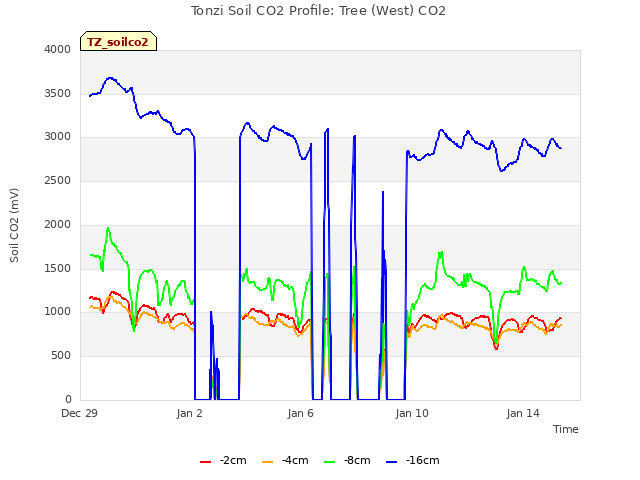

1. Soil CO₂ profile

Reading from datalogger

Panel temp		22.5
Battery voltage		13.4
CO2E_1	420	TCE_1	15.9	CO2W_1	803	TCW_1	20.5
CO2E_2	560	TCE_2	17.6	CO2W_2	848	TCW_2	14.6
CO2E_3	860	TCE_3	13.6	CO2W_3	1446	TCW_3	22.0
CO2E_4	798	TCE_4	9.6	CO2W_4	1468	TCW_4	11.6

Reading from panels of analyzers

depth	Open	order	depth	Tree	order
2cm (1%)	640	1	2cm (1%)	1630	1
4cm	1130	2	4cm	1710	4
8cm	1730	3	8cm	2890	2
16cm	3230	4	16cm	5960	3

1. Close gate and set up fence. YES!

Tonzi
Dendrometer
Date	Day	Tag #	Reading (cm)
1/14/2009	14	71	22.7
		72	23.3
		77	Broken
		78	Broken
		79	22.9
		245	20.3
		248	24.2
		250	21.7
		255	22.9
		‌252‌	missing
		102	Broken

Sample sheet for MIBA

Sample vial	What
MIBA-US-01.178	Leave 1
MIBA-US-01. 179	Leave 2
MIBA-US-01. 180	Grass 1
MIBA-US-01. 181	Grass 2
MIBA-US-01. 182	Soil in 10 cm
MIBA-US-01. 183	Stem 1
MIBA-US-01. 184	Stem 2
