<--2010-12-09 09:00:00 | 2011-01-05 08:00:00-->Tonzi: 2010-12-30 08:00:00 (DOY 364)
Author: Siyan Ma
Others:
Summary: Floor site computer died
Vaira:
1. One of the fence bar loosed; fixed. 2. Rain gage was blocked by a chunk of bird crap; cleaned up. Tower: 1. Missing data between Day 358 15:00 – 364 12:48, due to rains. 2. CO2 profile system remained no-run, to save power. Floor: 1. computer died: error message -> CPU changed. No system memory; taken back to the lab. Groundwater Floor: 25.78 ft Tower 30.10 ft Roadsite: ? (sensor didn’t work properly; plastic broken) Soil CO2 profile readings from the analyzers: Open: 1010, 1260, 900, 700 Tree: 2500, 2180, 3370,1.49% |
Field Data
No tank data
Well Depth
Date | Location | Depth (feet) |
---|---|---|
2010-12-30 | TZ_floor | 25.8 |
2010-12-30 | TZ_road | 29 |
2010-12-30 | TZ_tower | 30.1 |
No TZ Moisture Point data found
No VR Moisture Point data found
No TZ grass heigth found
No VR grass heigth found
Tree DBH
Date | Tag# | Reading (mm) |
---|
No water potential data found
No TZ Grass Biomass data found
No TZ OakLeaves Biomass data found
No TZ PineNeedles Biomass data found
0 photos found
16 sets found

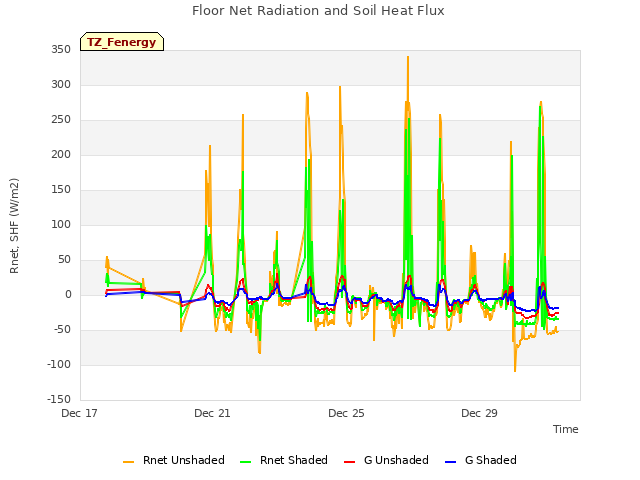

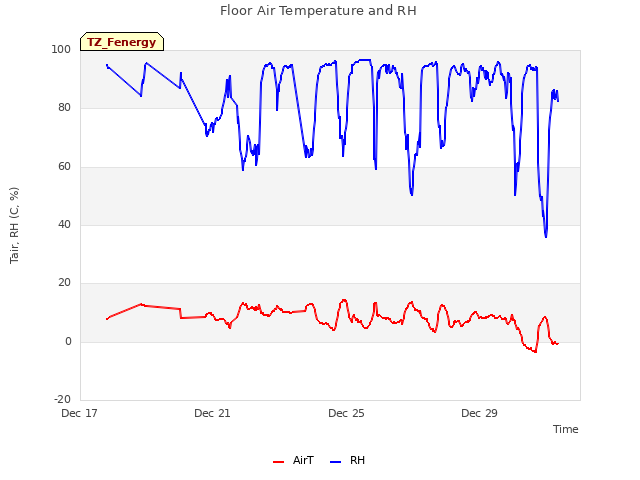

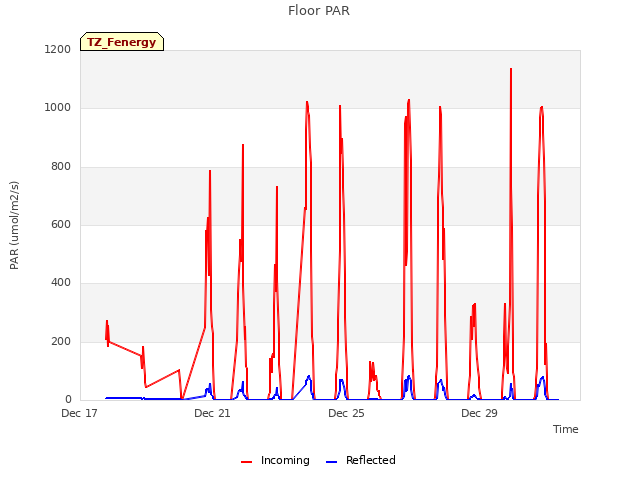

3 TZ_Fenergy graphs found

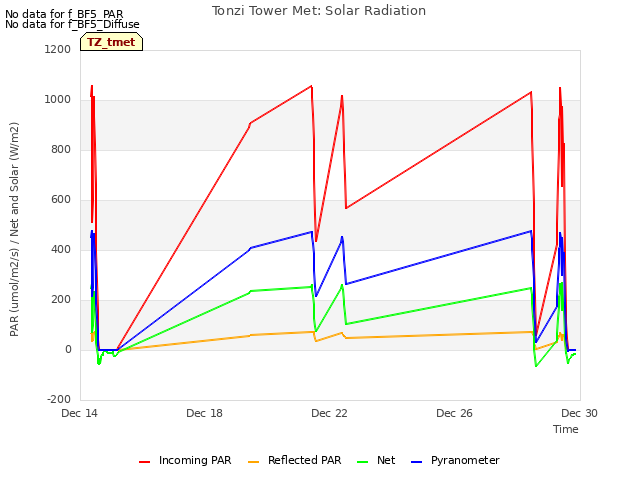

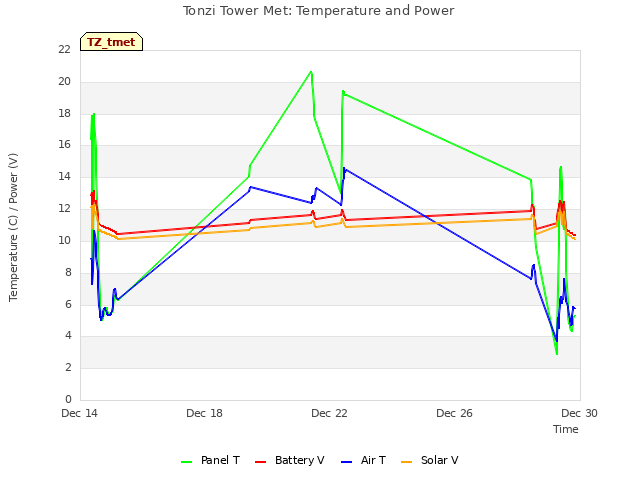

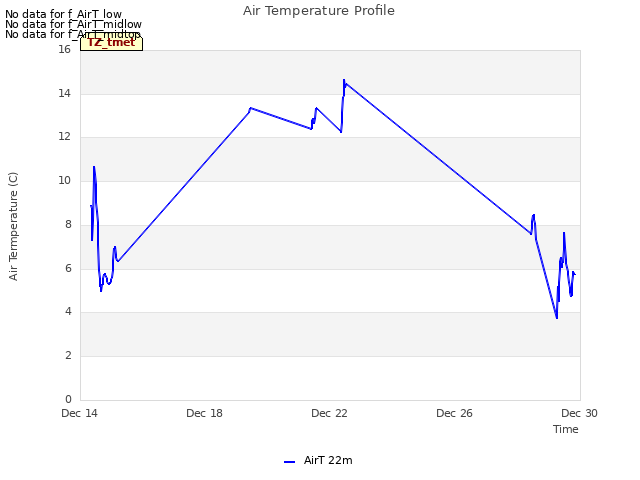

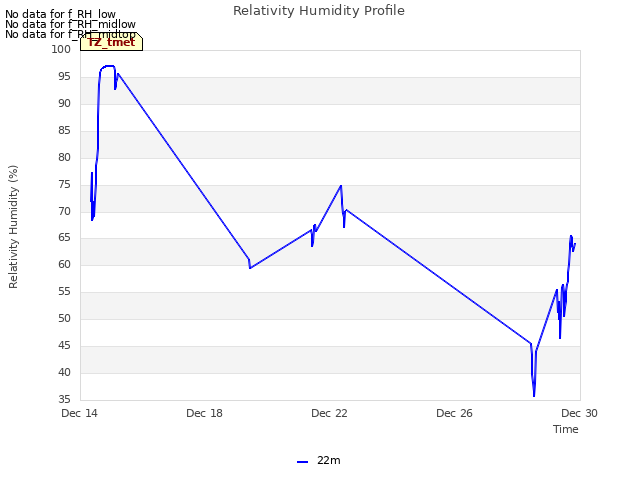

11 TZ_tmet graphs found

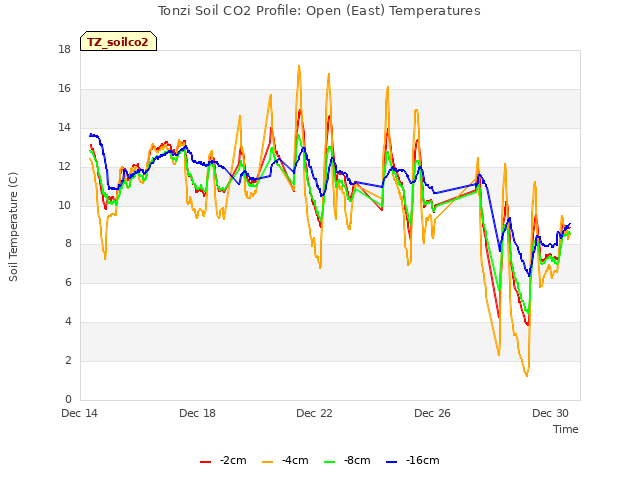

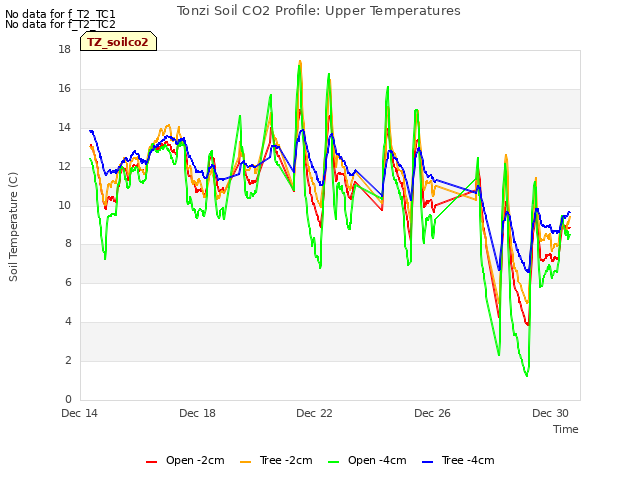

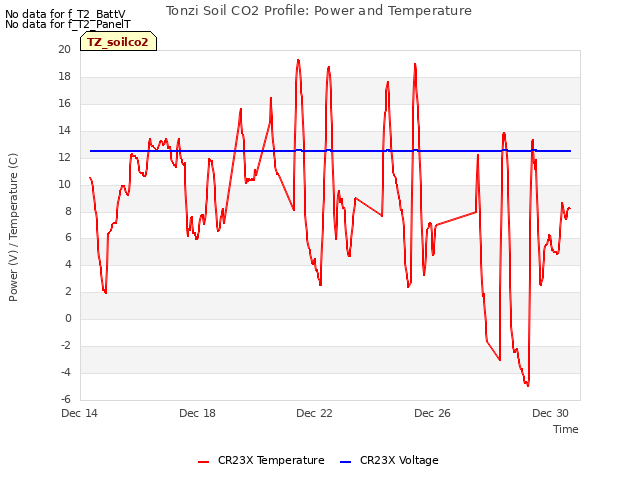

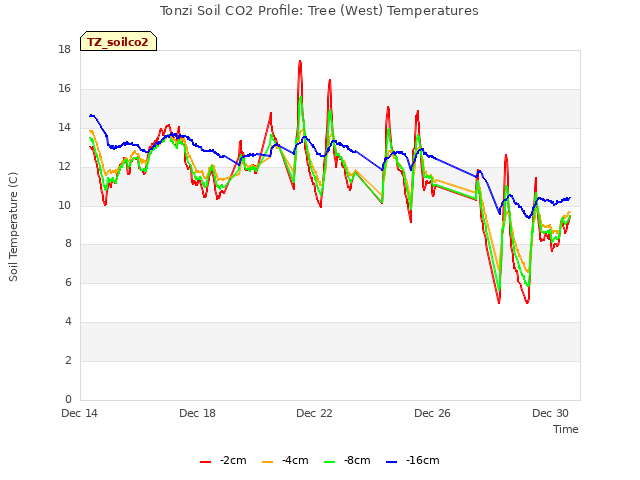

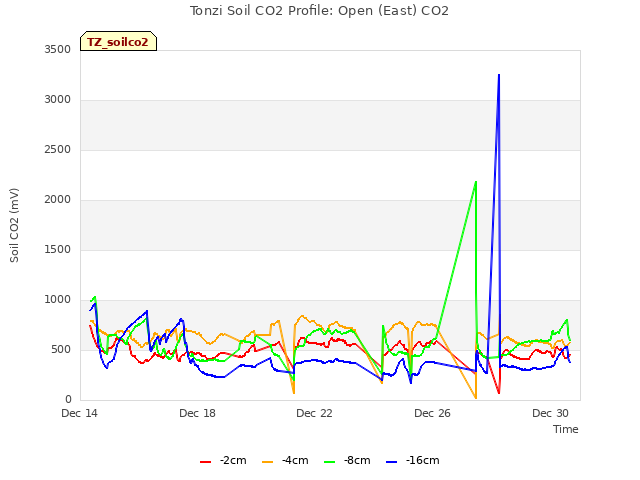

11 TZ_soilco2 graphs found
Can't check TZ_mixed

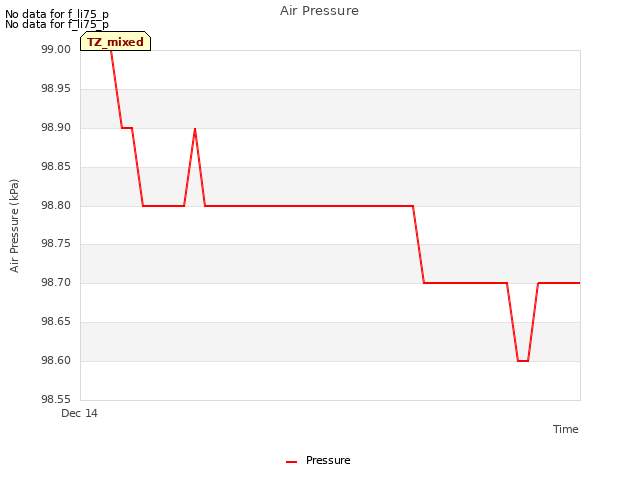

3 TZ_mixed graphs found
No data found for TZ_fflux.

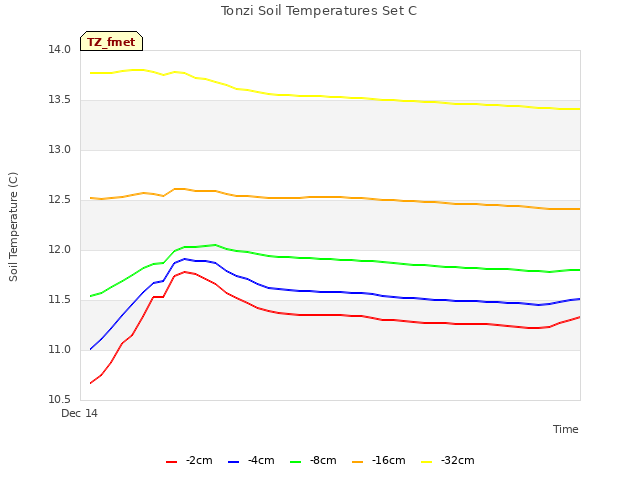

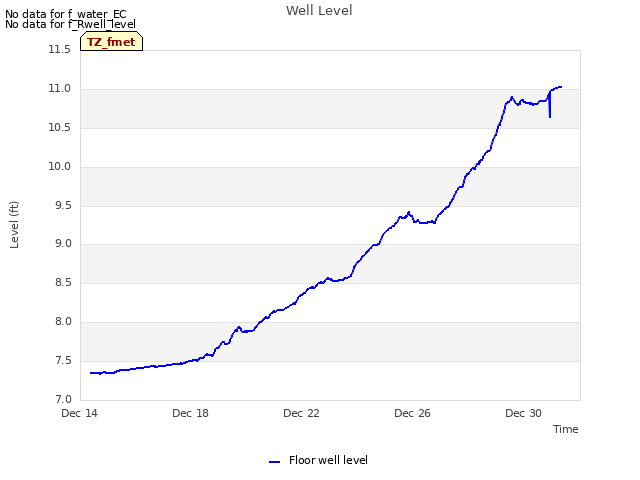

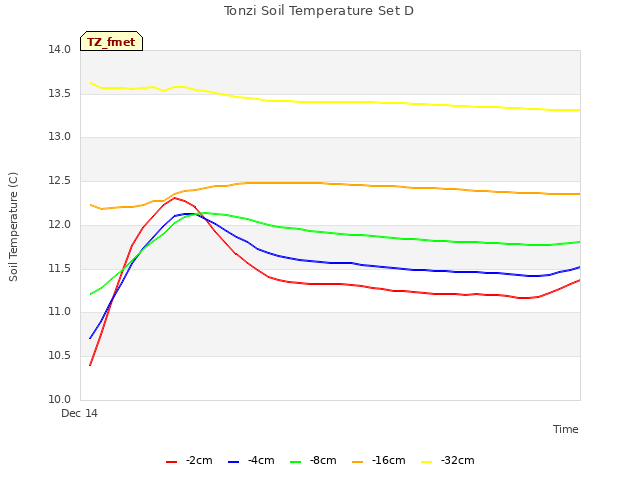

8 TZ_fmet graphs found
No data found for TZ_tram.
No data found for TZ_co2prof.
No data found for TZ_irt.
No data found for TZ_windprof.
No data found for TZ_tflux.

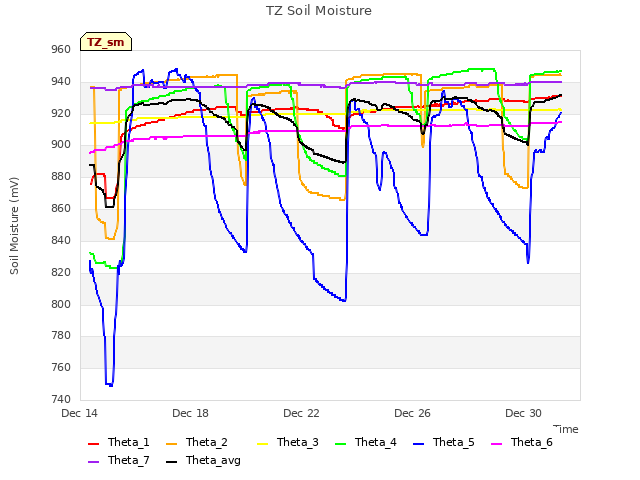

2 TZ_sm graphs found
Can't check TZ_met

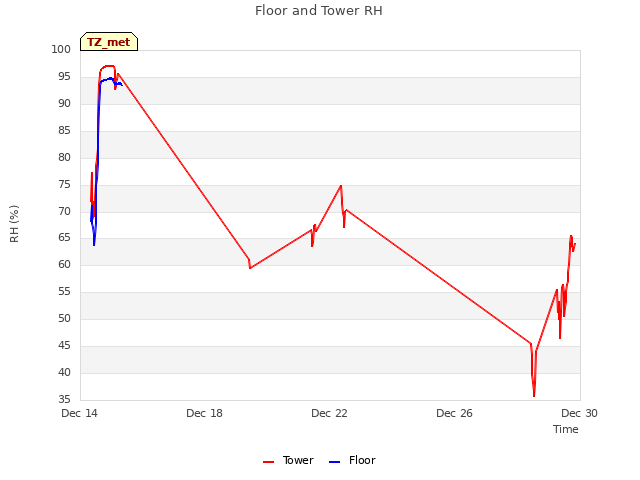

1 TZ_met graphs found
Can't check TZVR_mixed
No data found for TZ_osu.
No data found for TZ_fd.
Tonzi Z-cam data
