Field Notes

<--2023-03-01 11:00:00 | 2023-03-30 10:40:00-->
Other sites visited today: Tonzi
Phenocam link: Searching...

Vaira: 2023-03-16 10:40:00 (DOY 75)
Author: Joe Verfaillie
Others:

Summary: A break in the rain, Standard data collection, new laptop, swapped 7500 for calibration

Vaira
2023-03-16

I arrived at about 10:40 PDT (daylight savings again). It was clear and sunny with a cool breeze. Water is running and pooling everywhere still as it keeps raining. The grass is still growing slowly, mostly denser and not taller although the cows may be helping with that. If you look hard you might find some few leave on a tree.

I measured the well, collected the flux, met, camera and FD data. This was the first trip with a new laptop. I had to make some folder structures and install the FD software but otherwise it seemed fine. I swapped the IRGA from calibration, sn 75H-2176 came off and sn 75H-2514 went on.
2176 read: 427.5ppm CO2, 450.2mmol/m3 H2O, 15.9C, 99.8kPa, 102.7SS
2514 read: 428.8ppm CO2, 450.0mmol/m3 H2O, 15.7C, 99.8kPa, 101.5SS
I set the pressure coefficients, reset the clock and restarted the box.

Cows are putting pressure on the fence and the fence charger doesn’t seem to be working well. Need to test batteries and chargers in the lab for a swap.

Cows have also chewed on the cable for the Arable wind set – not sure if it is broken or not – need to check the data.

I did not go to the pond. I did spectra before I left – how do you flip the screen display?

I left at about 11:40

Field Data

No tank data

Well Depth

DateLocationDepth (feet)
2023-03-16VR_well47.75
2023-03-16TZ_floor19.1
2023-03-16TZ_road26.4
2023-03-16TZ_tower21.7

No TZ Moisture Point data found

No VR Moisture Point data found

No TZ grass heigth found

No VR grass heigth found

No VR Tree DBH found

No water potential data found

No VR Grass Biomass data found

No VR OakLeaves Biomass data found

No VR PineNeedles Biomass data found

1 photos found

Green grass but not leaves on the trees yet, soon though
Green grass but not leaves on the trees yet, soon though

Graphs display:
9 sets found

16 VR_met graphs found

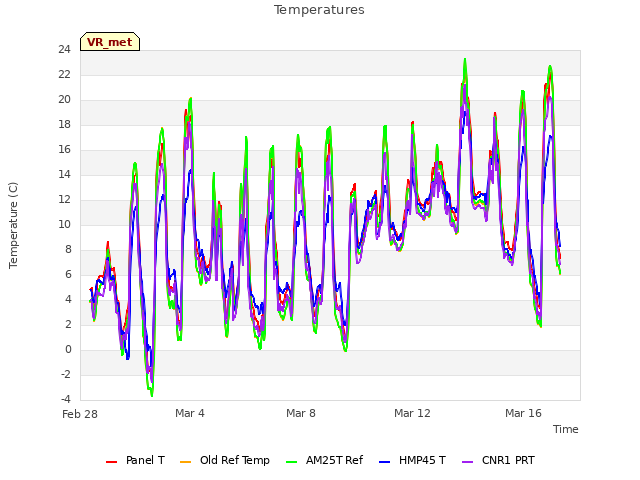

Explore the graph:Temperatures in a new window

Explore the graph:System Power Voltage in a new window

Explore the graph:Soil Temperatures Set 1 in a new window

Explore the graph:Soil Temperatures Set 2 in a new window

Explore the graph:Soil Temperature Set 3 in a new window

Explore the graph:Soil Temperature at -4cm in a new window

Explore the graph:Soil Heat Flux in a new window

Explore the graph:Soil Moisture in a new window

Explore the graph:Photosynthetic Active Radiation in a new window

Explore the graph:Short/Long Wave Radiation in a new window

Explore the graph:LED sensor in a new window

Explore the graph:Vaira PPT in a new window

Explore the graph:Peltier SHF Plates in a new window

Explore the graph:Peltier SHF Temperatures in a new window

Explore the graph:LED NDVI in a new window

Explore the graph:NDVI SRS Raw Data in a new window

2 VR_flux graphs found

Explore the graph:CO2 Density in a new window

Explore the graph:Sonic Wind in a new window

No data found for VR_soilco2.
2 VR_pond graphs found

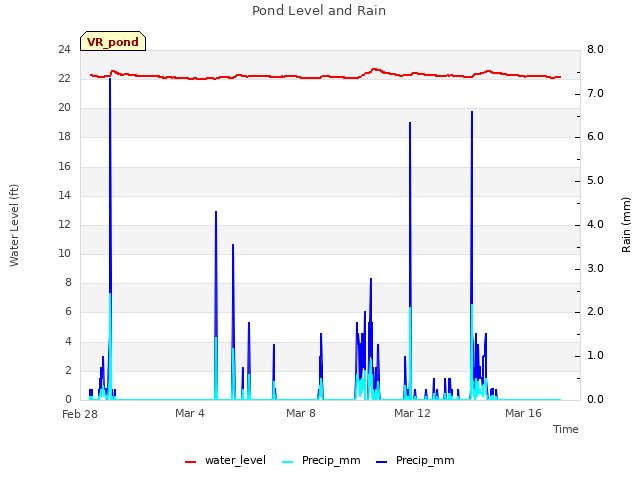

Explore the graph:Pond Level and Rain in a new window

Explore the graph:Vaira Pond Temperatures in a new window

Can't check TZVR_mixed
3 VR_fd graphs found

Explore the graph:Varia Forced Diffusion Soil CO2 Flux in a new window

Explore the graph:Vaira Forced Diffusion CO2 Concentration in a new window

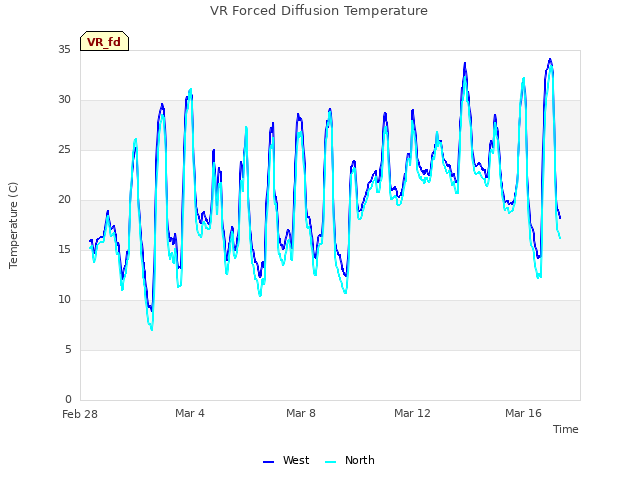

Explore the graph:VR Forced Diffusion Temperature in a new window

4 VR_processed graphs found

Explore the graph:VR VPD in a new window

Explore the graph:NEE in a new window

Explore the graph:Soil Water Content in a new window

Explore the graph:Gap Filled GPP in a new window

4 VR_arable graphs found

Explore the graph:Incoming bands in a new window

Explore the graph:Reflected Bands in a new window

Explore the graph:Solar Radiation in a new window

Explore the graph:Pressure and RH in a new window

6 VR_soilvue graphs found

Explore the graph:VR SoilVUE Profile B VWC in a new window

Explore the graph:VR SoilVue B Temperature in a new window

Explore the graph:VR SoilVue A Temperature in a new window

Explore the graph:VR SoilVue C Temperature in a new window

Explore the graph:VR SoilVUE Profile A VWC in a new window

Explore the graph:VR SoilVUE Profile C VWC in a new window
