Hill Slough: 2022-11-02 17:20:00 (DOY 306)
Author: Daphne Szutu
Others: Joe, Carlos, Ari

Summary: Regular data collection/cleaning, cold and windy, rearranged water sensors in channel

2022-11-02
Hill Slough

Joe, Carlos, Ari, and I arrived at 17:20 PDT. It was almost dusk, getting cold, and the cold breeze didn't help. There were many cumulus clouds after yesterday's rain and a few sprinkles and some nice rainbows earlier in the afternoon. More rain is expected this weekend and next week. It was near low tide and the water level was too low to read on the staff gauge.

Joe and Ari worked on checking and rearranging the channel sensors. Previously we had hung the miniDOT, eosGP, and CTD sensor on the same yellow chain from the same eyebolt. Since we need to pull the miniDOT up every month to download data, the depth of the other sensors kept changing. Today they moved the eosGP and CTD sensor to a second eyebolt where they should have a stable depth. The depth of all water sensors (miniDOT, eosGP, CTD, and EXO) were all about the same, between 178-183cm below the boardwalk.

Ari reported there was a fish living in the excess pantyhose on top of the miniDOT. Not too many shrimps in the eosGP sensor.

I downloaded met, cam, and USB GHG data. Carlos cleaned flux and rad sensors. Ari sampled some water from the sipper for a pore-water conductivity measurement back in the lab. We don't have the handheld YSI probe right now so we've been labeling the tubes and stashing them in the fridge for now.

Sample, temperature-compensated conductivity, temperature, notes
Porewater, 20.53 mS,,Sample stored in fridge before being measured 16:45 PST

The 7500 read: 411ppm CO2, 359mmol/m3 H2O, 15.1C, 101.9kPa, 99SS -- 101 after cleaning
The 7700 read: 1.97ppm CH4, 44RSSI – 72 after cleaning

We left at 17:45.

0 photos found

Graphs display:
4 sets found

20 HS_met graphs found

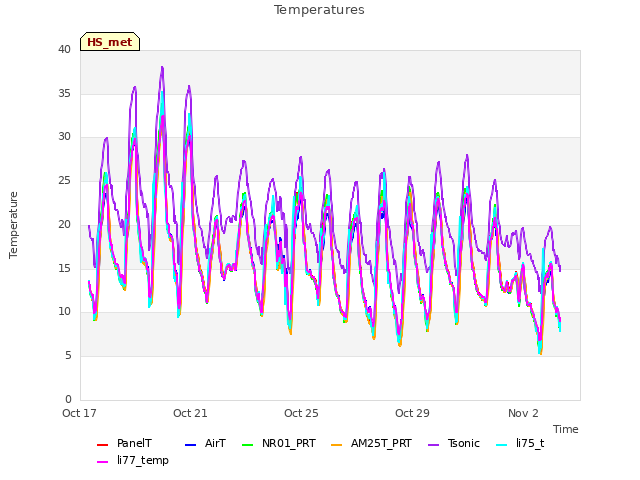

Explore the graph:Temperatures in a new window

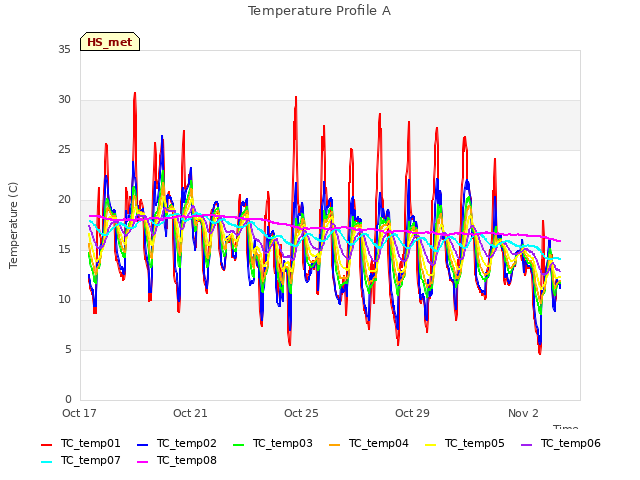

Explore the graph:Temperature Profile A in a new window

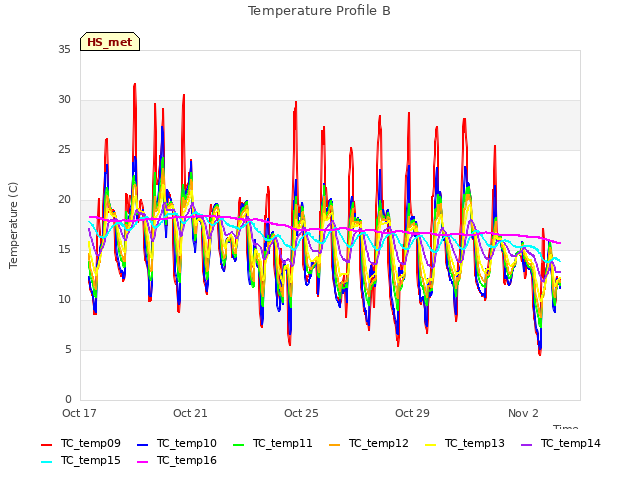

Explore the graph:Temperature Profile B in a new window

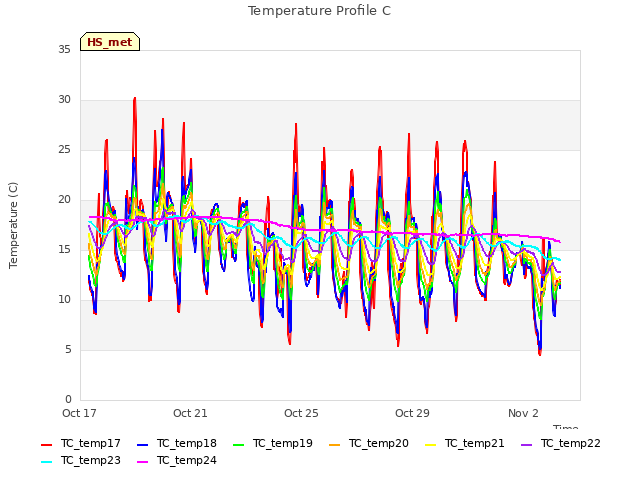

Explore the graph:Temperature Profile C in a new window

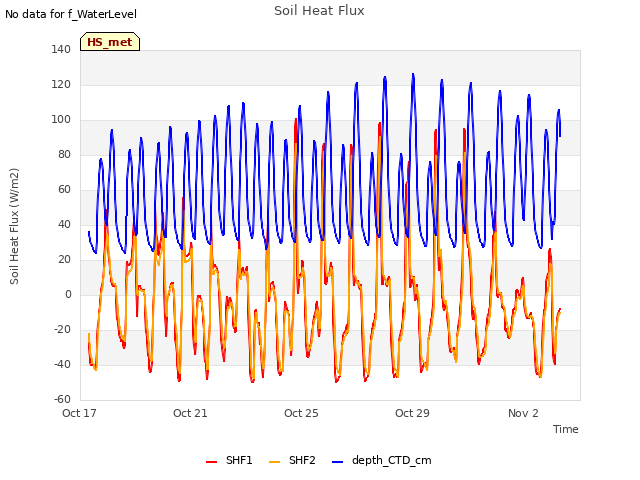

Explore the graph:Soil Heat Flux in a new window

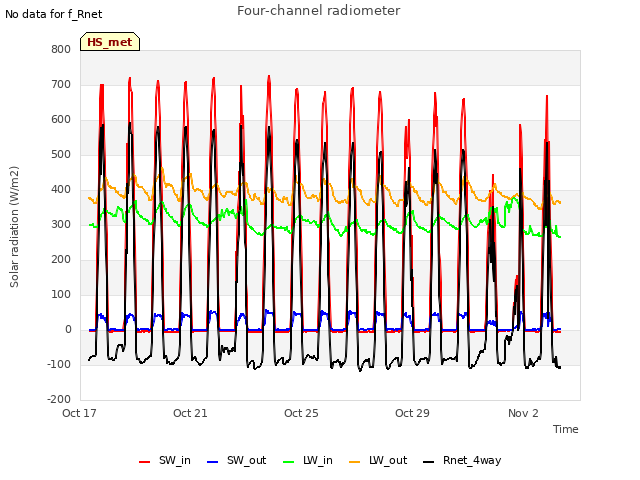

Explore the graph:Four-channel radiometer in a new window

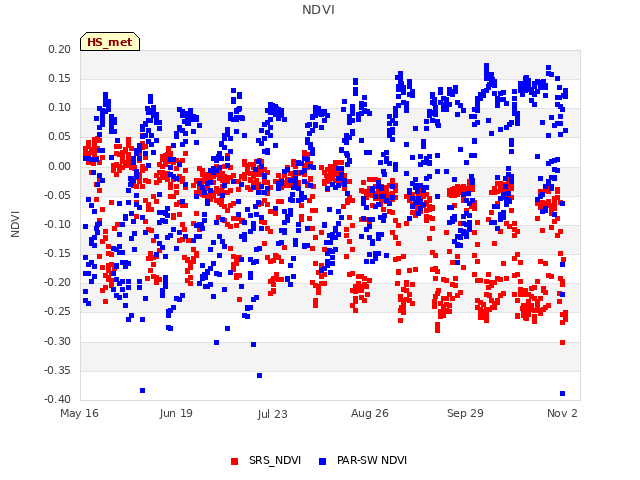

Explore the graph:NDVI Channels in a new window

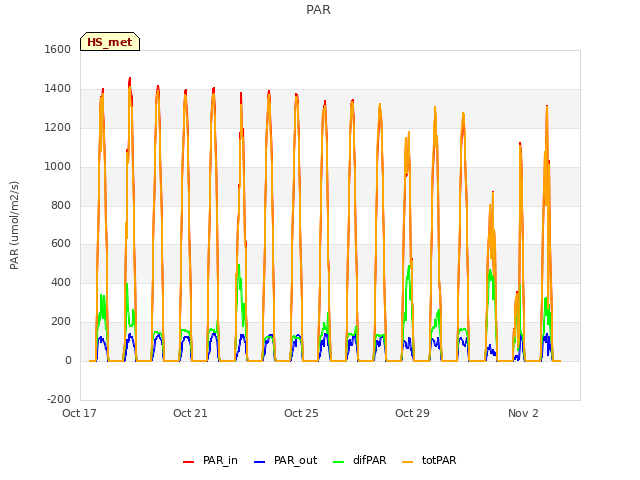

Explore the graph:PAR in a new window

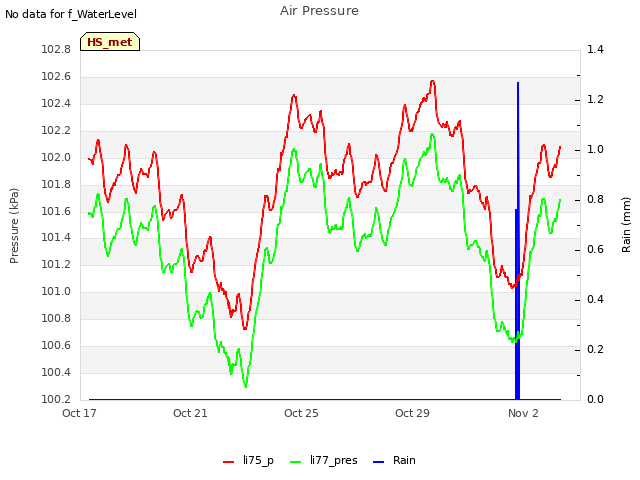

Explore the graph:Air Pressure in a new window

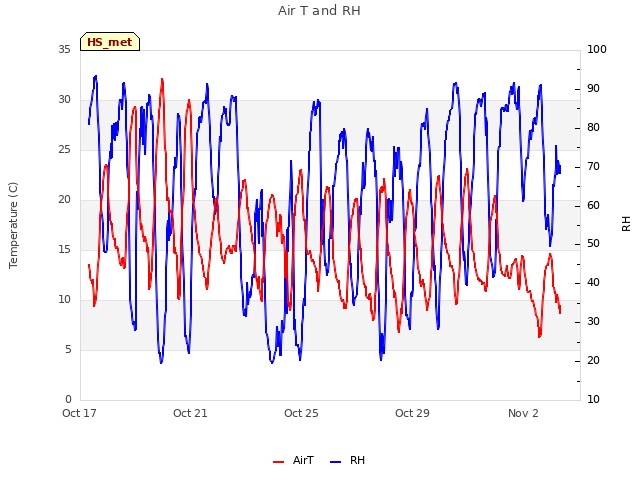

Explore the graph:Air T and RH in a new window

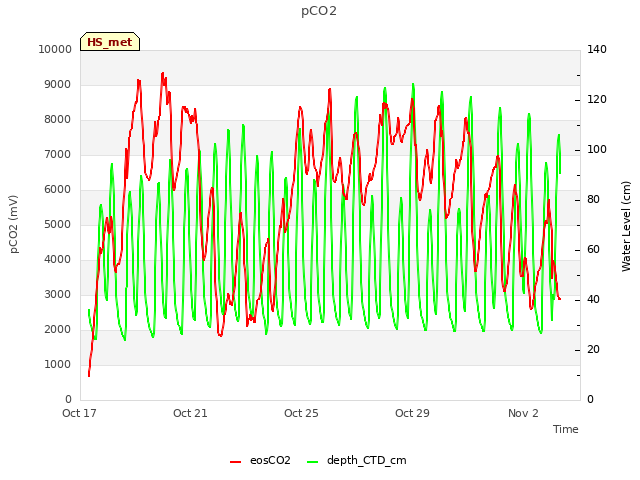

Explore the graph:pCO2 in a new window

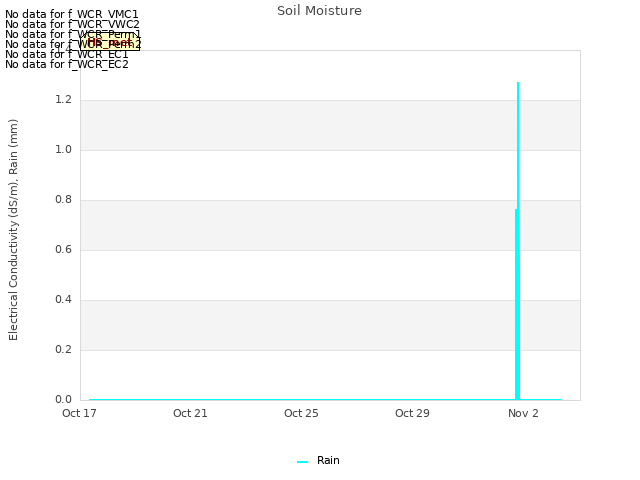

Explore the graph:Soil Moisture in a new window

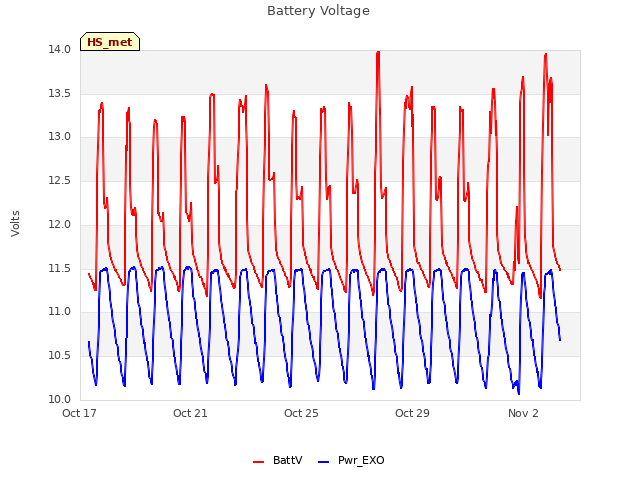

Explore the graph:Battery Voltage in a new window

Explore the graph:Forced Diffusion Soil CO2 Flux in a new window

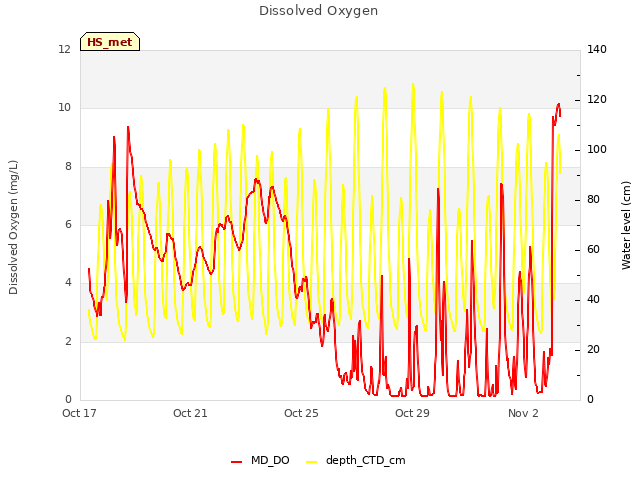

Explore the graph:Dissolved Oxygen in a new window

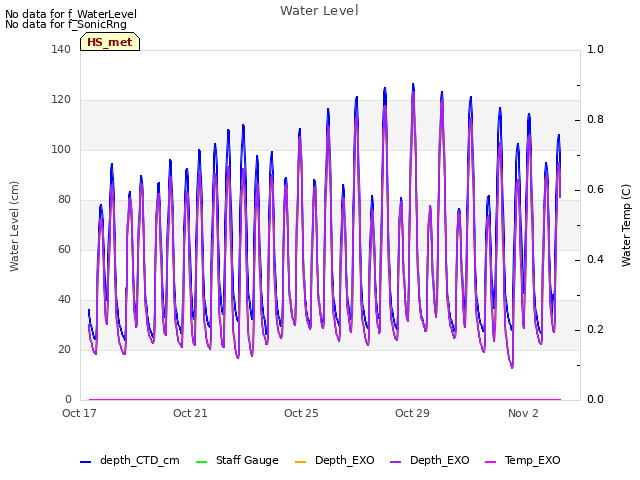

Explore the graph:Water Level in a new window

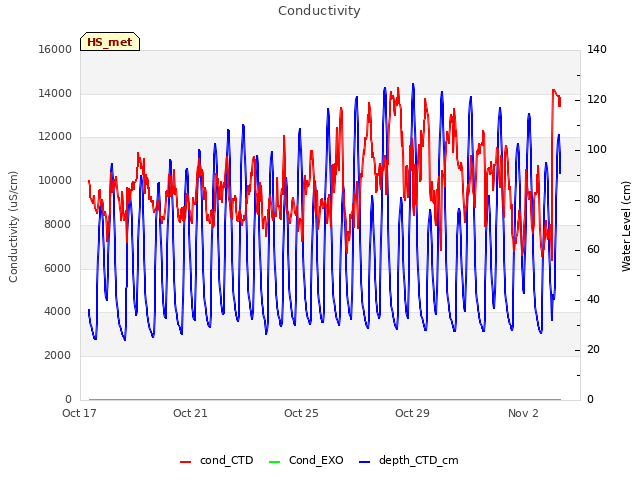

Explore the graph:Conductivity in a new window

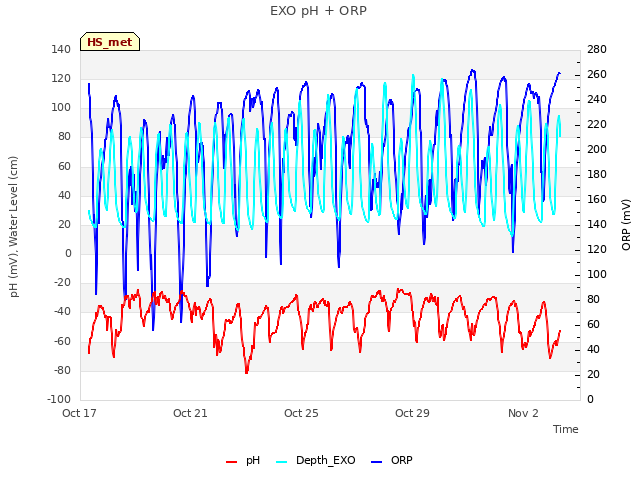

Explore the graph:EXO pH + ORP in a new window

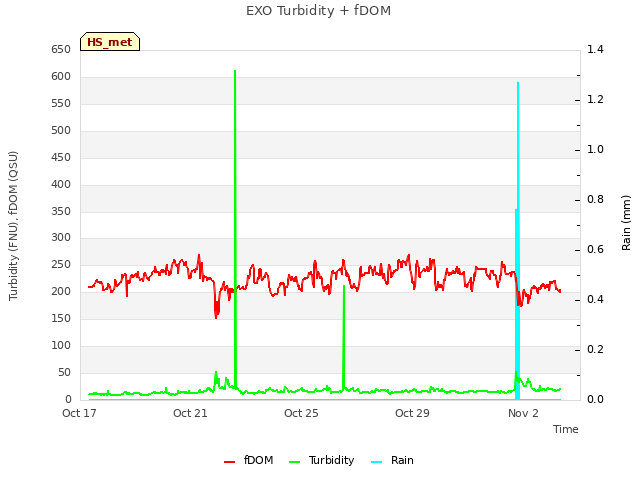

Explore the graph:EXO Turbidity + fDOM in a new window

Explore the graph:Water Temp in a new window

4 HS_flux graphs found

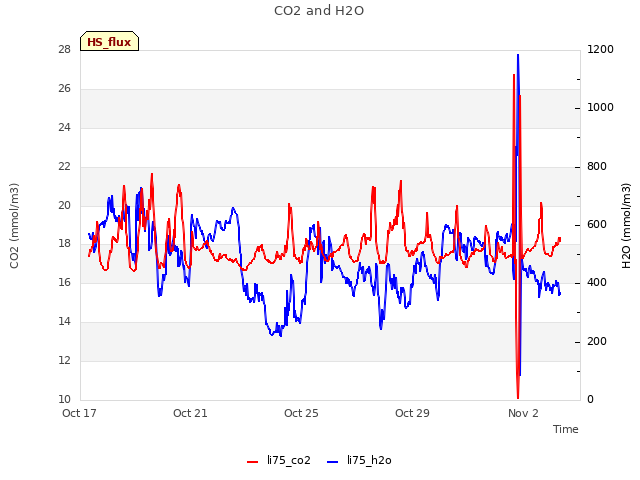

Explore the graph:CO2 and H2O in a new window

Explore the graph:Wind in a new window

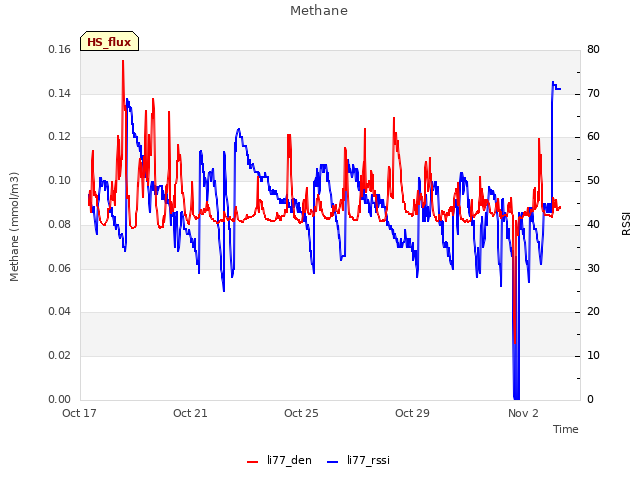

Explore the graph:Methane in a new window

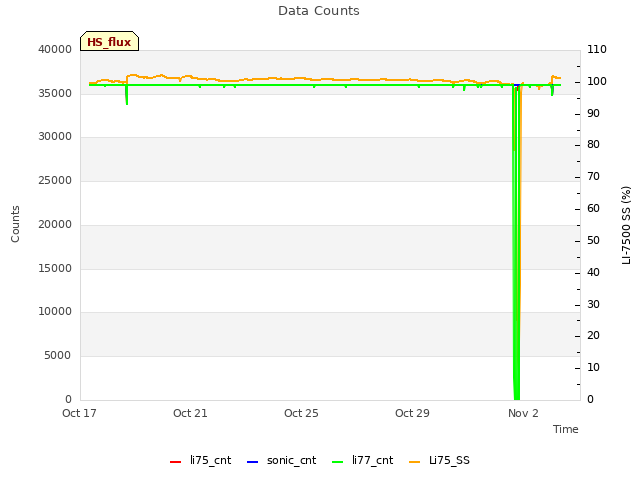

Explore the graph:Data Counts in a new window

1 HS_cam graphs found

Explore the graph:GCC in a new window

Can't check HS_Processed
2 HS_Processed graphs found

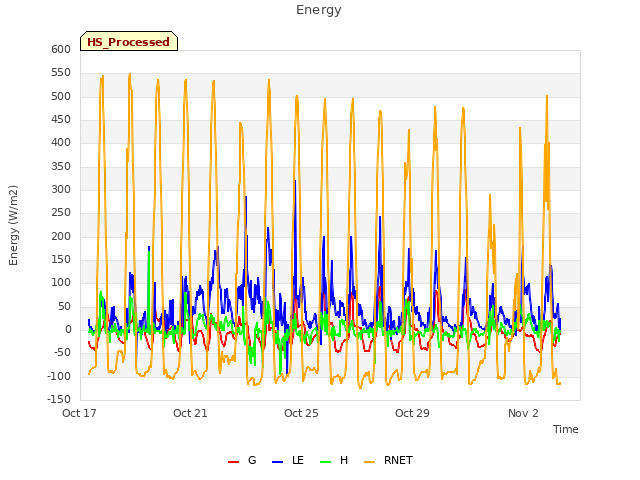

Explore the graph:Energy in a new window

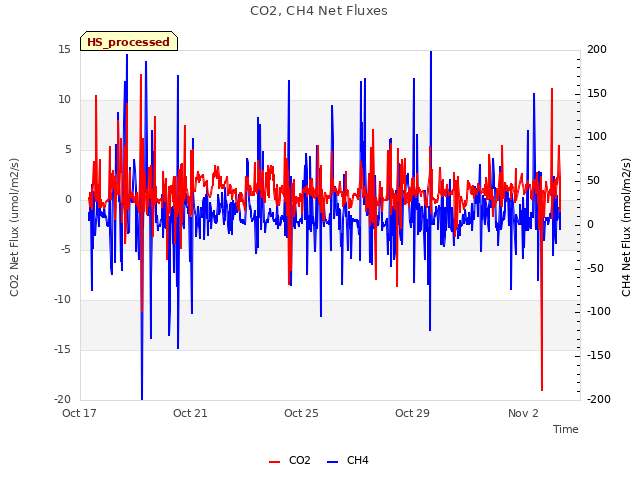

Explore the graph:CO2, CH4 Net Fluxes in a new window
