Vaira: 2022-08-18 12:05:00 (DOY 230)
Author: Joe Verfaillie
Others:

Summary: Hot and dry, swapped arable wind set, standard data collection, cow path at pond disturbed cable run.

Vaira
2022-08-18

I arrived at 12:05 PDT. It was clear, sunny and hot with some puffy clouds over the mountains. There was a bit of tropical rain at the coast on Wednesday, but doesn’t look like it fell here – the grass was crispy. I still need to do seasonal biomass!

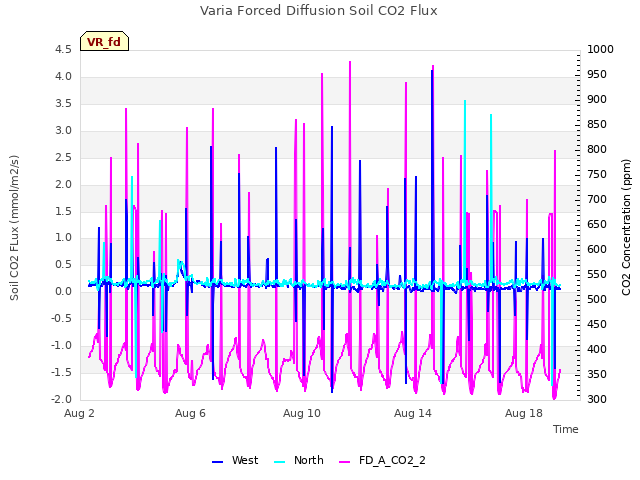

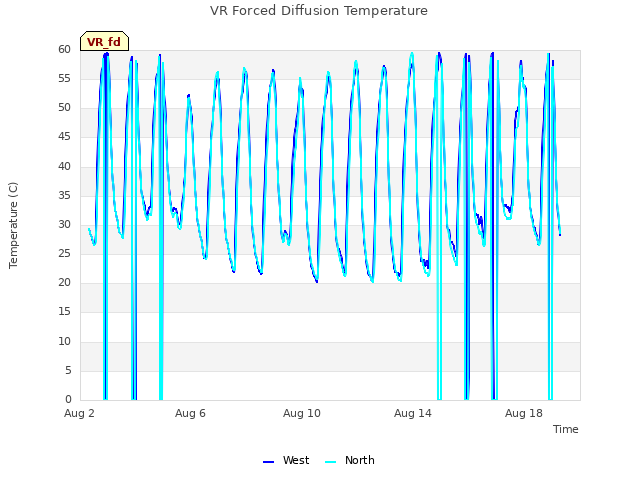

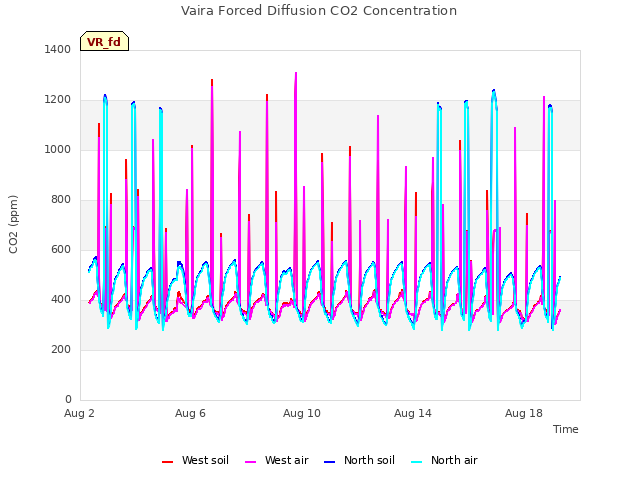

I measured the well and collected the data: flux, met, FD and camera.

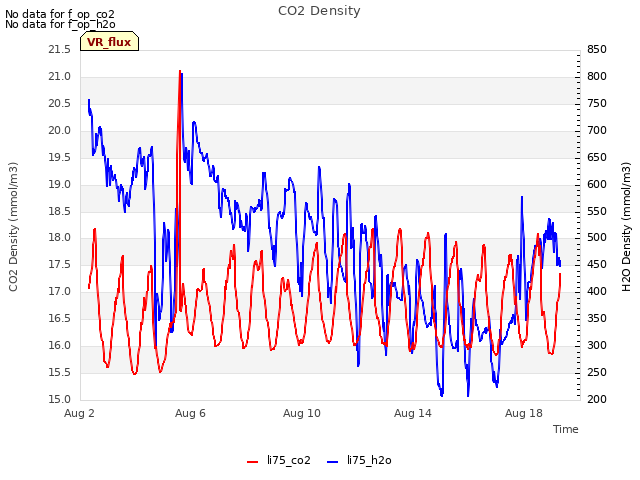

The 7500 read: 427.2ppm CO2, 494.0mmol/m3 H2O, 41.6C, 99.3kPa, 104.1SS

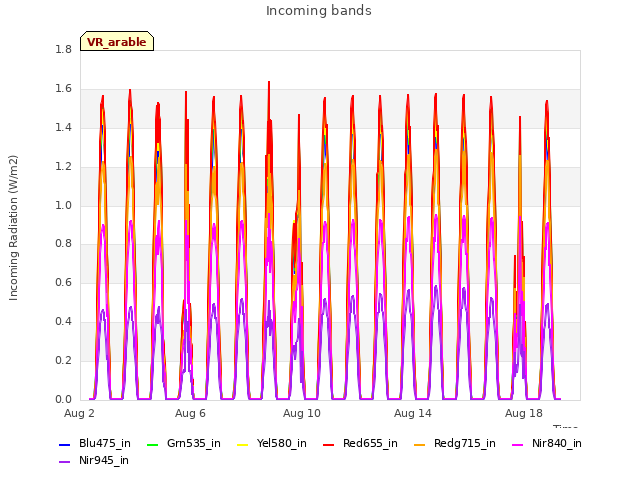

I also swapped the Arable wind set. The old one has been reporting wind direction but not wind speed. Taking the old one off I noticed that the phone jack connection looked like it had leaked and the contacts had corroded.

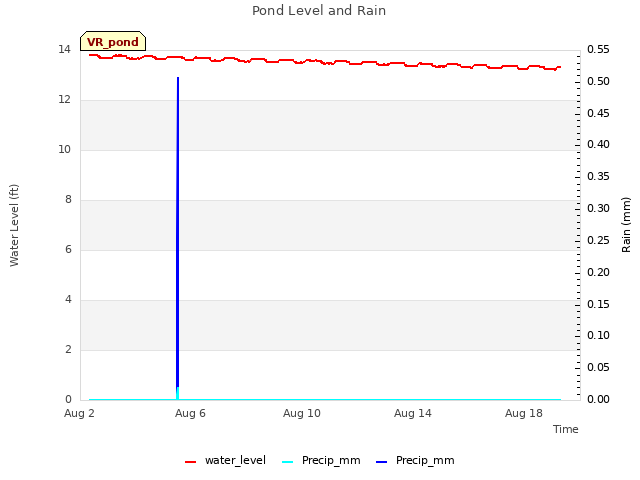

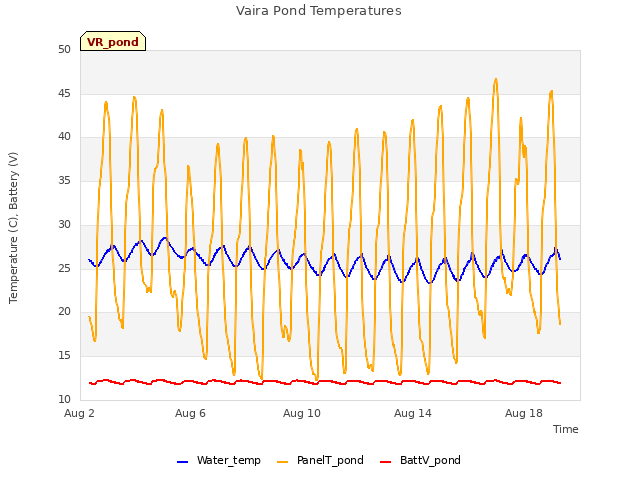

I went to the Pond. I haven’t seen any cows for a long time but it looks like cows have made a path along the edge of the receding pond and kicked the pressure sensor cable. I think they pulled some slack from the data logger box. I was able to push the extra cable back into the box and push the conduit under an existing rebar stake. I piled some rocks on top for good measure. The last staff gauge is visible and read 13.35ft – it was hard to read as the gauge was far from shore and dirty.

I left at about 13:20 PDT

Field Data

No tank data

Well Depth

Date	Location	Depth (feet)
2022-08-18	VR_well	58.2
2022-08-18	TZ_floor	29.1
2022-08-18	TZ_road	37.6
2022-08-18	TZ_tower	33.6

mode = both
Moisture Point Probes TZ
Array ( [0] => Tower_1 [1] => Soil_Transect_3_1 [2] => Soil_Transect_2_1 [3] => Soil_Transect_1_1 [4] => SoilCO2_West_A_1 [5] => SoilCO2_West_C_1 [6] => Tower_2 [7] => Soil_Transect_3_2 [8] => Soil_Transect_2_2 [9] => Soil_Transect_1_2 [10] => SoilCO2_West_A_2 [11] => SoilCO2_West_C_2 [12] => Tower_3 [13] => Soil_Transect_3_3 [14] => Soil_Transect_2_3 [15] => Soil_Transect_1_3 [16] => SoilCO2_West_A_3 [17] => SoilCO2_West_C_3 [18] => Tower_4 [19] => Soil_Transect_3_4 [20] => Soil_Transect_2_4 [21] => Soil_Transect_1_4 [22] => SoilCO2_West_A_4 [23] => SoilCO2_West_C_4 )

0000

Date	DOY	Rep	Depth	Tower_1	Soil_Transect_3_1	Soil_Transect_2_1	Soil_Transect_1_1	SoilCO2_West_A_1	SoilCO2_West_C_1	Tower_2	Soil_Transect_3_2	Soil_Transect_2_2	Soil_Transect_1_2	SoilCO2_West_A_2	SoilCO2_West_C_2	Tower_3	Soil_Transect_3_3	Soil_Transect_2_3	Soil_Transect_1_3	SoilCO2_West_A_3	SoilCO2_West_C_3	Tower_4	Soil_Transect_3_4	Soil_Transect_2_4	Soil_Transect_1_4	SoilCO2_West_A_4	SoilCO2_West_C_4	Spacial Count
2022-08-18	230	0	nan	5	0.6	2.7	0.1	7.1	2.1	10.9	12.1	11.9	3.5	6.6	10.9	13.7	12.3	15.9	12.6	14.8	11.5	26.2	19.9	27.6	13.3	10.2	13
2022-08-18	230	1	nan	3.9	0.1	2.7	0.6	8.8	2.4	11.8	12.4	11.2	3.9	6.9	11.2	13.1	12.3	15.4	12.6	15.1	10.9	26.8	19.9	28.2	13.9	11.9	13.9
2022-08-18	230	Avg	0-15cm																									0
2022-08-18	230	Avg	15-30cm																									0
2022-08-18	230	Avg	30-45cm																									0
2022-08-18	230	Avg	45-60cm																									0
