Vaira: 2022-08-05 10:00:00 (DOY 217)
Author: Joe Verfaillie
Others:

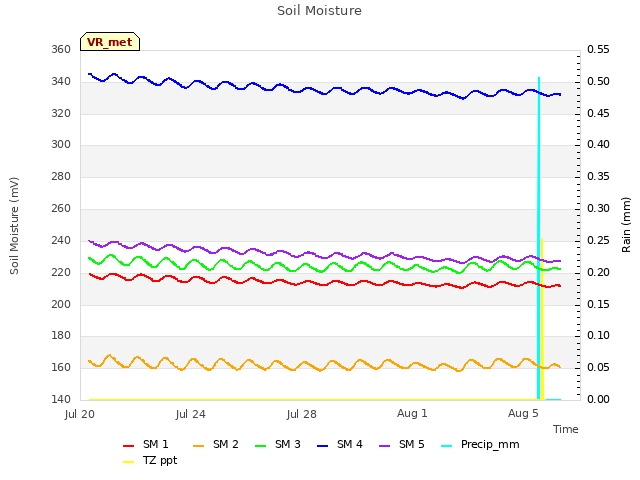

Summary: Standard data collection, maybe a little tropical rain recently

Vaira
2022-08-05

I arrived at about 10:00 PDT. It was mostly overcast with some blue sky to the west. The road from Sacramento had some wet spots along the edges and it smelled like damp earth. Here at Vaira it just seems humid – the grass is not so crispy but not wet either. No water at the bottom of the water hole. Big black ants were busy because of the cooler humid conditions I think.

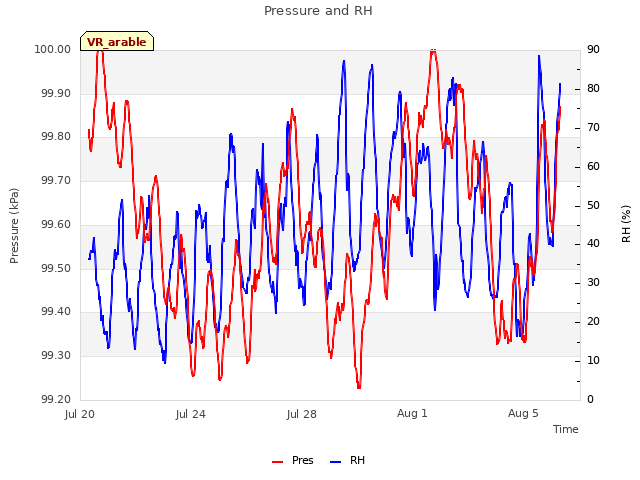

Loreli from Arable was here on 07/21 to install a prototype Mark III. Looks like she drove out to the tower and parked under the radiometers. I spliced a nick in the wind set cable with a screw terminal but wind speed (but not direction) is still missing from the Arable data afterwards. Maybe I’ll swap in the new wind set next time.

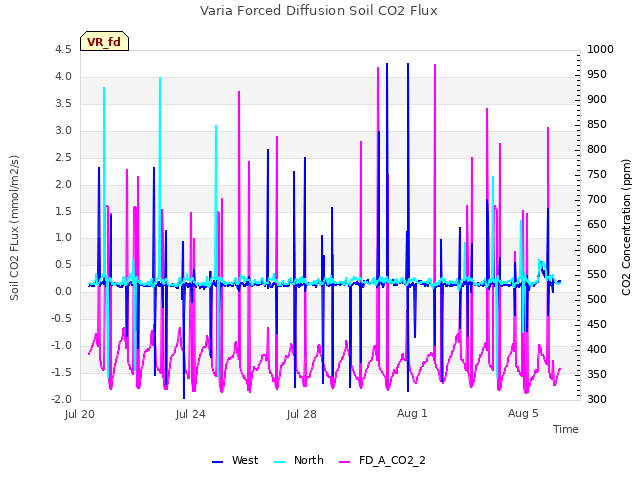

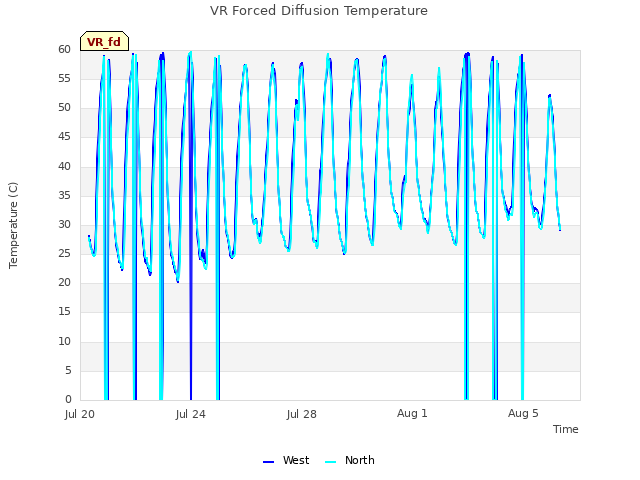

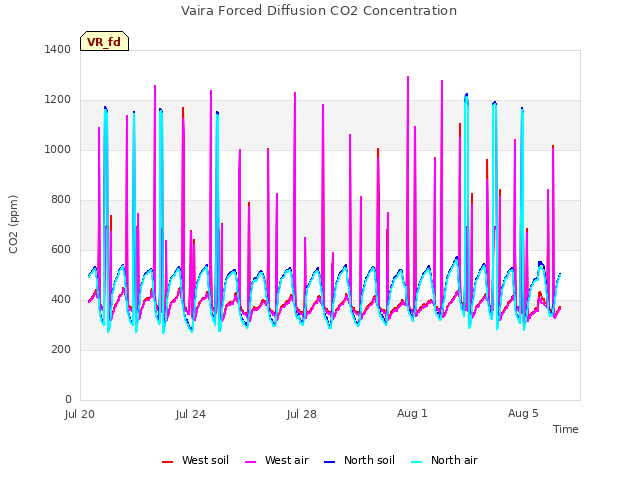

I measured the well and collected the flux, met, FD and camera data. The serial port was still a little funky but I think I got it straightened out at the end and was able to connect to the FDs and the CR1000.

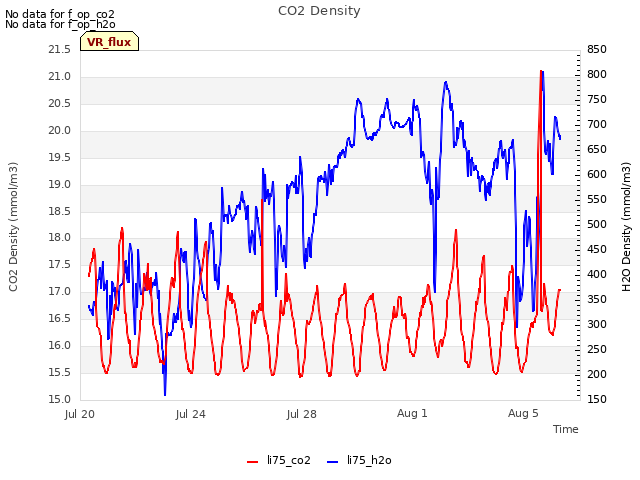

The 7500 read: 428.6ppm CO2, 711.5mmol/m3 H2O, 21.7C, 99.5kPa, 104.6SS after cleaning

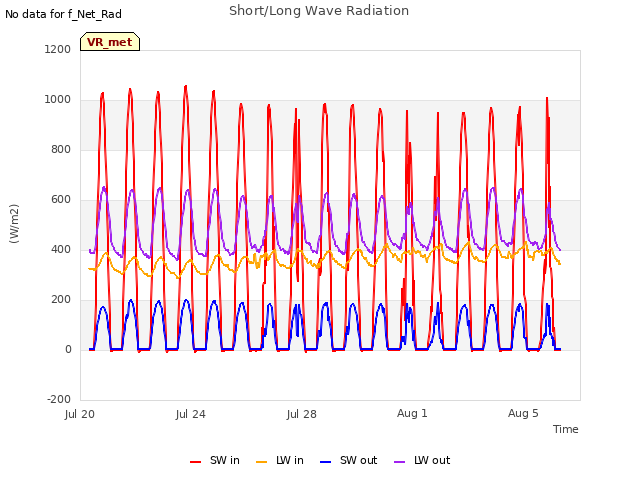

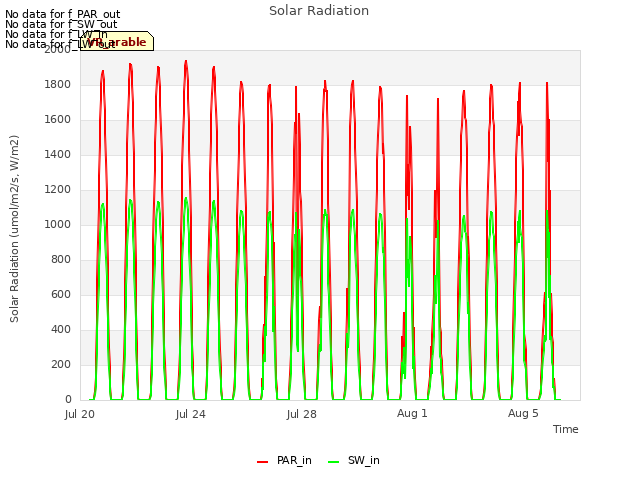

I cleaned the radiometers that were definitely spotted with a little bit of dried rain.

I left at about 11:00

Field Data

No tank data

Well Depth

Date	Location	Depth (feet)
2022-08-05	VR_well	57.85
2022-08-05	TZ_floor	28.5
2022-08-05	TZ_road	37.25
2022-08-05	TZ_tower	35

mode = both
Moisture Point Probes TZ
Array ( [0] => Tower_1 [1] => Soil_Transect_3_1 [2] => Soil_Transect_2_1 [3] => Soil_Transect_1_1 [4] => SoilCO2_West_A_1 [5] => SoilCO2_West_C_1 [6] => Tower_2 [7] => Soil_Transect_3_2 [8] => Soil_Transect_2_2 [9] => Soil_Transect_1_2 [10] => SoilCO2_West_A_2 [11] => SoilCO2_West_C_2 [12] => Tower_3 [13] => Soil_Transect_4_3 [14] => Soil_Transect_3_3 [15] => Soil_Transect_2_3 [16] => Soil_Transect_1_3 [17] => SoilCO2_West_A_3 [18] => SoilCO2_West_C_3 [19] => Tower_4 [20] => Soil_Transect_4_4 [21] => Soil_Transect_3_4 [22] => Soil_Transect_2_4 [23] => Soil_Transect_1_4 [24] => SoilCO2_West_C_4 [25] => SoilCO2_West_A_4 )

0000

Date	DOY	Rep	Depth	Tower_1	Soil_Transect_3_1	Soil_Transect_2_1	Soil_Transect_1_1	SoilCO2_West_A_1	SoilCO2_West_C_1	Tower_2	Soil_Transect_3_2	Soil_Transect_2_2	Soil_Transect_1_2	SoilCO2_West_A_2	SoilCO2_West_C_2	Tower_3	Soil_Transect_4_3	Soil_Transect_3_3	Soil_Transect_2_3	Soil_Transect_1_3	SoilCO2_West_A_3	SoilCO2_West_C_3	Tower_4	Soil_Transect_4_4	Soil_Transect_3_4	Soil_Transect_2_4	Soil_Transect_1_4	SoilCO2_West_C_4	SoilCO2_West_A_4	Spacial Count
2022-08-05	217	0	nan	4.2	0.6	2.7	0.3	6.5	2.7	10.6	12.4	11.2	4.5	6.3	11.2	14.3	9.8	12.3	15.9	12.9	14.5	11.7	26.8	11.6	20.5	28.5	14.5	14.5
2022-08-05	217	1	nan	4.5	1.2	2.7	0.3	6.2	1.8	11.5	13	12.4	3.9	6.3	11.2	14.3	9.5	12.3	15.4	12.9	14.5	11.7	27.1	11.9	20.2	28.2	13.6	13.6	10.2
2022-08-05	217	Avg	0-15cm																											0
2022-08-05	217	Avg	15-30cm																											0
2022-08-05	217	Avg	30-45cm																											0
2022-08-05	217	Avg	45-60cm																											0
