Bouldin Corn: 2022-02-17 11:15:00 (DOY 48)
Author: Daphne Szutu
Others: Carlos

Summary: Regular data collection/cleaning, reinstalled FD chamber, mounted power box enclosure, changed phenocam clock +1min, changed eddy clock +1min

2022-02-17
Bouldin Corn

Carlos and I arrived at 11:15 PST. It was mild, sunny, and mostly still. The field is mostly dry now with just a few puddles remaining.

We drilled new holes into the power box enclosure’s backplate and mounted it to the new metal pole with u-bolts.

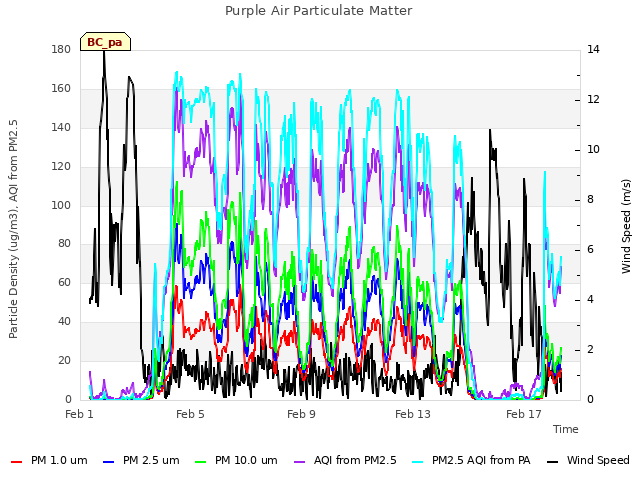

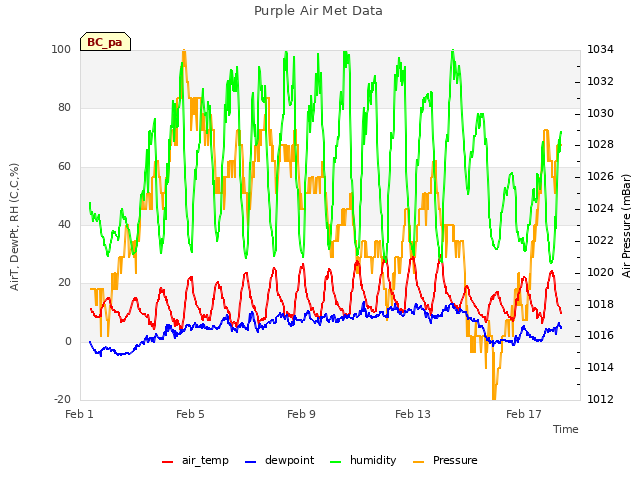

I downloaded met, cam, and USB GHG data. I downloaded the PA data and power cycled it. I downloaded the IRT data by swapping the microSD card and using CardConvert to convert the fast data to TOB1 and the slow data to TOA5.

I changed the phenocam clock +1min from 12:02 to 12:03 to match the laptop time. I also changed the eddy clock +1min from 12:01 to 12:02 and restarted logging after the change.

Carlos cleaned flux and rad sensors and topped off the wash reservoir. There was a dead fly on the lower 7700 mirror.

We installed the eosFD chamber sn FD20180067 under the tower. I confirmed that its clock matched the laptop time and that sampling frequency was set at 5min.

LI-7500 readings:
CO2 437ppm
H2O 377ppm
T 14.6C
P 102.6kPa

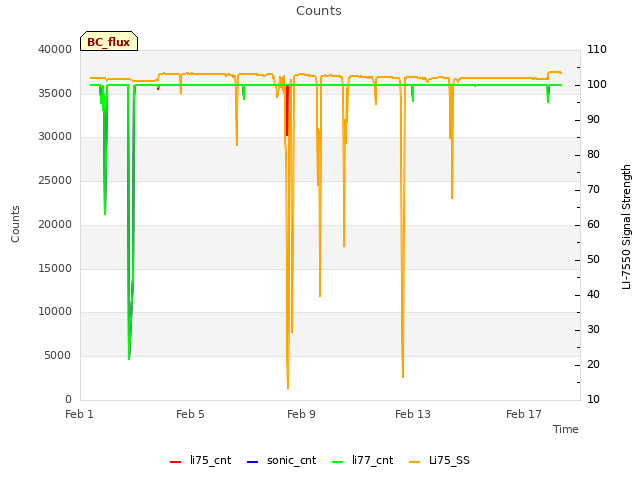

SS 101 --> 103 after cleaning
LI7700 readings:
CH4 2.5ppm
RSSI 37 --> 78 after cleaning

We left at 12:10 PST.

0 photos found

6 sets found

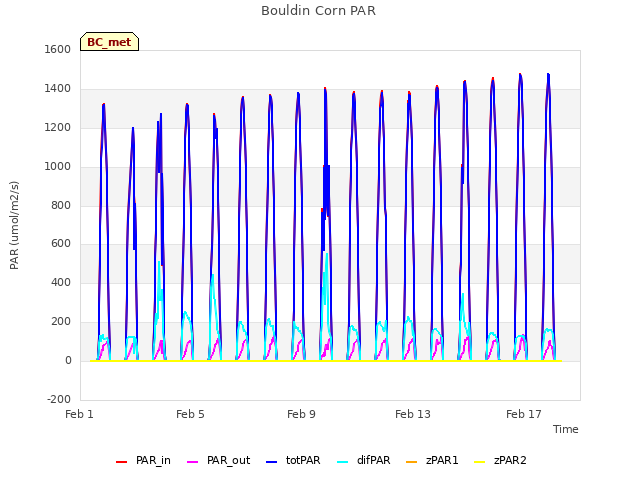

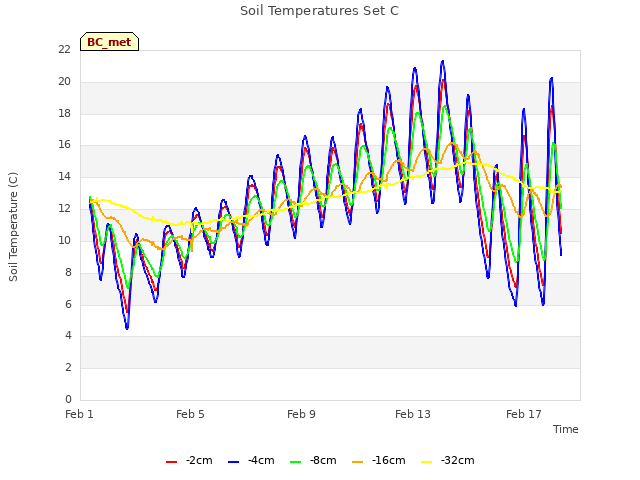

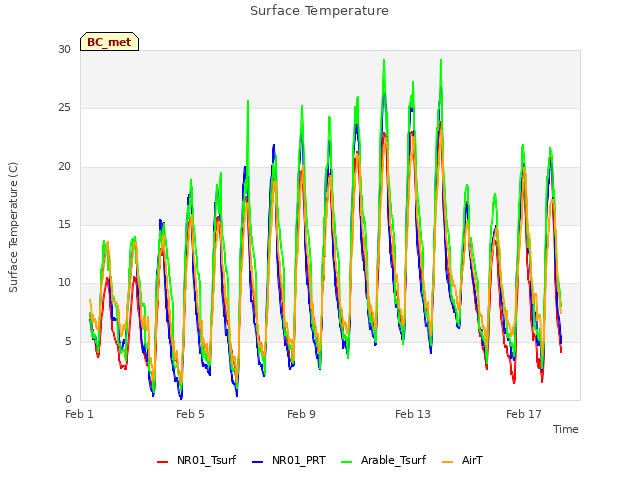

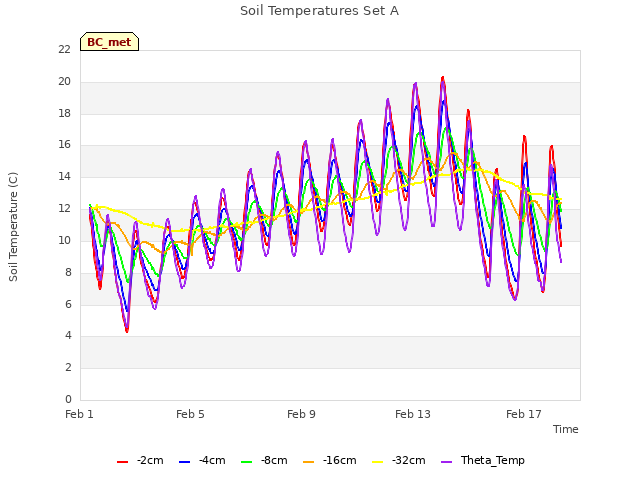

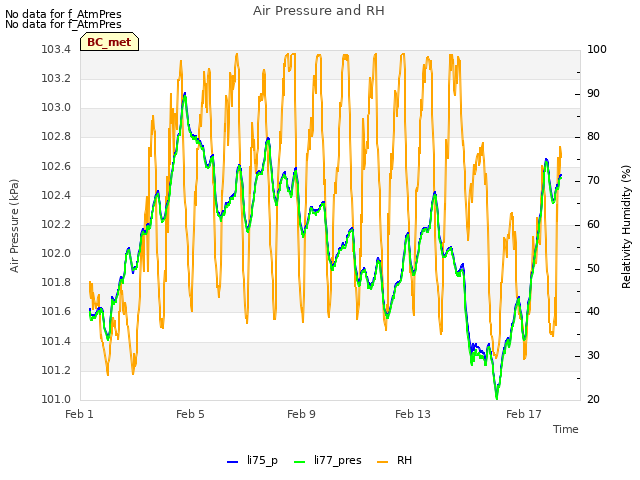

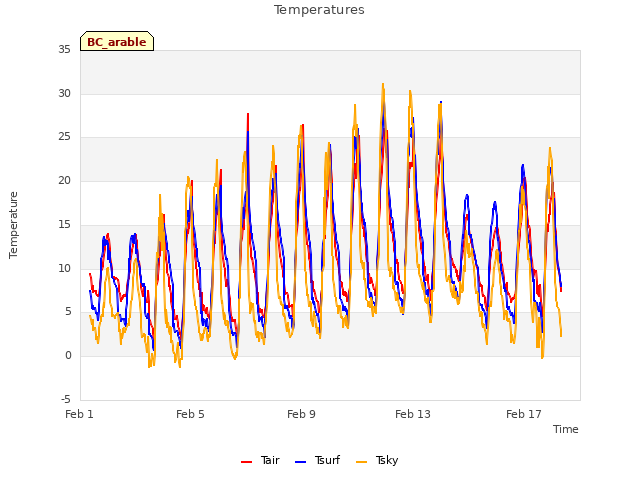

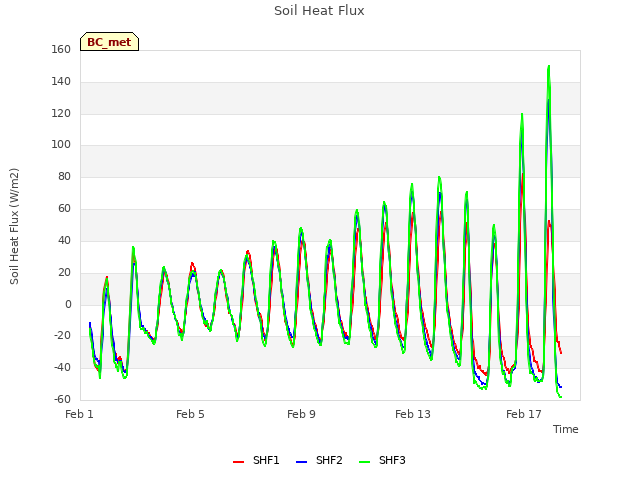

17 BC_met graphs found
