Gilbert Tract: 2021-09-02 15:30:00 (DOY 245)
Author: Joe Verfaillie
Others: Daphne, Robert, Dennis
Summary: Initial setup of this site, solar, eddy, camera, diffuse PAR and much of the met should all be running. Still some work to do.
| Gilbert Tract 2021-09-02 Daphne, Robert, Dennis and I arrived at about 15:30 PDT. This is the initial setup of this site. We moved the all the equipment from the Sherman Wetland site to this new site. This site is on the southeastern edge of the Gilbert Tract of the Dutch Slough Wetland Restoration Project. We followed a dump truck in through the gate. Contractors are working on the breach for the Emerson Tract to the west which will make that parcel tidal. The Gilbert Tract Parcel should also be breached in a month or so. The water level in the wetland is currently close to the high tide mark. We installed the tower and solar power scaffolding at the edge of the water. The towers are on the border of the wetland and the native plants on the slope of the levee. The main tower feet are on cinder blocks and the solar power scaffolding is on broken concrete pieces that we scavenged. Equipment installed: Licor LI-7700, sn TG1-0424 Licor LI-7550, sn AIU-1569 Licor LI-7500A, sn 0041 Gill WM 1590, sn 120906 Campbell Sci. CR1000, sn 38211 Campbell Sci. AM25T, sn 7909 Campbell Sci. AM16/32B, sn 21689 Campbell Sci. NL115, sn 13054 Campbell Sci. CS547A, sn 5688 - moved to this site but not installed Campbell Sci. CR10X, sn 25799 Kipp & Zonen PQS 1, sn 140457 Kipp & Zonen PQS 1, sn 140454 Kipp & Zonen PQS 1, sn 140450 Hukseflux NR01, sn 2466 Decagon-METER SRS-Pi PRI, sn 912903006 Decagon-METER SRS-Pr PRI, sn 930203026 Decagon-METER SRS-Ni NDVI, sn 882103059 Decagon-METER SRS-Ni NDVI, sn 2046503404 Vaisala PTB110, sn L2510774 Vaisala HMP45AC, sn W0730036 Stardot Netcam SC, sn 0030F4D214A5 Midnite Solar MNKID-B, sn KB15214 Fabricated BB-Fab, sn BB-SW Kyosera KU265-6MCA, sn 158APW4M0000193 Kyosera KU265-6MCA, sn 158APW4M0000190 Water level sn 20010026 moved to this site but not installed Further TODO list: Recheck that the scaffolding and sensors are level Improve tie downs on main tower - wire rope, Add tie downs on solar panel tower - fence posts, eye-bolt turnbuckles, wire rope, carabiners Add revamped soil temperature profiles Air temperature dongle for 7550 box Install well pipe for water pressure sensor - auger, waders Add MiniDot Add dissolved CO2 Better wood screws with WASHERS for diffuse PAR and camera mounts Measure sensors locations and sonic heading Add lock to the action packer holding the batteries? Move data logger box to add slack to cable runs – 2†1/4-20s Security nuts on solar controller box U-bolts Install staff gauge Replace wood in one boardwalk Plug-in solar panels We left at about 7pm |
4 photos found
After a long hard day the tower is up and running
View of the new Gilbert Tract site at Dutch Slough
Dutch Slough flux sensors
Panoramic of Doutch Slough tower
8 sets found
Can't check MBWPEESWGT_mixed
Can't check MBEEWPSWEPGT_cam
No data found for GT_met.
No data found for GT_flux.
No data found for GT_adcp.
No data found for GT_cam.

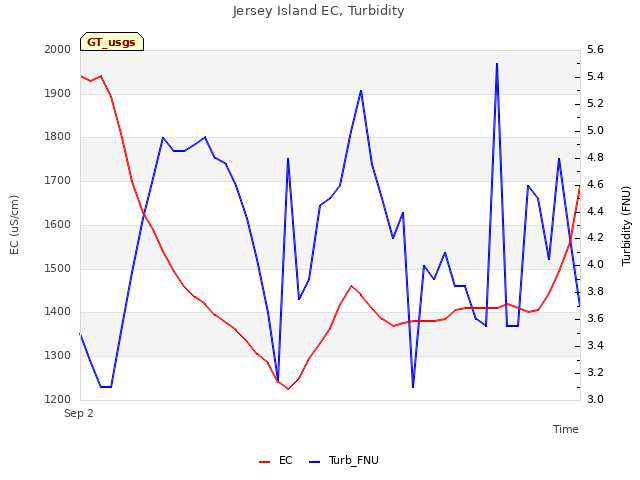

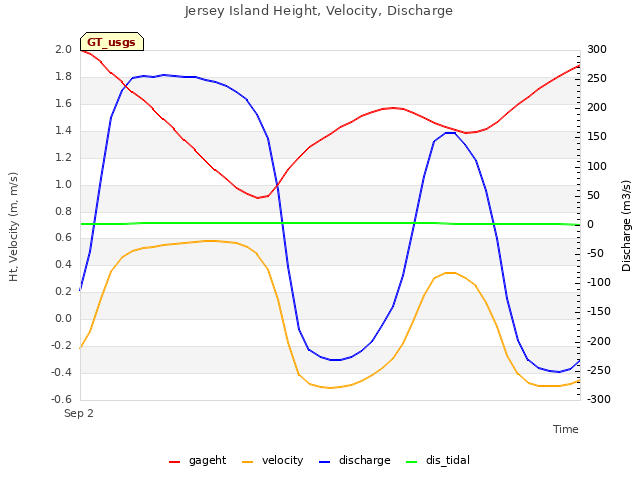

2 GT_usgs graphs found

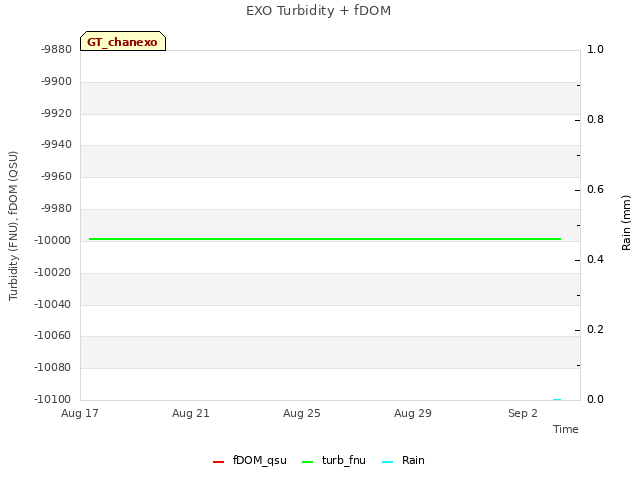

2 GT_chanexo graphs found
